XRF Coating Thickness Gauge

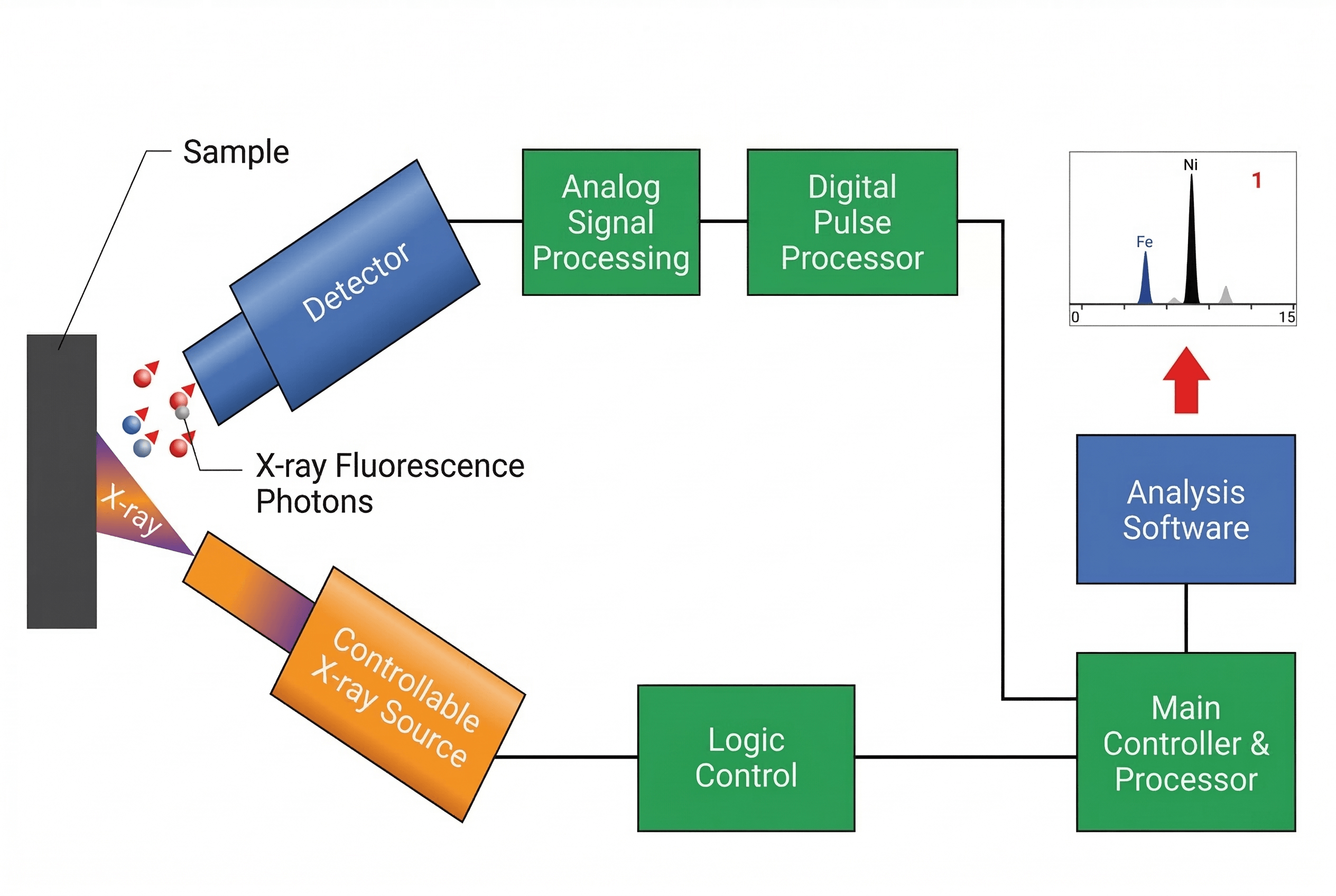

Working Principle
The LONN‑T850 employs advanced X‑ray Fluorescence (XRF) technology to deliver precise non‑destructive testing. Its built‑in X‑ray source steadily irradiates the test sample, stimulating the emission of characteristic fluorescent photons from elements in the coating and substrate. These photons are efficiently captured by a high‑sensitivity SDD or Si‑Pin detector, which converts the optical signals into stable electrical signals. The 4096‑channel digital pulse processor then digitizes and accurately sorts these signals based on the unique energy levels of each element. Finally, the dedicated professional analytical software performs accurate spectral deconvolution to precisely calculate both coating thickness and elemental content for reliable, repeatable measurement results.
Safety Protection
Built with multiple radiation safety protections (automatic X-ray shutoff, radiation‑shielding structure), ensuring safer operation.
Precision XRF Thickness Measurement
Equipped with vacuum system and patented ULS optical path, the detection range covers 1ppm to 99.99%.
Integrated Compact Design
10.1-inch touchscreen with integrated industrial computer, no external computer needed and less complex wiring.
Product Features
• Professional non-destructive ED XRF machine for plating thickness;
• Applicable to single/multiple layer coatings for both smooth and uneven surfaces;
• Tests coating thickness, alloy composition, PMI and precious metal purity;
• Optional wide element coverage from Mg - U or Ti - U;
• High-resolution SDD/Si-Pin detector for accuracy and repeatability;
• Real-time X-ray status indication reminds operators all the time;
• Auto distance-to-object sensing and auto shutoff of X-ray source;
• Anti-radiation structure module shield off stray X-rays;
X-ray Fluorescence Hardware & Software
• 0–50 kV tube voltage, 1 mA current, delivers stable and consistent excitation for coating and elemental analysis;
• 4096-channel digital processor, accurately digitizes signals and classifies them by element energy levels;
• Patented ULS optical system reduces scattering and noise and improves peak-to-background ratio and detection sensitivity;
• Professional spectral deconvolution and coating-thickness calculation for high accuracy;
• Bilingual (English/Chinese) touch UI, simple one-key operation, short learning curve;
• Low-noise signal processing, ensures repeatable and reliable long-term measurement.
OEM & ODM Service of XRF Plating Thickness Tester
• Multi-lingual touch-screen interface for convenient XRF film thickness measurement;
• User manual of XRF plating thickness measurement equipment;
• Brand Logo;
• Package;
Contact our engineers right now and custom if you need exclusive OEM and ODM service.

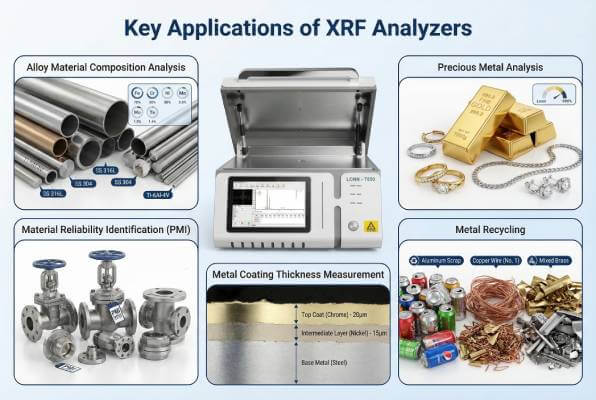

Applications
The LONN-T850 XRF coating thickness measurement equipment could be applied to following conditions (but not limited to) for XRF film thickness measurement or XRF plating thickness measurement:
• Alloy Material Composition Analysis
• Precious Metal Analysis
• Material Reliability Identification (PMI)
• Metal Recycling
• Metal Coating Thickness Measurement
