A Nb:Sn atomic ratio between 3:1 and 3:1.3 (Sn 32–42 at.%) maximizes the superconducting transition temperature (up to 17.8 K) and current density. A deviation of only 1 at.% Sn from target range can reduce critical field by ~2 T and lower transition temperature by 0.4 K. Site substitution or non-uniform Sn leads to phase separation, reducing current-carrying capacity or enabling undesired transitions between cubic and tetragonal phases, severely impacting device performance.

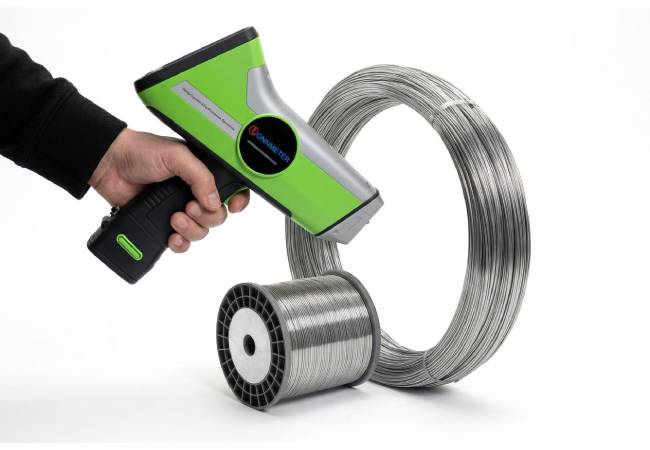

XRF analyzer for Nb-Sn alloy
*
Challenges Facing Producers and Researchers in Nb₃Sn Composition Testing
Superconducting magnet performance now demands batch-to-batch reproducibility in Nb3Sn alloy analysis at sub-1% precision and accuracy. Non-uniform Nb/Sn ratio in wires or powders, often caused by volatilization during annealing or uneven precursor mixing. Identifying local deviations in stoichiometry is difficult with conventional niobium tin alloy material testing techniques. Accurate, repeatable Nb-Sn alloy elemental analysis connects microstructural control and peak current densities.
XRF Analysis: Principle, Power, and Application for Nb/Sn Ratio Measurement
X-ray fluorescence (XRF) spectroscopy measures the Nb/Sn ratio non-destructively by detecting characteristic X-rays emitted from solid niobium tin alloys. The XRF analyzer quantifies Nb and Sn concentrations in wires, foils, or powder samples within minutes, requiring no chemical digestion or specialized mounting. XRF delivers detection limits for Nb and Sn in the ppm range, providing process-relevant accuracy and reproducibility. Compared to wet chemistry, which necessitates sample dissolution and extended processing, XRF streamlines Nb3Sn alloy composition testing.
Lonnmeter XRF Analyzer: Accelerating Nb₃Sn Composition Testing
Lonnmeter XRF applies advanced silicon drift detector technology, achieving elemental sensitivity for niobium and tin in Nb₃Sn wires, powders, and consolidated alloys. The instrument’s multi-element mode enables simultaneous detection of Nb, Sn, and trace impurities. Lonnmeter XRF supports direct measurement on small wires (~0.3 mm diameter) and finely divided powders, streamlining analysis for Nb3Sn alloy composition testing.
Performance and Traceability Backed by Industry Needs
Measurement repeatability exceeds 0.3% RSD for Nb/Sn ratio on standard wires across production campaigns, supporting reliable superconducting magnet manufacture. Calibration recall and drift tracking (<0.1% deviation over 12 hours) ensure process control and certification of Nb-Sn alloy elemental analysis. Full audit-trail features with time, operator, and parameter stamps meet R&D and production audit requirements for niobium tin alloy testing methods. System data integrates with laboratory management software for traceable Nb₃Sn quality control testing and documentation.
Key Benefits of Lonnmeter XRF Analyzer for Nb₃Sn and Superconducting Materials
Fast, Non-Destructive, and Reliable Nb/Sn Ratio Testing
Lonnmeter XRF enables rapid Nb₃Sn alloy composition testing, delivering niobium and tin ratios in under two minutes per solid sample. X-ray fluorescence quantifies elemental content with no sample destruction, supporting both process lines and laboratory certification. Immediate results reduce rework, enable quick identification of off-spec batches, and streamline Nb₃Sn quality control testing workflows. Minimal sample preparation maintains throughput and allows sequential analysis for batch monitoring, eliminating cumulative waste often seen with wet chemistry techniques.
Enhanced Quality Assurance for High Field Magnet Applications
XRF analyzer for niobium tin alloys provides Nb/Sn ratio measurement accuracy typically within 1–2% relative error, meeting the stringent tolerances for superconducting coil wire certification. Consistent, reproducible data supports precise tuning of microstructure and superconducting properties, as required for achieving >20 T field strengths in next‐generation magnet technologies. All results include electronic audit trails, enabling traceable compliance for end-user and regulatory demands from initial alloy testing to final certification.
Lower Operational Costs and Simplified Laboratory Routines
One-pass, non-destructive XRF testing minimizes reliance on multiple niobium-tin alloy testing methods, such as EDX and wet digestion. Routine maintenance is limited to periodic calibration checks, reducing both downtime and operator training needs. Automated features optimize niobium tin alloy analysis for wires, foils, and powders, consolidating test routines and lowering overall testing expenditure, particularly when scaling to batch-level Nb₃Sn superconducting alloy testing.
How to Get Started with Lonnmeter XRF for Niobium-Tin Analysis
Expert Consultation and Demo Support
Lonnmeter provides workflow integration support for Nb3Sn alloy composition testing, streamlining quality control and Nb3Sn superconducting alloy analysis routines. Technical consultations include application-specific calibration, guidance for niobium tin alloy testing methods across wires, powders, and bulk Nb3Sn forms, and bespoke reference standard recommendations.
Requesting a Quote and Next Steps
Specify sample type, testing throughput, and required compositional accuracy to receive a tailored Nb3Sn alloy analysis proposal. Budget quotes are issued following specification review, with rapid delivery options for niobium tin alloy properties analysis instruments. Technical support is accessible for sample workflow review and process onboarding. For materials testing techniques, contact superconducting materials experts via the dedicated inquiry link or technical email channel.
Frequently Asked Questions (FAQs)
What is an XRF analyzer for Nb-Sn alloy and how does it work?
An XRF analyzer directs primary X-rays onto the niobium-tin sample. The atoms emit secondary fluorescent X-rays with element-specific energies. The sensor captures these emissions, and software processes the data to yield quantitative Nb/Sn ratios. No destructive sample preparation is required.
Why is precise Nb₃Sn composition testing important for superconducting magnets?
Nb₃Sn alloy composition testing ensures the superconducting transition temperature and current density meet target values. Deviations in Nb/Sn ratios alter wire performance and stability in >20 T magnetic fields.
