Zinc coatings provide robust corrosion resistance, extending steel lifespan in aggressive environments by up to 20 times versus uncoated steel. Steel infrastructure—bridges, utility poles, guardrails—relies on zinc-coated steel for minimized maintenance and long service intervals. For manufacturers, the zinc-coated steel benefits span increased product durability and reduced lifecycle costs in construction and automotive.
Coating Thickness Measurement on Zinc Coated Steel
*
Engineering demands a balance of coating adhesion, malleability, and protective thickness; overstressed layers may crack during shaping, while thin films may fail to meet zinc coating thickness standards for structural performance. Hot-dip galvanizing typically achieves coatings between 45–100+ µm, delivering maximum barrier and cathodic protection. Continuous galvanizing produces precisely uniform zinc layers, often 7–25 µm, enabling superior formability and high-speed processing.
Zinc coating process outcomes depend on steel composition, influencing zinc’s metallurgical bonding and coating thickness uniformity. Silicon and phosphorus levels in steel may trigger abnormal zinc accumulation (“Sandelin effect”). Process variables—bath composition, immersion speed, withdrawal angle, and cooling—affect zinc adherence, necessitating rigorous quality control with accurate, non-destructive coating thickness measurement techniques such as XRF for reliable audit compliance.
The Value and Challenges of Accurate Coating Thickness Measurement
Why Coating Thickness Matters

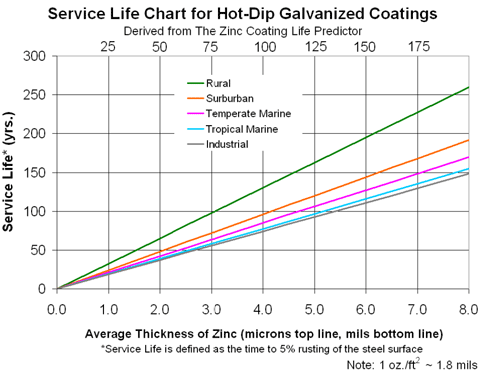

Zinc coating thickness is the primary determinant of steel’s corrosion resistance; protection increases linearly with coating mass. For hot-dip galvanized steel, each 10 µm of zinc typically adds up to several years of corrosion protection in industrial atmospheres. Standards, such as ASTM A123 and ISO 1461, require 45–85 µm for structural steel, ensuring warranties and compliance. Both customers and regulators demand verifiable thickness documentation for asset longevity and contractual acceptance.
Common Measurement Problems for Manufacturers & Quality Managers
Achieving uniform thickness is difficult with complex part geometries, thread roots, or reentrant surfaces. Manual or destructive techniques, such as metallographic sectioning, are time- and labor-intensive, and leave surfaces damaged. In-process measurement with contact gauges risks spot abrasion. Non-destructive tools, including the Lonnmeter XRF coating thickness analyzer, deliver quick, repeatable data without damaging parts, suitable for lab or shop floor. However, surface roughness and substrate variation challenge consistency.
Consequences of Errors in Measurement
Under-measurement leads to reduced service life, premature rusting, warranty claims, and rework. Over-measurement causes excessive zinc use, higher material costs, and weldability or adhesion issues. In regulatory audit scenarios, deviation from specified zinc thickness can halt shipments or result in penalties. Lonnmeter XRF technology ensures rapid, precise zinc plating thickness measurement, minimizing both quality failures and resource waste, and meeting zinc coating thickness standards.
Non-Destructive Coating Thickness Measurement: Essential Methods
Overview of Non-Destructive Techniques
Magnetic gauges dominate field and laboratory measurement of zinc coated steel due to simplicity, fast response, and non-contact use. They exploit changes in magnetic flux, delivering high accuracy when measuring durable zinc coatings for steel as long as the substrate is ferromagnetic and the coating thickness exceeds 5 μm. Portable instruments allow spot checks across diverse shapes but are sensitive to roughness and curvature, requiring regular calibration per standards such as ISO 2178 and ASTM D7091. Eddy current gauges, intended for non-ferrous substrates or organic coatings, have limited value for zinc on steel due to similar electrical properties, restricting their use to specific zinc plating thickness measurement on alternative materials. Ultrasonic gauges, using pulse echoes, excel when applied to thick coatings or multilayer systems above 30 μm, but struggle with common micro-thin zinc coatings and demand flat, smooth surfaces and coupling agents for reliable readings.
Introducing XRF for Zinc Coating Thickness Measurement
X-ray fluorescence (XRF) measures zinc plated coating thickness on steel by bombarding the surface with X-rays. Excited Zn atoms emit characteristic X-ray photons, which the detector quantifies. The software analyzes both Zn and Fe signals to calculate coating thickness, typically within dozens of seconds. For zinc coated steel, XRF achieves ±1 µm accuracy, unaffected by plastic films or oil layers.
XRF simultaneously determines zinc coating thickness and chemical composition, vital for dual- or multi-layer and complex alloys. It maintains high sensitivity at thin film levels and easily analyzes difficult-to-measure parts such as small fasteners, tubes, or bends. Non-contact operation prevents surface damage, enabling inline inspection without production disruption.

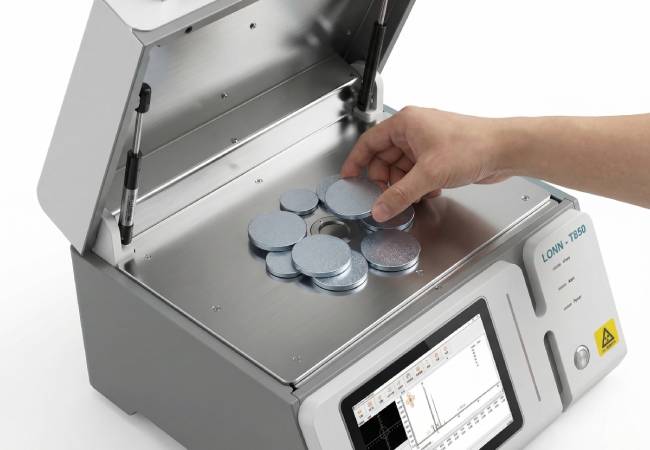

LONN-T850 XRF Plating Thickness Tester
Product Features Tailored for Zinc Coated Steel
The LONN-T850 offers high-precision, non-destructive measurement of zinc coatings on steel, handling multi-layer structures and micro-thin applications. Operators benefit from an intuitive touchscreen interface with pre-set zinc/steel calibration, enabling use by both shop floor staff and lab technicians without extensive training. Fast data logging and export functions support compliance with audit and traceability needs. The compact, rugged design withstands dust and vibration typical of galvanizing or fabrication environments.
Performance Benefits for Target Users
The instrument eliminates material loss from destructive testing and offers direct readings on finished, irregular, or delicate zinc coated steel parts. Measurement time per sample is under 5 seconds, significantly reducing inspection bottlenecks for QA and engineering teams in high-throughput lines. Recorded data with time-stamps and statistical summaries simplify proof for customer or regulatory compliance, supporting frequent checks throughout batch or continuous galvanizing processes.
Choosing the Right Coating Thickness Gauge: What to Consider
Match gauge type to zinc coating process and steel substrate. Magnetic induction methods measure non-magnetic zinc on ferrous substrates between 5–300 µm; XRF analyzers characterize both micro-thin and heavy hot-dip layers, measuring as precisely as ±1 μm in a non-contact mode. Devices must comply with relevant zinc coating thickness standards for steel.
Take Action: Streamline Your Zinc Coating QC
Integration with quality management and process control systems is immediate. Data export by USB supports statistical analysis for optimizing zinc coating process yield and reducing scrap. By selecting the LONN-T850, manufacturers align inspection with best-in-class non-destructive coating thickness measurement techniques, directly improving compliance and cost control for durable zinc coated steel.
Frequently Asked Questions (FAQs)
How does XRF work for coating thickness measurement?
X-ray fluorescence (XRF) irradiates the surface, causing zinc atoms to emit characteristic secondary X-rays. The XRF analyzer quantifies zinc content and computes coating thickness in seconds. .
Is XRF better than magnetic gauges for zinc coatings?
XRF achieves micron-level sensitivity across multi-layer and alloyed coatings, outperforming magnetic gauges when coatings are below 20 μm or substrates are complex alloys. .
