Molybdenum concentrate is produced by beneficiating molybdenite ores, typically consisting of 45–55% MoS₂, along with gangue minerals. Precise molybdenum concentrate analysis directly impacts metallurgical process efficiency, batch yield, and product quality. Optimal roasting or leaching relies on accurate assessment of Mo, Fe, Cu, S, and trace elements, ensuring maximum recovery and impurity control. Inconsistent metal content lowers economic yield and escalates downstream processing costs.

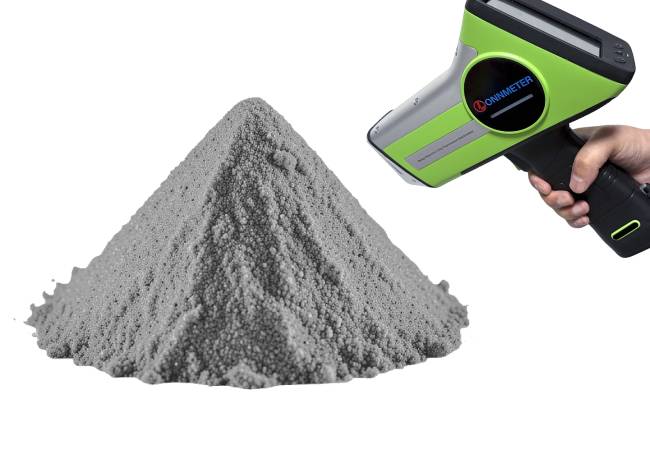

molybdenum concentrate xrf analysis
*
Industrial and Environmental Drivers
Global steel manufacturers require stringent molybdenum concentrate quality testing to meet technical specifications and environmental standards. Variability in concentrate purity drives metallurgical processing optimization, particularly for roasting, leaching, and flotation. Rapid metal assay methods, such as XRF metal analysis for mining, ensure compliance with emission controls, reduce waste, and maximize resource utilization. Demand for trace metal content analysis grows as countries enforce stricter environmental regulations for heavy metals in slags and tailings, shaping global price structures and export competitiveness.
Revolution of Analytical Techniques for Molybdenum Concentrate
Conventional Wet Chemistry Analysis
Gravimetric and volumetric wet chemical methods remain the reference standard for molybdenum concentrate analysis. These methods, including oxine precipitation and titrimetric titration, achieve relative errors as low as ±0.2% for Mo content. Industry protocols require complete acid dissolution and multi-stage purification, often using sulfosalicylic acid and iron(III) chloride, ensuring high specificity, especially for trace impurities such as Cu or Fe, but each analysis cycle typically exceeds 6 hours and generates significant hazardous waste. High sample throughput is impractical, and operator skill directly impacts data quality. Rapid wet chemical assays, incorporating dissolution with atomic absorption, cut analysis time to under 2 hours but still depend on reagent handling and comprehensive sample digestion steps.
X Ray Fluorescence (XRF) Metal Analysis: Principles and Workflow
XRF analysis excites samples via an X-ray tube, ejecting inner-shell electrons and measuring secondary fluorescence to quantify Mo, Fe, Cu, and trace elements. Borate fusion or pelletizing guarantees homogenous solid samples, eliminating errors from particle size effects. Elemental concentrations are calculated based on the intensity of emitted X-rays, with matrix corrections applied using certified reference materials.
The Synergy of XRF with Metallurgical Processing Requirements
Process engineers use XRF data to optimize both roasting and leaching. For example, accurately quantifying Mo and S allows targeted temperature control during roasting, increasing MoO₃ yields and suppressing SO₂ emissions. In leaching and flotation, high-frequency XRF assays enable real-time impurity rejection and concentrate blending decisions, driving flotation recovery closer to 90% with strict impurity limits. Rigorous mineralogical profiling using XRF supports phase identification, guiding reagent selection and fine-tuning of operational parameters.
How XRF Addresses Analytical Pain Points
X-ray fluorescence metal analysis solves these challenges using standardized sample preparation—borate fusion or pelletizing—to achieve matrix homogeneity. XRF delivers rapid, simultaneous multi-element quantification, completing molybdenum concentrate quality testing in under five minutes per sample. It is non-destructive, generating no liquid chemical waste and significantly reducing laboratory hazards and reagent inventory.
XRF operator skill requirements are moderate; effective use hinges on training in running calibration checks, interpreting spectra, and following standard operating procedures for consistent assay results.
Maximizing Economic and Process Value with XRF in Metallurgical Processing
Unlocking Recovery and Purity in Downstream Operations
X-ray fluorescence metal analysis provides real-time molybdenum concentrate quality testing crucial for optimizing roasting, leaching, and flotation workflows. In roasting, precise Mo, Fe, and Cu content guides temperature and time settings for maximum metal recovery and minimal impurity carry-over. Leaching efficiency depends on accurate molybdenum concentrate analysis for sulfur and unwanted metals, directly lowering process losses. XRF data enables strategic concentrate blending, flagging impurity pockets before they impact downstream refining. With multi-element quantification, operators make timely decisions on batch separation and impurity disposal, reducing risk of costly out-of-spec product releases.
Quality Assurance and Compliance
XRF metal testing techniques assure batch-to-batch uniformity, providing rapid flagging of deviations below or above target values. Analytical results integrate directly into process control dashboards, allowing immediate corrective action. Regulatory bodies require comprehensive reporting; XRF generates data sets fit for rigorous compliance documentation, including trace element levels and batch histories verified within minutes. Automated data export supports metallurgical processing optimization and audit trail completeness across multiple concentrates and operational shifts.
Equip Your Lab or Plant with Lonnmeter Mineral XRF Analyzer
Begin the inquiry for molybdenum concentrate analysis by submitting a request for a tailored consultation, specifying sample type and throughput required. Include specifics on Mo, Fe, Cu, and S content ranges for calibration accuracy. The Lonnmeter XRF supports borate fusion and pelletized solids, ensuring precise analysis for metal content and trace impurities in molybdenum concentrate quality testing.
Frequently Asked Questions (FAQs)
What makes x ray fluorescence (XRF) superior for molybdenum concentrate analysis?
XRF enables simultaneous determination of Mo, Fe, Cu, S, and trace impurities in molybdenum concentrate within seconds per sample, supporting high-throughput workflows. .
How does XRF analysis contribute to metallurgical processing efficiency?
XRF delivers actionable composition data for process adjustment in roasting and leaching, ensuring optimal Mo recovery and impurity removal. For flotation testing, XRF supports mineralogical characterization needed to maximize recovery rates and minimize contamination.
What sample preparation is required for XRF analysis of molybdenum concentrate?
Borate fusion produces uniform glass disks, minimizing heterogeneity and matrix effects, while pelletizing handles samples needing rapid routine screening. Precise weighing and grinding ensure reproducible multi-element measurements.
