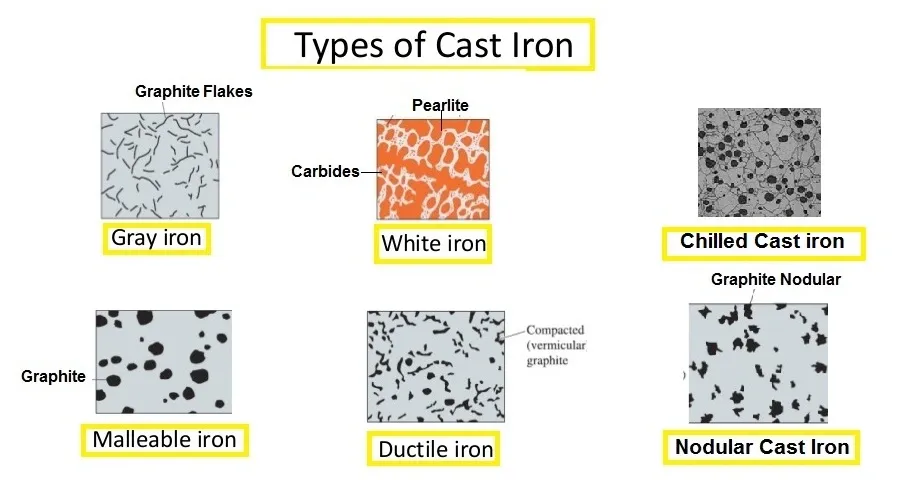

Nodular cast iron ensures components like engine blocks and pipelines withstand cyclic loads and resist cracks, outperforming gray cast iron in durability and castability. Microstructural performance hinges on graphite morphology. Adding magnesium or rare earths transforms graphite shape from flakes to spheroidal nodules, sharply raising ductility, fatigue resistance, and impact toughness. Studies confirm that variations in magnesium, silicon, and trace alloying elements drive direct shifts in strength, toughness, and machinability.
Hidden Link Between XRF Testing and Perfect Graphite Spheroidization
*
Nodulizers Power Microstructure Control
What Are Nodulizers in Ductile Iron Production?
Nodulizers are alloying agents added to molten iron to enforce graphite spheroidization, rather than flake formation. Their primary active components are magnesium (Mg) and rare earth elements (typically cerium and lanthanum). In the melt, Mg initiates desulfurization and deoxidation, facilitating the nucleation of spheroidal graphite. Rare earths enhance the stability of this effect and further refine the morphology. Commercial nodulizers vary: FeSiMg alloys, with 5–10% Mg, suit high-volume production; those with added Ce or La provide higher resilience against charge impurities, enabling extended holding times or challenging charge compositions.
Subtle Shifts in Elemental Differences With Major Impacts
Small variations—±0.01% Mg or rare earth content—profoundly impact nodule count, shape, and avoidance of chunky graphite. Excess magnesium (above 0.07%) triggers chunky graphite or excessive magnesium gas, producing sub-optimal mechanical properties. Low Mg yields flake graphite, sharply reducing ductility and toughness. Ce or La additions, if not tightly controlled, cause carbides or plate graphite, undermining strength and impacting the formation of the ferrite or pearlite matrix. Nodulizer type and dosing dictate whether a ferrite matrix (high toughness, lower strength) or pearlite matrix (higher strength, limited ductility) predominates. Subtle biases fine-tune fatigue resistance and impact values critical to demanding automotive and machinery applications. The relationship between nodulizer chemistry and casting performance is direct and repeatable.
Reliable nodular cast iron composition analysis, including advanced methods such as XRF, is essential in foundry quality control processes. Solid sample analysis with Lonnmeter XRF delivers rapid quantification of Mg, Si, Ce, La, Fe, and trace rare earths, with direct feedback during the manufacturing process. Without precise alloy composition analysis techniques, even advanced melt and inoculation practices cannot achieve repeatable quality required in safety-critical sectors.
Foundry Quality Control: Ensuring Repeatable Iron Quality
Optimal nodular cast iron properties require closed-loop control over alloy composition, magnesium recovery, liquid treatment, and cooling rates. Reliable, rapid feedback from solid-state alloy composition analysis is mandatory for statistical process control in foundry operations. Modern practice uses XRF analyzers such as Lonnmeter to identify minor deviations in Mg, Si, or trace elements. Such variances cause batch-to-batch fluctuations in graphite morphology and the matrix phase. Without XRF alloy composition testing, yield drops, rework rises, and mechanical property targets become inconsistent, undermining foundry quality control processes.
Master Alloy Composition Analysis With Lonnmeter XRF Alloy Analyzer
The Lonnmeter XRF Solution: Alloy Analysis for Iron Foundries
The Lonnmeter XRF Alloy Analyzer enables rapid, non-destructive analysis of key elements in nodular cast iron: magnesium, silicon, cerium, lanthanum, iron, and trace rare earth content. Elemental detection is effective across a wide range, allowing verification from initial charge to final solid product. The analyzer’s robust construction fits both laboratory and shop floor applications. Its accuracy meets regulatory and automotive supply chain requirements for nodular cast iron properties and nodular cast iron manufacturing process compliance. Data demonstrates that XRF analysis cuts testing time from hours to under 60 seconds per sample, facilitating high-throughput control.
Advantages of Deploying Lonnmeter XRF Analyzer in Quality Control
Alloy verification minimizes scrap and rework, critical for foundry quality control processes. The device supports both incoming charge material screening and melt correction during adjustment. Non-destructive characterization enables root cause analysis on defective castings, pinpointing subtle matrix and nodule irregularities. Example: detecting 0.004% shifts in magnesium that trigger out-of-spec graphite morphology, preventing downstream failures.
Transform Quality Assurance: Better Nodulizer Selection, Enhanced Iron Performance
Direct compositional feedback empowers engineers to optimize nodulizer selection and charge adjustments based on real-time data. This reduces risk for shrinkage defects, brittle pearlite phases, or below-specification nodularity, supporting the highest ductile iron quality requirements.
How to Request a Quote or Consult Lonnmeter XRF Experts
Contact Lonnmeter through official channels for demonstrations, technical consultations, or quotes. Comprehensive support is available for equipment integration and operator training, ensuring rapid deployment in foundry operations and quality control in foundry environments.
Frequently Asked Questions (FAQs)
Why alloy composition analysis is it critical for nodular cast iron?
Elemental accuracy—often within 0.01-0.05 wt%—prevents brittle phases, excessive shrinkage, and substandard strength, as confirmed by microstructural image analysis and SIMS studies. Defect rates can increase by over 30% if alloy targets are missed.
How do nodulizers impact nodular cast iron properties?
Magnesium-based nodulizers convert flake graphite to spheroidal forms. Each 0.01% change in Mg can increase graphite nodule count by up to 10%, directly boosting elongation and impact resistance. Cerium and lanthanum additions refine nodule shape yet risk forming complex carbides if not balanced. Too little causes irregular or chunky nodules; too much prompts matrix embrittlement.
Why is alloy composition testing essential before, during, and after casting?
Early analysis of charge materials prevents input error. In-process testing pinpoints deviations for rapid correction. Final sample assessment validates microstructure compliance. Skipping stages can result in out-of-spec graphite, reduced nodule counts, and costly scrap, as quantitative image analysis correlates composition directly with mechanical properties.
