Ruthenium’s exceptional chemical stability, anti-corrosive nature, and non-magnetic character are essential in hard disk drive technology, allowing dense layering in perpendicular magnetic recording media. Any deviation in ruthenium thin film thickness by more than 2% affects read/write reliability, coercivity, and accelerates corrosion or data loss.

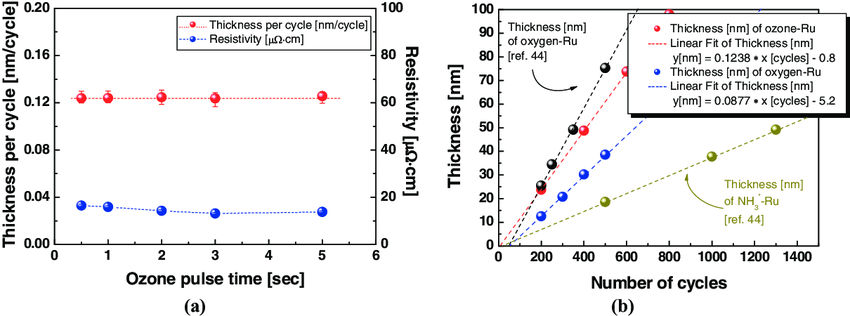

High-precision film deposition methods such as sputtering, atomic layer deposition (ALD), and plasma-enhanced ALD allow thickness control within ±0.1 nm. Ruthenium layer thickness, chemistry, and surface roughness exhibit high sensitivity to substrate temperature, substantially influencing film uniformity and device endurance.
molybdenum concentrate xrf analysis
*
Challenges in Thin Film Thickness Measurement for HDD Manufacturing
Precise thin film thickness measurement is essential for high-performance hard disk drive technology. Minimal variation in ruthenium thin film coatings ensures read/write reliability. Deviations as small as 0.5 nm can increase magnetic noise, causing signal loss or random errors. Inconsistent ruthenium thickness leads to suboptimal magnetic spacing, resulting in data retention failures and higher error rates. Film thickness uniformity control directly impacts the operational lifespan of hard drive data storage devices and minimizes manufacturing defects, as confirmed by process optimization studies in the HDD manufacturing process.
Optical thin film thickness measurement techniques, like spectral reflectometry and ellipsometry, offer non-contact analysis but face severe limitations in hard disk drive assemblies. Ruthenium is often deposited in multilayer configurations, complicating layer discrimination for these methods. Dense device layouts introduce optical crosstalk and shadowing errors. Measurement uncertainty increases for ruthenium layers thinner than 5 nm. Rapid throughput and advanced thin film thickness measurement tools—such as Lonnmeter’s LONN-T850 XRF plating thickness tester—address these limitations by providing non-destructive, high-accuracy element-specific analysis, even in complex multilayer stacks.
X-Ray Fluorescence (XRF) Technology for Ruthenium Film Thickness Analysis
Principles of XRF Film Thickness Measurement
XRF identifies ruthenium element properties by irradiating samples with high-energy X-rays, inducing secondary fluorescence specific to the element. The LONN-T850 XRF plating thickness tester enables non-destructive thin film analysis on solid substrates, supporting rapid line-side film thickness uniformity control and inline monitoring. The technology quantifies ruthenium applications in electronics by mapping micrometer-scale film thickness variation across the disk, directly correlating to magnetic performance and device longevity.
Advantages of XRF vs Other Techniques
XRF provides direct, multi-layer elemental analysis in complex stacks without elaborate sample preparation typical for secondary ion mass spectrometry or cross-sectioning. The LONN-T850 system distinguishes individual layers within ruthenium thin film coatings, even on high-aspect-ratio features critical to advanced thin film measurement equipment design. Unlike optical methods, XRF resolves overlapping films and quantifies precise thin film thickness measurement for each. Operator workload reduces due to full automation and intuitive user interfaces, supporting disciplined industrial workflow in advanced hard disk drive technology manufacturing environments.
Lonnmeter XRF Analyzer in Hard Disk Drive Production
Key Features of LONN-T850 XRF Plating Thickness Tester

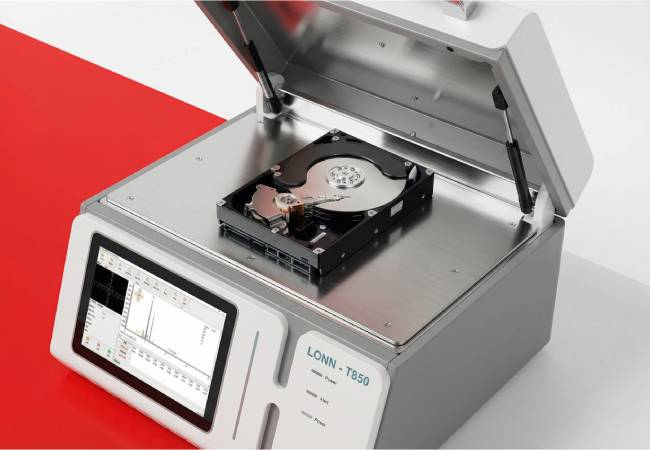

LONN-T850 integrates a high-sensitivity silicon drift detector optimized for ruthenium element analysis, selectively amplifying Ru Kα and Ru Kβ fluorescence. Advanced multilayer calibration algorithms enable sub-angstrom accuracy for ruthenium thin film coatings in complex stacks. The graphical user interface automates thin film thickness measurement techniques, delivering real-time data suitable for high-volume HDD manufacturing process lines.
Benefits for HDD Manufacturing Engineers and Quality Assurance Teams
Process engineers achieve direct film thickness uniformity control at every stage, reducing variation across disks. Immediate defect recognition and root cause tracking become possible, supporting lean manufacturing and reducing rework time. Quality assurance teams apply the system’s batch analysis to monitor ruthenium thin film measurement equipment parameters, optimizing for higher throughput and lower operator dependency. Continuous improvement and real-time feedback loops enable optimization of hard drive data storage capacity and reliability, as evidenced in Hard Disk Drive Manufacturing Optimization.
Request a Quote and Next Steps
Lonnmeter experts provide consultations tailored to HDD-specific ruthenium applications in electronics, ensuring precise thin film thickness measurement standards are met.
FAQs
What is the significance of ruthenium thin film thickness in hard disk drives?
Precise thin film thickness of ruthenium ensures stable magnetic and corrosion-resistant interlayers in hard disk drive technology. This control directly impacts error rates, media longevity, and enables increased hard drive data storage capacity, supporting more than 1 TB/in² areal density requirements. Tight control of ruthenium thin film coatings supports consistent drive performance even under high mechanical and thermal stress.
How does XRF measure the film thickness of ruthenium in HDD applications?
Advanced thin film thickness measurement tools such as X-ray fluorescence (XRF) quantify ruthenium thickness by detecting its unique X-ray emission peaks after excitation. XRF analyzes solid layers within complex multilayer stacks, delivering non-destructive, sub-nanometer thickness precision, and providing real-time QA data without requiring sectioning or expensive sample prep.
Why is film thickness uniformity important for hard disk drives?
Film thickness uniformity importance lies in ensuring consistent magnetic switching and corrosion protection across every platter. Non-uniform ruthenium layers can cause write/read instability, increase media noise, or accelerate head crash and device failures. Hard disk drive manufacturing process control depends on methods for measuring thin film uniformity with sub-2% variation to meet enterprise drive standards.
How do manufacturing process optimizations relate to film thickness measurement?
Film thickness uniformity control and precise thin film thickness measurement enable continuous tuning of layer deposition, reducing defective units, and driving yield increases of over 5% in high-volume production. Without accurate ruthenium monitoring, deviations in thin film measurement equipment data can propagate, leading to costly rework or downtime.
