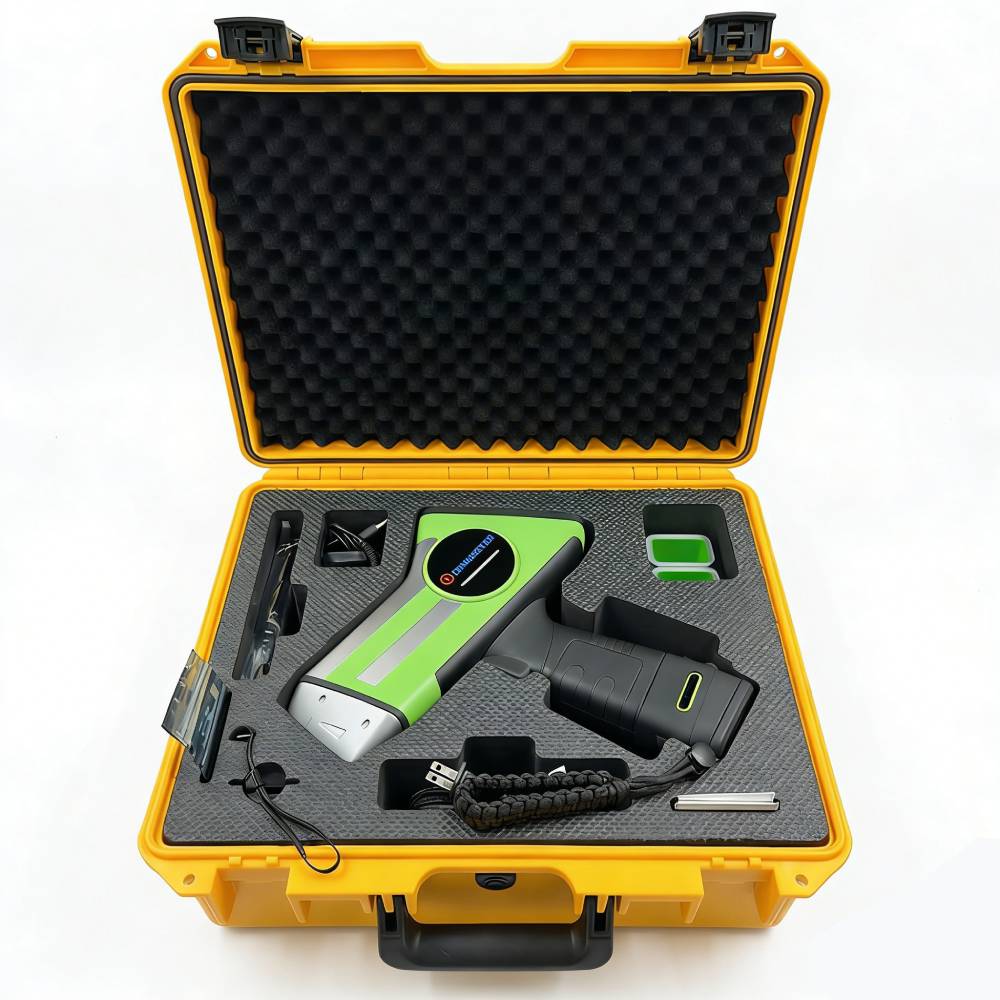

XRF Soil Analyzer
Working Principle
The LONN980S XRF soil heavy metal analyzer works on the X-ray Fluorescence principle for xrf soil testing. Its built-in Ag-target X-ray source emits X-rays to soil samples, exciting inner-shell electrons of heavy metal atoms (e.g., Ni, Cr, Cd, Pb) and other elements to produce element-specific characteristic X-rays, which are captured by the Peltier-cooled Si-Pin detector (with 8 program-controlled filters) and converted into electrical signals via a 4096-channel digital multi-channel pulse processor.
Simplify On-site Analysis
Not Need Preparations of Soil Samples
Lab-Grade Accuracy
Peltier-cooled Si-Pin detector
Non-Destructive Analysis
Save Time & Energy
Product Features
• Applicable to in-situ, ex-situ and indirect soil analysis without sample preparation;
• Deliver accurate and reliable results of soil analysis with element composition and heavy metal contamination profile;
• Wide range elemental analysis from K to U;
• Multiple interfaces Wifi, Bluetooth and USB compatible with PC, smartphone and printer;
• Real-time battery level monitoring;
• Self-locking spring clip enables tool-free quick replacement of protective film;
• Built-in head sensor captures the existence of sample, preventing X-ray activation without samples;
• Ultra-short optical path improves X-ray photon detection efficiency.
Benefits
• Rapid analysis results allow for quick decision-making in xrf analysis of soil samples;
• Non-destructive XRF soil analysis allows for repeated using of samples;
• High signal-to-ratio enables trace elements detection at PPM level;
• Cost efficient equipment reduces costly laboratory tests;
• Environmental range sensing system;
OEM & ODM Service
• Customizable elemental data base for environmental range;
• Customize logo on products and multi-lingual user manual;
• Bespoke package for safer shipment and brand promotion;
Contact our engineers right now if you need exclusive OEM and ODM service.
Specifications
| Category | Value |
| Microcomputer system | 4-Core |
| 1.8GHz processor | |
| 2GB RAM | |
| 24GB data storage | |
| Display | 4.5 inch |
| USB | Two USB ports |
| Wireless interface | WiFi and Bluetooth |
| Safety Settings | Password protection |
| Infrared sensor disable X-ray emission during in-air testing | |
| X-ray radiation < 0.15 M Sv/h | |
| Battery | Two lithium batteries (operating about 8 hours) |
| Transportation Safety | Comply with ISTA 3A packaging and transportation drop, vibration. |
| Pack | |
| Standard | USB cable × 1 |
| lithium battery × 2 | |
| Charging adapter × 1 | |
| Buffering cushion × 1 | |
| 32GB USB drive × 1 | |
| Protective film × 5 | |
| Wrist strap ×1 | |
| Portable folding stand ×1 | |
Standard Package
Applications
This handheld XRF soil analyzer is used for in-situ environmental pollution, nutrient management, soil fertility mapping, heavy metal detection, soil texture and composition analysis.
Soil Nutrient Management
Soil Pollution Control
Heavy Metal Detection
