XRF Alloy Analyzer
Working Principle
An xrf elemental analyzer emits X-rays to a target sample. Emitted X-rays hit the atoms in the material and knock out some inner electrons, leaving empty “holes” in the atom’s electron shells. To fill these holes, electrons from outer shells quickly drop down, releasing energy in the form of new X-ray photons — and each chemical element produces its own unique set of X-ray energies (like a fingerprint).
The detector of handheld XRF metal analyzer catches these emitted fluorescent X-rays, measures their exact energies, and counts how many arrive at each energy level. The instrument then turns this information into a spectrum (a graph of energy vs. intensity), where the location of each peak tells you “which element” is present and the height of the peak helps calculate “how much” of that element is in the sample — all done automatically by software in just a few seconds, without damaging the object.
Analysis Software & Hardware
Industrial-Grade Processor
Outstanding Performance
High Accuracy & Repeatability
Innovative & Convinient Wireless Connection
Wifi and Bluetooth for Data Synchronization
Product Features
• Integrated touch-screen color display Language-switchable interface;
• 50 Kv X-ray tube means wide elemental coverage, strong sample penetration and high detection sensitivity;
• Infrared built-in sensors disable X-ray emissions during in-air testing;
• Built-in air pressure correction eliminates errors caused by atmospheric pressure fluctuations;
• Wifi, Bluetooth and USB interface simplify data synchronization to smartphone and PC;
• Powerful aggregated alloy library covers over 400 kinds of alloy;
• HD sample camera helps in positioning and surface condition verifications for clear visual record and audit-ready documentation;
• Exportable CSV or PDF reports with info like data, results, sample images.
Benefits
• Large storage capacity 24GB capables data storage about 300,000 pieces;
• WinGui software and Android App realizes direct connection to PC or Phone for remote control and data synchronization;
• Ambient temperature and pressure corrections for highest stability;
• Long-lasting 8 hours operation from large-capacity lithium battery 6600 mAh;
• Extensive and editable alloy library;
• Battery level indicator shows status of battery all the time.
OEM & ODM Service
• Customizable alloy library for special industries;
• Customize logo on products and multi-lingual user manual;
• Bespoke package for safer shipment and brand promotion;
Contact our engineers right now if you need exclusive OEM and ODM service.
Specifications
| Category | Value |
| Microcomputer system | 4-Core |
| 1.8GHz processor | |
| 2GB RAM | |
| 24GB data storage | |
| Display | 4.5 inch |
| USB | Two USB ports |
| Wireless interface | WiFi and Bluetooth |
| Safety Settings | Password protection |
| Infrared sensor disable X-ray emission during in-air testing | |
| Battery | Two lithium batteries (operating about 8 hours) |
| Transportation Safety | Comply with ISTA 3A packaging and transportation drop, vibration. |
| Environmental adaptability | Comply with GB/T2423.1 and GB/T2423.2 |
| Pack | |
| Standard | USB-OTG cable × 1 |
| lithium battery × 2 | |
| charging adapter × 1 | |
| buffering cushion × 1 | |
| 16GB USB drive × 1 | |
| Test window film × 5 | |
| wrist strap ×1 | |
| Optional | radiation shield ×1 |
| Portable folding stand ×1 | |
| wrist strap ×1 | |

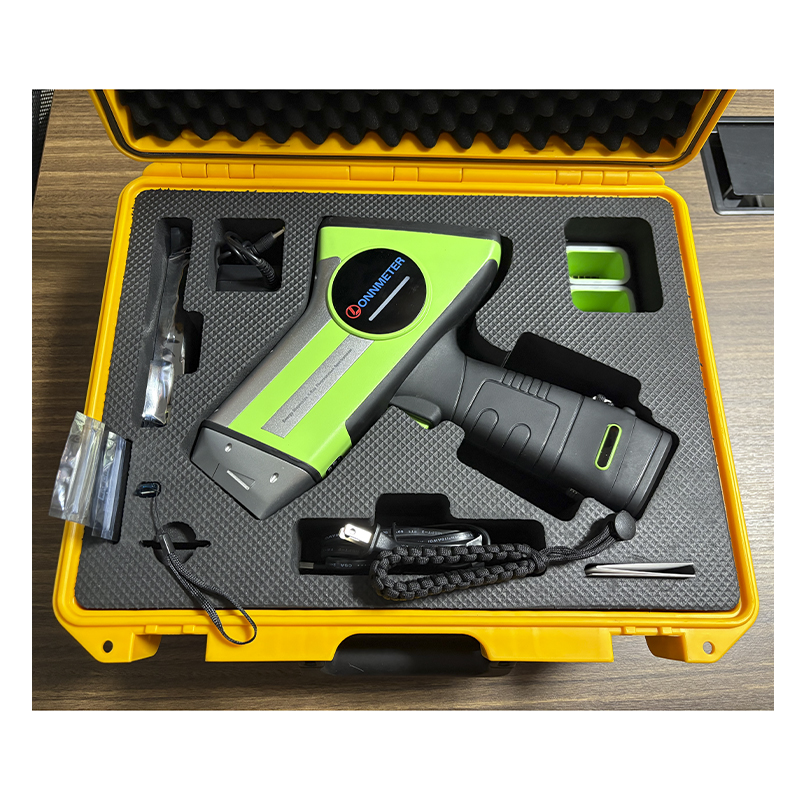

Standard Package
