1. Contextualizing Advanced Polishing
What is CMP in Semiconductor?

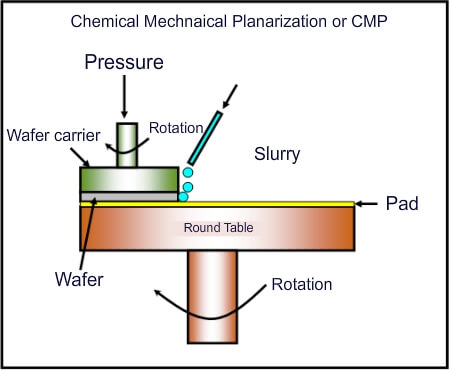

Chemical mechanical polishing (CMP), alternatively known as chemical mechanical planarization, represents one of the most technologically challenging and financially critical unit operations in modern semiconductor fabrication. This specialized procedure operates as an indispensable hybrid process, meticulously smoothing wafer surfaces through the synergistic application of chemical etching and highly controlled physical abrasion. Employed extensively in the fabrication cycle, CMP is essential for preparing semiconductor wafers for subsequent layers, directly enabling the high-density integration required by advanced device architectures.
CMP in Semiconductor Process
*
The profound necessity of chemical mechanical polishing is rooted in the physical requirements of contemporary lithography. As integrated circuit features shrink and multiple layers stack vertically, the process’s capability to uniformly remove material and establish a globally planar surface becomes absolutely critical. The dynamic polishing head is engineered to rotate along different axes, meticulously leveling out irregular topography across the wafer. For successful pattern transfer, particularly with cutting-edge techniques like Extreme Ultraviolet (EUV) lithography, the entire processed surface must fall within an exceptionally narrow depth of field—a geometric constraint that requires Angstrom-level flatness for modern sub-22 nm technologies. Without the planarizing power of the cmp semiconductor process, subsequent photolithography steps would result in alignment failures, pattern distortions, and catastrophic yield excursions.
The pervasive adoption of CMP was significantly driven by the industry's shift from conventional aluminum conductors to high-performance copper interconnects. Copper metallization utilizes an additive patterning process, the Damascene technique, which fundamentally relies on CMP’s unique capacity to selectively and uniformly remove excess copper and consistently stop removal action precisely at the interface between the metal and the oxide insulating layer. This highly selective material removal underscores the delicate chemical and mechanical balance that defines the process, a balance that is immediately compromised by even minor fluctuations in the polishing medium.
Functions of CMP in Semiconductor Process
The mandatory requirement for ultra-low topographic variation is not a peripheral goal but a direct functional prerequisite for reliable device operation, ensuring proper current flow, thermal dissipation, and functional alignment in multi-layered structures. CMP's primary mandate is topography management, establishing the prerequisite flatness for all subsequent critical processing steps.
The specific application dictates the choice of materials and the corresponding slurry formulation. CMP processes have been developed to handle diverse materials, including tungsten, copper, silicon dioxide (SiO2), and silicon nitride (SiN). Slurries are meticulously optimized for high planarization efficiency and exceptional material selectivity across a spectrum of applications, including Shallow Trench Isolation (STI) and Interlayer Dielectrics (ILD). For example, high-function ceria slurry is specifically utilized for ILD applications due to its superior performance in step flattening, uniformity, and defect frequency reduction. The highly specialized nature of these slurries confirms that process instability arising from variations in the fluid dynamics of the polishing medium will instantly violate the fundamental requirements for selective material removal.
2. The Critical Role of CMP Slurry Health
CMP in Semiconductor Process
The sustained effectiveness of the chemical mechanical polishing cmp process is entirely reliant upon the consistent delivery and performance of the slurry, which acts as the crucial medium facilitating both the necessary chemical reactions and the mechanical abrasion. This complex fluid, characterized as a colloidal suspension, must continuously and uniformly deliver its essential components, including the chemical agents (oxidizers, accelerators, and corrosion inhibitors) and the nano-sized abrasive particles, to the dynamic wafer surface.
Slurry composition is engineered to induce a specific chemical reaction: the optimal process relies on forming a passivating, insoluble oxide layer on the target material, which is then mechanically removed by the abrasive particles. This mechanism imparts the necessary high surface topographic selectivity essential for effective planarization, concentrating the removal action on the high points or protrusions. In contrast, if the chemical reaction produces a soluble oxide state, the material removal is isotropic, thereby eliminating the required topographic selectivity. The physical components of the slurry typically consist of abrasive particles (e.g., silica, ceria) ranging in size from 30 to 200 nm, suspended at concentrations between 0.3 and 12 weight percent solids.
CMP Slurry Semiconductor
Maintaining the health of the CMP slurry semiconductor requires unrelenting characterization and control throughout its lifecycle, as any degradation during handling or circulation can lead to substantial financial loss. The quality of the final polished wafer, defined by its nanoscale smoothness and defect levels, is directly correlated with the integrity of the slurry’s particle size distribution (PSD) and overall stability.
The specialized nature of various cmp slurry types means that the nano-sized particles are stabilized by delicate repellent electrostatic forces within the suspension. Slurries are often supplied in concentrated form and necessitate precise dilution and blending with water and oxidizers at the fabrication site. Critically, relying on static blending ratios is fundamentally flawed because incoming concentrated material exhibits inherent batch-to-batch density variations.
For process control, while direct analysis of PSD and zeta potential (colloidal stability) are vital, these techniques are typically relegated to intermittent, offline analysis. The operational reality of the HVM environment mandates real-time, instantaneous feedback. Consequently, density and viscosity serve as the most effective and actionable inline proxies for slurry health. Density provides a rapid, continuous measure of the total abrasive solids concentration in the medium. Viscosity is equally crucial, acting as a highly sensitive indicator of the fluid’s colloidal state and thermal integrity. Unstable viscosity frequently signals abrasive particle agglomeration or recombination, particularly under dynamic shear conditions. Therefore, continuous monitoring and control of these two rheological parameters provide the immediate, actionable feedback loop required to verify that the slurry maintains its specified chemical and physical state at the point of consumption.
3. Mechanistic Failure Analysis: The Defect Drivers
Negative Impacts Caused by CMP Density & Viscosity Fluctuations
Process variability is recognized as the single largest contributor to yield risk in high-throughput cmp in semiconductor manufacturing. Slurry characteristics, collectively termed "slurry health," are highly susceptible to changes induced by pumping shear, temperature fluctuations, and blending inconsistencies. Failures originating from the slurry flow system are distinct from purely mechanical issues, but both result in critical wafer scrap and are often only detected too late by post-process end-point systems.
The presence of excessively large particles or agglomerates in the cmp semiconductor material is demonstrably linked to the creation of micro-scratches and other fatal defects on the polished wafer surface. Fluctuations in the key rheological parameters—viscosity and density—are the continuous, leading indicators that the slurry’s integrity has been compromised, initiating the mechanism of defect formation.
Fluctuations in Slurry Viscosity (e.g., leading to agglomeration, altered shear)
Viscosity is a thermodynamic property that governs the flow behavior and the frictional dynamics at the polishing interface, making it exceptionally sensitive to environmental and mechanical stress.
The chemical and physical performance of the slurry viscosity semiconductor system is highly dependent on temperature control. Research confirms that even a modest 5°C shift in process temperature can lead to an approximately 10% reduction in slurry viscosity. This change in rheology directly impacts the hydrodynamic film thickness separating the wafer from the polishing pad. A decreased viscosity leads to insufficient lubrication, resulting in elevated mechanical friction, a primary cause of micro-scratches and accelerated pad consumption.
A critical degradation pathway involves shear-induced particle clustering. Silica-based slurries maintain particle separation via delicate electrostatic repulsion forces. When the slurry encounters high shear stresses—commonly generated by improper conventional centrifugal pumps or extensive recirculation in the distribution loop—these forces can be overcome, leading to the rapid and irreversible agglomeration of abrasive particles. The resulting large aggregates act as micro-gouging tools, directly creating catastrophic micro-scratches on the wafer surface. Real-time viscometry is the necessary feedback mechanism to detect these events, providing crucial validation of the "gentleness" of the pumping and distribution system before large-scale defect generation occurs.
The resulting variation in viscosity also severely compromises planarization effectiveness. Since viscosity is a major factor influencing the coefficient of friction during polishing, a non-uniform viscosity profile will lead to inconsistent material removal rates. A localized increase in viscosity, particularly at high shear rates occurring over the raised features of the wafer topography, alters the friction dynamics and undermines the planarization goal, ultimately leading to topographical defects like dishing and erosion.
Fluctuations in Slurry Density
Slurry density is the rapid and reliable indicator of the overall concentration of abrasive solids suspended within the fluid. Density fluctuations signal non-uniform slurry delivery, which is inherently linked to changes in the material removal rate (MRR) and defect formation.
Operational environments necessitate dynamic verification of slurry composition. Relying solely on adding specified quantities of water and oxidizer to incoming concentrated batches is insufficient, as the raw material density often varies, leading to inconsistent process results at the tool head. Furthermore, abrasive particles, especially higher concentration ceria particles, are subject to sedimentation if the flow velocity or colloidal stability is inadequate. This settling creates localized density gradients and material aggregation within the flow lines, profoundly compromising the ability to deliver a consistent abrasive load.
How Density Deviations Affect Manufacturing Process?.
The direct consequences of unstable slurry density manifest as critical physical defects on the polished surface:
Non-Uniform Removal Rates (WIWNU): Variations in density translate directly into variations in the concentration of active abrasive particles presented at the polishing interface. A lower-than-specified density indicates reduced abrasive concentration, which results in a diminished MRR and produces unacceptable within-wafer non-uniformity (WIWNU). WIWNU undermines the fundamental planarization requirement. Conversely, localized high density increases the effective particle load, leading to excessive material removal. Tight control over density ensures consistent abrasive delivery, which correlates strongly with stable friction forces and predictable MRR.
Pitting Due to Localized Abrasive Variations: High local concentrations of abrasive solids, often due to settling or inadequate blending, lead to localized high loads per particle on the wafer surface. When the abrasive particles, particularly ceria, adhere strongly to the oxide glass layer, and surface stresses are present, the mechanical load can induce the glass layer to fracture, resulting in deep, sharp-edged pitting defects. These abrasive variations can be caused by compromised filtration, allowing oversized aggregates (particles greater than $0.5\ \mu m$) to pass, resulting from poor particle suspension. Monitoring density provides a vital, complementary warning system to particle counters, allowing process engineers to detect the onset of abrasive clustering and stabilize the abrasive load.
Residue Formation from Poor Particle Suspension: When the suspension is unstable, resulting in high density gradients, solid material will tend to accumulate in the flow architecture, leading to density waves and material aggregation in the distribution system.17 Furthermore, during polishing, the slurry must effectively carry away both the chemical reaction products and mechanical wear debris. If the particle suspension or fluid dynamics are poor due to instability, these remnants are not efficiently removed from the wafer surface, resulting in post-CMP particle and chemical residue defects. Stable particle suspension, ensured by continuous rheological monitoring, is mandatory for clean, continuous material evacuation.
Learn About More Density Meters
More Online Process Meters
4. Technical Superiority of Inline Metrology
Lonnmeter Inline Densitometers & Viscometers
To successfully stabilize the volatile CMP process, continuous, non-invasive measurement of slurry health parameters is essential. Lonnmeter Inline Densitometers & Viscometers leverage highly advanced resonant sensor technology, delivering superior performance compared to traditional, latency-prone metrology devices. This capability enables seamless and continuous density monitoring directly integrated into the flow path, which is critical for meeting the stringent purity and blend accuracy standards of modern sub-28nm process nodes.
Detail their core technology principles, measurement precision, response speed, stability, reliability in harsh CMP environments, and differentiate them from traditional offline methods.
Effective process automation requires sensors engineered to operate reliably under the dynamic conditions of high flow, high pressure, and abrasive chemical exposure, providing instantaneous feedback for control systems.
Core Technology Principles: The Resonator Advantage
Lonnmeter instruments utilize robust resonant technologies specifically designed to mitigate the inherent vulnerabilities of traditional, narrow-bore U-tube densitometers, which are notoriously problematic for inline use with abrasive colloidal suspensions.
Density Measurement: The slurry density meter employs a fully welded vibrating element, typically a fork assembly or a co-axial resonator. This element is stimulated piezo-electrically to oscillate at its characteristic natural frequency. Changes in the density of the surrounding fluid cause a precise shift in this natural frequency, allowing for direct and highly reliable density determination.
Viscosity Measurement: The In-process slurry viscometer utilizes a durable sensor that oscillates within the fluid. The design ensures that the viscosity measurement is isolated from the effects of bulk fluid flow, providing an intrinsic measure of the material’s rheology.
Operational Performance and Resilience
Inline resonant metrology delivers critical performance metrics essential for tight HVM control:
Precision and Response Speed: Inline systems provide high repeatability, often achieving better than 0.1% for viscosity and density accuracy down to 0.001 g/cc. For robust process control, this high precision—the ability to consistently measure the same value and reliably detect small deviations—is often more valuable than marginal absolute accuracy. Crucially, the signal response time for these sensors is exceptionally fast, typically around 5 seconds. This near-instantaneous feedback allows for immediate fault detection and automated closed-loop adjustments, a core requirement for excursion prevention.
Stability and Reliability in Harsh Environments: CMP slurries are inherently aggressive. Modern inline instrumentation is built for resilience, using specific materials and configurations for direct mounting into pipelines. These sensors are designed to operate across a wide range of pressures (e.g., up to 6.4 MPa) and temperatures (up to 350 ℃). The non-U-tube design minimizes dead zones and clogging risks associated with abrasive media, maximizing sensor uptime and operational reliability.
Differentiation from Traditional Offline Methods
The functional differences between automated inline systems and manual offline methods define the gap between reactive defect control and proactive process optimization.
|
Monitoring Criterion |
Offline (Lab Sampling/U-Tube Densitometer) |
Inline (Lonnmeter Densitometer/Viscometer) |
Process Impact |
|
Measurement Speed |
Delayed (Hours) |
Real-Time, Continuous (Response time often 5 seconds) |
Enables preventative, closed-loop process control. |
|
Data Consistency/Precision |
Low (Susceptible to manual error, sample degradation) |
High (Automated, high repeatability/precision) |
Tighter process control limits and reduced false positives. |
|
Abrasive Compatibility |
High clog risk (Narrow U-tube bore design) |
Low clog risk (Robust, non-U-tube resonator design) |
Maximized sensor uptime and reliability in abrasive media. |
|
Fault Detection Capability |
Reactive (detects excursions that occurred hours prior) |
Proactive (monitors dynamic changes, detects excursions early) |
Prevents catastrophic wafer scrap and yield excursions. |
Table 3: Comparative Analysis: Inline vs. Traditional Slurry Metrology
Traditional offline analysis requires a sample extraction and transportation process, inherently introducing significant time latency into the metrology loop. This delay, which can last hours, ensures that when an excursion is finally detected, a large volume of wafers has already been compromised. Furthermore, manual handling introduces variability and risks sample degradation, particularly due to temperature shifts post-sampling, which can distort the viscosity readings.
Inline metrology eliminates this debilitating latency, providing a continuous stream of data directly from the distribution line. This speed is fundamental for fault detection; when combined with the robust, non-clogging design essential for abrasive materials, it provides a trustworthy data feed for stabilizing the entire distribution system. While the complexity of CMP mandates monitoring multiple parameters (such as refractive index or pH), density and viscosity provide the most direct, real-time feedback on the fundamental physical stability of the abrasive suspension, which is often insensitive to changes in parameters like pH or Oxidation-Reduction Potential (ORP) due to chemical buffering.
5. Economic and Operational Imperatives
Benefits of Real-Time Density and Viscosity Monitoring
For any advanced fabrication line where the CMP in semiconductor process is employed, success is measured by continuous yield improvement, maximum process stability, and rigorous cost management. Real-time rheological monitoring provides the essential data infrastructure required to achieve these commercial imperatives.
Enhances Process Stability
Continuous, high-precision slurry monitoring guarantees that the critical slurry parameters delivered to the point-of-use (POU) remain within exceptionally tight control limits, regardless of upstream process noise. For instance, given the variability in density inherent in incoming raw slurry batches, simply following a recipe is insufficient. By monitoring density in the blender tank in real-time, the control system can dynamically adjust dilution ratios, ensuring that the precise target concentration is maintained throughout the mixing process. This significantly mitigates process variability arising from inconsistent raw materials, leading to highly predictable polishing performance and dramatically reducing the frequency and magnitude of costly process excursions.
Increases Yield
Directly addressing the mechanical and chemical failures caused by unstable slurry conditions is the most impactful way to boost cmp semiconductor manufacturing yield rates. Predictive, real-time monitoring systems proactively safeguard high-value product. Fabs that have implemented such systems have documented significant success, including reports of up to a 25% reduction in defect escapes. This preventative capability shifts the operational paradigm from reacting to inevitable defects toward actively preventing their formation, thereby protecting millions of dollars worth of wafers from micro-scratches and other damage caused by unstable particle populations. The ability to monitor dynamic changes, such as sudden viscosity drops signaling thermal or shear stress, enables intervention before these factors propagate defects across multiple wafers.
Reduces Rework
The product rework rate, defined as the percentage of manufactured product that requires re-processing due to errors or defects, is a critical KPI measuring overall manufacturing inefficiency. High rework rates consume valuable labor, waste materials, and introduce substantial delays. Because defects like dishing, non-uniform removal, and scratching are direct consequences of rheological instability, stabilizing the slurry flow through continuous density and viscosity control drastically minimizes the initiation of these critical errors. By ensuring process stability, the incidence of defects requiring repair or re-polishing is minimized, resulting in enhanced operational throughput and overall team efficiency.
Optimizes Operational Costs
CMP slurries represent a substantial consumable cost within the fabrication environment. When process uncertainty dictates the use of wide, conservative safety margins in blending and consumption, the result is inefficient utilization and high operational costs. Real-time monitoring enables lean, precise slurry management. For instance, continuous control allows for exact blending ratios, minimizing dilution water usage and ensuring that the expensive cmp slurry composition is utilized optimally, reducing material waste and operational expenditure. Furthermore, real-time rheological diagnostics can provide early warning signs of equipment issues—such as pad wear or pump failure—which allows for condition-based maintenance before the malfunction causes a critical slurry excursion and subsequent operational downtime.
Sustained high-yield manufacturing requires the elimination of variability in all critical unit processes. Lonnmeter resonant technology provides the necessary robustness, speed, and precision to de-risk the slurry delivery infrastructure. By integrating real-time density and viscosity data, process engineers are equipped with continuous, actionable intelligence, ensuring predictable polishing performance and safeguarding wafer yield against colloidal instability.
To initiate the transition from reactive yield management to proactive process control:
Maximize Uptime and Minimize Rework: Download Our Technical Specifications and Initiate an RFQ Today.
We invite senior process and yield engineers to submit a detailed RFQ. Our technical specialists will develop a precise implementation roadmap, integrating high-precision Lonnmeter technology into your slurry distribution infrastructure to quantify the projected reduction in defect density and slurry consumption. Contact our Process Automation Team now to secure your yield advantage. Discover the essential precision required to stabilize your most critical planarization step.
