Sugar Concentration Measurement in Yogurt Production
A nuanced understanding of the yogurt production line is paramount to identifying the most impactful points for precision measurement. The process is a delicate interplay of physical transformations and biological reactions, where subtle variations at any stage can cascade into significant final product inconsistencies. This analysis breaks down this complex value chain to highlight the precise purpose and critical timing of sugar concentration measurement at each stage.
The Modern Yogurt Production Process
Initial Ingredient Mixing & Standardization
This is the foundational stage where raw milk, milk powders, and liquid sweeteners are blended to meet specific compositional targets. The quality of the final product hinges on this initial standardization. The primary objective here is to establish a precise and stable starting point for the entire production batch, ensuring that the concentration of all fermentable sugars, including lactose and any added sweeteners, is accurately controlled. This is a prerequisite for predictable downstream processes and for guaranteeing batch-to-batch consistency. Raw materials for yogurt require high-quality standards, such as milk solids not lower than 11.2%. Sugar content is a sensory quality index in dairy beverages, generally measured as a percentage of soluble solids (°Brix).
The precision of this first measurement has a ripple effect throughout the entire process. A small error in initial sugar concentration can lead to significant and unpredictable variations in fermentation kinetics. The metabolic activity of the Streptococcus thermophilus and Lactobacillus bulgaricus cultures is directly influenced by the availability of their sugar substrate, which in turn impacts the rate of pH drop and the final taste, aroma, and consistency of the yogurt. Initial accuracy is not just about meeting a specification; it is about establishing a predictable biological reaction, which is the very essence of quality control in fermented products.
Pre-Fermentation Base Treatment (Homogenization & Pasteurization)
Following standardization, the milk base is homogenized to prevent fat separation and pasteurized to denature proteins and inactivate undesirable microorganisms. Measurement at this stage serves as a final verification of the milk base composition before the starter cultures are inoculated. The extreme conditions require a sensor that is robust and resistant to heat, pressure, and potential air content.
Resilience is a non-negotiable quality metric for a sensor at this stage. Traditional optical or gravimetric sensors would fail in this harsh environment. Refractometers are susceptible to temperature fluctuations and the high turbidity of homogenized milk. An ultrasonic sensor, however, can handle these temperatures (up to 200°C) and is immune to the color, opacity, and high foam concentration that characterize the yogurt base. This is not an incremental improvement; it is the fundamental capability that makes in-line measurement possible at this critical process juncture.
Post-Fermentation & Flavoring
After fermentation, the yogurt is cooled to halt acid production. This is the stage where flavors, fruits, and sweeteners are added to the now-thickened base. This is the primary point for final sugar concentration measurement, which is directly linked to the final sensory profile. The measurement objective is to ensure the finished product meets taste, nutritional claims, and labeling requirements for sweetness. Research indicates that the addition of sugar is a key factor in determining the final taste, aroma, color, and thickness of the yogurt. One study observed that increasing sugar concentration reduced the sour taste and affected the taste and aroma of the final product.
Measurement at this stage can be a brand-building tool. The final sugar content is not just a number on a specification sheet; it is a critical consumer-facing attribute. In an industry where consumers are increasingly concerned about sugar content, precise control is a competitive differentiator. By precisely hitting the target sweetness level, a producer can ensure a consistent, expected taste profile for their brand, reducing consumer complaints and reinforcing brand loyalty. The ability to make immediate, real-time adjustments at this stage, rather than relying on batch corrections, is a direct pathway to quality leadership.

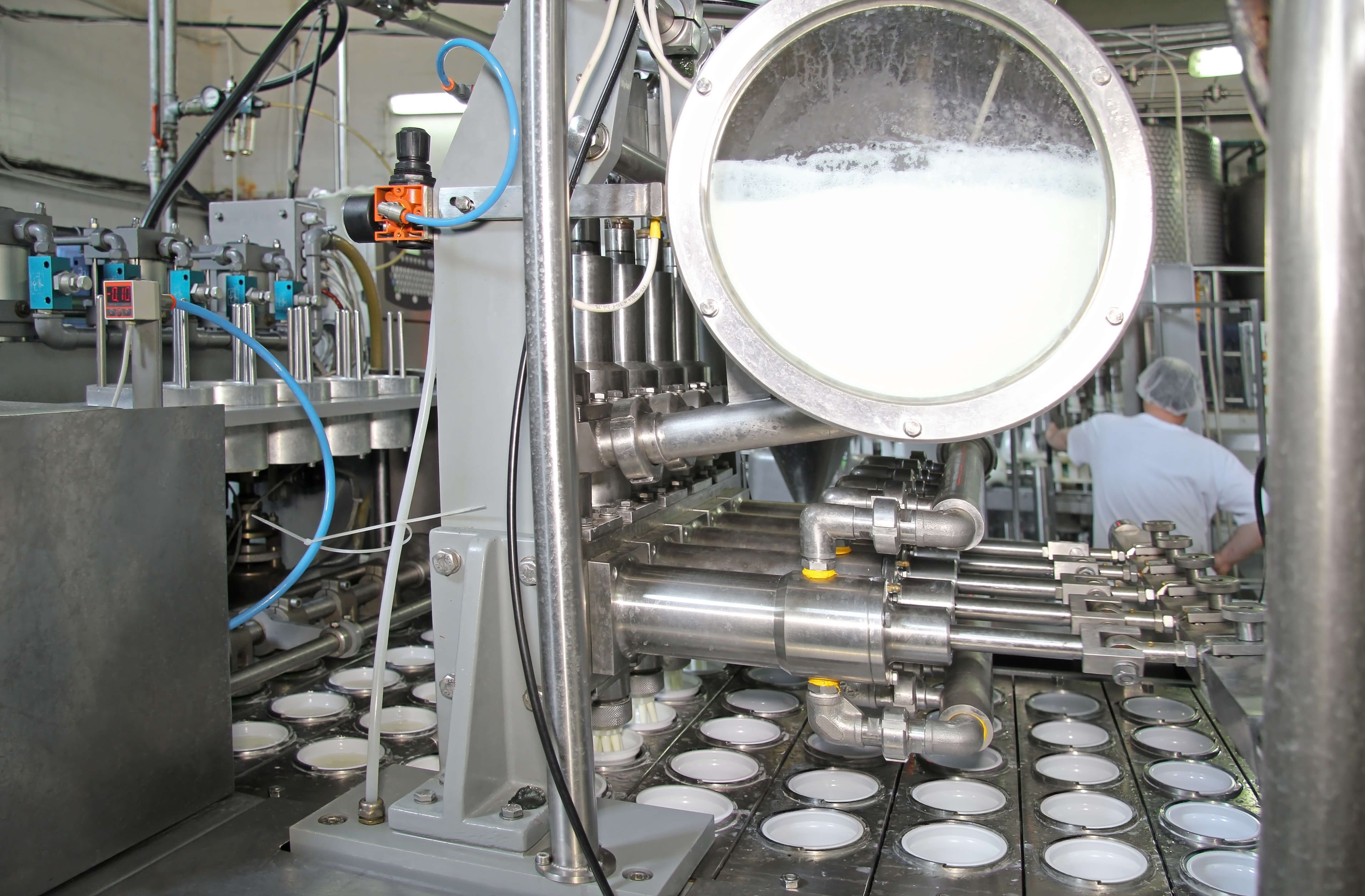

Pre-Filling/Packaging
This is the final quality gate before the product is sealed and shipped. It is the last opportunity to verify product quality. The objective is to perform a final, definitive quality assurance check to ensure every single container meets the required specifications for both flavor profile and regulatory compliance.
This final measurement shifts the paradigm from a reactive, corrective process to a proactive, preventative one. It is less about correcting the process and more about validating it. By having a continuous, final verification, a producer can quickly identify and quarantine any off-spec product before it reaches the market, thereby reducing the risk of costly recalls, reputational damage, and customer service issues. The rapid response time of an in-line ultrasonic sensor is critical here, as it can be used to control a diverter valve to automatically shunt non-compliant product.
Have questions about optimizing production processes？
Table 1 provides a clear, at-a-glance roadmap for process engineers and managers, identifying the key control points, their purpose, and the required specifications. It serves as a visual framework for the entire strategic discussion, demonstrating a deep understanding of the commercial yogurt production process.
Table 1: Critical Measurement Stages & Objectives in the Yogurt Production Process
|
Stage |
Primary Purpose |
Key Parameters |
Required Accuracy |
|
Initial Ingredient Mixing & Standardization |
Establish stable starting point; ensure batch-to-batch consistency. |
Sugar Concentration (°Brix), Lactose Concentration, Temperature. |
±0.01 Brix (or higher) |
|
Pre-Fermentation Base Treatment |
Final verification of composition before inoculation; ensure resilience to harsh conditions. |
Sugar Concentration (°Brix), Temperature, Density. |
±0.05 Brix |
|
Post-Fermentation & Flavoring |
Control final sensory profile; ensure compliance with labeling requirements. |
Final Sugar Concentration (°Brix), Acidity (pH). |
±0.05 Brix |
|
Pre-Filling/Packaging |
Final quality assurance check; risk mitigation for recalls and brand reputation. |
Final Sugar Concentration (°Brix), Viscosity. |
±0.05 Brix |
The Ultrasonic Advantage: A Technical Deep Dive
This section articulates why ultrasonic technology is not merely an alternative, but a superior solution for the demanding environment of yogurt production.
Principles of Ultrasonic Measurement
The core principle of ultrasonic concentration measurement is the direct relationship between the speed of sound through a medium and its physical properties, such as concentration and density. The sensor emits an ultrasonic wave, measures the time it takes to travel a fixed distance to a receiver, and calculates the speed of sound using the formula:
v=d/t. This sound velocity is then correlated with the concentration of the dissolved solids. The Ultrasonic Concentration Meter, for example, operates on this principle and boasts a measurement accuracy of 0.05% to 0.1%.
A Comparative Analysis of Measurement Technologies
In a complex medium like yogurt, traditional measurement technologies suffer from critical limitations. A side-by-side comparison reveals the clear technical superiority of the ultrasonic approach.
Refractometers: These devices rely on the refractive index of light. Their primary weakness in yogurt production is their sensitivity to turbidity, color, and suspended particles, which are all characteristic features of the fluid. They are fundamentally an optical technology, making them ill-suited for opaque media.
Density Meters: These instruments measure density to infer concentration. While useful, they can be negatively affected by high foam concentrations or entrained air, leading to measurement errors.
Near-Infrared (NIR) Spectroscopy: While fast and useful for sugar analysis, NIR can be complex and may require a clean sample, extensive calibration, and multi-variate analysis.
The key distinction is that refractometers and density meters measure different physical properties (refractive index and density, respectively) to infer the same value (°Brix). This results in them yielding different results for the same multi-component sample. This is not a minor technical difference; it is a fundamental problem of ambiguity and inconsistency. An ultrasonic sensor, which is a single, in-line measurement, eliminates this ambiguity. It provides a single, consistent, and reliable source of truth, thereby simplifying quality control and ensuring comparability across different plant sites or production lines. This moves quality control from a subjective, instrument-dependent process to a singular, objective, and definitive one.
Table 2 provides a comprehensive comparison of these technologies.
Table 2: In-line Concentration Measurement Technology Comparison
|
Technology |
Accuracy |
Immunity to Turbidity/Color |
Immunity to Foam |
CIP/SIP Resilience |
Maintenance |
Calibration Complexity |
|
Ultrasonic |
High (±0.01% of range) |
High (unaffected) |
High (unaffected) |
High (purpose-built) |
Very Low (no moving parts) |
Medium (with ML) |
|
Refractometer |
High (in clear fluids) |
Low (unusable in opaque fluids) |
Medium |
Medium (prism can foul) |
Medium (cleaning/re-zeroing) |
Low (for pure sucrose) |
|
Density Meter |
High |
High (unaffected) |
Low (affected by air) |
Medium (sensor may foul) |
Medium (cleaning/re-zeroing) |
Low (for pure sucrose) |
|
NIR Spectroscopy |
High |
Low (can be sensitive) |
Medium |
Low |
High (complex calibration) |
High (multi-variate) |
Learn About More Density Meters
More Online Process Meters
Overcoming Environmental Challenges
The dairy industry is one of the most demanding environments for process sensors due to high temperatures, pressures, and strict hygienic requirements. The sensor is a prime example of a solution designed to overcome these challenges. It is immune to color, turbidity, and high foam concentrations and can operate at temperatures up to 200°C and pressures up to 500 Bar This is well above the temperatures required for pasteurization (90-95°C) and CIP/SIP processes (up to 130°C). The sensor is also designed for CIP compatibility, featuring a hygienic transducer and stainless steel construction.
The ability of a sensor to withstand CIP/SIP cycles without manual removal is a massive operational and financial advantage. A case study on an ultrasonic level sensor demonstrates how self-cleaning, hygienic designs eliminate maintenance needs and false readings from condensation and foam, which translates directly to reduced downtime, lower labor costs, and improved process reliability. The sensor is not just a measurement device; it is an asset that is integrated into the plant's cleaning and maintenance protocols, contributing directly to operational efficiency and ROI.
Advanced Analytics & Automation: Pushing the Boundaries of Process Control
The true value of a robust sensor is realized when its data is fully leveraged by an intelligent automation framework. This section details how the raw data from ultrasonic sensors is transformed into actionable intelligence, addressing the most complex challenges of multi-component analysis and plant-wide integration.
Mastering Calibration for Complex Matrices
Yogurt is not a simple sucrose-in-water solution. It is a complex matrix of lactose, added sweeteners, proteins, and fats. A single sound velocity measurement might not be sufficient to differentiate between these components. Research indicates that ultrasonic measurements can be combined with advanced machine learning algorithms, such as Partial Least Squares (PLS) and Support Vector Machines (SVM), to predict concentrations in complex, multi-component suspensions. This provides a significant competitive advantage in food production. Multi-sensor fusion is another powerful strategy for improving accuracy by combining data from various sources.
The challenge of multi-component sugar differentiation is not solved by the sensor alone, but by a synergistic combination of the sensor and advanced analytics. The sensor provides a rich stream of high-frequency data , and a machine learning model, trained on historical data from various product recipes, learns to accurately correlate that stream to the desired sugar concentration. This represents a fundamental shift from a simple physics-based measurement to a sophisticated, data-driven predictive model. This capability transforms the sensor from a simple instrument into a "smart" analytical tool that can handle the nuance and variability of real-world food production.
Seamless SCADA/DCS Integration
A sensor is only as good as its ability to communicate and integrate with the plant's central nervous system. The PS7020 sensor supports a wide array of communication protocols, including RS485, Modbus, Profibus-DP, Bluetooth 5.3, and dual 4-20mA outputs with HART. Standard communication protocols like HART and Modbus are critical for bridging field devices with monitoring and control systems. High-speed data acquisition systems (DAQs) are crucial for real-time monitoring and control, providing low latency and high-speed data processing.
The dairy industry is plagued by "siloed data and information" that prevent meaningful analysis. By selecting a sensor with native support for industry-standard protocols, a dairy can avoid complex and costly integration projects. The ability to pull not just a single concentration value but also secondary variables like sound velocity and temperature over a digital protocol like HART or Modbus provides a richer dataset for advanced analytics and troubleshooting. This simplifies system design and provides a single, unified view of the process, a key element of "smart manufacturing".
Enhancing Product Consistency and Brand Value
Consistent quality is the cornerstone of brand loyalty. A reliable measurement system ensures that the final product consistently meets consumer expectations. Accurate real-time measurements are crucial for process optimization, quality control, and immediate decision-making. Consistent product taste and quality are directly influenced by the final sugar concentration.
The value of consistency goes far beyond avoiding customer complaints. A brand known for its reliable, high-quality product can command a premium price, expand its market share, and reduce marketing costs. The real-time measurement system provides the data-driven foundation for this quality differentiation. It enables a shift from a reactive, corrective quality assurance model to a proactive, brand-building one.
Operational Efficiency & Maintenance Cost Savings
The robust design of ultrasonic sensors translates to significant long-term operational benefits. The self-adjusting and self-cleaning features of advanced ultrasonic sensors eliminate false readings and maintenance issues that plague other systems. This reduces downtime and labor costs, as demonstrated in a case study where a dairy facility experienced improved process reliability and reduced downtime. The lack of moving parts and consumables makes it a set-it-and-forget-it solution, freeing up valuable engineering and maintenance time. The total cost of ownership (TCO) for a robust ultrasonic system is significantly lower than for traditional systems that require frequent maintenance, recalibration, or have a short lifespan in harsh environments.
In-line ultrasonic sugar concentration measurement represents a quantum leap in process control for the dairy industry, moving away from a reliance on reactive, manual, and unreliable methods to a proactive, data-driven, and highly profitable model. Contact Lonnmeter and start your process optimization.
