Accurate starch slurry viscosity determines the integrity and performance of warp yarns during weaving. High viscosity causes uneven coating on the yarns while low viscosity results in insufficient adhesion. These imbalances not only compromise warp yarn quality by fostering inconsistencies in strength and smoothness but also escalate production downtime and material waste.
What is the Sizing Process of Yarn?
The yarn sizing process involves applying a protective coating to warp yarns to enhance their weaveability, a practice essential for preventing damage during high-speed weaving. This procedure, often referred to as yarn sizing, fortifies the yarns against friction and tension, forming a barrier that minimizes hairiness and breakage. In essence, the sizing of yarn for weaving process transforms raw yarns into robust components ready for the rigors of fabric formation, where the slurry’s properties directly influence the final textile’s uniformity and resilience.

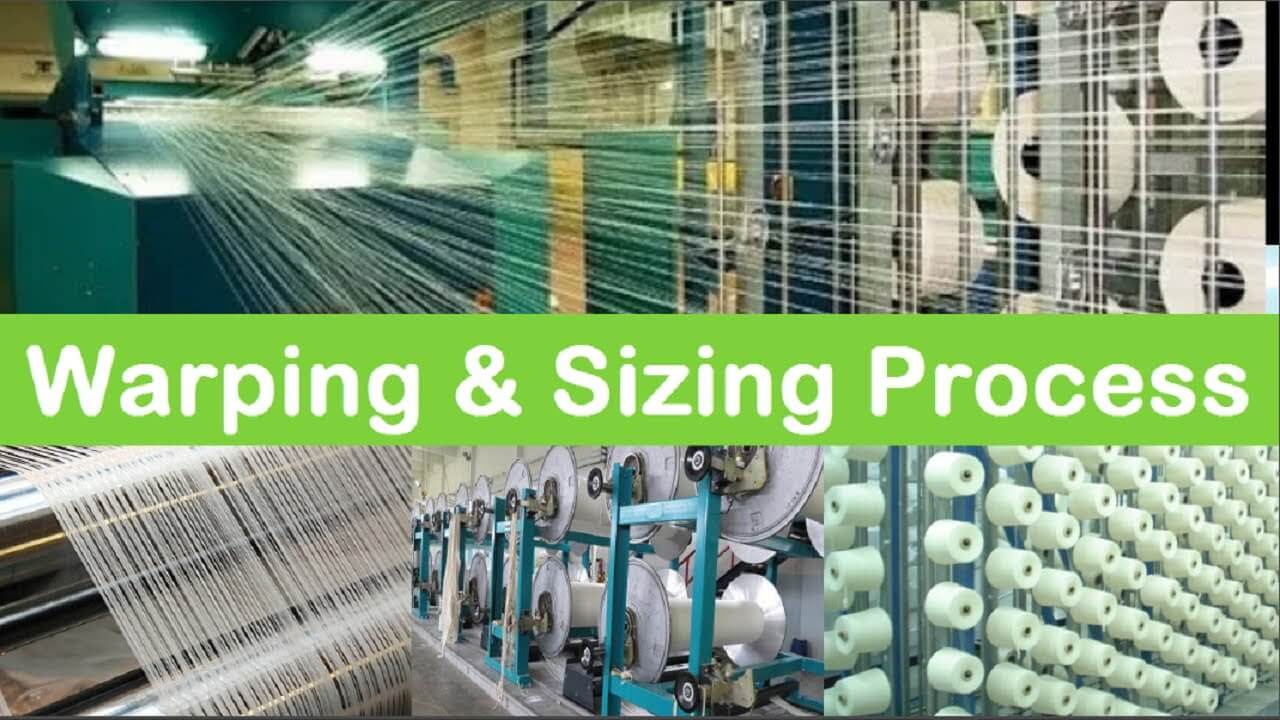

Warping and Sizing
*
Starch Slurry Preparation
Preparing starch slurry for textile demands attention to each phase, as variations in handling can alter the resulting viscosity and effectiveness of the sizing layer on warp yarns. Operators begin by selecting appropriate starch types, such as corn or wheat derivatives, and mixing them with water in controlled ratios to form an initial suspension, where the goal remains achieving homogeneity without premature clumping that could lead to erratic flow later on. Heating this mixture gradually to temperatures exceeding 80°C induces gelatinization, a critical transformation where starch granules swell and burst, releasing amylose and amylopectin chains that thicken the solution and establish its viscous profile, with overcooking risking degradation that lowers stability and undercooking preserving granules that impede smooth application.
Following gelatinization, incorporating additives like viscosity reducers such as ammonium persulfate or lubricants refines the slurry’s behavior, ensuring it maintains consistent thickness under shear forces encountered in sizing machines, while cooling the batch under agitation prevents retrogradation—a phenomenon where starch molecules recrystallize, spiking viscosity unpredictably and complicating uniform yarn coverage. Throughout this sequence, monitoring parameters like concentration and pH becomes imperative, as higher concentrations yield elevated viscosities beneficial for robust film formation, yet demand careful balancing to avoid processing hurdles, drawing from proven automation strategies that integrate real-time adjustments for reproducible outcomes in demanding production environments.
Challenges in Continuous Viscosity Monitoring of Warp Sizing Process
Fluctuations in slurry composition and environmental conditions pose significant hurdles to achieving steady viscosity during the ongoing textile warp sizing process, where even minor deviations in temperature or mixing intensity can trigger rapid changes that disrupt yarn impregnation and lead to defects like uneven sizing or excessive hairiness. Traditional monitoring methods often fall short in capturing dynamic shifts, as manual sampling introduces delays and human error, allowing inconsistencies to propagate through the production line before corrections can be applied, a scenario that experienced process engineers recognize as a prime opportunity for automated interventions to restore precision and minimize variability.
Moreover, mechanical factors such as irregular squeeze roller pressure or warp speed variations compound these issues, altering the effective viscosity experienced by the yarns and potentially resulting in suboptimal film thickness that compromises weave efficiency and fabric quality. Contaminants or aging of the slurry further exacerbate monitoring difficulties, as they unpredictably modify rheological properties, demanding robust systems capable of real-time adaptation to sustain operational reliability amid the high-stakes demands of modern textile manufacturing.
Common Sizing Defects and Remedies
Drawing from extensive industry insights, addressing defects like sticky yarns or patchy coatings requires pinpointing root causes such as non-uniform size paste temperature or inadequate stirring, which can be mitigated through enhanced equipment calibration and procedural refinements that bolster overall process stability. Implementing automated controls here proves transformative, as they detect anomalies early, enabling proactive adjustments that curtail waste and uphold stringent quality benchmarks.
Learn About More Density Meters
More Online Process Meters
Lonnmeter Inline Vibrational Viscometer
Sensor probe of the Lonnmeter slurry viscometer should be immersed in the fluid and vibrates at a resonant frequency. The damping effect imposed by the liquid’s resistance directly correlates to its viscosity, allowing for precise, continuous measurements without moving parts that could wear or require frequent recalibration. This high-shear operational mode renders the device largely unaffected by variations in flow rate, pipe dimensions, or external vibrations, making it particularly suited for the demanding conditions of sizing applications where maintaining slurry consistency equates to safeguarding yarn integrity and weaving performance.
Lonnmeter stands out for delivering superior product uniformity by ensuring consistent viscosity levels that translate into reliable yarn coatings, while its real-time data output enhances operational agility, reducing downtime and material inefficiencies that plague manual oversight. However, potential drawbacks include sensitivity to extreme temperature swings, which might skew readings if not properly managed.
Installation Placements and Requirements
Positioning an online viscometer strategically within sizing machines calls for placements directly in the slurry circulation line or at the size box outlet, where it can capture representative samples of the fluid in motion, thereby providing actionable insights into viscosity dynamics that inform immediate control loop adjustments for enhanced yarn preparation. Mitigating vibrations emerges as a pivotal consideration, necessitating secure mounting on stable platforms away from high-frequency machinery sources, often augmented by damping materials or isolation mounts to preserve measurement fidelity in the bustling textile mill setting.
Temperature management demands equal vigilance, with installations incorporating insulation or heating jackets to stabilize the probe environment against ambient fluctuations that could otherwise distort viscosity data, ensuring the system’s reliability across varying production shifts. Illustrative process diagrams typically depict the viscometer integrated post-mixing tank and pre-application zone, with flow arrows indicating bypass loops for maintenance, a configuration that automation veterans favor for its balance of accessibility and minimal disruption to workflow.
Key Factors in Viscometer Integration
Beyond basic setup, factoring in electrical connections and signal integration with PLC systems facilitates seamless data transmission, empowering operators to automate responses to viscosity drifts and foster a more resilient sizing operation tailored to high-volume demands.
Benefits of Real Time Viscosity Control
Embracing automated viscosity oversight in textile sizing unlocks a cascade of advantages, from elevated product standards through uniform yarn coatings that resist abrasion and breakage, to substantial reductions in scrap by preempting defects before they manifest in the weave. Efficiency gains materialize as real-time adjustments optimize slurry usage, curtailing energy consumption in preparation stages and accelerating throughput without sacrificing precision, while cost efficiencies accrue from lower raw material expenditures and diminished rework, painting a compelling picture for factories aiming to thrive in competitive markets.
Justifying the shift to automated measurement of starch viscosity hinges on its capacity to deliver unwavering consistency, where instantaneous feedback loops eclipse the limitations of batch testing, fostering a proactive stance that aligns with the principles of lean manufacturing. Similarly, the starch viscosity measurement through inline tools ensures every batch meets exacting specifications, bolstering efficiency by eliminating guesswork and enabling data-driven refinements that process automation specialists have championed for years as the pathway to sustainable excellence. The determination of starch viscosity in this manner not only streamlines operations but also empowers teams to innovate, confident in the foundational stability of their core processes.
Ready to transform your sizing operations with cutting-edge viscosity control? Contact us today for a tailored quotation that addresses your specific needs, and let’s collaborate on automating your processes for unmatched quality and savings.
