Glycol Viscosity Determination
The effective management of antifreeze solutions in petrochemical pipelines demands proactive, data-driven strategies that integrate seamlessly into existing infrastructures. The emphasis on real-time glycol water viscosity determination stems from its direct influence on operational reliability, especially in low-temperature environments where even minor fluctuations can cascade into significant disruptions. By continuously tracking this property, engineers can fine-tune system parameters to maintain optimal flow, thereby averting costly downtimes and enhancing overall productivity in pipeline fuel transport scenarios.
What is the Viscosity of Glycol Water?
The viscosity of glycol-water mixtures varies significantly based on the type of glycol (e.g., ethylene or propylene), its concentration, and temperature. Propylene glycol, favored for lower toxicity, shows similar viscosity changes but has unique surface tension effects, adding complexity.

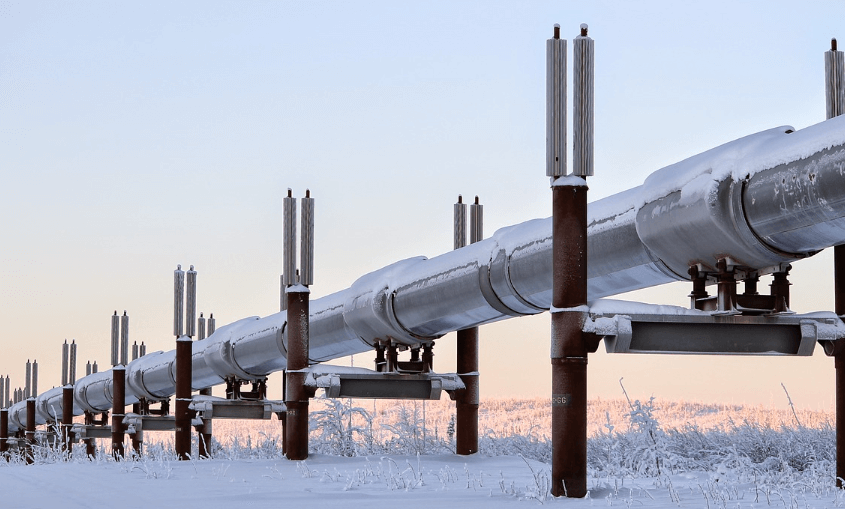

Petrochemical Low-Temperature Pipeline Transportation
*
Low-Temperature Pipeline Transportation
Within the realm of oil pipeline transportation, particularly in frigid northern locales or during harsh winter periods, glycol aqueous solutions emerge as indispensable for antifreeze protection and thermal regulation, either through heat tracing or as direct coolants to stabilize pipeline temperatures. Ambient influences, including daily thermal cycles and abrupt weather events like cold fronts, provoke real-time alterations in the internal medium's temperature, consequently inducing unpredictable shifts in the glycol blend's flow properties. This setup not only preserves the integrity of transported hydrocarbons but also adapts to the inherent challenges of maintaining consistent delivery amid environmental volatility, drawing on established practices in natural gas and crude oil conveyance to prioritize uninterrupted operations.
Challenges
Drastic alterations in viscosity and density pose formidable obstacles, as plummeting temperatures amplify fluid thickness, thereby escalating frictional losses and straining pumping mechanisms to the point where energy consumption surges inefficiently. Compounding this, diminished accuracy in mixture composition arises from uneven distribution or degradation over time, heightening the likelihood of localized crystallization or unwanted phase shifts that could obstruct flow paths and precipitate operational halts. Adverse outcomes extend to impaired fluid movement, elevated maintenance demands on pumps, and inaccuracies in material balancing that disrupt inventory management and economic forecasting.
· Hydrate Formation Risks: Under high-pressure, low-temperature conditions, water molecules can form ice-like structures with gas, severely narrowing pipeline diameters and risking complete blockages.
· Corrosion and Degradation: Untreated or improperly managed glycols accelerate metal deterioration within pipes, leading to leaks and environmental hazards.
· Foaming and Emulsion Issues: Contaminants or temperature differentials promote foam generation, causing glycol losses and complicating separation processes.
· Freezing Potential: Even with antifreeze, extreme colds can freeze instrumentation or sections of the system, affecting measurement accuracy and flow continuity.
· Microbial Growth: In closed loops, bacterial proliferation degrades fluid quality, further altering viscosity and promoting sludge buildup.
These multifaceted issues highlight the imperative for robust monitoring systems that can anticipate and mitigate such complications before they escalate into full-scale failures.
Lonnmeter Viscosity Meter for Water Glycol
In industries spanning petrochemicals—handling crude, heavy oils, and lubricants—to food processing with syrups or jams, and even pharmaceuticals for tablet coatings, the inline industrial viscosity meter for water glycol from Lonnmeter stands out by delivering uninterrupted, precise measurements directly in the flow stream, bypassing the need for labor-intensive offline tests and ensuring sustained dependability with superior precision. This integration into automated control frameworks empowers swift modifications to variables like heat levels, pressure settings, or additive concentrations, thus averting the production of substandard batches and streamlining workflows for enhanced throughput.
Measures viscosity from 1 to 1,000,000 cP with ±2-5% accuracy, ±1-2% repeatability, and <350℃ temperature resistance. Built with 316L, Teflon, and Hastelloy, it features IP68 environmental rating, RS485 interface, and Ex dIIBT6 explosion-proof standard, ideal for petrochemical use.
Working Principle
At the core of the industrial online or inline viscometer lies a slender, rod-like sensing component that oscillates at a predetermined frequency while undergoing torsional twisting around its axis, interacting with the surrounding fluid to incur energy depletion through shear-induced drag. The magnitude of this dissipation correlates directly with the medium's resistance to flow—elevated viscosities amplify the frictional forces, resulting in greater power loss that the device's electronics capture and interpret. Subsequently, the integrated transmitter refines this raw signal into a straightforward, interpretable metric, furnishing operators with instantaneous feedback on fluid states to inform precise adjustments during ongoing manufacturing cycles. This methodology not only enhances measurement fidelity but also adapts effortlessly to varying process demands.
Recommended Installation Placements for Viscosity Monitoring
Effective placement of inline viscometers, such as Lonnmeter’s, enhances real-time viscosity monitoring in glycol-water systems used for antifreeze and heat tracing in petrochemical pipelines. By strategically positioning these devices at key points, operators can address the dynamic viscosity changes driven by temperature fluctuations and ensure stable, efficient, and safe pipeline operations.
| Installation Point | Purpose |
|---|---|
| Storage Tank Outlet | Establishes baseline viscosity for the circulation system |
| Heat Tracing Unit Inlet/Outlet | Monitors viscosity changes due to temperature variations |
| Long-Distance Pipeline Nodes | Detects viscosity shifts in temperature-sensitive segments |
| Circulation Pump Inlet/Outlet | Protects pump efficiency and safety by ensuring optimal viscosity |
| Return to Storage Tank Inlet | Ensures fluid consistency and detects degradation in the closed-loop system |
Learn About More Density Meters
More Online Process Meters
Benefits of Viscosity Determination
In petrochemical low-temperature pipeline transportation, such as subsea gas or oil lines, water-glycol mixtures serve as fire-resistant hydraulic fluids for control systems like valves and actuators. Low temperatures (e.g., near 2°C in deep-sea) exponentially increase viscosity, complicating flow and lubrication, while high pressures (up to 110 MPa) can counter this for high-water-content mixtures (>75%), reducing viscosity and aiding efficiency. Measuring viscosity allows operators to predict and mitigate these effects, ensuring consistent performance without excessive power draw or mechanical wear.
· Ensures pumpability and prevents blockages: Real-time monitoring keeps viscosity within safe limits at low temperatures, avoiding flow restrictions in pipelines.
· Optimizes energy use: Allows precise control of glycol concentration to minimize pumping power requirements.
· Maintains heat transfer efficiency: Balances freeze protection with low viscosity for better thermal performance.
· Enables early degradation detection: Viscosity changes signal contamination or breakdown, extending fluid and equipment life.
These gains collectively position viscosity determination as a cornerstone of modern process automation, delivering tangible returns on investment through heightened reliability and reduced operational risks.
Reach out to Lonnmeter today with your detailed request for quotation, specifying your unique process needs, environmental constraints, and integration preferences to receive a tailored proposal that aligns perfectly with your viscosity management objectives, empowering your team to achieve unparalleled control and efficiency in fluid handling.
