I. Importance of Viscosity Measurement of Rubber in SBR Manufacturing
The successful production of Styrene Butadiene Rubber (SBR) depends on the precise control and monitoring of its rheological properties. Viscosity, which quantifies a material's resistance to flow, stands as the single most critical physicochemical parameter dictating both the processability of the intermediate rubber compounds and the final quality index of the finished goods.
In the synthetic rubber manufacturing process, viscosity provides a direct, measurable proxy for the fundamental structural characteristics of the polymer, specifically its molecular weight (MW) and molecular weight distribution (MWD). Inconsistent viscosity measurement of rubber directly compromises material handling and finished product performance. For instance, compounds exhibiting excessively high viscosity impose severe limitations on downstream operations such as extrusion or calendering, leading to elevated energy consumption, increased operational strain, and potential equipment failure. Conversely, compounds with very low viscosity may lack the required melt strength necessary to maintain dimensional integrity during forming or the eventual curing phase.
Styrene-Butadiene Rubber (SBR)
*
Beyond mere mechanical handling, viscosity control is essential for achieving a uniform dispersion of critical reinforcing additives, such as carbon black and silica. The homogeneity of this dispersion dictates the final material's mechanical properties, including critical metrics like tensile strength, abrasion resistance, and the complex dynamic behavior exhibited after the process of vulcanization of rubber.
II. Fundamentals of Styrene Butadiene Rubber (SBR)
What is Styrene Butadiene Rubber?
Styrene Butadiene Rubber (SBR) is a versatile synthetic elastomer, widely utilized due to its excellent cost-to-performance ratio and high volume availability. SBR is synthesized as a copolymer derived predominantly from 1,3-butadiene (approximately 75%) and styrene monomers (approximately 25%). These monomers are combined through a chemical reaction called copolymerization, forming long, multi-unit polymer chains. SBR is specifically designed for applications demanding high durability and exceptional abrasion resistance, making it an ideal choice for tire treads.

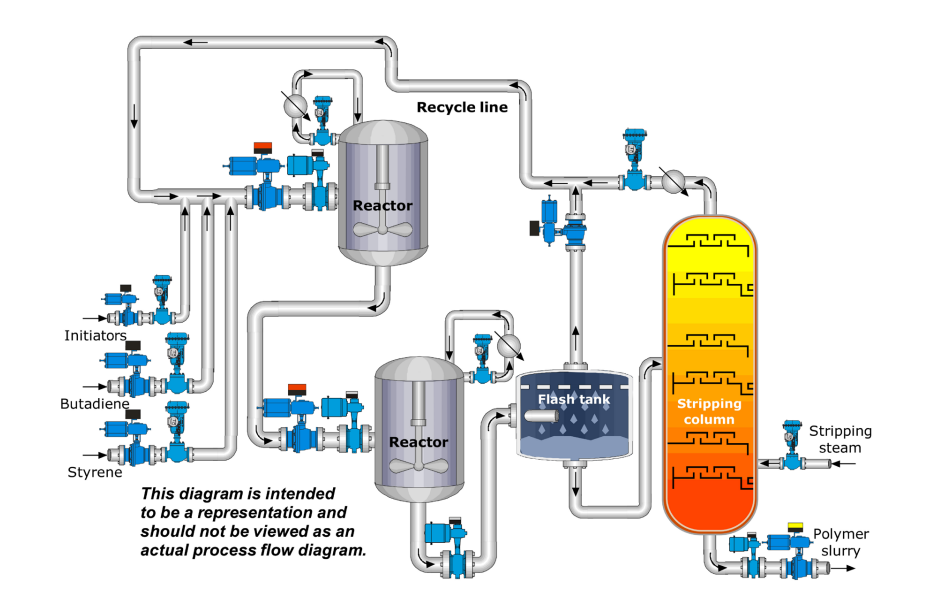

Synthetic Rubber Manufacturing Process
SBR synthesis is accomplished through two distinct industrial polymerization methods, which result in materials with different inherent characteristics and require specific viscosity controls during the liquid phase.
Emulsion Polymerization (E-SBR): In this classic method, the monomers are dispersed or emulsified in an aqueous solution using a soap-like surfactant. The reaction is initiated by free radical initiators and requires stabilizers to prevent product deterioration. E-SBR can be produced using either hot or cold process temperatures; cold E-SBR, specifically, is known for superior abrasion resistance, tensile strength, and low resilience.
Solution Polymerization (S-SBR): This advanced method involves anionic polymerization, typically employing an alkyl lithium initiator (such as butyllithium) within a hydrocarbon solvent, commonly hexane or cyclohexane. S-SBR grades generally possess a higher molecular weight and a narrower distribution, resulting in enhanced properties such as better flexibility, high tensile strength, and significantly lower rolling resistance in tires, making S-SBR a premium, more expensive product.
Crucially, in both processes, the polymerization reaction must be precisely terminated by introducing a chain terminator or short-stop agent into the reactor effluent. This controls the final chain length, a step that directly establishes the initial molecular weight and, consequently, the base viscosity of rubber before compounding.
Properties of Styrene Butadiene Rubber
SBR is valued for a strong profile of physical and mechanical properties:
Mechanical Performance: Key strengths include high tensile strength, which typically ranges from 500 to 3,000 PSI, coupled with excellent abrasion resistance. SBR also demonstrates good resistance to compression set and high impact resistance. Furthermore, the material is inherently crack-resistant, which is a key trait that permits the incorporation of large volumes of reinforcing fillers, such as carbon black, to enhance strength and UV resistance.
Chemical and Thermal Profile: While generally resistant to water, alcohol, ketones, and certain organic acids, SBR exhibits notable vulnerabilities. It possesses poor resistance to petroleum-based oils, aromatic hydrocarbon fuels, ozone, and halogenated solvents. Thermally, SBR maintains flexibility across a wide range, with a continuous use maximum of approximately 225°F and low-temperature flexibility extending down to -60℉.
Viscosity as the Primary Indicator of Molecular Weight and Chain Structure
The rheological characteristics of the raw polymer are fundamentally determined by the molecular structure—the length and degree of branching of the polymer chains—established during the polymerization stage. A higher molecular weight generally translates to higher viscosity and correspondingly lower melt flow rates (MFR/MVR). Therefore, measuring the intrinsic viscosity (IV) immediately at the reactor discharge is functionally equivalent to continuously monitoring the formation of the intended molecular architecture.
III. Rheological Principles Governing SBR Processing
Rheological principles, shear rate dependence, temperature/pressure sensitivity.
Rheology, the study of how materials deform and flow, provides the scientific framework for understanding the behavior of SBR under industrial processing conditions. SBR is characterized as a complex viscoelastic material, meaning it exhibits properties blending viscous (permanent, liquid-like flow) and elastic (recoverable, solid-like deformation) responses. The dominance of these characteristics depends significantly on the rate and duration of the applied load.
SBR compounds are fundamentally non-Newtonian fluids. This means their apparent rubber viscosity is not a constant value but exhibits a crucial shear rate dependence; the viscosity decreases significantly as the shear rate increases a phenomenon known as shear thinning. This non-Newtonian behavior has profound implications for quality control. Viscosity values obtained at low shear rates, such as those measured in traditional Mooney viscometer tests, may provide an inadequate representation of the material's behavior under the high shear rates inherent in mixing, kneading, or extrusion operations. Beyond shear, viscosity is also highly sensitive to temperature; process heat reduces viscosity, which aids flow. While pressure also affects viscosity, maintaining a stable temperature and consistent shear history is paramount, as viscosity can vary dynamically with shear, pressure, and processing time.
Impact of Plasticizers, Fillers, and Processing Aids on SBR Viscosity
The rubber processing stage, known as compounding, involves integrating numerous additives that dramatically modify the base SBR polymer’s rheology:
Plasticizers: Process oils are crucial for improving the flexibility and overall processability of SBR. They function by reducing the composite viscosity of the compound, which concurrently facilitates the uniform dispersion of fillers and softens the polymer matrix.
Fillers: Reinforcing agents, primarily carbon black and silica, substantially increase the material’s viscosity, leading to complex physical phenomena driven by filler-filler and filler-polymer interactions. Achieving optimum dispersion is a balance; agents such as glycerol can be used to soften lignosulfonate fillers, adjusting the filler viscosity closer to the SBR matrix viscosity, thereby reducing agglomerate formation and improving homogeneity.
Vulcanizing Agents: These chemicals, including sulfur and accelerators, impart significant alterations to the uncured compound's rheology. They affect factors such as scorch safety (resistance to premature cross-linking). Other specialized additives, like fumed silica, may be used strategically as viscosity-increasing agents to achieve specific rheological goals, such as producing thicker films without altering the total solids content.
Connecting Rheology to Vulcanization of rubber process and Final Cross-Link Density
The rheological conditioning imparted during compounding and forming is directly linked to the final service performance of the vulcanized product.
Uniformity and Dispersion: Inconsistent viscosity profiles during mixing—often correlated with non-optimal energy input—result in poor dispersion and inhomogeneous distribution of the cross-linking package (sulfur and accelerators).
The Process of Vulcanization of rubber: This irreversible chemical process involves heating the SBR compound, typically with sulfur, to create permanent cross-links between the polymer chains, significantly enhancing the rubber's strength, elasticity, and durability. The process involves three stages: the induction (scorch) stage where initial shaping occurs; the cross-linking or curing stage (rapid reaction at 250 ℉ to 400 ℉; and the optimum state.
Cross-Link Density: The ultimate mechanical properties are governed by the achieved cross-link density. Higher Dc values impede molecular chain motion, raising the storage modulus and influencing the material’s non-linear viscoelastic response (known as the Payne effect). Therefore, precise rheological control in the uncured, processing stages is essential to ensure the molecular precursors are correctly prepared for the subsequent curing reaction.
IV. Existing Problems in Viscosity Measurement
Limitations of Traditional Offline Testing
The widespread reliance on conventional, discontinuous, and labor-intensive quality control methods imposes significant operational constraints on continuous SBR production, preventing rapid process optimization.
Mooney Viscosity Prediction and Lag: A core quality index, Mooney viscosity, is traditionally measured offline. Due to the physical complexity and high viscosity of the industrial rubber manufacturing process, it cannot be measured directly in real-time within the internal mixer. Furthermore, accurately predicting this value using traditional empirical models is challenging, particularly for compounds incorporating fillers. The time lag associated with laboratory testing delays corrective actions, increasing the financial risk of producing large amounts of off-specification material.
Altered Mechanical History: Capillary rheometry, while capable of characterizing flow behavior, requires extensive sample preparation. The material must be re-formed into specific cylindrical dimensions prior to testing, a process that modifies the compound's mechanical history. Consequently, the measured viscosity may not accurately reflect the compound's actual state during industrial rubber processing.
Inadequate Single-Point Data: Standard melt flow rate (MFR) or melt volume rate (MVR) tests yield only a single flow index at fixed conditions. This is insufficient for non-Newtonian SBR. Two different batches might exhibit identical MVR values but possess vastly divergent viscosities at the high shear rates relevant to extrusion. This disparity can result in unpredicted processing failures.
Cost and Logistical Burden: Relying on off-site laboratory analysis introduces significant logistical costs and time delays. Continuous monitoring offers an economic advantage by dramatically reducing the number of samples requiring external analysis.
The Challenge of Measuring High-Viscosity and Multi-Phase SBR Compounds
The industrial handling of rubber compounds involves materials exhibiting extremely high viscosities and complex viscoelastic behavior, creating unique challenges for direct measurement.
Slip and Fracture: High-viscosity, viscoelastic rubber materials are prone to issues such as wall slip and elasticity-induced sample fracture when tested in traditional open-boundary rheometers. Specialized equipment, such as the oscillating die rheometer with a serrated, closed-boundary design, is necessary to overcome these effects, especially in filled materials where complex polymer-filler interactions occur.
Maintenance and Cleaning: Standard online flow-through or capillary systems frequently suffer from clogging due to the sticky, high-viscosity nature of polymers and fillers. This necessitates elaborate cleaning protocols and leads to costly downtime, a severe disadvantage in continuous production settings.
The Need for a robust intrinsic viscosity instrument for polymer solutions.
In the initial solution or slurry phase, following polymerization, the critical measurement is intrinsic viscosity (IV), which correlates directly with molecular weight and polymer performance. Traditional lab methods (e.g., GPC or glass capillaries) are too slow for real-time control.
The industrial environment demands an automated and robust intrinsic viscosity instrument. Modern solutions, such as the IVA Versa, automate the entire process using a dual-capillary relative viscometer to measure solution viscosity, minimizing user contact with solvents and achieving high precision (RSD values below 1%). For inline applications in the melt phase, Side Stream Online-Rheometers (SSR) can determine an IV-Rheo value based on continuous shear viscosity measurements at a constant shear rate. This measurement establishes an empirical correlation that allows for the monitoring of MW changes in the melt stream.
V. Critical Process Stages for Viscosity Monitoring
Significance of online measurement at polymerization reactor discharge, mixing/kneading, and pre-extrusion forming.
Implementing online viscosity measurement is significant because the three primary process stages—polymerization, compounding (mixing), and final forming (extrusion)—each establish specific, irreversible rheological characteristics. Control at these points prevents quality defects from being passed downstream.
Polymerization Reactor Discharge: Monitoring conversion, molecular weight.
The primary objective at this stage is to precisely control the instantaneous reaction rate and the final molecular weight (MW) distribution of the SBR polymer.
Knowledge of the evolving molecular weight is critical, as it determines the final physical properties; however, traditional techniques often measure MW only upon reaction completion. Real-time monitoring of slurry or solution viscosity (approximating intrinsic viscosity) directly tracks chain length and architecture formation.
By employing real-time viscosity feedback, manufacturers can implement dynamic, proactive control. This allows for the precise adjustment of the flow of the molecular weight regulator or the short-stop agent before the monomer conversion reaches its maximum. This capability elevates process control from reactive quality screening (which involves scrapping or reblending off-specification batches) to continuous, automated regulation of the polymer's base architecture. For example, continuous monitoring ensures the raw polymer Mooney viscosity meets specifications when the conversion rate reaches 70%. The utilization of rugged, inline torsional resonator probes, which are designed to withstand the high temperatures and pressures characteristic of reactor effluents, is crucial here.
Mixing/Kneading: Optimizing additive dispersion, shear control, energy use.
The goal of the mixing stage, typically performed in an internal mixer, is to achieve a uniform, homogeneous dispersion of the polymer, reinforcing fillers, and processing aids while meticulously controlling the compound's thermal and shear history.
The viscosity profile serves as the definitive indicator of mixing quality. High shear forces generated by the rotors break down the rubber and achieve dispersion. By monitoring the viscosity change (often inferred from real-time torque and energy input), the exact end-point of the mixing cycle can be determined precisely. This approach is vastly superior to relying on fixed mixing cycle times, which can range from 15 to 40 minutes and are prone to operator variability and external factors.
Controlling the compound viscosity within the specified range is vital for material quality. Inadequate control leads to poor dispersion and defects in final material properties. For high-viscosity rubber, adequate mixing speed is essential to achieve the necessary dispersion. Given the difficulty of inserting a physical sensor into the turbulent, high-viscosity environment of an internal mixer, advanced control relies on soft sensors. These data-driven models use process variables (rotor speed, temperature, power draw) to predict the batch's final quality, such as its Mooney viscosity, thereby providing a real-time estimate of the quality index.
The ability to determine the optimal mixing end-point based on the real-time viscosity profile leads to significant throughput and energy gains. If a batch achieves its target dispersion viscosity faster than the prescribed fixed cycle time, continuing the mixing process wastes energy and risks damaging the polymer chains through over-mixing. Optimizing the process based on the viscosity profile can reduce cycle times by 15-28%, translating directly into efficiency and cost gains.
Pre-Extrusion/Forming: Ensuring consistent melt flow, dimensional stability.
This stage involves plasticizing the solid rubber compound strip and forcing it through a die to form a continuous profile, often requiring integrated straining.
Viscosity control here is paramount because it directly governs the polymer melt strength and flowability. Lower melt flow (higher viscosity) is generally preferred for extrusion, as it delivers higher melt strength, which is essential for managing the shape control (dimensional stability) of the profile and mitigating die swell. Inconsistent melt flow (MFR/MVR) leads to production quality defects: high flow can cause flashing, while low flow can lead to incomplete part filling or porosity.
The complexity of viscosity regulation in extrusion, which is highly susceptible to external disturbances and non-linear rheological behavior, necessitates advanced control systems. Techniques like Active Disturbance Rejection Control (ADRC) are implemented to proactively manage viscosity variations, achieving better performance in maintaining the target apparent viscosity compared to conventional Proportional-Integral (PI) controllers.
The consistency of the melt viscosity at the die head is the final determinant of product quality and geometric acceptance. Extrusion maximizes viscoelastic effects, and dimensional stability is highly sensitive to variations in melt viscosity, particularly at high shear rates. Online measurement of the melt viscosity immediately before the die allows for the rapid, automated adjustment of process parameters (e.g., screw speed or temperature profile) to maintain a consistent apparent viscosity, ensuring geometric precision and minimizing scrap.
Table II illustrates the monitoring requirements across the SBR production chain.
Table II. Viscosity Monitoring Requirements Across SBR Processing Stages
|
Process Stage |
Viscosity Phase |
Target Parameter |
Measurement Technology |
Control Action Enabled |
|
Reactor Discharge |
Solution/Slurry |
Intrinsic Viscosity (Molecular Weight) |
Side Stream Rheometer (SSR) or Automated IV |
Adjust short-stop agent or regulator flow rate. |
|
Mixing/Kneading |
High-Viscosity Compound |
Mooney Viscosity (Apparent Torque Prediction) |
Soft Sensor (Torque/Energy Input Modeling) |
Optimize mixing cycle time and rotor speed based on end-point viscosity. |
|
Pre-Extrusion/Forming |
Polymer Melt |
Apparent Melt Viscosity (MFR/MVR correlation) |
Inline Torsional Resonator or Capillary Viscometer |
Adjust screw speed/temperature to ensure dimensional stability and consistent die swell. |
Learn About More Density Meters
More Online Process Meters
VI. Online Viscosity Measurement Technology
Lonnmeter Liquid Viscosity Meter Inline
To overcome the inherent limitations of laboratory testing, modern rubber processing requires robust, reliable instrumentation. Torsional resonator technology represents a significant advance in continuous, inline rheological sensing, capable of operating in the challenging environment of SBR production.
Devices such as the Lonnmeter Liquid Viscosity Meter Inline operate using a torsional resonator (a vibrating element) that is fully immersed in the process fluid. The device measures viscosity by quantifying the mechanical damping experienced by the resonator due to the fluid. This damping measurement is then processed, often alongside density readings, by proprietary algorithms to provide accurate, repeatable, and stable viscosity results.
This technology is uniquely suited for SBR applications due to its severe operational capabilities:
Robustness and Immunity: The sensors typically feature all-metal construction (e.g., 316L Stainless Steel) and hermetic, metal-to-metal seals, eliminating the need for elastomers which might swell or fail under high temperature and chemical exposure.
Wide Range and Fluid Compatibility: These systems can monitor viscosity of rubber compounds across an expansive range, from very low to extremely high values (e.g., 1 to 1,000,000+ cP). They are equally effective in monitoring non-Newtonian, single-phase, and multi-phase fluids, essential for SBR slurries and filled polymer melts.
Extreme Operating Conditions: These instruments are certified for operation across a broad spectrum of pressures and temperatures.
Advantages of real-time, online, multi-dimensional viscosity sensors (robustness, data integration)
The strategic adoption of real-time, inline sensing provides a continuous stream of material characterization data, moving production from intermittent quality checks to proactive process regulation.
Continuous Monitoring: Real-time data significantly reduces reliance on delayed, costly laboratory analyses. It allows immediate detection of subtle process deviations or batch variations in incoming raw materials, which is crucial for preventing downstream quality issues.
Low Maintenance: The robust, balanced resonator designs are designed for long-term use without maintenance or re-configuration, minimizing operational downtime.
Seamless Data Integration: Modern sensors offer user-friendly electrical connections and industry-standard communication protocols, facilitating direct integration of viscosity and temperature data into Distributed Control Systems (DCS) for automated process adjustments.
Selection Criteria for instrument used to measure viscosity in different SBR stages.
The selection of the appropriate instrument used to measure viscosity depends critically on the physical state of the material at each point in the rubber making process:
Solution/Slurry (Reactor): The requirement is to measure intrinsic or apparent slurry viscosity. Technologies include Side Stream Rheometers (SSR) which continuously analyze melt samples, or high-sensitivity torsional probes optimized for liquid/slurry monitoring.
High-Viscosity Compound (Mixing): Direct physical measurement is mechanically unfeasible. The optimal solution is the use of predictive soft sensors that correlate the highly accurate process inputs (torque, energy draw, temperature) of the internal mixer to the required quality metric, such as Mooney viscosity.
Polymer Melt (Pre-Extrusion): The final determination of flow quality requires a high-pressure sensor in the melt pipe. This can be achieved through robust torsional resonator probes or specialized inline capillary viscometers (such as the VIS), which can measure apparent melt viscosity at high shear rates relevant to extrusion, often correlating the data to MFR/MVR.
This hybrid sensing strategy, which combines robust hardware sensors where flow is confined and predictive soft sensors where mechanical access is limited, provides a high-fidelity control architecture necessary for effective rubber processing management.
VII. Strategic Implementation and Quantification of Benefits
Online Control Strategies: Implementing feedback loops for automated process adjustments based on real-time viscosity.
Automated control systems leverage real-time viscosity data to create responsive feedback loops, ensuring stable and consistent product quality beyond human capability.
Automated Dosing: In compounding, the control system can continuously monitor the compound consistency and automatically dose low-viscosity components, such as plasticizers or solvents, in precise amounts exactly when required. This strategy maintains the viscosity curve within a narrowly defined confidence range, preventing drift.
Advanced Viscosity Control: Because SBR melts are non-Newtonian and prone to disturbances in extrusion, standard Proportional-Integral-Derivative (PID) controllers are often insufficient for melt viscosity regulation. Advanced methodologies, such as Active Disturbance Rejection Control (ADRC), are necessary. ADRC treats disturbances and model inaccuracies as active factors to be rejected, providing a robust solution for maintaining target viscosity and ensuring dimensional precision.
Dynamic Molecular Weight Tuning: At the polymerization reactor, continuous data from the intrinsic viscosity measurement instrument is fed back into the control system. This enables proportional adjustments to the flow rate of the chain regulator, instantly compensating for minor deviations in reaction kinetics and ensuring the molecular weight of the SBR polymer remains within the narrow specification band necessary for the specific SBR grade.
Efficiency & Cost Gains: Quantifying improvements in cycle times, reduced rework, optimized energy and material usage.
The investment in online rheology systems yields direct, measurable returns that enhance the overall profitability of the process of rubber manufacturing.
Optimized Cycle Times: By utilizing viscosity-based end-point detection in the internal mixer, manufacturers eliminate the risk of over-mixing. A process that typically relies on fixed cycles of 25–40 minutes can be optimized to reach the required dispersion viscosity in 18–20 minutes. This operational shift can result in a 15–28% reduction in cycle time, translating directly into increased throughput and capacity without new capital investment.
Reduced Rework and Waste: Continuous monitoring allows for the immediate correction of process deviations before they result in large volumes of off-specification material. This capability significantly reduces costly rework and scrap material, improving material utilization.
Optimized Energy Use: By precisely curtailing the mixing phase based on the real-time viscosity profile, energy input is optimized solely to achieve proper dispersion. This eliminates the parasitic energy waste associated with over-mixing.
Material Utilization Flexibility: Targeted viscosity adjustment is vital when processing variable or non-virgin feedstocks, such as recycled polymers. Continuous monitoring allows for the fast adjustment of process stabilization parameters and targeted viscosity tuning (e.g., increasing or decreasing molecular weight via additives) to reliably meet the desired rheological targets, maximizing the utility of varied and potentially lower-cost materials.
The economic implications are substantial, as summarized in Table III.
Table III. Projected Economic and Operational Gains from Online Viscosity Control
|
Metric |
Baseline (Offline Control) |
Target (Online Control) |
Quantifiable Gain/Implication |
|
Batch Cycle Time (Mixing) |
25–40 minutes (Fixed Time) |
18–20 minutes (Viscosity End-Point) |
15–28% Increase in Throughput; Reduced Energy Consumption. |
|
Off-Specification Batch Rate |
4% (Typical Industry Rate) |
<1% (Continuous Correction) |
Up to 75% Reduction in Rework/Scrap; Reduced raw material loss. |
|
Process Stabilization Time (Recycled Inputs) |
Hours (Requires multiple lab tests) |
Minutes (Fast IV/Rheo Adjustment) |
Optimized material usage; improved ability to process variable feedstock. |
|
Equipment Maintenance (Mixers/Extruders) |
Reactive Failure |
Predictive Trend Monitoring |
Early fault detection; reduced catastrophic downtime and repair costs. |
Predictive Maintenance: Utilizing continuous monitoring for early fault detection and preventive actions.
Online viscosity analysis extends beyond quality control to become a tool for operational excellence and equipment health monitoring.
Fault Detection: Unexpected shifts in continuous viscosity readings that cannot be explained by upstream material variation can serve as an early warning signal for mechanical degradation within the machinery, such as wear in extruder screws, rotor deterioration, or the plugging of filters. This enables proactive and scheduled preventive maintenance, minimizing the risk of costly catastrophic failures.
Soft Sensor Validation: The continuous process data, including device signals and sensor inputs, can be used to develop and refine predictive models (soft sensors) for crucial metrics like Mooney viscosity. Furthermore, these continuous data streams can also serve as a mechanism to calibrate and validate the performance of other physical measurement devices in the line.
Material Variability Diagnosis: Viscosity trending provides a crucial layer of defense against raw material inconsistencies that are not captured by basic incoming quality checks. Fluctuations in the continuous viscosity profile can immediately signal variability in the molecular weight of the base polymer or inconsistent moisture content or quality in fillers.
The continuous collection of detailed rheological data—both from inline sensors and predictive soft sensors—provides the data foundation for establishing a digital representation of the rubber compound. This continuous, historical data set is essential for building and refining advanced empirical models that accurately predict complex final product performance characteristics, such as viscoelastic properties or fatigue resistance. This level of comprehensive control elevates the intrinsic viscosity measurement instrument from a simple quality tool to a core strategic asset for formulation optimization and process robustness.
VIII. Conclusion and Recommendations
Summary of key findings regarding viscosity measurement of rubber.
The analysis confirms that the conventional reliance on discontinuous, offline rheological testing (Mooney viscosity, MFR) imposes a fundamental limitation on achieving high precision and maximizing efficiency in modern, high-volume SBR production. Styrene Butadiene Rubber’s complex, non-Newtonian, and viscoelastic nature necessitates a fundamental shift in control strategy—moving away from single-point, delayed metrics toward continuous, real-time monitoring of apparent viscosity and the full rheological profile.
The integration of robust, purpose-built inline sensors, particularly those utilizing torsional resonator technology, coupled with advanced control strategies (such as predictive soft sensing in mixers and ADRC in extruders), enables closed-loop, automated adjustments across all critical phases: ensuring molecular weight integrity at polymerization, maximizing filler dispersion efficiency during mixing, and guaranteeing dimensional stability during final melt forming. The economic justification for this technological transition is compelling, offering quantifiable gains in throughput (15–28% reduction in cycle time) and substantial reductions in scrap and energy usage. Contact sales team for RFQ.
