The quantification of SiO₂, Na₂O, CaO, MgO, Al₂O₃, PbO, and K₂O is required for precise control over product properties and regulatory compliance. Lonnmeter XRF instruments deliver accurate, direct measurements of these essential components.
Routine analysis detects deviations as low as 0.01 wt% for major oxides, ensuring manufacturers maintain the target range for elements of glass composition. Faulty Na₂O or CaO levels can alter thermal resistance, clarity, and durability. Tight control minimizes batch rejection due to off-specification color or mechanical failure.
XRF Glass Analysis
*
Glass Composition: Elements and Material Variants
Over 70% of commercial glass is composed of silica (SiO₂), providing structural rigidity and chemical resistance. Soda (Na₂O), typically 12–15%, lowers the melting point, improving manufacturability. Lime (CaO), about 9–12%, increases hardness and chemical durability. Alumina (Al₂O₃) at 1–3% enhances mechanical strength and improves thermal stability. Magnesia (MgO) and potash (K₂O) are used in smaller quantities for fine-tuning viscosity and surface properties. Lead oxide (PbO), when present above 24%, imparts a high refractive index and greater density, critical for optical and lead glass.
Material variants are defined by these elements of glass composition. Soda-lime glass dominates global production due to balanced mechanical and chemical attributes. Borosilicate glass, incorporating 10–13% B₂O₃, enables low thermal expansion, crucial for laboratory and cookware applications. Lead glass prioritizes optical clarity and brilliance for tableware. Aluminosilicate glass substitutes increased Al₂O₃ for durability in aggressive environments. Each glass type’s performance relies on precise control of composition of glass materials.
Fused Glass Beads, Glass Pellets, and Powdered Glass
Fused glass beads offer high homogeneity and minimal volatilization, providing accurate results in XRF elemental analysis of glass production. Their consistent matrix eliminates micro-inhomogeneities, ensuring direct quantification of SiO₂, Na₂O, CaO, MgO, Al₂O₃, PbO, and K₂O.
Glass pellets serve as reliable reference materials and calibration standards in glass production quality control processes. They enable rapid compositional analysis and support the detection of batch variations or contamination in QA/QC labs. Pellets retain essential elements of glass composition, promoting traceability across production runs.
Powdered glass supports formulations for coatings, abrasives, chemical batching, recycling, and facilitates rapid fusion. Its fine particle size ensures full elemental homogenization, vital for representative sample preparation. Powdered glass applications extend to both process and product development, allowing accurate monitoring of the composition of glass materials and supporting direct, precise XRF analysis.

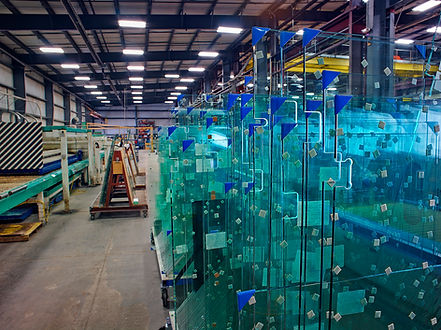

Glass Factory
*
Quality Control in Glass Production
Glass production quality control relies on XRF for multi-elemental checks, confirming batch-to-batch consistency and avoiding contamination. Lonnmeter XRF systems quantify Si, Na, Ca, Mg, Al, K, Pb, and other critical elements in under 60 seconds. TXRF analytical procedures detect major and trace elements, such as Mn, Ni, Cu, Zn, and Sr, down to sub-ppm levels.
Monitoring trace elements prevents unwanted coloration and mechanical weakness. Detecting Fe, Ti, and Pb concentrations supports optical clarity and eliminates risks from inclusions or stress points. Elemental mapping, enabled by advanced XRF-CT and confocal methodologies, verifies spatial uniformity across sheet or molded glass, crucial for large-scale production.
Portable and inline XRF devices automate rapid scanning, integrating results into real-time process control. This approach optimizes glass manufacturing quality assurance, supporting strict product specification and immediate response to process deviations.
Identification Techniques and Type Differentiation
Types of glass identification techniques include XRF spectral fingerprinting, density measurements, and refractive index assessment. XRF spectral fingerprinting delivers direct, non-destructive elemental profiling for all major elements of glass composition, allowing detection of Si, Na, Ca, Mg, Al, Pb, and K with repeatability under 3% RSD. Density measurements help distinguish composition of glass materials with variations from 2.2 g/cm³ (soda-lime) to over 3.1 g/cm³ (lead glass). Refractive index assessment precisely separates soda-lime, borosilicate, and lead glass; typical nD values range from 1.51 to 1.70.
Statistical analysis enhances identification accuracy. K-means clustering groups glass fragments by multi-elemental XRF datasets, supporting forensic class match rates above 95%. Grey correlation analysis isolates minor but distinct compositional shifts between batches or variants. Chemometric models subclassify glass forms (e.g., fused glass beads versus powdered glass) by elemental fingerprint with over 98% accuracy when integrated with XRF data.
Quality Assurance for Glass Manufacturing
Glass manufacturing quality assurance depends on rapid, precise multi-element detection. In-line and laboratory XRF analyzers verify the composition of glass materials within seconds. X-ray fluorescence identifies SiO₂, Na₂O, CaO, MgO, Al₂O₃, PbO, and K₂O, supporting control over elements of glass composition and batch uniformity.
According to industry data, XRF achieves detection limits down to 1 ppm for minor elements, enabling detection of trace contaminants that impact properties or aesthetics. Implementation of XRF allows direct feedback for process corrections, increasing yield by up to 15% in tightly controlled lines.
Automated sorting integrates with production, ensuring continuous verification of the composition of glass materials. This minimizes batch-to-batch variation and eliminates out-of-spec products. Multi-element screening is integral for QA of qualities of fused glass beads, glass pellets uses, and powdered glass applications. Comprehensive on-site checks reduce downtime and enable immediate correction, supporting sustained product quality.
Optimize Your Glass Analysis Workflow
Lonnmeter XRF analyzers deliver precise measurement of elements crucial to glass composition: SiO₂, Na₂O, CaO, MgO, Al₂O₃, PbO, K₂O. These instruments offer multi-element detection for glass manufacturing quality assurance and rapid verification of fused glass beads, glass pellets, and powdered glass. For advanced glass analysis, customize your XRF machine to support diverse requirements in glass production and identification techniques.
