Incoming parts inspection identifies defects and prevents costly rework by verifying aluminum scandium alloy properties before components reach production. Incorrect alloy composition directly impacts product performance, increases defect rates, and leads to downstream disruptions.

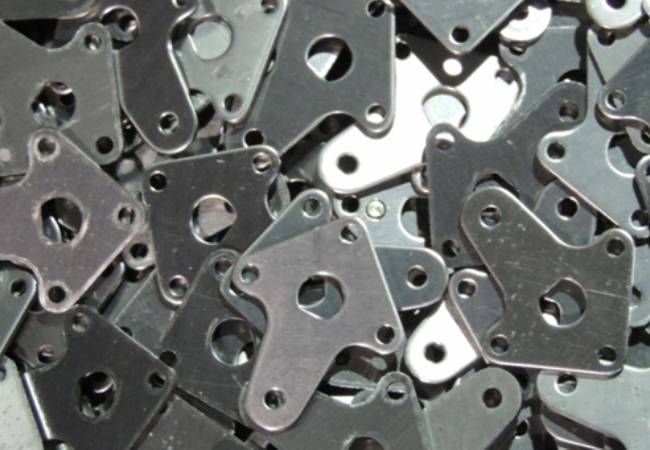

Checking incoming parts
*
Common Challenges in Trace Element Analysis for Al-Sc Alloys
Trace element analysis in metals, particularly scandium content measurement in alloys, presents significant technical challenges. Al-Sc alloys require detecting scandium at concentrations below 0.2% by weight, demanding sensitive, non-destructive testing of metal alloys. Supplier inconsistency, lack of traceability, and unreliable material certificates introduce risks of under- or over-dosing trace elements such as scandium.
Scandium’s Role in Aluminum Alloys: Performance and Quality Control
Precise scandium content elevates aluminum alloys by strengthening via Al₃Sc precipitates, increasing tensile strength from ~150 MPa to over 350 MPa. Grain refinement from trace scandium additions cuts grain size by more than 60%, boosting toughness and fatigue resistance. Scandium narrows melting ranges, reducing hot cracking in welds by up to 95%, enabling defect-free joining. Al-Sc alloys maintain mechanical performance at temperatures exceeding 300°C, surpassing conventional aluminum grades. Corrosion resistance improves by nearly 40% with proper Sc content allocation, minimizing maintenance cycles in aerospace and automotive use.
Industrial yields increase due to controlled solidification and reduced segregation, raising usable metal recovery by 8–12% per melt batch. If incoming parts inspection processes miss Sc content deviations, alloys risk embrittlement, yielding parts that fail at 30–50% lower cycles than spec. Regulatory non-compliance may occur if trace element analysis in metals is not employed, leading to batch recalls. Undetected under- or over-dosing increases porosity, cracking, or substandard fatigue life in the final product.
Advancing Trace Element Analysis: Handheld EDXRF as the Solution
Key Features of the Lonnmeter XRF Alloy Analyzer
Lonnmeter is optimized for trace element analysis in incoming parts inspection workflows. Alloy composition analysis using EDXRF is supported for aluminum scandium alloy properties verification. The analyzer continuously logs measurement data, auto-generates results for each batch, and integrates with ERP systems for incoming material quality control procedures. Its suitability for determining Sc content in aluminum alloys—and detecting trace impurities—is confirmed by performance benchmarking against certified reference materials.
Benefits of Using Lonnmeter XRF Analyzer in Sc Content Verification
Operator Productivity and Cost Savings
The Lonnmeter handheld EDXRF analyzer enables rapid scandium content measurement in aluminum alloys, delivering results in 30 seconds per sample. No complex sample preparation is required, allowing operators to test incoming parts directly as part of their standard incoming material quality control procedures. .
Improved Data Integrity and Traceability
Automated digital report generation ensures that every incoming parts inspection process yields standardized, tamper-resistant records. Data is stored electronically with timestamps, sample IDs, and operator details, supporting robust traceability across inspection histories.
Begin with a technical consultation to Lonnmeter. Present operational details: alloy types, throughput, and the scope of trace element analysis in metals. Direct demonstration sessions typically involve the non-destructive testing of solid Al-Sc samples, showcasing live scandium content measurement in alloys and alloy composition analysis using EDXRF. During trials, evaluate the instrument’s detection limits for trace impurities—confirming against required thresholds for scandium (e.g., 0.05–0.5% in Al matrices), and observe repeatability in simulated incoming parts inspection process scenarios.
FAQs
Why is verification of scandium (Sc) content critical for Al Sc alloys?
Precise scandium content measurement in alloys determines grain structure, yield strength, weldability, and fatigue resistance. Deviations as small as 0.05% Sc significantly alter aluminum scandium alloy properties, affecting lifecycle and downstream manufacturability. Accurate determination assures maximum metal yield and optimal cost structure, as documented in industry research.
What features should be considered when selecting an XRF analyzer for incoming material quality control?
Select a portable EDXRF analyzer for incoming parts inspection with ~0.01% (100 ppm) scandium detection limit in aluminum, robust matrix correction for trace element analysis in metals, fast measurement (≤30 seconds), rugged IP-certified housing, digital storage, and workflow compatibility for quality control in metal fabrication.
Post time: Feb-25-2026
