Precise control of cement composition ensures required strength, durability, and regulatory compliance. Even small deviations in elemental content—such as CaO, SiO₂, Al₂O₃, Fe₂O₃, MgO, and SO₃—directly impact mechanical performance and long-term behavior. For example, CaO must remain within 60–67%, while MgO and SO₃ typically must stay below 5% and 3%, respectively, as defined by ASTM C150. Variability in chemistry risks unsoundness, altered setting times, loss of strength, or durability failures. Non-destructive, quantitative approaches like xrf cement analysis allow rapid adjustments, preventing large-scale batch rejections or costly recalls.

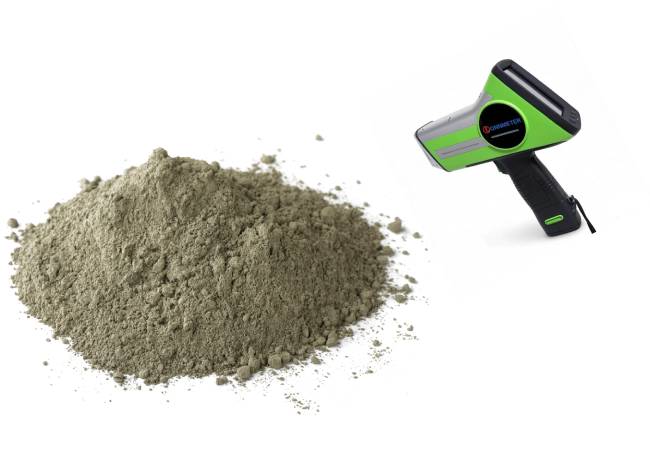

XRF Cement Analysis
*
Non-Destructive Quantification Cement XRF Analysis
XRF cement analysis delivers non-destructive quantification of CaO, SiO₂, Al₂O₃, Fe₂O₃, and MgO in raw materials, clinkers, and finished batches. XRF analyzers, both benchtop and handheld, process dozens of samples per hour. Certified reference studies verify repeatability, with precision below 0.5% RSD for major oxides. Sample preparation as pressed powders or fused glass beads ensures accuracy; pellets enable rapid screening, beads yield higher trueness for quality control. XRF cement analysis supports consistent composition. Data from XRF analysis guides feedstock corrections and verifies finished cement conforms to required standards. Comprehensive element coverage—major and minor oxides—enables fast regulatory compliance checks and batch validation. With minimal consumables and no sample destruction, XRF cement testing lowers operational costs while enabling instant retesting and process optimization.
Advances in Cement Composition Analysis Using XRF
XRF cement analysis differentiates cement types by unique chemical fingerprints, capturing precise elemental profiles of SiO₂, CaO, Al₂O₃, Fe₂O₃, and MgO. Research shows R² values above 0.97 for major and trace element quantification, enabling strict compliance with ASTM C150-12 standards. XRF analysis of cement detects trace element signatures to distinguish brands, sources, or even batch-level variations. Quantitative XRF data supports raw mix optimization, lowering waste and improving batch-to-batch product consistency. Cement XRF results allow immediate corrective actions in blending or kiln feed. Operators use live element tracking to spot equipment or feedstock deviations, preventing off-spec product runs. Lonnmeter XRF spectroscopy for cement testing combines fast, non-destructive cement composition analysis with automated reporting for trend control. This workflow tightly connects XRF cement testing for quality, cement raw materials XRF analysis, and non-destructive cement testing with XRF.
How to Analyze Cement with XRF?
Collect a representative sample at the relevant process stage—raw meal, clinker, or final cement. Prepare the sample as a pressed pellet using hydraulic pressure; this creates a uniform surface for consistent XRF cement analysis. Place the pellet in the Lonnmeter XRF analyzer.
The Lonnmeter instrument, calibrated with certified reference materials, quantifies key cement oxides (SiO₂, CaO, Al₂O₃, Fe₂O₃, MgO) in less than two minutes. Automation reduces manual intervention, lowering risk of human error. Integrated software generates immediate elemental reports.
Compare results to process control charts and targets. Make process adjustments to raw mix or kiln feed as needed to maintain product specifications. Archive analytical data, including batch, operator, and calibration traceability, to support audits and compliance. This cement composition analysis using XRF ensures repeatability, accountability, and robust cement quality control.
Benefits of Non-Destructive Cement Testing with XRF
Non-destructive XRF cement analysis preserves the sample, eliminating loss during measurement and enabling instant retesting. Operators can screen incoming raw materials, finished product batches, and recycled concrete directly at the point of use. XRF analysis of cement supports rapid process decisions—results are available within minutes on production lines or construction sites.
XRF testing for cement quality enables multi-elemental detection of Ca, Si, Al, Fe, Mg, and trace elements without grinding, cutting, or core extraction. This greatly minimizes cross-contamination risk and maintains sample integrity for audit trails. Cement XRF also allows reanalysis of critical batches, supporting traceability and regulatory compliance.
Cement Raw Materials XRF Analysis: Process Control Points
XRF cement analysis enables monitoring of elemental variability in limestone, clay, fly ash, and slags. Raw material composition shifts daily; CaO can fluctuate ±3%, SiO₂ ±2%. Lonnmeter XRF analyzers provide quantitative oxide data in under two minutes, allowing operators to detect deviations and adjust feed ratios immediately. This level of control reduces off-spec production and clinker correction costs by at least 15%.
Cement composition analysis using XRF ensures compliance with regulatory limits on heavy metals and trace elements, including Pb, Cr, and Hg, down to 10 ppm. Online XRF testing for cement quality supports sustainable practices by validating recycled and alternative raw materials without process interruptions.
Lonnmeter XRF Analyzers: Enabling Excellence
Lonnmeter compact spectrometers deliver rapid, multi-element XRF cement analysis for raw materials, clinkers, and final blends. Results for CaO, SiO₂, Al₂O₃, Fe₂O₃, MgO, and SO₃ are available within minutes.
Automated sample handling systems minimize operator error, standardize workflows, and maximize reproducibility in cement composition analysis using XRF. Each sequence is programmable, reducing manual intervention and supporting laboratory efficiency. Rugged analyzer design withstands dust, vibration, and temperature shifts across production floors, labs, and field sites.
XRF Spectroscopy for Cement Testing: Choose Lonnmeter
Lonnmeter XRF analyzers deliver superior detection limits with quantification of oxides and trace elements down to ppm levels in cement. Software integration provides instant reporting, trend analysis, and deviation alerts for specification management. Request for quotes now!
