In the latex glove manufacturing process, every dip and cure hinges on the subtle interplay of molecular forces. Viscosity measuring matters in consistent quality from erratic output,enabling effective defects prevention in latex glove manufacturing like pinholes, non-uniform thickness and low tensile strength.
Complex Rheology of Natural Rubber Latex (NRL)
Natural rubber latex is a complex, aqueous colloidal suspension of rubber particles. Its behavior is predominantly non-Newtonian and, more specifically, pseudoplastic or shear-thinning. This means that as the shear rate increases, the viscosity of the latex decreases. This phenomenon occurs because the dispersed rubber particles, which are randomly oriented at rest, begin to align themselves in the direction of flow under increasing shear stress, allowing the fluid to move more easily.
However, the rheological landscape of latex compounds is not without its anomalies. While generally pseudoplastic, certain formulations, such as those filled with starch, have been shown to exhibit a critical and counter-intuitive behavior: shear-thickening. In this state, viscosity increases proportionally with the shear rate. The presence of this paradoxical behavior in some formulations highlights a significant challenge for quality control. It suggests that a low-shear viscometer might provide a misleading viscosity reading that does not accurately reflect the fluid's behavior under the high-shear forces encountered in a high-speed dipping process. A comprehensive quality control strategy must therefore employ measurement tools that can capture viscosity across a wide spectrum of shear rates, ensuring a true representation of the fluid's in-process behavior.
Factors Governing Latex Compound Viscosity
The viscosity of a latex compound is not static; it is a dynamic property influenced by a multitude of factors, all of which must be meticulously managed.
Total Solids Content (TSC): The most direct factor influencing viscosity is the concentration of solids in the compound. A higher total solids content generally results in a higher viscosity, which is a deliberate strategy for creating thicker gloves. However, this relationship is not linear. Viscosity remains relatively stable up to a specific "critical total solids content (TSCc)," after which it increases rapidly. This non-linear relationship is a key consideration for process control, as exceeding the TSCc can lead to an exponential and difficult-to-manage rise in viscosity.
Temperature: Viscosity and temperature share a fundamental, inverse relationship. As the temperature of the latex increases, its viscosity decreases. Research has shown that an increase of as little as 15°C can reduce the viscosity of a latex sample by over 30%. This potent effect means that maintaining a stable temperature is an absolute prerequisite for stable viscosity, making precise temperature control a non-negotiable part of the production line.
Chemical Additives: The final properties of the latex compound are fine-tuned by a precise cocktail of chemical additives. These agents, from vulcanization accelerators to stabilizers, profoundly alter the compound's rheology. For example, specific viscosity-increasing additives, such as fumed silica, are strategically added to enable the production of thicker articles without increasing the total solids content. Other additives like dispersants are used to maintain compound stability and prevent undesirable viscosity changes. This interplay of chemical components, each with its own effect on viscosity and stability, underscores the complexity of the compounding stage.
Viscosity in the Latex Glove Manufacturing Process
Relationship Between Viscosity and Product Quality
In the latex glove manufacturing process, viscosity is more than a simple metric; it is the physical manifestation of product quality. It is a fundamental lever that, when managed correctly, dictates a product's performance attributes and, when mismanaged, precipitates a cascade of costly defects.
Film Thickness and Uniformity: The most direct link between viscosity and product quality is in the formation of the latex film. Viscosity is the primary determinant of film thickness during the dipping process. Higher viscosity allows for the deposition of thicker films on the former.
Durability and Strength: The robustness of the final latex film is intrinsically tied to the viscosity of the compound from which it was formed. Proper viscosity management during dipping ensures the formation of a robust, cohesive film that can withstand tearing and punctures. This is a prerequisite for ensuring the glove functions as an effective barrier against cross-contamination and environmental hazards.
Operational and Economic Impacts of Ineffective Viscosity Control
The consequences of poor viscosity control extend far beyond product performance. They directly impact a manufacturer's operational efficiency and profitability.
Increased Material Waste and Cost: Fluctuations in viscosity lead to over- or under-applied material on the glove formers, resulting in high rejection rates and significant material waste. Each rejected glove represents a loss of raw material, energy, and labor, eroding profit margins.
Process Instability and Downtime: Unstable viscosity can cause issues such as clogging in pipes or pumps and lead to uneven deposits on the formers. These issues necessitate frequent manual adjustments to the process line, causing downtime, reducing throughput, and wasting valuable manpower.
Effective viscosity control leads to uniform film thickness, which enhances durability and reduces defects like pinholes, resulting in a lower rejection rate. This, in turn, boosts production yield and ultimately increases profitability. From this perspective, an investment in viscosity control technology is not just a technical upgrade; it is a core business strategy with a clear and significant return on investment.
Strategic Viscosity Control at Each Stage
Compounding and Mixing
Viscosity management in latex glove manufacturing is a holistic discipline that begins not on the production line, but in the compounding room. Here, raw latex is combined with a precise cocktail of additives to achieve the desired rheological properties. Key additives include vulcanization agents, accelerators, stabilizers, and, importantly, viscosity modifiers. The deliberate addition of viscosity-increasing fumed silica, for example, is a direct strategy for achieving a desired film thickness.
A particularly critical aspect of the compounding stage involves the use of dispersants and wetting agents. Dispersants are essential for preventing poor compound stability and viscosity issues. Wetting agents, on the other hand, are necessary to reduce the surface tension of the coagulant solution, ensuring it coats the ceramic former evenly. However, a paradox exists: most wetting agents, especially when stirred at high RPM, tend to cause foam. This foam is a direct cause of defects, as it creates air pockets that lead to thin spots and pinholes in the final product. The use of antifoaming agents is therefore a crucial counterbalance to this issue, ensuring a stable, foam-free dipping bath that promotes consistent film formation.

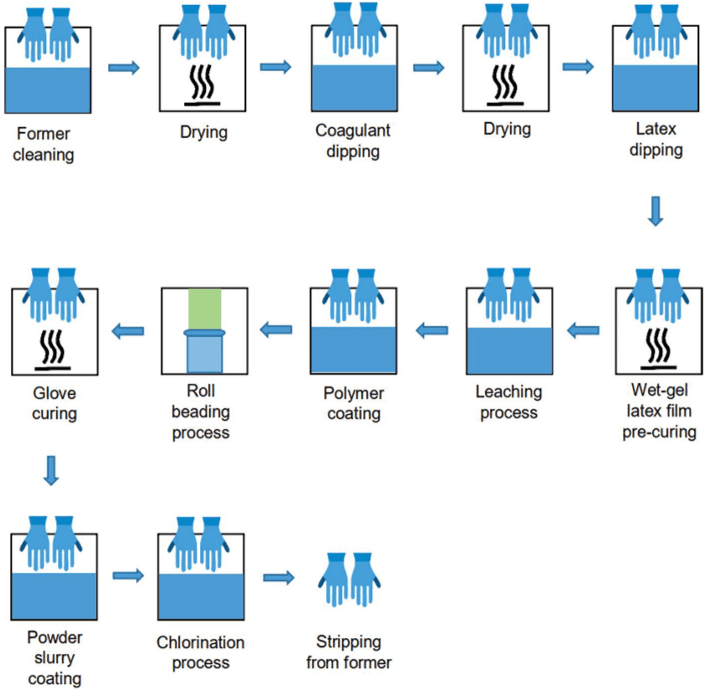

Dipping and Forming: The Precision of Film Deposition

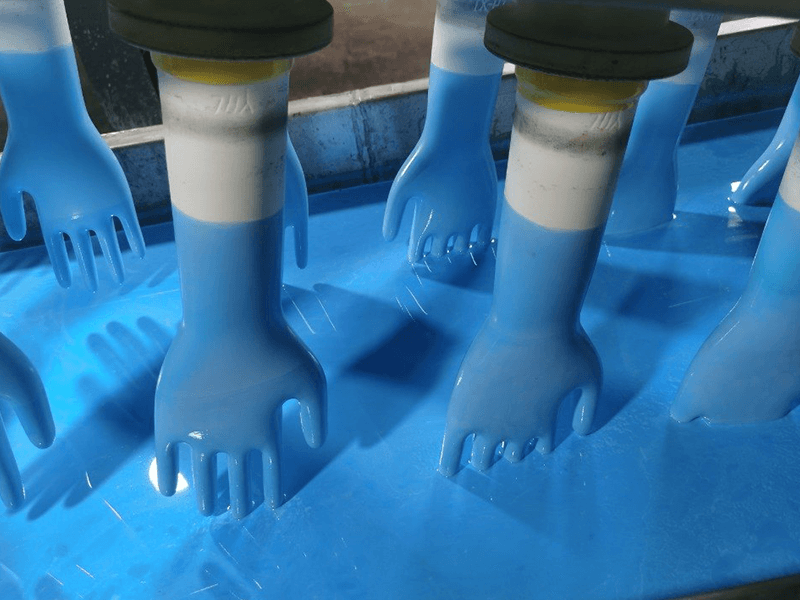

The actual formation of the glove film is a high-precision process where viscosity plays a central role. The dipping stage begins with the coagulant bath, not the latex. An even coating of the coagulant is essential for uniform latex adhesion. Poor coagulant wetting leads to uneven adherence of the latex, a condition that can result in "fish-eye" or thin-area defects.
The final film thickness is a function of the latex viscosity, the dipping speed, and the dwell time in the bath. For high-speed production lines, a precise balance must be maintained to achieve the target thickness without causing air entrapment or other defects. Furthermore, the integrity of the latex compound must be maintained throughout the dipping process. Agitation and circulation are necessary to prevent issues like skinning, creaming, and sedimentation, which would otherwise alter the compound's viscosity and lead to inconsistencies in the final product.
Post-Treatment: Viscosity's Final Impacts

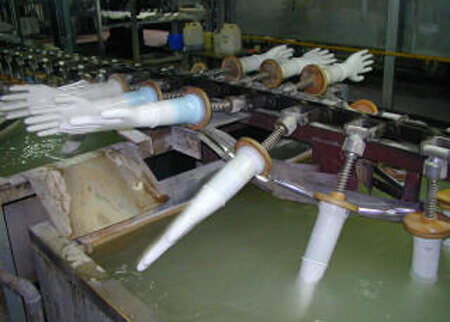

The influence of rheological properties does not end after the dipping stage. Subsequent post-treatment steps like vulcanization and leaching, which are primarily focused on transforming the film's physical properties, are also linked to the initial compound's behavior. The pre-vulcanization temperature, for example, can affect the rheological properties of the latex compound and, in turn, the mechanical properties of the final film. The entire process is a continuous feedback loop where each stage's parameters influence the final product's quality, a process that must be meticulously controlled from start to finish.
Mitigating Common Defects Through Proactive Viscosity Management
A large percentage of the most common and costly defects in latex glove manufacturing are directly traceable to a failure to manage viscosity at one or more points in the process. Viscosity is a predictive variable for quality, and a proactive approach to its control is essential for defect prevention.
A Detailed Analysis of Viscosity-Related Defects
Pinholes: This is a critical defect that compromises the glove's barrier protection and is often tied to viscosity and related issues. Root causes include air entrapment from improper mixing or insufficient deaeration, contaminants like dust or undissolved particles in the latex compound, and poor coagulant coating that leaves a patch where the latex cannot adhere.
Non-Uniform Thickness: This is a direct consequence of poor viscosity control. The causes are multifaceted and include insufficient latex viscosity, which leads to poor fluidity and uneven deposition, as well as issues with uneven coagulant concentration or application.
Low Tensile Strength and Compromised Durability: A weak film is often a result of improper cross-linking during vulcanization, which can be influenced by the pre-vulcanization temperature. However, the fundamental inconsistency in film thickness caused by poor viscosity control is a precursor to these mechanical failures. A glove with uneven thickness will have weak points that are prone to tearing and puncturing during use.
The full causal chain for many of these defects is complex. For instance, the use of a wetting agent to improve coagulant coverage can, paradoxically, lead to foam formation. This foam creates air pockets that result in a jagged or incomplete coagulant application, which in turn causes poor latex adherence and ultimately leads to thin spots and pinholes in the final glove. This chain of events demonstrates that a seemingly minor process variable can have a catastrophic, viscosity-mediated downstream effect.
Actionable Solutions for Continuous Quality Improvement
For a manufacturer to truly mitigate these defects, a holistic approach is required.
Real-time Viscosity Monitoring: The most effective solution is to move from manual, lab-based testing to continuous, on-line viscosity monitoring. This provides a constant feedback loop, allowing for immediate, automated adjustments to the process, preventing defects before they occur.
Optimizing Dipping Parameters: Implement automated systems to control dipping time, lifting speed, and temperature to ensure consistent film formation.
Advanced Filtration and Deaeration: Use high-precision mesh filters and vacuum deaeration to remove contaminants and entrapped air from the latex compound.
The Lonnmeter-ND Vibrational Viscometer
The Lonnmeter-ND online viscometer is a purpose-built solution that exemplifies the advantages of vibrational technology for latex glove manufacturing. Its sensor is a single, exposed solid element that vibrates at a specific frequency. The energy lost to the fluid's resistance is measured electronically and converted into a viscosity reading. This instrument is suitable for both Newtonian and non-Newtonian fluids and is capable of maintaining high repeatability, even if the absolute accuracy for non-Newtonian fluids is slightly affected.
The Lonnmeter-ND is a compelling solution for the industry for several reasons:
Unparalleled Robustness: Constructed from materials like 316 stainless steel, it is designed to withstand the rigors of an industrial environment, with no moving parts to fail from wear or contamination.
Versatility and Customization: The instrument offers a wide measurement range, from 1 to 1,000,000 cP. It can also be customized with a long insertion body (up to 2000mm) and flange connections to fit directly into difficult-to-access tanks and reactors, such as those used in compounding and storage.
Reduced Cost and Waste: By providing real-time data, the Lonnmeter-ND allows for the continuous optimization of the dipping process. This prevents the formation of defects, increases production yield, reduces material waste, and minimizes manual labor and downtime, leading to a rapid return on investment.
The adoption of a tool like the Lonnmeter-ND transforms the process from a manual, reactive operation to a precise, automated, and proactive one. The financial benefits of this transition are clear and significant.
|
Technical Specification |
Value(s) |
|
Viscosity Range |
1–1,000,000 cP |
|
Accuracy |
±2%−±5% |
|
Repeatability |
±1%−±2% |
|
Standard Material |
316 stainless steel (other options available) |
|
Customization |
Long insertion body (500mm-2000mm) for reaction vessels |
For any professional seeking to optimize their latex glove manufacturing line, the path forward is clear: move beyond manual, reactive testing. By embracing advanced on-line viscometry, such as the Lonnmeter-ND, manufacturers can elevate their process from an art to a science, securing a competitive advantage rooted in superior quality, operational efficiency, and a proactive approach to defect prevention. The financial benefits of this transition are not theoretical; they are a direct result of increased yield, reduced waste, and enhanced product quality, leading to a rapid and substantial return on investment.
Post time: Sep-18-2025
