The global biotechnology and bioprocessing industries are undergoing a fundamental shift from traditional batch-based operations to continuous, automated manufacturing. Real-time measurement monitors critical process parameters in real time and offers supporting to in-time process optimization. Conventional viscosity measurement in process control relies on periodic manual sampling and offline laboratory analysis, introducing significant inefficiencies and risks and causing delayed process adjustments, production overrunning, and the generation of off-spec product.
The Rheology of Enzymatic Substrate Degradation
The Enzyme-Substrate Relationship
Enzymatic hydrolysis is a catalytic process in which an enzyme facilitates the cleavage of a complex substrate molecule into smaller components. In the specific case of cellulase acting on a high-molecular-weight polysaccharide like carboxymethyl cellulose (CMC), the enzyme's primary function is to hydrolyze the glycosidic bonds within the long polymer chains. This action systematically breaks down the CMC, reducing its chain length and average molecular weight. The products of this reaction, primarily smaller-chain reducing sugars, accumulate in the solution as the process progresses. The rate of this degradation is directly related to the activity of the enzyme under specific operating conditions of temperature and pH.
The Kramers' Theory Connection

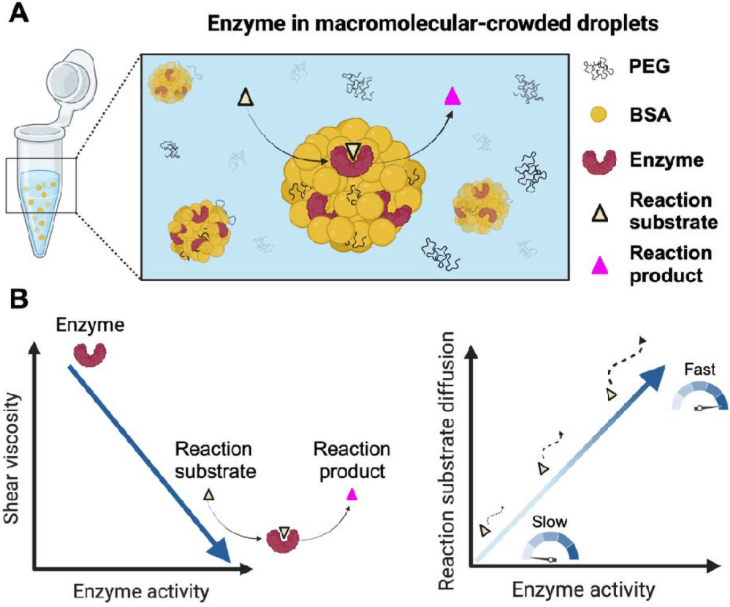

The relationship between enzyme activity and the physical properties of the reaction medium is a critical consideration. Kramers' theory, a foundational principle in chemical kinetics, posits that processes involving conformational changes in proteins, such as enzyme catalysis, are influenced by the viscosity of the surrounding solvent. As the solvent viscosity increases, the frictional forces acting on the enzyme's structural domains also increase. This heightened friction inhibits the necessary conformational changes, effectively slowing down the catalytic cycle and reducing the maximum reaction rate, or Vmax.
Conversely, a decrease in the solution's macroscopic viscosity reduces these frictional forces, which, according to Kramers' theory, would facilitate the enzyme's catalytic function. In the context of HMW substrate degradation, the enzyme's activity directly causes a reduction in the solution's viscosity, creating a feedback loop where the change in the medium's rheological properties serves as a direct indicator of the enzyme's success.
A Deep-Dive into Non-Newtonian Rheology
Differentiating Newtonian and Non-Newtonian Fluids
The rheological behavior of a fluid is defined by its viscosity and how that property responds to applied shear stress. For a Newtonian fluid, the relationship between shear stress (τ) and shear rate (γ˙) is linear and directly proportional, with the constant of proportionality being the viscosity (μ). This can be expressed by Newton's law of viscosity:
τ=μγ˙
In contrast, non-Newtonian fluids exhibit a more complex relationship where viscosity is not constant but varies with the shear rate. This behavior is characteristic of many complex industrial fluids, including polymer solutions like CMC.
The Non-Newtonian Behavior of HMW Polymer Solutions
The degradation of HMW polymers is intrinsically a non-Newtonian process. Polymer solutions like CMC typically exhibit shear-thinning behavior, where the apparent viscosity decreases as the shear rate increases. This phenomenon is attributed to the disentanglement and alignment of the long polymer coils in the direction of flow, which reduces the internal friction of the fluid. At higher concentrations (e.g., above 1%), some CMC solutions can even display initial shear-thickening behavior, where viscosity increases with shear rate due to the flow-induced formation of macromolecular associations, followed by shear-thinning at higher shear rates.
The enzymatic action of cellulase on CMC fundamentally alters this rheological profile. As the enzyme cleaves the long polymer chains, the average molecular weight of the substrate decreases. This reduction in chain length directly diminishes the degree of entanglement and intermolecular interactions. Consequently, the solution becomes less viscous, and its non-Newtonian characteristics, particularly shear-thinning, are lessened. A profound change in the fluid's bulk rheology—specifically, a significant decrease in viscosity at a given shear rate—serves as a clear signature of the ongoing enzymatic degradation.
The Quantitative Viscosity-Activity Relationship
The correlation between the decrease in a solution's bulk viscosity and the reduction in the average molecular weight of the substrate molecules is well-documented. As cellulase cleaves the polymer chains, the resulting fragments have a drastically lower contribution to the solution's overall viscosity. This relationship allows viscosity to function as a powerful, real-time proxy for the progress of the enzymatic reaction, a far more rapid alternative to traditional lab assays which can introduce significant delays.
The continuous measurement from an online viscometer acts as a highly sensitive probe of this structural change. The drop in viscosity at a given shear rate provides a direct, quantifiable indication of the extent of substrate conversion and, by extension, the enzyme's activity. This is the scientific justification for using the Lonnmeter-ND viscometer as a continuous, indirect measure of an enzymatic reaction's progress.
The Lonnmeter-ND Vibrating Viscometer
Operating Principle: The Vibration Method
The Lonnmeter-ND online viscometer operates on the principle of the vibration method, a robust and reliable technique for industrial applications. The instrument's sensing element is a solid rod that is excited to oscillate and rotate along its axial direction at a specific frequency. When immersed in a fluid, this vibration is resisted by the fluid's viscosity, which is a measure of its internal friction. The resistance results in a damping effect or a loss of energy from the vibrating element. An electronic circuit detects this energy loss, and a microprocessor converts the signal into a viscosity reading. The core measurement is based on the decay of an electromagnetic oscillating waveform, where the signal is proportional to the product of an instrument coefficient and the vibration damping coefficient (λδ).
This method stands in contrast to other viscometry techniques, such as capillary, rotational, or falling-ball methods. Unlike these alternatives, the vibration method provides a very fast response time and is highly immune to the installation environment. It also simplifies the system by eliminating the need for moving parts, seals, or bearings.
Technical Specifications and Capabilities
The Lonnmeter-ND viscometer is designed to meet the demanding requirements of industrial process control. It offers a wide viscosity measurement range of 1 to 1,000,000 cP and can be adapted for very thick and viscous media by altering the sensor's shape. The instrument's base accuracy is specified at ±2-5% with a repeatability of ±1-2% for Newtonian fluids, though it can still consistently reflect process viscosity changes in non-Newtonian fluids.
For high-temperature and high-pressure applications, the viscometer is generally constructed from 316 stainless steel, with options for special materials like Teflon or Hastelloy for specific environmental conditions. For integration into bioreactors, the company has developed a version with an extended insertion probe, ranging from 500mm to 2000mm in length, allowing for direct top-down insertion into reaction vessels.
Design Advantages for Challenging Environments
The Lonnmeter-ND's design is highly optimized for industrial-scale bioprocessing. Its fast response time and ability to operate under high temperatures and pressures are crucial for real-time control. The absence of moving parts not only reduces maintenance but also simplifies cleaning and sterilization (CIP/SIP compatibility), which is essential for maintaining aseptic conditions in bioreactor environments. The sensor’s single exposed element design and continuous vibration make it inherently self-cleaning, preventing the buildup of product on the sensor's surface, which would otherwise lead to inaccurate readings.
The vibration method's low sensitivity to installation conditions means the Lonnmeter-ND can be placed directly in-line, providing continuous feedback that is more representative of true process conditions than a single, off-line lab sample could be. The fast response time allows for instant feedback, which is vital for preventing over-processing and ensuring consistent product quality. The following table summarizes the key technical specifications and their implications for industrial use.
|
Technical Specification |
Value from Document |
Industrial Relevance and Advantage |
|
Measurement Method |
Vibration method |
Provides fast response, low maintenance, and is resistant to clogging. |
|
Viscosity Range |
1 - 1,000,000 cP (optional) |
Wide applicability for various fluids, from watery liquids to thick slurries. |
|
Raw Accuracy |
±2% - ±5% |
Indicates the need for system-level calibration and data correction to achieve higher precision. |
|
Repeatability |
±1% - ±2% |
Demonstrates the sensor's consistency, a key prerequisite for data-driven modeling. |
|
Design |
Solid rod element, no moving parts, seals, or bearings |
Minimizes mechanical wear and simplifies cleaning, ideal for high-pressure/high-temperature applications. |
|
Material |
316 stainless steel (standard) |
Ensures durability and resistance to corrosive media in chemical and bioprocessing environments. |
|
Customization |
Extended probes (500-2000mm) |
Allows for top-down installation in reactors with limited side openings, a critical feature for many industrial setups. |
|
Output |
4-20mA, RS485 |
Standard industrial interfaces for seamless integration with PLC/DCS control systems. |
Data Fusion and Machine Learning for Real-Time Prediction
The intermittent but highly accurate DNSA lab data is fused with the continuous stream of data from the Lonnmeter-ND viscometer and other process sensors to create a predictive, data-driven model. This approach, leveraging machine learning (ML) algorithms, is the mechanism for achieving the target precision. The ML model (e.g., Support Vector Machines, Gaussian Process Regression, or Artificial Neural Networks) learns the complex, non-linear relationships between the online viscosity readings, other process variables (temperature, pressure), and the "true" enzyme activity as determined by the DNSA assay.
This fusion process is critical. A single sensor is susceptible to various sources of noise, including electrical and mechanical interference, as well as sensor drift. By training on a comprehensive, multi-modal dataset, the ML model can identify and filter out these spurious signals. For instance, a temporary pressure fluctuation might cause a brief, erroneous spike in the viscometer reading. The ML model, recognizing that this spike does not correlate with a change in temperature or a corresponding shift in the DNSA output, can ignore or mathematically correct the erroneous data point. This elevates the system's performance far beyond the raw specifications of any single sensor.
Overcoming Industrial Implementation Challenges
Vibrating viscometers, by their very nature, are sensitive to external mechanical vibrations and electromagnetic interference (EMI). Sources such as motors, pumps, and other factory equipment can generate mechanical noise that directly affects the sensor's measurement of viscous damping, leading to inaccurate or fluctuating readings. Similarly, EMI, which can be radiated or conducted, can interfere with the sensor's electronic circuitry, corrupting the signal and degrading performance.
Several engineering solutions, at both the hardware and software level, can effectively mitigate these challenges. From a hardware perspective, proper installation is paramount. The sensor should be placed on a stable, vibration-isolated mount, away from sources of high-frequency noise. Some viscometer designs incorporate a "balanced resonator" or similar co-axial sensor elements that twist in opposite directions, effectively canceling out external reaction torques on their mounting.
On the software side, advanced signal processing algorithms are employed to filter out noise. A particularly advanced method involves using a secondary sensor, such as an external accelerometer, to measure the external vibration of the sensor housing. This "noise" signal is then fed into a signal processor along with the primary viscometer signal. The processor uses a filtering algorithm to subtract the effect of the external vibration, producing a cleaner, more accurate reading. The Lonnmeter-ND's use of an electromagnetic decay method with a microprocessor for signal conversion inherently provides some level of filtering and robustness.
Long-Term Reliability, Maintenance, and Autonomous Systems
Maintaining data integrity over time is paramount for any online process control system. All measurement instruments are subject to "drift," a slow change in performance due to mechanical wear, electronic degradation, or environmental factors. To counteract this, proactive, regular calibration is essential.
The Role of Certified Standard Fluids
The use of certified reference materials (CRMs) is the industry standard for calibrating viscometers. These are fluids, most commonly silicone oils, that exhibit certified, Newtonian behavior with a known viscosity across a range of temperatures. Periodically, the online viscometer is removed from the process and verified against one or more of these standards to confirm its accuracy. This ensures that the instrument's baseline performance is maintained and that its readings remain traceable to national or international standards.
Framework for Predictive Maintenance
Beyond simply correcting for drift, the continuous data stream from the online viscometer can be used to implement a comprehensive predictive maintenance strategy. Real-time monitoring of fluid viscosity can serve as an early warning for potential issues such as pipe scaling or blockages, which are often preceded by a change in fluid rheology. This allows operators to take preemptive measures to clean or adjust the system before a catastrophic failure occurs, saving significant downtime and costs. The Lonnmeter-ND's low-maintenance design and fast response time make it a cost-effective and reliable component for this type of strategy.
Industrial Applications and Quantifiable Business Impact
Optimization of Cellulase Hydrolysis
A prime application for this technology is the optimization of cellulase-mediated hydrolysis in industrial bioreactors. The goal is to maximize the conversion of HMW cellulase/CMC into valuable reducing sugars while avoiding over-processing, which can waste energy and reduce overall product yield.
By implementing the integrated Lonnmeter-ND system, operators can obtain a continuous, real-time viscosity reading that directly correlates with the progress of the reaction. Instead of relying on manual sampling and a time-consuming lab assay to determine the endpoint, the process can be automatically terminated when the online viscosity reading reaches a pre-calibrated setpoint. This ensures batch-to-batch consistency and prevents over-processing, leading to a more efficient and predictable production cycle. The system's ability to achieve a 0.3% precision target ensures that the endpoint is met with the highest possible accuracy, guaranteeing uniform product quality.
Quantifying the Return on Investment (ROI)
The adoption of this technology offers a clear and quantifiable return on investment across several key business metrics.
Increased Product Yield and Quality
The ability to monitor and control the enzymatic reaction in real time minimizes waste and the production of off-spec product. This precision control leads to higher overall yields and a consistently higher-quality final product, which directly impacts revenue.
Reduced Operational Costs
The system eliminates the need for manual sampling and lab analysis, which are labor-intensive and costly activities. Furthermore, real-time control prevents over-processing, which reduces energy consumption and the use of expensive enzymes. The low-maintenance design of the Lonnmeter-ND minimizes downtime and repair costs, further contributing to operational savings.
Enhanced Decision Support and Fault Diagnosis
The continuous data stream from the viscometer, when integrated into a control system (PLC/DCS), provides a rich dataset for advanced analytics. This data can be used for modeling and simulation, enabling better decision-making and rapid fault diagnosis. For instance, a sudden, unexplained change in viscosity could signal a pump failure or a raw material inconsistency, allowing for immediate corrective action.
The table below provides a comparative analysis of the proposed viscometric system versus traditional lab sampling methods.
|
Metric |
Traditional Method (Lab Sampling) |
Proposed Method (Lonnmeter-ND System) |
|
Data Acquisition |
Periodic, manual sampling. |
Continuous, real-time online monitoring. |
|
Response Time |
Hours to days (due to transport and lab analysis). |
Instantaneous. |
|
Process Control |
Delayed, reactive adjustments. |
Immediate, proactive control. |
|
Product Consistency |
Highly variable from batch to batch. |
High precision and consistency (0.3% target). |
|
Labor Costs |
High (manual sampling, lab technicians). |
Minimal (automated, in-line system). |
|
Downtime |
Frequent (for sampling, potential overruns). |
Reduced (predictive maintenance, no waiting for lab results). |
The Lonnmeter-ND, is far more than a simple sensor. When integrated into a comprehensive, data-driven system, it becomes a powerful and indispensable tool for bioprocess control. The Lonnmeter-ND's rugged, low-maintenance design and rapid response time are well-suited to the harsh conditions of industrial bioprocessing.
