Underflow concentration monitoring is a critical pillar in lead-zinc mine thickener operations, directly safeguarding mineral processing safety, process stability, cost efficiency, and environmental compliance. As the core for real-time underflow solids data, it acts as the first line of defense against rake binding/seizure by detecting excessive solids buildup (a key cause of rake torque surges and equipment failure). For process control, it enables precise dewatering regulation—preventing overly dilute (overburdening filtration) or concentrated (clogging pipelines) slurry—while guiding flocculant optimization to avoid reagent waste and poor overflow clarity.
Fundamentals of Industrial Thickener Operation in Polymetallic Lead and Zinc Mines
Industrial thickeners are central to mineral processing in polymetallic lead and zinc mines, enabling efficient solid-liquid separation, water recovery, and optimal underflow concentration control. Their performance directly impacts process stability, tailings management, and environmental outcomes.
Basic Principles of Sedimentation in Mineral Processing Environments
Thickener operation is rooted in the physics of sedimentation, where solid particles suspended in slurry are separated by gravity. Feed slurry enters the thickener and disperses across the vessel. Under gravity, particles begin to settle, forming three key zones:
- A clear liquid zone at the top (overflow).
- A middle “hindered settling” region, where particle concentrations interact and settling rates decrease.
- A bottom layer of compressed slurry or “mud bed,” where solids accumulate.
Sedimentation rates depend on gravitational forces acting on the particles, countered by drag from the fluid. As solid concentration increases, particles hinder one another’s movement, slowing settling (hindered settling). Flocculation—induced by polyelectrolyte flocculants—aggregates fine particles into larger flocs, increasing their effective settling velocity. The efficiency of sedimentation is affected by mineralogy, particle size, water chemistry, and turbulence within the thickener.
Accurate flocculant dosage calculations and optimization are critical for thickener operational efficiency. Over- or under-dosing reduces clarity or underflow density, and may contribute to accidents like rake binding or overload. Advanced process audits and optimization of mineral thickening circuits hinge on continuous monitoring of these physical and chemical parameters.

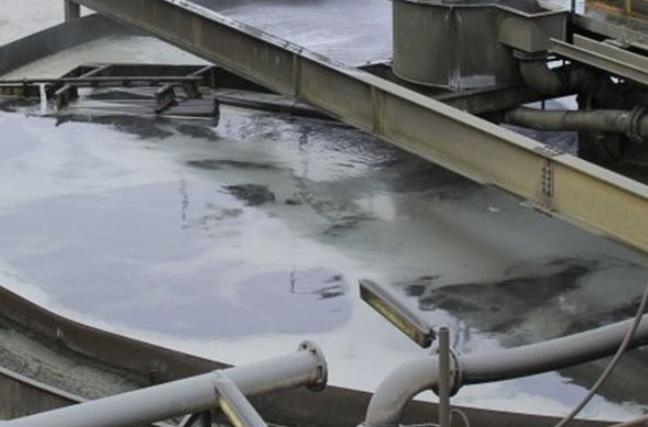

Thickeners in Mineral Processing
*
Overview of Industrial Thickener Types and Their Roles
Three main thickener designs are used in modern lead-zinc mine processing plants:
Standard circular thickeners employ a large tank, rotating thickener rake mechanism, and slow-moving scrapers to consolidate and collect the settled solids. This design is robust but generally handles lower solids loads.
High-rate thickeners are built to maximize solids throughput with steep-sided tanks, optimized feedwell designs, and effective rake thickener assemblies. These units are common in lead zinc ore beneficiation processes due to increased feed variability and the need for rapid water recovery.
Paste thickeners deliver even higher solids concentrations and produce a thick, non-settling underflow for environmentally sound tailings disposal. This helps mines minimize water usage and tailings dam footprint.
Each thickener type plays a specialized role along the circuit:
- Concentrate thickeners recover valuable mineral product from flotation circuits.
- Tailings thickeners reclaim water from process waste streams before tailings disposal.
- Paste thickeners generate high-density tailings for safer, smaller storage.
Feed variability, ore characteristics, and required underflow consistencies drive selection and integration of these thickener types. Modular designs and the ability to scale allow for plant expansions and process upgrades as ore bodies and production demands change.
Challenges Unique to Polymetallic Operations
Polymetallic lead-zinc mines face complex hurdles in thickener operation, including:
Variable feed rates and inconsistent mineralogy: Mining multiple ore types produces wide swings in pulp composition, solid content, and rheology. This complicates both underflow control and flocculant dosage optimization in mining, requiring adaptive process controls.
High solids loading: Modern mines push throughput, with thickener circuits often handling over 100,000 tonnes/day of slurry. Maintaining thickener underflow density control and solids concentration monitoring at such scales is difficult but essential to prevent process disasters such as rake binding accident or rake seizure.
Complex mineralogy: Lead-zinc ores may include galena, sphalerite, pyrite, and gangue minerals, each with unique settling and flocculation behaviors. This demands tailored flocculant programs and density meter calibration for the mining industry.
Failure to address these factors can lead to unstable mud beds, poor overflow clarity, high chemical consumption, or mechanical failures. The risk of thickener rake overload or binding increases if solids unexpectedly compact, further stressing the need for advanced inline density measurement and industrial density meter technologies (e.g., Lonnmeter) to guide real-time process adjustments and support thickener automation systems.
By integrating comprehensive mineral process audits and optimization methods, thickener control of underflow concentration and operational efficiency are improved, supporting both mineral recovery and environmental management objectives in polymetallic operations.
Critical Components and Design Features of Thickeners
Thickener Rake Systems
Thickener rake systems play a pivotal role in the industrial thickener operations for polymetallic lead and zinc mines. Rakes are engineered to continuously move and consolidate settled solids toward the central discharge. This transport aids in thickener control of underflow concentration and helps prevent uneven bed formation, which could jeopardize operational efficiency.
The mechanism involves rotating rake arms equipped with blades or plows. These arms descend slowly, scraping settled mud toward the underflow outlet. Modern rake thickener designs utilize robust materials to withstand abrasion and corrosion from lead-zinc slurries. Computational modeling, such as CFD (computational fluid dynamics) and FEA (finite element analysis), optimizes the geometry, blade angle, arm spacing, and drive sizing for minimal torque and high efficiency. For high-density thickeners, taller tank profiles and reinforced rakes enable higher solids handling without sacrificing mechanical reliability.
Best practices emphasize steady solids loading, continuous torque monitoring, and the use of instrumented drive assemblies. Torque meters and force transducers gather real-time data, enabling responsive operational adjustments. Control systems automatically adjust rake elevation or speed in response to torque surges, which are usually caused by uneven sediment distribution or sudden material build-up. Field examples show that regular torque monitoring and programmed overload setpoints reduce maintenance needs and promote consistent thickener operational efficiency.
Rake overload protection relies on integrated force measurement devices (torque transducers, load cells) within the drive. When preset torque limits are reached—a sign of potential rake binding—the system can automatically lift the rake or stop the drive to prevent mechanical damage and rake seizure. These safeguards, coupled with distributed control systems, provide remote management and instant intervention capabilities, crucial for preventing rake binding accidents.
Mechanical factors leading to rake binding include excessive solids accumulation, drive or mechanical failure due to corrosion or poor lubrication, and ineffective overload protection. Prevention strategies focus on robust design, including oversized drives, anti-abrasion materials, and periodic mechanical inspections. Regular maintenance and calibration—such as blade replacement and lubrication schedules—remain foundational thickener safety measures. Real-world audits frequently recommend feedback control via variable speed drives and proactive torque trend analysis for long-term reliability.
Flocculant Application Systems
Flocculant dosage calculations for thickener operation in lead-zinc slurry are tailored to unique slurry properties: particle size, mineralogy, pH, and ionic strength. Standard practice involves bench-scale jar testing, where polymer types and concentrations are empirically selected to achieve desired underflow solids concentration and overflow clarity. In the mineral processing plant optimization context, dosing is typically measured in grams of active polymer per ton of dry solids.
The impact of flocculant dosing directly affects the settling rate and final underflow concentration. Precise dosage promotes rapid particle agglomeration (floc formation), yielding faster solids settling and higher-quality separation. Excess dosing increases reagent consumption and operating costs; insufficient dosing leads to poor solids separation, reduced underflow density, and potential overload scenarios in the thickener.
Technologies enabling precise delivery include programmable chemical dosing pumps, gravity-fed systems, and automated control protocols. Inline density measurement and real-time feedback with industrial density meter solutions—such as Lonnmeter—allow for continuous adjustment and optimization of polyelectrolyte dosage. These systems support both efficient reagent use and real-time thickener solids concentration monitoring. Detailed audits frequently recommend density meter calibration for mining industry applications to minimize error and ensure robust process control.
Best practices in reagent management involve routine calibration of dosing equipment, regular validation of density meters, and integration with thickener automation systems. This approach minimizes reagent consumption while maximizing settling efficiency and underflow density control, contributing to overall thickener performance and safety in lead zinc ore beneficiation process environments.
Advanced Control and Monitoring Strategies for Underflow Concentration
Inline Density Measurement and Instrumentation
Selecting the right industrial density meter is vital for achieving accurate, continuous monitoring of thickener underflow concentration in polymetallic lead and zinc mines. Instruments such as vibrating element and ultrasonic density meters offer non-nuclear alternatives, addressing heightened regulatory and safety requirements in mineral processing operations. These devices measure real-time slurry density without the risks and administrative overhead of radiation-based gauges, which is a significant advantage for thickener operational efficiency and compliance with safety standards. For example, the SDM ECO and vibrating element designs are proven for measuring abrasive, high-density lead-zinc slurries; they feature abrasion-resistant sensors, robust electronics, and compatibility with highly corrosive pulp conditions.
Meter integration demands careful consideration of measurement location. Placement is typically in the thickener underflow line close to discharge, where solids content is most consistent and reflects true operational effectiveness. Placement should also ensure minimal hydraulic disturbance and accessibility for maintenance, aligning with thickener maintenance best practices.
Calibration is a core challenge in lead-zinc mine applications due to frequent density fluctuations and variable particle size distribution. Periodic calibration using reference samples and software adjustments is required, especially when handling complex lead zinc ore beneficiation process streams. Factory calibration may serve as a baseline, but site-specific recalibration improves accuracy for thickener underflow density control. Instrument drift, caused by sensor coating, wear, or changing slurry chemistry, makes routine manual validation essential.
Failure modes unique to the mining environment include sensor abrasion, scaling, electronic degradation, and process material buildup on sensor surfaces. Correction procedures involve scheduled maintenance, including mechanical cleaning, recalibration, and replacement of worn sensor parts. Rapid-response routines—such as automated error flagging, in-situ diagnostics, and redundancy through dual-sensor arrangements—help ensure reliable solids concentration monitoring and fast recovery after faults. SmartDiver-style profiling sensors further enhance redundancy by offering independent, real-time verification of density and mud levels.
Automated Thickener Control Systems

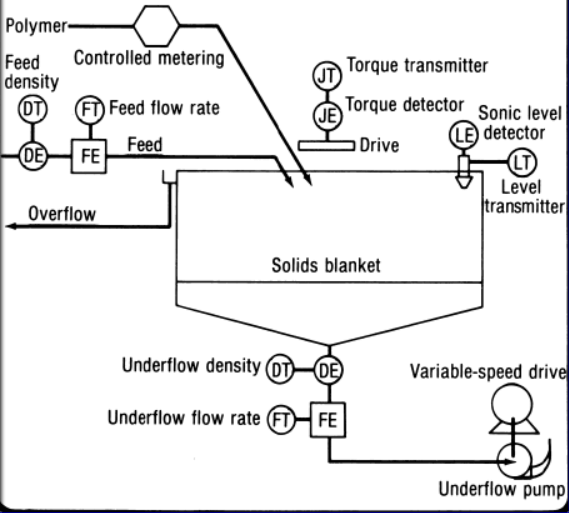

Automated thickener control systems now integrate multivariable data—feed characteristics, underflow density, and drive torque from the thickener rake mechanism—for precision management of solids and liquid separation. Incorporating feedback from inline density measurement, pressure, and rake torque sensors, these systems utilize multivariable control strategies to optimize several process parameters concurrently. Model predictive control (MPC) and fuzzy logic controllers dynamically adjust control setpoints to stabilize underflow concentration—even as feed properties or flocculant dosage requirements shift due to changing ore blends.
Key control tactics focus on inventory level management—maximizing thickener solids loading while preventing rake overload or binding. Rake torque feedback is used for rake overload protection and active prevention of rake seizure or binding, critical for maintaining equipment safety and process stability. Thickener control of underflow concentration is thus directly linked to the monitored behavior of the thickener rake design and torque response. Real-time detection and automated alarm protocols initiate rapid corrective actions—increasing underflow pump rate, adjusting flocculant dosage, or changing rake lift position to avoid critical events.
Optimizing overflow solids content is another automated control target. Advanced systems use continuous feedback to tune polyelectrolyte dosage optimization in mining, delivering higher quality reclaim water and reducing process water recirculation costs. Data-driven control maintains performance across process fluctuations, supporting mineral process audits and optimization efforts.
Real-time data integration is fundamental for predictive thickener control. Automated platforms capture sensor data with low latency, feeding it into control routines capable of short-term prediction and rapid response to abnormal events. For example, predictive analytics using settled interface level, underflow concentration, and mud pressure support early detection of thickener upset events and allow for automated, targeted interventions before process limits are breached. Integration of density meter calibration for mining industry and sensor-driven event logging enables continuous improvement of plantwide thickener automation systems, further boosting thickener safety measures and operational outcomes in complex mineral processing plants.
Together, these advanced strategies establish a robust system for optimizing throughput, improving dewatering efficiency, and preventing catastrophic incidents such as rake binding in industrial thickener operations across polymetallic lead-zinc contexts.

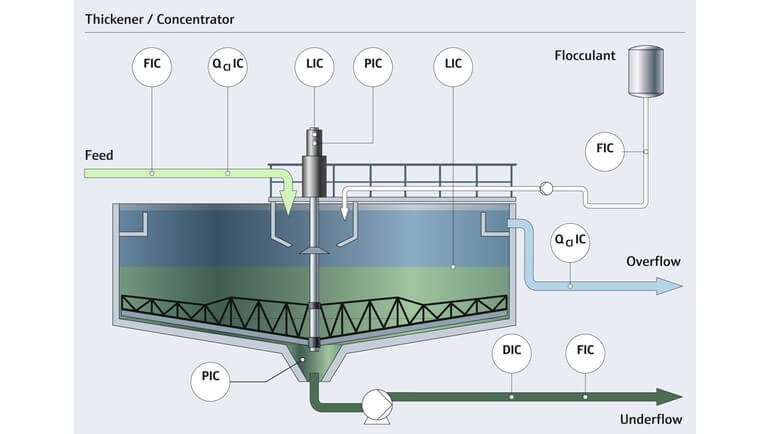

Thickener--where flocculants are mainly used
*
Rake Binding, Seizure, and Overload Prevention
Mechanisms Causing Rake Binding and Overload
In polymetallic lead and zinc mines, industrial thickeners rely on rake mechanisms to efficiently separate and dewater slurries. Rake binding occurs when the rake arms encounter excessive resistance—usually from material accumulation on the thickener bed or near the discharge zone. Rake overload refers to forces exceeding design limits, risking component failure.
Material buildup—driven by sudden surges in solids feed, poor underflow concentration control, or improper flocculant dosage calculations—sharply increases both hydraulic drag and mechanical stress on rake arms and drives. Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) models confirm that sludge rheology, thickener geometry, feed rates, and rake speeds are all critical: abrupt changes accelerate the risk of blockage. For example, in deep cone thickeners handling lead zinc ore beneficiation, poorly optimized solids feed and flocculant overdosing have been shown to precipitate binding incidents and overload events. Field data from Chinese lead-zinc operations validate these risks and highlight the benefits of improved thickener rake design and operational setpoints.
Early Warning Signs and Real-Time Monitoring Solutions
Early warning signs of rake torque excursions typically include rapid increases in drive torque, erratic fluctuations in mud bed levels, and reduced rake speeds. Real-time monitoring solutions leverage automated torque and drag measurement systems, statistical pattern recognition, and physical modeling with self-calibrating FEA. Advanced inline sensor systems, such as Lonnmeter industrial density meters, provide continuous feedback on underflow density and mud bed characteristics, which can signal incipient overload or binding.
Machine-learning models process live vibration and operational data to flag abnormal rake torque well ahead of failure—up to several minutes in advance. Operators can respond by adjusting polyelectrolyte dosages, rebalancing feed conditions, or executing preventive maintenance. Automated control schemes that integrate inline density measurement with torque monitoring have been proven to minimize emergency shutdowns and avert rake binding accident scenarios in mineral processing plant optimization.
Maintenance Schedules and Operational Protocols
To prevent mechanical failure and maximize thickener uptime, maintenance schedules must focus on regular inspection of rake arms, drive trains, and torque measurement equipment. Maintaining a record of observed torque excursions, lubrication cycles, and density meter calibration for the mining industry is critical.
Operational protocols should ensure:
- Scheduled slurry sampling and solids concentration monitoring.
- Routine checks of interface and mud levels for timely underflow density control.
- Regular calibration and functional testing of inline density meter systems such as Lonnmeter.
Adherence to thickener maintenance best practices—including detailed logging of preventative actions and prompt response to monitoring alerts—marks a significant improvement over reactive maintenance models centered on breakdown events. These steps directly support thickener safety measures and reduce the risk of costly rake seizure.
Benefits of Proactive Control
Proactive control in thickener circuits prevents catastrophic rake seizure and fosters safe mineral processing by continuously optimizing operational parameters. Real-time feedback—especially when coupled with expert control schemes—keeps key variables like rake torque, underflow concentration, and mud level within safe limits.
Examples from mineral process audits and thickener automation systems reveal:
- Drastic reduction in unplanned downtime following implementation of expert control frameworks.
- Enhanced process stability via continuous solids concentration monitoring and dynamic adjustment of flocculant and polyelectrolyte dosage.
- Lower rates of mechanical wear and overload, supporting longer service intervals and improved thickener operational efficiency.
Ultimately, proactive approaches—ranging from integrated automation to predictive maintenance schedules—offer robust rake overload protection while maintaining compliance with industry safety and performance standards.
Mineral Process Audits and Thickener Performance Optimization
Structured mineral process audits in polymetallic lead and zinc mines focus on comprehensive assessments of industrial thickener performance, emphasizing underflow quality and rake operation. These audits employ systematic inspection of hydraulic parameters—such as feed flux, rise rate, and bed depth—while prioritizing key performance indicators (KPIs) like underflow density, solids concentration, rake torque, and force profiles. Tight control over these variables is essential for avoiding mud-bed ratholing, blockages, and mechanical failures including rake binding or rake seizure.
Structured Audits: Hydraulic and Mechanical Focus
Audits typically involve staged observations:
- Hydraulic performance is assessed through flow balancing, monitoring overflow clarity, and tracking sedimentation rates.
- Rake thickener inspections analyze torque curves, mechanical stress patterns, and wear profiles, often using advanced modeling such as Fluid-Structure Interaction (FSI) simulations to predict load distribution and identify risk areas for rake overload protection and binding accidents.
- Underflow quality checks rely on inline density measurement with industrial density meters like Lonnmeter, enabling real-time evaluation. Density meter calibration for mining industry standards ensures reliable underflow solids readings, supporting thickener control of underflow concentration.
Process Analytics for Performance Benchmarking and Bottleneck Detection
Data-driven process analytics have become foundational for benchmarking thickener operational efficiency in polymetallic mining environments.
- Continuous process data streams are analyzed for trends in underflow concentration, flocculant dosage calculations, pump output, and mechanical loads.
- Benchmarking includes validating Computational Fluid Dynamics (CFD) models against observed settling rates and dewatering outcomes, identifying bottlenecks such as fluctuating feed density or excessive reagent consumption.
- Process mining methodologies map workflow constraints, monitor throughput rates, and correlate underflow extraction issues with upstream ore variability.
Case examples document that after targeted process audits, plants have seen:
- Stabilization of solids concentration despite feed variability.
- Lowered flocculant use—over 16% reduction in multiple audits.
- Decreased average rake torque by more than 18%, resulting in fewer maintenance shutdowns and increased operational uptime.
Continuous Improvement Strategies: Tuning Dosage, Extraction, and Rake Mechanisms
Iterative process improvement is fundamental for thickener safety measures and efficiency:
- Flocculant dosing is optimized via laboratory batch tests and field trials, balancing sedimentation speed with floc density through polyelectrolyte dosage optimization relevant to the lead zinc ore beneficiation process.
- Underflow extraction rates are dynamically modulated using pump frequency converters and model-based control systems. PID or model predictive logic integrates sensor feedback—like Lonnmeter’s real-time density data—to maintain optimal underflow density.
- Rake mechanisms are refined with adaptive controls leveraging sensor-derived feedback. For instance, FSI and CFD-FEA modeling guide maintenance scheduling and thickener rake design improvements. This prevents rake overload and binding, supporting robust long-term operation.
Continuous improvement frameworks also incorporate regular thickener maintenance best practices:
- Scheduled inspection of mechanical parts and control systems.
- Calibration of inline instrumentation and density meters to ensure accurate solids concentration monitoring.
- Review and update of thickener automation systems, aligning sensor data with operational logic to further minimize accident risks.
The combined approach—auditing, analytics, and iterative control—enables mineral processing plant optimization, greater thickener operational efficiency, and minimizes costly accidents. Real-time monitoring and structured improvements support resource recovery and water conservation, addressing the unique challenges of polymetallic lead and zinc mines.
Maximizing Dewatering Efficiency and Economic Performance
Balancing thickener underflow concentration with energy and reagent costs is central to mine dewatering strategies. In polymetallic lead and zinc mines, setting the right underflow solids concentration targets is vital because it directly determines pumping energy use and flocculant consumption. Pushing concentration too high increases slurry viscosity and yield stress, raising pump power requirements and mechanical wear. Conversely, underperforming concentration results in excessive water handling, requiring higher pumping rates and more reagent dosing to maintain settling and process stability. A data-driven approach, integrating plant-specific operational audits and optimization models, enables the careful selection of targets that best fit tailings transport and equipment constraints while minimizing overall cost.
Operational practices in industrial thickeners must drive water recovery aggressively, balancing safety, throughput, and thickener maintenance best practices. For high-density or paste thickeners, careful control of flocculant dosage calculations and polyelectrolyte optimization are essential. Reagent dosing, matched in real-time to feed variability, ensures strong floc formation without overdosing and thus avoids increased operating costs or poor dewatering performance. Modern operations rely on advanced thickener automation systems—utilizing inline density measurement (with reliable devices like the Lonnmeter industrial density meter) and continuous density meter calibration for mining industry conditions. This tight process control drives thickener underflow density consistency and enables prompt response to process upsets, greatly reducing risks of rake overload, rake binding accident, and rake seizure. Efficient thickener rake design and mechanism maintenance are also required to avoid stoppages and safety incidents, especially in high throughput environments.
Quantitative benefits of optimized thickener control are substantial for mineral processing plant optimization and lead zinc ore beneficiation process. Proven studies across several zinc-lead concentrators show that continuous solids concentration monitoring and targeted thickener underflow density control achieve underflow stability within 2–3% of design, with flocculant savings of 10–20% and energy use reductions up to 15% for tailings pumping. Improved process stability enables higher overall plant throughput without compromising safety or water-recovery objectives. Inline density measurement and expert control systems yield real-time feedback for flocculant dosage optimization in mining, supporting tighter reagent management and fewer process interruptions. Water recovery increases directly contribute to reduced freshwater intake and smaller tailings footprints, enhancing regulatory compliance and environmental sustainability.
Optimized thickener solids concentration monitoring not only improves operational reliability but also lowers total operational expenditure, boosting site profitability. Automated control ensures that density fluctuations are minimized—resulting in stable discharge rates, less re-dosing, and greater recyclability of process water. These gains extend across energy, reagent, and water costs, directly strengthening the economic performance of industrial thickeners in polymetallic lead-zinc mine settings.
Frequently Asked Questions (FAQs)
What is the primary function of an industrial thickener in a polymetallic lead and zinc mine?
An industrial thickener in a polymetallic lead-zinc mine separates water from solids in mineral processing slurries. Its main job is to maximize water recovery and concentrate solids by gravity sedimentation. The thickened underflow goes to tailings disposal or further beneficiation, while clarified overflow is recycled as process water. This enhances resource efficiency and helps comply with environmental discharge limits.
How does thickener control of underflow concentration prevent rake binding accidents?
Thickener rake binding occurs when solids concentration gets too high, increasing the resistance and torque on the rake mechanism. Real-time control over underflow concentration—using online density meters and automation systems—ensures solids do not accumulate excessively, which keeps torque within safe limits. This helps prevent mechanical failures, rake seizure, and costly operational downtime. Control systems, such as PID controllers and frequency converters, actively adjust the underflow pumping rate to maintain optimal density and avoid physical blockage.
What factors affect flocculant dosage calculations in rake thickeners?
Flocculant dosage is influenced by several process variables:
- Feed characteristics: Solids content and mineral composition determine how much flocculant is needed for effective particle aggregation.
- Slurry flow rate: Higher flows may require increased flocculant for rapid sedimentation.
- Desired underflow concentration: Target density affects aggregation strength and settling rates.
- Ore type and mixture: Polymetallic ores (lead-zinc mixtures) behave differently from single-mineral feeds.
- Real-time feedback: Advanced controls use inline density measurement to adjust dosage as feed conditions change.
Optimization prevents overdosing, which can lower underflow density and increase chemical costs. Reliable dosage calculation demands precise flow and density monitoring, such as dual density meters or FBRM systems.
What are mineral process audits and how do they help optimize thickener efficiency?
Mineral process audits systematically review thickener operation—examining hydraulic performance, rake mechanism behavior, and instrument reliability. These audits use onsite inspections and analytical tools (e.g., XRF, XRD) to pinpoint inefficiencies, poor control, or mechanical issues. Outcomes identify actionable improvements: optimized underflow density, better dewatering rates, reduced flocculant consumption, and improved safety (rake binding risk reduction). Regular audits also ensure compliance with regulatory standards and support integrated mineral processing plant optimization strategies.
Why is inline density measurement important for polymetallic thickener control?
Inline density measurement provides continuous, accurate monitoring of slurry solids concentration at critical points in the thickener. Automated density meters, such as “Lonnmeter” models, feed live data to process control systems. This enables rapid adjustment of pump rates and flocculant doses, maintaining underflow and overflow targets. Inline systems offer quick response to changing feed properties, preventing rake overload and minimizing mechanical wear. The result is safer operation, improved operational efficiency, and reliable water recovery, especially in polymetallic lead-zinc mines where feed variation is common.
