Monitoring the concentration of ore slurry is crucial in optimizing the flotation process for tungsten-molybdenum ores. The flotation process relies on the suspension of fine ore particles in water, and the exact proportion—the slurry concentration—directly impacts process performance, product quality, and operational efficiency.
Role in Efficient Tungsten-Molybdenum Ore Flotation
Effective tungsten-molybdenum ore flotation methods depend on maintaining the slurry within optimal concentration ranges. Too high a concentration raises the viscosity and negatively influences bubble-particle interactions essential for mineral separation, while too low a concentration can result in inadequate recovery and increased reagent consumption. Real-time and accurate monitoring systems, such as those utilizing ultrasonic sensors, provide continuous feedback, allowing operators to adjust process parameters quickly. This supports both maximizing recovery of valuable minerals and ensuring stable operation of downstream processes like dewatering and smelting.
Accurate slurry concentration control affects molybdenum flotation process reagents dosing guidelines, directly influencing separation selectivity and froth stability. For example, Lonnmeter-brand online density meters are implemented at multiple flotation plants to enable consistent real-time feedback, supporting rapid response to operational changes and ore variability.

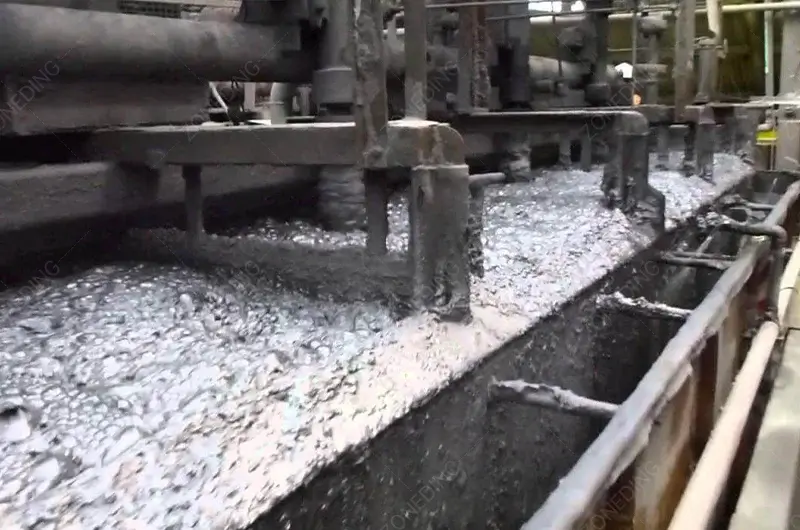

Tungsten-Molybdenum Ore Flotation
*
Impact on Flotation Process Optimization and Downstream Operations
Maintaining the correct slurry concentration is central to flotation process optimization strategies. Consistent slurry concentration stabilizes the flotation froth, enhances mineral recovery, and allows for precise mineral processing reagent dosage adjustment. This, in turn, reduces losses to tailings and boosts concentrate grades—key flotation efficiency indicators.
Furthermore, stable slurry concentration simplifies the design of concentrate conveying pipeline systems and the selection of efficient concentrate transport solutions. For example, pipelines transporting ore slurries are engineered based on expected concentrations to avoid blockages and excessive wear. Buffer tank outlet optimization is also possible when inlet concentrations are reliably monitored and controlled, minimizing surge effects that disrupt plant flow balance.
Downstream, efficient ore slurry filtration methods rely on a predictable feed concentration. Fluctuations complicate filter operation, affecting throughput, cake moisture, and overall plant productivity. Adhering to best practices in ore slurry filtration is easier with robust upstream concentration control.
Addressing High Mineralization Degree and Complex Compositions
Tungsten-molybdenum ores are often characterized by a high mineralization degree and complex mineralogy—including clays, silicates, and sulfides. High mineralization brings higher solids fractions, intensifying challenges in slurry transport and flotation performance. The presence of kaolinite and fine clay minerals specifically elevates slurry viscosity, impeding mixing, reducing flotation selectivity, and requiring ongoing adjustment of flotation reagent dosing.
Given the variability, monitoring systems must account for rapid shifts in slurry characteristics. Frequent calibration and dynamic adjustment become necessary in operations processing ores with diverse mineral assemblages. The interaction between particle size, mineral type, and concentration means that real-time slurry concentration monitoring is not only a quality-control tool but an operational necessity for optimizing mechanical parameters, such as rotor speed and cell residence time, and for guiding chemical interventions like the dosing of dispersants (e.g., sodium silicate) to counteract viscosity spikes.
These complexities reinforce the essential role of advanced real-time systems in sustaining high recovery and efficient production across every stage of the tungsten-molybdenum ore flotation circuit.
Fundamentals of Tungsten-Molybdenum Flotation
Molybdenum flotation process centers on the selective recovery of molybdenite (MoS₂) from complex ore matrices such as copper-molybdenum sulfides. In molybdenum froth flotation techniques, separation is achieved by exploiting contrasting surface properties. Collectors like thionocarbamates, butyl xanthate, and Reaflot are added to render molybdenite hydrophobic, enabling its attachment to rising air bubbles. Frothers (such as sodium dodecyl sulfate) ensure optimal bubble formation and froth stability, while depressants and modifiers suppress unwanted minerals and enhance selectivity of the process.
Selective flotation involves staged processes. First, copper-molybdenum bulk concentrates are produced, then molybdenum flotation upgrades the concentrate by selectively floating molybdenite away from chalcopyrite. Hydrometallurgical steps, like atmospheric nitric acid leaching, are sometimes integrated post-flotation for efficient molybdenum extraction, yielding commercial-grade products with high purity.
The behavior of molybdenite and tungsten minerals in flotation is dictated by their surface chemistry and response to reagent regimes. Molybdenite possesses a natural layer structure granting intrinsic hydrophobicity, which is further enhanced by collector adsorption. Tungsten minerals—scheelite (CaWO₄) and wolframite ((Fe,Mn)WO₄)—display less surface hydrophobicity, often requiring activation reagents to improve floatability. Fatty acids (oleic acid, sodium oleate) remain the principal collectors for scheelite, but selectivity is challenged due to similar crystal structure with gangue minerals like calcite and fluorite. Metal ion activators (such as sodium silicate and sodium sulfide) are used to modify the mineral surface charge, promoting collector adsorption. Depressants, including inorganic compounds (sodium silicate, sodium carbonate) and polymers (carboxymethyl cellulose), achieve selective suppression of competing gangues.
Fine particle recovery stands as a critical challenge within tungsten-molybdenum ore flotation. Particles under 20 μm exhibit low probabilities for collision and attachment to bubbles, suffering rapid detachment in turbulent froths. Recovery efficiency of both molybdenite and tungsten minerals drops precipitously for ultrafine fractions. To address these difficulties, process optimization strategies focus on operational parameters—such as optimizing reagent dosage in flotation, maintaining appropriate pulp density, and refining air flow and agitation rates. Reagent innovations like combined collector emulsions yield improved flotation performance across varying ore types.
Complexity in separation arises from similarities between tungsten minerals and gangue phases. Scheelite and calcite, or fluorite, share comparable crystal structures and surface characteristics, complicating selective flotation. Best practices in mineral processing reagent dosage adjustment include the use of novel depressants and dual-function reagents for enhanced selectivity. Studies demonstrate polymeric depressants (e.g., carboxymethyl cellulose) improving recovery while reducing chemical consumption.
In summary, effective tungsten-molybdenum ore flotation methods demand precise control over reagent chemistry, pulp density, and machine design. Disparities in mineral surface properties, interplay of collectors and depressants, and fine particle challenges shape the foundation of process optimization. Careful adjustment of flotation reagent dosing guidelines, integration of robust ore slurry filtration methods, and attention to concentrate conveying pipeline design are essential for maintaining high mineralization degree and addressing challenges in flotation efficiency.
Process Control Variables Influencing Concentration
Influence of Reagent Dosage Adjustment on Flotation Performance and Mineral Selectivity
The molybdenum flotation process and tungsten-molybdenum ore flotation methods rely on precise reagent dosage adjustment to achieve target selectivity and recovery rates. Common collectors, such as xanthates for molybdenum and fatty acid compounds for tungsten minerals, require careful tuning. Overdosing collectors reduces selectivity—enabling unwanted gangue minerals to float and contaminate the concentrate. Underdosing depressants, such as sodium sulfide or sodium cyanide, fails to suppress copper and other interfering minerals, directly impacting molybdenum selectivity in copper-molybdenum separation circuits. Chelating agents like hydroxamic acids are increasingly adopted for finely-tuned selectivity, especially in scheelite flotation, but their cost and operational complexity demand robust dosing controls. Metal–organic complex collectors have shown to improve performance where conventional reagents fall short, particularly in ores with complex or calcium-rich gangue matrices. Adaptive dosage protocols—linked to real-time slurry feed monitoring—enable faster adjustment to ore variability, optimizing mineral recovery and concentrate grade with every batch. Studies highlight tangible improvements in yield when reagent dosing guidelines are dynamically managed in response to feed fluctuations and process water chemistry changes. Sequential flotation stages, combined with dosing optimization strategies and precise pH and frother selection, consistently enhance overall circuit efficiency.
Effect of High Mineralization Degree on Slurry Properties, Froth Stability, and Flotation Recovery
High mineralization degree refers to slurries with elevated solid content and fine particle concentration. This dramatically increases viscosity, changing the rheological character of the slurry. Increased viscosity promotes metal recovery by maintaining fine mineral particles in suspension, but it also raises the risk of gangue entrainment, undermining concentrate purity. Froth stability is a direct function of slurry rheology—a highly viscous slurry fosters persistent froths, though often at the expense of selectivity, as more non-target minerals are carried into the froth layer. Minerals such as kaolinite or other clay fractions further increase viscosity by forming dense, interconnected microstructures, making flotation less efficient. Dispersants like sodium hexametaphosphate and sodium silicate are routinely introduced to minimize viscosity, improve dispersion, and restore balance between selective mineral recovery and froth quality. Rheological control is essential in buffer tank outlet optimization and concentrate conveying pipeline design, ensuring efficient concentrate transport solutions in high mineralization scenarios. Maintaining optimal slurry flow characteristics is a prerequisite for sustaining flotation rates, aiding in process stability and minimizing energy demands. Vaccum filtration and thickener data analysis further support managing density and moisture within optimal ranges for downstream handling.
Repercussions of Ore Slurry Filtration Quality on Concentrate Purity and Handling
Filtration quality of the ore slurry is a vital determinant of concentrate purity in tungsten-molybdenum flotation. Lower moisture content following filtration minimizes water carryover, directly elevating concentrate purity to meet pelletizing or smelting requirements. Optimal slurry pH—found to be near 6.8 in iron-rich systems but similar principles applied to tungsten-molybdenum ores—reduces cake moisture and improves handling characteristics. Variables such as filtration pressure, cycle time, and feed solids percentage are systematically adjusted using best practices in ore slurry filtration. Advances in micro-moisture measurement and structural analysis (void fraction, cake density) are used for more precise quality control, reducing the risk of residual water interfering with subsequent concentrate processing. Poor filtration raises transport costs, increases environmental risks due to water management, and can destabilize concentrate pipelines or buffer tank operation. Efficient slurry filtration not only ensures reliable product purity, it also supports volume throughput, enhances water recovery, and reduces operational disruptions linked to unstable filter cakes.
Efforts to optimize flotation process control variables span mineral processing reagent dosage adjustment, concentrate conveying pipeline design, and buffer tank outlet optimization. Integrating advanced monitoring—such as Lonnmeter sensor systems—enables real-time adaptive management, ensuring consistent concentration and purity throughout flotation and handling stages.
Key Monitoring Points for Slurry Concentration
Effective monitoring of ore slurry concentration is fundamental in optimizing the tungsten-molybdenum flotation process. Control at strategic locations—from concentrate conveying pipelines to the buffer tank outlet and filtration units—ensures process stability, efficient reagent dosing, and maximized mineral recovery. Below are the critical areas of focus and their best-practice strategies.
Concentrate Conveying Pipeline Operations
The stability of slurry transport in concentrate pipelines is essential for consistent downstream processing. Fluctuations in slurry concentration can result in pipeline blockages, excessive wear, or inefficient pumping. To address this, modern processing plants deploy inline slurry density monitoring—most notably using Lonnmeter sensors. These real-time density measurements enable operators to:
- Adjust pump speed and pipeline flow rates automatically to maintain target solids percentages.
- Promptly detect deviations that may indicate settling, sanding, or overheating within the pipeline.
- Support optimal reagent distribution by linking density data to automatic dosing systems.
Stable concentrate transport through well-monitored pipelines is integral to efficient concentrate handling and reduces operational disturbances in the broader flotation circuit, ultimately boosting both tungsten and molybdenum recovery rates.
Buffer Tank Outlet Monitoring and Adjustment
Buffer tanks serve as critical equalization stages, smoothing fluctuations in feed and creating a consistent slurry supply for the molybdenum flotation process. Key control measures at the buffer tank outlet include:
- Continuous inline monitoring of slurry concentration and density (again, often via Lonnmeter sensors).
- Automated adjustment of discharge valves or pumps based on real-time readings to maintain steady feed concentrations.
- Integration of agitators operating at optimized speeds, ensuring uniform suspension of solids to prevent stratification or unexpected concentration spikes.
Effective buffer tank management enables precise application of flotation reagent dosing guidelines. By coupling sensor outputs with dynamic control loops, operators prevent both under- and overdosing—conditions that can reduce selectivity or recovery in tungsten-molybdenum ore flotation methods.
For example, studies indicate that automating feedback between buffer tank sensors and reagent dosing units leads to improved flotation stability and concentrate grade uniformity, minimizing manual intervention and error.
Integration of Filtration Status Assessment
Post-flotation, filtration processes must be closely integrated into slurry concentration monitoring regimes. Efficient filtration determines the final concentrate moisture and mineralization degree, directly impacting downstream processing and product quality. Best practices in ore slurry filtration include:
- Real-time tracking of feed and filtrate densities with inline instruments.
- Immediate assessment of filtration efficiency to trigger corrective action (e.g., adjusting vacuum or filter cycle duration).
- Linking filtration control systems to upstream slurry monitoring, enabling predictive adjustment to handle variability in feed conditions.
Integrated assessment helps address the high mineralization degree challenges in flotation, enhancing dewatering while preserving concentrate quality. Advanced approaches—like microbubble flotation extraction—demonstrate that maintaining target slurry concentrations improves hydrophobic complex formation, resulting in higher recovery of molybdenum and minimal tungsten loss.
Example Workflow
- Ore slurry exits flotation cells and enters buffer tanks.
- Lonnmeter sensors continually monitor slurry density at the buffer tank outlet.
- Automated dosing and agitation respond in real time to maintain stable solids concentrations.
- The stabilized slurry proceeds through the concentrate pipeline, with real-time density data enabling quick adjustments.
- At filtration stages, inline monitoring supports immediate identification of process deviations, ensuring effective dewatering.
By embedding comprehensive monitoring at these key points, plants systematically minimize process variation, enhance flotation process optimization strategies, and ensure consistent product quality throughout the tungsten-molybdenum flotation circuit.

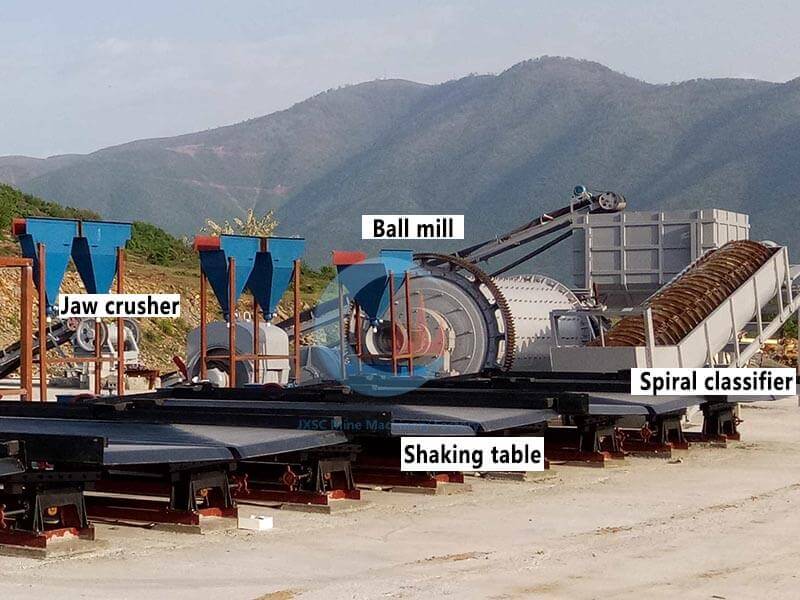

Molybdenum Flotation Process Equipment
*
Techniques and Tools for Accurate Concentration Measurement
Accurate monitoring of ore slurry concentration in tungsten-molybdenum flotation is a cornerstone for optimizing both flotation efficiency and recovery rates. Selection and operation of the right instrumentation, sample preparation methods, and integration strategies are critical for reliable process control.
Instrumentation and Online Sensor Options
Several technologies offer real-time measurement of tungsten-molybdenum ore slurry concentration:
Coriolis Flowmeters deliver direct, high-precision measurements of mass flow and slurry density. As slurry passes through their vibrating tubes, phase shifts are translated into real-time density data. These meters are robust against changes in temperature and particle load, crucial for the variable matrices of molybdenum flotation processes. The primary advantage is their accuracy, even at high mineralization degrees, vital for maintaining stable flotation operations and adjusting reagent dosage precisely. However, their installation and maintenance costs can be higher than alternatives.
Ultrasonic Sensors provide robust, non-invasive monitoring by measuring the time it takes for ultrasonic waves to pass through the slurry, inferring volumetric flow and density. These are especially valuable where clogging and abrasion are process concerns or where frequent downtime for maintenance is not acceptable. While not as precise in mass flow as Coriolis meters, ultrasonic sensors can be suitable when quick response and low maintenance are prioritized.
Lonnmeter Slurry Concentration Sensors use advanced ultrasonic technology for inline density tracking. These sensors integrate with process control systems for immediate feedback, allowing continuous optimization of flotation parameters, including buffer tank outlet adjustments and concentrate pipeline flow rates. Field evidence shows that accurate readings from Lonnmeter sensors directly support flotation process optimization strategies, improve concentrate transport solutions, and reduce variation in slurry consistency.
Best Practices for Integration into Flotation Optimization
Seamless integration of concentration monitoring into flotation circuits boosts performance:
Sensor Integration with Process Control: Inline sensors, such as those from Lonnmeter, should be connected directly to distributed control systems (DCS) or programmable logic controllers (PLCs). This allows real-time concentration data to automatically adjust flotation reagent dosing guidelines, pH targets, air rates, and other critical parameters—forming closed-loop control for immediate process response. Operators should leverage soft sensor models, such as LSTM neural networks, as optional supervisory layers for further refinement in complex or rapidly changing plant conditions.
Sampling Protocols: Consistent sample collection and handling procedures must be established and validated to ensure that both online sensor data and laboratory results correlate. This includes pipeline design for concentrate conveying to minimize dead zones and ensure representative mixing, as well as optimization of the buffer tank outlet to stabilize flow for downstream analysis.
Calibration and Maintenance: Regular calibration against trusted laboratory methods, along with drift monitoring, is necessary to guarantee accuracy and consistency. Maintenance practices must fit the selected instrumentation—Coriolis meters require periodic cleaning, while ultrasonic sensors and Lonnmeter inlines benefit from routine signal validation and fouling checks.
Data Feedback for Reagent Optimization: All real-time measurement systems should feed directly into algorithms or operator guidelines for optimizing reagent dosage in flotation. This improves both the selectivity of the molybdenum flotation process and efficiency of resource use, while minimizing costs and environmental impact.
By systematically deploying these monitoring tools and techniques, mineral processors can address high mineralization degree challenges in flotation and maintain optimized, robust plant performance across varying feed conditions and ore body compositions
Strategies for Flotation Process Optimization
Adjusting reagent dosage is central to flotation process optimization for tungsten-molybdenum ores. Variability in ore characteristics—such as mineralization degree, grain size distribution, and gangue mineral presence—demands flexible, data-driven reagent dosing guidelines. Proven approaches include continuous sampling and iterative dosage correction based on real-time slurry concentration metrics, with Lonnmeter sensors delivering immediate feedback. For instance, when ore mineralization increases, selective collector dosages often require incremental adjustment to offset decreased liberation and maintain froth stability. Response surface methodology models are used to quantify reagent interactions and predict extraction yields, ensuring effective molybdenum flotation process adaptation.
Advanced control strategies harness multivariate process data, leveraging Lonnmeter online sensors for dynamic process response. For ores with high mineralization degree, frequent sensor-driven dosage recalibration counters variable pH and solid-to-liquid ratios, minimizing losses of valuable minerals. During molybdenum froth flotation techniques, matching collector type and depressant regimen to process mineralogy—supported by in-line monitoring—directly impacts grade and recovery rates. A practical example is the targeted use of synergistic modifiers, such as mixed bio-based depressants, which are selectively deployed when gangue minerals like fluorite increase, according to surface study analytics.
Enhancing fine particle recovery remains a major focus in tungsten-molybdenum ore flotation methods. Conventional flotation is often insufficient for micro and ultrafine tungsten and molybdenite particles. Oil agglomerate flotation (OAF) offers an advanced solution, using controlled oil dosing and agitation to aggregate fines and boost their floatability. Studies demonstrate the importance of optimizing operational OAF parameters—oil volume, particle size range, and agitation intensity—to achieve higher recovery from industrial tailings and feedstock. For example, OAF increased molybdenite recovery rates from fine-grained tailings by tuning oil and slurry properties and utilizing process-controlled reagent addition, outperforming standard metal–organic complex flotation for this particle size regime.
Operational controls must combine robust monitoring with targeted interventions to minimize concentrate losses and maximize grade. Continuous real-time concentration monitoring with Lonnmeter sensors at critical circuit nodes, such as buffer tank outlets and concentrate conveying pipeline junctions, allows for prompt reagent dosage adjustment and flow tuning. Elevated solids content flagged in the pipeline may trigger automatic changes in flotation feed rates, mechanical agitation intensity, or collector/depressant cycling. Efficient concentrate transport solutions, including pipeline system design to reduce sedimentation and optimize slurry velocity, further promote high-grade, low-loss concentrate transfer.
Ore slurry filtration methods are integrated to enhance process stability and downstream concentrate quality. Best practices in ore slurry filtration emphasize adaptive filtration media selection tailored to slurry mineralization, feed consistency, and desired moisture content. Proper filtration not only conditions feed for flotation and conveying, but also supports consistent reagent dosing and prevents process disturbances due to fluctuating solids loads.
Combining optimized reagent dosing, advanced process control—including Lonnmeter-based real-time monitoring—and targeted operational adjustments delivers sustained improvements in tungsten-molybdenum flotation circuit performance. Synergistically selected reagents and control protocols jointly maximize recovery rates, elevate concentrate grades, and limit environmental impact and reagent costs across variable ore feeds.
Enhancing Downstream Operations: Conveying and Filtration
Efficient concentrate conveying and filtration are essential for optimizing the molybdenum flotation process. Proper design and operation of concentrate pipelines reduce blockages and maintain consistent throughput. Key practices include using abrasion-resistant materials in high-wear sections and sizing pipelines to match slurry solids concentration and flow rates, preventing settling and formation of plugs. Regular inspection and cleaning routines help detect and clear obstructions, while continuous monitoring of pressure differentials across pipeline segments provides early warning of deposits or buildup, supporting uninterrupted transport.
Buffer tank outlet configurations play a vital role in stabilizing the delivery of ore slurry to filtration systems. Tanks must incorporate suspension mechanisms, such as strategically placed agitators with adjustable power settings, to keep particles uniformly distributed, even as tank levels change during operation. Optimal outlet positioning relies on maintaining “just-suspension speed” and cloud height, minimizing particle settling and avoiding inconsistent feed rates. Internal baffles and smooth flow contours ensure that slurry exits in a controlled, stable manner, reducing turbulence and supporting downstream process stability. Designs should consider non-Newtonian behavior of high-mineralization slurry, and the use of distribution boxes with hydraulic independence for multiple outflows enhances reliability.
When ore slurry reaches filtration, the choice of technology directly impacts concentrate quality and moisture control. Pressure filtration methods—such as plate-and-frame and membrane plate filter presses—excel in achieving low moisture content. In these systems, slurry is forced through filter media by applied pressure, forming a cake. Next-generation membrane plate presses inflate membranes for secondary compression, expelling more water and producing a drier, higher-grade concentrate, ideal for tungsten-molybdenum flotation methods. These presses feature cycle time reductions, greater throughput, and automated washing and plate handling for improved reliability and reduced maintenance.
Vacuum filtration, widely used for its simplicity, employs a vacuum to remove liquid from slurry, yielding a product with higher residual moisture. Though suitable for less demanding applications or where strict moisture limits are not required, vacuum systems generally necessitate post-filtration drying steps. In advanced operations, multi-stage approaches are common—initial dewatering by vacuum, followed by pressure filtration or thermal drying—balancing throughput, energy use, and concentrate purity standards.
Automated monitoring contributes to flotation process optimization strategies, especially for moisture control and throughput consistency. Real-time sensor systems such as Lonnmeter measure slurry concentration and flow, integrating with filtration process controls to dynamically adjust underflow density and reagent dosing. Such systems have shown improved equipment reliability, reduced reagent consumption, and prevention of unplanned process interruptions in mineral processing and lead-zinc mines. Automated monitoring supports efficient concentrate transport solutions and buffer tank outlet optimization, ensuring downstream systems maintain optimum performance levels.
Filtration best practices require matching filtration technology to concentrate characteristics and downstream requirements. For tungsten and molybdenum concentrates, ultrahigh pressure membrane plate presses provide the lowest achievable moisture content and fastest cycle times, supporting transport and further processing needs. Automation and durable, wear-resistant filtration components help maximize uptime and operational productivity. Regular evaluation of pipeline and buffer tank design, along with automated concentration monitoring, directly supports best practices in ore slurry filtration and mineral processing reagent dosage adjustment, ensuring high product quality and efficient downstream performance.
Environmental and Operational Considerations
High mineralization degree in flotation circuits presents distinct challenges for process sustainability, especially in molybdenum flotation. Elevated ionic strength in process water alters mineral surface properties and impacts the effectiveness of collectors and depressants. For example, sodium metabisulfite selectively depresses chalcocite while enhancing molybdenite recovery, even as ion accumulation threatens reagent selectivity and overall process stability. Combining sodium metabisulfite with thionocarbamate collectors often yields superior selectivity and molybdenum recovery in complex tungsten-molybdenum ore flotation methods, provided water chemistry is tightly controlled.
Environmental control under strong mineralization focuses on minimizing acid generation and heavy metal dissolution in tailings. Water treatment protocols such as aeration and Fenton oxidation efficiently reduce chemical oxygen demand (COD), supporting compliance with environmental regulations and mitigating risks of heavy metal leaching. Despite their efficacy, these advanced oxidation processes remain less common at industrial scale due to cost and operational complexity.
Managing water balance is a constant operational constraint in flotation circuits. Frequent water recycling, needed for sustainability in water-scarce regions, leads to the buildup of ions and residual reagents—these negatively affect froth stability and depressant function. Operational best practices include monitoring seasonal and geographic fluctuations in process water and initiating adaptive filtration methods, such as physicochemical clarification and sedimentation. Buffer tank outlet optimization is essential to stabilize hydraulic residence times, reduce surge effects, and maintain consistent reagent dispersion and slurry properties.
Optimizing reagent dosage in flotation is critical when handling highly mineralized slurries. Precise dosing of depressants, collectors, and pH modifiers ensures effective mineral separation and reduces scaling in pipelines and buffer tanks. For instance, the use of BK511 as a depressant has demonstrated increased molybdenum concentrate grade and recovery compared to traditional sodium hydrosulfide, while lowering the risk of scaling and pipeline blockages. Efficient concentrate transport solutions, with rigorously designed concentrate conveying pipelines, further support consistent flow and simplify maintenance.
Slurry handling must address viscosity, abrasiveness, and solids concentration brought on by high mineralization. Ore slurry filtration methods—such as pressure filtration and fine mesh screening—are selected based on particle size, mineral content, and filtrate quality requirements. Best practices in ore slurry filtration involve staged filtration to optimize recovery and minimize filtrate contamination, protecting downstream flotation performance and water quality.
Reagent dosing guidelines recommend frequent calibration and adjustment based on ore characteristics and real-time data. Continuous monitoring using precise tools like Lonnmeter enables timely adjustments in mineral processing reagent dosage, helping maintain optimal separation efficiency and support environmental sustainability. Examples from medium-sized Cu-Ni flotation plants demonstrate that proactive reagent and water management, tailored to site-specific mineralization challenges, consistently improves molybdenum flotation process outcomes and minimizes environmental impacts.
Practical Guidelines for Plant Operators and Process Engineers
Step-by-Step Checklist for Monitoring Critical Control Points
Flotation plants processing tungsten-molybdenum ore rely on continuous control at strategic points. Use this checklist to systematically monitor pipelines, buffer tanks, and filtration stages:
Pipeline Control Points
- Verify feed points, discharge outlets, and bends for unobstructed slurry movement.
- Inspect density, velocity, and solids percentage with inline sensors. Validate Lonnmeter instrument readings for consistency.
- Monitor for abnormal pressure drops, indicating possible blockages or excessive wear.
- Implement routine pipeline wear checks and maintain records of pump and valve performance.
Buffer Tank Control Points
- Confirm agitator speed and impeller condition to sustain just-suspension and homogeneity.
- Calibrate level sensors; keep slurry volumes within recommended minimum/maximum thresholds to prevent sedimentation and overflow.
- Routinely sample and analyze slurry for solids concentration. Use Lonnmeter probes for real-time density readings.
- Evaluate residence time by verifying outlet flow rates and operating levels.
Filtration Stage Control Points
- Review inlet slurry consistency to the filter; optimize upstream buffering to reduce fluctuations.
- Check filtration media integrity and differential pressure across filter units.
- Validate filter cake discharge and filtrate clarity; adjust operational setpoints if blinding or excessive moisture is detected.
- Schedule preventative maintenance for filter units and promptly address seal failures or cake plugging.
Troubleshooting Procedures for Slurry Concentration Issues
Proper response minimizes downtime and protects flotation performance:
Over-Dilution
- Inspect water addition points; reduce input if slurry density falls below targeted thresholds set for flotation efficiency.
- Check sensor calibration (especially Lonnmeter) and cross-verify with manual sampling.
- Adjust buffer tank agitation to limit mixing zones that cause uneven concentration.
Reagent Imbalance
- Audit dosing equipment and compare actual reagent addition against setpoints established by optimizing reagent dosage in flotation.
- Monitor froth characteristics and recovery rates using molybdenum froth flotation techniques; imbalances often manifest as poor selectivity.
- Adjust reagent and modifier flows in real time where online feedback permits; document corrective actions.
Filter Blinding
- Evaluate upstream slurry preparation using best practices in ore slurry filtration. Excess fines or high mineralization degree may cause plugging.
- Backflush filters at short intervals; inspect for debris or chemical precipitates.
- Modify feed rate or adjust flocculant/frother dosage to prevent rapid blinding.
Adapting Flotation Process Optimization to Changing Conditions
Dynamic ore types and feed conditions demand active process adjustment:
- Continuously track feed particle size and density; update hydraulic calculations and pipeline transport settings for efficient concentrate transport solutions as new ore bodies are introduced.
- Adjust buffer tank outlet optimization strategies by fine-tuning agitator speed and tank volume as the mineralization degree changes.
- Monitor flotation cell conditions for signs of high mineralization degree challenges; reduce dosage or change reagent blend to accommodate tougher ore slurry characteristics.
- Employ staged reagent dosing guidelines and feedback control, modifying dosing rates in response to feed variability for stable flotation performance.
- Collaborate with plant engineers to realign concentrate conveying pipeline design parameters whenever changes in slurry rheology threaten flow regimes or velocity thresholds.
- Record all optimization activities, correlating process changes to flotation yield, recovery, and operational stability for continuous improvement.
All recommendations should integrate with broader process monitoring systems and utilize the capabilities of tools like Lonnmeter for accurate, real-time slurry analysis. This structured approach supports both immediate troubleshooting and ongoing flotation process optimization strategies.
Frequently Asked Questions (FAQs)
What is molybdenum flotation and how does it differ from other froth flotation processes?
The molybdenum flotation process is a selective mineral separation technique focused on isolating molybdenite (MoS₂) from other minerals. Molybdenite’s natural hydrophobicity means it readily attaches to air bubbles, but its separation from associated copper sulfides and gangue requires distinct strategies compared to general froth flotation.
Key differences include:
- Reagent specificity: Molybdenum flotation uses tailored reagents—oil-based collectors, specialized depressants, and carefully chosen pH modifiers—to enhance molybdenite’s floatability and suppress copper or gangue minerals. General flotation often employs broader reagent classes with less customization.
- Surface property focus: The process requires close attention to molybdenite’s surface mineralogy, wettability, and electrochemical potential. These details play a greater role than in standard sulfide flotation methods.
- Copper depression: Organic or inorganic agents are used to depress copper minerals, minimizing their presence in molybdenite concentrates—a challenge less prominent in basic flotation setups.
- Process flowsheet control: Molybdenum flotation operates with multiple stages—such as roughing, cleaning, and scavenging—under precisely controlled conditions. Each stage targets both high recovery and concentrate grade, requiring more customization than traditional flotation flows.
- Particle size management: Overgrinding is avoided to reduce fines that complicate separation, requiring specialized grinding and screening techniques.
- Circuit and equipment adaptation: Steps like magnetic separation and detailed tramp iron control are sometimes integrated to maintain molybdenite liberation and flotation consistency.
Examples: In practice, a tungsten-molybdenum ore flotation plant may combine collectors, surfactants, and selective depressants, adjusting pH and circulating loads using real-time measurements to optimize molybdenum recovery and purity. These fine-tuned approaches exceed what is typical for generic sulfide flotation circuits, especially when high selectivity and grade are paramount.
Why is reagent dosage adjustment so important in tungsten-molybdenum ore flotation?
Optimizing reagent dosage in flotation determines how effectively valuable minerals like tungsten and molybdenum are recovered and separated from gangue. Proper dosage balances mineral activation and depression, supporting process selectivity and recovery.
- Selectivity control: Correct dosage of collectors, depressants, and modifiers ensures preferential flotation of target minerals while suppressing others—a necessity due to the chemical similarity of associated minerals (e.g., scheelite vs. calcite).
- Recovery optimization: Under-dosing reduces mineral recovery; over-dosing increases unwanted gangue flotation and reagent consumption, raising costs and complicating downstream ore slurry filtration processes.
- Environmental and cost concerns: Excess reagents not only escalate operational costs but can lead to higher discharge of chemicals to tailings or wastewater, challenging environmental compliance. Careful control directly supports best practices in ore slurry filtration and environmentally friendly processing.
- Synergistic effects and process complexity: Certain reagent combinations and their dosages can trigger beneficial or negative reactions (e.g., formation of nickel tungstate, limiting tungsten recovery). Thus, advanced flotation reagent dosing guidelines—often developed via response surface methodology or other process optimization strategies—are vital for plant efficiency.
Examples: Precise adjustment of collector and depressant dosages may shift the balance between molybdenum and tungsten recovery by several percentage points, affecting daily plant outputs and revenue.
How does the concentrate conveying pipeline impact flotation plant performance?
Efficient concentrate conveying pipeline design ensures that the filtered product from flotation is reliably and continuously transported to storage or further processing. This impacts plant performance in several key ways:
- Flow reliability: Well-managed pipelines minimize blockages and provide consistent delivery, essential for plant stability and smooth integration with ore slurry filtration methods.
- Reduced maintenance: Proper engineering limits wear, abrasion, and mechanical failures, decreasing the frequency of shutdowns and extending equipment lifespan.
- Loss prevention: Controlled pipelines reduce risk of concentrate spillages, which otherwise result in material loss and increased cleanup costs.
- Operational flexibility: Smart design allows quick adaptation to varying production rates, supporting plant-wide flotation process optimization strategies.
Example: In modern plants, pipeline systems may incorporate Lonnmeter sensors for flow monitoring, alerting operators to inconsistencies and providing data to optimize concentrate transport solutions, further enhancing the effectiveness of tungsten-molybdenum ore flotation methods.
What are the main functions of a buffer tank outlet in ore slurry handling?
The buffer tank outlet is a pivotal node in ore slurry handling, ensuring seamless operation in mineral processing.
- Flow regulation: It maintains stable slurry discharge into downstream processes, absorbing short-term fluctuations from upstream circuits.
- Operational continuity: Functions as a safeguard buffer during equipment failures (e.g., filter or thickener outages), reducing unplanned stoppages.
- Homogenization: Promotes consistent slurry composition and solids suspension, critical for even feed in ore slurry filtration methods and subsequent flotation stages.
- Process optimization: Enables steady-state operation and supports downstream performance, preventing pipeline clogging and surges that could disrupt flotation reagent dosing guidelines or process flows.
Example: In high-capacity tungsten-molybdenum ore flotation plants, buffer tank outlets designed with appropriate agitation and live storage help sustain plant throughput and concentrate quality, especially during ore grade fluctuations or process upsets.
How does high mineralization degree affect molybdenum froth flotation efficiency?
A high mineralization degree—characterized by elevated concentrations of dissolved ions—substantially impacts molybdenum froth flotation techniques.
- Froth destabilization: Increased ionic strength can destabilize the flotation froth, reducing floatation selectivity and concentrate recovery.
- Enhanced reagent consumption: More reagents are required to manage increased solution complexity, raising operational costs and the risk of unwanted chemical reactions.
- Separation complexity: Selectivity declines as dissolved copper, calcium, or sulfate ions interfere with molybdenite and scheelite flotation. This complicates the separation, requiring ongoing adjustment of mineral processing reagent dosage.
- Process monitoring: High mineralization demands robust control and monitoring—such as continuous pH or conductivity measurement—to maintain flotation efficiency and manage reagent dosing effectively.
Example: Plants processing high-mineralization slurries frequently use Lonnmeter inline analyzers to automatically adjust collector and depressant feed rates, minimizing froth instability and supporting flotation process optimization strategies.
