Viscosity Control in Heavy Oil Thermal Recovery
Heavy oil production faces a central challenge—viscosity. The thick, tar-like consistency of heavy oil restricts its movement through reservoirs, hampering flow into wells and increasing the risk of pipeline blockage. High viscosity results from the oil’s complex molecular structure, with components such as asphaltenes and resins playing significant roles. Even compounds present in low concentrations can drastically increase viscosity through nanoscale aggregation, making both prediction and control of this property critical to operational efficiency and oil recovery strategies.
Thermal oil recovery methods—including steam-assisted gravity drainage (SAGD), cyclic steam stimulation (CSS), and steam flooding—become essential in heavy oil fields. These processes inject steam to raise reservoir temperature, decrease oil viscosity, and promote flow. Effective viscosity reduction is directly tied to oil recovery efficiency: as steam heats the oil, lower viscosity allows it to move more freely toward production wells, improving yields while reducing energy and water use. Studies show that combining steam with chemical agents, like solvents or surfactants, amplifies this effect—lowering the amount of steam required and further optimizing steam consumption.
Controlling viscosity not only impacts oil production rates but also supports economic and environmental targets. Optimizing steam injection for heavy oil (through well-tuned temperature, pressure, and injection rates) decreases operational costs and greenhouse gas emissions. Advanced techniques—such as co-injection of solvents, or wellhead emulsification with emulsifiers—represent enhanced oil recovery methods designed for even greater steam consumption optimization and recovery performance.
Once the oil is mobilized, maintaining stable fluidity during transport to the surface and through pipelines becomes crucial. Here, the oil emulsification process comes into play, using emulsifiers to transform viscous heavy oil into oil-in-water emulsions. This reduces the risk of pipeline blockage and supports the smooth, uninterrupted flow required for consistent production. However, achieving optimal stability in emulsified oil flow is a balancing act. High emulsion stability, often driven by tailored emulsifier dosage or natural surfactants (e.g., asphaltenes, fatty acids), dramatically reduces viscosity—up to 88% in controlled studies—while maintaining flow assurance for as long as 48 hours.
But the same stabilizing mechanisms that improve transport can complicate downstream separation processes if not managed properly. Therefore, viscosity control in the context of enhanced oil recovery is not only about making heavy oil flow—it is about keeping the mixture within a target window of fluidity, ensuring stable transport, avoiding pipeline fouling, and ultimately, refining the production system for peak efficiency. The interplay of emulsification and demulsification, together with well-monitored viscosity, forms the backbone of modern heavy oil steam injection benefits and operational reliability.

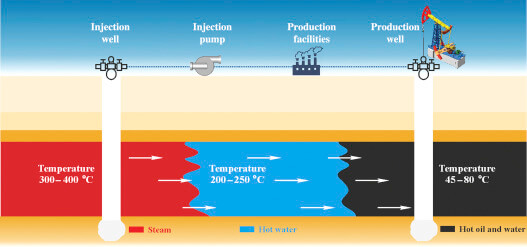

Steam Injection in Heavy Oil Thermal Recovery
*
Heavy Oil Thermal Recovery and Its Limitations
Definition and Fundamentals of Thermal Oil Recovery
Thermal oil recovery is an enhanced oil recovery (EOR) method designed to produce heavy oil by injecting heat into reservoirs to reduce oil viscosity. The primary mechanisms involve steam injection for heavy oil, where thermal energy breaks down complex, high-molecular-weight hydrocarbons, allowing them to flow more freely. Common thermal EOR techniques include steam flooding, cyclic steam stimulation (CSS), and steam-assisted gravity drainage (SAGD). Each process targets the oil’s intrinsic resistance to flow and leverages heat to mobilize trapped hydrocarbons. Viscosity reduction is the fundamental principle—heat disrupts molecular bonds, lowers resistance, and increases oil mobility. These methods are widely applied in heavy oil fields where cold production is not feasible due to high oil viscosity.
Steam Injection for Heavy Oil: Objectives and Operational Constraints
Steam injection aims to lower heavy oil viscosity, improving its mobility and facilitating extraction. For instance, steam flooding introduces continuous steam into a reservoir, displacing oil toward production wells. CSS cycles between steam injection, a soaking phase, and oil production, allowing repeated heating and mobilization. SAGD employs paired horizontal wells—steam is injected through an upper well, and oil is collected from a lower one, using gravity to aid flow.
Operational constraints for steam injection include:
- Steam Quality: Effective viscosity reduction and oil mobilization depend on maintaining high steam quality (the ratio of vapor to liquid in steam).
- Injection Rate and Pressure: Excessive steam rates or pressures can cause channeling, reduce sweep efficiency, and increase operational risks.
- Well Spacing: Proper spacing ensures uniform heat distribution—too close may lead to heat loss and interference; too far can cause inefficient oil recovery.
- Reservoir Heterogeneity: Layering, fractures, and varying permeability create uneven steam distribution and hot spots.
- Environmental and Safety Concerns: High energy requirements for steam generation result in CO₂ emissions and significant water demand. Safeguards are necessary to handle high temperature and pressure operations.
Operationally, adjusting factors such as steam quality in upper and lower wells, adapting injection intensity, and optimizing preheating time are vital for efficiency. Proxy modeling and adaptive control systems can evaluate and refine steam injection parameters for specific reservoirs, ensuring the optimal balance between oil production and operational cost.
Key Performance Metrics: Steam Consumption, Oil Recovery Efficiency, Flow Stability
Three essential metrics gauge the success of thermal oil recovery:
- Steam-to-Oil Ratio (SOR): SOR is the amount of steam (usually in barrels or tonnes) needed to produce one barrel of oil. Lower SOR values indicate better efficiency and less steam consumption. For example, advanced techniques like direct contact steam generation and flue gas co-injection can push SOR below 1.0, significantly reducing environmental impact and operational expenses.
- Oil Recovery Efficiency: Efficiency refers to the proportion of oil extracted relative to the original oil in place. Optimizations in well design, steam parameters, and the use of surfactant-assisted or catalyst-aided processes can boost recovery. Field and laboratory results confirm improved oil recovery efficiency with methods such as optimized steam flooding, SAGD, and chemical additives that further reduce viscosity.
- Flow Stability: Consistent and stable flow in both the reservoir and production pipelines is critical. High oil viscosity, unstable water and oil interfaces (as in oil–water ring transport), or thermal instabilities can cause pressure gradients and pipeline blockages. Heating pipelines, controlling flow rates, and optimizing emulsification and demulsification strategies are important to maintain stable oil transport through pipelines.
Examples highlight that raising the pipeline temperature to about 50 °C improves flow but increases pump energy demand, requiring trade-offs between flow stability and operational cost. Meanwhile, careful optimization of operational parameters—such as density, viscosity, and flow rate—ensures efficient transport without blockage.
Collectively, these fundamentals and constraints define thermal oil recovery, providing benchmarks to drive progress in oil recovery efficiency, effective steam consumption optimization, and keeping stable fluid transport throughout the heavy oil production network.
Factors Affecting Viscosity During Thermal Recovery
Nature of Heavy Oil and Its Physical Properties
Heavy oil exhibits high viscosity due to its unique molecular composition. The presence of large fractions of asphaltenes, resins, and waxes raises the intrinsic viscosity. These heavy molecular components form extensive intermolecular networks, hindering mobility and complicating transport and recovery processes. Biodegradation further increases viscosity by altering or increasing concentrations of such molecular species.
Viscosity reduction in thermal oil recovery is strongly temperature-dependent. When steam is injected, the heat disrupts hydrogen bonding and weakens the aggregation of asphaltene-resin networks, lowering viscosity. As temperature increases from 20 °C to 80 °C or higher, dramatic viscosity reduction occurs. For example, increasing reservoir temperature using steam injection often reduces viscosity by more than an order of magnitude across typical field applications, resulting in more efficient oil flow and improved oil recovery efficiency. Predictive models, including those using advanced machine learning, have proven highly effective in correlating molecular composition and temperature to expected viscosity changes, enabling more accurate operational decisions.
Role of Emulsification in Viscosity Reduction
The oil emulsification process leverages surfactants (emulsifiers) to form oil-in-water or water-in-oil emulsions, thereby reducing the effective viscosity of heavy oil. Surfactants decrease the oil–water interfacial tension, allowing water to disperse into oil as fine droplets, interrupting asphaltene and wax structuring that causes high viscosity.
At the wellhead, emulsifiers are introduced to crude streams. The intimate interaction between emulsifier molecules and heavy oil constituents results in fast formation of emulsions. In practical scenarios, amphoteric and anionic surfactant classes—such as sulfonates and betaines—are particularly effective. These agents, when applied at the wellhead as part of thermal oil recovery operations, can achieve instantaneous emulsification and viscosity reduction rates of up to 75–85% for challenging crudes.
Wellhead emulsification viscosity reduction provides several key technical impacts:
- Reduces the risk of pipeline blockage by maintaining lower viscosity and stable fluidity.
- Enables more stable flow in gathering and transportation systems, particularly under fluctuating temperature or pressure.
- Allows for lower operating steam temperatures and reduced steam consumption, directly impacting recovery costs and overall energy requirements.
Lab and field tests confirm that with the right emulsifier, the resulting emulsion remains stable even under varied salinity or pH conditions—critical for consistent production from thermal recovery operations.
Emulsifier Dosage Optimization
Emulsifier selection is based on factors such as oil composition, temperature, and environmental compatibility. Newer bio-based surfactants offer additional advantages for sustainable heavy oil thermal recovery.
There is a direct dosage-effect relationship: increasing emulsifier concentration initially promotes viscosity reduction and emulsion stability. However, once an optimal point is surpassed, further increase yields diminishing returns or adverse effects such as excessive foaming, higher separation costs, and even potential destabilization of the emulsion. Precise control is critical: underdosing risks unstable emulsions and phase separation, while overdosing can raise surfactant costs and negatively influence demulsification downstream.
Determining optimal dosage is achieved using kinetic models, often second-order, that relate emulsification rate to emulsifier concentration, temperature, and composition. Key variables for optimization include interfacial activity, functional group chemistry, and the oil-water ratio. Advances in machine learning and rheological testing enable real-time monitoring and adjustment. Conductivity, turbidity, and viscosity measurements are commonly used for this calibration.
Experimental data emphasize that “emulsifier dosage plays a pivotal role in balancing viscosity reduction and flow stability”. Field applications confirm such optimized dosing not only maximizes recovery efficiency but also upholds operational safety and economic viability.

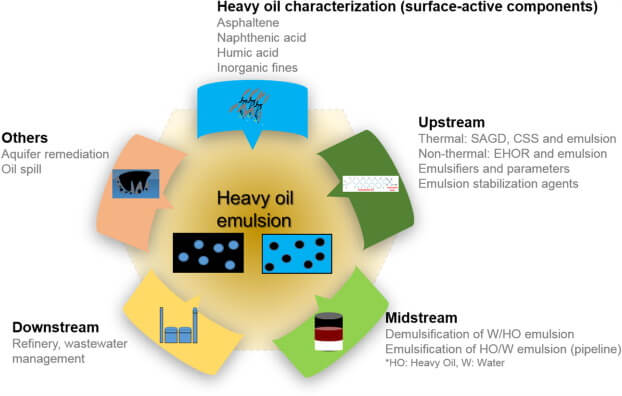

Heavy Oil Emulsion
*
Influence of Steam Parameters
Steam properties are central to effective heavy oil viscosity reduction techniques. Temperature, pressure, and injection rate are the main control variables.
- Steam Temperature: Higher temperatures (commonly between 200–300 °C) disrupt molecular interactions more thoroughly, accelerating viscosity reduction. At near-critical steam conditions, subcritical aquathermolysis or cracking further breaks down complex molecules, sometimes resulting in permanent viscosity reduction via molecular rearrangement and gas expulsion.
- Steam Pressure: Elevated injection pressures enhance steam penetration and uniform heat transfer within the reservoir, improving displacement of oil and reducing the risks of heat loss and channeling. Adjusting pressures between producer and injector wells can fine-tune steam distribution and prevent early breakthrough.
- Injection Rate: Efficient steam injection rates, such as those exceeding 700 bbl/day in SAGD processes, directly correlate with higher final oil recovery factors (up to 52–53%). Insufficient rates, conversely, limit the sweep and distribution of heat, yielding lower steam-assisted mobilization.
Steam consumption must be optimized to balance operating cost, energy efficiency, and oil recovery efficiency. Analytical and simulation models—including reservoir simulation packages—allow operators to determine optimal steam–oil ratios (SOR) for maximum output. These equations consider viscosity–temperature profiles, steam enthalpy, and fluid mobility to optimize injection schedules and limit water and fuel usage.
Optimizing steam parameters is inseparable from overall process control in heavy oil thermal recovery, particularly for techniques like steam-assisted gravity drainage (SAGD) and cyclic steam stimulation (CSS). When paired with effective emulsifier dosage optimization and continuous real-time viscosity measurement, these methods form the backbone of enhanced oil recovery methods in contemporary heavy oil production.
Real-Time Viscosity Measurement Technologies
Measurement Principles and Approaches
In heavy oil thermal recovery, inline viscometers are critical for achieving precise control over the oil emulsification process and optimizing oil recovery efficiency. Inline viscometers directly measure the flow and deformation behavior of heavy oil-emulsifier mixtures as they traverse pipelines and processing equipment. This enables real-time, continuous monitoring without requiring manual sampling, which can be slow and unrepresentative of live process conditions.
One widely used technology is the ultrasonic viscometer. It operates by sending ultrasonic waves through the oil-emulsifier mixture and measuring the wave’s interaction with the medium—providing accurate, rapid viscosity readings even under variable temperature and flow rates. For example, an ultrasonic cell with piezoelectric transducers offers high-precision viscosity measurement in mixtures containing up to 40% water, supporting both the monitoring of emulsion stability and prompt, data-driven reaction to process fluctuations. This approach is particularly suited for thermal oil recovery operations, where viscosity varies dynamically with temperature and chemical dosing. The accuracy and timeliness of these measurements directly support heavy oil viscosity reduction techniques, optimizing parameters such as steam injection rates and emulsifier dosage to sustain stable medium fluidity and minimize steam consumption.
Sensor placement is a decisive factor. Inline viscometers and rheometers must be installed at strategic points:
- Wellhead: To track immediate effects of wellhead emulsification viscosity reduction.
- Pipeline segments: To detect localized changes resulting from emulsifier dosing or temperature gradients.
- Pre- and post-process units: Allowing operators to assess the impact of steam injection or other enhanced oil recovery methods.
Advanced analytical frameworks use system modeling and optimality criteria to determine placement, ensuring sensors deliver actionable data where operational variability is greatest. In cyclic or complex pipeline networks, scalable graph-based placement algorithms and nonlinear system analysis ensure comprehensive coverage for accurate viscosity profiling.
Once captured, viscosity data is continuously fed into supervisory systems such as SCADA (Supervisory Control and Data Acquisition) and APC (Advanced Process Control). These platforms aggregate information from inline sensors, integrating it with production control elements and process historian databases. Open protocols, including OPC-UA and RESTful APIs, synchronize data across different layers and systems, ensuring seamless distribution and visualization across the field operation.
Data Acquisition and Process Feedback
The acquisition of real-time viscosity data forms the cornerstone of process feedback in thermal enhanced oil recovery. By linking sensor outputs directly with control systems, operators can adjust key process variables in near real-time.
Closed-loop control leverages viscosity measurements to finetune emulsifier dosage. Intelligent controller schemes—ranging from robust PID loops to adaptive fuzzy logic and hybrid architectures—modulate chemical injection rates to sustain optimal viscosity for pipeline transport, while preventing overuse of expensive chemicals. For instance, if viscosity rises—indicating insufficient emulsification—controllers will automatically increase emulsifier feed; if it falls below target, dosage is trimmed. This level of feedback is especially crucial in steam-assisted gravity drainage (SAGD) and steam flooding for heavy oil, where steam consumption optimization and wellhead stability are paramount.
Continuous viscosity monitoring is pivotal for preventing pipeline blockages. High-viscosity oil or unstable emulsions can cause flow resistance, increasing the risk of deposition and clogging. By maintaining an updated viscosity profile throughout the production system, alarms or automated mitigation measures can be triggered when thresholds are approached. Integration with SCADA and process historians enables long-term analysis—correlating viscosity trends with blockage incidents, steam injection performance, or the onset of demulsification challenges.
In thermal recovery fields, advanced data integration platforms ensure that viscosity readings are not isolated metrics but are combined with flow rate, temperature, and pressure data. These allow for model-predictive adjustments—such as dynamic steam injection tuning or demulsification process optimization—driving improvements in oil recovery efficiency and process stability.
Examples of feedback-enabled optimization:
- If inline viscometers detect a viscosity spike during steam injection, the system can increase emulsifier dosing or adjust steam parameters, keeping the heavy oil within target flow specs.
- If downstream sensors show reduced viscosity after an operational change, demulsification chemicals may be minimized, reducing costs without sacrificing separation performance.
- Integrated historian analysis correlates viscosity excursions with maintenance logs to pinpoint pump or process issues.
This real-time, feedback-driven approach underpins both the immediate prevention of flow assurance issues—such as pipeline blockage—and the long-term optimization of heavy oil thermal recovery. It aligns operational actions with process demands to sustain efficient, reliable, and cost-effective oil production.
Optimization Strategies for Emulsification Process
Flow Assurance and Prevention of Blockage
Maintaining stable fluidity of heavy oil emulsions in pipelines and wellbores is essential for efficient thermal oil recovery. Emulsification transforms viscous heavy oil into transportable fluids, but stability must be carefully managed to avoid blockages. Viscosity spikes caused by temperature changes, incorrect emulsifier dosage, or unanticipated water-oil ratios can rapidly lead to gel-like phases and flow stoppages, particularly during steam injection for heavy oil.
Flow assurance involves both preventive and responsive strategies:
- Continuous Viscosity Monitoring: Real-time measurement systems, such as automated kinematic capillary viscometers paired with computer vision, provide immediate viscosity feedback. These systems detect deviations as soon as they occur, enabling operators to intervene—adjusting temperature, flow rates, or emulsifier concentrations to prevent the buildup of blockages or waxy deposits.
- Rapid Process Adjustments: Integration of sensor data with control systems allows for automatic or operator-directed changes in process parameters. Examples include ramping up surfactant dosing if a viscosity surge is detected or altering steam injection conditions to stabilize emulsion rheology.
- Physical Interventions and Pipeline Heating: In some operations, direct pipeline heating or electrical heating supplements chemical methods to restore fluidity temporarily, especially during cold spots or unexpected equipment shutdowns.
A multi-pronged approach combining real-time viscosity data and flexible interventions minimizes the risk of flow interruptions throughout the oil emulsification process.
Balancing Oil Recovery Efficiency and Steam Consumption
Achieving the optimal balance between oil recovery efficiency and steam consumption is central to effective heavy oil thermal recovery. Lowering viscosity via wellhead emulsification allows heavy oil to flow more freely and enables deeper propagation of steam within reservoirs. However, excessive emulsifier use can create highly stable emulsions, complicating later separation stages and elevating operating costs.
Key optimization levers include:
- Real-Time Viscosity Control: Using live process data to keep viscosity within the target range—high enough to maintain separation potential, but low enough for efficient production lift and transport. Proxy modeling and field experiments have validated the benefit of tuning emulsifier dosage on-the-fly to accommodate shifts in temperature and production rates.
- Emulsifier Dosage Optimization: Laboratory studies and field cases support that precise emulsifier dosing reduces both required steam volumes for thermal oil recovery and post-recovery chemical treatments. Targeted addition minimizes unnecessary surfactant use, lowering costs and reducing the environmental load while maximizing heavy oil yield.
- Steam-Solvent Co-Injection: Supplementing steam injection with appropriate solvents further reduces heavy oil viscosity and enhances sweep efficiency. Field cases, such as those in carbonate oilfields, have demonstrated decreased steam consumption and improved oil output—directly linking process optimization to operational and environmental gains.
An illustrative scenario: In a mature heavy oil field, operators used real-time viscometry and dynamic control of emulsifier injection to consistently maintain emulsion viscosity between 200 and 320 mPa·s. As a result, steam injection rates dropped by 8–12%, with no loss in oil recovery.
Integration with Demulsification Processes
Effective heavy oil production requires managing both the formation and subsequent breaking of emulsions for oil-water separation. Integration between emulsification for mobility and demulsification for processing ensures overall system efficiency and product quality.
Integrated management steps:
- Coordinating Emulsification and Demulsification: The chemical profile of emulsifiers used for viscosity reduction can affect demulsifier performance downstream. Careful selection and dosage optimization—emulsifiers that can later be neutralized or displaced by demulsification chemicals—simplifies oil-water separation post-recovery.
- Advanced Demulsification Methods: Emerging technologies such as responsive nanoparticles, synergistic demulsifier blends (e.g., BDTXI package), and specialized mechanical separators (double spherical tangent devices) increase the efficiency and speed of water separation. For example, TiO₂ nanoparticles achieved up to 90% demulsification efficiency in recent tied-in trials; a well-designed demulsification device improved separation beyond standard methods.
- Systematic Transition Control: Close integration of viscosity monitoring with automated dosing of both emulsifiers and demulsifiers enables operators to transition from mobility enhancement to stable separation. This coordination maintains optimal throughput and minimizes the risk of process bottlenecks, especially in high water cut scenarios or when rapid changes in flow regime occur during steam-assisted gravity drainage.
Operationally, optimized heavy oil recovery systems monitor emulsion properties through real-time analytics and adjust both emulsification and demulsification steps to meet changing production and separation needs—ensuring robust flow assurance, steam consumption optimization, and high oil recovery efficiency within a thermal enhanced oil recovery framework.
Impact on Oilfield Operations and Recovery Metrics
Improved Oil Recovery Efficiency
Real-time viscosity measurement and precise viscosity reduction techniques play a crucial role in boosting oil recovery efficiency in heavy oil thermal recovery. High oil viscosity restricts fluid flow and reduces the amount of recoverable oil. Field and laboratory studies show that applying chemical viscosity reducers—such as DG Reducer or silane-modified nanosilica (NRV)—can achieve up to 99% viscosity reduction in extra-heavy oils, even under harsh reservoir conditions. Ten-year simulation data suggest that in high water content wells, optimized viscosity reduction strategies can increase cumulative oil recovery rates by as much as 6.75%.
Advanced combination flooding methods, notably the Viscosity Reduction Combination Flooding (V-RCF), merge polymers, surfactant emulsifiers, and ultra-low interfacial tension agents to maintain optimal flow and oil-water separation. Multi-slug injections in sandpack flooding experiments further confirm these methods’ effectiveness, demonstrating significantly greater oil mobilization compared to conventional flooding. For example, operational sites using real-time control of emulsifier dosage and continuous viscosity measurement are better able to maintain target fluid mobility, leading to steadier, more predictable extraction rates and reduced production inefficiencies.
Steam Savings and Cost Reduction
The core driver of energy and cost in thermal oil recovery is steam usage. Optimizing viscosity via real-time data and targeted chemical or physical interventions has a measurable effect on steam consumption. Recent SAGD field trials and laboratory benchmarks have shown that improved viscosity control through optimized emulsifier dosing or advanced nano-chemical blends directly reduces the steam-to-oil ratio—meaning less steam is required for each barrel of oil produced. This effect is proportional: as viscosity management becomes more precise and effective, steam consumption decreases accordingly, delivering both operational and energy cost savings.
Field examples report quantifiable drops in steam volumes and reduced water use. In one simulation scenario, water injection was cut by over 2,000 m³ per day by deploying low-viscosity gel plugs for water control, realizing substantial operational cost reductions. Inline viscosity measurement allows immediate operational adjustments, minimizing wasted energy from over-injection and preventing system inefficiency.
Enhanced Pipeline Integrity and Reduced Maintenance
Pipeline blockage and failure are major threats to oilfield operation continuity and safety, largely exacerbated by uncontrolled fluid viscosity and inconsistent emulsification processes. Real-time viscosity management reduces these risks. Results from recent field trials demonstrate that inline viscometers and distributed fiber-optic sensing enable operators to maintain fluidity within optimal parameters, decreasing the incidence of blockages and reducing mechanical stress on pipelines.
Electrorheology-based systems like AOT (Applied Oil Technology) not only cut oil viscosity during pipeline transit—thereby boosting throughput and lowering pump energy costs—but also improve overall pipeline health by preventing high-viscosity slug formation. Advances in pipe material selection, such as high-performance PVC validated for thermal oil recovery, further reduce maintenance overhead by resisting corrosion and physical degradation.
Operationally, the reduction in unplanned downtime, emergency repairs, and maintenance frequency translates directly into lower maintenance budgets and sustained, predictable oil transport. These technology-driven improvements support optimized steam injection, smoother demulsification processes, and enhance total oilfield efficiency by assuring stable, manageable flow from wellhead to processing facility.
Frequently Asked Questions (FAQs)
1. What is the role of viscosity measurement in heavy oil thermal recovery?
Real-time viscosity measurement is critical for optimizing heavy oil thermal recovery. By continuously monitoring viscosity at the wellhead and downstream, operators can tailor steam injection, emulsifier dosing, and flow rates. This ensures the oil remains sufficiently mobile, reducing risks of pipeline blockage. Such measurement supports adaptive strategies to achieve higher oil recovery efficiency and improved process control. For example, thick crude with high viscosity may require more aggressive steam injection initially, then lower as fluidity improves, minimizing energy waste and preventing operational issues.
2. How does emulsifier dosage affect heavy oil viscosity reduction?
Emulsifier dosage is pivotal in heavy oil viscosity reduction techniques. Properly calibrated emulsifier levels can decrease viscosity by up to 91.6% in some field studies, especially when the water-to-oil ratio is optimized. Insufficient dosage may lead to incomplete emulsification and suboptimal flow, risking blockages. Conversely, excessive emulsifier may cause separation problems downstream or waste chemicals. Recent advances involve nano-emulsifiers like graphene oxide-based materials, which further stabilize emulsions and enhance reduction efficiency at much lower dosages.
3. Does optimizing steam injection reduce operational costs in thermal oil recovery?
Yes, optimizing steam injection—key in techniques like steam-assisted gravity drainage (SAGD) and cyclic steam stimulation (CSS)—can significantly reduce operational costs. Real-time viscosity data enables precise steam injection rates and improved steam quality management. For example, simulation studies found adjusting steam quality from 0.6 to 0.8 raised recovery from 43.58% to 46.16%, optimizing steam use. Excessive steam wastes energy and operational funds, while insufficient steam limits oil mobility. Fine-tuning these parameters reduces steam consumption, enhances oil recovery ratios, and translates to substantial cost savings.
4. What is the relationship between oil emulsification and demulsification processes?
Oil emulsification and demulsification are sequential and interdependent processes in heavy oil production. Emulsification—blending oil and water into a stable oil-in-water emulsion—enables viscosity reduction for flow assurance and efficient transport through pipelines. Demulsification, using chemicals or physical processes, is required later to separate oil and water, restoring product quality and allowing water disposal or reuse. Effective coordination ensures maximum throughput: rapid emulsification for recovery, followed by efficient demulsification before refining or export. Optimized emulsifier selection and demulsification chemicals are essential for balancing process efficiency and product standards.
5. Why is real-time monitoring essential for preventing pipeline blockages in heavy oil operations?
Continuous, real-time viscosity monitoring is central to flow assurance in heavy oil fields. Dynamic viscosity feedback allows immediate adjustment of operating parameters—steam injection, temperature, and emulsifier dosing—to prevent the oil from becoming too thick and settling in pipelines. Pipe viscometers and inline digital sensors are now capable of >95% measurement accuracy, offering prompt detection of unfavorable trends. By maintaining optimal fluidity, operators greatly reduce the risk of pipeline blockages, unplanned shutdowns, or costly remediation. Real-time data supports predictive maintenance and stable, uninterrupted production.
Post time: Nov-06-2025
