Uniform hydration is necessary for consistent enzymatic activity and predictable germination in malting—both crucial for malt quality and, ultimately, beer flavor and yield. If different parts of the batch absorb water at varying rates, uneven germination follows, causing inconsistent enzyme development and sugar profiles in the malt. By tracking the liquor density, maltsters can directly observe and manage the progression of water absorption, optimizing malt hydration measurement and supporting malt hydration uniformity in malting.
Understanding the Malting Process in Beer Production

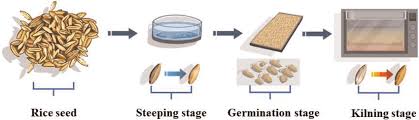

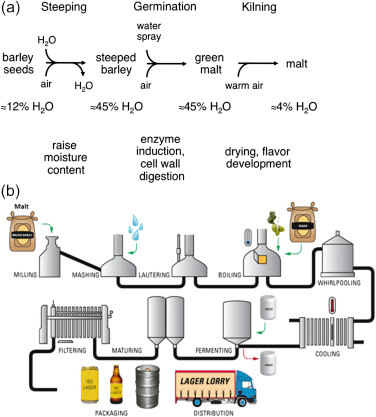

Malting in beer production transforms raw barley into malt, providing fermentable sugars and activating enzymes essential for brewing. The malting process in beer production consists of three distinct stages: steeping, germination, and kilning.
The importance of malting in beer production lies in its role as the backbone of beer, directly influencing flavor, color, foam stability, and overall quality. Each step—steeping, germination, kilning—must be managed for reliable malt modification and to ensure uniform results across batches.
Role of Steeping in the Malting Process

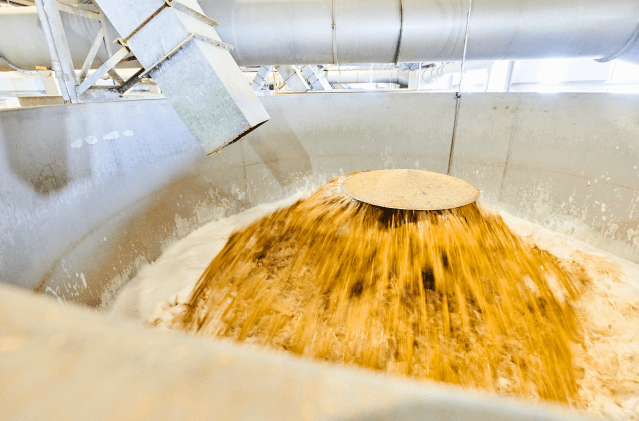

The steeping process in malting is essential for preparing barley for germination. Steeping involves controlled water absorption, aiming to raise the grain’s moisture content to 42–48%. This level is crucial for activating hydrolase enzymes (e.g., amylases, β-glucanase, xylanase), which neither form nor function properly in dry grain.
Steeping Process in Malting
*
Purposes and Goals of Steeping:
- Uniform water uptake by grains for consistent malt hydration uniformity.
- Activation of enzymes required for efficient germination and subsequent sugar conversion.
- Removal of surface contaminants and dirt from barley.
During steeping:
- Water permeates the barley kernel, triggering metabolic activity.
- Enzyme activation begins, notably of α-amylase and β-amylase, initiating starch breakdown.
- Supplemental exogenous enzymes, such as phytase, can further enhance hydrolase activation and speed up acrospire growth—resulting in faster malt modification without loss of quality.
Proper monitoring of steeping liquor density and real-time water absorption tracking in malting helps ensure timely correction of malting process deviations and effective standardization of malting production processes. Techniques such as density monitoring or use of tools like the Lonnmeter online densimeter for malting support precise malt hydration measurement and process control.
Impact on Subsequent Malt Germination:
- Correct moisture content allows uniform sprouting and enzymatic activity across the grain batch.
- Well-hydrated grains activate endoproteolytic and exoproteolytic enzymes, increasing free amino nitrogen and enabling proper malt modification.
- Optimized steeping minimizes toxin accumulation—such as zearalenone—by controlling water changes and reducing contamination risk.
Examples:
- Phytase supplementation during steeping can reduce total malting time by up to 24 hours, without affecting malt quality.
- Frequent water changes during steeping may inadvertently increase mycotoxin uptake, so water management must balance cleanliness and contamination risk.
Through effective steeping, the malt germination process becomes consistent and predictable, directly supporting high-quality malt for beer production, optimized flavor profiles, and reliable brewing performance.
Steeping Malt: Scientific Basis and Critical Variables
Malt Steep Liquor: Composition and Function
Malt steep liquor is the water medium used to hydrate barley during the malting process in beer production. Its composition is much more than pure water; it contains dissolved minerals, organic compounds, and any added treatments, all of which influence the cleaning and activation of barley kernels.
The steep liquor plays two essential roles:
- Cleaning: It removes dust, microorganisms, and undesirable substances from the grain’s surface. Hydrogen carbonate content, for example, enhances the leaching of tannins and unwanted residues, supporting cleaner kernels that are more suitable for germination.
- Hydration and Activation: The liquor supplies the moisture required for barley kernels to reach 43–48% water content, triggering the physiological changes essential for malt germination and modification. Optimal hydration ensures that internal enzymes become active, preparing the grain for modification and the subsequent malt germination process.
Key parameters that influence malt steep liquor quality include:
- pH: Steep liquor acidity is critical for enzyme activation and microbial management. The optimal pH range for steep liquor is typically mildly acidic, with values between 3.6 and 4.8. This environment promotes the activity of beneficial enzymes like amylases while suppressing spoilage organisms. Adjustments are often made using organic acids or additives, depending on the grain variety and processing technique.
- Temperature: Temperature affects both water uptake and enzyme kinetics. Steeping temperatures are usually maintained near 50°C for defined periods (commonly around 60 minutes), which fosters rapid and uniform hydration while supporting enzyme activity and controlling microbial growth in the malt steeping process.
- Density: The density of steep liquor reflects the concentration of dissolved solutes, which include minerals and assimilates leached from the grains. Consistent density is necessary for predictable water absorption and biochemical activation—directly impacting uniform hydration. Steeping liquor density monitoring enables real-time adjustment to keep composition within set parameters, thus supporting batch-to-batch consistency in malt quality.
For example, a maltster may monitor and control calcium (targeting 50–80 ppm) during steeping, since it stabilizes enzymes crucial for the fermentation process and ensures flocculation in the final beer product. Conversely, failure to manage steep liquor properties leads to erratic enzyme activation, inconsistent modification, and variable malt quality.
Measuring and Managing Malt Hydration Uniformity
Uniform malt hydration is vital to the malting process in beer production. All barley kernels must absorb water consistently to allow synchronous enzyme activation and even modification. Lack of uniformity produces under- and over-modified grains, which detracts from extract yields, ruins malt friability, and impairs downstream brewing performance.
Numerous factors affect hydration uniformity:
- Barley Variety and Kernel Integrity: More uniform and plump kernels hydrate at similar rates. Thin or broken kernels risk poor or irregular uptake—leading to a broader distribution of moisture content and subsequent quality variation.
- Steeping Regime and Duration: Continuous steeping over 8–16 hours does not provide sufficient soaking for some kernels, especially in dense batches. Controlled, longer steeping (often up to 24 hours, sometimes in alternating immersion and air rests) achieves superior uniformity, as measured by tests like the Chapon Test. This uniform absorption is essential for predictable malt germination and modification.
- Temperature Control: Higher temperatures accelerate hydration but must be balanced to prevent excess microbial activity. Even small deviations can accelerate or inhibit hydration, affecting uniformity.
- Liquor Composition: The concentration of dissolved salts, minerals, and acids in the liquor influence the osmotic pressure and hence water uptake velocity. Adjusting minerals like calcium or the use of lactic acid can improve uniformity and kernel health.
Hydration uniformity has direct consequences for malt quality:
- Uniform hydration enables synchronous gene expression (such as HvBmy1, HvAmy1), leading to reliable activation of amylase and other key enzymes. This translates to more consistent malt extract, free α-amino nitrogen levels, and diastatic power in brewing.
- Inconsistent hydration results in hard, unmodified cores in some kernels and over-hydrated, degraded tissue in others. The result is poor friability, lower extract yield, and variable wort composition, all affecting the final beer quality.
- Consistency in water absorption also supports process optimization, streamlined monitoring, and rapid correction of deviations through real-time water absorption tracking and steeping liquor density monitoring.
Modern maltsters rely increasingly on parameter tracking and automated tools, such as the Lonnmeter online densimeter for malting, to enable real-time monitoring. These instruments provide continuous data on liquor density and water absorption, allowing for timely correction of process deviations. The data can be used for process standardization, troubleshooting, and improved reproducibility in the steeping process.
Examples include installation of automated densimeters directly in the steep tank, integrated with digital process controls. This ensures any shift in water uptake or liquor composition is detected and corrected instantly, reducing batch-to-batch variability and supporting high-quality, uniform malt production—essential for optimal beer yield, taste, and consistency.
Steeping Liquor Density Monitoring: Concepts and Methods
Importance of Steeping Liquor Density Monitoring
Steeping liquor density monitoring is essential in the malting process in beer production. During the steeping process in malting, barley kernels absorb water and start the transformation necessary for producing high-quality malt. Accurate monitoring of malt steep liquor properties, specifically density, ensures each kernel hydrates uniformly.
Beyond hydration, density monitoring enables early detection of process deviations. Fluctuations in steeping liquor density may signal issues such as microbial activity, buildup of dissolved solids, or operational errors. Detecting these early allows for rapid responses—adjusting water additions, aeration, or temperature—to keep the malting process in beer production on target.
Moreover, steeping liquor density monitoring supports the standardization of malting production processes. By establishing clear density targets and tracking them consistently, production can be scaled while maintaining quality benchmarks—vital for meeting regulatory and market demands for uniform malt in beer production. This standardization reduces batch-to-batch variability and simplifies process training and troubleshooting.
Conventional Methods and Their Limitations
Traditionally, steeping liquor density has been measured offline. This involves taking manual samples from the steeping vessel, transporting them to a lab, and measuring density using hydrometers or digital density meters. While these tools are straightforward, the practice creates several challenges:
- Delayed Feedback: Offline sampling can take hours from collection to measurement. In that time, steeping conditions may have shifted, making corrections less effective.
- Sample Degradation: Density can change post-collection due to evaporation or continued biochemical activity, leading to misleading results.
- Infrequent Data: Offline methods offer snapshots, not continuous trends. Critical deviations may occur between samples, remaining undetected.
- Labor Burden: Manual measurement increases labor costs, training requirements, and the risk of operator errors.
These limitations introduce risks of delayed corrections, ineffective responses to process upsets, and, ultimately, inconsistent malt hydration. In competitive markets and high-capacity operations, such variability impacts beer quality, flavor profile, and yield, highlighting the need for better monitoring.
Real-Time Technology: Lonnmeter Online Densimeter
The Lonnmeter online densimeter for malting exemplifies next-generation malt hydration measurement tools for real-time water absorption tracking in malting. Unlike offline techniques, this device is integrated directly into the steeping process, continuously measuring steeping liquor density without the need for manual sampling or laboratory analysis.
Working Principle:
The Lonnmeter uses a single-probe, in-situ measurement system. By immersing the probe in the steep liquor, it detects changes in fluid density as water is absorbed by the barley and as dissolved materials accumulate. Advanced versions may employ magnetic suspension coupling or two-sinker densimeter methods for precision. Signal output is digitized and transmitted directly to the brewery’s process control system.
Advantages Over Traditional Approaches
- Real-Time Tracking of Water Absorption: Operators can observe changes in density minute-by-minute, getting a real-time view of malt hydration progress rather than relying on infrequent laboratory data.
- Timely Correction of Process Deviations: Because density data is immediate, process deviations—such as slow hydration or abnormal solute buildup—are quickly detected and can trigger corrective action (e.g., adjusting water temperature, aeration, or cycle duration).
- Promotion of Malt Hydration Uniformity: With continuous visibility, maltsters can maintain optimal hydration conditions, reducing variability and securing more uniform germination across batches.
- Enhanced Process Standardization: Consistent, automated records enable rapid troubleshooting, process optimization, and compliance with quality standards, driving standardization throughout the steeping cycle.
- Reduced Labor and Error: Automation removes manual sampling, lowering labor costs and reducing human error.
Example:
A brewery using a Lonnmeter online densimeter may notice a sudden plateau in density during the steeping phase, signaling incomplete water uptake. Immediate adjustment—such as increasing steeping time—prevents under-hydrated kernels, preserving hydration uniformity and final malt quality.
Real-time steeping liquor density monitoring with technologies like the Lonnmeter not only optimizes the malting process for beer production but also positions breweries to respond proactively to process variability, securing consistent output and superior beer quality.
Implementation: Effective Practices for Density Monitoring in Steeping
Installation Placements in the Steeping Process
Optimal placement of density sensors within malt steeping tanks is critical for capturing accurate and representative data, essential to controlling the malting process in beer production. Sensors should be positioned in regions with pronounced fluid movement but away from tank walls and obstruction points. Locating sensors in racking or recirculation ports helps avoid flow disturbances that skew measurements. Placement should also consider the vertical gradient—density varies across tank depth due to non-uniform hydration—so multi-level installation may be necessary for granular monitoring of malt hydration uniformity.
Operating Strategies for Standardization
Standardizing density monitoring relies on robust calibration and maintenance protocols for the measurement devices deployed during malting in beer production. Calibration typically uses a two-step process: first with distilled water (as a baseline, 1.000 SG), followed by calibration in actual steep liquor—accounting for tank fill and process variations. This routine compensates for sensor drift from temperature changes, aging, or equipment fouling. For example, temperature correction algorithms and regular sensor diagnostics are vital to maintain the precision needed for real-time water absorption tracking.
Maintenance includes scheduled cleaning to remove malt and wort residues that can impact vibrating tube or tuning fork sensors, along with mechanical inspections to prevent misalignment or physical damage. Manufacturer guidance recommends calibration at defined process intervals and after any interventions to ensure continued accuracy. Regular updates for networked sensors, such as CAN bus-enabled densities, further support process reliability.
Thresholds and alarm systems are programmed within SCADA platforms to enable timely correction of malting process deviations. Predefined density limits (upper and lower bounds for steep liquor properties) trigger alarms and process interventions when exceeded. While machine learning algorithms have been successfully used in related domains (e.g., sludge level and toxic gas monitoring), they can be adapted for malt steeping to dynamically adjust threshold sensitivities and reduce false positives or negatives. Proper alarm configuration directly supports standardization of malting production processes by ensuring operators respond promptly to hydrate malt batches within specification.
Data Utilization for Process Optimization
Real-time density data from steeping liquor enables ongoing process optimization, driving improvements in malt quality and the efficiency of beer production. High-frequency sensor outputs are analyzed by advanced control platforms; for instance, ProcessControl SCADA systems aggregate density measurements to create dynamic steeping profiles, supporting automatic cycle adjustments during the malt hydration and germination process. Analyzing trends in density changes allows for predictive process adjustments, helping maintain uniform malt hydration and ensuring optimal conditions for subsequent germination in malting.
Digital twin frameworks—virtual representations integrating both the malting process and sensor data—allow processors to simulate and predict outcomes from process modifications before implementation. Machine learning models (such as temporal convolutional neural networks) ingest density data to forecast malt extract yields, filtration performance, and overall beer quality. Continuous steeping liquor density monitoring thus enables brewers to act on deviations as they occur, optimizing steeping time to balance malt hydration without risking over- or under-steeping.
In practical terms, real-time density analytics have shown substantial impacts on malt properties such as extract yield and wort clarity, with process optimization reducing raw material waste and energy consumption. Data-driven feedback supports malt steeping techniques like staged water additions and recirculation, while clear, actionable insights minimize variability across production batches. The ultimate outcome is improved beer production process optimization, leveraging automation and analytics to enhance product consistency and efficiency.

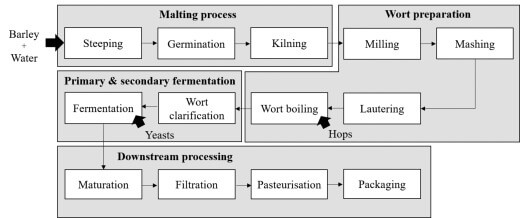

Downstream Processing
*
Impact of Uniform Hydration on Downstream Malting Processes
Malt Germination: Influence of Steeped Malt Quality
Uniform malt hydration achieved during the steeping process is essential for activating and developing key malting enzymes. When barley kernels reach a consistent moisture level, enzymes like α-amylase, β-amylase, and β-glucanase develop more uniformly, driving efficient endosperm modification. This results in reliable malt quality, irrespective of natural variations in dormancy among barley varieties. As studies demonstrate, barley lines genetically selected for high hydration index (HYI) show enhanced enzyme activities and maintain strong resistance to preharvest sprouting, optimizing both malting efficiency and seed viability.
Quality germination relies on homogeneous water absorption throughout the batch. This uniformity supports consistent embryo activation and enzymatic conversion, minimizing unmodified grain and improving extract yield. For example, advancements in breeding for aquaporin genes such as TIP3 increase water transport, facilitating faster and more evenly distributed hydration. These genetics, mapped through multiple QTLs, have enabled breeders to balance dormancy traits with optimal germination and enzyme development, directly linking steeped malt quality to downstream malting performance.
Steeping moisture also affects the microenvironment for enzyme action. Sufficient, uniform hydration enhances the effectiveness of process adjuncts like exogenous phytase or targeted enzyme cocktails. Commercial applications confirm that the integration of phytase during steeping accelerates hydrolytic enzyme activity, shortening malting time by up to 24 hours without loss of malt quality.
Brewing Outcomes: Consistency and Quality
Uniform malt hydration in malting stages directly translates to predictable fermentable sugar production during brewing. Consistency in enzyme levels ensures efficient breakdown of starches into fermentable sugars—primarily glucose, maltose, and maltotriose. This predictability streamlines mashing protocols, leading to high-yield sugar extraction and steady wort composition regardless of batch-to-batch variation.
Notably, studies comparing alternative cereals (e.g., millet) corroborate that given uniform hydration, even grains with lower inherent enzyme activity can achieve substantial fermentable sugar yields. Proper water management and mild exogenous enzyme supplementation can bring these yields close to barley, reinforcing the importance of hydration monitoring for all malt types.
Uniform hydration also supports optimal malt extract yield, which is critical for brewing efficiency and economics. Field trials and brewery experiments indicate that both nitrogen and water management during cropping and malting impact extract yield and beer stability. Beers made with high-quality, uniformly hydrated malt exhibit improved colloidal and flavor stability compared to those made with adjuncts and less uniform malt modification. Differences in coagulable nitrogen content—tied to hydration and malting practices—directly affect beer haze and shelf-life.
In sum, precise real-time density monitoring of malt steep liquor and timely correction of process deviations not only standardize malting production but also ensure reliable malt hydration uniformity. This underpins the malting process in beer production, boosting efficiency, extract yield, and finished beer consistency—key drivers for both quality control and economic return.
Sustainability and Cost Optimization
Resource Conservation via Controlled Steeping
Integrating real-time steeping liquor density monitoring into the malting process in beer production advances resource conservation and cost efficiency. The steeping process in malting is water- and energy-intensive by nature. Traditional methods, which rely on periodic manual checks of malt hydration measurement tools, often lead to inconsistent malt hydration and over-application of water or prolonged agitation cycles.
With monitored steeping—particularly deploying systems like the Lonnmeter online densimeter for malting—producers benefit from continuous, precise tracking of water absorption in malt steeping. This real-time water absorption tracking in malting makes it possible to halt the process as soon as optimal hydration is achieved. For example, industrial adoption of Optisteep technology resulted in a 40% reduction in groundwater use, while combined Optisteep and MultiSteep regimes at Rouen Malting Plant delivered a 35% cut in water consumption, all without malt quality loss. These approaches rely on data-driven monitoring to resolve process deviations immediately, minimizing overdosing and waste while maintaining uniform malt hydration and excellent germination in malting.
The operational impact is twofold:
- Reduced Water Use: Automated systems prevent unnecessary steeping, limiting water contact to exactly what’s needed for uniform malt hydration.
- Lower Energy Consumption: Timely correction of malting process deviations curtails excess energy input required for water heating, aeration, and mixing.
Modern steeping techniques, such as wet vacuum impregnation, further optimize hydration while saving energy. Enhanced water uptake efficiency, supported by insights into aquaporin function during grain germination, translates to substantial sustainability benefits and improved malt in beer production. As breweries seek to minimize costs and environmental impact, implementing such monitored malting protocols is rapidly becoming industry-standard practice.
Environmental Benefits of Real-Time Monitoring
Real-time monitoring of steeping liquor density promotes sustainable beer production by consistently keeping resource inputs to a minimum. The continual oversight of malt steep liquor properties allows brewers to tightly control process variables, directly supporting the optimization of steeping time and the conservation of water and energy resources.
For example:
- Standardization of Malting Production Processes: Automated monitoring ensures repeatable, optimized process outcomes, reducing both batch variability and unnecessary resource input.
- Waste Reduction: Data-driven control helps avoid over-hydration and under-processed grains, limiting production losses and improving product consistency.
This comprehensive shift—fueled by real-time density and absorption measurement—is central to achieving CSR goals, regulatory compliance, and sustained profitability in the beer production process.
Frequently Asked Questions (FAQs)
Q1: What is malt steep liquor and why is it important in the steeping process?
Malt steep liquor is the water that barley grains soak in during the early steeping stage of malting. This liquor hydrates the kernels, triggers the activation of crucial enzymes (like α-amylase and β-glucanase), and sets the stage for uniform malt germination. Its properties and composition—such as oxygen content and any supplemental additives—directly impact the rate and quality of water absorption, enzyme development, and, ultimately, the modification of barley into malt. Uniform hydration in the steep liquor results in better enzyme activity and more consistent malt for beer production, affecting the final product’s yield, flavor, and stability.
Q2: How does the Lonnmeter online densimeter improve malt steeping?
The Lonnmeter online densimeter continuously measures the density of the steep liquor in real time. By tracking density changes, brewers can monitor water uptake by the barley, detecting shifts that signal when hydration is lagging or progressing too quickly. This provides actionable data, enabling immediate process adjustments—like aeration, water replacement, or additive dosing—for optimal malt hydration. The system’s automatic temperature compensation and data connectivity ensure that analytics remain accurate and current, driving the standardization and repeatability needed for high-quality malting production.
Q3: Why is steeping liquor density monitoring crucial for brewing?
Monitoring the density of steeping liquor allows maltsters to closely chart the hydration trajectory of barley during the malting process in beer production. Fluctuations in density often signal changes in water absorption or solute release from the barley. Early detection means operators can intervene quickly to address deviations, avoiding issues like uneven germination or incomplete modification. Consistent malt hydration supports enzyme activation, sugar availability, and conversion efficiency during brewing—ensuring predictable beer quality and minimizing batch-to-batch variation.
Q4: What is the impact of malt hydration uniformity during steeping?
Uniform hydration is vital for synchronized germination across all barley grains. When hydration is consistent, each kernel undergoes enzyme development and modification at the same rate, promoting stable malt characteristics and reliable fermentation performance. This leads to better extract yield, consistent wort composition, predictable fermentation profiles, and ultimately uniform beer flavor and stability. If hydration is not uniform, the resulting malt can vary in enzyme content and modification, lowering beer quality and complicating process control.
Q5: Where should density monitoring sensors be installed in the malting process?
For maximum accuracy, density sensors like the Lonnmeter online densimeter should be installed in zones of the steeping tank with robust liquor circulation. Typical placements are at mid-depth or within recirculation pipes, away from dead zones and areas prone to stratification. Installation can be by flange, clamp, or direct insertion depending on the tank design. Correct placement ensures the measured sample accurately reflects the overall steep liquor, enabling real-time, representative density data. Regular calibration and cleaning are needed to maintain precision and prevent fouling, supporting ongoing optimization of the malting process.
Post time: Nov-11-2025
