The global demand for high-quality industrial salt production necessitates efficient, continuous, and reliable manufacturing processes. A paramount challenge within this domain, particularly in the separation of solid sodium chloride (NaCl) from its solution, is the precise management of solution density to prevent unwanted, premature crystallization. Real-time Density Monitoring emerges as the linchpin technology for mitigating this critical operational hazard, ensuring the uninterrupted flow and optimal energy utilization of large-scale evaporation systems.
The Purpose of Real-time Density Monitoring in Industrial Salt Production
The fundamental goal of Real-time Density Monitoring is to serve as an instantaneous safeguard against the detrimental effects of supersaturation crystallization occurring in the wrong location or at the wrong time within the salt preparation line. By continuously measuring the specific gravity or density of the sodium chloride solution, operators gain the foresight necessary to adjust process parameters before the solution density crosses the solubility threshold in upstream equipment like evaporators. This preventative action is crucial for maximizing throughput and minimizing maintenance downtime.
Decoding the Salt Preparation Process
The foundation of modern industrial salt production is the thermal separation of solid NaCl from crude liquid brine extracted from sources such as salt lakes, subterranean salt mines, or seawater. This physical transformation, globally termed "evaporation and dehydration - crystallization," is deliberately sequential, with each stage dictating the final product's quality and the process's energy profile.
Step 1: Evaporation and Concentration (Liquid → Supersaturated Liquid)
The initial phase involves concentrating the low-concentration crude sodium chloride solution. This brine, heavily laden with water, enters large-scale evaporation units—often Multi-Effect Evaporators (MEE) or Mechanical Vapor Recompression (MVR) systems. Through the application of heat or evaporation under reduced pressure, significant volumes of water are removed. The solution's concentration steadily increases. Online density monitoring is an absolute necessity during this stage to track the rising concentration levels meticulously. This vigilance is specifically aimed at preventing premature supersaturation and crystallization within the heat exchangers and evaporator bodies, a condition that could rapidly lead to fouling and blockage. The desired outcome of Step 1 is the creation of a supersaturated sodium chloride solution—a metastable liquid where the solute concentration technically exceeds the solubility limit for the operating temperature, poised for the next stage.
Step 2: Crystallization and Separation (Supersaturated Liquid → Solid Crystals)
The concentrated, supersaturated solution is then transferred into a dedicated crystallizer (which might be the last effect of an MEE system or a specialized cooling crystallizer). Further evaporation of water or a deliberate, controlled reduction in temperature provides the necessary driving force—the supersaturation level—that compels the sodium chloride solute to precipitate. The NaCl molecules come out of the solution phase, forming solid NaCl crystals. These crystals, now the target product, are then separated from the residual liquid (mother liquor) using mechanical methods like centrifugal separation or filtration. The final stages involve drying (moisture removal) and sieving (particle size standardization) to yield the commercial, solid industrial salt product.

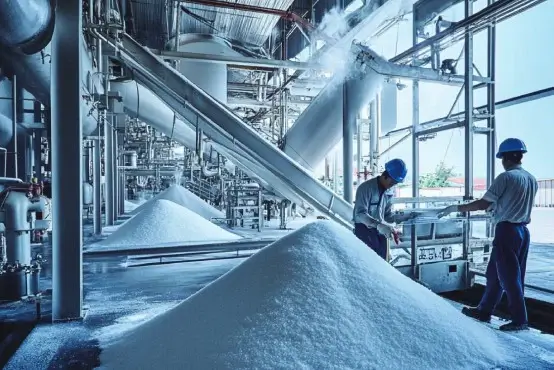

Salt Production

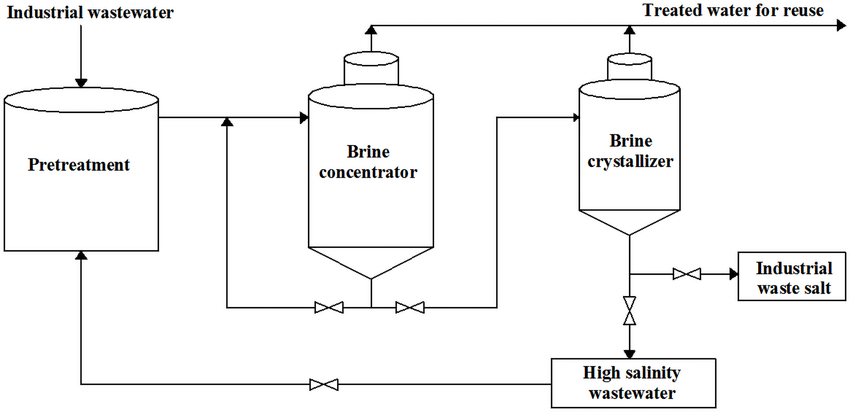

The evaporation crystallization process for the production of the industrial waste salt
Specific Hazards of Supersaturation Crystallization
Uncontrolled or premature supersaturation crystallization within the evaporation train is not merely an inconvenience; it represents a triad of major operational and economic hazards:
Fouling and Scaling: The most immediate consequence is the spontaneous formation of NaCl scale on the heat transfer surfaces (tubes, plates, walls) of the evaporators. This crystal buildup acts as a highly effective insulator.
Blockage and Throughput Reduction: Progressive scale formation quickly reduces the effective diameter of pipelines, valves, and heat exchanger tubes, leading to severe blockages. This necessitates complete, costly shutdowns for mechanical or chemical cleaning, severely impacting productivity.
Energy Loss and Increased Operating Costs: Fouling drastically lowers the overall heat transfer coefficient (U). To maintain the target evaporation rate, operators are forced to increase the steam chest temperature (ΔT), significantly escalating the energy consumption—the single largest variable cost in MEE and MVR industrial salt production.
Innovation in Density Control: Predictive and Proactive Management
The path to optimized salt production lies in migrating from reactive maintenance to proactive control, fundamentally enabled by high-precision, online densimeter real-time data.
The innovation resides in leveraging this continuous density data—the direct proxy for solution concentration and, critically, the level of supersaturation—to feed intelligent predictive models for supersaturation risk. These models analyze the rate of density change, temperature, pressure, and flow rates to forecast the likelihood of spontaneous, harmful crystallization moments before they occur.
This predictive capability drives advanced control algorithms that enable the dynamic adjustment of key MVR/multi-effect evaporator parameters:
Water Replenishment/Discharge: Minute-by-minute adjustments to the inflow of fresh water or the outflow of concentrated brine can rapidly moderate the solution concentration.
Temperature/Pressure Regulation: Small, calculated changes in the operating pressure (and thus the boiling point and saturation temperature) within the effects can slightly reduce the degree of supersaturation, preventing the spontaneous nucleation of harmful scale.

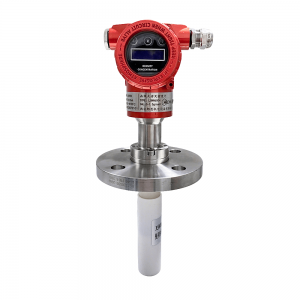

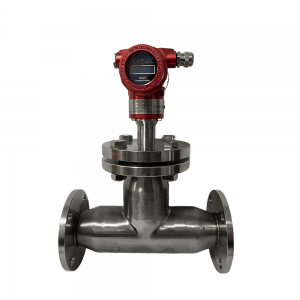

Lonnmeter Inline Density Meters
Mechanism of Prevention: Controlling Crystal Formation
The effectiveness of precise density regulation lies in its direct influence on the fundamental aspects of crystallization physics: nucleation, growth kinetics, and morphology.
Nucleation Control: By keeping the solution concentration just below the critical concentration limit for spontaneous (homogeneous) nucleation, the density control system ensures that crystals only form at the desired location (the crystallizer) and primarily on existing seed crystals (heterogeneous nucleation). This prevents the widespread formation of "fines" or scale-forming nuclei in the evaporator.
Growth Kinetics and Morphology: Maintaining a consistently low but positive level of supersaturation ensures that the existing crystal surfaces are the preferential sites for NaCl deposition. This promotes controlled crystal growth rather than uncontrolled, spontaneous nucleation. The result is larger, better-formed salt crystals and significantly reduced scaling potential.
By acting as the inline density meter for supersaturation potential, real-time density monitoring transforms the crystallization process from a risky, delicate operation into a controlled, predictable engineering function. This strategic innovation is essential for any facility aiming for maximum energy efficiency and minimal operational expenditure in the competitive landscape of industrial salt production.
Contact Lonnmeter to request for quote and integrate this crucial control technology into your production line.
