Protein Solution Viscosity Control in Ultrafiltration

Controlling the viscosity of protein solutions is vital for optimizing ultrafiltration concentration processes in biopharmaceutical manufacturing. Elevated viscosity in protein solutions—especially at high protein concentrations—directly impacts membrane performance, process efficiency, and economics in ultrafiltration protein concentration applications. Solution viscosity rises with protein content due to anti-body clustering and electrostatic interactions, which increase resistance to flow and pressure drop across the ultrafiltration membrane. This results in lower permeate fluxes and longer operational times, especially in transverse flow filtration (TFF) processes.

Transmembrane pressure (TMP), the driving force behind ultrafiltration, is intimately connected to viscosity. Operating outside the normal transmembrane pressure range accelerates membrane fouling and exacerbates concentration polarization—the build-up of proteins near the membrane that continually increases local viscosity. Both concentration polarization and membrane fouling result in diminished ultrafiltration membrane performance and can shorten membrane lifespan if unchecked. Experimental work shows that membrane fouling and concentration polarization in ultrafiltration are more pronounced at higher TMP values and with more viscous feeds, making real-time TMP control essential to maximize throughput and minimize cleaning frequency.

Optimizing ultrafiltration concentration requires integrated strategies:

Protein solution viscosity measurement: Regular viscosity assessments—using in-line viscometers—help predict filtration rates and anticipate process bottlenecks, supporting rapid process modifications.
Feed conditioning: Adjusting pH, ionic strength, and temperature can lower viscosity and reduce fouling. For instance, adding sodium ions enhances hydration repulsion between proteins, mitigating aggregation and fouling, whereas calcium ions tend to promote protein bridging and fouling.
Use of excipients: Incorporating viscosity-lowering excipients into highly concentrated protein solutions improves membrane permeability and reduces transmembrane pressure in ultrafiltration, boosting overall efficiency.
Advanced flow regimes: Increasing cross-flow velocity, employing alternating cross-flow, or using air jet injection disrupts fouling layers. These techniques help sustain permeate flux and reduce membrane replacement frequency by minimizing deposit formation.
Membrane selection and cleaning: Choosing chemically resilient membranes (e.g., SiC or thermosalient hybrids) and optimizing membrane cleaning frequency with suitable protocols (e.g., sodium hypochlorite cleaning) are crucial for prolonging membrane lifespan and reducing operational costs.

Overall, effective viscosity control and TMP management are the cornerstone of successful ultrafiltration concentration phase performance, directly influencing product yield, membrane cleaning frequency, and the longevity of expensive membrane assets.

Understanding Protein Solution Viscosity in Ultrafiltration

1.1. What is the Viscosity of Protein Solutions?

Viscosity describes a fluid’s resistance to flow; in protein solutions, it marks how much molecular friction hampers movement. The SI unit for viscosity is the Pascal-second (Pa·s), but centipoise (cP) is commonly used for biological fluids. Viscosity directly impacts how easily protein solutions can be pumped or filtered during manufacturing and affects drug delivery, especially for high-concentration biotherapeutics.

Protein concentration is the dominant factor influencing viscosity. As protein levels rise, intermolecular interactions and crowding increase, causing viscosity to climb, often nonlinearly. Above a certain threshold, protein-protein interactions further suppress diffusion within the solution. For example, concentrated monoclonal antibody solutions used in pharmaceuticals often reach viscosity levels that challenge subcutaneous injection or restrict processing rates.

Models predicting viscosity in concentrated protein solutions now incorporate molecular geometry and aggregation tendencies. Protein morphology—whether it’s elongated, globular, or prone to aggregation—significantly affects viscosity at high concentrations. Recent advances in microfluidic assessment enable precise viscosity measurement from minimal sample volumes, facilitating rapid screening of new protein formulations.

1.2. How Viscosity Changes During Ultrafiltration

During ultrafiltration, concentration polarization rapidly accumulates proteins at the membrane-solution interface. This creates steep local concentration gradients and raises viscosity near the membrane. Elevated viscosity in this region impedes mass transfer and reduces permeate flux.

Concentration polarization is distinct from membrane fouling. Polarization is dynamic and reversible, occurring within minutes as filtration progresses. In comparison, fouling develops over time and often involves irreversible deposition or chemical transformation at the membrane surface. Accurate diagnostics allow real-time tracking of the concentration polarization layer, revealing its sensitivity to cross-flow velocity and transmembrane pressure. For example, increasing velocity or decreasing transmembrane pressure (TMP) helps disrupt the viscous boundary layer, restoring flux.

Operational parameters directly influence viscosity behavior:

Transmembrane pressure (TMP): Higher TMP intensifies polarization, raising local viscosity and decreasing flux.
Cross-flow velocity: Enhanced velocity limits accumulation, moderating viscosity near the membrane.
Membrane cleaning frequency: Frequent cleaning reduces long-term buildup and mitigates viscosity-driven performance loss.

Ultrafiltration concentration phases must optimize these parameters to minimize adverse viscosity effects and sustain throughput.

1.3. Protein Solution Properties Affecting Viscosity

Molecular weight and composition chiefly determine viscosity. Larger, more complex proteins or aggregates yield higher viscosity due to hindered movement and more substantial intermolecular forces. The shape of proteins further modulates flow—elongated or aggregation-prone chains cause more resistance than compact globular proteins.

pH critically influences protein charge and solubility. Adjusting solution pH near a protein’s isoelectric point minimizes net charge, reduces protein-protein repulsion, and temporarily lowers viscosity, facilitating filtration. For instance, operating ultrafiltration close to the isoelectric point of BSA or IgG can markedly enhance permeate flux and separation selectivity.

Ionic strength affects viscosity by altering the electrical double layer around proteins. Increased ionic strength screens electrostatic interactions, promoting protein transmission through membranes but also raising the risk of aggregation and corresponding viscosity spikes. The tradeoff between transmission efficiency and selectivity often hinges on fine-tuning salt concentrations and buffer composition.

Small molecular additives—such as arginine hydrochloride or guanidine—can be used to mitigate viscosity. These agents disrupt hydrophobic or electrostatic attractions, reduce aggregation, and improve solution flow properties. Temperature acts as a further control variable; lower temperatures increase viscosity, while additional heat often decreases it.

Protein solution viscosity measurement should consider:

Molecular weight distributions
Solution composition (salts, excipients, additives)
pH and buffer system selection
Ionic strength setting

These factors are critical for optimizing ultrafiltration membrane performance and ensuring consistency across concentration phases and TFF processes.

Fundamentals of Ultrafiltration Protein Concentration

Principles of Ultrafiltration Concentration Phase

Ultrafiltration protein concentration operates by applying a transmembrane pressure (TMP) across a semi-permeable membrane, driving solvent and small solutes through while retaining proteins and larger molecules. The process exploits selective permeation based on molecular size, with the membrane’s molecular weight cut-off (MWCO) defining the maximum size of molecules that pass. Proteins exceeding the MWCO accumulate on the retentate side, increasing their concentration as permeate is withdrawn.

The ultrafiltration concentration phase targets volume reduction and enrichment of the protein solution. As filtration progresses, the viscosity of protein solution typically rises, impacting flux and TMP requirements. Retained proteins may interact with one another and with the membrane, making the real-world process more complex than simple size exclusion. Electrostatic interactions, protein aggregation, and solution characteristics such as pH and ionic strength affect retention and separation outcomes. In some cases, advective transport dominates over diffusion, especially in membranes with larger pores, complicating expectations based solely on MWCO selection [see research summary].

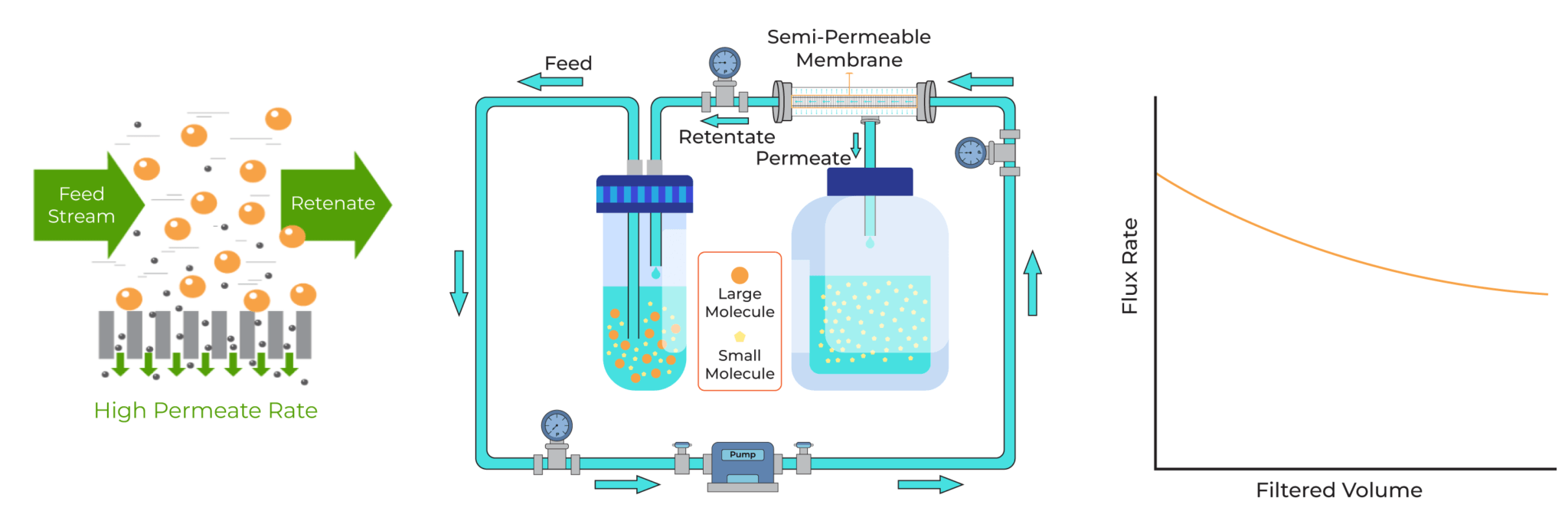

Transverse Flow Filtration (TFF) Explained

Transverse flow filtration, also called tangential flow filtration (TFF), routes the protein solution tangentially across the membrane surface. This approach contrasts with dead-end filtration, where flow is perpendicular to the membrane, pushing particles directly onto and into the filter.

Key distinctions and impacts:

Fouling Control: TFF reduces the buildup of protein and particulate layers, known as cake formation, by continuously sweeping potential foulants off the membrane. This results in more stable permeate flux and easier maintenance.
Protein Retention: TFF supports better management of concentration polarization—a layer of retained molecules near the membrane—which, if uncontrolled, can reduce separation selectivity and enhance fouling. The dynamic flow in TFF mitigates this effect, helping maintain high protein retention and separation efficiency.
Flux Stability: TFF enables longer operational periods at consistent flux, boosting efficiency in processes with high-protein or particle-rich feeds. Dead-end filtration, by contrast, is quickly hampered by fouling, lowering throughput and requiring frequent cleaning interventions.

Advanced TFF variants, such as alternating tangential flow (ATF), further disrupt fouling and cake formation by periodically reversing or varying tangential velocities, prolonging filter lifespan and improving protein throughput [see research summary]. In both classic and advanced TFF setups, operational settings—such as TMP, crossflow velocity, and cleaning frequency—must be tailored to the specific protein system, membrane type, and target concentration to optimize performance and minimize fouling.

Transmembrane Pressure (TMP) in Ultrafiltration

3.1. What Is Transmembrane Pressure?

Transmembrane pressure (TMP) is the pressure difference across a filtration membrane, driving solvent from the feed side toward the permeate side. TMP is the main force behind the separation process in ultrafiltration, allowing solvent to pass through the membrane while retaining proteins and other macromolecules.

TMP Formula:

Simple difference: TMP = P_feed − P_permeate
Engineering method: TMP = [(P_feed + P_retentate)/2] − P_permeate
Here, P_feed is the inlet pressure, P_retentate is the outlet pressure on the retentate side, and P_permeate is the permeate side pressure. Including the retentate (or concentrate) pressure provides a more accurate value along the membrane surface, accounting for pressure gradients caused by flow resistance and fouling.
Feed pressure and flow rate
Retentate pressure (when applicable)
Permeate pressure (often atmospheric)
Membrane resistance
TMP varies by membrane type, system design, and process conditions.

Controlling Variables:

3.2. TMP and the Ultrafiltration Process

TMP plays a central role in ultrafiltration protein concentration, driving protein solutions through the membrane. The pressure must be high enough to overcome resistance from the membrane and any accumulated material but not so high that it accelerates fouling.

Influence of Solution Viscosity and Protein Concentration

Viscosity of protein solutions: Higher viscosity increases flow resistance, requiring a higher TMP to maintain the same permeate flux. For example, adding glycerol to the feed or operating with concentrated proteins raises viscosity and thus the operational TMP required.
Protein concentration: As concentration increases during the ultrafiltration concentration phase, solution viscosity rises, TMP increases, and the risk of membrane fouling or concentration polarization grows.
Darcy’s Law: TMP, permeate flux (J), and viscosity (μ) are related via TMP = J × μ × R_m (membrane resistance). For high-viscosity protein solutions, careful TMP adjustment is vital for efficient ultrafiltration.

Examples:

Ultrafiltration of dense antibody solutions requires careful TMP management to counteract rising viscosity.
PEGylation or other protein modifications change interaction with the membrane, affecting TMP required for desired flux.

3.3. Monitoring and Optimizing TMP

Maintaining TMP within the normal transmembrane pressure range is crucial for stable ultrafiltration membrane performance and product quality. Over time, as ultrafiltration progresses, concentration polarization and fouling can cause TMP to rise, sometimes rapidly.

Monitoring Practices:

Real-time monitoring: TMP is tracked via inlet, retentate, and permeate pressure transmitters.
Raman Spectroscopy: Used for non-invasive monitoring of protein and excipient concentrations, facilitating adaptive TMP control during ultrafiltration and diafiltration.
Advanced control: Extended Kalman Filters (EKF) can process sensor data, automatically adjusting TMP to avoid excessive fouling.
Set initial TMP within normal range: Not too low to reduce flux, not too high to avoid rapid fouling.
Adjust TMP as viscosity increases: During ultrafiltration concentration phase, incrementally raise TMP only as needed.
Control feed flux and pH: Increasing feed flux or lowering TMP mitigates concentration polarization and fouling.
Membrane cleaning and replacement: Higher TMPs are associated with more frequent cleaning and reduced membrane lifespan.

Optimizing Strategies:

Examples:

Corrosion fouling in protein processing lines leads to increased TMP and reduced flux, requiring membrane cleaning or replacement to restore normal operation.
Enzymatic pretreatment (e.g., pectinase addition) can lower TMP and extend membrane lifespan during high-viscosity rapeseed protein ultrafiltration.

3.4. TMP in TFF Systems

Tangential (transverse) flow filtration (TFF) operates by channeling the feed solution across the membrane rather than directly through it, significantly influencing TMP dynamics.

Regulation and Balance of TMP

TFF transmembrane pressure (TFF TMP): Is managed by controlling both the feed flow rate and pump pressure to avoid excessive TMP while maximizing permeate flux.
Optimizing parameters: Increasing feed flow decreases local deposition of proteins, stabilizes TMP, and reduces membrane fouling.
Computational modeling: CFD models predict and optimize TFF TMP for maximal product recovery, purity, and yield—especially vital for processes like mRNA or extracellular vesicle isolation.

Examples:

In bioprocessing, optimal TFF TMP yields >70% mRNA recovery without degradation, outperforming ultracentrifugation methods.
Adaptive TMP control, informed by mathematical models and sensor feedback, reduces membrane replacement frequency and enhances membrane lifespan via fouling mitigation.

Key takeaways:

TMP transmembrane pressure must be actively managed in TFF to maintain process efficiency, flux, and membrane health.
Systematic TMP optimization lowers operational costs, supports high-purity product recovery, and extends membrane lifespan in protein ultrafiltration and related processes.

Monitor and Measure High Protein Concentrations

Fouling Mechanisms and Their Relationship to Viscosity

Main Fouling Pathways in Protein Ultrafiltration

Protein ultrafiltration is affected by several distinct fouling pathways:

Corrosion Fouling: Occurs when corrosion products—typically iron oxides—accumulate on membrane surfaces. These reduce flux and are difficult to remove with standard chemical cleaning agents. Corrosion fouling leads to persistent loss of membrane performance and increases membrane replacement frequency over time. Its impact is especially severe with PVDF and PES membranes used in water treatment and protein applications.

Organic Fouling: Predominantly induced by proteins such as bovine serum albumin (BSA), and may be intensified in the presence of other organics like polysaccharides (e.g., sodium alginate). Mechanisms include adsorption onto membrane pores, pore plugging, and the formation of a cake layer. Synergistic effects occur when multiple organic components are present, with mixed-foulant systems experiencing more severe fouling than single-protein feeds.

Concentration Polarization: As ultrafiltration progresses, retained proteins accumulate near the membrane surface, increasing local concentration and viscosity. This creates a polarization layer that enhances fouling propensity and reduces flux. The process accelerates as the ultrafiltration concentration phase advances, directly influenced by transmembrane pressure and flow dynamics.

Colloidal and Mixed-Foulant Fouling: Colloidal matter (e.g., silica, inorganic minerals) may interact with proteins, creating complex aggregate layers that exacerbate membrane fouling. The presence of colloidal silica, for example, markedly lowers flux rates, especially when combined with organic matter or under suboptimal pH conditions.

Influence of Solution Viscosity on Fouling Development

The viscosity of protein solutions strongly impacts fouling kinetics and membrane compaction:

Accelerated Fouling: Higher protein solution viscosity increases resistance to back-transport of retained solutes, facilitating faster cake layer formation. This magnifies transmembrane pressure (TMP), hastening membrane compaction and fouling.

Solution Composition Effects: Protein type alters viscosity; globular proteins (e.g., BSA) and extended proteins behave differently regarding flow and polarization. Adding compounds like polysaccharides or glycerol significantly raises viscosity, promoting fouling. Additives and protein aggregation at high concentrations further intensify the rate at which membranes clog, directly reducing both flux and membrane lifespan.

Operational Consequences: Higher viscosity requires increased TMP to sustain filtration rates in transverse flow filtration processes. Prolonged exposure to high TMP boosts irreversible fouling, often necessitating more frequent membrane cleaning or earlier membrane replacement.

Role of Feed Characteristics

Feed characteristics—namely protein properties and water chemistry—determine fouling severity:

Protein Size and Distribution: Larger or aggregated proteins have a greater tendency to cause pore blocking and cake buildup, raising the viscosity and compaction tendencies during ultrafiltration protein concentration.

pH: Elevated pH increases electrostatic repulsion, preventing proteins from aggregating near the membrane, thus reducing fouling. In contrast, acidic conditions diminish repulsion, especially for colloidal silica, exacerbating membrane fouling and decreasing flux rates.

Temperature: Lower process temperatures generally reduce kinetic energy, which can slow fouling rates but also increase solution viscosity. High temperatures accelerate fouling but may also enhance cleaning effectiveness.

Colloidal/Inorganic Matter: The presence of colloidal silica or metals intensifies fouling, especially under acidic conditions. Silica particles increase total solution viscosity and physically obstruct pores, making ultrafiltration concentration less efficient and decreasing overall membrane lifespan and performance.

Ionic Composition: Adding certain ionic species (Na⁺, Zn²⁺, K⁺) may reduce fouling by modifying electrostatic and hydration forces between proteins and membranes. However, ions like Ca²⁺ often promote aggregation and increase fouling potential.

Examples:

During transverse flow filtration, a feed rich in high-molecular-weight proteins and elevated viscosity will experience rapid flux decline, escalating cleaning and replacement routines.
When feed water contains colloidal silica and is acidified, silica aggregation and deposition are intensified, greatly increasing fouling rates and diminishing membrane performance.

In summary, understanding the interplay between solution viscosity, fouling types, and feed characteristics is essential for optimizing ultrafiltration concentration, reducing membrane fouling, and maximizing membrane lifespan.

Concentration Polarization and Its Management

What Is Concentration Polarization?

Concentration polarization is the localized accumulation of retained solute—such as proteins—at the membrane/solution interface during ultrafiltration. In the context of protein solutions, as liquid flows against the semi-permeable membrane, proteins rejected by the membrane tend to pile up in a thin boundary layer adjacent to the surface. This buildup results in a steep concentration gradient: high protein concentration right at the membrane, much lower in the bulk solution. The phenomenon is reversible and governed by hydrodynamic forces. It stands in contrast to membrane fouling, which involves more permanent deposition or adsorption inside or onto the membrane.

How Concentration Polarization Exacerbates Viscosity and Fouling

At the membrane surface, the continuous accumulation of proteins forms a boundary layer that increases local solute concentration. This has two significant effects:

Localized Increase in Viscosity: As the concentration of protein rises near the membrane, the viscosity of the protein solution in this microregion also increases. Elevated viscosity hinders the back-transport of solute away from the membrane, further steepening the concentration gradient and creating a feedback loop of increasing resistance to flow. This results in reduced permeate flux and a higher energy requirement for continued filtration.

Facilitation of Membrane Fouling: High protein concentration near the membrane enhances the probability of protein aggregation and, in some systems, the formation of a gel layer. This layer obstructs membrane pores and further amplifies the resistance to flow. Such conditions are ripe for the onset of irreversible fouling, where protein aggregates and impurities physically or chemically bind to the membrane matrix.

Experimental imaging (e.g., electron microscopy) confirms rapid agglomeration of nanosized protein clusters at the membrane, which can grow into significant deposits if operational settings are not appropriately managed.

Strategies to Minimize Concentration Polarization

Managing concentration polarization in ultrafiltration protein concentration or transverse flow filtration requires a dual approach: adjusting hydrodynamics and tuning operational parameters.

Cross-Flow Velocity Optimization:
Raising cross-flow velocity increases the tangential flow across the membrane, promoting shear and thinning the concentration boundary layer. More vigorous shear sweeps accumulated proteins off the membrane surface, reducing both polarization and the risk of fouling. For example, using static mixers or introducing gas sparging disrupts the solute layer, notably improving permeate flux and efficiency in the transverse flow filtration process.

Modifying Operational Parameters:

Transmembrane Pressure (TMP): TMP is the pressure difference across the membrane and the driving force for ultrafiltration. However, pushing TMP higher to accelerate filtration can backfire by intensifying concentration polarization. Adhering to the normal transmembrane pressure range—not exceeding the limits set for protein ultrafiltration—helps to prevent excessive solute buildup and the related increase in local viscosity.

Shear Rate: Shear rate, a function of cross-flow velocity and channel design, plays a central role in solute transport dynamics. High shear keeps the polarization layer thin and mobile, allowing frequent renewal of the solute-depleted region near the membrane. Increasing shear rate reduces the time proteins have to accumulate and minimizes viscosity rise at the interface.

Feed Properties: Adjusting the properties of the incoming protein solution—such as lowering the viscosity of protein solution, reducing aggregate content, or controlling pH and ionic strength—can help reduce the extent and impact of concentration polarization. Feed pretreatment and formulation changes may enhance ultrafiltration membrane performance and extend membrane lifespan by reducing the frequency of membrane cleaning.

Application Example:
A plant using tangential flow filtration (TFF) to concentrate monoclonal antibodies applies carefully optimized cross-flow velocities and maintains TMP within a strict window. By doing so, operators minimize concentration polarization and membrane fouling, reducing both membrane replacement frequency and cleaning cycles—directly lowering operational costs and improving product yield.

Appropriate adjustment and monitoring of these variables—including real-time protein solution viscosity measurement—are fundamental to optimizing ultrafiltration concentration performance and mitigating adverse effects related to concentration polarization in protein processing.

Optimizing Ultrafiltration for High-Vicosity Protein Solutions

6.1. Operational Best Practices

Maintaining optimal ultrafiltration performance with high-viscosity protein solutions requires a delicate balance among transmembrane pressure (TMP), protein concentration, and solution viscosity. TMP—the difference in pressure across the membrane—directly influences the ultrafiltration protein concentration rate and degree of membrane fouling. When processing viscous solutions such as monoclonal antibodies or high-concentration serum proteins, any excessive increase in TMP may initially boost flux, but it also rapidly accelerates fouling and protein accumulation at the membrane’s surface. This leads to a compromised and unstable filtration process, confirmed by imaging studies showing dense protein layers forming at elevated TMP and protein concentrations above 200 mg/mL.

The optimal approach involves running the system near, but not exceeding, the critical TMP. At this point, productivity is maximized but the risk of irreversible fouling remains minimal. For very high viscosities, recent findings suggest reducing TMP and simultaneously increasing feed flow (transverse flow filtration) to help mitigate concentration polarization and protein deposition. For example, studies in Fc-fusion protein concentration demonstrate lower TMP settings help maintain stable flux while reducing product loss.

A gradual and methodical increase in protein concentration during ultrafiltration is crucial. Abrupt concentration steps can force the solution into a high-viscosity regime too quickly, increasing both aggregation risks and the severity of fouling. Instead, incrementally raising protein levels allows for process parameters such as TMP, cross-flow velocity, and pH to be adjusted in parallel, helping to maintain system stability. Enzyme ultrafiltration case studies confirm that maintaining lower operating pressures during these phases ensures a controlled increase in concentration, minimizing flux decline while protecting product integrity.

6.2. Membrane Replacement Frequency and Maintenance

The frequency of membrane replacement in ultrafiltration is tightly linked to indicators of fouling and declining flux. Rather than relying solely on relative flux decline as an end-of-life indicator, monitoring the specific fouling resistance—a quantitative measure representing the resistance imposed by accumulated material—has proven more reliable, especially in mixed-protein or protein-polysaccharide feeds, where fouling can occur more rapidly and severely.

Monitoring for additional fouling indicators is also critical. Visible signs of surface deposition, uneven permeate flow, or persistent increases in TMP (despite cleaning) are all warning signals of advanced fouling that precedes membrane failure. Techniques such as tracking the modified fouling index (MFI-UF) and correlating it with membrane performance enable predictive scheduling of replacement rather than reactive changes, thus minimizing downtime and controlling maintenance costs.

Membrane integrity is compromised not only by organic foulant build-up but also by corrosion, especially in processes running at extreme pH or with high salt concentrations. Regular inspections and chemical cleaning routines should be instituted to manage both corrosion and foulant deposition. When corrosion-related fouling is observed, membrane cleaning frequency and replacement intervals must be adjusted to ensure sustained membrane lifespan and consistent ultrafiltration membrane performance. Thorough, scheduled maintenance is essential for mitigating the impact of these issues and prolonging effective operation.

6.3. Process Control and Inline Viscosity Measurement

Accurate, real-time measurement of the viscosity of protein solution is essential for process control in ultrafiltration, particularly as concentrations and viscosities increase. Inline viscosity measurement systems provide continuous monitoring, allowing immediate feedback and enabling dynamic adjustments to system parameters.

Emerging technologies have transformed the landscape of protein solution viscosity measurement:

Raman Spectroscopy with Kalman Filtering: Real-time Raman analysis, supported by extended Kalman filters, enables robust tracking of protein concentration and buffer composition. This approach increases sensitivity and accuracy, supporting process automation for ultrafiltration concentration and diafiltration.

Automated Kinematic Capillary Viscometry: Employing computer vision, this technology automatically measures solution viscosity, overcoming manual errors and offering repeatable, multiplexed monitoring across multiple process streams. It is validated for both standard and complex protein formulations and reduces intervention during the ultrafiltration concentration phase.

Microfluidic Rheology Devices: Microfluidic systems deliver detailed, continuous rheological profiles, even for non-Newtonian, high-viscosity protein solutions. These are especially valuable in pharmaceutical manufacturing, supporting process analytical technology (PAT) strategies and integration with feedback loops.

Process control using these tools enables the implementation of feedback loops for real-time adjustment of TMP, feed rate, or crossflow velocity in response to viscosity changes. For example, if inline sensing detects a sudden rise in viscosity (due to concentration increase or aggregation), TMP can be automatically decreased or crossflow velocity raised to limit the onset of concentration polarization in ultrafiltration. This approach not only extends membrane lifespan but also supports consistent product quality by managing the factors affecting viscosity of protein solutions dynamically.

Selection of the most appropriate viscosity monitoring technology depends on the specific requirements of the ultrafiltration application, including the expected viscosity range, protein formulation complexity, integration needs, and cost. These advances in real-time monitoring and dynamic process control have significantly improved the ability to optimize ultrafiltration for high-viscosity protein solutions, ensuring both operational stability and high product yield.

Troubleshooting and Common Problems in Protein Ultrafiltration

7.1. Symptoms, Causes, and Remedies

Increased Transmembrane Pressure

A rise in transmembrane pressure (TMP) during ultrafiltration indicates growing resistance across the membrane. The effects of transmembrane pressure on ultrafiltration are direct: the normal transmembrane pressure range is typically process-dependent, but sustained increases merit investigation. Two common causes stand out:

Higher viscosity of protein solution: As the viscosity of protein solutions increases—commonly at high ultrafiltration protein concentration—the pressure needed for flow rises. This is pronounced in final concentration and diafiltration steps where solutions are most viscous.
Membrane fouling: Foulants such as protein aggregates or polysaccharide-protein mixtures can adhere to or block membrane pores, resulting in a rapid TMP spike.

Remedies:

Lower TMP and increase feed flux: Reducing TMP while boosting feed velocity lessens concentration polarization and gel layer formation, promoting stable flux.
Regular membrane cleaning: Establish an optimal membrane cleaning frequency to remove accumulated foulants. Monitor the effectiveness via protein solution viscosity measurement after cleaning.
Replace aging membranes: Increased membrane replacement frequency may be necessary if cleaning is insufficient or membrane lifespan is reached.

Declining Flux Rate: Diagnostic Tree

A consistent decrease in flux during the ultrafiltration concentration phase suggests productivity concerns. Follow this diagnostic approach:

Monitor TMP and viscosity: If both have increased, check for fouling or gel layer presence.
Inspect feed composition and pH: Shifts here can alter the viscosity of protein solutions and promote fouling.
Assess membrane performance: Reduction in permeate flux despite cleaning signals possible membrane damage or irreversible fouling.

Solutions:

Optimize temperature, pH, and ionic strength in feed to mitigate fouling and concentration polarization in ultrafiltration.
Use surface-modified or rotating membrane modules to disrupt gel layers and restore flux.
Conduct routine protein solution viscosity measurement to anticipate changes that affect flow.

Rapid Fouling or Gel Layer Formation

Rapid gel layer formation results from excessive concentration polarization at the membrane surface. Transverse flow filtration (TFF) transmembrane pressure is particularly susceptible under high-viscosity or high-protein feed conditions.

Mitigation Strategies:

Apply hydrophilic, negatively charged membrane surfaces (e.g., Polyvinylidene fluoride [PVDF] membranes) to minimize protein binding and attachment.
Pre-treat feed using coagulation or electrocoagulation to remove high-fouling substances before ultrafiltration.
Integrate mechanical devices such as rotating modules in the transverse flow filtration process to reduce cake layer thickness and delay gel layer formation.

7.2. Adjusting to Feed Variability

Protein ultrafiltration systems must adapt to variability in feed protein properties or composition. Factors affecting viscosity of protein solutions—such as buffer composition, protein concentration, and aggregation propensity—can alter system behavior.

Response Strategies

Real-time viscosity and composition monitoring: Deploy in-line analytical sensors (Raman spectroscopy + Kalman filtering) for rapid detection of feed changes, outperforming legacy UV or IR methods.
Adaptive process control: Adjust parameter settings (flow rate, TMP, membrane selection) in response to detected changes. For example, increased protein solution viscosity may require lower TMP and high shear rates.
Membrane selection: Use membranes with pore size and surface chemistry optimized for current feed properties, balancing protein retention and flux.
Feed pre-treatment: If sudden shifts in feed nature promote fouling, introduce coagulation or filtration steps upstream of ultrafiltration.

Examples:

In bioprocessing, buffer switches or changes in antibody aggregates should trigger TMP and flow adjustments via the control system.
For chromatography-linked ultrafiltration, adaptive mixing-integer optimization algorithms can minimize variability and reduce operational costs while maintaining ultrafiltration membrane performance.

Routine tracking of protein solution viscosity measurement and immediate adjustment to process conditions help optimize ultrafiltration concentration, maintain throughput, and minimize membrane fouling and concentration polarization .

Frequently Asked Questions

8.1. What is the normal range for transmembrane pressure in ultrafiltration of protein solutions?

The normal transmembrane pressure (TMP) range in ultrafiltration protein concentration systems depends on membrane type, module design, and feed characteristics. For most protein ultrafiltration processes, TMP is typically maintained between 1 to 3 bar (15–45 psi). TMP values above 0.2 MPa (about 29 psi) can risk membrane damage, rapid fouling, and a shortened membrane lifespan. In biomedical and bioprocessing applications, the recommended TMP should generally not exceed 0.8 bar (~12 psi) to avoid membrane rupture. For processes like transverse flow filtration, staying within this TMP range safeguards both yield and protein integrity.

8.2. How does the viscosity of protein solutions affect ultrafiltration performance?

The viscosity of protein solution directly impacts the performance of ultrafiltration concentration. High viscosity increases flow resistance and elevates TMP, resulting in reduced permeate flux and rapid membrane fouling. This effect is pronounced with monoclonal antibodies or Fc-fusion proteins at high concentration, where viscosity increases due to protein-protein interactions and charge effects. Managing and optimizing viscosity with excipients or enzymatic treatments improves flux, decreases fouling, and allows higher achievable concentrations during the ultrafiltration concentration phase. Monitoring protein solution viscosity measurement is critical for maintaining efficient processing.

8.3. What is concentration polarization and why is it important in TFF?

Concentration polarization in ultrafiltration is the accumulation of proteins at the membrane surface, causing a gradient between the bulk solution and the membrane interface. In transverse flow filtration, this leads to increased local viscosity and potentially reversible flux decline. If left unmanaged, it may promote membrane fouling and reduce system efficiency. Addressing concentration polarization in ultrafiltration involves optimizing cross-flow rates, TMP, and membrane selection to maintain a thin polarization layer. Accurate control keeps throughput high and fouling risk low.

8.4. How do I decide when to replace my ultrafiltration membrane?

Replace the ultrafiltration membrane when you observe a marked decline in throughput (flux), persistent increases in TMP that standard cleaning cannot resolve, or visible fouling that remains after cleaning. Additional indicators include loss of selectivity (failure to reject target proteins as expected) and inability to reach performance specifications. Monitoring membrane replacement frequency with regular flux and selectivity testing is the foundation for maximizing membrane lifespan in protein solution ultrafiltration concentration processes.

8.5. What operational parameters can I adjust to minimize protein fouling in TFF?

Key operational parameters to minimize protein fouling in transverse flow filtration include:

Maintain adequate cross-flow velocity to reduce local protein buildup and manage concentration polarization.
Operate within the recommended TMP range, typically 3–5 psi (0.2–0.35 bar), to prevent excess product leakage and membrane damage.
Apply regular membrane cleaning protocols to limit irreversible fouling.
Monitor and, if necessary, pretreat the feed solution to control viscosity (for example, using enzymatic treatments like pectinase).
Select membrane materials and pore sizes (MWCO) suitable for target protein size and process goals.

Integrating hydrocyclone prefiltration or enzymatic pretreatment can improve system performance, especially for high-viscosity feeds. Closely track feed composition and adjust settings dynamically to minimize membrane fouling and optimize the ultrafiltration concentration phase.
