In chemical enhanced oil recovery (EOR) techniques—especially polymer flooding in deepwater oil and gas field development—precise control of polyacrylamide solution viscosity is mission-critical. Achieving optimal sweep efficiency in oil reservoirs requires adjusting polymer solution properties on the fly. Traditional laboratory-based viscosity measurement methods are too slow, relying on periodic manual sampling and delayed analysis. This gap can lead to mismatched polymer dosing, poor injectate mobility control, and ultimately, lower oil recovery efficiency or increased operational costs. Inline viscosity measurement instruments now enable real-time, continuous monitoring, directly in the production stream, meeting the fast-paced operational demands of deepwater fields and ensuring better management of viscosity for enhanced oil recovery polymers.

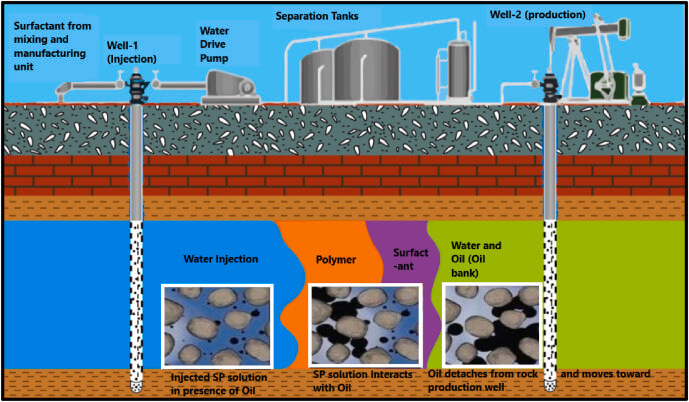

Polymer Flooding and Enhanced Oil Recovery in Deepwater Oil and Gas Fields
Enhanced oil recovery (EOR) encompasses advanced techniques developed to boost oil extraction beyond what primary and secondary methods achieve. As deepwater oil and gas exploration expands, these reservoirs often present complex geological structures and high operational costs, making EOR essential for maximizing reserves and improving oil and gas field development economics.
Polymer flooding enhanced oil recovery is a leading chemical EOR technique increasingly applied in deepwater environments. In polymer flooding, water-soluble polymers—most commonly hydrolyzed polyacrylamide (HPAM)—are added to injected water, increasing its viscosity and enabling better mobility control within the reservoir. This process is especially relevant offshore, where the unfavorable mobility ratio between injected water and viscous oil limits the effectiveness of conventional waterflooding.
In traditional waterflooding, low-viscosity water tends to bypass oil by “fingering” through high-permeability zones, leaving significant hydrocarbon volumes unrecovered. Polymer flooding counteracts this by enhancing the sweep efficiency in oil reservoirs, creating a more stable displacement front that ensures a greater portion of the reservoir is swept and oil is moved toward production wells. Field data shows polymer EOR can deliver up to a 10% increase in incremental oil recovery over waterflooding, and up to a 13% improvement in pilot-scale deployments.
Economic and logistical constraints in deepwater environments elevate the importance of process efficiency. Polymer flooding has demonstrated the ability to reduce water cut, translating to lower energy needs for fluid handling and separation—critical benefits for offshore installations. Additionally, the method can reduce the carbon footprint of oil production by lowering water management requirements, supporting emission reduction goals.
Polymer flooding’s effectiveness hinges on precise viscosity measurement for enhanced oil recovery polymers. Technologies such as inline oil viscosity measurement instruments, oil viscosity testing equipment, and high-performance polymer viscosity testing protocols are fundamental in controlling polymer solution properties, ensuring performance in challenging sub-sea conditions. These measurements enable accurate polyacrylamide solution viscosity analysis, optimizing both the sweep efficiency improvement and the overall economics of polymer flooding field applications.
Oil and Gas Field
*
The Critical Role of Viscosity in Polymer Flooding
Why Viscosity Is Central to Effective Polymer Flooding
Viscosity stands at the heart of polymer flooding enhanced oil recovery because it directly governs the mobility ratio between displacing and displaced fluids within the reservoir. In deepwater oil and gas field development, the goal is to mobilize as much residual oil as possible by ensuring that the injected fluid (typically an aqueous solution of polyacrylamide, most often HPAM) moves with a viscosity that favorably contrasts with that of the native oil. This higher viscosity allows the polymer solution to sweep through a greater volume of the reservoir, improving the contact between the displacing fluid and trapped hydrocarbons.
The selection of polymer solution viscosity is a balancing act. Too low, and the water follows pre-existing high-permeability channels, bypassing much of the oil; too high, and injectivity issues arise, increasing the risk of formation plugging, particularly in heterogeneous formations or low-permeability zones commonly encountered in deepwater scenarios. Research highlights that carefully adjusting HPAM concentrations—typically within 3000–3300 mg/L for deepwater applications—enables operators to maximize overall oil displacement without encountering excessive injection pressure or operational problems.
Relationship Between Polymer Solution Viscosity and Sweep Efficiency
Sweep efficiency represents the proportion of the reservoir’s oil that the injected polymer solution effectively displaces. It is directly linked to the viscosity ratio (M), defined as the viscosity of the displacing fluid divided by the viscosity of the displaced oil:
M = μ_displacing / μ_oil
When M approaches 1, the front moves uniformly, promoting optimal sweep efficiency and minimizing viscous fingering (the tendency of low-viscosity fluids to bypass oil and create breakthrough channels). Enhancing the water’s viscosity—typically by dissolving HPAM or its hybrids—can shift the mobility ratio towards ideal values, substantially increasing sweep efficiency versus traditional waterflooding.
Empirical evidence shows that using high-viscosity polymer solutions results in incremental oil recoveries of 5%-10%, but can reach as high as 23% in controlled microfluidic studies using 0.1% PAM. This improvement translates into tangible gains at the field scale, particularly when polymers are formulated to withstand temperature and salinity challenges prevalent in deepwater oil and gas exploration.
The Effect of Polyacrylamide Viscosity on Maximizing Oil Displacement
The viscosity imparted by polyacrylamide is the primary performance driver in chemical enhanced oil recovery techniques, dictating both the reach and uniformity of the injected flood. Laboratory, field, and simulation studies emphasize several mechanisms through which increased polyacrylamide viscosity maximizes oil displacement:
- Improved Mobility Control: Increased viscosity effectively reduces the water-to-oil mobility ratio, suppressing viscous fingering and channeling while enhancing contact with previously unswept oil.
- Enhanced Displacement in Heterogeneous Reservoirs: The higher resistance to flow forces the displacing front into lower-permeability zones, tapping otherwise bypassed hydrocarbons.
- Synergistic Mobility and Capillary Trapping Effects: When combined with other agents (e.g., nanoparticles, branched gels), high-viscosity polyacrylamide systems show further improvement in both sweep and displacement efficiency, especially under high-temperature or high-salinity conditions.
For example, polymer/nano-SiO₂ composites have demonstrated up to 181 mPa·s viscosity at 90°C, making them ideal for deepwater conditions where conventional HPAM would degrade or become excessively diluted. Likewise, polyacrylamide hybridized with polyvinylpyrrolidone (PVP) significantly outperforms non-hybrid polymers in maintaining viscosity under brine and temperature stress. These advances allow for more reliable and efficient polymer flooding field applications, leading directly to greater oil displacement in challenging reservoirs.
Ultimately, the ability to precisely measure and engineer polyacrylamide solution viscosity—using advanced polymer solution viscosity measurement methods and inline oil viscosity measurement instruments—remains foundational to successful and cost-efficient polymer flooding projects in modern oil and gas fields.
Principles and Techniques of Polymer Solution Viscosity Measurement
Viscosity measurement is central in polymer flooding enhanced oil recovery (EOR), influencing fluid mobility, sweep efficiency in oil reservoirs, and the overall success of chemical enhanced oil recovery techniques. Polyacrylamide and its derivatives such as hydrolyzed polyacrylamide (HPAM) are commonly used polymers. Their solution rheology—particularly viscosity—directly impacts polymer flooding sweep efficiency improvement, especially under the extreme temperatures and salinities typical of deepwater oil and gas field development.
Capillary Viscometers
Capillary viscometers determine viscosity by timing the flow of a polymer solution through a narrow tube under a preset pressure or gravity. This method is simple and widely used for routine oil viscosity testing equipment checks of water-like to moderately viscous fluids. Standard capillary viscometry assumes Newtonian behavior, making it reliable for quality control where polymer solutions’ shear rates remain very low and structures are not significantly deformed.
Limitations:
- Non-Newtonian polymers: Most EOR polymers display shear-thinning and viscoelastic behaviors that classic capillary methods do not capture, causing underestimation or misrepresentation of actual field viscosity.
- Polydispersity and concentration effects: Capillary viscometer readings can be skewed in polymer solutions with varied molecular weight distributions, or in dilute/complex mixtures typical in field operations.
- Elastocapillary thinning complexity: While capillary break-up extensional rheometers can probe extensional viscosity, results depend heavily on the geometry and parameters used, adding uncertainty to results for polymer flooding fluids.
Rotational Viscometers
Rotational viscometers are a cornerstone for polyacrylamide solution viscosity analysis in both laboratories and pilot plant settings. These instruments use a rotating spindle or bob immersed in the sample, measuring the resistance to motion across a range of imposed shear rates.
Strengths:
- Adept at characterizing non-Newtonian behaviors, such as shear-thinning, where viscosity decreases as shear rate increases—a defining feature of most polymer flooding EOR fluids.
- Allow model fitting (e.g., power-law, Bingham) to quantify viscosity dependence on shear rate.
- Support temperature and salinity screening by simulating reservoir-like conditions and observing their effects on viscosity.
Examples:
- At high shear rates or elevated temperatures/salinities, HPAM and custom polymers degrade or align, which lowers effective viscosity; these trends are readily observable in rotational viscometry.
- Rotational rheometers can simulate expected downhole stress conditions to evaluate viscosity loss and chain degradation—critical for both high-performance polymer viscosity testing and robust polymer selection.
Inline Viscosity Measurement: Modern Approaches and Instrumentation
Inline Viscosity Measuring Instruments: Description and Functioning
Modern inline viscometers are engineered for direct immersion in process lines, providing ongoing viscosity analytics without the need for sampling interruption. The principal technologies include:
Vibrational Viscometers: Devices such as the Lonnmeter viscometers utilize oscillating elements immersed in the polymer solution. The amplitude and damping of the vibration relate directly to viscosity and density, allowing for reliable measurement in multi-phase or non-Newtonian fluids like polyacrylamide solutions. These are robust against high temperature and pressure, and well-suited for oilfield operations.
Advantages of Continuous Online Monitoring in Polymer Flooding Operations
The move to continuous, inline viscosity measurement in polymer flooding field applications delivers multilevel operational gains:
Enhanced Sweep Efficiency: Constant monitoring enables swift intervention if polymer viscosity drifts outside optimal range, maximizing mobility ratio and oil displacement during polymer flooding enhanced oil recovery programs.
Automated Process Adjustments: Inline oil viscosity measurement instruments linked to SCADA platforms facilitate closed-loop control, where dosing or temperature can be auto-adjusted in response to real-time polyacrylamide solution viscosity analysis. This increases process stability, keeps product mix within tight specifications (±0.5% in some case studies), and minimizes polymer waste.
Reduced Operational Downtime and Labor: Automated, inline systems replace frequent manual sampling, accelerating response time and reducing the need for field staff dedicated to routine testing.
Process and Cost Efficiency: As demonstrated by industrial deployments such as the Solartron 7827 and CVI’s ViscoPro 2100, continuous viscosity monitoring can increase oil output by up to 20%, cut polymer consumption, and improve reactor or well efficiency through precise quality control.
Improved Data for Analytics: Real-time data streams empower advanced analytics, from routine process optimization to predictive maintenance, further enhancing the cost-effectiveness and predictability of polymer flooding operations.
Key Performance Criteria for Selecting Oil Viscosity Measuring Instruments for Field Use
When choosing equipment for viscosity measurement for enhanced oil recovery polymers in harsh and remote oilfield environments, these criteria are paramount:
Durability and Environmental Resistance: Instruments must withstand high temperature, high pressure (HTHP), corrosive fluids, and abrasive particulates typical of deepwater settings. Stainless steel and hermetically sealed enclosures, as with the Rheonics SRV, are essential for longevity.
Measurement Accuracy and Stability: High resolution and temperature compensation are mandatory since minor deviations in viscosity can significantly influence sweep efficiency and oil recovery. Instruments should have documented accuracy over the operational temperature and pressure ranges.
Integration and Automation Readiness: Compatibility with SCADA, IoT telemetry, and digital data buses for remote monitoring is now a baseline expectation. Look for self-cleaning mechanisms, digital calibration, and secure data transmission to minimize maintenance.
Continuous Operation Capability: Devices must function without regular shutdowns or recalibration, delivering round-the-clock performance and minimizing intervention needs—a key for unmanned or subsea installations.
Regulatory and Industry Compliance: Equipment should meet international standards for safety, electromagnetic compatibility, and process instrumentation as enforced in the oil and gas sector.
Real-world application demands that inline viscosity testing equipment be robust, automated, network-ready, and precise—delivering uninterrupted viscosity control as a cornerstone of modern EOR and deepwater oil and gas exploration.
Key Considerations in Polyacrylamide Solution Viscosity Management
Effective viscosity management is essential for polymer flooding enhanced oil recovery (EOR), especially in deepwater oil and gas field development where environmental stressors are significant. Polyacrylamide solution viscosity analysis plays a central role in achieving the targeted sweep efficiency in oil reservoirs.
Factors Influencing Polyacrylamide Solution Viscosity in Deepwater Conditions
Salinity
- High Salinity Effects: Deepwater reservoirs typically contain elevated concentrations of salts, including both monovalent (Na⁺) and divalent (Ca²⁺, Mg²⁺) cations. These ions compress the electric double layer around polyacrylamide chains, causing coiling and reducing solution viscosity. Divalent cations have a particularly marked effect, substantially lowering viscosity and reducing the effectiveness of polymer flooding sweep efficiency improvement.
- Example: In field cases like the Qinghai Gasi reservoir, tailored polymer and surfactant-polymer (SP) systems were necessary to achieve viscosity retention and maintain sweep efficiency in high-salinity environments.
- Thermal Degradation: Elevated temperatures in deepwater reservoirs accelerate hydrolysis and breakdown of polyacrylamide chains. Standard hydrolyzed polyacrylamide (HPAM) solutions lose viscosity more rapidly as molecular weights decrease under thermal stress.
- Thermal Stability Solutions: Nanocomposite HPAM systems, with integrated nanoparticles (such as silica or alumina), have demonstrated increased thermal stability, retaining viscosity better at temperatures up to 90°C and above.
- Mechanical Impact: High shear rates from pumping, injection, or flow through porous formations cause scission of polymer chains, leading to significant viscosity loss. Repeated pump passes can decrease viscosity by up to 50%, undermining oil recovery efficiency.
- Shear Thinning Behavior: Polyacrylamide solutions exhibit shear thinning—viscosity decreases as shear rate increases. This must be considered in polymer flooding field applications, as viscosity measurements at different shear rates can vary widely.
- Influence of Impurities: Reservoir brine and oilfield-produced waters often contain impurities such as iron, sulfides, or hydrocarbons. These can catalyze further degradation or precipitation in polymer solutions, complicating viscosity management.
- Interference with Additives: Chemical interactions between polyacrylamide and surfactants or crosslinking agents may alter the expected viscosity profile, either enhancing or hindering EOR performance.
- Customized Polymer Selection: Selecting HPAM variants or developing sulfonated polyacrylamide copolymers suited to expected salinity and temperature improves viscosity retention. Laboratory-based polymer solution viscosity measurement methods guide initial selection, but field data must validate results under actual operational conditions.
- Integration of Nanomaterials: Incorporating nanoparticles—such as SiO₂, Al₂O₃, or nanocellulose—enhances the polymer’s resistance to thermal and mechanical degradation, as shown in nanocomposite flooding trials. This approach is increasingly used to counteract adverse effects from reservoir harshness.
- Control of Ion Concentrations: Reducing the level of divalent cations through water treatment or pre-flushes with soft water lessens ionic bridging and maintains polymer chain extension, thereby maximizing injected viscosity.
- Surfactant and Cross-linker Compatibility: Adapting the chemical composition of surfactants or cross-linkers to complement the dominant polymer species avoids precipitation and unexpected viscosity drops.
- Minimizing Shear Exposure: Engineering the injection system (using low-shear pumps, gentle mixing, and smooth piping) limits polymer chain scission. Designing wellbore paths to minimize turbulent flow also contributes to viscosity retention.
- Using Inline Oil Viscosity Measurement Instruments: Employing inline viscosity meters or virtual viscosity meters (VVM) allows real-time monitoring of polyacrylamide viscosity during injection, enabling quick responses to any loss of viscosity.
- Viscosity Monitoring Regimes: Coupling laboratory oil viscosity testing equipment and field inline measurement gives a comprehensive viscosity control system, essential for maintaining stability from storage to reservoir entry.
- Data-driven Viscosity Models: Implementing dynamic, data-driven models that account for temperature, salinity, and shear effects enables optimization of injection parameters—polymer concentration, injection rate, and sequence—in real time.
- Adaptive CMG or Eclipse Simulations: Advanced reservoir simulators use measured and modeled viscosity values to adapt flood patterns, optimize sweep efficiency in oil reservoirs, and minimize polymer loss through degradation or adsorption.
- Field Validation: In the Bohai Bay and South China Sea deepwater fields, pilot implementations used nanocomposite HPAM with inline viscosity monitoring to achieve stable, high-performance polymer flooding under extreme temperature and salinity.
- SP Flooding Success: High-temperature, high-salinity offshore reservoirs have reported oil recovery improvements of up to 15% following optimization of polymer viscosity with SP blends and nanoparticle stabilization.
Temperature
Shear Degradation
Impurities and Chemical Interactions
Strategies to Maintain Stable Polyacrylamide Viscosity Throughout Injection
Formulation Optimization
Electrolyte and Additive Management
Mechanical and Operational Practices
Process Modeling and Dynamic Adjustment
Examples from Field Applications
Effective viscosity measurement for enhanced oil recovery polymers demands meticulous management of these influencing factors and application of state-of-the-art tools—from formulation to inline monitoring—to ensure the success of polymer flooding in challenging deepwater oil and gas exploration environments.

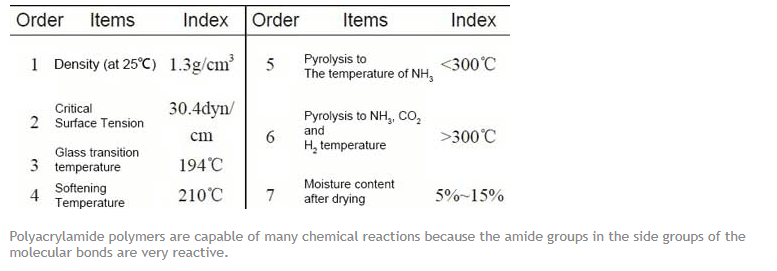

Polyacrylamide to Enhance Oil Recovery
*
Ensuring Consistent Polymer Performance: Challenges and Solutions
Polymer flooding enhanced oil recovery processes in deepwater oil and gas exploration face numerous operational hurdles that can undermine sweep efficiency and polymer utilization. Maintaining optimal polyacrylamide solution viscosity is especially critical, as even slight deviations can diminish reservoir performance and project economics.
Operational Challenges
1. Mechanical Degradation
Polyacrylamide polymers are vulnerable to mechanical degradation throughout the injection and flow process. High shear forces—common in pumps, injection lines, and at constricted pore throats—break long polymer chains, which sharply reduces viscosity. For example, high molecular weight HPAM polymers (>10 MDa) can experience drastic molecular weight drops (sometimes down to 200 kDa) after passing through high-shear equipment or tight reservoir rock. This reduction translates into lost sweep efficiency and poor mobility control, ultimately leading to lower incremental oil recovery. Elevated temperatures and dissolved oxygen exacerbate degradation rates, though changes in pressure and salinity are less influential in this context.
2. Adsorption and Retention in Reservoir Formation
Polyacrylamide molecules can be physically adsorbed or trapped on mineral surfaces within reservoir rock, reducing the effective polymer concentration propagating through the porous media. In sandstone, physical adsorption, mechanical entrapment, and electrostatic interactions play prominent roles. High-salinity environments, prevalent in deepwater oil and gas field development, increase these effects, while fractured rock structures further complicate polymer passage—sometimes lowering retention but at the cost of sweep uniformity. Excessive adsorption not only decreases chemical utilization efficiency but can also alter in-situ viscosity, undermining the intended mobility control.
3. Solution Aging and Chemical Compatibility
Polymer solutions may degrade chemically or biologically before, during, and after injection. Divalent cations (Ca²⁺, Mg²⁺) in formation water facilitate cross-linking and precipitation, leading to a rapid decrease in viscosity. Incompatibilities with saline or hard brines challenge viscosity retention. Furthermore, the presence of specific microbial populations can induce biodegradation, especially in produced-water recycling scenarios. Reservoir temperatures and the availability of dissolved oxygen increase the risk of free-radical-driven chain scission, further contributing to aging and viscosity loss.
Process Controls with Continuous Viscosity Measurement
Continuous inline viscosity measurement and automated real-time feedback control are field-proven interventions for ensuring the quality of polymer flooding operations. Advanced inline oil viscosity measurement instruments, such as the data-driven virtual viscosity meter (VVM), deliver automated, continuous readings of polymer solution viscosity at crucial process points. These instruments work alongside traditional laboratory and offline measurements, providing a comprehensive viscosity profile throughout the chemical enhanced oil recovery workflow.
Key advantages and solutions enabled by these systems include:
- Minimizing Mechanical Degradation: By monitoring viscosity in real time, operators can adjust pump rates and reconfigure surface equipment to reduce shear exposure. For example, early detection of a viscosity drop—indicative of impending polymer breakdown—triggers immediate workflow interventions, preserving polyacrylamide integrity.
- Managing Adsorption and Retention Risks: With frequent, automated viscosity data, polymer banks and injection protocols can be dynamically adjusted. This ensures that the effective polymer concentration entering the reservoir maximizes sweep efficiency, compensating for observed field losses to retention.
- Maintaining Chemical Compatibility in Harsh Environments: Inline viscosity measurement for enhanced oil recovery polymers allows for rapid detection of viscosity changes due to brine composition or solution aging. Operators can preemptively modify polymer formulations or the sequence of chemical slugs to maintain rheological properties, preventing injection issues and uneven displacement fronts.
- Routine Inline Measurement: Integrate high-frequency online viscosity measurement throughout the delivery chain—from make-up through injection and at the wellhead.
- Data-Driven Process Control: Employ automated feedback systems that adjust polymer dosing, blending, or operational parameters in real time to ensure the injected solution consistently meets target viscosity.
- Polymer Selection and Conditioning: Select polymers engineered for shear/thermal stability and compatible with the reservoir’s ionic environment. Employ surface-modified or hybrid polymers (e.g., HPAM with nanoparticles or functional group enhancements) when high salinity or divalent cations cannot be circumvented.
- Shear-Optimized Equipment: Design and regularly review surface facility components (pumps, valves, lines) to minimize exposure to shear stress, as indicated by field and model assessment.
- Regular Cross-Validation: Confirm online viscosity measurement results with periodic lab-based polyacrylamide solution viscosity analysis and field sample rheology.
Field-Proven Viscosity Management Recommendations
Following these best practices in polymer flooding field applications directly supports reliable sweep efficiency in oil reservoirs, maintaining chemical enhanced oil recovery project viability, and optimizing oil and gas field development in challenging deepwater settings.
Maximizing Sweep Efficiency through Viscosity Optimization
Sweep efficiency is a core parameter in the success of enhanced oil recovery (EOR) strategies, particularly in polymer flooding. It describes how effectively the injected fluid traverses the reservoir, moving from the injection to production wells, and displacing oil from both high- and low-permeability zones. High sweep efficiency ensures more uniform and extensive contact between the injected agents and remaining oil, minimizing bypassed regions and maximizing oil displacement and recovery.
How Viscosity Enhancement Improves Sweep Efficiency
Polyacrylamide-based polymers, commonly hydrolyzed polyacrylamide (HPAM), are integral to polymer flooding enhanced oil recovery. These polymers increase the viscosity of injected water, thereby reducing the mobility ratio (displacing fluid mobility versus displaced oil mobility). A mobility ratio less than or equal to one is critical; it suppresses viscous fingering and mitigates water channeling, issues commonly observed during conventional waterflooding. The result is a more stable and continuous flood front, which is essential for improved polymer flooding sweep efficiency in oil reservoirs.
Advances in polymer formulation—including the addition of nanoparticles like nano-SiO₂—have further refined viscosity control. For example, nano-SiO₂-HPAM systems create interlocking network structures in solution, substantially enhancing viscosity and elasticity. These modifications improve macroscopic sweep efficiency by promoting a more uniform displacement front and restricting flow through high-permeability channels, thus targeting oil that would otherwise be bypassed. Field and laboratory studies cite an average 6% increase in oil recovery and a 14% reduction in injection pressure with nano-enhanced systems compared to conventional polymer flooding, translating to reduced chemical usage and environmental benefits.
In high-heterogeneity reservoirs, cyclical polymer injection techniques—such as alternating slugs of low and high salinity polymer solutions—facilitate in-situ viscosity optimization. This staged approach addresses local injectivity challenges near wells and achieves desired high-viscosity profiles deeper in the formation, maximizing sweep efficiency without compromising operational practicality.
Quantitative Relationships between Viscosity, Sweep, and Oil Recovery
Extensive research and field deployments establish clear quantitative links between polymer solution viscosity, sweep efficiency, and ultimate oil recovery. Core flooding and rheological testing consistently demonstrate that increasing polymer viscosity improves recovery; for instance, raising solution viscosity to 215 mPa·s has been shown to elevate recovery factors to over 71%, marking a 40% improvement relative to waterflooding baselines. However, there is a practical optimum: exceeding ideal viscosity thresholds can hamper injectivity or escalate operating costs without proportional gains in recovery.
Furthermore, matching or slightly exceeding the viscosity of the in-place crude oil with the injected polymer solution—termed viscous/gravity ratio optimization—has proven especially crucial in heterogeneous and deepwater oil and gas field development. This approach maximizes oil displacement by balancing capillary, gravity, and viscous forces, as substantiated by both simulation (e.g., UTCHEM models) and real-world field data.
Advanced evaluation techniques, including inline oil viscosity measurement instruments and high-performance polymer viscosity testing, enable rigorous polyacrylamide solution viscosity analysis during EOR operations. These tools are central to ongoing optimization, allowing for real-time adjustments and sustaining high sweep efficiency throughout the flood lifecycle.
In summary, the systematic optimization of polymer flooding viscosity—backed by field-applicable viscosity measurement for enhanced oil recovery polymers and supported by increasingly sophisticated modeling—stands as a cornerstone for maximizing sweep efficiency and overall recovery gains in complex oil and gas field scenarios, especially in deepwater environments.
Polymer Flooding Implementation in Deepwater Oil and Gas Fields
Systematic Polymer Preparation, Mixing, and Quality Control
In deepwater oil and gas field development, the foundation of successful polymer flooding enhanced oil recovery is the careful and consistent preparation of polyacrylamide-based solutions. Rigorous attention to water quality is vital; use of clean, soft water prevents unwanted interactions that reduce polyacrylamide viscosity in oil recovery. The dissolution process must be controlled—polymer powder is gradually added to water with moderate agitation. Too rapid mixing causes polymer chain degradation, while too slow results in clumping and incomplete solution formation.
Mixing speed is adjusted based on polymer and equipment type, typically maintaining moderate RPMs to promote full hydration and homogeneity. Duration of mixing is validated through frequent sampling and polyacrylamide solution viscosity analysis before deployment. Solution concentration is determined by reservoir requirements and calculated using oil viscosity testing equipment, balancing between effective viscosity enhancement and avoidance of injectivity issues.
Storage conditions offshore must be strictly managed. Polyacrylamide is sensitive to heat, light, and moisture, requiring cool, dry environments. Prepare solutions as close to injection time as possible to prevent degradation. Implement field quality control by taking routine samples and performing high-performance polymer viscosity testing on-site, using standardized polymer solution viscosity measurement methods. Real-time data ensures solutions remain within target specifications, directly impacting polymer flooding sweep efficiency improvement.
Importance of Continuous Monitoring and Real-Time Adjustment
Maintaining optimal polymer solution performance under deepwater oil and gas exploration conditions necessitates continuous inline viscosity monitoring. Technologies such as data-driven virtual viscosity meters (VVMs), ultrasonic rheometers, and inline oil viscosity measurement instruments provide real-time tracking of fluid properties—even under high pressure, high temperature (HPHT), and variable salinity environments.
Inline, continuous measurement enables detection of changes in polymer rheology during storage, mixing, transport, and injection. These systems immediately reveal degradation, contamination, or dilution events that could compromise polymer flooding field applications. For example, downhole vibrating-wire sensors deliver live viscosity profiles, supporting dynamic control over injection parameters to match in-situ reservoir needs.
Operators harness this real-time feedback to make precise dosing adjustments—modifying polymer concentration, injection rate, or even switching polymer types if necessary. Advanced nanocomposite polymers, such as HPAM-SiO₂, show increased viscosity stability, and instruments reliably confirm their performance over conventional HPAMs, especially when sweep efficiency in oil reservoirs is prioritized.
Smart fluid systems and digital control platforms integrate viscosity measurement for enhanced oil recovery polymers directly into offshore skids or control rooms. This enables real-time, simulation-based optimization of injection programs and rapid mitigation of problems like injectivity loss or uneven sweep.
Safe and Effective Deployment Practices for Offshore and Deepwater
Deploying chemical enhanced oil recovery techniques offshore involves unique operational and safety demands. Modular skid systems are the preferred approach, offering flexible, pre-fabricated process units that can be installed and expanded as the field evolves. These reduce installation complexity, downtime, and costs while improving deployment control and on-site safety.
Encapsulated polymer technologies strengthen safe and effective injection. Polymers enveloped in protective coatings resist environmental degradation, mechanical shear, and premature hydration until exposure to reservoir fluids. This targeted delivery reduces loss, ensures full performance at the point of contact, and minimizes the risk of injectivity impairment.
Solutions must also be checked for compatibility with existing subsea infrastructure. This includes using oil viscosity testing equipment on-site to verify the specification before introducing fluids into the system. Typical deployment also incorporates Polymer-Alternating-Water (PAW) injection techniques, which enhance mobility control and sweep in heterogeneous or compartmentalized deepwater reservoirs.
Strict adherence to offshore safety protocols is needed at each step: handling of concentrated chemical stocks, mixing operations, quality testing, system cleaning, and emergency response planning. Continuous polyacrylamide solution viscosity measurement—with redundancy and alarm features—ensures deviations are caught before they escalate into health, safety, or environmental incidents.
Well placement optimization algorithms help guide infill strategies, improving oil recovery and minimizing polymer consumption. These algorithm-driven decisions balance technical performance with environmental and economic considerations, supporting sustainable offshore EOR operations.
Deepwater polymer flooding relies on end-to-end controls: from systematic preparation with calibrated mixing and dosing, through rigorous inline monitoring and real-time adjustment, to modular, encapsulated, and safe offshore injection practices. Each element ensures deployment reliability, targets enhanced oil recovery, and aligns with increasingly stringent environmental standards.
Integrating Viscosity Measurements into Field Operations for Optimal EOR
Workflow for Integrating Inline Viscosity Monitoring into Field Processes
Integrating inline viscosity measurement into polymer flooding enhanced oil recovery (EOR) in deepwater oil and gas exploration transforms field workflows from intermittent manual sampling to automated, continuous feedback. A robust workflow includes:
- Sensor Selection and Installation: Choose inline oil viscosity measurement instruments that match the operational demands. Technologies include piezoelectric-driven vibrating sensors, online rotational Couette viscometers, and acoustic rheology sensors, each suited to the viscoelastic and often non-Newtonian behavior of polyacrylamide solutions used in EOR.
- Calibration and Baseline Establishment: Calibrate sensors using advanced rheological protocols, applying both linear-elastic and viscoelastic calibrations to ensure accuracy across changing reservoir and chemical conditions. Tensorial data from tensile and DMA calibrations often leads to more reliable results, crucial in the variable context of deepwater oil and gas field development.
- Automated Data Acquisition and Aggregation: Configure instruments for real-time data collection. Integrate with field SCADA or DCS systems so viscosity data is aggregated alongside critical operational metrics. Inline calibration routines and automated baseline updating reduce drift and enhance robustness.
- Continuous Feedback Loops: Use real-time viscosity data to dynamically adjust polymer dosing, water-to-polymer ratios, and injection rates. Machine learning or AI-enabled analytics further optimize chemical usage and sweep efficiency in oil reservoirs, supporting field personnel with actionable recommendations.
Example: In a deepwater EOR project, replacing lab-based tests with inline piezoelectric sensors coupled with virtual viscosity meters led to rapid detection and correction of viscosity excursions, reducing polymer wastage and improving sweep efficiency.
Data Management and Interpretation for Decision Support
Field operations increasingly rely on real-time, data-driven decision-making for polymer flooding field applications. Integration of viscosity measurement for enhanced oil recovery polymers entails:
- Centralized Data Platforms: Real-time viscosity data streams into centralized data lakes or cloud systems, facilitating cross-domain analysis and secure archival. Automated data validation and outlier detection improve reliability.
- Alarm and Exception Handling: Automated alerts notify operators and engineers about viscosity deviations from target setpoints, enabling swift response to issues such as polymer degradation or unexpected fluid mixing.
- Visualization and Reporting: Dashboards display viscosity profiles, trends, and deviations in real time, supporting effective sweep efficiency control and rapid troubleshooting.
- Integration with Production Optimization: Viscosity data, when paired with production rates and pressure readings, guides dynamic adjustment of polymer concentrations and injection strategies to maximize oil recovery yield .
Embedding viscosity analytics and instrumentation into daily routines strengthens the foundation of polymer flooding EOR—enabling field operators to proactively control sweep efficiency, respond to process deviations, and deliver reliable, cost-effective oil recovery in the demanding context of deepwater oil and gas operations.
Frequently Asked Questions (FAQs)
1. Why is polyacrylamide solution viscosity important in polymer flooding for enhanced oil recovery?
Polyacrylamide solution viscosity directly controls the mobility ratio between the injected water and resident oil during polymer flooding. A higher solution viscosity reduces the mobility of the injected water, leading to better sweep efficiency and lower water channeling. This enables the polymer solution to displace trapped oil more effectively, leading to increased oil recovery in deepwater oil and gas fields. The improved viscosity also mitigates premature water breakthrough and enhances the oil displacement front, which are key for maximizing production using chemical enhanced oil recovery techniques. Research confirms that maintaining elevated polyacrylamide viscosity is essential for efficient sweep and successful field applications in polymer flooding enhanced oil recovery.
2. What are the key factors that influence polymer solution viscosity during EOR operations?
Several operational and reservoir-related factors impact polymer solution viscosity:
- Salinity: Elevated salinity, especially with divalent cations like calcium and magnesium, can reduce polyacrylamide viscosity. Solutions must be formulated to remain stable under reservoir water conditions.
- Temperature: Higher reservoir temperatures typically decrease solution viscosity and can accelerate polymer degradation. Thermally stable polymers or additives may be needed for deepwater or high-temperature fields.
- Shear Rate: Shear from pumps, pipes, or porous media can cause viscosity loss via mechanical degradation. Shear-thinning polymers are favored due to their resilience in high-velocity zones.
- Polymer Concentration: Increasing polymer concentration boosts solution viscosity, improving sweep but may increase injectivity challenges or cost.
- Impurities: Presence of oil, suspended solids, and microorganisms can degrade polymer and reduce viscosity.
Integration of nanoparticles as additives (e.g., SiO₂) has shown promise in enhancing viscosity and stability, especially under harsh salinity and temperature conditions, but aggregation risks must be managed.
3. How does inline viscosity measurement improve polymer flooding efficiency?
Inline viscosity measurement provides continuous, real-time data on the polymer solution as it’s prepared and injected. This offers several benefits:
- Immediate Feedback: Operators can detect viscosity shifts instantly and make on-the-fly adjustments to polymer concentration or injection parameters.
- Quality Assurance: Ensures each polymer batch meets target viscosity, maintaining process consistency and reducing waste.
- Operational Efficiency: Minimizes downtime, as deviations do not need to wait for slow laboratory results. Real-time control supports automation, reducing labor costs and improving EOR project economics.
- Sweep Efficiency Optimization: By maintaining optimal viscosity throughout injection, inline measurement maximizes sweep efficiency and oil displacement effectiveness, especially in challenging deepwater oil and gas environments.
4. What types of instruments are used for oil viscosity measurement during EOR?
Multiple types of oil viscosity testing equipment are utilized throughout enhanced oil recovery operations:
- Inline Viscometers: Provide real-time, continuous measurement directly in the process stream. They are robust and suitable for integration into automated control systems.
- Rotational Viscometers: Devices like the Fann-35 or rheometers use a rotating spindle to gauge fluid viscosity. These are common for both laboratory and on-site batch sampling.
- Marsh Funnels and Vibrating Wire Viscometers: Simple, portable field instruments offering rapid, if less precise, viscosity assessments.
- High-Performance Testing: Advanced oil viscosity measuring instruments with machine learning prediction, mathematical modeling, or temperature/pressure compensation are increasingly applied, especially in digital oilfield development and for continuous polymer flooding operations.
Instrument selection balances need for accuracy, field ruggedness, cost, and data integration into operations.
5. How does optimizing sweep efficiency contribute to oil recovery in deepwater fields?
Sweep efficiency refers to the proportion of the oil reservoir contacted and displaced by the injected fluids. In deepwater oil and gas field development, heterogeneity, high mobility ratios, and channeling reduce sweep efficiency and leave significant oil bypassed.
Optimizing sweep efficiency through viscosity management ensures:
- Wider Contact: A more viscous polymer solution spreads the flood front, reducing channeling and fingering.
- Less Bypassed Oil: Improved conformance ensures previously unswept zones are contacted by the injected fluids.
- Enhanced Recovery Factor: More effective displacement translates to higher cumulative oil production.
Post time: Nov-07-2025
