Viscosity is pivotal in the antibiotic powder production process. During mixing, high viscosity solutions challenge agitation speed optimization, potentially causing poor dispersion and uneven solute distribution. In crystallization, increased viscosity can slow nucleation and growth rates, leading to larger crystals and impacting final powder uniformity. For drying—especially lyophilization—high-viscosity solutions affect mass and heat transfer rates, influencing the drying kinetics and residual moisture content. Direct, continuous feedback is vital for pharmaceutical viscosity control, minimizing off-specification batches and maximizing product quality and patient safety.
Accurate viscosity measurement ensures downstream pharmaceutical PAT applications remain robust, supporting quality assurance during reconstituting lyophilized powder and other critical production steps.
Overview of Antibiotic Powder Production and Lyophilization
Antibiotic powders, especially in the form of lyophilized products, are essential for producing injectable medications, reconstituted suspensions, and formulations with extended shelf lives. Lyophilized antibiotic powder benefits include improved chemical stability and protection against hydrolysis, enabling long-term storage and reducing transportation limitations in the pharmaceutical supply chain. End-users, such as hospitals and clinics, rely on these powders for efficient and safe preparation of injectable antibiotics—known as lyophilized powder injection and lyophilized powder reconstitution—right before administration to patients.

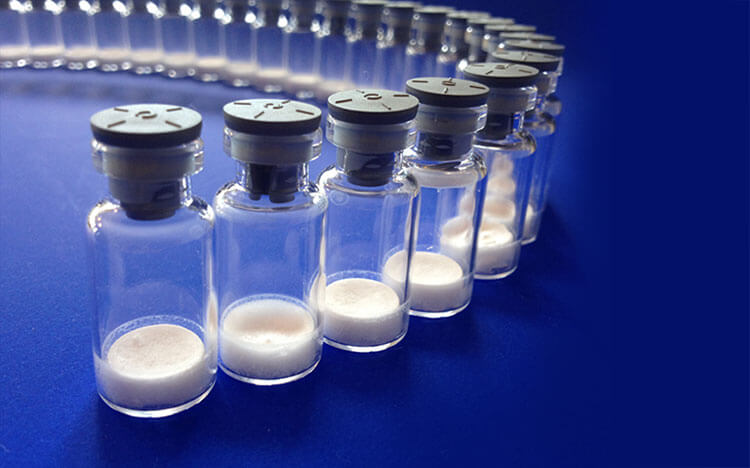

Lyophilization Powder Injectable Powder Production Line
*
Key Steps in the Antibiotic Powder Manufacturing Process
Solution Preparation
The initial stage involves dissolving active pharmaceutical ingredients (APIs) and excipients into highly controlled solutions. This phase demands precise temperature, concentration, and pH control. Agitation speed in pharmaceutical mixing is a critical variable; improper speed can lead to poor dissolution, uneven dispersion, or unwanted crystallization. Optimization of agitation speed ensures homogeneity and prevents aggregation, influencing downstream product quality.
Sterilization
After solution preparation, sterilization eliminates microbial contaminants. This step often employs filtration, heat, or chemical methods. Maintaining solution viscosity within optimal ranges is vital; higher viscosity may impede filtration or lead to incomplete sterilization. Pharmaceutical viscosity control, often supported by online viscometer systems, mitigates risks by ensuring process reliability and regulatory compliance.
Lyophilization (Freeze-Drying) for Powder Formation
Lyophilization is critical for producing stable, reconstitutable antibiotic powders. The process has three phases:
- Freezing: The solution is cooled, forming ice crystals. Control of solution viscosity affects ice crystal morphology and distribution, which in turn impacts drying rate and final product structure.
- Primary Drying (Sublimation): Ice is removed by transitioning directly from solid to vapor under reduced pressure. Mass transfer rates depend on viscosity and product temperature.
- Secondary Drying: Removes remaining bound water. Precise monitoring—such as temperature-based state observers or real-time viscosity monitoring—yields consistent product stability and reconstitution performance.
Changes in the drug crystallization process during these steps directly affect the powder’s physical properties, including reconstitution time, flowability for filling, and ease of mixing during clinical preparation. Drug crystallization control methods—using process analytical technology (PAT) tools—help tune particle size, morphology, and stability.
Process Control Challenges and the Role of Viscosity Measurement
Process control challenges emerge throughout the antibiotic powder manufacturing steps. Real-time monitoring using process analytical technology in the pharmaceutical industry aims to reduce variability, ensure product consistency, and meet stringent regulatory standards. Online viscosity measurement equipment, such as in-process viscometers, provides actionable in-process data. These solutions:
- Enable immediate adjustment of agitation speed optimization in mixers.
- Prevent aggregation during solution prep and drying.
- Support precise control over drug crystallization and powder formation.
- Enhance reproducibility in lyophilized antibiotic powder manufacturing.
Lyophilized Antibiotic Powders: Process Stages
A. Freezing Stage
The freezing stage sets the foundation for high-quality lyophilized antibiotic powder. Its primary objective is to solidify the solution under controlled conditions, shaping the ice crystal morphology and cake structure. Typical process parameters include cooling rates, shelf/cooling temperature, chamber pressure, and the timing of ice nucleation.
Controlled ice nucleation methods, such as vacuum-induced surface freezing, improve reproducibility and lead to uniform ice crystal formation. These techniques facilitate better product appearance and reconstitution, especially compared to traditional or annealed approaches. For instance, controlling ice nucleation yields larger, more uniform crystals, which lower dry layer resistance and enable efficient sublimation in the following drying phase.
The product composition, especially excipients like sucrose and mannitol, dramatically impacts freezing outcomes. Sucrose supports an amorphous structure, maintaining protein integrity, while mannitol tends to crystallize, which, depending on its interaction with buffers, may alter the cake’s stability and reconstitution properties. Lower cooling rates allow ice to form at higher temperatures, resulting in larger and more consistent crystals—a desirable trait for efficient drying. In contrast, rapid cooling fosters smaller crystals, increasing resistance and drying time.
Excipient choice and optimized freezing parameters are essential for batch consistency, reduced variability, and effective downstream processing in antibiotic powder manufacturing. Recent mechanistic models simulate freezing behaviors, predicting temperature profiles and crystal formation patterns, streamlining continuous manufacturing and real-time process analytical technology integration for pharmaceutical PAT applications.
B. Primary Drying Phase
The primary drying phase removes unbound water from the frozen antibiotic powder via sublimation under vacuum conditions. The process pivots on controlling temperature, chamber pressure, and advancing the sublimation front through the cake. Efficient removal of solvent preserves the structural integrity and potency of the lyophilized antibiotic powder.
Key parameters include shelf temperature, product temperature, and system pressure. Maintaining the right balance prevents cake collapse or excessive resistance, both detrimental to lyophilized powder injection and reconstitution. Mechanistic models help simulate product temperature and sublimation progression, while uncertainty analysis enables robust control and adapts to batch variation.
Crystallization phenomena also shape primary drying efficiency. For example, excipients such as mannitol behave as bulking agents, promoting crystallinity and enhancing cake structure, while amorphous excipients like sucrose maintain protein stability. Adjustments in freezing and annealing cycles influence drying rates—controlled ice nucleation expedites drying up to 30% faster with superior cake appearance than prolonged annealing, which increases resistance and can cause unwanted shrinkage or cracking.
Process analytical technology benefits are evident in real-time monitoring: temperature measurements, combined with mechanistic knowledge, allow operators to pinpoint the endpoint of sublimation, while transfer resistance coefficients offer another predictive layer. These tools support pharmaceutical viscosity control and online viscosity measurement, crucial for consistent antibiotic powder quality and compliance with process analytical technology in the pharmaceutical industry.
C. Secondary Drying Phase
Secondary drying aims to eliminate bound water, reducing the residual moisture content to levels that ensure long-term stability of lyophilized antibiotic powders. This phase relies on desorption, employing increased shelf temperatures under continued vacuum after the primary phase.
Final moisture control is critical: excessive bound water threatens product stability, reducing shelf-life and the effectiveness of reconstituted lyophilized powder injection. Techniques include state observer approaches, combining temperature measurements and process modeling for real-time moisture estimation. These methods avoid direct concentration measurements, streamlining monitoring and allowing rapid, precise process adjustment.
Advanced models incorporating polynomial chaos theory quantify uncertainty in moisture removal, guiding stochastic optimization of temperature, pressure, and drying duration. Mixed-index differential-algebraic algorithms yield real-time optimal control solutions, enabling quick adjustment and reliable phase transition management. These technologies ensure the desired pharmaceutical PAT applications are met and that antibiotic powder manufacturing steps produce powders with consistent, safe moisture content.
Efficient secondary drying supports the stability and potency of lyophilized antibiotic powder, making it ideal for storage, transport, and reconstituting lyophilized powder for therapeutic use. Recent improvements in process control and online viscosity measurement equipment enhance both operational reliability and product quality, meeting current regulatory and pharmaceutical standards for antibiotic powder production processes.
Process Analytical Technology for Viscosity Measurement
Real-time monitoring of physical properties, such as viscosity, is increasingly essential in pharmaceutical PAT applications. Online viscosity measurement ensures optimal mixing, dispersion, crystallization, and reconstitution performance for lyophilized antibiotic powders. Integration of online viscosity measurement equipment—such as viscometers, microfluidic chips, and machine learning-enabled computer vision systems—enables continuous oversight and rapid process correction.
These online viscometers facilitate real-time viscosity monitoring and feedback control, working alongside agitation speed optimization and particle size analysis to regulate pharmaceutical mixing and crystallization dynamics. Synchronizing these measurements with Model Predictive Control (MPC) or PID controllers ensures tight management of blend consistency, API dispensing, and product homogeneity throughout the antibiotic powder manufacturing process.
Online Viscosity Measurement: Principles and Equipment
Fundamentals of Viscosity in Antibiotic Solution Processing
These viscosity-driven phenomena impact key product attributes. Uniform mixing and optimized agitation speed control ensure consistent starting solutions, which reduce batch variability. In drug crystallization, controlling viscosity helps achieve the target crystal size and shape, improving filterability, dissolution rate, and powder quality. During drying, precise viscosity management enhances the physicochemical stability of lyophilized antibiotic powder, minimizing aggregation, fogging, and other defects affecting reconstitution performance and shelf life.
Online Viscometer Technology
Online viscometers are instruments that provide continuous, real-time viscosity measurement, directly integrated into manufacturing lines. Their operating principle involves extracting rheological data via flow, vibration, or pressure differentials without interrupting the process. This is critical for monitoring dynamic viscosity changes throughout all antibiotic powder manufacturing steps.
Equipment choices for pharmaceutical applications include:
- Kinematic Capillary Viscometers: Automated systems measure liquid flow through narrow tubes, delivering high precision and reproducibility.
- Microfluidic Rheology Devices: These measure viscosity using small sample volumes, ideal for gels or concentrated drug solutions.
- Vibrational Inline Viscometers: These monitor viscosity via oscillating probes or tuning fork sensors, offering on-the-fly feedback.
- Machine Learning-Enabled Systems: These innovative devices estimate viscosity from visual cues, like video recordings, and offer rapid screening during formulation development.
Key specifications include measurement range, accuracy, sample volume, chemical compatibility, temperature control, and aseptic design. For lyophilized powder injection and antibiotic powder production, devices must withstand corrosive media, enable frequent cleaning, and deliver robust data integration for process analytical technology (PAT) frameworks.
Benefits of Viscometer Online Integration
Integrating online viscometers within process analytical technology brings decisive advantages:
- Continuous Data for Process Control: Real-time viscosity monitoring allows immediate adjustments to mixing, agitation speed, crystallization, and drying parameters, ensuring consistent pharmaceutical viscosity control.
- Early Deviation Detection: The system identifies deviations in solution or slurry properties instantly, facilitating rapid intervention before material, energy, or quality losses occur.
- Operational Efficiency: Inline feedback reduces downtime, batch variability, and regulatory non-compliance, with direct cost savings and improved manufacturing yield.
- Regulatory and Safety Assurance: Continuous monitoring supports pharmaceutical industry requirements for robust quality assurance and risk mitigation, especially crucial in continuous manufacturing environments.

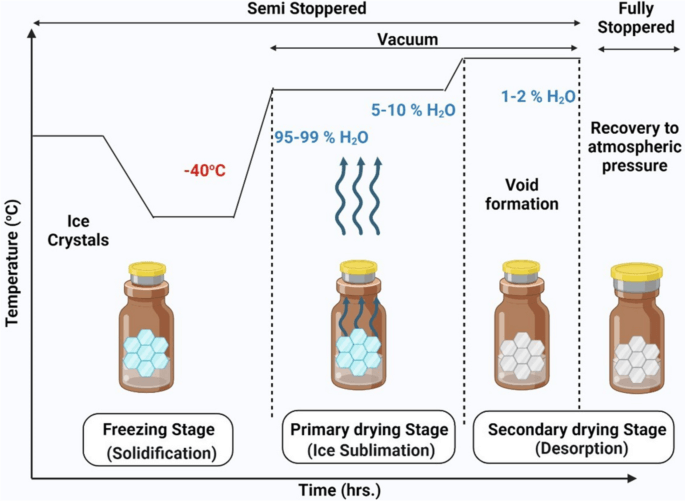

Viscosity Trends During Lyophilization Cycle
Viscosity behaviors change during each stage of the lyophilization cycle:
- Solution Preparation: Viscosity depends on solvent concentration, excipients, and temperature. High values may cause mixing problems and initial aggregation.
- Pre-Freeze and Annealing: Structural modifications affect solution rheology, and additional holding steps may stabilize viscosity.
- Crystallization: Drug crystallization process control methods are informed by online data. Viscosity influences nucleation, crystal growth, and overall microstructure.
- Primary and Secondary Drying: As water content decreases, viscosity spikes can signal critical process endpoints—essential for agitation speed control in mixers and ensuring optimal powder properties.
Online viscosity measurement equipment empowers active control over these stages. For example, monitoring viscosity helps reduce vial fogging, improve lyophilized powder reconstitution kinetics, and minimize aggregation in final products such as liposomal antibiotics. Real-time trends enable rapid response to unexpected changes in drying or crystallization behaviors, enhancing product uniformity and final strength.
By integrating viscometer online technologies, manufacturers achieve tighter control over all antibiotic powder manufacturing steps, from formulation to final lyophilized antibiotic powder benefits, supporting next-generation pharmaceutical PAT applications.

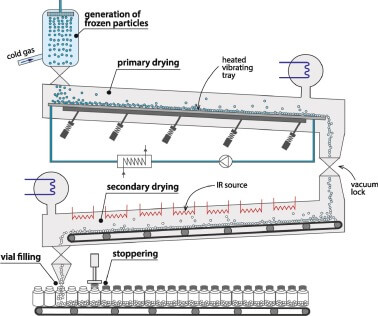

Continuous Manufacturing in lyophilization
*
Agitation Speed Control and Its Effects
The Importance of Agitation Speed in Mixers
Controlling agitation speed in pharmaceutical mixers directly impacts solution homogeneity and powder consistency. Uniform mixing ensures the active pharmaceutical ingredient (API) is evenly distributed within lyophilized antibiotic powder, critical for dosing accuracy and therapeutic efficacy. Studies using V-type mixers, vibratory mills, and 3-axis mixing devices show that higher agitation speeds generally improve content uniformity, compressibility, and tablet strength, while suboptimal speeds can cause poor blend flow or variable API dispersion. For example, increasing mixing speeds in vancomycin-loaded bone cement led to a 24% boost in cumulative antibiotic elution over 15 days, revealing statistical significance (P < 0.001) and optimizing drug release profiles.
Agitation speed also governs crystallization and dissolution behavior during antibiotic powder manufacturing steps. Optimal agitation accelerates crystal growth and mitigates diffusional limitations, but excessive rates can fragment crystals or promote undesired dissolution, impacting drug crystallization process reliability. For struvite and ammonium perchlorate crystal formation, speeds above 200 rpm decrease crystal size due to breakage and dissolution; below that, particle growth and yield are enhanced. Tuning agitation is necessary to balance nucleation, growth, and powder consistency, preventing agglomeration and ensuring powders meet quality specifications.
Integration with Viscosity Measurement and PAT
Agitation speed control is deeply intertwined with viscosity outcomes and process analytical technology (PAT) feedback loops. Changes in agitation affect suspension viscosity, which in turn influences mixing homogeneity and API stability. Automated mixing systems integrate online viscosity measurement equipment (e.g., rotational, vibrational, or capillary viscometers) with agitation controllers. Real-time viscosity monitoring enables closed-loop system adjustments to maintain optimal mixing regardless of batch-to-batch variability.
Pharmaceutical PAT applications use in-line viscometers to generate stable, repeatable viscosity data, supporting batch statistical process control (BSPC) and advanced diagnostics such as Partial Least Squares (PLS) analytics. Mixer speed, viscosity, and temperature data are fed into PAT systems to detect faults, trigger interventions, and optimize process parameters for target product profiles. For instance, proportional-integral-derivative (PID) controllers automatically adjust agitation and gas flow rates based on in-process viscosity and dissolved oxygen, stabilizing cell density and product yield in fermentation and synthesis stages. This integration translates to enhanced process robustness and compliance, reducing batch loss and regulatory risks.
Impact on Lyophilized Powder Reconstitution
Reconstituting lyophilized powder for injection, especially with high-concentration protein therapeutics, poses challenges of dissolution rate, homogeneity, and foam formation. Agitation speed plays a key role in achieving rapid, complete reconstitution. Studies show that increasing agitation—such as using prewarmed diluents and high-speed mixing in dual-chamber syringes—reduces reconstitution times for monoclonal antibodies and serum albumin. The solution’s viscosity, tied to protein concentration and composition, is the main determinant of reconstitution efficiency.
Careful control of both agitation and viscosity mitigates risks: excessive agitation may induce foaming, while insufficient speed can cause incomplete dissolution and uneven concentration. Real-time viscosity control using online viscometers ensures that the process stays within optimal parameters for rapid injection preparation. Optimized agitation and controlled viscosity are reported to guarantee rapid, complete reconstitution of lyophilized powder for injection, with performance metrics such as time-to-completion and homogeneity improving across various container designs and biologic drug types.
The combined use of agitation speed control, online viscosity measurement, and closed-loop PAT feedback is integral to the reliability and efficiency of antibiotic powder manufacturing, from initial mixing to final reconstitution for patient use.

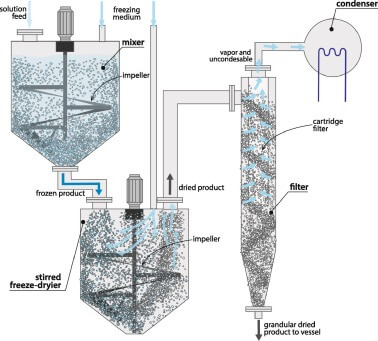

Agitation Speed Control in Mixers
*
Drug Crystallization and Powder Quality
Crystallization Mechanisms During Lyophilization
Crystallization during lyophilization is driven by nucleation and growth dynamics, which are affected by multiple formulation and process parameters. Critical factors influencing crystal nucleation include excipient selection, solute concentration, solvent composition, cooling rate, and agitation speed.
Excipient Roles in Crystallization:
- Compounds like glycine, alanine, serine, methionine, urea, and niacinamide can be added to aqueous antibiotic solutions to promote nucleation and control the transition to a more crystalline state.
- Excipients stabilize active pharmaceutical ingredients (APIs), support batch consistency, and optimize reconstitution and shelf life in lyophilized antibiotic powder production.
- Organic cosolvents—including ethanol, isopropanol, and tert-butyl alcohol—raise supersaturation during freezing, accelerating nucleation and crystal growth. Higher initial solute concentrations enhance this effect, demonstrated for antibiotics such as cephalothin sodium.
Process Control Techniques:
- Controlled annealing at subzero temperatures (e.g., -20 °C) promotes crystallization and polymorph selection (e.g., mannitol hemihydrate or δ form). Subsequent vacuum drying at elevated temperatures leads to transformation into stable crystalline phases, such as mannitol α crystal.
- In situ Raman spectroscopy and cryostage simulations allow direct monitoring of these phase transitions and crystal growth events.
Viscosity and Agitation Speed Influence:
- Solution viscosity is a key parameter; higher viscosity can slow nucleation, delay crystal growth, and impact final crystal size.
- Agitation speed controls micromixing, which can decrease nucleation induction time, encourage uniform crystal size, and accelerate growth rate. However, if agitation is excessive, crystals may fragment or develop lower aspect ratios.
- Agitation speed optimization is essential. For example, increased stirring in p-acetamidobenzoic acid and sodium thiosulfate experiments led to larger nuclei and mitigated unwanted aggregation without causing excessive fragmentation.
Integrated Real-Time Monitoring:
- Process Analytical Technology (PAT) is increasingly used to control these variables. PAT tools—such as online viscosity measurement equipment, intelligent laser speckle imaging, and temperature-based state observers—provide actionable data on nucleation, crystallization, and powder collapse events.
- Real-time feedback enables operators to refine agitation speed and viscosity parameters, reducing batch variability and ensuring reproducible powder quality.
Quality Implications for Antibiotic Powder and Lyophilized Powder Injection
Crystallization behavior during lyophilization directly determines several critical attributes of antibiotic powder formulations:
Particle Size and Dissolution:
- Enhanced control over nucleation and crystal growth yields powders with predictable particle size distributions. Smaller particles, resulting from controlled crystallization or techniques like cryo-milling, generally exhibit higher dissolution rates due to larger specific surface area.
- Fast dissolution is essential for reconstituting lyophilized powder prior to injection, ensuring rapid drug availability and consistent patient dosing.
- Amorphous forms may dissolve quicker but are less stable; crystalline forms achieve superior storage stability, though sometimes at the expense of dissolution rate.
Stability and Polymorphism:
- Maintaining the desired crystalline polymorph is vital. Lyophilization process steps—such as freezing rate, annealing, and choice of excipients—govern which polymorph prevails.
- Stable polymorphs improve product shelf life and storage, as in the case of tegoprazan, where environmental controls prevent formation of unstable polymorphs.
- Polymorphic transitions are closely linked to molecular mobility and excipient crystallinity. Higher crystallinity in excipients like mannitol and trehalose supports improved protein structure retention and reduced molecular mobility, benefiting overall powder stability.
Manufacturing and Regulatory Impact:
- The antibiotic powder production process relies on consistent crystalline form and particle size for downstream processing and regulatory compliance.
- Variability in crystallization can lead to batch failures, quality deviations, or slower drug release profiles.
- Advanced PAT applications such as real-time viscosity monitoring and online viscometry are used to ensure pharmaceutical viscosity control at each stage, supporting optimal mixing, nucleation, and powder recovery, which enhance lyophilized antibiotic powder benefits.
Examples and Evidence:
- Raman spectroscopy validates solid-state recrystallization events in etodolac and griseofulvin solid dispersions, correlating process control with improved dissolution and stability.
- Controlled crystallization via excipient and agitation speed optimization demonstrably impacts the quality of both powder and lyophilized powder injection products, aligning with recent findings: “Drug crystallization dynamics can drastically alter the performance of lyophilized antibiotic powders”.
Ultimately, rigorous control over crystallization mechanisms—through optimized formulation, agitation speed control in mixers, and leveraging pharmaceutical PAT applications—directly underpins the performance, stability, and efficacy of lyophilized antibiotic powders and their injectable forms.
Optimization and Control Strategies in Lyophilized Antibiotic Powder Production
Mechanistic Modeling for Process Design
Mechanistic models form the basis for understanding and optimizing the lyophilization stages crucial in antibiotic powder production. During freezing, these models describe how the product transitions from liquid to solid, tracking the position of the ice front and temperature changes throughout the mass. In primary drying, mechanistic models quantify mass and heat transfer as ice sublimes, helping define shelf temperature and chamber pressure profiles for maximizing drying efficiency and uniformity. For secondary drying, models predict the desorption of bound water, enabling fine-tuning to achieve target residual moisture—critical for long-term stability and quality of lyophilized antibiotic powder.
Polynomial Chaos Theory enhances mechanistic modeling by allowing uncertainty quantification. This approach models how variations in process parameters—such as agitation speed, ambient temperature, and equipment fluctuations—impact outcomes. For example, probabilistic frameworks have optimized agitation speed in mixers, balancing mixing homogeneity with avoiding excessive shear that could damage sensitive antibiotic molecules. Mechanistic modeling thus supports the design of robust, scalable processes for both batch and continuous lyophilization, guiding drug crystallization control methods and the selection of lyoprotectants to preserve product stability.
Real-Time Monitoring Algorithms
Temperature-based state observers allow real-time estimation of critical moisture parameters without manual sampling. Embedded sensors continuously record product and shelf temperatures, feeding data to algorithms that infer residual bound water content during secondary drying. These observers provide precision moisture tracking, support pharmaceutical viscosity control, and streamline the antibiotic powder manufacturing steps. For instance, LyoPAT™ technology and other process analytical technology (PAT) systems integrate temperature sensors for direct moisture estimation. Algorithms, such as Kalman filter fusion techniques, synthesize sensor data to maintain precise control over reconstituting lyophilized powder and drying endpoints, allowing tighter process regulation and reducing operator intervention.
By eliminating the need for manual concentration measurements, integrated sensors and online viscometers improve process repeatability and reliability. Real-time viscosity monitoring is especially vital when adjusting agitation speed in mixers, maintaining uniformity during phase transitions.
Simulation-Based Optimal Control Approaches
Optimal control for lyophilized antibiotic powder production combines mixed differential-algebraic equations and stochastic modeling. These methods simulate both discrete events (e.g., transitions between freezing, drying, reconstitution) and continuous dynamics. Fast, accurate solutions enable on-the-fly process fine-tuning, supported by high-efficiency solvers on standard computational hardware.
In practice, simulation-based control applies real-time data to adjust parameters such as shelf temperature, chamber pressure, and agitation speed. Algorithms leverage data-driven surrogate models and differentiable simulation, refining control policies to minimize drying time, maximize powder uniformity, and reduce variability. By accounting for process uncertainties through Polynomial Chaos Theory, these simulation strategies ensure robust drug crystallization control and consistent product quality.
Model predictive control frameworks use surrogate models, such as Koopman operators, to optimize for specific outcomes. Examples include minimizing in-process moisture variation or optimizing agitation speed for uniform mixing without excessive energy use.
PAT-Driven Feedback Mechanisms
Process Analytical Technology enables continuous feedback for highly reliable antibiotic powder production. Sensors throughout the system deliver real-time viscosity, temperature, and moisture data, which drive automated adjustments to agitation and drying parameters.
Wireless temperature sensors and TDLAS (Tunable Diode Laser Absorption Spectroscopy) tools enable immediate detection of supercooling or uneven ice nucleation, supporting controlled nucleation and drying. Smart freeze-dryer algorithms adapt system behavior to live process conditions, reducing batch-to-batch variability and improving repeatability across antibiotic powder manufacturing steps.
Online viscosity measurement equipment and viscometer online platforms maintain agitation speed optimization, ensuring powder uniformity and controlling pharmaceutical mixing effects. PAT-driven systems promote dynamic response, minimizing risk during critical transitions and enhancing the benefits of lyophilized antibiotic powder by assured quality and reliability.
Examples include automated agitation speed control in mixers, which react in real-time to measured viscosity changes, preserving uniformity and preventing over-drying. Integrated PAT solutions guarantee compliance and product consistency by supporting direct, actionable insights throughout each step.
Frequently Asked Questions (FAQs)
1. What is lyophilized antibiotic powder and why is it preferred for injection purposes?
Lyophilized antibiotic powder is a freeze-dried drug product. During lyophilization, water is removed under vacuum, producing a dry powder cake that is stable for extended periods. This process increases the shelf-life of antibiotics and supports efficient stockpiling, which is vital for public health and emergency situations. Lyophilized powder injection is favored because it minimizes hydrolytic degradation and microbial growth, thereby maintaining drug potency, sterility, and safety. Additionally, the physical stability and reduced transport bulk allow easier storage and logistics, even in settings without cold chain infrastructure. When ready for use, reconstituting lyophilized powder with a suitable diluent delivers rapid drug preparation for injection, maintaining efficacy and quality throughout the product lifecycle.
2. How does controlling agitation speed benefit the antibiotic powder production process?
Control over agitation speed in mixers is essential in the antibiotic powder manufacturing steps. Proper settings secure uniform mixing, optimal particle formation, and prevent agglomeration during crystallization. For example, stirring at speeds around 500 rpm in anti-solvent crystallization improves physical stability and filtration rates by managing crystal size distribution. Adjusting agitation speed tunes crystal morphology, which directly impacts the powder’s solubility and reconstitution performance. Not all compounds respond identically, however; phase-specific characteristics may require tailored optimization of agitation speed and related process variables.
3. What is online viscosity measurement and why is it important in the pharmaceutical industry?
Online viscosity measurement uses specialized equipment—such as viscometers online or real-time viscosity monitoring sensors—to continuously track the viscosity of pharmaceutical solutions during production. Unlike traditional, manual methods, online viscosity measurement equipment provides immediate feedback for pharmaceutical viscosity control. This technology facilitates improved drug crystallization process control, better mixing, and consistent drying outcomes. It benefits pharmaceutical manufacturing by enabling rapid adjustments, reducing defects, and enhancing batch-to-batch uniformity in product quality.
4. How does process analytical technology (PAT) enhance lyophilized powder production?
Process analytical technology (PAT) in the pharmaceutical industry incorporates tools like temperature probes, moisture sensors, and online viscosity measurement systems to monitor critical process parameters in real time. PAT’s integration optimizes lyophilized antibiotic powder quality by enabling precise process control, reducing variability, and increasing process robustness. With PAT, manufacturers can dynamically adjust process conditions and continuously verify compliance with regulations, lowering the risk of batch rejects and improving lyophilized powder uniformity. PAT-driven optimization particularly benefits complex operations such as freeze-drying (lyophilization), where subtle changes in nucleation or drying rate can affect product outcome.
5. Can online viscometers help detect issues in the antibiotic powder production process?
Online viscometers are instrumental in identifying process disturbances—or even subtle quality deviations—during the production of lyophilized antibiotic powder. They instantly detect abnormal viscosity changes during processes like mixing, crystallization, or drying, which are early indicators of potential defects. Operators can intervene based on this real-time feedback, reducing the likelihood of producing out-of-specification material. Advanced viscometer online platforms, including machine learning-driven tools, can screen for viscosity in non-Newtonian solutions and support automated, high-throughput quality control. Furthermore, integration with computer vision systems enables structural defect assessment, pinpointing surface and topology flaws that compromise reconstitution and product stability.
