Online Density Measurement of Leach Slurry in Copper Hydrometallurgy

Optimization of Solid-Liquid Separation (Thickening and Filtration)

Density measurement is indispensable for maximizing both throughput and water recovery in solid-liquid separation units, particularly thickeners and filters.

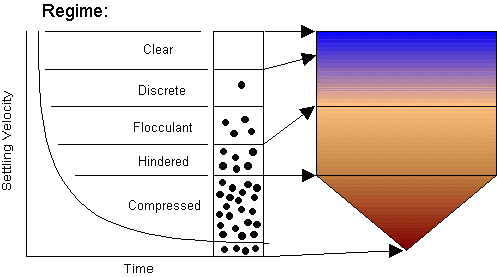

Density Control in Thickener Underflow: Preventing Over-Torque and Plugging

The primary control objective in thickening is to achieve a stable, high underflow density (UFD), frequently targeting solids content in excess of 60%. Achieving this stability is vital not only for maximizing water recycling back into the copper hydrometallurgy process but also for delivering a consistent mass flow to downstream operations. The risk, however, is rheological: increasing UFD rapidly elevates the slurry's yield stress. Without accurate, real-time density feedback, attempts to reach the density target through aggressive pumping can push the slurry past its plastic limit, resulting in excessive rake torque, potential mechanical failure, and critical pipeline blockages. The implementation of Model Predictive Control (MPC) utilizing real-time UFD measurement enables dynamic adjustment of underflow pump speed, leading to documented results, including a 65% reduction in the need for re-circulation and a 24% decrease in density variation.

A crucial understanding is the interdependence of UFD and Solvent Extraction (SX) performance. The thickener underflow often represents the Pregnant Leach Solution (PLS) feed stream, which is subsequently sent to the SX circuit. Instability in UFD means inconsistent entrainment of fine solids in the PLS. Solids entrainment directly destabilizes the complex SX mass transfer process, causing crud formation, poor phase separation, and costly extractant loss. Therefore, stabilizing density in the thickener is recognized as a necessary pre-conditioning step for maintaining the high-purity feed required by the SX circuit, ultimately preserving final cathode quality.

Enhancing Filtration and Dewatering Efficiency

Filtration systems, such as vacuum or pressure filters, operate at peak efficiency only when the feed density is highly consistent. Fluctuations in solids content cause inconsistent filter cake formation, premature media blinding, and variable cake moisture content, demanding frequent wash cycles. Studies confirm that filtration performance is acutely sensitive to solids content. Systematic process stabilization achieved through continuous density monitoring leads to improved filtration efficiency and sustainability metrics, including reductions in water consumption associated with filter washing and minimal costs associated with downtime.

Reagent Management and Cost Reduction in the Copper Leaching Process

Reagent optimization, facilitated by dynamic PD control, provides immediate and quantifiable reductions in operational costs.

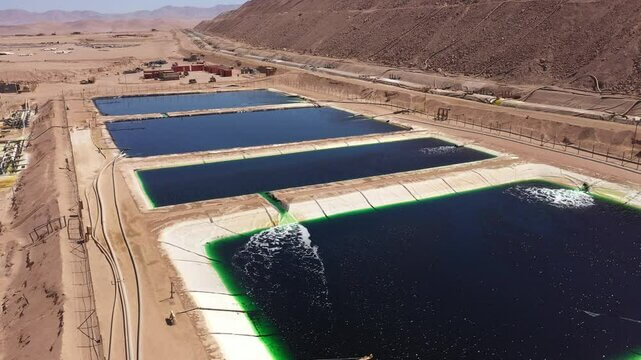

Precision Control of Acid Concentration in Copper Heap Leaching Process

In both agitated leaching and the copper heap leaching process, maintaining the precise chemical concentration of leaching agents (e.g., sulfuric acid, iron oxidizing agents) is essential for efficient mineral dissolution kinetics. For concentrated reagent streams, inline density meters provide a highly precise, temperature-compensated measurement of concentration. This capability allows the control system to dynamically meter the exact stoichiometric quantity of reagent required. This advanced approach moves beyond conventional, conservative flow-proportional dosing, which inevitably results in chemical overuse and elevated OpEx. The financial implication is clear: the profitability of a hydrometallurgical plant is highly sensitive to variations in process efficiency and the cost of raw materials, underscoring the necessity of density-enabled precise dosing.

Flocculant Optimization through Solids Concentration Feedback

Flocculant consumption is a substantial variable cost in solid-liquid separation. The chemical's optimal dosage is directly dependent on the instantaneous mass of solids that need to be aggregated. By continuously measuring the feed stream density, the control system calculates the instantaneous mass flow of solids. Flocculant injection is then dynamically adjusted as a proportional ratio to the solids mass, ensuring that optimal flocculation is achieved regardless of variability in feed throughput or ore grade. This prevents both under-dosage (leading to poor settling) and over-dosage (wasting expensive chemicals). Implementation of stable density control through MPC has yielded measurable financial returns, with documented savings including a 9.32% reduction in flocculant consumption and a corresponding 6.55% reduction in lime consumption (used for pH control). Given that leaching and related adsorption/elution costs can contribute approximately 6% to total operational expenditure, these savings directly and substantially enhance profitability.

Table 2: Critical Process Control Points and Density Optimization Metrics in Copper Hydrometallurgy

Process Unit	Density Measurement Point	Controlled Variable	Optimization Goal	Key Performance Indicator (KPI)	Demonstrated Savings
Copper Leaching Process	Leaching Reactors (Pulp Density)	Solid/Liquid Ratio (PD)	Optimize reaction kinetics; maximize extraction	Copper recovery rate; Specific reagent consumption (kg/t Cu)	Up to 44% Leaching Rate increase by maintaining optimal PD
Solid-Liquid Separation (Thickeners)	Underflow Discharge	Underflow Density (UFD) & Mass Flow	Maximize water recovery; stabilize feed to downstream SX/EW	UFD % Solids; Water Recycle Rate; Rake Torque Stability	Flocculant consumption reduced by 9.32%; UFD variation reduced by 24%
Reagent Preparation	Acid/Solvent Makeup	Concentration (%w or g/L)	Precise dosing; minimize chemical overuse	Reagent Overdosing %; Solution Chemistry Stability	Reduction in chemical OpEx through dynamic ratio control
Dewatering/Filtration	Filter Feed Density	Solids Load to Filter	Stabilize throughput; minimize maintenance	Filter Cycle Time; Cake Moisture Content; Filtration Efficiency	Minimized costs associated with filter washing and downtime

Reaction Kinetics and Endpoint Monitoring

Density feedback is indispensable for maintaining the precise stoichiometric conditions necessary to drive efficient metal dissolution and conversion throughout the copper hydrometallurgy process.

Real-Time Monitoring of Pulp Density (PD) and Leach Kinetics

The solid-liquid ratio (PD) is fundamentally linked to the concentration of dissolved metal species and the consumption rate of the dissolving agent. Precise control of this ratio ensures sufficient contact between the lixiviant and the mineral surface. Operational data strongly suggest that PD is a critical control lever, not merely a monitoring parameter. Deviations from the optimal ratio have profound consequences for extraction yield. For instance, in laboratory settings, failing to maintain an optimal solid-liquid ratio of 0.05g/mL resulted in a sharp drop in copper recovery from 99.47% to 55.30%.

Implementing Advanced Control Strategies

Density is employed as a primary state variable in the Model Predictive Control (MPC) of leaching and separation circuits. MPC is well-suited for the process dynamics of the hydrometallurgy of copper, as it effectively handles long time delays and the non-linear interactions inherent in the slurry system. This ensures that flow rates and reagent additions are continuously optimized based on the real-time PD feedback. While density-derived concentration measurement is common in general chemical processes, its application extends to specialized hydrometallurgical steps, such as monitoring the preparation of solvent extraction feeds to ensure reactions reach optimal conversion rates, thereby maximizing metal yield and purity.

Equipment Protection and Rheological Management

Online density data provides essential input for predictive maintenance systems, strategically converting potential equipment failures into manageable process variations.

Controlling Slurry Rheology and Viscosity

Slurry density is the dominant physical variable influencing the slurry's internal friction (viscosity) and yield stress. Uncontrolled density excursions, particularly rapid increases, can transition the slurry into a highly non-Newtonian flow regime. By continuously monitoring density, process engineers can anticipate imminent rheological instability (such as approaching pump yield stress limits) and proactively engage dilution water or modulate pump speeds. This preemptive control prevents costly events such as pipe scaling, cavitation, and catastrophic pump plugging.

Minimizing Erosive Wear

The true financial benefit of stable density control often lies not in marginal reagent savings, but in the substantial reduction of unscheduled downtime resulting from component failure. Slurry pump maintenance and pipeline replacement, driven by severe erosive wear, constitute a major element of OpEx. Erosion is greatly accelerated by flow velocity instability, which is often caused by density fluctuations. By stabilizing density, the control system can precisely regulate flow velocity to the critical transport velocity, effectively minimizing both sedimentation and excessive abrasion. The resulting extension of the Mean Time Between Failures (MTBF) for high-value mechanical equipment, and the avoidance of single-event component failure, dramatically outweighs the capital investment in the density meters themselves.

Implementation Strategy and Best Practices

A successful implementation plan requires meticulous selection, installation, and calibration procedures that specifically address the pervasive industrial challenges of corrosion and abrasion.

Selection Methodology: Matching Densitometer Technology to Slurry Characteristics

The selection methodology must be formally justified by documenting the severity of the slurry's characteristics (corrosion, particle size, viscosity, temperature). For high-solids, high-abrasion streams, such as tailings lines, the selection must prioritize non-intrusive, chemically inert options, such as radiometric devices. Although these sensors may have a slightly larger stated error band than high-end intrusive devices, their long-term reliability and independence from the medium’s physical properties are paramount. For highly acidic sections, specifying specialized materials, such as Nickel Alloys, over standard 316 SS for wetted components ensures resistance to severe erosion and significantly extends operational life.

Installation Best Practices: Ensuring Accuracy and Longevity in Aggressive Environments

Correct mechanical and electrical installation procedures are crucial for preventing signal corruption and ensuring the longevity of the instrument. Wetted sensors must be installed in piping sections that guarantee complete immersion and eliminate air entrapment. For applications involving viscous or sediment-prone liquids, installation guidelines explicitly recommend tank flanges or vertically oriented pipe runs to prevent settling or the formation of uneven density profiles around the sensor element. Electrically, proper isolation is mandatory: the densitometer casing must be effectively grounded, and shielded power lines should be utilized to mitigate electromagnetic interference from high-power equipment, such as large motors or variable frequency drives. Furthermore, the electrical compartment’s seal (O-ring) must be securely tightened after any maintenance to prevent moisture ingress and subsequent circuit failure.

Economic Assessment and Financial Justification

To gain approval for the implementation of advanced density control systems, a strategic assessment framework is required that rigorously translates technical benefits into quantifiable financial metrics.

Framework for Quantifying Economic Benefits of Advanced Density Control

A comprehensive economic assessment must evaluate both direct cost savings and indirect value drivers. OpEx reductions include quantifiable savings derived from dynamic reagent control, such as the documented 9.32% reduction in flocculant consumption. Savings in energy consumption result from optimized pump speed control and minimized recirculation requirements. Crucially, the economic value of extending the Mean Time Between Failures (MTBF) of high-wear components (pumps, pipes) must be calculated, providing a tangible value for stable rheological management. On the revenue side, the framework must quantify the incremental copper recovery achieved by sustaining optimal PD and reagent utilization.

Impact of Density Variability Reduction on Overall Plant Profitability

The ultimate financial metric for evaluating APC in copper hydrometallurgy is the reduction of process variability (σ) in critical density measurements. Profitability is profoundly sensitive to deviations from the desired operational set point (variance). For example, achieving a 24% reduction in density variability  translates directly into tighter process windows. This stability allows the plant to operate reliably closer to capacity constraints without triggering safety shutdowns or initiating control loop instabilities. This increased operational resilience represents a direct reduction of financial risk and operational uncertainty, which must be clearly valued within the NPV calculation.

Table 3: Economic Justification Framework for Advanced Density Control

Value Driver	Mechanism of Benefit	Impact on Plant Economics (Financial Metric)	Control Strategy Requirement
Reagent Efficiency	Real-time mass-based dosing of acid/flocculant.	Reduced OpEx (Direct material cost savings, e.g., 9.32% flocculant reduction).	Stable density feedback to flow ratio control loops (MPC).
Production Yield	Stabilization of optimal PD setpoint in reactors.	Increased Revenue (Higher Cu recovery, stabilized mass transfer).	Integrated density/concentration analysis for endpoint monitoring.
Plant Availability	Mitigation of rheological risk (clogging, high torque).	Reduced OpEx and CapEx (Lower maintenance, reduced unscheduled downtime).	Predictive control of pump speed based on UFD derived viscosity models.
Water Management	Maximization of thickener underflow density.	Reduced OpEx (Lower fresh water demand, higher water recycle rate).	Robust, non-intrusive density measurement technology selection.

The sustained profitability and environmental responsibility of modern copper hydrometallurgy operations are intrinsically linked to the reliability of online density measurement in leach slurries.

Intrusive technologies like the Vibrational or Coriolis meter may be reserved for specialized, non-abrasive applications where extreme concentration accuracy (e.g., reagent makeup) is paramount. Contact Lonnmeter and get professional recommendations on density meter selection.
