The global sugar production process, encompassing the refining of both sugarcane and sugar beet, is a complex chemical engineering feat centered on the efficient extraction and purification of sucrose. At the heart of this intricate operation lies the critical need for precise real-time process monitoring, and nothing is more fundamental to efficiency, quality, and cost control than online density measurement.
Sugar Production Process
The sucrose production process fundamentally involves concentrating dilute sugar juice into high-content slurry, followed by controlled crystallization. This transformation depends entirely on density control across two critical stages:
Step 1: Evaporation and Concentration
Following the initial pressing and clarification, the resulting sugar juice is a dilute solution (approx. 15%–20% sucrose) with a low density. This juice must be concentrated in multi-effect evaporators. As water is rapidly removed through heating, the liquid transforms into a concentrated sugar slurry with a significantly higher sucrose content (60%–70% concentration) and density.
Risk of Under-Concentration: Insufficient concentration (low density) means the evaporator is not working hard enough. Sending low-density liquor to the crystallizers increases the subsequent boiling time, leading to excessive steam consumption, a major component of the manufacturing cost.
Risk of Over-Concentration (Fouling): Conversely, if the density becomes too high, the slurry prematurely reaches supersaturation. This causes crystals to rapidly form and adhere to the evaporator tube walls, a phenomenon known as scaling or fouling. This clogging necessitates time-consuming and expensive shutdowns for cleaning, dramatically lowering plant efficiency.
Step 2: Pre-crystallization Adjustment and Boiling

The concentrated slurry is the feed material for the crystallization tanks, or vacuum pans. Before the complex process of boiling (crystal growth) begins, the liquor's density must be precisely adjusted to achieve the desired level of supersaturation, which dictates the final crystal characteristics.
Impact of Low Density (Insufficient Supersaturation): If the density is too low, the sucrose crystals will grow slowly, potentially dissolving back into the solution, or forming excessively small and non-uniform grains. This ultimately compromises the final product’s particle size distribution and affects purity.
Impact of High Density (Excessive Supersaturation): Excessive density results in too high a supersaturation. This causes crystals to grow too rapidly, leading to the undesirable outcome of occluding or encapsulating impurities (like color pigments) present in the mother liquor. The finished sugar, intended as high-purity white sugar, becomes discolored (e.g., turning yellowish or "brown sugar"), thus failing to meet stringent quality standards.
The density of the sucrose slurry serves as a quantitative, continuous measure of its sugar content (Brix). Since Brix dictates taste, texture, and purity, precisely monitoring the density with a high-accuracy sugar density meter is the most effective way to ensure final product quality. A small deviation in density control can easily translate into a 0.8–1.2 Brix deviation, a significant and unacceptable variation in a product where taste and purity are paramount. The use of specialized equipment to measure the sugar density of liquids is non-negotiable for modern production.
Measurement Technologies: Tools for Online Density Control
Selecting the correct density meter for measuring sugar content depends heavily on the process stage and required accuracy. Three primary technologies dominate the market for online sugar density measurement: Coriolis, Refractometer, and Ultrasonic densitometers.
Technology |
Working Principle |
Key Performance Indicators (KPIs) |
Comparative Analysis |
Measures the change in frequency and phase shift caused by the mass flow of fluid traveling through an oscillating tube. The density is derived from the tube's resonant frequency. |
High Accuracy (±0.0001 g/cm3 or better). Unaffected by flow rate or viscosity. Directly measures true mass density. |
Benchmark for Accuracy and true density. High initial cost. Requires stable installation to minimize vibration effects. Excellent for critical high-value streams and final product. |
|
In-line Refractometer |
Measures the refractive index (RI) of the solution. RI is strictly proportional to dissolved solids (Brix). |
High stability. Measures Brix directly (often ±0.05 Brix). Fast response time. |
Ideal for Concentration Control. Sensitive to suspended solids, air bubbles, and fouling (requires a built-in cleaning mechanism). Most common for evaporator control. |
Ultrasonic Densitometer |
Measures the speed of sound through the fluid. Speed of sound is a function of the fluid's density and compressibility. |
Good accuracy (±0.001 g/cm3). High resistance to fouling and non-intrusive. |
Excellent for High-Viscosity/High-Slurry Streams. Less affected by crystals/particulates than a refractometer. Accuracy can be affected by air bubbles and temperature variations. |
Application & Selection: Matching Technology to Process Stage
The selection criteria for a sugar density meter must be tailored to the specific characteristics of the fluid and the required control objective at each stage of the sucrose production process.
Sugar Production Stage |
Fluid Characteristics |
Control Objective |
Recommended Technology & Rationale |
Evaporation/Concentration |
Medium density (20–70 Brix), low to medium viscosity, high temperature. |
Precisely determine the evaporation endpoint to save energy and prevent fouling. |
In-line Refractometer (Fast, direct Brix reading, good for clear juice). Coriolis (Highest accuracy for critical process control). |
Crystallization/Boiling |
High density (>80 Brix), very high viscosity, presence of suspended sucrose crystals (massecuite), high temperature. |
Control supersaturation (crystal growth rate) and determine the drop point. |
Ultrasonic Densitometer (Resistant to high viscosity and crystals/solids). Coriolis (Provides the best true density for mass balance, less susceptible to viscosity issues than other types). |
Melting/Refining |
Medium density, relatively clean and clear juice. |
Quality control and ensuring precise dilution/concentration before further processing. |
In-line Refractometer (Cost-effective and accurate for clear streams). Coriolis (Ultimate quality check). |
Finished Product (Liquor/Syrup) |
Stable density, clear, often at ambient temperature. |
Final product quality check. |
Coriolis Densitometer (Provides the highest precision for certification and trade). |
The Lonnmeter Sugar Syrup Density Meter, based on a robust and precise principle, would typically be positioned for the critical control points where high accuracy and reliability are paramount, such as the concentrated slurry feed or the final product line.

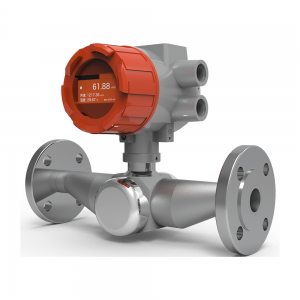

Sugar Syrup Density Meter
The sugar density meter, also known as baume syrup density meter or brix density meter, is an inline process density meter applicable to sugar-containing solutions in pipelines or tanks. This measurement method is not affected by the conductivity, color and transparency of the liquid, ensuring extremely high reliability. Users can achieve a measurement accuracy of 0.05%~0.1%
Advanced Control & Optimization
The true value of online density measurement is unlocked when the real-time data is integrated into advanced control strategies, moving beyond simple manual adjustments.
Strategies for Advanced Process Control
Crystallization Supersaturation Control: The massecuite density (and corresponding Brix) is the primary input for a dedicated PID control loop that manages the feed rate of mother liquor or water addition. This allows for dynamic adjustment of the supersaturation ratio to keep it within the narrow band required for optimal crystal growth—slow enough to prevent impurity occlusion, but fast enough for maximum yield.
Evaporation Endpoint Control: A high-precision Coriolis or Refractometer can feed its data into a controller that calculates the mass balance and controls the steam valve on the multi-effect evaporator. This ensures the evaporator cuts off the steam supply or diverts the product exactly when the target density is reached, achieving the precise evaporation endpoint and conserving energy.
Data Fusion and Intelligent Analysis: Integrating density data with temperature, flow rate, and pressure readings allows for highly accurate, temperature-compensated density and Brix calculations. Furthermore, employing intelligent analysis via machine learning can predict potential fouling events (e.g., rapid, localized density increases) before they happen, allowing for preventative action.
Quality Stability: The Quantifiable Benefits
The direct impact of implementing precise online densitometers on improving and maintaining product quality stability is both significant and quantifiable:
Purity Improvement: By controlling supersaturation based on density, the industry can minimize impurity encapsulation. This leads to a quantifiable improvement in the final sugar's polariscope reading (pol) and color grade (e.g., maintaining ICUMSA color units below the target for premium white sugar).
Yield Consistency: Stable density control ensures that the amount of recoverable sugar (purity) in the massecuite is consistent batch-to-batch, minimizing losses in the final molasses stream and providing reliable sucrose production process yield prediction.
Reduced Rework and Waste: Achieving target specifications on the first attempt reduces the need for costly reprocessing (reworking off-spec sugar), saving both energy and time, thereby dramatically improving overall efficiency.
For a highly reliable and accurate equipment to measure the sugar density of liquids across the various stages of the sugar production process, request a quote today for the Lonnmeter Sugar Syrup Density Meter. Ensure your operations achieve maximum efficiency, quality, and cost control with the market-leading density meter for measuring sugar content.
