Measuring liquid level in tanks used by semiconductor manufacturing facilities demands solutions that tolerate cryogenic stress, dynamic operation, and strict contamination controls. The measurement choice must prioritize non-intrusiveness, fast online response, and minimal maintenance to protect yield and uptime.
Continuous Online Output Suitable For Process Control And Safety Interlocks
Continuous, real-time outputs are mandatory for process control and safety interlocks in semiconductor manufacturing facilities. Preferred outputs include 4–20 mA with HART, Modbus, or Ethernet variants for direct PLC/DCS connection. Ensure the device supports failsafe modes and configurable alarms for high/low, rate-of-change, and loss-of-signal conditions. Example: a continuous 4–20 mA output tied to a tank-fill solenoid prevents overfill when level crosses a programmable threshold.
Immunity To Vapor, Foam, Turbulence, And Changing Media Properties
Cryogenic storage tanks produce vapor blankets, stratification, and occasional turbulence during transfer. Choose technologies with strong immunity to false echoes and surface turbulence. Radar level transmitter technology and guided wave radar level transmitter systems can reject spurious returns if configured correctly. Insist on adjustable signal processing, echo curve viewing, and built-in filtering to avoid level errors caused by vapor, foam, or splashing. Example: a radar transmitter using advanced signal-processing settings ignores a transient vapor layer during boil-off.

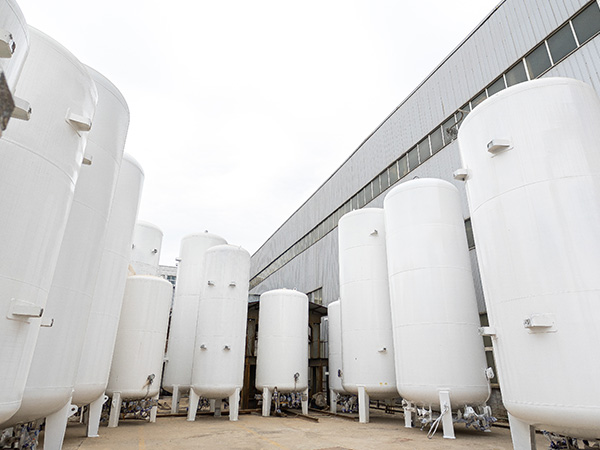

Liquid Nitrogen Level Measurement
*
Minimal Mechanical Penetrations And No Moving Parts
Minimize leak and maintenance risk by selecting sensors with no moving parts and minimal penetrations through the vacuum insulated cryogenic storage tanks. Non-contact radar mounted to an existing top nozzle avoids long probes and reduces thermal bridging. Short-probe guided wave radar options can fit existing small flanges without deep bores. Specify materials and flange sizes compatible with vacuum jackets and cryogenic seals to preserve tank integrity. Example: select a top-mounted non-contact radar to eliminate a long probe that would penetrate the insulation.
Diagnostics, Predictive Maintenance, And Easy Troubleshooting
Advanced level transmitters must include diagnostics and easy troubleshooting aids to maximize plant availability. Require on-board diagnostics such as echo-curve display, signal-strength metrics, probe integrity checks, and temperature sensors. Support for remote diagnostics and error logs speeds root-cause analysis. Predictive alerts—such as degrading signal strength or probe fouling indicators—help schedule intervention before a shutdown. Example: a transmitter that logs gradual echo attenuation can prompt cleaning of buildup before a failure occurs.
Ability To Measure Interface Levels In Multivariable Scenarios
Measuring interfaces in liquid/vapor or stratified-layer scenarios demands techniques capable of resolving small dielectric contrasts. GWR level transmitter technology and guided wave radar level transmitter instruments sense interfaces where dielectric contrast exists between layers. For liquid nitrogen specifically, low dielectric contrast between liquid and vapor limits interface resolution; mitigate this with complementary measurements. Combine radar/GWR with temperature profiling, differential pressure, or multiple independent sensors to confirm interface position. Example: use a GWR probe to detect an oil/LN2 interface while a top-mounted radar monitors bulk level.
Compatibility With Tank Geometry, Inline Mounting, And Integration With Facility Control Systems
Match sensor form factor to vacuum insulated cryogenic storage tanks and available nozzles. Verify mounting options for top, side, or short inline fittings. Inline mounting refers to compact sensors that fit existing piping or small flanges without long probes; confirm mechanical drawings and minimum nozzle diameters before selection. Ensure electrical and communication interfaces match plant standards for continuous tank filling and discharging systems. Require documented wiring, signal conditioning, and recommended grounding practices for cryogenic environments. Example: choose a compact guided wave radar probe that fits a 1.5 inch nozzle and supplies 4–20 mA/HART to the central DCS.
Guided Wave Radar (GWR) technology — operational principle and strengths
Measurement principle
GWR transmits low power, nanosecond microwave pulses down a probe. When a pulse meets a boundary with a different dielectric constant, part of the energy reflects back. The transmitter measures the time delay between the sent and returned pulses to calculate distance to the liquid surface. From that distance it computes total level or an interface level. Reflection intensity rises as the product dielectric constant increases.
Strengths for vacuum insulated cryogenic storage tanks and LN2
GWR gives direct level readings with little need for compensation for density, conductivity, viscosity, pH, temperature, or pressure changes. This stability suits liquid nitrogen solutions in vacuum insulated cryogenic storage tanks, where fluid properties and vapor conditions often vary. GWR detects liquid–vapor and liquid–liquid interfaces directly, so it works for liquid nitrogen level measurement and interface monitoring in continuous tank filling and discharging systems.
Probe guidance confines the microwave energy along the probe. This confinement makes measurements largely insensitive to tank shape, internal fittings, and small tank geometries. That probe guided approach reduces sensitivity to chamber design and simplifies installation in tight or complex vessels common at wafer fabrication plants and semiconductor manufacturing facilities.
GWR also performs in challenging process conditions. It maintains accuracy in vapor, dust, turbulence, and foam. Those characteristics make GWR a practical online level measurement tool where non intrusive measurement techniques are preferred. GWR level transmitter technology thus fits many liquid level transmitter applications where visual or float techniques fail.
Industry validation
Independent industry sources recognize radar based level measurement as robust in harsh conditions. Radar instruments offer measurement accuracy and reliability that make them viable alternatives to many intrusive sensors in process and storage applications.
Relevance to process automation and plant operations
GWR integrates with continuous tank filling and discharging systems as an online level measurement tool. It supports liquid nitrogen level measurement in process loops without frequent recalibration for density or temperature swings. That lowers maintenance while preserving accurate level control for sensitive operations in wafer fabrication plants and other semiconductor facilities.
Why choose GWR inline level transmitters for liquid nitrogen in wafer fabrication plants
Guided wave radar (GWR) level transmitter technology maintains stable accuracy in cryogenic conditions. The strong dielectric contrast between liquid nitrogen and vapor yields a clear radar reflection. Probe-based measurements remain repeatable despite low temperatures and changing process variables.
GWR probes lack moving parts. Absence of mechanical mechanisms reduces recalibration frequency and lowers particle generation risk. That reduces contamination risk in semiconductor manufacturing facilities where purity demands are strict.
Top-down or inline probe installation options minimize process penetrations and leak potential. A top-down flange-mounted probe uses a single pressure-rated penetration on the vessel roof. An inline probe fits into a small process port or spool piece, allowing easy removal without large vessel modifications. Example: mounting a guided wave radar level transmitter on a vacuum insulated cryogenic storage tank through a 1.5
Lonnmeter Guided Wave Radar Inline Level Transmitter
Measurement Capability And Reliability For Cryogenic Liquids
Lonnmeter guided wave radar level transmitters use a probe-guided microwave pulse to track the liquid surface with sub-millimeter repeatability. The probe design and echo-processing handle low dielectric constants and vapor blankets common in liquid nitrogen solutions. In wafer fabrication plants and semiconductor manufacturing facilities, this yields consistent readings in vacuum insulated cryogenic storage tanks and continuous tank filling and discharging systems.
Safety-certified for SIL2-level applications while avoiding additional penetrations
The transmitter is safety-certified to SIL2, allowing use in safety-instrumented loops without adding separate level-safety devices. Its single-line penetration design preserves tank envelope integrity, reducing leak paths in vacuum insulated cryogenic storage tanks. This lowers risk for critical processes in semiconductor manufacturing facilities where maintaining vacuum and insulation is essential.
Multivariable transmitter reduces instrument count and process penetrations
Lonnmeter’s multivariable guided wave radar provides level plus additional process variables from one device. Combining level, interface/density indication and temperature or density-derived diagnostics eliminates separate instruments. Fewer penetrations improve vacuum integrity, reduce installation labor, and lower total cost of ownership for liquid level transmitter applications.
Built-in diagnostics, predictive maintenance, and easy troubleshooting
Onboard diagnostics monitor signal quality, probe condition, and echo stability in real time. Predictive alerts flag degrading performance before failure, reducing unplanned downtime and mean time to repair. Technicians can use stored echo traces to troubleshoot anomalies in continuous tank filling and discharging systems without invasive inspection.
Designed for small tanks and complex geometries; performs in vapor, turbulence, and foam
The guided probe and advanced signal processing suit short-range and confined vessels. The transmitter reliably detects level in small tanks, narrow necks, and irregular geometries found in cluster tool LN2 supply vessels. It also isolates true liquid echoes from vapor, turbulence, and foam, making it practical for liquid nitrogen level measurement in demanding plant layouts.
Low-power microwave pulses minimize heat transfer and disturbance in cryogenic media
Low-energy microwave pulses reduce local heating and limit boil-off when measuring cryogenic fluids. This minimizes disturbance to liquid nitrogen and maintains thermal stability in vacuum insulated cryogenic storage tanks. The approach preserves cryogen inventory and supports stable operation in sensitive semiconductor manufacturing facilities.
Examples embedded above: in a wafer fabrication plant, a single Lonnmeter guided wave radar unit can replace a level sensor and a density probe in a small LN2 dewar, keep one penetration in the tank wall, and provide predictive alarms that prevent a production interruption. In a continuous tank filling and discharging system, the same device maintains accurate level control through vapor blankets and intermittent foam without adding thermal load to the cryogen.
Installation and integration best practices for vacuum insulated cryogenic storage tanks
Mounting strategy: inline probe vs. top-down
Top-down mounts minimize penetrations through the vacuum jacket and reduce leak paths. They place the sensor at the tank centerline and reduce exposure to inlet jets. Use top-down when tank geometry and service access permit.
Inline (side) probes allow easier access for maintenance and can be placed near process piping for integrated control. Inline mounts increase the number of penetrations and require careful sealing and alignment to preserve vacuum integrity. Choose inline mounting when serviceability or integration with continuous filling and discharging lines is critical.
Balance the decision on these factors: number of vacuum breaches, ease of maintenance, internal tank fittings, and how measurement location affects reading stability under flow conditions found in wafer fabrication plants and semiconductor manufacturing facilities.
Sealing and flange considerations to preserve vacuum integrity
Every penetration must be vacuum-rated and stress-relieved for cryogenic temperatures. Prefer metal-to-metal flange seals or cryogenic-capable gasket systems designed for repeated thermal cycling. Avoid polymer seals unless explicitly rated for -196 °C.
Use welded feedthroughs where possible for permanent installations. Where removable sensors are required, install a vacuum-rated multi-port flange or bellows assembly with a dedicated vacuum pump-out port. Provide vacuum test ports adjacent to sensor flanges to verify jacket integrity after installation.
Design flanges and seals to accommodate thermal contraction. Include flexible elements or sliding sleeves to prevent stress at the penetration point during cooldown. Ensure the flange clamping hardware is accessible without breaking the vacuum jacket where practical.
Probe length and material selection for cryogenic compatibility
Select materials that retain ductility and resist embrittlement at liquid nitrogen temperature. Cryogenic-compatible stainless steels (for example, 316L-class metallurgy) are standard for probes. Consider low-thermal-expansion alloys for very long probes to reduce relative motion between probe and tank.
Probe length should reach well into the inner vessel below the expected maximum liquid level and above the bottom sediment zone. Avoid probes that touch the tank bottom or internal baffles. For a tall vacuum insulated tank, allow a thermal-contraction allowance of several millimeters per meter of probe length.
For guided wave radar level transmitter installations, use rigid rod probes or coaxial probes rated for cryogenic service. Cable-type probes may collect condensate or ice and are less preferred in tanks with heavy boil-off or sloshing. Specify surface finish and weld quality to avoid nucleation sites for ice formation.
Example: a 3.5 m inner vessel may require a 3.55–3.60 m probe to account for contraction and the mounting flange thickness. Validate final dimensions at expected operating temperature.
Integration with continuous filling and discharging conditions
Place the level sensor away from inlet and outlet jets to prevent false readings from turbulence. As a rule of thumb, locate probes at least one tank diameter from major inlet or outlet ports, or behind internal baffles. If space constraints prevent this, use multiple sensors or employ signal processing to reject transient echoes.
Avoid mounting the probe directly in the fill stream. In continuous filling and discharging systems, stratification and thermal layers may form; place the sensor where it samples the well-mixed bulk liquid, typically near the vessel centerline or within an engineered stilling well. A stilling well or center tube can isolate the sensor from flow and improve accuracy during rapid transfers.
For wafer fabrication plants where continuous delivery of liquid nitrogen occurs during tool purging, set measurement locations and filters to ignore short-duration spikes. Use averaging, moving-window smoothing, or echo-tracking logic in the transmitter output to suppress false alarms from brief slugs.
Wiring, grounding, and EMC practices for reliable radar performance
Route signal cables through vacuum-rated feedthroughs with strain relief and thermal transition entries. Use shielded, twisted-pair or coaxial cables as required by the chosen radar technology. Keep cable runs short and avoid bundling with power cables.
Establish a single-point ground reference for the sensor housing and instrument electronics to prevent ground loops. Tie shields to earth at one end only unless manufacturer guidance dictates otherwise. Install surge protection and transient suppressors on long cable runs that cross yard or utility areas.
Minimize electromagnetic interference by separating sensor cables from variable-frequency drives, motor feeders, and high-voltage buswork. Use ferrite cores and conduit where necessary. For guided wave radar level transmitter installations, maintain characteristic impedance continuity at the feedthrough and connector interfaces to preserve signal integrity.
Deployment roadmap (recommended phased approach)
Assessment phase: tank survey, process conditions, and control system requirements
Begin with a physical tank survey. Record tank geometry, nozzle locations, insulation spacing, and available instrument ports. Note vacuum space access and any thermal bridges that affect sensor placement.
Capture process conditions including normal and peak operating pressures, vapour space temperature, fill rates, and expected slosh or surge during continuous tank filling and discharging systems. Document cyclic patterns used in wafer fabrication plants and semiconductor manufacturing facilities.
Define control system requirements early. Specify signal types (4 20 mA, HART, Modbus), discrete alarms, and expected update rates for online level measurement tools. Identify required accuracy bands and safety integrity levels.
Deliverables from assessment should include a scope sheet, mounting drawings, a list of preferred non-intrusive measurement techniques, and an I/O matrix for the control system.
Pilot installation: single-tank validation and integration testing under continuous fill/discharge conditions
Pilot on one representative vacuum insulated cryogenic storage tank. Install the selected level transmitter and run full operational cycles. Validate measuring liquid level in tanks during continuous tank filling and discharging systems, including fast fills and slow drips.
Use the pilot to compare radar level transmitter technology, guided wave radar level transmitter performance, and other advanced level transmitters in the same tank environment when possible. Record response time, stability, and susceptibility to vapour, foam, or condensation. For guided wave radar, confirm probe materials tolerate cryogenic contraction and feedthroughs seal reliably.
Perform integration tests with the PLC or DCS. Verify alarm thresholds, interlocks, historian tags, and remote diagnostics. Run at least two weeks of mixed-duty cycling to capture edge cases. Collect baseline accuracy, drift, and maintenance events.
Example: in a semiconductor manufacturing facility, run a pilot through a normal 24 hour fab feed cycle. Log level transmitter outputs against known fill volumes and secondary gauge checks. Track errors during high flow dumps.
Rollout: full deployment across cryogenic storage network with standardized configuration and diagnostics
Standardize the chosen device configuration after pilot validation. Lock probe lengths, mounting flanges, cable entries, and transmitter settings. Create a deployment package with model, serial, and calibration settings for each tank size.
Apply consistent diagnostics and alarm logic across all tanks. Ensure each online level measurement tool exposes echo profiles, self test flags, and health status to the control system. Standardized diagnostics accelerate troubleshooting across multiple vacuum insulated cryogenic storage tanks.
Plan rollout in waves to minimize process disruption. Schedule installations during planned maintenance windows. Include spares, calibration rigs, and cryogenic-rated tooling. Update network maps and I/O documentation for each deployed sensor.
Example rollout cadence: equip critical process tanks first, then secondary storage tanks. Validate each wave with two days of post installation functional checks under normal fill/discharge patterns.
Handover and training: operator and maintenance training with clear SOPs for monitoring and troubleshooting
Deliver structured operator training tied to SOPs. Cover daily checks for liquid nitrogen level measurement, alarm response, and basic echo interpretation. Train operators to recognize common failure modes such as loss of echo, unstable readings during slosh, and wiring faults.
Provide maintenance training focused on cryogenic safety, probe inspection, calibration procedures, and replacement steps. Include hands on exercises for removing and reinstalling probes or non intrusive sensor clamps while preserving vacuum integrity.
Supply clear SOP documents. SOPs should list stepwise procedures for: validating level transmitter accuracy, performing a field calibration, isolating and replacing a transmitter, and escalating persistent faults. Include example troubleshooting flows: start with power and signal, then echo quality, then mechanical checks.
Maintain a training log and competency sign offs. Schedule periodic refresher sessions aligned with calibration intervals.
Request a quote / Call to action
Request a quote for Lonnmeter Guided Wave Radar inline level transmitters when you need precise liquid nitrogen level measurement in wafer fabrication plants or vacuum insulated cryogenic storage tanks. Specify that the application involves continuous tank filling and discharging systems so the proposal matches real operating cycles.
When preparing a quote request, include critical process and mechanical details. Provide:
tank type and volume (example: vacuum insulated cryogenic storage tank, 5,000 L), media (liquid nitrogen), and operating temperatures and pressures;
continuous fill and discharge rates, typical duty cycle, and expected surge or slosh conditions;
mounting location, available ports, and headspace geometry;
required measurement range, desired accuracy and repeatability, and alarm/setpoint thresholds;
materials compatibility preferences and any cleanroom or contamination constraints for wafer fabrication plants;
hazardous-area classification and any installation restrictions.
To request a quote or arrange a pilot, compile the items listed above and submit them through your procurement channel or facility engineering contact. Clear application data expedites sizing and ensures the guided wave radar level transmitter proposal matches liquid level transmitter applications in wafer fabrication plants and cryogenic storage systems.
FAQs
What is the best way to measure liquid nitrogen level in tank at a wafer fabrication plant?
Guided wave radar (GWR) inline level transmitters deliver continuous, accurate, non-mechanical measurement for cryogenic LN2 in wafer fabrication plants. They use a probe-guided microwave pulse that is robust against vapor, turbulence, and small tank geometries. For vacuum insulated cryogenic storage tanks, install the transmitter with minimal, properly sealed penetrations to preserve vacuum integrity.
Can a guided wave radar level transmitter work during continuous filling and discharging conditions?
Yes. GWR is designed for continuous online measurement and maintains reliable level readings during dynamic operations. Proper probe placement, tuning of the instrument’s blanking and dead-zone settings, and echo verification prevent flow-induced false echoes. Example: tune the transmitter after commissioning while filling at the plant’s maximum flow rate to confirm stable echoes.
How does a GWR level transmitter compare to non-contact sensors for liquid nitrogen?
GWR transmits microwave pulses along a probe, producing strong, consistent echoes in vapor and turbulent conditions. Non-contact radar can work but may struggle in tight tanks or where internal structures reflect signals. In tanks with internal obstacles or narrow geometry, GWR commonly yields better echo returns and more stable readings for LN2.
Will a guided wave radar transmitter affect vacuum integrity in vacuum insulated cryogenic tanks?
When installed as an inline transmitter with minimized penetrations and correct sealing, GWR reduces total penetration count compared with multiple discrete sensors. Fewer penetrations lower leak paths and help preserve vacuum. Use welded flanges or high-integrity vacuum fittings and qualified cryogenic seals to avoid degrading the tank vacuum.
Do guided wave radar transmitters require frequent recalibration or maintenance in cryogenic service?
No. GWR units have no moving parts and typically need minimal recalibration. Built-in diagnostics and echo monitoring allow condition-based checks. Perform periodic echo spectrum verification and visual inspection of seals and probe condition during scheduled shutdowns.
Are radar level transmitters safe for use in sensitive semiconductor environments?
Yes. Radar level transmitters operate at low microwave power and present no particulate risk. Their minimal penetrations and non-intrusive sensing help maintain contamination-controlled spaces. Specify hygienic materials, cleanable probes, and appropriate ingress protection when installing near clean process areas.
How do I choose between a GWR level transmitter and other liquid level transmitter types for LN2?
Use a selection checklist that prioritizes cryogenic compatibility, continuous online output, robustness to vapor and turbulence, minimal penetrations, diagnostics, and integration capability. For many wafer fab cryogenic tanks, GWR meets these criteria. Consider tank geometry, internal obstructions, and whether multivariable measurement is required.
Where can I get help integrating a guided wave radar level transmitter into my plant control system?
Contact the transmitter supplier’s application engineering group for integration support, configuration guidance, and commissioning checklists. They can assist with echo verification, grounding, and DCS/PLC mapping. For inline density or viscosity meters used alongside level measurement, contact Lonnmeter for product details and application support specific to inline meters.
What are the main maintenance diagnostics to monitor on a liquid nitrogen level meter?
Monitor echo strength and echo profile for stable, repeatable returns. Track signal-to-noise ratio (SNR), probe integrity or continuity indicators, and any transmitter fault or warning codes. Use trending of these diagnostics to schedule inspections before failures occur.
How does reducing instrument count with a multivariable transmitter affect overall cost?
A multivariable GWR can measure level and interface variables simultaneously, eliminating separate transmitters. This reduces installation materials, penetrations, wiring, and long-term maintenance. Lower instrument count also reduces vacuum penetrations and leak risk, which matters in vacuum insulated cryogenic storage tanks. The net result is a lower total cost of ownership versus multiple single-function instruments.
