Necessities of Inline Level Measurement in Modern Processing
Continuous level measurement sensors are essential for maintaining precision and reliability in pharmaceutical and bioprocessing environments. In sterile tank applications, these sensors prevent contamination by eliminating the need for manual intervention, thereby keeping production lines safe and compliant. For pharmaceutical liquid batching and bulk drug substance storage, accurate inline level monitoring safeguards batch integrity, ensuring accountability and traceability at every stage.

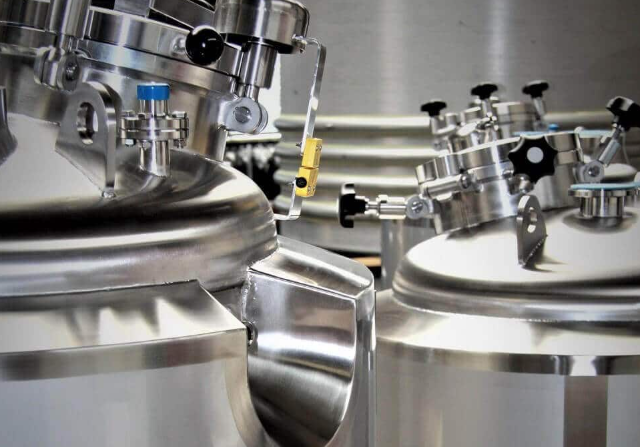

Stainless steel pharmaceutical tanks
*
Tank radar level gauges play a vital role in liquid level monitoring within challenging processes such as fermentation. In fermentation tanks, liquid surfaces can change rapidly due to agitation, the formation of foam, or variations in media density. For instance, fermentation broth and cell suspensions require ongoing measurement to manage nutrient delivery and harvest schedules. Radar gauges for level measurement help operators keep track of these changes in real time, even when faced with turbulent surfaces, thick foaming, or variable product densities. These capabilities preserve consistency in continuous culture fermentation processes and minimize errors in transfer pump monitoring.
Media with varying dielectric constants present technical challenges for radar-based sensors. Accurate level measurement in high viscosity media—where bubbling or layering may occur—demands robust radar level detection technologies designed to ignore false echoes and interference. Consistent measurement is especially important when handling diverse pharmaceutical solutions, cell suspensions, or bulk drug substances, where dielectric properties can influence signal strength.
By enabling reliable, uninterrupted monitoring, continuous level measurement solutions significantly reduce the risk to plant operators. Automated, real-time data acquisition cuts down on the need for frequent manual inspections, lowering exposure to hazardous materials and minimizing human error. This also enhances overall plant safety and ensures regulatory compliance, especially in critical applications like sterile pharmaceutical tank monitoring and construction level measurement online.
Key Concepts and Principles of Radar Level Gauges
Radar level gauges are designed to deliver precise and uninterrupted liquid level monitoring in diverse industrial settings, including fermentation tank operations, sterile pharmaceutical batching, and bulk drug substance storage. The fundamental advantage of a radar gauge for level measurement is its non-contact method, which removes the risk of sensor fouling or material build-up on probe surfaces. Continuous level measurement sensors from Lonnmeter utilize either non-contact frequency modulated continuous wave (FMCW) radar or guided wave radar techniques. In both methods, microwave pulses are transmitted toward the liquid surface in the tank. These pulses travel until they encounter the medium, and a portion of their energy reflects back to the gauge. The time interval it takes for this pulse to return—commonly termed “time of flight”—measures the exact liquid level.
Critical to the mechanism of tank radar level gauges are three factors: dielectric constant, reflection intensity, and medium viscosity. The dielectric constant determines the ability of the radar signal to distinguish the boundary between air and the liquid surface. Higher dielectric constants, as found in pharmaceutical broths or cell suspensions, produce a stronger reflection, which enhances measurement accuracy. However, media with low dielectric constants—such as some foams encountered during fermentation foam liquid level monitoring—reflect less energy, posing challenges for reliable detection. Accurate level measurement in fermentation broth or cell suspensions, where foam or turbulence might be present, relies on fine-tuned signal processing to separate true liquid surface reads from transient foam layers or bubbles.
Reflection intensity directly influences signal clarity. Highly reflective surfaces—often from clean, stable liquid interfaces—generate strong, unequivocal pulses. In environments with high viscosity, such as bulk drug substance storage or transfer pump monitoring, the liquid can dampen the radar signal, distorting the return pulse and complicating measurement accuracy. Lonnmeter’s radar gauges are engineered to compensate for these viscosity-related attenuation factors, ensuring consistent readings even in thick or sticky media typical of pharmaceutical batching and construction level measurement online scenarios.
Medium viscosity affects level measurement effectiveness further by altering the interface’s smoothness and regularity. In continuous culture fermentation process level measurement, viscous media may present irregular surfaces, dispersing radar energy into various directions. Proper calibration and adjustment are essential to prevent errors and maintain reliable level monitoring in high-viscosity environments. Throughout these processes, level measurement in sterile pharmaceutical tanks or liquid monitoring in fermentation tanks is safeguarded by the non-intrusive nature of radar technology, protecting product integrity and minimizing contamination risk.
By integrating these principles, radar level gauges from Lonnmeter provide robust solutions for liquid, foam, and cell suspension monitoring, even with challenging dielectric properties and viscosity levels. As a result, they play an essential role in pharmaceutical, fermentation, and construction industries where continuous, accurate, and hygienic level measurement is mandatory.
Guided Wave Versus Non-Contact Radar Level Transmitters
Guided wave radar level transmitters differ from non-contact radar gauges, such as Frequency-Modulated Continuous Wave (FMCW) and pulsed radar models, in both sensing method and application focus. Guided wave radar level gauges use a transmission line—often a probe or rod—that directs microwave signals into the liquid or bulk material. The signal reflects from the media surface back along this guide, enabling precise level measurement even in challenging process conditions. Non-contact radar level transmitters, by contrast, send microwaves through air without a physical guide, relying on the dielectric properties of the vapor space and the process media.
A guided wave radar gauge for level measurement maintains accuracy regardless of tank geometry. Probes can be installed in narrow or tall tanks, horizontal vessels, and setups with internal structures or baffles. Non-contact radar systems may suffer from echo interference, especially with agitators or complex internal fittings. For mixing tanks with turbulence, high viscosity media, or foaming liquids, guided wave types offer stable, repeatable results while non-contact designs often lose accuracy due to weak or multiple echoes.
In continuous level measurement sensor deployments for liquid level monitoring in fermentation tanks, foam layers can distort non-contact radar signals. Guided wave radar gauges, however, transmit through foam with minimal signal loss, ensuring reliable fermentation foam liquid level monitoring. Similarly, for pharmaceutical liquid batching level measurement, guided wave instruments allow precise readings essential for dosing applications, even when batches involve rapidly changing densities or media with low dielectric constants.
For sterile tank setups and bulk drug substance storage level monitoring, guided wave radar level gauges operate reliably without concern for vapor condensation or rapid temperature shifts, which commonly affect non-contact sensors. In continuous culture fermentation process level measurement and cell suspension level monitoring, guided wave radar maintains accuracy in the presence of agitation, variable foam height, or suspended solids. It is equally suited for transfer pump level monitoring and level measurement in high viscosity media, where build-up, aeration, or agitation could block or scatter signals from non-contact radar.
Guided wave radar level transmitters integrate seamlessly into construction level measurement online platforms for pharmaceutical, fermentation, and chemical processes. Applications include level measurement in sterile pharmaceutical tanks, fermentation broth, and tanks with variable composition. The dielectric constant of the process media directly impacts radar level gauges, but guided wave radar mitigates this challenge—handling liquids with low dielectric values, turbulent surfaces, and changing density profiles. This makes guided wave radar a preferred choice for complex or critical liquid level monitoring tasks where continuous operational control is essential.
Guided Wave Radar Level Transmitters: Features and Working Mechanism
Guided wave radar level transmitters utilize nano-second low power microwave pulses to achieve precise, continuous level measurement. These pulses travel down a probe inserted into the vessel or tank, encountering reflections where media interfaces—such as liquid, foam, or suspended solids—change. The transmitter calculates the level by measuring the time lapse between emission and reflection, unimpeded by process variables or tank atmosphere.
The dielectric constant of the media is a critical factor shaping the accuracy and reliability of radar gauge for level measurement. Materials with higher dielectric constants, such as water-based solutions found in pharmaceutical liquid batching or fermentation broth, produce stronger reflection signals. This enables effective interface discrimination between multiple layers—for instance, separating foam from liquid in fermentation foam liquid level monitoring, or distinguishing cell suspension levels in continuous culture fermentation process level measurement. Conversely, low dielectric media like hydrocarbons may return weaker signals, requiring transmitter calibration or probe selection attuned to the specific application, such as bulk drug substance storage level monitoring or transfer pump level monitoring.
Guided wave radar level transmitters offer direct, uncompensated readings, regardless of internal tank obstacles, vapors, or agitation. Their robust operating principle ensures measurement accuracy even in high viscosity media scenarios, such as viscous pharmaceutical solutions, or environments with variable foam profiles and agitation—a frequent challenge in level measurement in fermentation tanks and cell cultures. The microwave signal is not affected by pressure, temperature, or gas composition within the vessel, making these instruments ideal for construction level measurement online across diverse process conditions.
A notable advantage is their multivariable transmitter capability, minimizing process penetration and reducing the number of devices in complex installations. A single probe can provide both level and interface data—essential for liquid level monitoring in fermentation tanks where foam, air, and liquid phases coexist, or in sterile pharmaceutical tanks where product purity and batch integrity are critical.
Safety is paramount in pharmaceutical and pharmaceutical-related processes. Lonnmeter guided wave radar transmitters meet stringent safety certifications, such as suitability for SIL2 applications. This ensures reliability in critical scenarios like bulk drug substance storage and level measurement in sterile tanks, where false readings could compromise product quality or operational safety. Their direct measurement approach simplifies compliance, reduces maintenance needs, and provides a continuous level measurement sensor solution that is widely deployed in pharmaceutical manufacturing, biotech fermentation, and high-risk chemical storage.
Addressing Inline Level Measurement Challenges with Lonnmeter Solutions
Inline level measurement in industrial environments faces many unique challenges. Tanks often contain high vapor concentrations, dense dust clouds, turbulent surfaces, or thick foam layers. These conditions can confound traditional continuous level measurement sensors, leading to unreliable readings and frequent maintenance. Lonnmeter addresses these obstacles with radar level gauge technology—designed to operate with precision in harsh environments.
Radar gauges for level measurement excel in applications such as liquid level monitoring in fermentation tanks and cell suspension level monitoring. Unlike older methods, radar waves penetrate foam, dust, and vapor, providing accurate results even in turbulent tanks. For example, fermentation broth with dense foam or high vapor output typically disrupts capacitance and ultrasonic sensors. Lonnmeter’s radar level gauges maintain steady performance by compensating for these variables, ensuring robust fermentation foam liquid level monitoring.
Media with extreme dielectric constants or varying viscosity also cause issues for many sensors. Lonnmeter’s radar technology accommodates a wide range—whether measuring in sterile pharmaceutical tanks with low dielectric constants or in bulk drug substance storage tanks containing viscous liquids. The dielectric constant impact on radar level gauges is minimized, allowing reliable readings for both high and low dielectric constant substances. This flexibility extends to pharmaceutical liquid batching level measurement, supporting precise dosing without interruption.
Continuous level measurement with Lonnmeter integrates with transfer pump operations, vital for accurate batching and storage. Tank radar level gauges provide real-time data, enabling operators to match transfer rates with actual tank levels. This reduces the risk of overflow, maximizes storage efficiency, and supports construction level measurement online. Level measurement in high viscosity media, often challenging for mechanical systems, is handled reliably due to Lonnmeter’s non-intrusive sensor design.
Lonnmeter’s inline density and viscosity meters have no moving parts, eliminating common sources of sensor wear or drift. Maintenance requirements are minimized, as re-calibration is rarely needed. The result is reliable operation—even with continuous use in demanding processes like continuous culture fermentation process level measurement or bulk pharmaceutical ingredient batching.
Installation flexibility is another core advantage. Lonnmeter products fit small tanks, irregularly shaped vessels, and systems with existing process penetrations. This adaptability suits facilities with retrofitted equipment and custom geometries, including those requiring level measurement in fermentation broth and cell culture suspension tanks. Whether facing constraints from limited tank access or complex piping, Lonnmeter solutions support high-precision monitoring without disruptive re-engineering.
From liquid storage in bio-pharma to chemical manufacturing and construction industry batching, Lonnmeter ensures that level measurement remains accurate, reliable, and efficient under the toughest real-world conditions.
Real-World Advantages: Why Choose Lonnmeter Guided Wave Radar Transmitters
Lonnmeter guided wave radar transmitters stand out as a robust choice for continuous level measurement in both open and closed tank environments. Their reliability ensures uninterrupted monitoring, even under challenging conditions common in process industries. For pharmaceutical solutions and fermentation broth, these radar level gauges maintain precision whether the media is swirling, condensing, or exhibits high viscosity. The dielectric constant impact on radar level gauges is accounted for by Lonnmeter’s technology, supporting accurate detection in suspension, foam-covered surfaces, and viscous liquids like those found in cell culture or fermentation broth.
Continuous liquid level monitoring in fermentation tanks—particularly during active processes with foam formation or high microbial loads—requires sensors that function without interference. Lonnmeter’s radar gauge for level measurement excels in these scenarios, providing stable readings regardless of media changes or external influences. This reliability extends to pharmaceutical batching, bulk drug substance storage, and sterile tank environments, where uninterrupted and contamination-free monitoring is mandatory for safety and regulatory compliance.
Predictive maintenance functions within Lonnmeter’s transmitters offer high availability, alerting operators proactively to system health issues. Fast and accurate diagnostics minimize troubleshooting time, reduce unscheduled downtime, and maintain productivity in sterile or sensitive process environments. For example, in continuous culture fermentation process level measurement, rapid identification and resolution of sensor issues prevent batch loss and maintain quality standards.
Seamless integration with construction level measurement online tools is a key advantage for digital plant operations. Lonnmeter’s transmitters support real-time data sharing and connectivity, ensuring reliable transfer pump level monitoring and inventory assessment in distributed operations. Their compatibility simplifies workflows and system upgrades, providing operators with flexible deployment for both stand-alone and networked monitoring setups.
In summary, Lonnmeter radar level gauges drive productivity by ensuring precise, reliable, and easily manageable bulk liquid level monitoring. Their adaptability to swirling, foaming, or viscous process media aligns with modern requirements for pharmaceutical and fermentation applications, delivering trusted performance where continuous level measurement is non-negotiable.
How to Optimize Level Measurement for Pharmaceutical and Bulk Chemical Tanks
Selecting level measurement technology for pharmaceutical and bulk chemical tanks demands a clear understanding of product properties and process requirements. Product compatibility is essential; operators must consider the dielectric constant, viscosity, and foam tendency of the medium. For example, the low dielectric constant of organic solvents can reduce radar signal strength, requiring precise calibration and, in some cases, high-frequency radar level gauges to ensure accurate readings. In fermentation tanks, foaming and suspension can lead to signal attenuation, making foam compensation features and regular cleaning schedules essential for reliable monitoring.
Integrating tank radar level gauges in inline applications allows precise process control, particularly in continuous culture fermentation, bulk drug substance storage, and cell suspension monitoring. These environments challenge sensors due to changes in the medium—such as increased viscosity during pharmaceutical liquid batching or thick fermentation broths. Choosing continuous level measurement sensors designed for high viscosity media prevents errors and downtime, ensuring consistency in regulated operations.
Continuous level measurement sensors support process automation and robust documentation. For regulated industries, automated liquid level monitoring in fermentation tanks and sterile pharmaceutical vessels simplifies compliance by enabling reliable, uninterrupted tracking. Devices with multi-parameter compatibility and stabilized readings ensure accurate reporting, which is critical for batch records, transfer pump management, and event verification during bulk drug storage.
Digital measurement systems benefit from streamlined data acquisition and reporting when equipped with inline transmitters. These systems convert sensor outputs into standardized signals for integration with process control networks. For example, in construction level measurement online, this setup allows for real-time display of tank levels, trend analysis, and alarm management. Inline transmitters further enhance reporting accuracy by maintaining traceable records of level changes and calibrations, supporting pharmaceutical integrity and bulk chemical accountability.
Optimizing level measurement in these demanding environments depends on choosing devices suited to the medium’s properties, integrating radar gauge technology for critical inline control, and enabling precise sensor-based automation and documentation. Accurate level measurement enhances safety, product quality, and regulatory compliance throughout the lifecycle of pharmaceutical and chemical tank operations.
Request a Quote for Lonnmeter Inline Level Transmitters
Lonnmeter’s radar gauge for level measurement offers highly accurate continuous level measurement sensor capabilities across demanding process environments. As an advanced radar level gauge, it is engineered for precision liquid level monitoring in fermentation tanks, pharmaceutical batching, bulk drug substance storage, transfer pump systems, and construction level measurement online. Its non-contact measurement method is ideal for level measurement in sterile pharmaceutical tanks and challenging fermentation broth applications, where foam, high viscosity, or cell suspension can complicate readings.
To specify the best configuration, start by gathering key application data. Document tank size, geometry, and mounting constraints to ensure optimal sensor placement. Identify the media: for example, if monitoring cell suspension level, note the expected dielectric constant, since this impacts radar level gauge accuracy in both aqueous and organic solutions. Account for viscosity—media with high viscosity require attention to probe design and signal processing to prevent attenuation and false echoes. Analyze the site’s atmospheric conditions; presence of steam or foam, common in fermentation foam liquid level monitoring and continuous culture fermentation process level measurement, necessitates radar solutions designed to filter out interference without compromising reliability.
Expert consultation is critical. Lonnmeter encourages direct engagement to discuss application details. Their engineering team provides tailored solution proposals, supporting seamless plant-wide integration and ensuring compatibility with process control, remote bulk drug substance storage level monitoring, or cell suspension reactors. Whether the challenge is level measurement in high viscosity media or meeting the exacting needs of pharmaceutical liquid batching level measurement, Lonnmeter helps specify, size, and configure radar level gauges for peak performance.
Frequently Asked Questions (FAQs)
What is a radar level gauge, and where is it used?
A radar level gauge is a precision instrument that uses microwave signals to measure the level of materials—liquids or solids—inside a tank or vessel without direct contact. It delivers continuous, accurate monitoring even under challenging conditions. These gauges are found in pharmaceutical liquids batching systems, sterile tank applications, continuous culture fermentation processes, and industries demanding sterile, reliable measurement for critical process control.
How does a guided wave radar level transmitter differ from traditional level sensors?
Guided wave radar level transmitters send short microwave pulses down a metal probe or rod inside the tank. When these pulses encounter a change in material—like the transition from air to liquid—due to different dielectric constants, a portion of the signal is reflected and detected, precisely marking the interface. Unlike traditional float-based or capacitive sensors, guided wave radar transmitters have no moving parts, eliminate frequent recalibration, and maintain accuracy regardless of pressure, temperature, foam, or vapor. This makes them advantageous for continuous level measurement in environments with changing composition or complex surface conditions.
Why is the dielectric constant important in radar-level measurement?
The dielectric constant of a substance determines the strength of the microwave reflection detected by the radar level gauge. A higher dielectric constant, as seen in aqueous pharmaceutical solutions or fermentation broths, ensures strong signal reflection and accurate interface detection. In contrast, low dielectric materials reflect weaker signals, making precise measurement more challenging. Applications involving layered media or varying compositions—like cell suspension level monitoring or multi-phase fermentation tanks—depend critically on understanding and accounting for dielectric differences.
Can radar gauge for level measurement handle viscous or foamy media?
Modern radar gauge technology, including guided wave radar transmitters, operates unaffected by media viscosity or the presence of foam. This is essential in bio-processing for tasks like fermentation foam liquid level monitoring, where foam and high-viscosity cell suspensions can disrupt many other sensor types. Microwave pulses penetrate foams and do not rely on direct contact, so measurements remain stable and reliable even when process fluids vary in thickness or surface consistency.
Is a radar-based continuous level measurement sensor suitable for online measurement in construction or processing?
Radar-based continuous level measurement sensors offer robust, uninterrupted operation in real-time construction and industrial processing scenarios. They resist interference from dust, vapor, turbulence, and changing temperatures, making them reliable in both construction level measure online for bulk material storage and real-time process monitoring. Their non-contact design reduces maintenance needs, critical where uptime and consistency are required.
How do I select the right tank radar level gauge for bulk drug substance storage?
Selecting a tank radar level gauge for bulk drug substance storage requires considering tank geometry, expected process conditions, dielectric properties, and the nature of the media—such as viscosity or the presence of foam or vapor. Guided wave radar transmitters are particularly effective for sterile tanks and pharmaceutical liquid batching, as they provide precise, repeatable readings regardless of surface disturbances or aggressive cleaning procedures. They are also suited for level measurement in high-viscosity media or where accurate interface detection is vital for regulatory compliance.
Can these devices be integrated into existing automated plant control systems?
Guided wave radar level transmitters and radar gauge systems from Lonnmeter can be easily connected to plant automation and reporting platforms. Their standard analog and digital outputs allow seamless integration with programmable logic controllers (PLCs) and distributed control systems (DCS) for efficient construction level measurement online or monitored batch processing, enabling digital oversight and process optimization without requiring major upgrades to legacy infrastructure.
