Inline density measurement is indispensable in yellow rice wine production, primarily due to the beverage’s unique "simultaneous saccharification and fermentation" process—where amylases in rice koji convert starch into fermentable sugars, and yeast further transforms these sugars into alcohol, with density changing dynamically throughout this dual-reaction cycle.
Beyond process control, it ensures product consistency by standardizing key parameters (e.g., sugar content, alcohol concentration) across batches, avoiding fluctuations in flavor, sweetness, and alcohol strength that often result from manual operation.
Overview of Yellow Rice Wine Production Process
Yellow rice wine adopts a distinctive solid-state or semi-solid-state fermentation process. It typically unfolds in the following key steps:
Raw material preparation is the foundation, where high-quality glutinous rice (preferred for its high starch content) is selected, cleaned to remove impurities, and paired with clean, mineral-rich water (a factor influencing taste and fermentation efficiency) and rice koji (a starter culture containing amylases and beneficial microorganisms like Aspergillus oryzae and yeast). The rice is then soaked in water for 12–24 hours (depending on temperature) to ensure uniform water absorption, which facilitates subsequent steaming and starch gelatinization.
Next, the soaked rice is steamed until fully cooked—soft, translucent, and free of raw centers—before being rapidly cooled to 28–32°C to avoid killing the active microorganisms in the koji.
Yellow Glutinous Rice Wine
*
The cooled rice is mixed with rice koji (and sometimes yeast water for fermentation enhancement) in a controlled ratio, then transferred to fermentation tanks (traditionally clay jars or modern stainless steel vessels). This marks the start of the core "simultaneous saccharification and fermentation" phase: amylases in the koji break down the rice’s starch into fermentable sugars, while yeast immediately converts these sugars into ethanol, carbon dioxide, and flavor congeners. This dual process lasts 7–30 days (varies by product type, e.g., dry, semi-dry, semi-sweet, sweet yellow rice wine) under strictly regulated temperature (20–25°C for optimal microbial activity) and humidity.
After fermentation, the mature fermented mash (containing wine, residual rice, and solids) undergoes pressing to separate the crude wine from the solid residues, typically using filter presses or traditional cloth filtration. The crude wine is then clarified—either naturally by settling or via centrifugation—to remove fine particles, followed by pasteurization (at 85–90°C) to inactivate residual microorganisms and enzymes, ensuring stability during storage. The clarified wine is then aged in ceramic jars or oak barrels for months to years; during maturation, chemical reactions like oxidation and esterification refine the flavor, mellow the taste, and deepen the color.
Finally, the aged wine is filtered again, adjusted for sugar content or alcohol concentration if needed, and bottled as the finished product.
Glutinous Rice Preparation and Pre-Treatment Processes
Rice Washing and Soaking Process
Washing glutinous rice removes debris, dust, and excess starch, ensuring a clean substrate for yellow rice wine fermentation. Proper washing also decreases surface microbes, lowering spoilage risk. Soaking hydrates rice grains, promoting optimal starch gelatinization by allowing water to penetrate and swell the granules.
Effective hydration transforms rice for enzymatic breakdown during fermentation, significantly improving sugar conversion rates and final wine quality. Studies show that rice with higher water absorption yields greater fermentable sugars and volatile aroma compounds, strengthening the link between pre-treatment and flavor outcomes. For example, tape fermentation of black glutinous rice triggered increased antioxidant activity and diversified phenolic profiles after optimal hydration periods.
Key soaking parameters include temperature, duration, and water-to-rice ratio. For semi-dry rice noodles, optimal soaking occurred at 40°C for 2 hours, with significant quality improvements at a 70% water addition ratio. In wine production, vacuum soaking accelerates hydration, decreases required steaming time, and loosens rice starch granules, promoting more efficient gelatinization. Water absorption rates change with rice type; parboiled rice at 60°C achieves higher moisture content than white rice, while soaking at 90°C assures moisture equilibrium across varieties, preparing the grain uniformly for subsequent treatment.

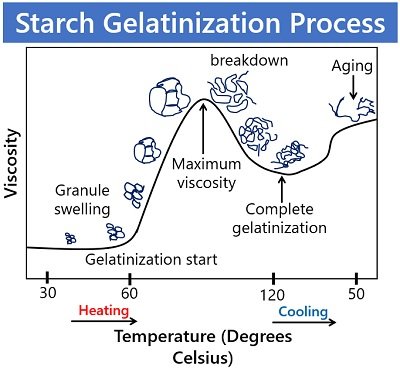

Rice Starch Gelatinization
Starch gelatinization is a hydrothermal process that swells and disrupts rice starch granules, transforming crystalline regions into amorphous structures. This change is essential for enzymatic hydrolysis, which liberates fermentable sugars needed for efficient glutinous rice fermentation.
Gelatinization temperature is a crucial parameter that varies by rice variety and substrate treatment. Among 152 glutinous rice varieties, those with higher starch molecular weight, larger particle size, and increased crystallinity showed elevated gelatinization temperatures and greater retrogradation tendencies. Short amylopectin chains and higher double helix content lowered gelatinization temperature, influencing digestibility and final wine texture. For instance, vacuum soaking reduced required gelatinization temperatures, increasing process efficiency and textural consistency.
Gelatinization abnormalities can arise from uneven heating, insufficient water uptake, or inappropriate process control. These issues result in incomplete starch transformation, poor sugar yield, and altered wine qualities. For example, pre-gelatinization and cellulase addition in black rice wine intensified fermentation performance by improving starch conversion and aroma profiles, demonstrating the corrective power of process optimization.
Water quality also influences gelatinization outcomes. Traditional fermentation often employs water collected after the winter solstice, leveraging its mineral content and effect on starch swelling and enzymatic activity for superior rice wine flavors.
Combining traditional practices with advanced monitoring guarantees process consistency, rapid anomaly detection, and optimal substrate performance in yellow wine production lines.
Fermentation Process Control and Optimization
Microbial Community Dynamics
The glutinous rice fermentation process in yellow rice wine production is governed by a diverse microbial community. Key microorganisms include Saccharomyces cerevisiae (yeast), lactic acid bacteria (LAB) such as Weissella and Pediococcus, and molds like Rhizopus and Saccharomycopsis. Yeasts drive the alcoholic fermentation, converting residual sugars into ethanol and key aromatic compounds. LAB contribute to acidification and improve the texture, influencing gel characteristics like hardness, chewiness, and water-holding capacity. Molds are responsible for degradation of rice starch through enzymatic activity, initiating metabolic pathways leading to secondary metabolites that shape the final aroma and flavor profile of yellow glutinous rice wine. For example, co-fermentation with LAB and yeast has been shown to enhance volatile compound production and refine mouthfeel, as demonstrated in recent studies using partial least squares-discriminant analysis on starter cultures.
Environmental factors, such as temperature, pH, mixing dynamics, and oxygen availability, have a significant impact on microbial activity and succession. Controlled temperature stimulates the growth of desired microorganisms, with elevated temperatures accelerating fermentation and increasing proteolytic and flavor compound synthesis. Oxygen management and mixing affect substrate distribution and metabolite diffusion, ultimately determining microbial interactions and volatile compound release. Microbial succession is closely linked to these variables; Proteobacteria, particularly Aquabacterium and Brevundimonas, dominate in early fermentation stages, while fungal diversity—led by Saccharomyces and Rhizopus—remains prominent throughout. Starter culture composition further influences microbial synergy and, thus, the spectrum and concentration of volatile aroma compounds produced, offering an avenue for process customization and sensory profile control.
Residual Sugar Monitoring in Rice Wine
Effective residual sugar monitoring is pivotal for controlling the glutinous rice fermentation process and ensuring consistency in yellow wine production line operations. Real-time strategies employ advanced spectral analytical systems, including portable spectrometers and fiber-optic FT-NIR spectrometry paired with partial least squares (PLS) regression models. These methods provide continuous tracking of total sugar content, alcohol concentration, and pH. In laboratory trials, synergy interval PLS (Si-PLS) demonstrated optimal prediction accuracy, enabling dynamic adjustment of fermentation parameters for targeted sugar and alcohol levels.
Continuous density measurement in wine production is integral to assessing fermentation progress. As yeast metabolizes sugars, the density of the fermenting mash decreases due to the diminishing sugar concentration and increasing ethanol content. Inline density measurement—typically performed with modern sensor arrays—translates density shifts into actionable metrics for sugar consumption rates, guiding endpoint determination and process optimization. For example, sensors now routinely monitor not just density but also glucose and fructose concentrations, ethanol yield, and biomass levels. This data is used in stoichiometric models or feed control algorithms to keep sugar concentrations within desired thresholds, as seen in automated fed-batch fermentation protocols, where online estimation via CO₂ evolution rate complements density readings.
The correlation between density values and sugar consumption is direct: a reduction in density aligns with rapid hexose utilization and the onset of ethanol production. In practice, Saccharomyces cerevisiae strains show a glucophilic tendency, consuming glucose at twice the rate of fructose, particularly early in fermentation. This differential rates taper as fermentation progresses. Monitoring these density and sugar dynamics in real time helps prevent incomplete fermentation, optimize sensory outcomes, and reduce the risk of gelatinization abnormalities in rice starch—issues that could compromise wine quality and clarity.
Residual sugar analysis, together with continuous in-line density measurement, not only assures product consistency but also supports the scaling and automation of yellow wine filling production lines. Maintaining precise control over sugar dynamics leads to predictable mouthfeel, sweetness, and aroma profiles, anchoring quality assurance in yellow rice wine manufacturing.
Points of Interest for Density Measurement in the Whisky Making Process
Key points for whiskey density testing methods and inline instrumentation include:
- End of Mashing (Post-liquefaction): Inline density meters detect the plateauing of density, marking the completion of starch-to-sugar conversion. Sampling at this step helps validate mash control.
- During Fermentation: Density profiling is used to monitor the reduction of sugar concentration and the rise of ethanol. It tracks fermentation progress, signals when fermentation is complete, and can alert operators to process deviations (e.g., stuck fermentations).
- During Distillation: Inline density measurement allows precise control over spirit cuts, ensuring separation of heads, hearts, and tails with accuracy. For high-density mashes or variable feedstocks (as in some barley whiskey distillation), real-time data inform adjustments to distillation settings or coolant flows, supporting whiskey quality control techniques.
- Maturation Assessment: Although not as common for density, new analytical density-related tools may track extractives and potential dilution requirements, particularly for high-strength mature spirits before cask bottling.
Inline density measurement for whiskey is especially vital when using high-solids or non-standard raw materials, as it facilitates consistent product quality even under variable conditions.
Typical Challenges and Variations in Barley Whiskey Making
Barley whiskey production faces several consistent challenges:
- Barley Variability: Grain protein content, hordein structure, and starch granule properties vary with region, variety, and harvest year. These affect both liquefaction and fermentability. High protein levels can impede enzyme access to starch, reducing mash efficiency.
- Alpha Amylase and Diastatic Power: Effective liquefaction depends on adequate endogenous enzymes, especially α-amylase and β-amylase. Low-diastatic malt can limit fermentable sugar yield, necessitating careful barley selection or legal supplementation with enzymes in some regions.
- Process Control: Achieving complete liquefaction in whiskey production is more difficult with variable barley or high-mash density mashing. Inline density meters provide fast feedback for operators to optimize mash rest, temperature, or enzyme dose in real time.
- Scale and Automation: Large-scale distilleries are moving toward automation, with in-line density measurement for whiskey key to process optimization and scaling up without loss of quality. In contrast, smaller producers may rely on manual measurements and intuition, trading process robustness for perceived tradition.
Examples include UK distilleries strictly using all-malt mashing, while some US and Asian operations embrace food-grade enzyme supplementation for efficiency and raw material flexibility. Climate-driven differences in barley quality add another layer of process variability, emphasizing the need for adaptable procedures and real-time monitoring.
In summary, every stage of the whisky making process—especially in barley-based production—engages chemical, enzymatic, and physical transformations. Effective use of whiskey density testing methods, notably in-line density measurement for whiskey, is central for process consistency, quality control, and adaptation to raw material variation throughout the whiskey production steps.
Installation Placements for Inline Density Meters
Pre-Fermentation: Liquefaction and Mashing
Accurate inline density measurement after liquefaction is crucial in the whiskey production process. Directly following the mash tun, as the barley starches are converted into fermentable sugars by enzymes—primarily alpha-amylase—the resulting change in wort density offers a precise indicator of conversion efficiency. Placing a density meter at the end-of-mash tun or in the outlet leading to the pre-fermentation vessel enables real-time detection of incomplete liquefaction. This placement helps identify poor enzyme activity or temperature-control issues, reducing the risk of unconverted starch carrying over into fermentation, which can reduce alcohol yield and compromise product quality.
Monitoring density here also provides indirect insight into alpha-amylase activity. As this enzyme breaks down starch, a corresponding drop in liquid density signals successful starch-to-sugar transition, streamlining whiskey mash liquefaction process control. Early detection of incomplete liquefaction allows operators to make immediate adjustments, such as extending mash times or correcting temperature setpoints, improving overall process throughput and consistency. Though dedicated enzymatic or spectrophotometric assays are most specific for tracking alpha-amylase, inline density changes are valued for their speed and practical deployment in large-scale production lines, supporting rapid quality assurance during whisky making steps.
Fermentation Monitoring
During the whiskey fermentation process, density drops as yeast converts sugars into ethanol and CO₂. Inline density meters, installed within the fermentation vessel—often at central tank depths or recirculation zones to avoid stratification—provide real-time tracking of fermentation progress. Optimal placement ensures readings are representative of the full vessel’s average density, unaffected by local temperature gradients or agitation patterns. Sensor position is increasingly guided by computational modeling and process-specific software that factor in tank geometry and mixing characteristics.
Continuous online monitoring enables timely intervention, supporting data-driven management of yeast activity, fermentation time, and nutrient supplementation. Integrating inline density data with process control systems not only automates decision-making but also underpins advanced digital twin applications in spirits production. Real-time analytics support predictive control, early deviation detection, and improved scheduling of downstream whiskey distillation process steps. This integration reduces manual sampling, enhances traceability, and tightens batch-to-batch uniformity, aligning with whisky production standards and Industry 4.0 expectations for data-driven quality control.
Post-Fermentation and Distillation Feed
Inline density meters placed at the fermentation outflow or just before the distillation feed tank serve as the definitive checkpoint for confirming fermentation completion. By measuring density in real-time as fermented wash leaves the vessel, operators can ensure that sugar depletion is sufficient and residual extract falls within specification before proceeding to distillation. This practice minimizes the risk of incomplete fermentation entering the still, which could provoke operational problems or cause product inconsistency.
Modern inline meters used at this stage—including those built to explosion-proof standards—deliver robust performance even within high-alcohol or variable temperature environments typical of distillery fermentation rooms and piping. These sensors facilitate continuous verification without manual sampling or open-vessel exposure, supporting both safety and hygiene. Their deployment at critical process junctures directly improves control over spirit wash profile, reduces operational variances, and enhances compliance with quality control protocols. In contemporary barley whiskey distillation, this approach ensures steady feed to the still—an essential factor for optimizing yield and maintaining the flavor profile specified in the whisky making process diagram.
Key Considerations for Effective Inline Density Meter Placement
Hygienic design and clean-in-place (CIP) compatibility are primary requirements when placing inline density meters in the whisky production process. Because these sensors contact the product stream, all wetted surfaces must be constructed from sanitary, food-grade materials—most commonly 316L stainless steel or high-performance polymers—and designed to eliminate crevices where residues could accumulate. IP-rated enclosures and sealed electronics further ensure robust operation during aggressive CIP cycles involving caustic and acidic solutions, steam, and high temperatures. Sensors placed in the main process lines (rather than side streams) will self-clean more effectively during CIP, lowering the risk of contamination across whiskey production steps, from liquefaction through to reduction and bottling. These placements streamline cleaning validation and can reduce chemical and water consumption during each cycle, contributing to improved process uptime and compliance with food safety standards.
Achieving sample representativeness and correct flow conditions at the measurement point is critical for reliable density readings. Inline density meters, especially vibrational and Coriolis types widely used for whiskey density testing methods, require stable, fully developed single-phase flow to avoid errors caused by bubbles, solids, or turbulent mixing. Sensors should be installed in straight pipe runs—ideally downstream of sufficient piping length, away from bends, valves, or pumps that induce swirl or local turbulence. Locations prone to stratification, stagnant zones, or phase separation must be avoided. Where space constraints or complex process geometry exist, flow conditioners or vanes may be added to stabilize the fluid velocity profile and enhance measurement accuracy across all stages of whisky making, including the whiskey fermentation process and whiskey mash liquefaction process.
Material compatibility is non-negotiable, given the chemical aggressiveness of high-sugar solutions (sticky, potentially fouling) and high-ethanol liquors (strong solvents) prevalent in barley whiskey production. Inline meters must withstand continuous exposure to both during complete liquefaction in whiskey production and subsequent distillation. Without robust construction, sensor drift, corrosion, or failure may jeopardize whiskey quality control techniques. While peer-reviewed data on material degradation in these specific media remain sparse, industrial practice—and vendor recommendations—consistently favor 316L stainless steel, select fluoropolymers, or ceramics as wetted materials. Close communication with manufacturers to confirm field-tested compatibility for the whiskey production process is advised, as performance may vary with temperature, concentration, and presence of cleaning agents.
Data integration with plant control and traceability systems maximizes the operational and compliance benefits of inline density measurement for whiskey. Modern meters support industrial communication protocols (4–20 mA, HART, Profibus, Modbus, Ethernet/IP), allowing seamless interfacing with programmable logic controllers (PLC), distributed control systems (DCS), and digital recordkeeping platforms. Real-time density values can automate corrective actions, provide rapid feedback for processes like spirit dilution, and document batch histories for regulatory audits. Proper system configuration minimizes manual input, reduces risk of data loss or error, and enables advanced analytical tools, such as predictive maintenance or process optimization—a best practice for advanced whiskey quality control techniques and ensuring consistent malted barley in whiskey production output.
Membrane Filtration Wine
*
Inline Density Measurement: Mechanisms and Benefits in Production
Principles of Inline Density Measurement
Inline density measurement is a continuous, automated method for tracking fluid density directly in the yellow wine filling production line. This approach replaces manual sampling and laboratory analysis, providing rapid detection of real-time changes in wine composition. For tank-based monitoring, vibronic technologies are widely adopted owing to their adaptability and high accuracy in beverage processing environments.
Key instruments commonly used include:
- Lonnmeter liquid density meter
- Vibronic sensors for inline tank or pipe installations
These tools integrate with plant control systems, feeding continuous density, viscosity, and temperature values into digital networks for immediate process feedback and optimization. Their application enhances transparency and traceability across the yellow wine production process and supports compliance with both quality and safety standards.
Applications Across Production Stages
Inline density measurement is vital at every major stage of yellow rice wine and yellow glutinous rice wine production:
Rice Washing and Soaking
During the rice washing and soaking process, density sensors help determine the soaking endpoint. As rice absorbs water and swells, the density of the surrounding solution changes. Tracking these shifts allows precise control over soaking time, minimizing under- or over-soaking risks and ensuring optimal hydration for the subsequent starch gelatinization process.
Gelatinization
During the starch gelatinization process, inline density measurement detects changes resulting from increasing rice starch gelatinization temperature. Accurate monitoring enables assessment of complete starch transformation. If density plateaus below expected values, it may indicate incomplete gelatinization—potentially due to temperature deviations or rice quality issues.
Fermentation
Throughout the glutinous rice fermentation process, density sensors continuously monitor declines in density that correlate with sugar conversion to alcohol. Real-time residual sugar monitoring in rice wine is achieved by mapping density against sugar content, supporting control over fermentation rate and endpoint. Inline measurement is particularly valuable during fermentation stalls or unexpected plateaus, allowing immediate intervention.
Post-Fermentation Quality Control
Following fermentation, density readings inform wine clarification techniques, supporting both wine residual sugar analysis and determination of appropriate wine fining agents or membrane filtration wine systems. Ensuring density stability at this stage is crucial for product consistency and clarity, whether using classic clarification agents or membrane filtration in winemaking.
Process Improvement and Issue Resolution
Inline density measurement enables early detection of various process anomalies:
Gelatinization Abnormalities
Sudden or insufficient density changes during gelatinization signify incomplete starch conversion or temperature control issues, prompting fast assessment of rice starch gelatinization problems before they impact fermentation.
Fermentation Stalls and Deviations
Consistent, real-time density measurements highlight departures from expected fermentation kinetics, such as stagnating sugar conversion. These signals allow quick adjustment of temperature, nutrient levels, or microbial populations to restore the process and maintain desired yellow wine characteristics.
Residual Sugar and Quality Predictability
Inline measurement is crucial for wine residual sugar analysis, ensuring that sugar levels meet product specifications. It also supports automated alarms tied to threshold values or unexpected trends, streamlining operator response and quality management.
By integrating sensor platforms with digital control systems, producers are empowered to react immediately to anomalies—optimizing rice fermentation techniques and securing consistent yield and sensory profile. This proactive approach minimizes losses, maintains product quality, and enhances efficiency across the yellow wine production line.
Clarification and Filtration in Rice Wine Production
Wine Clarification Process
The primary objective of the wine clarification process in yellow rice wine production is to remove suspended solids, yeast cells, proteins, and colloidal matter. This step improves transparency, visual appeal, and shelf stability, making the wine more attractive to consumers and reducing risk of sedimentation or haze during storage. Effective clarification limits the potential for microbial instability and preserves product integrity over time.
Clarification agents, also known as wine fining agents, are central to this process. These include bentonite (a mineral clay), protein-based agents like casein and isinglass, synthetic polymers such as PVPP, and plant-derived alternatives like chitosan and pea protein. Their mechanisms vary:
- Bentonite adsorbs proteins and colloidal particles via surface charge effects, precipitating them from solution.
- Isinglass and casein bind tannins and pigments through hydrophobic or hydrogen bonding, which removes compounds that cause browning and haze.
- PVPP scavenges oxidized polyphenols, selectively clearing haze-forming phenolics.
- Chitosan offers an allergen-free, plant-based solution for targeted clarification.
Choosing a clarification agent and dosage is highly dependent on wine composition. For example, bentonite provides strong protein removal but risks stripping desirable aroma compounds and total sugar. Plant proteins and synthetic polymers enable more selective retention of positive flavors and aromas, supporting premium product development.
Key efficiency parameters for clarification include residual turbidity (clarity), color intensity, chemical stability (pH, sugar and acidity balance), and colloidal content. Sensory attributes—aroma, taste, and consumer acceptability—have emerged as equal priorities beside technical clarification metrics. Machine learning and spectral analysis are now applied for predictive dosage control, minimizing trial and error and ensuring precise outcomes. Analytical methods such as Asymmetrical Flow Field-Flow Fractionation (AF4) allow wine producers to characterize colloidal fractions and optimize the process for specific wine profiles.

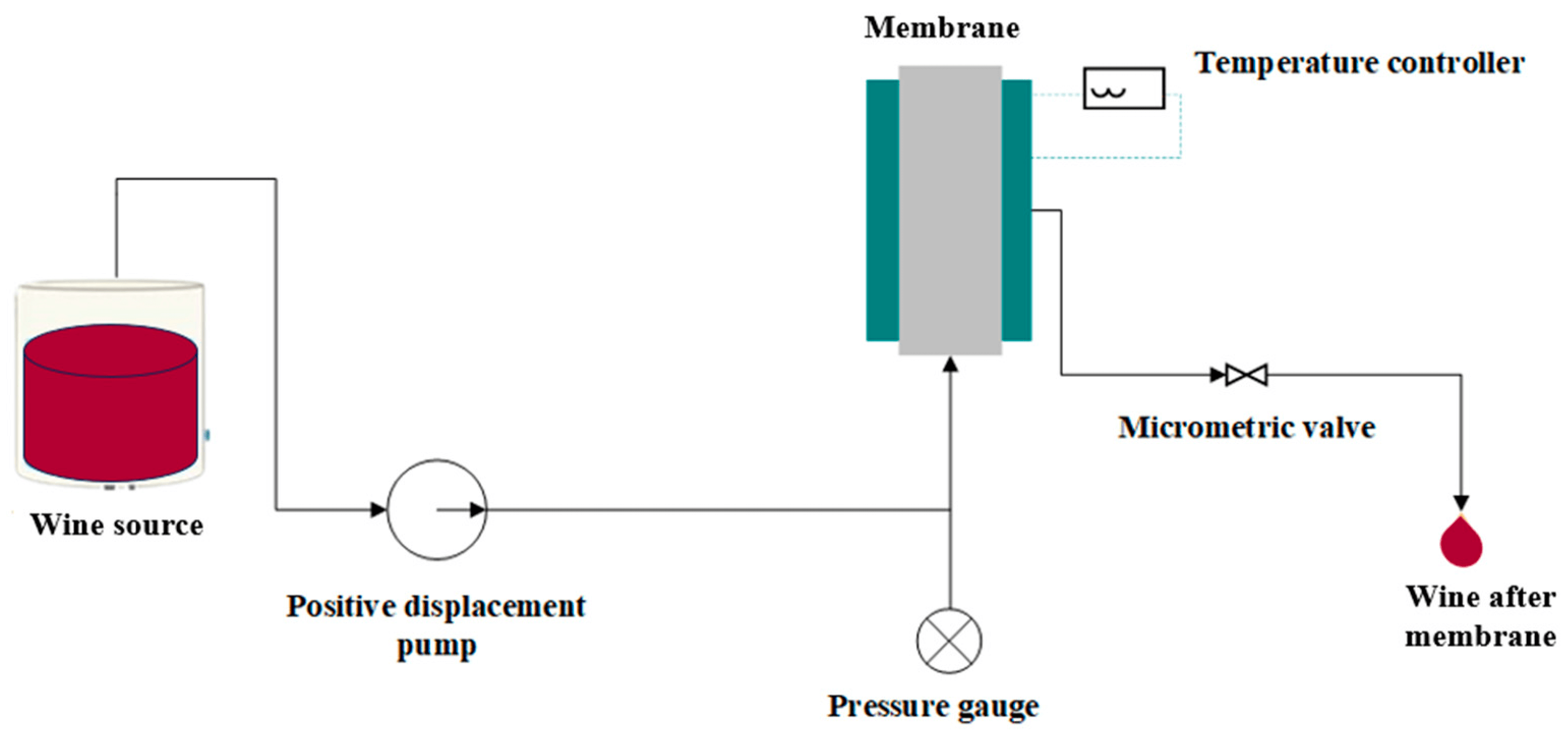

Wine Membrane Filtration
Membrane filtration wine technology builds on clarification by physically separating fine particles, colloids, microorganisms, and certain macromolecules that fining agents alone may not remove. Principles of membrane filtration involve passing yellow rice wine through semi-permeable membranes with defined pore sizes:
- Microfiltration (>0.1 μm) targets larger suspended solids and yeast.
- Ultrafiltration (1–100 nm) removes proteins and colloids.
- Nanofiltration (<1 nm) and reverse osmosis refine lower molecular weight solutes.
These systems underpin modern yellow wine production lines, increasing product clarity, reinforcing microbiological stability, and protecting against post-bottling haze or spoilage. Membrane filtration is advantageous over traditional methods because it avoids introducing chemicals, better retains aroma compounds, and enables continuous, scalable processing.
Examples show pairing membrane filtration with chemical clarifiers (as in purple rice wine studies, analogous to yellow rice wine) yields wines with superior color preservation, sedimentation resistance, and stable anthocyanin content. Five types of membranes trialed in recent rice wine research enhanced flux rates while controlling discoloration and sediment formation.
Integration of in-line density measurement as a process control checkpoint ensures optimal performance during membrane filtration. Technologies such as vibronic density sensors, Coriolis flowmeters, and sanitary refractometers provide real-time monitoring of wine density and Brix, enabling operators to set precise filtration cutoffs and maintain consistent product viscosity. These tools also serve the yellow wine filling production line, automating transitions between stages and reducing human error. Continuous density measurement ensures the removal of unwanted residues without excessive loss of valuable wine constituents, supporting both quality and process efficiency.
Real-time feedback from in-line density measurement during filtration improves endpoint determination, minimizes batch variance, and supports regulatory requirements for product composition and hygiene. .
Quality Assurance and Process Control Integration
Real-time inline density measurement is central to quality assurance in yellow rice wine production. It tracks the conversion of sugars to ethanol, providing immediate feedback on fermentation progress and detecting deviations that could impact product quality. Continuous density monitoring reduces reliance on manual sampling, empowers rapid intervention, and allows for tighter control throughout the glutinous rice fermentation process, supporting modern rice fermentation techniques and automation in the yellow wine production line.
Supporting Batch-to-Batch Consistency
Inline density sensors maintain consistent product attributes across batches, a critical factor for consumer trust and regulatory compliance. Measurements are collected continuously, ensuring that each yellow glutinous rice wine batch meets defined standards for alcohol content and flavor. In-line density measurement helps producers instantly identify fermentation anomalies, such as gelatinization abnormalities in rice starch or starch gelatinization issues, and correct them before they affect final product quality. Integrated with digital control systems, density data can be compared with historical production records to benchmark performance and minimize batch-to-batch variability.
Regulatory Compliance
Real-time density monitoring supports regulatory requirements by delivering documented evidence of production consistency. Continuous density measurement in wine production provides verifiable, timestamped data that can be referenced during internal audits or external inspections. Compliance with alcohol and sugar specifications—inclusive of wine residual sugar analysis—is facilitated by the system’s ability to offer up-to-the-minute information and alert operators if parameters deviate from approved ranges.
Coordinating with Other Monitoring Techniques
Effective process control in yellow wine production integrates density measurement with additional sensory inputs:
- Temperature: Rice starch gelatinization temperature and management of fermentation kinetics are regulated via automated sensors. Density readings help correlate temperature adjustments to microbial activity and ensure optimal enzymatic reactions for starch conversion.
- Acidity and pH: Monitoring acidity during fermentation ensures stability while also preventing spoilage. Inline systems can be paired with pH probes to maintain the ideal fermentation environment for yellow rice wine’s characteristic profile.
- Residual Sugar: Residual sugar monitoring in rice wine relies on both direct and derived metrics. Density, combined with predictive models and near-infrared spectroscopy, can estimate wine sweetness endpoints. This integration prevents under- or over-fermentation, ensures flavor consistency, and manages risks associated with wine clarification agents or wine fining agents.
Integrated Control Systems and Tools
Real-time density data is integrated into process analytics infrastructures, such as PLCs and SCADA systems, bridging information from diverse sensors (temperature, sugar, acidity). Examples include advanced vibrational and ultrasonic analyzers capable of aggregate measurements over entire batch volumes, lending stability and reliability in large-scale yellow wine filling production lines. Data-driven controls enable dynamic adjustment—modifying rice washing and soaking process parameters, or triggering membrane filtration wine systems—to maintain optimal fermentation conditions.
Machine learning and multivariate predictive models (e.g., PLS, Si-PLS) further enhance the interpretive power of quality assurance systems, refining endpoint determination for rice soaking, fermentation, and wine clarification processes. These automated, integrated approaches minimize manual intervention and substantially reduce variability.
Example Applications
- Breweries utilize inline density sensors to monitor original gravity (Plato) and optimize batch consistency.
- Wine producers align density readings with residual sugar targets to ensure regulatory compliance, leveraging membrane filtration wine systems for clarification.
By synchronizing multiple metrics—density, temperature, acidity, residual sugar—yellow rice wine producers achieve continuous, actionable quality assurance throughout the production cycle. Each monitoring layer supports the others, preventing process drift and validating that final products meet consumer and regulatory expectations.
Troubleshooting and Best Practices
Yellow rice wine production presents complex technical challenges, especially regarding gelatinization, density measurement, and clarification. Ensuring product consistency demands a thorough understanding of typical failures and their remediation using targeted protocols and modern process control tools.
Common Process Issues
Gelatinization Abnormalities
Gelatinization, the conversion of rice starch into fermentable sugars, is foundational to the glutinous rice fermentation process. Abnormalities often stem from postharvest yellowing (PHY), which increases apparent amylose concentration and gelatinization temperature, making rice starch harder to process. When yellowed or damaged kernels are used, gelatinization may be incomplete, leading to insufficient sugar release, lower alcohol yields, and a compromised texture and flavor profile. Fractured kernels may disrupt absorption during the rice soaking process, impeding starch gelatinization and affecting rice soaking endpoint determination. In severe cases, their brittleness can render batches unsuitable for high-end yellow rice wine production.
Inconsistent Density Readings
Continuous in-line density measurement is critical for monitoring sugar consumption and alcohol production in fermentation. Common problems include sensor drift, calibration errors, fouling, and fluctuating temperature gradients. In-line sensors (e.g., ultrasonic and Coriolis types, Liquiphant M vibrating fork) may struggle with the dense, multiphase nature of fermentation media. CO₂ evolution and solids accumulation further complicate readings, resulting in inaccurate Brix (sugar content) or residual sugar monitoring.
Clarification Failures
Clarification is essential for producing clear, stable rice wine. Failure modes include persistent turbidity, haze formation, loss of aromatic compounds, and poor filtration output. Deficient fining, insufficient settling, or incorrect membrane filtration parameters may lead to wine instability—affecting both shelf life and appeal. Excessive use of fining agents or overly aggressive filtration can strip desirable aromatics, while inadequate clarification produces visually and organoleptically inferior wine.
Practical Solutions for Diagnosis and Rectification
Gelatinization Troubleshooting
- Diagnosis: Monitor rice starch gelatinization temperature during steaming; assess amylose levels and kernel structure via rapid laboratory analysis. Use low-field nuclear magnetic resonance or microscopy to examine gelatinization progress where feasible .
- Rectification: Introduce a pre-gelatinization step for rice with high amylose or poor hydration. Apply enzymatic treatments (e.g., cellulase) to improve moisture migration and break down recalcitrant cell walls, increasing fermentable sugar yield. Segregate and remove excessively fractured or yellowed kernels before processing. Consider blending rice varieties to optimize gelatinization temperature and texture outcomes.
- Diagnosis: Compare in-line sensor readings with laboratory Brix or gravimetric analyses to expose drift or fouling. Review temperature compensation settings and employ time-series analysis to flag anomalies.
- Rectification: Perform regular sensor cleaning and recalibration, especially after CIP cycles or process modifications. Implement redundant sensing or routine cross-validation with manual sampling. Ensure sensors are installed in locations with minimal turbulence, sediment, and gas bubbles. Adopt sensor firmware updates for improved multiphase correction if available.
- Diagnosis: Test wine transmittance and color intensity before and after clarification using spectrophotometry. Profile protein and polyphenol content to select optimal fining agents. Monitor volatile compounds with GC-MS for post-filtration aroma loss.
- Rectification: Use targeted fining (bentonite for proteins; PVPP or soybean protein for polyphenols) tailored to batch composition. Switch to membrane filtration systems with adjustable pore size for haze removal and minimal aroma degradation. Adopt ultrasound-assisted or centrifugation clarification to enhance sedimentation of particulates and promote flavor retention. Ensure nitrogen supplementation during fermentation to reduce haze-causing higher alcohol formation.
Density Measurement Solutions
Clarification Issue Management
Applying these troubleshooting and best practice protocols will significantly reduce process variability, prevent common defects, and align yellow glutinous rice wine operations with industry standards for quality and operational resilience.
FAQs
What role does rice starch gelatinization temperature play in yellow rice wine production?
Rice starch gelatinization temperature is crucial for starch conversion during yellow rice wine fermentation. Gelatinization enables starch granules to absorb water and disrupt their crystalline structure, making them accessible to enzymatic hydrolysis. If the temperature is too low, incomplete gelatinization leads to poor sugar extraction and suboptimal fermentation. Excessively high temperatures can damage rice granules, resulting in a sticky mash and impaired enzymatic action. Studies show waxy rice wines, brewed from glutinous rice with lower gelatinization temperatures due to high amylopectin content, benefit from increased starch degradation and improved wine quality. Process optimizations, such as microbial treatments and specific soaking or steaming parameters, can further lower the gelatinization temperature, supporting efficient starch conversion and robust fermentation outcomes.
How is in-line density measurement used in the yellow wine filling production line?
In-line density measurement provides continuous, real-time monitoring of the fermentation process within the yellow wine filling production line. By tracking density changes—which directly correspond to sugar and alcohol concentrations—producers gain prompt insights into fermentation progress and quality consistency. These measurements enable operators to quickly adjust temperature, timing, or substrate feeding to maintain ideal fermentation conditions. Examples include modern handheld and automated density meters tailored to wine production environments, such as the Density2Go, which enhance both batch and industrial process control. Consistent monitoring ensures product stability and minimizes batch-to-batch variability, streamlining the yellow wine production line.
Why is the rice washing and soaking process important for glutinous rice fermentation?
Washing glutinous rice before fermentation removes surface dust, bran, and microbial contaminants, reducing risk of off-flavors and unwanted fermentation byproducts. Soaking hydrates the grains, ensuring uniform swelling and facilitating proper starch gelatinization. This preparation is vital for maximizing enzymatic sugar extraction and for avoiding fermentation irregularities. Soaking endpoint determination typically relies on factors like rice texture, water absorption rate, and physical examination. Insufficient soaking leads to uneven gelatinization, incomplete sugar conversion, and poor wine quality. Over-soaking may disrupt starch structure, causing extraction issues or promoting spoilage microorganisms.
What are typical problems detected by continuous density measurement in rice wine fermentation?
Continuous density measurement, integrated with spectral and multivariate analytical systems, helps detect stuck fermentations, excessive residual sugar, and low starch conversion rates. For example, a sudden plateau or decline in density may indicate yeast stress or nutrient limitations, leading to incomplete fermentation. High residual sugar levels signal poor starch conversion or enzymatic inefficiency. Early detection by real-time sensors and algorithms allows for targeted interventions, such as nutrient adjustment, temperature control, or process re-inoculation. Continuous monitoring enhances quality assurance by reducing unwanted byproducts, preventing flavor faults, and ensuring the desired alcohol content and stability.
How does wine membrane filtration improve clarification in yellow rice wine?
Wine membrane filtration systems, employing microfiltration (MF) or ultrafiltration (UF) membranes, remove suspended solids, colloids, and microorganisms, advancing both wine clarification and microbial stability. The process replaces traditional fining agents and filtration approaches with precision separation using porous membranes. This enhancement yields visually clear, shelf-stable rice wine while preserving aroma, flavor complexity, and overall sensory quality. Optimizing membrane pore size, type, and operational parameters (e.g., pH, temperature) prevents fouling and ensures maximum efficiency. Membrane filtration technology is particularly valuable for yellow glutinous rice wine, elevating clarity and quality beyond conventional wine clarification techniques.
Post time: Nov-13-2025
