Iron Ore Flotation: Principles, Purpose, and Strategic Benefits
Iron ore flotation is a mineral processing technique that enhances the recovery and quality of iron concentrates. It works by selectively separating valuable iron-bearing minerals, such as hematite and magnetite, from undesirable gangue minerals like silica, alumina, and sulfur. The process relies on differences in surface chemistry, enabling discrete liberation and selective flotation of target minerals for improved concentrate purity and grade.
Selective Separation of Valuable Minerals
Flotation separation efficiency is driven by the adsorption of collectors and frothers that modify mineral surfaces. For instance, cationic collectors such as etheramines target silica, enabling its flotation from iron oxides. Anionic collectors like fatty acids are effective on iron oxide surfaces, facilitating their preferential recovery. Recent advances incorporate mixed collector systems—etheramine, amidoamine, and MIBC—achieving both improved selectivity for hematite/goethite and enhanced flotation separation accuracy improvement.
Controlling process parameters, including flotation circuit slurry density control and precise reagent dosing adjustment, is vital. High-fidelity iron ore slurry density meters such as Lonnmeter support process parameter stability control by prolonging optimal mineral-gangue separation, preventing slurry density fluctuation.
Iron Ore Flotation
*
Impurity Removal and Ore Grade Enhancement
Removing impurities during flotation directly elevates iron concentrate grade stability. Silica, alumina, and sulfur are rejected, producing higher-grade iron concentrates that lower energy demands in downstream smelting. Collector and frother dosage optimization, enabled with advanced sensors, ensures precise reagent use and diminishes reagent waste.
Effective mineral and gangue separation also reduces iron concentrate thickening density meter readings, leading to concentrate thickening efficiency enhancement. Minimizing impurity content supports environmental compliance by decreasing hazardous byproduct formation.
Utilization of Low-Grade Ores and Resource Maximization
Low-grade iron ores, characterized by poor mineral liberation and complex associations, often require flotation for economic beneficiation. Flotation enables the utilization of banded iron formations (BIFs) and lean ores by selectively concentrating iron oxides. Coupling flotation with pre-concentration techniques maximizes resource extraction, decreases waste streams, and supports tailings density monitoring for comprehensive utilization.
Examples include upgrades where flotation following gravity separation effectively removes gangue, refining concentrate to steelmaking specification and reducing unrecovered iron ore detection.
Economic Impact of Flotation
Increasing iron concentrate grade decreases energy demands and production costs in subsequent processing. Flotation’s production cost control arises from reduced filtration energy consumption and filter clogging prevention. Efficient separation decreases pipeline wear and clogging prevention needs, promoting system longevity and maintenance cost reduction.
Advanced in-line monitoring, such as iron concentrate grade stability and tailings density measurement via density meter for slurry, ensures that operations consistently meet tailings storage density requirements, crucial for regulatory compliance.
Environmental Footprint Minimization
Flotation contributes to environmental stewardship by facilitating tailings management and reducing unrecovered iron ore. Enhanced tailings quality through effective flotation supports land reclamation, limits habitat destruction, and lowers the volume of hazardous disposal. Integration of bio-beneficiation technologies furthers reagent waste reduction and promotes sustainability.
Process parameter stability and precise reagent control also mean less chemical discharge and emissions, aligning operations with emerging regulatory standards. Collectively, these strategies reinforce flotation’s role in advancing both the technical and environmental performance of iron ore processing.
Key Equipment and Technologies in Iron Ore Flotation
Flotation Cells in Mineral Processing

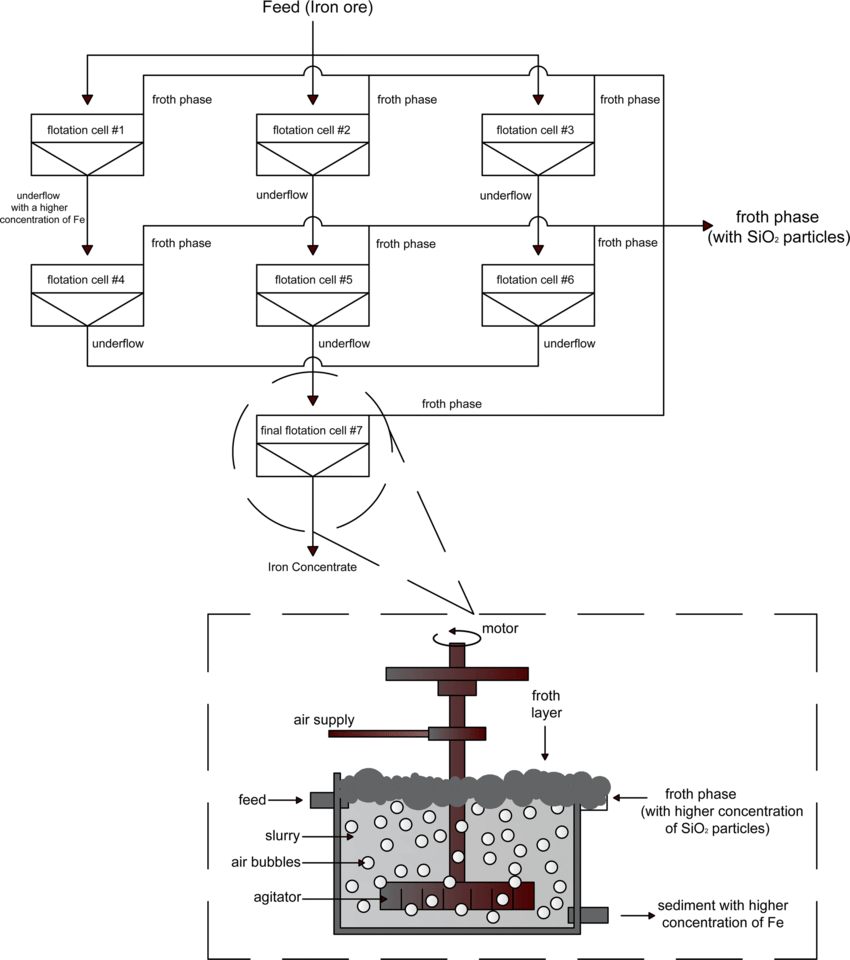

Iron ore flotation circuits rely on three principal cell types: mechanical, column, and pneumatic cells. Mechanical flotation cells feature agitators and impellers to ensure active mixing, commonly used for their robust handling of coarse and fine feed. Column flotation cells, taller and slimmer, provide improved separation efficiency for fine particles by generating a gentler bubble environment and a more stable froth zone. Pneumatic flotation cells utilize air jets instead of mechanical agitation, enhancing operational flexibility and reducing energy consumption.
Cell hydrodynamics—namely residence time, air flow, and bubble size—directly affect flotation separation efficiency. Longer residence times facilitate sufficient contact between mineral particles and bubbles, while optimizing air flow and bubble size sharpens the selectivity between valuable minerals and gangue. For example, increased air flow may improve bubble-particle collision rates, but excessive turbulence can lower separation accuracy.
The design features of flotation cells are central to circuit efficiency and process stability. Cells with adjustable air input, innovative impeller designs, and integrated control systems allow stable operation despite variations in feed slurry density and ore composition. The flotation cell series demonstrates performance advances with automated PLC control, real-time monitoring, and intelligent reagent dosing adjustment, reducing reagent waste and supporting consistent concentrate grade. Modern systems use live froth image analysis and machine learning for prompt adjustment of operating parameters, minimizing deviation and optimizing product quality. Integrated monitoring triggers precise changes in collector and frother dosages, enabling reduction of reagent loss and production cost. These advancements allow operations to maintain high flotation separation efficiency and minimize unrecovered iron ore.
Slurry Density Measurement and Control
Precise control of slurry density is essential to flotation circuit stability. The iron ore slurry density meter (such as ultrasonic meters) offers accurate, non-radioactive density readings, crucial for timely process management. Features include immunity to pipe scaling, rapid response, and compatibility with automated control systems. In practice, continuous measurement enables operators to respond instantly to density fluctuation, stabilizing flotation separation accuracy and preventing slurry density-driven faults like mill overload or pipeline clogging.
The iron concentrate thickening density meter is deployed at thickener underflow points to guarantee target concentrate density. This enhances concentrate thickening efficiency and maintains iron concentrate grade stability by permitting consistent, optimal feeding to filtration and pelletizing units. Stable thickener density improves filtration throughput while lowering energy consumption and reducing risk of filter clogging. Adjusting water input and thickener feed rates based on real-time readings reduces the frequency of filtration disturbances, supports steady grade recovery, and supports production cost control.
Iron ore tailings density measurement is fundamental for meeting tailings storage requirements and achieving comprehensive tailings utilization. Continuous tailings density monitoring informs dam design and operational decisions, preventing safety hazards and facilitating subsequent resource recovery. Stable tailings density supports downstream process parameter stability control and enables detection of unrecovered iron ore in tailings streams.
Real-time slurry density control systems integrate readings from multiple circuit points—feed, concentrate, thickener, and tailings—ensuring prevention of pipe wear and filter clogging throughout the beneficiation flow. For instance, prompt density adjustments prevent solid accumulation in pipes, reducing maintenance and extending equipment life. Stabilizing process variables supports precise reagent dosing, optimized collector and frother dosage, and improved overall flotation separation efficiency. Automated density feedback loops, coupled with Lonnmeter ultrasonic slurry density meter and compatible density meters, are integral to contemporary flotation circuit slurry density control, enabling reliable scaling from laboratory to industrial operations.
Process Parameters Optimizing Iron Ore Flotation Separation
Collector and Frother Dosage Optimization
Optimal collector and frother dosing is critical in the iron ore flotation process to ensure effective mineral and gangue separation. Collectors such as fatty acids or hydroxamates selectively bind to iron minerals, while frothers—like MIBC—stabilize foam and control bubble size. Both reagents require precise selection and accurate dosing to maximize mineral recovery and reduce reagent waste.
Recent studies applying Response Surface Methodology (RSM) identified a collector dose of approximately 80 ml/kg and a frother dose near 50 ml/kg as optimal under specific flotation conditions for iron ore slimes. These dosages, adjusted to ore type and process goals, delivered the highest flotation separation efficiency and improved concentrate quality. Notably, unconventional reagent mixtures, especially blends of collectors with MIBC as frother, outperformed single-reagent approaches—resulting in better selectivity and higher recovery. Fine-tuning frother concentration is particularly vital in coarse particle flotation; minor adjustments can impact not only separation efficiency but also energy demands, as proper bubble structure formation allows for coarser grinding and energy savings.
Precise reagent dosing adjustment is essential. Inadequate collector/frother addition reduces recovery and concentrate grade; excess user raises costs and may introduce impurities. Modern automated dosing systems integrate with real-time feedback from iron ore slurry density meters, such as the Lonnmeter. These systems continually adapt dosing rates based on changes in slurry density, ensuring stable process conditions and minimizing reagent waste. Recent industrial case studies demonstrate that integrating sensor feedback into reagent metering systems improves both flotation cell mineral processing performance and production cost control.
Slurry Density Fluctuation Prevention
Maintaining constant slurry density across the flotation circuit is crucial for flotation separation accuracy improvement and stable iron concentrate grade. Density fluctuations can cause erratic bubble behavior, inconsistent reagent distribution, and operational issues like filter clogging or pipeline wear. Automated control systems, guided by real-time density measurements from slurry density meters, help operators promptly adjust water and solids addition to the circuit. This mitigates swings caused by feed variations or operational upsets.
Process strategies include continuously calibrating water addition and adjusting underflow or feed pumps based on output from density meters. If the feed becomes dilute (density drops), automated valves reduce water input or increase solids feed. When the density rises (becoming too thick), water is added to sustain the optimum range for effective flotation. These approaches not only ensure stable flotation cell operation but also enhance concentrate thickening efficiency, reduce filtration energy consumption, and prevent filter membrane clogging.
Advanced meters, like Lonnmeter slurry density analyzer, enable real-time iron concentrate thickening density measurement. This supports consistent product grade and efficient moisture removal post-flotation. For comprehensive process control, tailings density monitors ensure disposal streams meet storage requirements and support unrecovered iron ore detection for process optimization.
Critical Flotation Parameters and Their Control
A group of key process variables must be controlled for stable flotation separation efficiency. Impeller speed, aeration rate, and residence time are primary factors. Their optimization directly affects bubble generation, mixing, and time minerals spend in the flotation cells. Adjusting these variables without continuous process feedback can lead to non-optimal outcomes: too high impeller speed may cause particle entrainment; low aeration rates can result in incomplete mineral recovery.
Calibration of these parameters involves linking process changes with readings from iron ore slurry density meters and concentrate monitoring instruments. Operators use floatability component modeling—built from experimental data—and integrate it into the plant’s control system, allowing predictive adjustments. For example, changes in input density detected by sensors prompt immediate impeller speed or air flow modifications to maintain ideal operational windows.
Accurate input and output density monitoring guards against unrecovered iron ore losses. If tailings density sensors register deviations, operators can intervene by raising residence time or modifying reagent addition. This feedback loop enhances parameter stability, ensuring improved yield and stable concentrate grade. The result is enhanced flotation separation accuracy, prevention of unrecovered mineral losses, and process parameter stability control.
Enhancing Process Outcomes: From Effective Separation to Cost Efficiency
Effective Mineral and Gangue Separation
Boosting flotation selectivity in iron ore flotation depends on targeted reagent application. Selective collectors, such as alkyl etheramines, preferentially adsorb on iron minerals, making them hydrophobic and promoting flotation, while depressants like starch and sodium hexametaphosphate (SHMP) render gangue minerals hydrophilic, suppressing their flotation. The ternary collector-frother system shows that specific combinations of reagents can enhance separation efficiency and reduce silica and alumina content in concentrates, especially for complex ores. For example, SHMP strongly depresses chlorite without affecting specularite flotation, allowing more effective removal of silicate gangue.
Process optimization balances collector activation and depressant strength. Excess depression lowers iron recovery; inadequate selectivity contaminates concentrates. Integrated measurement tools, such as real-time iron ore slurry density meters (including Lonnmeter), enable precise control over slurry density and reagent dosing, minimizing Fe losses and stabilizing concentrate grade. Operators adjust aeration, reagent dosages, and cell levels in response to continuous density data, ensuring consistent separation outcomes. Machine learning models further predict and enhance concentrate quality under dynamic conditions.
Concentrate Thickening and Filtration Optimization
Thickening and filtration efficiency is critical for meeting dewatering and storage demands in iron ore flotation. Thickening increases solids concentration via gravity or flocculation; filtration removes residual water to produce dry filter cakes. Continuous monitoring with devices like the Lonnmeter iron concentrate thickening density meter ensures underflow meets established density criteria for subsequent dewatering and safe storage.
Optimizing concentrate thickening requires the correct flocculant dosage to boost underflow density and enhance overflow clarity. This step directly influences how well filtration performs. Membrane filter presses, following optimal thickening, reliably achieve filter cakes with moisture content below 6%, supporting high-grade iron concentrate production. Filtration energy consumption drops when cake adhesion and cohesion are managed; theoretical models predict detachment performance under specific pressures and cake treatments. Preventing filter clogging relies on controlled slurry properties—specifically consistent density and viscosity—achieved with real-time measurement and precise dosing.
Tailings Management and Unrecovered Ore Detection
Effective tailings management in iron ore flotation depends on accurate tailings density monitoring for safety, resource recovery, and utilization. Iron ore tailings density measurement, via continuous automated sensors (such as those integrated by Lonnmeter), ensures tailings meet density requirements for secure storage and allows for water reclamation. Tailings with unpredictable density present risks of dam failure and inefficient land use.
Comprehensive tailings utilization requires systems that detect unrecovered iron. Sensor-based circuits identify iron in tailings streams, enabling operators to refine flotation circuit configurations, recover lost ore, and boost overall process recovery. Recovered iron from tailings can be reintegrated via reprocessing, increasing resource efficiency.
Production Cost Control through Energy and Reagent Savings
Production cost control in iron ore flotation focuses on reagent and energy savings. Real-time slurry density monitoring allows for precise reagent dosing adjustment. Image-based froth analysis and adaptive control technologies minimize collector and frother dosage—reducing reagent waste and maximizing effective mineral separation. For example, reuse of process water containing residual amine collectors can cut new reagent consumption by up to 46% without lowering concentrate grade or recovery.
Energy savings occur alongside optimized reagent dosing. Lower flotation energy use is achievable with stable slurry density and process parameter control, aided by sensor feedback and machine learning models. In thickening and filtration, maintaining appropriate feed density reduces cycle times and filter press energy demand. Additionally, preventing pipeline wear and clogging—with stable slurry properties and density—lowers maintenance costs and increases operational reliability.

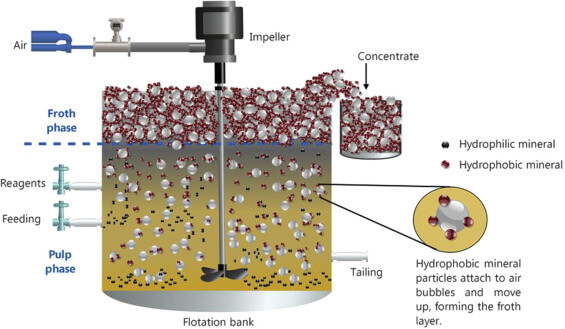

Tailing Floatation
*
Advanced Process Integration: Stable Control and Efficiency Enhancement
Process parameter stability in the iron ore flotation process is achieved by integrating accurate density measurement with responsive circuit control. Real-time slurry density monitoring is pivotal; instruments like Lonnmeter density meters provide high-frequency, precise data that informs control decisions and prevents density fluctuations in flotation cells mineral processing. Continuous density measurement ensures effective mineral and gangue separation, supports flotation separation efficiency, and prevents common operational issues such as filter clogging, pipeline wear, and tailings storage density deviations.
Lonnmeter density meters, with error margins as low as ±0.001 g/cm³, enable rapid detection and correction of slurry density drift. This degree of control stabilizes iron concentrate thickening, enhances concentrate thickening efficiency, and minimizes unrecovered iron ore in tailings. Precise density feedback forms the basis for dynamic adjustment of reagents—collector and frother doses—and real-time regulation of flotation circuit parameters to maintain iron concentrate grade stability and reduce filtration energy consumption. Integrated systems utilizing automated feedback control loops and model predictive control (MPC) frameworks respond dynamically to density shifts, preventing filter clogging and ensuring compliance with tailings storage density requirements.
Balancing concentrate quality and recovery efficiency in iron ore flotation requires understanding the complex interactions between process variables. Response Surface Methodology (RSM) is extensively applied for multivariate optimization, allowing operators to quantify the impact of parameter combinations such as pH level, particle size, reagent dosage, and aeration rate on product yield and grade. RSM-ANN hybrid models have been shown to deliver predictive accuracies of R² > 0.98 for mineral flotation systems. Central Composite Design (CCD) and advanced optimization algorithms—such as the Generalized Reduced Gradient (GRG)—systematically define optimal process windows, frequently resulting in iron recoveries approaching 95% while minimizing SiO₂ contamination. These models support precise reagent dosing adjustment, collector and frother dosage optimization, and reagent waste reduction, which are central to production cost control and flotation separation accuracy improvement.
Rapid process response to changing feed characteristics is enabled by tools that combine advanced physical measurement and data-driven modeling. High-frequency feedback from density measurement enables immediate adjustment of flowrate, reagent dosing, and aeration, maintaining operational targets across fluctuating ore grades and mineralogies. Machine learning approaches, including digital twins of flotation circuits and AI-based froth image analysis, provide adaptive control capabilities that rapidly correct for deviations in feed composition or slurry density. Simulation tools such as JKSimFloat further optimize circuit design and operational strategies by allowing virtual “what-if” testing, supporting robust process adaptation without risking production assets. For example, immediate adjustment of circuit settings based on iron ore tailings density measurement keeps tailings density within compliance thresholds while maximizing comprehensive utilization of resources.
The integration of sensitive density meters such as Lonnmeter with predictive control systems—including robust contraction metric-based tube-MPC—ensures that parameter stability is actively maintained across grinding and flotation stages. By leveraging continuous process monitoring and adaptive response algorithms, operators achieve both uncompromising product quality and high recovery rates in iron ore flotation, while simultaneously controlling operational costs and preventing filtration, pipeline, and tailings storage issues.
Frequently Asked Questions (FAQs)
What is the iron ore flotation process and why is slurry density important?
The iron ore flotation process selectively separates valuable iron minerals from gangue by attaching the mineral particles to air bubbles in flotation cells mineral processing circuits. This yields a high-grade concentrate with improved purity. Slurry density is a fundamental parameter in flotation separation efficiency, influencing how particles distribute between froth and tailings. Proper control prevents issues like poor froth stability, reduced recovery, and filtration bottlenecks. Managing slurry density ensures effective mineral and gangue separation, process parameter stability control, and optimal operation of downstream equipment, including filters and thickeners.
How do iron ore slurry density meters benefit flotation circuit operations?
Iron ore slurry density meters, such as those from Lonnmeter, provide continuous, real-time measurement of pulp density at critical control points. This data enables flotation circuit slurry density control, which is essential for maintaining consistent separation conditions. Automated feedback allows rapid adjustment of process parameters, including precise reagent dosing adjustment and air flow, ensuring flotation separation accuracy improvement. These benefits include slurry density fluctuation prevention, pipeline wear and clogging prevention, and resource conservation. Operators can prevent unrecovered ore loss, boost circuit throughput, and reduce production costs through stable, efficient operations supported by accurate measurement technology.
How can collector and frother dosage be optimized in flotation?
Collector and frother dosage optimization relies on real-time density and process data. Consistent density measurements allow dosing systems to adapt to fluctuating feed conditions, minimizing reagent waste and enhancing flotation separation accuracy. Advanced dosing systems further reduce variability, resulting in concentrate grade stability and lower operating expenses in mineral processing plants. For example, automatic reagent addition, informed by online density feedback, curtails both overdosing and underdosing scenarios that would otherwise degrade flotation circuit performance and drive up production cost control needs.
Why is iron concentrate thickening density measurement critical for plant performance?
Iron concentrate thickening density measurement is vital for efficient dewatering, ensuring concentrate thickening efficiency enhancement and stable iron concentrate grade. Precise monitoring prevents filter clogging, helps reduce filtration energy consumption, and ensures that the product meets the moisture requirements for storage and shipment. Effective thickener control, supported by an iron concentrate thickening density meter, allows for consistent water balance management and guarantees that filter systems operate at peak performance, thus supporting the economic and technical goals of the plant.
How does tailings density monitoring enhance operational safety and resource utilization?
Tailings density monitoring for comprehensive utilization plays a key role in safety, environmental protection, and sustainability. Iron ore tailings density measurement helps plants meet tailings storage density requirements and regulatory standards for storage and discharge. Continuous monitoring provides early warning of process upsets or flow changes, reducing the risk of environmental incidents and equipment wear. It also allows for detection of unrecovered iron ore in tailings, offering opportunities for additional processing and improved resource utilization. This supports thorough accounting of material flows and aligns with modern standards for sustainable flotation plant management.
