Inline concentration measurement is indispensable in white wine production, especially in real-time sugar concentration measurement and alcohol content measurement for instant capture of Brix sugar fluctuations during fermentation to trigger auto-adjustments, cutting batch scrapping by 12–18% and avoiding aroma loss from delayed offline monitoring.
Understanding the White Wine Production Process
White wine production is a meticulously orchestrated process that transforms fresh grapes into a finished bottle, preserving aroma, freshness, and varietal character through every controlled step. The journey begins in the vineyard, extends through technical interventions in the winery, and concludes with bottling aided by advanced automation.
From vineyard to bottle, white wine production starts with grape growing followed by sorting to remove poor-quality fruit. Grapes are gently pressed in inert gas-protected presses (with optional pre-treatments for yield/clarity), then the must is clarified (via settling/fining) to remove solids. Alcoholic fermentation occurs at 15–20°C in temperature-controlled tanks, with inline meters and densitometers monitoring sugar-to-alcohol conversion. Post-fermentation, the wine is stabilized (cold stabilization, fining) and matured, then filtered (depth/membrane) before automated bottling—prioritizing hygiene, precision, and minimal oxygen exposure.
White Wine
*
The Role of Pressing in Juice and Wine Quality
Pressing grapes for winemaking not only extracts juice but shapes must composition, enzyme activity, and the initial aromatic profile. For white wine, separating juice from skins and seeds quickly is vital for preventing oxidation and unwanted tannin extraction. Choices between classic, maceration, and inert pressing profoundly impact clarity, polyphenol content, acidity, and aroma complexity. Advanced presses also allow precise pressure management, tailored to grape variety and wine style goals.
Grape Must Preparation: Pressing and Clarification
Mechanical and Pneumatic Pressing Techniques for Grape Juice Extraction
Pressing grapes for wine making is a pivotal step in the white wine production process, directly impacting juice yield and quality. Mechanical (traditional hydraulic) presses use physical force to extract grape juice, while pneumatic presses employ compressed air or vacuum to gently compress the must. Pneumatic systems allow more controlled and uniform pressure application, reducing damage to grape solids. This results in higher juice yields and better preservation of delicate aroma compounds and color, especially important in white wine production steps targeting premium quality wines.
Pneumatic presses offer process efficiency and energy savings. They deliver faster production cycles and improved thermal homogenization during fermentation, crucial for sensory and economic values in high-volume wineries. Both hydraulic and pneumatic methods are used for pressing the press cake (pomace), which further increases total juice recovery and can affect color intensity without significant differences in consumer acceptance between methods. Process phase management in pneumatic pressing, such as adjusting the pressure and timing during each cycle, is now recognized for maximizing extraction and minimizing quality loss.
Factors Affecting Yield and Aroma Compound Formation During Juice Pressing
Yield, defined as the ratio of extracted juice to grape mass, is influenced by the pressing regime—including applied pressure, pressing duration, and stage of pomace extraction. Optimal extraction balances high yield with the preservation of aroma-active and phenolic compounds. Excessive pressure can extract more juice but may introduce harsh phenolics and decrease aromatic complexity. Conversely, low and gradual pressure cycles favor retention of esters, terpenes, and other volatiles, impacting the subsequent alcoholic fermentation process in winemaking.
Empirical evidence confirms that well-managed mechanical or pneumatic pressing, with tailored pressure and timing controls, can retain desired aroma compounds while preventing undesirable phenolic over-extraction. This step crucially shapes the aromatic foundation of the finished white wine .
Grape Must Clarification: Sedimentation, Flotation, and Centrifugal Methods
Clarification removes suspended solids from grape must prior to entry into wine fermentation tanks. Three primary grape must clarification process techniques are used:
- Sedimentation (static cold settling): Grape must is cooled and allowed to rest, allowing solids to settle by gravity. This method requires minimal equipment and is suitable for moderate volumes but can be slow—settling times range from several hours to days. It is favored for its simplicity and minimal intervention.
- Flotation: Involves injecting nitrogen or air into the must, causing solids to rise to the top for removal. Flotation is faster than sedimentation and ideal for large-scale or continuous production but requires specialized equipment. Oxygen uptake can increase oxidation risks and subtly alter aroma profiles, thus system design and management are critical.
- Centrifugation: Uses high-speed rotation to rapidly separate solids from must. This technology is effective for high-volume wineries needing swift and thorough clarification. The higher up-front investment is balanced by efficiency, but overuse risks removing colloidal substances that contribute to wine body and aroma complexity.
Flotation and centrifugation achieve comparable juice clarity to sedimentation. However, clarification method choice may alter concentrations of volatile and aroma compounds, with evidence of differences in primary aroma precursors when using flotation versus static settling .
Impact of Grape Must Clarity on Fermentation and Volatiles
Grape must clarity profoundly affects the alcoholic fermentation process in winemaking. High clarity—removal of most solids—supports stable fermentations, enhances yeast performance, and improves reproducibility of desired aroma profiles. Conversely, excessive removal of solids can strip away aroma precursors and colloids vital for complex aroma and mouthfeel development. Studies indicate that the degree of solid content in must not only governs fermentation efficiency but also impacts the preservation and formation of volatile esters and higher alcohols, which are essential to the sensory qualities of white wine.
Optimal must clarity, therefore, must balance fermentation reliability with retention of elements crucial to wine aroma and texture. Too little clarification may lead to sluggish ferments or off-aromas, while too much can yield wines lacking in complexity. Advances in real-time monitoring, such as near-infrared spectroscopy, now guide refinements in the grape must clarification process, enabling precision control aimed at targeted wine styles.
Controlled Alcoholic Fermentation Process
Alcoholic fermentation in the white wine production process transforms grape sugars into ethanol and aroma compounds by specific yeast strains. It occurs in sealed wine fermentation tanks following grape juice extraction and must clarification. Precise environmental conditions and continuous monitoring are required to produce consistent, high-quality wine.
Measuring and Controlling Sugar Concentration
Sugar concentration measurement is fundamental before and throughout fermentation. Accurate tracking allows winemakers to:
- Determine fermentation progress.
- Adjust parameters to prevent stuck or sluggish fermentations.
- Achieve target alcohol content.
Instruments and methods include:
- Digital refractometers easily connect to apps, offering continual sugar readings for process control.
- Photometers provide precise measurements of reducing sugars, essential for monitoring the alcoholic fermentation steps.
- Inline concentration meters give real-time data within wine fermentation tanks, supporting immediate intervention.
These tools streamline wine filling production line automation and maintain optimal conditions in high-volume settings.
Alcohol Concentration Monitoring
Monitoring alcohol content during fermentation is vital for quality and regulatory compliance. Inline alcohol concentration meters installed in fermentation vessels for wine production provide:
- Continuous, accurate data without manual sampling.
- Support for determining alcohol content in fermented wine and compliance with product labeling.
Metrics from inline sensors—such as alcohol level measurement in wine—assist winemakers in fine-tuning fermentation and ensuring end-product consistency. Photo- and refractometric methods dominate, supporting both operational speed and accuracy.
Real-Time Fermentation Adjustment in Tanks
During fermentation, winemakers monitor process variables and intervene as needed:
- Real-time sensor data (sugar, alcohol, temperature, yeast health) underpin agile adjustments.
- Winemakers may regulate temperature, nutrient additions, or aeration to sustain yeast activity and interpret sensory and chemical feedback.
- Automated systems send alerts and visualize data trends for informed decision-making.
Continuous control within wine fermentation tanks maintains optimal conditions for yeast performance and helps avoid unwanted outcomes such as stuck fermentations or subpar aroma expression. Integration of modern instruments, sensor networks, and automated apps facilitates precision management of alcoholic fermentation in winemaking.
Alcohol Content Measurement and Monitoring
Regular measurement of alcohol content in white wine production is crucial after fermentation. Determining Alcohol By Volume (ABV) at this stage confirms that sugar has converted fully to ethanol and provides key data for quality and regulatory compliance. Winemakers typically measure alcohol content when fermentation appears complete, using readings to decide if secondary processing like cold stabilization is needed or to confirm readiness for bottling. This ensures product consistency across batches and adherence to defined wine styles.
Methods and Instruments for Alcohol Measurement
Traditional methods involve tools such as hydrometers and refractometers. These instruments work by measuring the specific gravity (density) of wine, comparing pre- and post-fermentation values to calculate ABV. Proper calibration and sample handling are essential for accuracy. For example, a hydrometer reading can indicate when fermentation is finished; a stable specific gravity over several days suggests that sugar conversion is complete.
Advancements have introduced spectroscopy-based tools and inline alcohol concentration meters, allowing for real-time monitoring. Near-infrared (NIR) spectroscopy offers continuous, non-destructive analysis of chemical parameters like ethanol, even during production without manual sampling. Inline alcohol meters—including digital smart alcoholmeters enhanced with deep learning and Coriolis mass flowmeters—now enable precise, automated measurement of alcohol concentration directly in the fermentation vessel or wine filtration systems, integrating smoothly with wine filling production line automation and modern wine fermentation tanks.

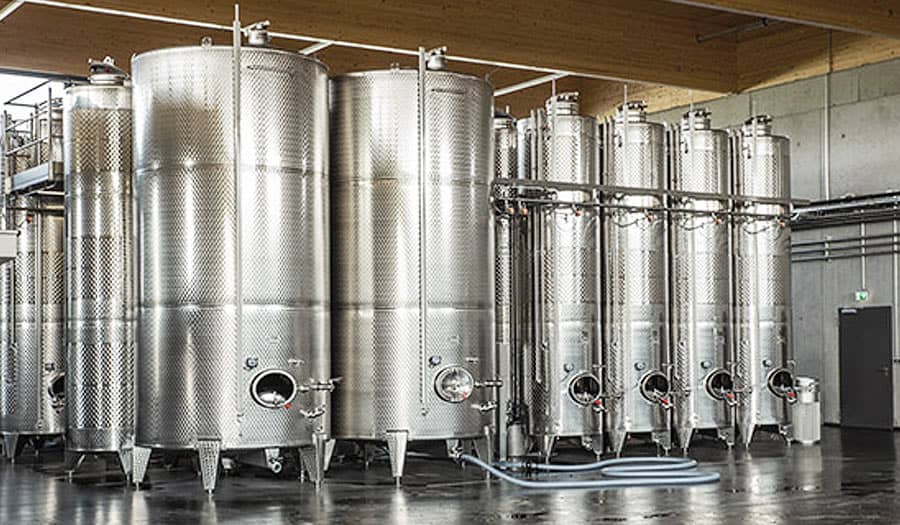

White Wine Fermentation Tank
*
Advantages of Inline Concentration Meters
Inline concentration meters provide several important benefits over manual measurement:
- Continuous Real-Time Data: Automatic tracking lets producers catch deviations early, reducing risk of out-of-spec batches.
- Process Efficiency and Control: Automation streamlines production, as adjustments to temperature, timing, or additives can be made based on live alcohol readings.
- Improved Accuracy: Machine learning–augmented smart sensors minimize measurement errors, enhancing precision for small and large producers alike.
- Reduced Labor and Sample Error: Removing human sampling from the workflow decreases chances of contamination or mismeasurement.
For example, inline Brix systems measure sugar and alcohol concentration, enabling rapid responses if fermentation stalls or deviates from target ABV.
Inline Concentration Measurement for Continuous Quality Check During Packaging
Inline concentration measurement technologies are pivotal in continuous quality assurance during wine packaging. Lonnmeter ultrasonic concentration meter enable real-time measurement of wine and must concentration directly within the production line, including sugar, alcohol, and cleaning agent residues.
Continuous concentration monitoring ensures that only wine of specified clarity and alcohol content enters the filling line. It reduces waste by preventing bottling of off-spec material and supports automated cleaning protocols by precisely detecting transitions between product and clean-in-place (CIP) fluids. Modern wineries utilize these technologies to enhance resource utilization, lower operational costs, and guarantee consistent quality in each bottle.
These advanced filtration and measurement systems are fundamental in contemporary white wine production steps, ensuring that the journey from grape pressing through alcoholic fermentation process, cold stabilization, and final bottling consistently meets quality and safety standards.
Automation and Process Optimization with Inline Concentration Meters
Inline concentration meters are pivotal in the white wine production process, offering automated, real-time insights into critical steps from pressing grapes for wine making to bottling. These instruments measure parameters such as sugar, alcohol, and acid concentrations continuously, enabling precise control and swift response throughout winemaking.
Principle and Function in Wine Making
Inline concentration meters operate by measuring the refractive index, density, sound velocity, or infrared absorption of wine as it flows through pipelines and vessels. Alcohol concentration meter translate sound velocity changes into units like °Brix, °Oechsle, directly indicating dissolved sugar content in grape must and wine. Other meters employ oscillating tubes or IR spectroscopy to gauge alcohol and acid concentration, ensuring critical quality parameters are tracked from must preparation through the alcoholic fermentation process to cold stabilization and filtration.
Setting Up Inline Measurement Systems for Real-Time Data Acquisition
Deploying inline measurement technology begins with selecting suitable sensor types—refractometers for sugar, IR spectroscopy for phenolic and alcohol content, electronic noses for acid detection, and density/sound velocity analyzers for final alcohol measurement. Instrument placement is strategic: meters are installed at key points like after grape juice extraction for wine, at the start and end of the alcohol fermentation steps, and before/after wine filtration systems and technologies.
Calibration is essential. Sensors must be referenced against standard solutions or laboratory analyzers before use and periodically during operation. Modern meters feature temperature compensation and particle-tolerant designs to ensure accuracy despite temperature shifts or suspended solids in must. Integration with digital displays, PLCs, or SCADA enables immediate visualization, trending, and process alarms if critical limits are breached.
For example, inline concentration meters provide a real-time °Brix reading as the pressed grape must enters fermentation tanks, allowing operators to set fermentation targets and track progress without sampling delays.
Integrating Automation to Reduce Errors and Maximize Consistency
Once inline sensors are operational, their continuous data stream can drive automated logic for process optimization. PLCs and DCS systems receive measurement values directly, triggering control actions: automatic temperature adjustment in fermentation, dosing of white wine fining agents, or switching of flow paths during filtration process steps.
Advanced setups tie sensor data into feedback loops. If inline sugar readings plateau at the end of the alcoholic fermentation process, the system can automatically prompt cooling, racking, or start filtration. During the fining white wine process and cold stabilization in wine making, real-time concentration helps maintain correct chemical environments, minimizing manual intervention and standardizing batch outcomes.
Such integration sharply reduces operator error, delivers tight repeatability across batches, and minimizes the risk of process deviations, spoilage, or off-specifications.
Applications from Must Preparation to Bottling
Inline concentration meters have applications across nearly all white wine production steps:
- Grape Must Preparation: Measuring sugar concentration in grape juice at extraction, supporting harvest decisions and initial fermentation calculations.
- Alcoholic Fermentation: Monitoring real-time sugar decrease and alcohol increase. The fermentation vessel for wine production benefits from precise tracking, so the alcoholic fermentation process is neither under- nor over-extended.
- Fining and Cold Stabilization: Adjusting the addition of white wine fining agents and controlling precipitation reactions by tracking concentration shifts.
- Filtration and Bottling: Verifying wine composition post-grape must clarification process and during filtering; managing product transitions on a wine filling production line automation system, ensuring no mixing or loss during switchovers.
- Regulatory Compliance and Labeling: Determining alcohol content after fermentation via instruments that measure alcohol content in wine—critical for labeling and export.
Examples include employing a density-based inline analyzer to verify that alcohol level measurement in wine and residual sugar meet regulatory and stylistic requirements before bottling. Another instance: IR spectrometers confirm the successful completion of cold stabilization techniques for wine by detecting tartrate precipitation endpoints without manual intervention.
These technologies, built for the demands of wine filtration process steps and scalable from small cellars to fully automated wine filling lines, are reshaping quality assurance and process efficiency in modern wineries.
Ensuring Flavor and Aroma Profiles
Accurate concentration measurement during the white wine production process is essential for managing volatile and aromatic compounds. These molecules are primary drivers of the wine’s sensory profile, including its aroma and flavor nuances.
Inline concentration meters used throughout critical white wine production steps—such as pressing grapes for wine making, grape juice extraction for wine, and the alcoholic fermentation process in winemaking—provide actionable data on compounds like esters, higher alcohols, and acids. .
Relationship Between Concentration, Volatiles, and Aromatic Compounds
Quantitative assessment of sugars and acids in grape must using inline concentration meters is directly linked to volatile formation during alcohol fermentation steps. For instance, measuring sugar concentration impacts the synthesis of esters such as isoamyl acetate and ethyl hexanoate. Excess sugar can suppress specific aroma esters, while fed-batch fermentation techniques allow for a controlled sugar supply, boosting ester production and reducing unwanted acetic acid.
Timely interventions—like sulfur dioxide addition—alter the course of fermentation, adjusting both the creation and stability of key aromatic compounds. Clarification and fining processes, grounded by real-time measurement, further reduce compounds like catechin, mitigating bitterness and off-flavors.
Impact of In-Process Control on Sensory Outcomes
Precise control during white wine production steps shapes the end flavor profile. For example:
- Acid adjustments made during fermentation can influence the perceived sourness and overall wine balance. Late acid addition tends to be more impactful, especially after malolactic fermentation.
- Maceration techniques—timing and duration—can elevate desirable aroma compounds, notably terpenes and fruity esters. Pre-fermentation skin contact increases intensity of floral and fruit notes, while post-fermentation maceration may push the sensory profile toward greater complexity, sometimes at the expense of freshness.
- Cold stabilization in wine making, closely monitored via inline meters, preserves volatile aromas sensitive to temperature shifts.
Wine filtration systems and advanced filtration technologies remove unwanted solids and reduce haze, but also risk stripping volatile compounds if not precisely managed. Process analytical technology built into filtration process steps help maintain clarity without sacrificing aroma.
Using Analytical Data to Predict and Enhance Quality
Analytical insights gathered throughout wine must clarification techniques, fermentation vessel monitoring, and wine filling production line automation feed predictive models. Platforms like FlavorMiner, leveraging molecular graph descriptors, forecast specific sensory attributes—such as nutty, fruity, and off-flavor notes—with high accuracy. Machine learning algorithms applied to UV-Vis spectrophotometry data classify wine origin and grape juice attributes with reliability exceeding 91%.
By embedding inline concentration measurement at each point in the workflow, white wine producers can ensure real-time process control, maintain compliance with stringent legal requirements, and optimize their operations from grape to glass.
Frequently Asked Questions
What are the main white wine production steps?
The white wine production process consists of several precise stages designed to preserve freshness and aroma. It begins with selecting grapes at optimal ripeness, concentrating on sugar, acidity, and aroma levels. Grapes are harvested manually or with machines, balancing both grape integrity and processing efficiency. Next, grapes are crushed and pressed; gentle pressing avoids excessive phenolic extraction, preserving clarity and balance. The extracted grape juice undergoes must clarification, using settling or fining agents to remove solids.
After clarification, the alcoholic fermentation process occurs in temperature-controlled fermentation vessels. The wine fermentation tanks maintain 13–18°C, favoring aroma retention. Fermentation completes when sugars convert to alcohol, producing the wine’s structure and character. Cold stabilization follows, preventing tartrate crystal precipitation in bottled wine by chilling the wine before filtration. This ensures clarity and stability. Fining white wine process comes next; agents like bentonite, casein, and PVPP remove unwanted proteins or phenolics. After fining, filtration systems and technologies eliminate remaining particulates, creating a stable, clear wine. Bottling happens under strictly controlled environments that limit oxygen and temperature exposure, vital for freshness and longevity.
Why is pressing grapes for juice crucial in making white wine?
Pressing grapes for wine making extracts the juice needed for fermentation. The pressure and method directly affect yield, flavor, and clarity. High pressure can release bitter phenolics and affect color, while gentle pressing yields a purer juice. For example, pressing Chardonnay grapes in Italy’s Franciacorta region is done carefully to balance acidity, aroma, and must composition. Choosing optimal conditions ensures the grape juice extraction for wine is suitable for the wine style and promotes consistency across batches.
How is the alcohol content measured during wine production?
Multiple methods and instruments determine alcohol level measurement in wine. Instruments to measure alcohol content in wine include handheld alcohol concentration meters, inline concentration meters for winemaking, densitometers, and density meters. Inline concentration meters enable continuous measurement within fermentation vessels, allowing real-time adjustment for quality control and legal compliance. Traditional methods use hydrometers or refractometers that assess sugar concentration in grape juice and alcohol after fermentation by monitoring density changes or refractive index. Laboratory techniques such as distillation with density measurement and gas chromatography offer high-precision results but require skilled operation. Near-infrared spectroscopy provides rapid, non-destructive analysis and is increasingly adopted for automated wine filling production line monitoring.
What is cold stabilization in wine making?
Cold stabilization in wine making is a pre-bottling process designed to inhibit tartrate crystal formation. The wine is chilled—typically below room temperature—so excess potassium bitartrate precipitates before bottling. This step is essential for white wines, as visible crystals can be mistaken for flaws by consumers. Cold stabilization maintains both visual clarity and sensory stability. Newer techniques of cold stabilization for wine, like plasma polymerization coatings, enable stabilization at higher temperatures, reducing energy use. Alternatives such as carboxymethylcellulose (CMC) and metatartaric acid are also commonly employed, sometimes outperforming traditional methods in preserving phenolic and color integrity.
Which agents are commonly used when fining white wine?
White wine fining agents include bentonite, gelatin, casein, and PVPP. Bentonite, a clay, removes proteins linked with haze. Gelatin and casein are animal-derived proteins used to reduce bitterness and clarify wine. PVPP, a synthetic polymer, targets phenolic compounds to reduce browning and enhance stability. Their selection depends on specific wine issues—haze, bitterness, or color—and desired outcomes. Novel agents like charcoal, pea protein, and chitin derivatives, plus composite blends, offer allergen-free and sustainable alternatives. Their use is increasing, especially when processing wines from rot-affected grapes or when consumer preferences and regulations call for non-traditional agents. The efficiency of each agent is closely tied to the white wine production process, wine matrix, and polyphenolic profile.
