Effective management of free cyanide concentration in the gold cyanide leaching process demands real-time measurement within leaching circuits. Inline analyzers, positioned directly within slurry pipelines or tanks, continuously track free cyanide, residual cyanide, and WAD cyanide concentrations. These instruments eliminate manual sampling delays, minimize risks of operator error, and offer process data every 3–10 minutes, supporting rapid decision making in dynamic plant environments.
The Fundamentals of Cyanide Leaching for Gold Extraction
Cyanide leaching of gold is the cornerstone of hydrometallurgical gold recovery, enabling extraction from low-grade and complex ores. In this process, gold is converted from its native metallic form into a soluble complex, most often through the use of sodium cyanide (NaCN) under strongly alkaline conditions. The essential chemical reaction involves gold, cyanide ions, and molecular oxygen, resulting in the formation of the stable gold cyanide complex [Au(CN)_2]^–—a reaction key to industrial gold extraction:
4 Au + 8 CN⁻ + O₂ + 2 H₂O → 4 [Au(CN)₂]⁻ + 4 OH⁻
Maintaining adequate cyanide concentration, sufficient dissolved oxygen, and an alkaline pH (typically >10) is critical to facilitating both dissolution and safe handling, as alkaline conditions suppress toxic hydrogen cyanide gas formation. Leaching kinetics are strongly influenced by these parameters, as well as pulp density and particle size—variables routinely optimized in plant operations and referenced in advanced gold cyanidation research. Additionally, ore mineralogy and the presence of impurities, like copper ions, can decrease process efficiency by competing for cyanide and forming unwanted complexes that increase reagent consumption and lower gold recovery rates.

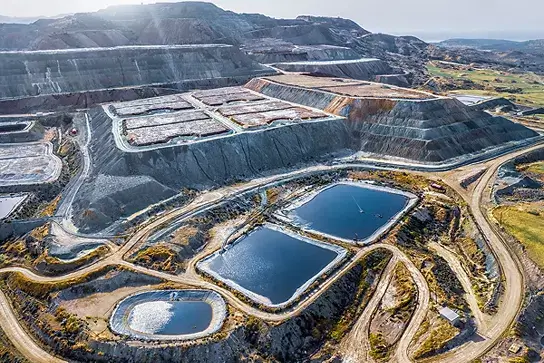

Online Monitoring of Cyanide and Gold in Gold Leaching Solution
*
The gold cyanide leaching process remains unmatched in operational simplicity, cost-effectiveness, and extraction yields for most ore types. Recent advances include thermodynamic and kinetic modeling to predict leach behavior, optimize free cyanide concentration, and minimize excess reagent use through improved pulp leaching concentration analysis and density measurement of gold leachate. The Lonnmeter ultrasonic concentration meter for cyanide measurement has also contributed to more accurate and real-time cyanide concentration monitoring in mining operations, facilitating precise control of leach conditions and reducing wastage.
While cyanide leaching for gold extraction dominates industrial practice, cyanide-free gold leaching methods are gaining traction due to rising environmental and regulatory concerns. Alternative technologies such as thiosulfate and hypobromite leaching offer eco-friendly gold leaching alternatives and have demonstrated competitive gold recovery yields in laboratory and pilot plant studies. For example, Dundee Sustainable Technologies’ process uses sodium hypobromite to replace cyanide, achieving rapid gold extraction and eliminating the risks of cyanide leachate treatment and disposal. However, implementation at scale is challenged by factors including cost, process integration, and ore-specific compatibility.
Process selection between cyanide and cyanide-free approaches hinges on a balance of gold recovery from cyanide leachate, technical feasibility, operational costs, environmental impact, and regulatory compliance. Cyanide leaching remains the preferred method for many mining operations due to predictable leaching kinetics in gold cyanidation and manageable environmental risks when coupled with robust cyanide concentration monitoring systems. In contrast, advanced cyanide leaching technologies and eco-friendly alternatives provide important pathways for mines facing social license issues, complex ore types, or stringent regulatory environments. Each method’s trade-offs require careful evaluation of free and residual cyanide concentration in gold leachate, pulp density, leachate composition, and site-specific constraints.

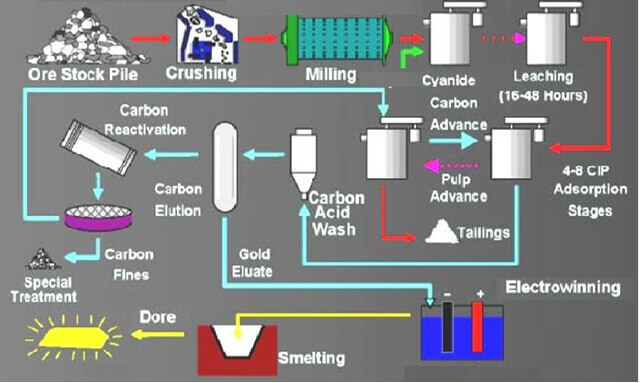

Chemistry and Reaction Mechanisms in Gold Cyanide Leaching
Stoichiometry of Gold Dissolution: Gold, Cyanide, and Oxygen Interactions
The gold cyanide leaching process is governed by the stoichiometry described by the Elsner Equation:
4 Au + 8 CN⁻ + O₂ + 2 H₂O → 4 [Au(CN)₂]⁻ + 4 OH⁻
This reaction highlights the central roles of metallic gold, free cyanide ions (CN⁻), and molecular oxygen. Each mole of oxygen enables dissolution of four moles of gold, with the cyanide forming a stable dicyanoaurate complex ([Au(CN)₂]⁻). Sufficient cyanide and oxygen must be present for efficient gold extraction using cyanide leaching.
Role of Oxygen as Catalyst; Impact of Dissolved Oxygen Level on Leach Kinetics
Oxygen acts as a critical oxidant that facilitates gold’s dissolution but is not consumed in a catalytic sense—it participates stoichiometrically yet often limits the reaction rate in industrial systems. Gold leaching kinetics, especially in the pulp leaching concentration control, depend strongly on dissolved oxygen (DO) concentration. When free cyanide is in excess, a lack of oxygen directly curtails leaching rates.
For example, low dissolved oxygen reduces leach efficiency even if cyanide is abundant, while excessive DO via enhanced aeration, agitation, or oxygen nanobubble addition can significantly improve kinetics and gold recovery. Laboratory and site data show that bulk oxygen measurements may overstate oxygen available at the gold surface due to transport resistances in the pulp; real DO at reaction interfaces is often lower, further emphasizing the necessity for advanced oxygen control and distribution strategies.
Influence of Alkaline Conditions (pH Adjustment) on System Safety and Efficiency
Cyanide leaching for gold extraction must occur in strongly alkaline conditions, typically pH 10–11.5. This pH range stabilizes cyanide by encouraging the presence of free CN⁻ species and suppressing formation of volatile hydrogen cyanide gas (HCN), which escapes at pH below 9.3 and poses acute toxicity risks.
pH is typically adjusted using sodium hydroxide (NaOH), sodium carbonate (Na₂CO₃), or lime (Ca(OH)₂), with choice influenced by ore type and operational economics. The use of lime, particularly above pH 11, can retard the gold dissolution rate—an effect attributed to changes in interfacial reactions rather than oxygen solubility. Overly high pH with lime is linked to decreased leach efficiency, especially when arsenic or other impurities are present, due to altered surface or chemical kinetics.
To keep the gold cyanidation process safe and efficient, modern gold plants implement automated pH and cyanide concentration monitoring based on inline sensor technology. This ensures the process stays within the optimal alkaline window, stabilizing free cyanide, and preventing dangerous HCN formation while also minimizing cyanide use and unwanted impurity solubilization.
Importance of Cyanide Species: Free Cyanide vs. Residual Cyanide Concentration within the Process
In the pulp leaching concentration analysis, not all dissolved cyanide is equally available for gold leaching. The process distinguishes between free cyanide and various residual (complexed) cyanide species.
- Free cyanide (sum of available CN⁻ and, at low pH, HCN) is the active agent enabling direct gold dissolution.
- Residual cyanide is comprised of metal-cyanide complexes (e.g., with copper, iron, or zinc). These species are less available for gold dissolution, increase cyanide consumption, and are principal targets in cyanide leachate treatment and disposal due to toxicity concerns.
Precise control of free cyanide levels is essential to maximize gold extraction yield and minimize cyanide losses. Inline free cyanide concentration measurement techniques, including advanced tools like the Lonnmeter ultrasonic concentration meter for cyanide measurement, enable real-time adjustment of reagent additions. This maintains efficiency and colimits residual cyanide concentrations to responsible levels.
High residual cyanide can signal unwanted side reactions (e.g., base metal consumption), inefficient process control, or a need for tailored leach chemistry—especially when transitioning towards eco-friendly gold leaching alternatives or cyanide-free gold leaching methods. Modern gold recovery from cyanide leachate processes deploy continuous cyanide speciation monitoring as part of advanced cyanide leaching technologies to drive process efficiency, safety, and environmental compliance.
Key Variables Affecting the Gold Cyanide Leaching Process
Ore Characteristics and Preparation
Gold cyanide leaching efficiency depends fundamentally on the ore’s mineralogy, gold particle size, and pre-treatment. Ores containing gold locked within sulfide minerals, especially pyrite, are known as refractory and show low extraction rates unless properly preconditioned. For example, pyrite-rich concentrates require higher cyanide concentrations, but this boosts reagent consumption and environmental costs without guaranteeing proportional gold recovery. An increase in base metals like copper, zinc, or iron competes with gold for cyanide, causing unnecessary consumption and forming passivation layers on the gold, hindering dissolution.
Preg-robbing minerals such as natural carbon, and gangue minerals that adsorb gold complexes, further reduce process efficiency. Therefore, thorough mineralogical characterization before process design is essential to identify problematic species and their textural relationships. Improved leaching involves identifying whether gold is free-milling—available for direct cyanidation—or encapsulated and requiring pre-treatment.
Particle size distribution directly influences leaching kinetics in gold cyanidation. Finer grinding enhances surface exposure, boosting recovery rates, but past an optimal size, overgrinding decreases efficiency by creating slimes that hinder mass transfer and may increase losses. Studies have shown that, for many ores, maximizing the proportion of free gold at a specific grind achieves better cyanide accessibility and industrial throughput. Very fine grinding is helpful for highly encapsulated gold but can result in excessive reagent consumption or agglomeration.
Pre-treatment strategies are chosen according to ore type. Mechanical pre-treatment by ultra-fine grinding greatly increases accessibility of encapsulated gold. Chemical treatments like alkaline or acidic leaching break down harmful sulfide matrices. Thermal treatments, such as roasting, convert sulfides to oxides, rendering gold more leachable. Pre-liming—adding lime before leaching—stabilizes pH and prevents soluble, reactive species formation. For instance, alkaline and two-stage oxidative roasting can significantly increase recoveries for Carlin-type refractory ores. On South African refractory tailings, a combination of mechanical and chemical pre-treatments improves gold extraction rates more than either approach alone.
Operational Leaching Conditions
Optimizing Cyanide Concentration
Cyanide concentration in solution must be tightly managed. Insufficient free cyanide slows dissolution, while excess adds cost and environmental burden without a corresponding boost in gold recovery. Case studies identify around 600 ppm as an optimal level for certain ores, supporting complete dissolution but curbing wastage. Continuous cyanide concentration monitoring and automated dosing—using tools like the Lonnmeter ultrasonic concentration meter—enable fine-tuned reagent addition that matches ore requirements and stabilizes operating costs.
Density of Leachate and Pulp Leaching Concentration
Pulp density—the solid-to-liquid ratio—plays an important role in mass transfer and gold recovery. Lower pulp density improves gold leaching due to increased solution mobility and reagent access but increases water and reagent handling costs. Higher densities reduce reagent use but risk incomplete leaching because of poor mass transfer. Careful pulp leaching concentration analysis and density measurement of gold leachate are necessary for process optimization.
Agitation and Temperature Control
Proper agitation is crucial for suspending particles and promoting effective contact between dissolved cyanide and gold. Higher agitation rates typically boost leaching efficiency, especially for ores prone to sliming or particle aggregation. However, overly aggressive agitation may lead to physical losses or unwanted oxygenation side reactions. Likewise, temperature increases speed up gold dissolution, but operating temperatures must be balanced—higher temperatures accelerate reaction rates but also promote cyanide loss through volatilization or decomposition.
Regulation of Leaching Time
Leaching time must be long enough for completion of the dissolution but short enough to optimize throughput and minimize cyanide consumption. Studies indicate that the use of mixed chemical leaching agents can reduce required contact time dramatically while improving overall recovery. Short leaching periods with effective chemical activation lower reagent needs, operational expenses, and environmental risks. Thorough control over leaching time is essential to match reagent application with extraction kinetics for specific ore types.
Careful integration of ore characterization, pre-treatment selection, pulp density control, continuous cyanide concentration monitoring, and operational parameter adjustment underpins modern, efficient gold extraction using cyanide leaching.
Techniques for Inline Concentration Measurement and Control
Contemporary Monitoring Solutions
Free cyanide concentration measurement techniques include amperometric sensors and ligand exchange reactions, which allow direct, accurate quantification suitable for pulp leaching concentration analysis and gold leachate flows. Key parameters such as free cyanide and WAD cyanide must be measured for process control and environmental compliance, as regulatory limits now demand near-continuous tracking of residual cyanide concentration in gold leachate. Inline instruments, installed at strategic points in the circuit, enable precise control of cyanide dosing and provide early warning of process deviations.
Ultrasonic measurement tools, typified by the Lonnmeter Ultrasonic Concentration Meter, are used for inline monitoring of both cyanide and pulp density in leaching circuits. This meter applies ultrasonic transmission principles to determine solution density changes associated with cyanide and gold leachate concentrations. The direct measurement enables operators to instantly assess gold extraction efficiency, optimize aeration and agitation parameters, and maintain process stability. Lonnmeter’s design supports real-time, automated data logging and immediate integration with plant control systems. For example, when monitoring pulp density, Lonnmeter provides continuous feedback, reducing the need for laboratory density measurement and allowing prompt adjustments to pulp consistency for improved leaching kinetics and gold recovery.
In practice, these contemporary solutions deliver:
- Instant data on cyanide and density, improving dosing accuracy.
- Enhanced compliance with discharge and tailings regulation due to actionable residual cyanide data.
- Operational savings, as process corrections can be made without delay.
Feedback Control Strategies
Automated process control leverages inline measurement data to continuously optimize reagent addition, pulp density, and aeration in gold extraction using cyanide leaching. The key principle is feedback—real-time sensor readings are transmitted to programmable logic controllers (PLC), which then automatically adjust the addition of cyanide, destruction reagents, and leaching additives. This eliminates manual dosing errors, tightens control of leaching kinetics, and minimizes cyanide consumption.
Process feedback strategies include:
- Rule-based logic, which sets boundaries and dosing rates based on preset cyanide concentration thresholds.
- Model-based optimization, which interprets multi-sensor data—cyanide, density, pH, dissolved oxygen—to maximize gold recovery efficiency.
- Continuous inline measurement allows density measurement of gold leachate to support adjustments in agitation and slurry consistency.
Automated feedback control strategies reduce cyanide consumption, reagent waste, and operational variability. For instance, case studies from commercial operations show cyanide usage reductions of up to 21%, with gold recovery remaining consistent or improving due to optimal leachate composition and effective process control. Gold recovery from cyanide leachate benefits directly from stable, well-controlled reagent dosing.
Integrated feedback systems also support eco-friendly gold leaching alternatives by maintaining tight control over cyanide levels, decreasing emissions, and optimizing destruction or recovery processes. Automated dosing based on online measurements outperforms manual titration methods, which are slower and more susceptible to inconsistency.
In summary, advanced cyanide leaching technologies combine inline measurement—such as the Lonnmeter Ultrasonic Concentration Meter—with automated feedback control. This approach optimizes every stage, from pulp leaching concentration analysis to cyanide leachate treatment and disposal, driving process efficiency and compliance with environmental and safety standards.
Process Optimization and Recovery Enhancement
Real-time measurement data forms the backbone of advanced process optimization in the gold cyanide leaching process. Inline instruments such as the Lonnmeter ultrasonic concentration meter deliver accurate, continuous readings of free cyanide concentration and leachate density, providing operators with the information needed to dynamically adjust operational parameters. This includes automated cyanide dosing control, which maintains target concentration bands and reduces process variability. For example, maintaining free cyanide within ±10% of setpoints ensures efficient leaching kinetics without resource overuse or gold loss, even when ore quality or throughput fluctuate.
Dynamic adjustment, enabled by uninterrupted cyanide monitoring, promotes rapid responsiveness in the control of leach circuits. Automated refill systems, fed by real-time data, minimize the risks of both underdosing (leading to lower gold extraction rates) and overdosing (driving up reagent costs and environmental liabilities). Data from inline analyzers integrate smoothly with pulp leaching concentration analysis and density measurement workflows, informing decisions on mixer speed, aeration rates, and other critical variables in gold extraction using cyanide leaching.
Optimization extends downstream: integrated data flow supports carbon adsorption (CIP/CIL) and zinc precipitation stages, tailoring process conditions based on current cyanide presence. In carbon adsorption processes, accurately monitored cyanide levels ensure that activated carbon does not reach premature saturation or miss capture opportunities, while modulating pH and carbon input based on real-time leach profiles can boost gold adsorption efficiency above 98% in complex ores. For zinc precipitation, especially in feeds with high base metal content (like zinc and copper), maintaining an optimal residual cyanide concentration in gold leachate avoids excessive zinc consumption and uncontrolled side reactions—directly improving recovery rates.
The SART process, used where base metals present significant interference, also benefits from integrated cyanide measurement. Automated control over sulfidization and acidification steps, guided by real-time free cyanide data, achieves selective removal of zinc and copper, which streamlines recycling of cyanide solution for ongoing leaching. This reduces overall cyanide consumption, increases the efficacy of gold recovery from cyanide leachate, and supports eco-friendly gold leaching alternatives.
In minimizing reagent usage, the interplay between fast cyanide concentration monitoring and process control cannot be overstated. By preventing excess cyanide addition, plants significantly cut costs and limit hazardous waste generation. At the same time, maintaining the lowest possible effective cyanide dose avoids the risk of incomplete leaching or gold trapping, ensuring a high recovery yield. Inline systems, due to their resistance to interference from slurry turbidity or variable flow, are particularly well suited for this purpose—delivering reliable, actionable data for every stage of cyanide leachate treatment and disposal.
Optimal gold yield is achieved through the synchronization of gold leach parameters and downstream recovery processes, all underpinned by precise, continuous monitoring. Tailored process adjustments, informed by inline cyanide concentration and density metrics, create a closed-loop system that maximizes returns while advancing sustainability and safety in the cyanide leaching of gold. This approach allows operations to leverage advanced cyanide leaching technologies in both traditional and cyanide-free gold leaching methods, continually optimizing for efficiency, recovery, and regulatory compliance thanks to robust data-driven control systems.

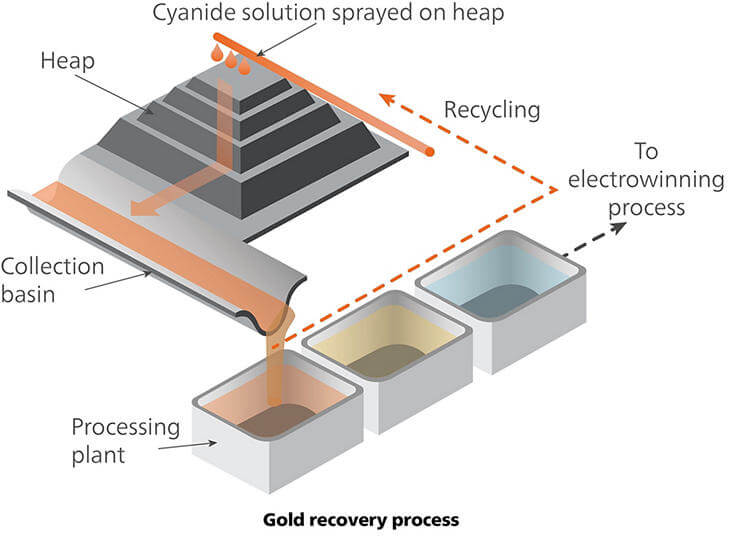

Gold Recovery Process
*
Environmental Management in Cyanide Gold Leaching
Effective environmental management in the gold cyanide leaching process hinges on rigorous detoxification, treatment, and handling of cyanide leachates and tailings. Technologies and protocols have advanced to tackle residual cyanide, reducing both ecological and human health risks.
Cyanide Leachate Detoxification, Treatment, and Tailings Management
Detoxification methods for cyanide leachate prioritize the breakdown and removal of toxic cyanide species. Chemical oxidation remains standard, converting free and Weak Acid Dissociable (WAD) cyanide into safer forms like cyanate, which is less toxic and readily decomposes. Integration of online process analyzers and systems that automate cyanide monitoring has shifted plants toward proactive management, minimizing toxic releases.
Tailings management relies on engineered Tailings Storage Facilities (TSFs) designed to contain residual cyanide. Best practices include the use of double liners, seepage collection systems, and continuous water balance monitoring. These engineering controls help prevent groundwater infiltration and surface water contamination. Site-specific TSF operation protocols adapt to variables such as climate extremes and regional hydrological risks, with safety guidelines specifying actions to protect local biota and water resources.
Comprehensive water management is mandatory, encompassing water reuse, treatment prior to discharge, and contingency planning for TSF breaches. Emergency preparedness plans incorporate real-time process monitoring data to expedite response if leakage or failure occurs.
Monitoring and Reducing Residual Cyanide Concentrations
Regulatory compliance demands continuous, high-resolution monitoring of residual cyanide concentrations in pulp leaching and tailings effluent. Inline, real-time concentration measurement with technologies such as the Lonnmeter ultrasonic concentration meter and commercial devices leveraging ligand exchange amperometry enables precise analysis of free cyanide and WAD cyanide species within gold leachate streams.
These systems support:
- Automated cyanide dosing control, minimizing excess reagent use while safeguarding gold recovery efficiencies.
- Direct integration with cyanide destruction processes, empowering tight management of discharge standards and environmental permits.
- Remote data transmission for distributed mining operations, enhancing spatiotemporal coverage and operational accountability.
Continuous monitoring at detection limits as low as 10 ppb allows operators to meet strict national and international safety requirements. Automated systems reduce manual sampling errors, shorten data feedback loops, and provide granular timelines for corrective interventions in process upsets.
Minimizing Ecological Footprint While Maintaining Process Efficacy
Balancing gold recovery against environmental impacts requires more than routine monitoring. Advanced cyanide recycling technologies permit the reuse of cyanide within the gold extraction process, directly reducing both toxic waste output and operating costs, while maintaining target gold recovery rates. Adoption of these systems shrinks the environmental footprint and aligns operations with global sustainability standards.
In parallel, gold mining sites are increasingly trialing alternative leaching reagents and cyanide-free gold leaching methods, including thiosulfate, glycine, or eco-friendly biological options. Where cyanide is unavoidable, density measurement of gold leachate and precise pulp leaching concentration analysis support optimal reagent use, reducing required dosage and lowering tailings toxicity.
Innovative methods, such as reduction roasting and magnetic separation in tailings processing, minimize further cyanide reliance and allow more comprehensive recovery of valuable metals from waste streams. Site best practices emphasize robust facility design, legal compliance, and community engagement to mitigate accidental releases and ensure adaptive, risk-informed management throughout mine life.
Case studies from jurisdictions like Kenya and Australia show that consistent application of these practices substantially lowers ecological risks associated with cyanide leaching, even under challenging regulatory or operational conditions.
Ultimately, environmental management in cyanide leaching of gold demands a combination of technical rigor in leachate detoxification, stringent concentration monitoring, and industry best practices for tailings and process control. This integrated approach secures public and ecological safety while ensuring efficient gold recovery.
Innovations in Cyanide-Free Gold Leaching
Emerging cyanide-free gold leaching methods are gaining traction as the mining industry seeks safer and more sustainable alternatives to the conventional gold cyanide leaching process. These technologies address pressing concerns about environmental contamination, worker safety, and social license, while pushing the technical boundaries of gold recovery.
Thiosulfate Leaching
Thiosulfate leaching has become a leading cyanide-free process, enabling gold extraction from refractory ores that hinder traditional cyanide leaching of gold. Gold recovery rates can reach up to 87% for complex, high-sulfide concentrates—especially when ammonia and copper ions are present as catalysts. Additives, like ammonium dihydrogen phosphate, boost yields and lower reagent use, reducing both costs and environmental footprint. Magnetization of the copper-ammonia-thiosulfate lixiviant further enhances leaching efficiency, improving dissolution rates and oxygen content, resulting in approximately 4.74% higher gold extraction compared to non-magnetized systems. However, recoveries may remain limited for certain double refractory ores where gold is strongly encapsulated by minerals, underscoring the importance of ore mineralogy for process selection.
Glycine Leaching
Glycine—a natural, biodegradable amino acid—also serves as an effective leachant for gold. Glycine leaching processes deliver high selectivity and low toxicity, with documented gold extraction rates surpassing 90% on some low-grade ores and tailings when enhanced by additives such as copper ions and pre-treatments. The technology is recognized for its improved safety profile and minimal risk to soil and water, compared to cyanide leachate. Nevertheless, operational complexity and reagent costs, as well as ore-specific optimization requirements, may present adoption barriers. Industrial case studies in Australia and Canada demonstrate both technical and economic feasibility, but execution hinges on detailed pulp leaching concentration analysis, robust process monitoring, and adaptability to a mine’s specific feed.
Chloride and Halogen Leaching
Leaching techniques based on chloride and other halogens offer compelling alternatives for refractory ores and legacy tailings, addressing scenarios where cyanide leaching for gold extraction is challenged by mineral encapsulation or regulatory limits. Heap leaching with oxidants like sodium hypochlorite and hydrochloric acid can improve gold recovery from refractory tailings by over 40%. These processes operate under acidic conditions and are best paired with pretreatments like bio-oxidation or pressure oxidation to unlock gold not accessible in primary mineral structures. Operational challenges include reagent handling safety and the management of chemical stability throughout the process. Life cycle assessments reveal lower global warming potential compared to traditional cyanide flowsheets, but also highlight the need for stringent operational protocols.
Advanced Reagent-Based Methods
Recent research highlights innovative reagents aimed at selective, rapid, and efficient gold extraction. Sodium cyanate-based systems, when produced with sodium hydroxide and sodium ferrocyanide at high temperatures, show leaching rates of 87.56% in concentrates and above 90% in e-waste recycling. The effectiveness and selectivity are attributed to sodium isocyanate as the active species. The CLEVR process, employing sodium hypochlorite or hypobromite in a closed, acidic system, achieves greater than 95% gold yield within a few hours, compared to over 36 hours for classic cyanidation. The method generates inert residue and entirely eliminates hazardous effluents and tailings ponds, making it attractive for sites where cyanide leachate treatment and disposal is problematic.
A tandem chemical technique using in situ hydroiodic acid generation offers further improvements for gold dissolution from spent catalysts, particularly industrial waste streams, with minimized reagent waste and strong economic viability. These approaches demonstrate that, with optimized conditions and real-time process control—such as leveraging free cyanide concentration measurement techniques and advanced density measurement of gold leachate—cyanide-free methods can rival or exceed cyanide in both efficiency and environmental performance.
Comparative Analysis
Process Efficiency: Cyanide-free processes like magnetized thiosulfate and hypochlorite leaching feature extraction kinetics and yields approaching, or in some applications surpassing, those of the gold cyanide leaching process. Glycine systems also deliver competitive yields for select ores.
Safety: Cyanide-free methods virtually eliminate acute toxicity risks associated with residual cyanide concentration in gold leachate. Work environments improve, and the risk profile for chemical handling is significantly lessened. However, care with oxidants and halogens remains important.
Environmental Impact: Cyanide-free leaching generates less hazardous waste, simplifies leachate treatment and disposal, and reduces impacts on water and soil. Life cycle assessment confirms substantial improvement over cyanide circuits, with closed-loop and non-toxic residue systems as top performers.
Selecting the optimal eco-friendly gold leaching alternative hinges on ore characteristics, local environmental controls, and operational readiness. Advanced monitoring tools, such as the Lonnmeter ultrasonic concentration meter for cyanide measurement, remain critical for all process routes, ensuring accurate leaching kinetics in gold cyanidation—whether or not cyanide is present—and supporting robust, adaptive gold extraction operations.
Frequently Asked Questions
What is the importance of measuring free cyanide concentration in the cyanide gold leaching process?
Accurate free cyanide concentration measurement is essential for the efficiency of the gold cyanide leaching process. Free cyanide represents the chemically active portion available to form gold-cyanide complexes, enabling gold to dissolve into solution for extraction. Insufficient free cyanide can suppress the gold dissolution rate, reducing overall yield; excess cyanide leads to wasteful reagent consumption and increases the risk of environmental contamination and process cost. Automated online analyzers, as opposed to manual titration, deliver real-time monitoring that allows dynamic control of cyanide dosing and supports compliance with strict discharge standards. These practices minimize chemical waste and reinforce operational safety, as shown in studies where optimal free cyanide concentrations around 600 ppm maximize gold recovery with minimized environmental burden.
How does the density of leachate affect gold cyanide leaching efficiency?
Leachate (or pulp) density directly influences mass transfer, mixing, and the availability of cyanide and oxygen for gold dissolution. Properly managed density improves gold particles’ exposure to reagents and optimizes leaching kinetics. For example, lowering the pulp density may increase gold recovery by facilitating agitation and reagent contact, while excessively high density can impair mixing and increase cyanide consumption. Adjusting pulp density, together with factors like pH and temperature, can substantially enhance gold extraction rates and decrease leaching time, especially for low-grade ores. Experiments have demonstrated that the right balance between solid-to-liquid ratio and mixed aid-leaching agents can halve cyanide consumption while doubling efficiency for some ore types.
What are the advantages of using the Lonnmeter Ultrasonic Concentration Meter in pulp leaching concentration monitoring?
The Lonnmeter Ultrasonic Concentration Meter enables non-invasive, real-time monitoring of pulp leachate concentration and density. Its clamp-on, non-nuclear ultrasonic design avoids direct contact with hazardous slurries, eliminating leakage risks and improving safety, especially in corrosive environments. The device delivers measurement precision within 0.3% and integrates seamlessly with PLC/DCS process control systems for continuous automation. Operators can optimize reagent usage and adjust dosing instantly to maintain stable gold recovery. The meter’s maintenance-free build and durable, corrosion-resistant materials suit harsh mining conditions and support long-term reliability. In applications ranging from gold cyanide leaching to water glass production, Lonnmeter’s real-time feedback enhances process stability, reduces waste, and contributes to regulatory compliance.
Can gold recovery be achieved without using cyanide?
Yes, alternative cyanide-free gold leaching methods are available. Techniques using thiosulfate, chloride systems, glycine, trichloroisocyanuric acid, and sodium cyanate reagents have demonstrated gold recovery rates often exceeding 87–90%. These methods are non-toxic, recyclable, and also effective for ores and electronic waste. Their adoption depends on ore mineralogy, cost, process complexity, and local regulations. Implementation varies: some projects, like REVIVE SSMB, show high sustainability and efficacy, whereas others encounter operational and community challenges. While cyanide-free methods offer environmental advantages and meet stricter safety standards, their feasibility for industrial-scale processing must consider reagent costs and compatibility with existing infrastructure.
Why is it important to control residual cyanide concentration during and after the gold leaching process?
Controlling residual cyanide concentration is vital for environmental protection and human safety. Residual cyanide in leachate poses acute toxicity risks and must be managed to meet international discharge regulations. Techniques such as chemical oxidation, biodegradation with specialized microbes, adsorption on activated carbon, and photocatalysis are employed to reduce cyanide levels before effluent release. Proper control during leaching maximizes gold recovery and minimizes the amount of residual cyanide, decreasing downstream treatment demands. Non-compliance leads to contamination and potential health hazards for nearby populations and ecosystems. Responsible cyanide management aligns with best practices to balance economic gains with ecological stewardship and supports the mining operation’s social license.
