Misidentifying 316 as 304 stainless steel compromises corrosion resistance. This error endangers equipment in marine, petrochemical, and food processing facilities, potentially causing catastrophic failure and injury. Incorrect material traceability can result in compliance breaches and failed audits. The cost to remedy alloy mix-ups averages $25,000–$250,000 per incident for rework, downtime, and warranty claims.

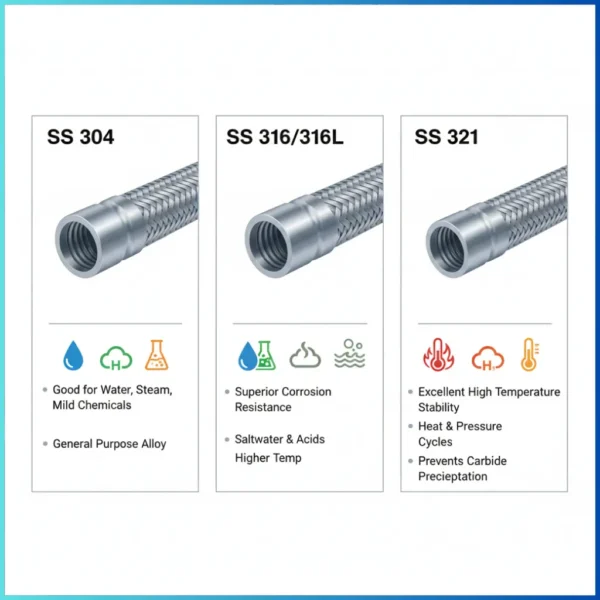

304 316 321 alloy
*
Key Challenges in Verifying 304, 316, and 321 Stainless Steels
304, 316, and 321 have similar color, surface finish, and mechanical properties, making them visually indistinguishable. Alloy substitution in spectrum alloys inventory can remain undetected until performance issues or failures surface. 316’s higher molybdenum content (2–3%) requires elemental detection to differentiate it from 304, which lacks Mo. Lonnmeter XRF analyzers ensure that only materials with correct properties—optimized corrosion resistance 316 vs 304 stainless steel and appropriate titanium content for high-temp 321.
Differences Among 304 vs 316 vs 321 Stainless Steel
Core Chemical Compositions and Distinguishing Elements
304 stainless steel consists of 18–20% chromium, 8–10.5% nickel, ≤0.08% carbon, and lacks molybdenum and titanium. In contrast, 316 stainless steel contains 16–18% chromium, 10–14% nickel, and a critical 2–3% molybdenum, which is absent in other common spectrum alloys. This molybdenum addition directly enhances resistance to chloride and chemical corrosion.
321 stainless steel, with 17–19% chromium, 9–12% nickel, and significant titanium content (minimum 5xC, maximum 0.7%), improves high-temperature stability. Titanium binds with carbon, preventing intergranular corrosion and carbide precipitation during elevated temperature service.
Nickel content increases from 304 to 316 for enhanced chemical resistance and mechanical strength. Chromium remains the mainstay of corrosion resistance in all three grades. Titanium is a definitive marker for 321 and differentiable by XRF analyzers.
Applications and Performance: When Each Grade Is Chosen
304 stainless steel acts as an industry standard for spectrum alloys metal distributors due to its cost efficiency and versatility—used for food processing, kitchenware, storage tanks, and architectural components. Its corrosion resistance suffices in mildly aggressive environments.
316 stainless steel excels in marine, chemical, and pharmaceutical equipment. The presence of 2–3% molybdenum is essential when specifying the best stainless steel for marine environments or industrial process lines exposed to chlorides, outperforming 304 in saltwater service and acidic solutions.
321 stainless steel dominates thermal and aerospace applications, jet engine exhaust manifolds, and petrochemical heaters, with greater resistance to scaling and strength retention up to 900°C. Its titanium addition ensures reliability under repeated thermal cycling, minimizing risk of carbide precipitation after welding.
| Property | 304 | 316 | 321 |
| Cr (%) | 18–20 | 16–18 | 17–19 |
| Ni (%) | 8–10.5 | 10–14 | 9–12 |
| Mo (%) | – | 2–3 | – |
| Ti (%) | – | – | 5xC min, 0.7 max |
| Corrosion Resistance | Good | Excellent | Good |
| Heat Resistance | Moderate | Good | Excellent |
| Main Applications | Food, Utility | Marine, Chemical | Thermal, Aerospace |
How XRF Analyzers Enable Rapid, Reliable Alloy Identification
Operating Principles of Lonnmeter XRF (X-ray Fluorescence) Technology
XRF analyzers emit high-energy X-rays onto solid stainless steel samples, causing atoms to eject inner-shell electrons. The resulting vacancies are filled by electrons from higher energy levels, releasing secondary X-rays characteristic to each element. Detectors measure these emissions, quantifying elemental concentrations for spectrum alloys like 304, 316, and 321 stainless steel. XRF allows rapid, non-destructive identification, providing readings in 30 seconds.
XRF’s Unique Value in Distinguishing 304, 316, and 321
XRF precisely differentiates stainless grades in the alloy spectrum. The 316 stainless steel vs 304 stainless steel comparison relies on molybdenum detection—316 contains 2–3% Mo, which XRF identifies instantly. 321 grade is distinguished by XRF measuring titanium content above 0.3%. Quantitative detection yields actionable results: ppm values, pass/fail classification, and alloy library matching.
Lonnmeter XRF Analyzer for Stainless Steel and Spectrum Alloy Identification
Core Features and Technical Specifications
Lonnmeter XRF analyzer delivers a 0–50 kV energy range, Silicon Drift Detector technology, and 30 second measurement speed. Accuracy reaches ±0.01% for key elements, optimizing spectrum alloy identification. The device combines a touchscreen interface, integrated stainless steel grade libraries, and real-time spectra comparison. Battery capacity supports up to 8 hours of continuous operation.
Integrating with Quality Management and Productivity Goals
Lonnmeter integrates with quality management systems for efficient material verification during warehouse, fabrication, and final inspection. It prevents mixed-alloy shipments, minimizing rework costs and production delays. Data output supports continuous improvement and auditing requirements with automated date, location, and batch tracking. Documentation options ensure traceability within spectrum alloys stainless steel suppliers and metal distributors.
Requesting a Quote for Lonnmeter XRF Analyzer
Customers select grade library customization and service configuration. Support includes training, warranty coverage, and maintenance options for field deployment.
Frequently Asked Questions (FAQs)
What is the main difference between 304 and 316 stainless steel?
316 contains 2–3% molybdenum, which elevates chloride and chemical corrosion resistance over 304. 304 remains susceptible to pitting in marine and salty environments. 316 is preferred for saltwater exposure and harsh chemicals, while 304 is common in food processing and household appliances.
Why is molybdenum important in 316 stainless steel?
Molybdenum delivers superior resistance to saltwater, acids, and industrial chemicals. This addition prevents localized pitting and crevice corrosion, making 316 suitable for spectrum alloys exposed to marine and chemical settings.
Which industries benefit most from portable XRF alloy analyzers?
Petrochemical, aerospace, fabrication, and construction sectors deploy XRF analyzers for accurate, traceable grade comparison, minimizing risk throughout the stainless steel alloy spectrum.
