Non-oriented silicon steel is a ferrosilicon alloy with balanced silicon (typically 2–3.5%) and minor additions like aluminum and manganese. This steel supports isotropic magnetic properties, crucial for stators and rotors in motors, transformer cores, and superconducting devices. Its random grain orientation enables uniform magnetic permeability in all directions, providing efficiency at any rotating position in the magnetic circuit.
The microstructure, featuring fine grains and controlled crystallographic texture, defines both mechanical and magnetic performance. Partial recrystallization, managed through annealing at around 800 °C, yields magnetic induction up to 1.71 T and tensile strength above 350 MPa. Grain size is the main factor: fine grains improve strength, while large, oriented grains enhance magnetic induction and reduce core loss.
Magnetic permeability in steel increases as sheet thickness decreases (typically 0.2–0.5 mm for e-mobility motors), and as silicon content rises, resulting in core losses as low as 6 W/kg for thin gauge. Low coercive force and high resistivity support low-temperature operation and reduce energy dissipation. Optimum grain orientation, achieved through process control, further minimizes magnetic loss, supporting efficiency in motors and transformers.
non oriented silicon steel
*
Challenges in Traditional Detection of Composition, Coercivity, and Resistivity
Time and Cost Constraints
Laboratory analysis of non-oriented silicon steel and ferrosilicon alloys often requires destructive sampling. For each batch, sample cutting, polishing, and preparation can consume over 60 minutes per specimen. Analytical cycles using methods such as optical emission spectrometry and four-point probe resistivity add further delays. Quality control turnaround may exceed 24 hours for large production lots. Destructive techniques generate waste and increase raw material cost. In-process testing for magnetic properties of silicon steel sheets also demands sophisticated setups, typically limited to central labs, hindering rapid feedback and process optimization.
Equipment and Skill Requirements
Traditional magnetic permeability measurement of non-oriented silicon steel employs precision equipment such as Epstein frames and magnetic analyzers. Operator interpretation introduces variability, and minor skill gaps can cause significant reporting errors. For example, repeatability of coercivity readings can vary by 10% between technicians in complex alloys. These limitations restrict decentralized, real-time quality control and add significant overhead to plant operations.
Advancements in Rapid Non-Destructive Testing: EDXRF and Portable XRF Analyzers
Introduction to EDXRF Technology
EDXRF analyzers utilize high-energy X-rays to excite the atoms in non-oriented silicon steel and ferrosilicon alloys, producing element-specific fluorescence emission. This process enables determination of all elements from magnesium to uranium in less than 60 seconds, with a accuracy of 0.001 wt.%. EDXRF’s direct, non-contact analysis requires no cutting, grinding, or polishing of solid samples, enabling precise silicon and iron quantification in every batch.
On-Site XRF Testing for Electrical Steel
Portable EDXRF analyzers, such as the Lonnmeter XRF alloy analyzer, deliver reliable composition data directly at the production line, warehouse, or installation field with no lab dependency. With results displayed instantly on integrated screens, manufacturing teams validate ferrosilicon alloy and non-oriented silicon steel quality in real time. This zero-damage method removes the delays and losses of destructive sampling, while reducing the need for specialized test facilities and technical staff.
Magnetic Permeability and Magnetic Properties: Enabling Direct Correlation
XRF-determined silicon and iron content allows for direct inference of expected magnetic permeability in steel and other core magnetic properties. Precise silicon quantification supports process control for targeted resistivity and coercivity, while variations in iron content are linked to changes in induction and core loss profiles. Real-time feedback enables engineers to optimize annealing parameters and compositional adjustments, ensuring balance between mechanical strength and induction for ideal motor and transformer performance.
High repeatability of EDXRF analysis ensures that each steel batch’s elemental profile remains within specification limits essential for reliable magnetic properties in end applications.

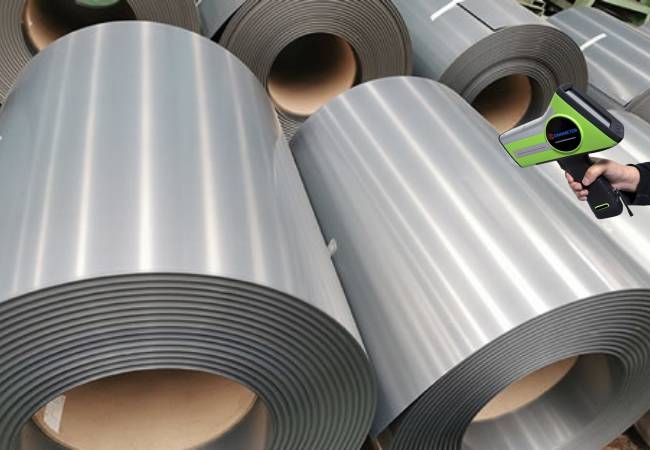

non oriented silicon steel xrf analysis
*
Implementing Lonnmeter XRF Alloy Analyzer for Electrical Steel
Features and Capabilities
Lonnmeter XRF Alloy Analyzer employs EDXRF spectrometry for direct, non-destructive analysis of solid non-oriented silicon steel samples. Detects silicon, iron, and minor alloy elements simultaneously, with quantification accuracy deviation below 15% for major constituents. Measurement times typically range from 10 seconds to 2 minutes per sample. Integrated software supports batch reporting and exports quantified magnetic property-related data. The analyzer calibrates against certified reference standards, optimizing traceability for metrics and ensuring seamless integration with routine quality workflows.
Workflow for On-Site Rapid Detection
Sampling requires placement of cleaned sheet specimens directly onto the SDD-equipped analyzer window—no sample preparation or cutting required. Start-up is achieved via pre-set factory calibration, with measurement results displayed in real time. Data reporting captures silicon and iron levels critical to magnetic permeability in steel. Results may be uploaded or printed instantly, reducing overall turnaround to minutes.
Advantages Over Traditional Methods
Operational cycle is 80–90% faster than lab-based wet chemistry or magnetic property testing. Eliminates occupational hazards and cost of destructive analysis. No need for advanced training—users access result summaries via graphical touchscreen interface. No specialized laboratory infrastructure or extensive sample preparation required.
Typical Outcomes and Decision Support
Analyzer validates silicon, iron, and minor elements for strength and induction targets. Directly supports modification of ferrosilicon alloy blends and annealing parameters by providing actionable data mid-process. Process engineers correlate EDXRF readings with expected magnetic properties such as low core loss and high permeability, optimizing overall motor and transformer efficiency. Steel producers use analyzer data to minimize isotropic magnetic loss and consistently achieve targeted performance metrics.
Why Choose Lonnmeter XRF Analyzer for Non-Oriented Silicon Steel?
Reliability and Precision in Ferrosilicon Alloy Testing
Lonnmeter XRF analyzers deliver quantitative accuracy in non-oriented silicon steel and ferrosilicon alloys, measuring silicon content for primary elements. This ensures grade selection supports required magnetic permeability and core loss targets for each batch. High-strength, thick-gauge silicon steel sheets maintain stable analytical precision, matching laboratory benchmarks.
Portable, Versatile, and Efficient
With a weight of less than 2 kg and integrated battery power, Lonnmeter’s portable XRF alloy analyzers enable on-site verification of magnetic properties of silicon steel raw stock, coils, and finished components. The design supports EDXRF analyzer for metal analysis directly on the production floor, in QC laboratories, and at shipping docks, without the need for sample preparation or surface alteration. A single test, typically 10 seconds, provides simultaneous multi-element analysis, including Si, Fe, Mn, and trace alloying components.
Requesting a Quote
The purchasing workflow requires little technical input: provide sample grade, usage scenario, and element range. Lonnmeter technical staff configure an optimal EDXRF spectrometer application, schedule a demonstration, and deliver a tailored purchase proposal with support for integration and ongoing quality control compliance.
Frequently Asked Questions (FAQs)
What is non-oriented silicon steel and where is it used?
Non-oriented silicon steel, a ferrosilicon alloy, features nearly isotropic magnetic properties. Manufacturers use it in electric motors, transformers, and generators to minimize core loss and eddy currents. Optimal performance arises from controlled silicon content (0.5–3.5%) and balanced microstructure. Applications span stators, rotors, and laminations for energy-efficient devices.
How does EDXRF analyzer improve silicon steel quality control?
Results appear in seconds, reducing costly delays and eliminating the need for destructive sample preparation. Analyzers support robust monitoring of composition, ensuring tight control over magnetic permeability in steel and compliance with device specifications.
Can the Lonnmeter XRF analyzer test magnetic properties directly?
Lonnmeter XRF analyzers do not directly measure magnetic properties but determine silicon, iron, and minor alloy content. These elements are primary drivers of magnetic permeability and loss, allowing indirect evaluation of magnetic properties through composition data.
What are the benefits of on-site XRF testing for non-oriented silicon steel?
On-site XRF testing for alloys offers immediate element analysis at the point of use. It minimizes turnaround, streamlines process control, and eliminates errors from sample transport. Users can test sheets, coils, or component parts directly on the factory or warehouse floor without damaging materials, enhancing throughput and cost efficiency.
