Nickel-based alloys are engineered metals containing nickel as the primary element, often exceeding 50% by weight. Their microstructure enables exceptional mechanical strength, creep resistance, and oxidation stability up to 800°C. These properties make nickel-based alloys essential in jet engines, gas turbines, nuclear power plants, and chemical reactors where extreme heat and corrosive environments are present. In aerospace, superalloys such as Inconel and Nimonic provide fatigue resistance during rapid temperature cycling. For chemical processing, alloys maintain performance in highly acidic or chlorinated media.

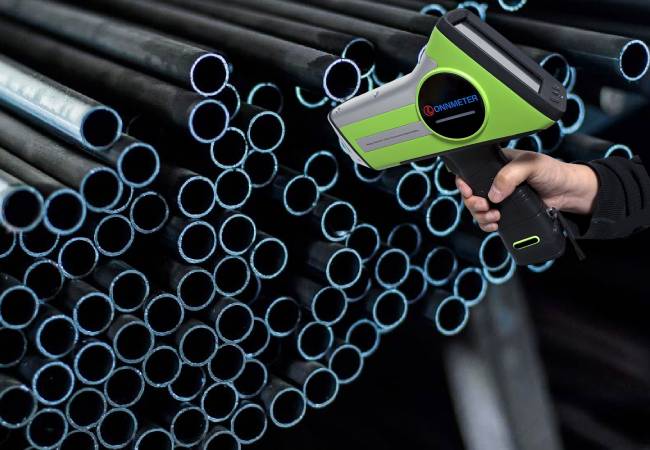

Nickel Alloy Tubes
*
The Role of Alloying Elements: Iron, Nickel, Chromium, and Beyond
Elemental additions directly affect material performance and corrosion resistance. Chromium content ranging from 19% to 23% enables formation of a continuous protective oxide layer, dramatically enhancing resistance against corrosive agents and improving longevity in stainless steel and superalloys. Nickel stabilizes the crystal structure and boosts heat resistance, especially in iron-nickel-chromium alloy systems. Molybdenum addition, at levels up to 9%, further increases resistance to pitting and crevice corrosion common in seawater and aggressive chemical environments. Iron contributes mechanical stability via solution strengthening and provides cost efficiency in many grades.
The Importance of Accurate Elemental Composition Determination
Performance, Compliance, and Longevity
Precise elemental composition data ensures nickel-based alloys meet mechanical and safety standards in aerospace and power generation. Tightly controlled iron, nickel, and chromium ratios (e.g., 60–75% Ni, 19–23% Cr) directly affect tensile strength and creep resistance at 700–1100°C. Inaccurate analysis can cause unexpected cracking, loss of high-temperature integrity, or catastrophic corrosion failures in aggressive media. Quality assurance and traceability rely on accurate elemental verification for regulatory compliance and warranty validation.
Chromium Content and Corrosion Resistance
Chromium at 19–23% forms a continuous Cr₂O₃ oxide film, critical for resisting acids, caustics, and high-temperature oxidation. Stainless steel’s corrosion resistance requires a minimum chromium percentage: below 19% sharply increases pitting and intergranular attack. In nickel-chromium-iron alloys used in chemical plants, loss of 2% chromium reduces service life by 40%, leading to increased maintenance and unscheduled outages.
Key Challenges in Elemental Analysis for Nickel-Based Alloys
Iron, nickel, and chromium have overlapping fluorescence peaks, complicating XRF or spectroscopic quantification. Multi-element matrices with trace molybdenum or niobium demand stable calibration and precision. Mistakes from matrix effects or calibration drift result in wrong alloy sorting, integrity risks, or breach of technical contracts, with warranty claims and liability exposure.
How to Implement XRF Analysis in Your Facility
Sample Preparation and Best Practices
Clean sample surfaces are essential; remove oil, oxides, or particulates. Flat, uniform shapes optimize accuracy, but Lonnmeter XRF adapts to irregular forms.
Integrating XRF Into Quality Assurance Workflows
Deploy XRF for routine batch verification, incoming inspection, and outgoing QC. Track analytical outcomes to ensure product consistency from start to finish.
Data Handling and Traceability
Store measurement records digitally for regulatory audits and process traceability. Export results to facility databases for centralized quality management.
The Lonnmeter XRF analyzer enables rapid elemental analysis on solid alloy samples. Results for iron, nickel, chromium, and molybdenum are delivered in seconds, with sensitivity for chromium down to 0.01%. Analytical data can be exported for traceability and audit compliance.
FAQs
What are nickel based alloys and why are they important?
Nickel-based alloys are metallic materials with nickel as the principal element, typically alloyed with iron and chromium. These alloys demonstrate outstanding high-temperature strength, corrosion resistance, and stability in aggressive operational environments.
Why is chromium content critical in nickel-based alloys?
Chromium spontaneously forms a Cr₂O₃ passivation layer on alloy surfaces above 12% content. Alloys with 19–23% chromium exhibit maximum protection, restricting inward diffusion of oxygen and halides.
