Cadmium red pigment is a class of inorganic pigments formed as solid solutions of cadmium sulfide (CdS) and cadmium selenide (CdSe). The precise selenium content (x) dictates the color, shifting the hue from orange (low Se) to deep red (high Se) by lowering the bandgap from 2.4 eV (pure CdS, yellow) to 1.7 eV (pure CdSe, red).
Identifying pigments in art is complex due to variable selenium and cadmium ratios, physical states, and closely matched hues of other red pigments. Selenium pigment toxicity and heavy metal content drive strict regulatory scrutiny. Accurate pigment composition analysis supports compliance, safety, and label integrity.

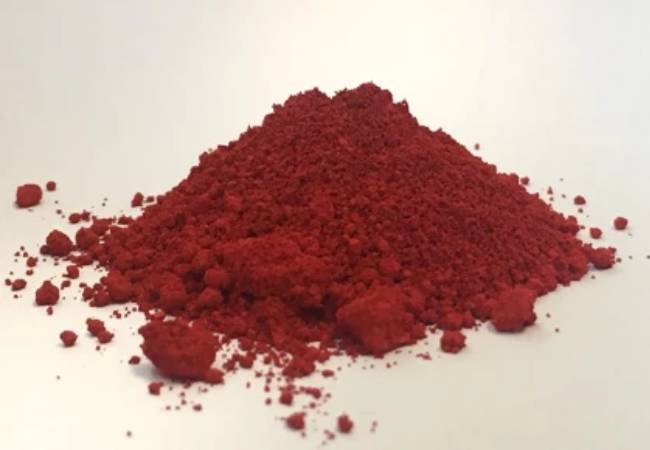

Cadmium Red Pigment
*
Principles of XRF Spectroscopy for Pigment Analysis
X-ray fluorescence (XRF) spectroscopy excites atoms in cadmium red pigment using primary X-rays, expelling inner electrons. The atom relaxes by emitting secondary (fluorescent) X-rays whose energies are element-specific. For pigment chemical analysis methods, selenium’s Kα and Kβ peaks occur at 11.2 and 12.5 keV, respectively; cadmium appears at 23.1 keV. XRF enables pigment composition analysis of solids without damaging samples. XRF provides both qualitative and quantitative pigment identification, detecting selenium pigment content down to parts per million in dry matrices. Detection occurs in seconds, enabling mapping of complex pigment layers in art conservation or quality assurance contexts.
Key Advantages of XRF Spectroscopy in Pigment Composition Analysis
XRF matches the non-destructive requirements for cadmium red pigment uses, avoiding micro-sampling required by methods like ICP-OES or AAS. Compared to destructive pigment identification techniques, XRF preserves historical and modern samples, supporting pigment identification techniques for regulatory screening or pigment safety assessments. XRF is effective with solid painted layers, powder pigments, and intact objects, enabling precise pigment composition analysis and tracking of selenium pigment toxicity in varied works and industrial batches.
Qualitative and Quantitative Assessment of Selenium in Cadmium Red Pigments

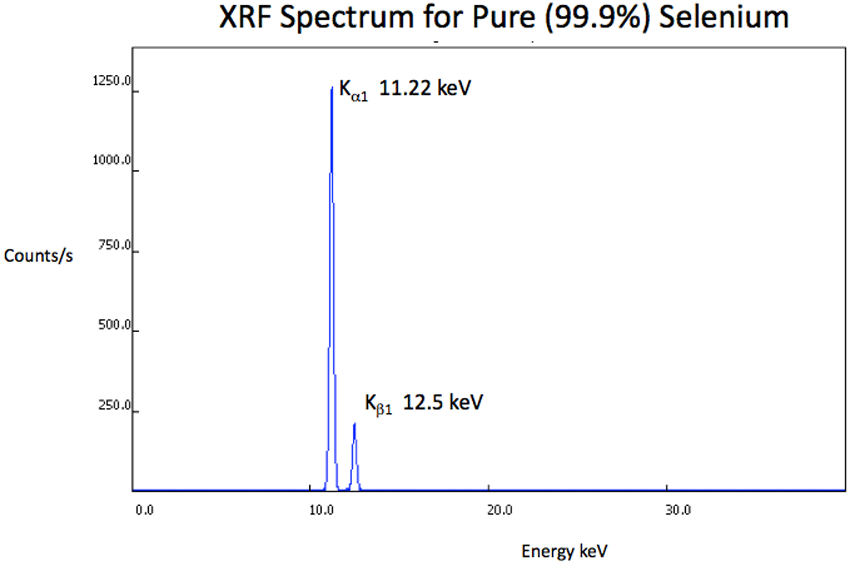

XRF enables direct identification of selenium in cadmium red pigment by detecting distinct selenium Kα (11.2 keV) and Kβ (12.5 keV) peaks. Presence of both cadmium Kα (23.1 keV) and selenium Kα lines confirms the pigment comprises a cadmium sulfo-selenide structure.
XRF spectrum fingerprinting differentiates cadmium red pigment from pure cadmium sulfide yellows or other red pigments lacking selenium. For mixtures or alterations, full-spectrum approaches and chemometric analysis (e.g., principal component analysis) improve discrimination, minimizing false positives when identifying pigments in art or industrial goods.

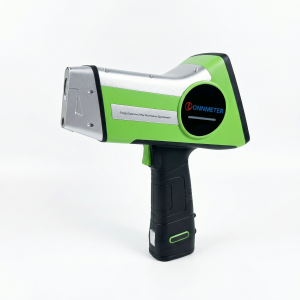

Lonnmeter XRF Selenium Analyzer Key Specifications
Lonnmeter XRF analyzers detect cadmium, selenium, and other key pigment metals in solid, powder, and painted pigment samples. Analysis time ranges from 30 seconds to 70 seconds. High spectral resolution and advanced calibration yield quantification accuracy suitable for pigment composition analysis and compliance checks for cadmium red pigment uses and selenium pigments. The touchscreen interface supports pigment identification techniques with preprogrammed modes, live spectrum display, and customizable test reports. Data can be exported via USB or Wi-Fi. Sample handling accepts pressed powders, homogeneous solids, or paint layers; destructive sample prep is not required. Internal radiation safety interlocks and compact design (< 2 kg handheld) ensure safe, practical operations.
Silicon drift detector of Lonnmeter’s XRF analyzer supports fast, precise pigment chemical analysis methods with quantification reproducibility. Interface features include spectrum review and structured pigment identification techniques compatible with art, manufacturing, and research workflows.
Requesting a Quote and Next Steps
The platform tailors recommendations based on application-specific requirements, including cadmium red pigment uses, selenium pigment toxicity, and pigment chemical analysis methods. Consultation services guide customization options for complex pigment systems or compliance with pigment safety regulations. All configurations include sample handling options compatible with powders, pressed pellets, and painted artifacts.
Comprehensive onboarding covers sample preparation, certified reference material selection, and standard operating procedures for pigment identification techniques. Ongoing support includes instrument recalibration for pigment composition analysis, troubleshooting for low signal or elevated noise, and safety protocols for handling cadmium and selenium pigments.
Frequently Asked Questions
What is cadmium red pigment and how is selenium involved in its composition?
Cadmium red pigment is a cadmium sulfoselenide, comprising cadmium sulfide and 10–25% cadmium selenide. Selenium ions occupy lattice sites, producing hue variations from orange to deep red by altering the CdS:CdSe ratio. The crystalline matrix ensures high tinting strength and stability. Selenium enhances color vibrancy and extends pigment durability, critical for permanent, lightfast artist colors and industrial materials.
How does XRF spectroscopy help in pigment identification?
XRF spectroscopy detects cadmium and selenium directly in solid pigment matrices for non-destructive pigment chemical analysis. Elemental peaks, including cadmium Kα (23.2 keV) and selenium Kα (11.2 keV), allow rapid identification of pigment composition. The method accurately distinguishes selenium pigments from other types, with detection limits below 50 ppm depending on matrix structure and sample geometry.
Why is detecting the selenium content in pigments important?
Documenting selenium content is required for pigment safety, production consistency, and compliance with global regulations on environmental and worker exposure. Excess selenium increases pigment toxicity risk and affects shade reproducibility. Controlled selenium pigment formulations ensure regulatory compliance and optimal pigment performance in art, coatings, and plastics.
