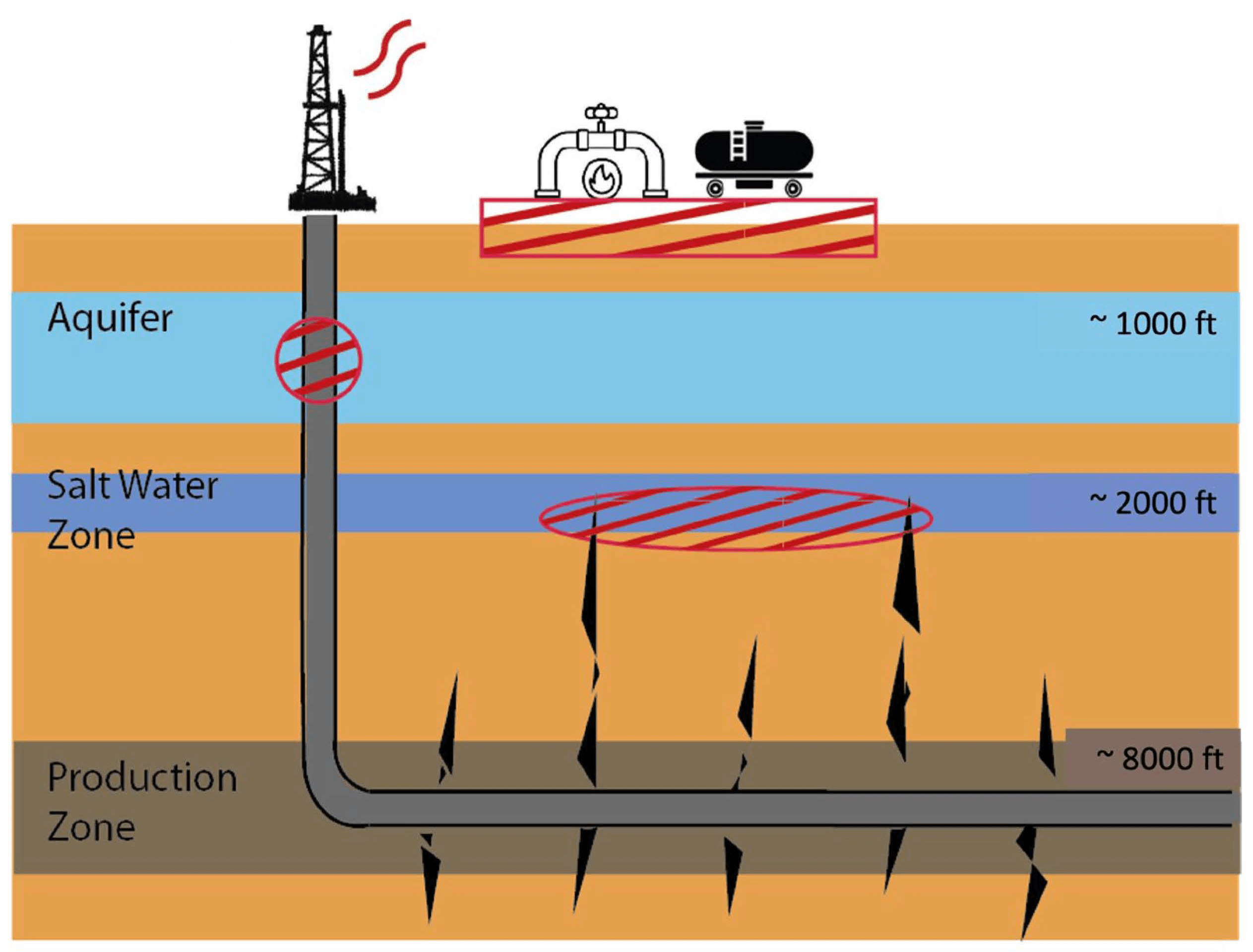

Understanding Guar Gum in Hydraulic Fracturing Fluids
Role of Guar Gum as a Thickener
Natural polymers like guar gum are central to fracturing fluid formulation due to their ability to dramatically increase viscosity, which is vital for efficient proppant suspension and transport. Derived from guar beans, guar gum’s polysaccharide structure rapidly hydrates to form viscous solutions—crucial for carrying sand or other proppants deep into rock fissures during hydraulic fracturing.
Mechanisms of Viscosity and Stability:
- Guar gum molecules entangle and expand in water, leading to increased intermolecular friction and fluid thickness. This high viscosity reduces the proppant settling velocity in hydraulic fracturing fluids, resulting in better suspension and placement of proppants.
- Crosslinking agents like boric acid, organoboron, or organozirconium further enhance the viscosity. For instance, organozirconium-crosslinked hydroxypropyl guar (HPG) fluids retain over 89.7% of their initial viscosity at 120 °C under high shear, outperforming conventional systems and delivering more robust proppant carrying capacity in fracturing fluids.
- Increased crosslink density, achieved by raising the thickener concentration, strengthens the gel structure and allows for superior stability, even in challenging reservoir conditions.
Guar gum’s rapid gel formation enables optimized fracturing fluid mixing tank design. However, it is sensitive to shear and microbial attack; therefore, careful preparation and proper additives are required for sustained performance.

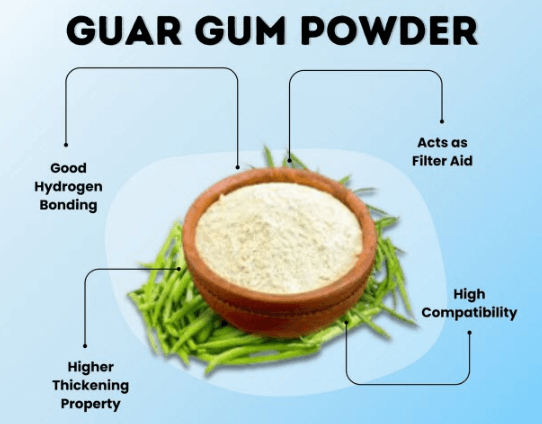

Guar Gum Powder
*
Key Properties Relevant to Fracturing Operations
Temperature Stability
Guar gum fluids must maintain their viscosity profile at high reservoir temperatures. Unmodified guar gum begins to degrade above 160°C, leading to viscosity loss and diminished proppant suspension. Chemical modifications—such as sulfonation with sodium 3-chloro-2-hydroxypropylsulfonate—improve thermal endurance, allowing fluids to sustain viscosity above 200 mPa·s at 180°C for two hours (shear 170 s⁻¹).
Crosslinkers are key to temperature stability:
- Organozirconium crosslinkers demonstrate superior viscosity retention at high temperatures versus borate systems.
- Borate crosslinked gels are effective below 100°C but lose strength rapidly above this threshold, especially at low biopolymer concentrations.
Hybrid additives and chemical-modified guar derivatives push the boundaries for ultra-deep reservoirs, ensuring fracturing fluid rheology and viscosity control across a wider thermal range.
Filtration Resistance
Filtration resistance is vital for preventing fluid loss in low-permeability formations. Guar gum fluids, especially those crosslinked with nanoparticles like nano-ZrO₂ (zirconium dioxide), exhibit enhanced sand suspension and reduced filtration loss. For example, 0.4% nano-ZrO₂ addition significantly reduces proppant settling, keeping particles suspended under static, high-pressure conditions.
Guar gum outperforms most synthetic polymers in shear and filtration resistance, especially in high-temperature and high-salinity environments. However, the challenge of residual material post-gel breaking remains and must be managed to maximize reservoir conductivity.
Inclusion of additives such as thermodynamic hydrate inhibitors (THIs)—methanol and PEG-200—can further enhance antifiltration performance, especially in hydrate-bearing sediments. These improvements facilitate better gas recovery and contribute to optimized mixing tank operation for fracturing fluids.
Clay Inhibition Effects
Clay inhibition prevents swelling and migration of clays, reducing formation damage during hydraulic fracturing. Guar gum fluids achieve clay stabilization through:
- Enhanced viscosity and proppant suspension, limiting proppant movement that can destabilize clays.
- Direct adsorption onto shale surfaces, which can inhibit clay particle migration.
Modified guar derivatives—like maleic anhydride-grafted anionic guar—lower water-insoluble content, decreasing formation damage and improving clay stability. Fluorinated hydrophobic cationic guar gum variants and polyacrylamide–guar copolymers increase adsorption, delivering improved heat resistance and stable fluid-clay interactions.
In hydrate-rich reservoirs, the use of hydroxyl group-bearing THIs (e.g., methanol, PEG-200) helps maintain fracturing fluid properties, indirectly aiding clay stability and boosting overall production rates.
By combining advanced chemical modifications and targeted additives, modern guar gum-based fracturing fluids offer enhanced viscosity, filtration resistance, and clay control, supporting optimal proppant transport and minimal formation damage.
Fundamentals of Guar Gum Viscosity and Concentration Dynamics
Relationship: Guar Gum Viscosity vs Concentration
Guar gum viscosity exhibits a direct, often linear relationship to its concentration in aqueous solutions. As guar gum concentration increases, the solution’s viscosity rises, improving the fluid’s ability to suspend and transport proppants in hydraulic fracturing operations. For instance, fluids with guar gum concentrations ranging from 0.2% to 0.6% (w/w) can be tailored to mimic nectar-like or honey-like textures, which are effective for proppant suspension in both low and high permeability reservoirs.
Optimal guar gum concentration balances viscosity for proppant-carrying capacity and pumpability. Too low a concentration risks rapid proppant settling and reduced fracture width; excessive concentration may impede flow and elevate operational costs. For example, a 0.5 wt% guar gum loading in hydrogels enhances shear-thickening properties by approximately 40%. However, at 0.75 wt%, the network integrity deteriorates, diminishing proppant suspension and transport effectiveness.
Impact of Shear Rate and Temperature on Viscosity
Guar gum solutions display pronounced shear-thinning behavior: viscosity decreases as shear rate increases. This characteristic is vital in hydraulic fracturing, enabling efficient pumping during high shear conditions and robust proppant-carrying at low flow rates. For example, during rapid injection, guar gum’s viscosity drops, facilitating fluid movement through pipes and fractures. As flow slows in fracture networks, viscosity recovers, maintaining proppant suspension and reducing settling velocity.
Temperature also substantially impacts fracturing fluid viscosity. As temperature rises, guar gum polymers experience thermal degradation, diminishing viscosity and elasticity. Thermal analyses show sulfonated guar gum resists viscosity loss better than unmodified forms, retaining structural integrity and proppant-carrying capacity at temperatures up to 90–100°C. Nonetheless, at extreme reservoir temperatures above this threshold, most guar gum variants (including hydroxypropyl guar or HPG) show reduced viscosity and stability, requiring modifications or additive strategies.
Salt concentration and ionic content in the base fluid (e.g., seawater) further influence both shear-thinning and thermal stability. High salinity, especially with multivalent cations, can significantly depress swelling and viscosity, impacting proppant transport efficiency.
Influence of Guar Gum Modifications
Chemical modification of guar gum allows fine-tuning of viscosity, solubility, and temperature resilience, optimizing fracturing fluid performance. Sulfonation—introducing sulfonate groups into guar gum—boosts water solubility and yields a 33% rise in viscosity, confirmed by IR, DSC, TGA, and elemental analysis. Sulfonated guar gum maintains viscosity and stability even in saline or alkaline environments, outperforming unmodified gum in challenging reservoir conditions.
Hydroxypropylation (HPG) also elevates viscosity and improves solubility, particularly in fluids with high ionic strength. HPG gels demonstrate high viscosity and elasticity between pH 7 and 12.5, transitioning to Newtonian characteristics only at pH >13. In seawater, HPG and guar gum retain better viscosity than other modified gums such as carboxymethyl guar (CMG), enhancing their suitability for offshore and saline operations.
Crosslinking, often accomplished with agents like boric acid, organoboron, or organozirconium, is another technique to fortify guar gum’s network structure. Increased cross-linking density enhances gel strength and viscosity, critical for proppant suspension at elevated temperature and shear rates. Selecting the optimal cross-linking agent and concentration depends on specific reservoir temperature and flow conditions. Predictive models enable engineers to calibrate both thickener and cross-linker loadings for tailored fracturing fluid rheology and viscosity control.
Challenges and Solutions for Real-Time Viscosity Control in Industrial Applications
Overcoming Measurement and Mixing Difficulties
Industrial processing of guar gum solutions faces persistent challenges in real-time viscosity measurement. Sensor fouling is common due to guar gum’s tendency to form residues on viscometer surfaces. Fouling disrupts accuracy and causes drift; for example, polymer build-up can mask actual viscosity changes, leading to unreliable readings. Modern mitigation strategies include composite coatings, such as CNT-PEG-hydrogel films, which repel organic deposits and sustain sensor sensitivity under viscous conditions. 3D-printed turbulence promoters, placed in mixing tanks, create localized turbulence at sensor surfaces, substantially reducing residue build-up and prolonging operational accuracy. Integrated RFID-IC sensors further enhance monitoring, minimizing maintenance while operating in challenging fluids, though these too require robust anti-fouling protocols for long-term dependability.
Variable tank conditions, such as inconsistent fluid shear rates, fluctuating temperatures, and uneven additive distribution, also impact viscosity control. For instance, mixing tanks without optimized geometry can leave unmixed guar gum aggregates, producing local viscosity spikes and incomplete hydration. Optimizing tank design—through baffles and high-shear mixers—promotes homogeneous dispersion and ensures accurate real-time measurement. Gauge calibration remains pivotal; regular in-situ calibration using traceable standards helps counter sensor drift and performance loss over extended operational cycles.
Strategies for Consistent Viscosity in Large-Scale Systems
Achieving consistent viscosity of guar gum solutions across large-scale mixing processes demands integrated, automated control systems. In-line viscometers paired with PLC-based (programmable logic controller) process automation allow for closed-loop adjustment of mixing speed, additive dosing, and temperature. IIoT (Industrial Internet of Things) frameworks enable continuous data capture, real-time monitoring, and predictive action—machine learning models forecast deviations and execute adjustments before viscosity strays outside specification.
Automated systems dramatically reduce batch variability. Recent case studies reveal viscosity variations dropping by up to 97% and material waste decreasing by 3.5% when real-time control is in place. Automated dosing of crosslinking agents—including boric acid, organoboron, and organozirconium—alongside precision temperature control, delivers repeatable rheological performance for proppant-carrying fluids. Evaluations in food-grade guar gum mixing show IIoT-driven models surpass manual operator methods, resulting in more accurate proppant suspension and minimized settling velocity, essential for hydraulic fracturing efficiency.
Strategies to further minimize batch-to-batch variability include careful selection and calibration of crosslinking and stabilizing additives. Integration of thermodynamic hydrate inhibitors (THIs) such as methanol or PEG-200 enhances viscosity retention and gel integrity, especially under ultra-high temperature reservoir conditions. However, their concentrations must be optimized—excessive dosing increases shear thinning and degrades proppant-carrying capacity, requiring careful balance with primary thickener agents.
Troubleshooting: Addressing Out-of-Specification Fluid Properties
When fracturing fluid viscosity falls outside operational limits, several troubleshooting steps are essential. Incomplete hydration and poor dispersion of guar gum frequently lead to lump formation, resulting in erratic viscosity readings and decreased proppant suspension. Premixing guar gum with crosslinking agents or dispersing powders into non-aqueous carriers like glycol can prevent agglomeration and promote uniform solution preparation. Rapid and staged addition techniques are favored to avoid abrupt viscosity surges; this process ensures thorough blending and mitigates sediment formation in hydraulic fracturing fluid mixing tanks.
Quality assurance relies on tracing interactions between additives and monitoring thermal or shear-induced degradation. Microscopic and spectroscopic techniques (SEM, FTIR) reveal residue formation and gel breakdown, which signal formulation problems. Adjustments may require switching crosslinking agents—organozirconium systems, for example, persistently retain more than 89% of initial viscosity under extreme conditions (>120°C, high shear), ideal for ultra-deep reservoir fluids. When using stabilizers such as methanol and PEG-200, concentrations should be precisely tuned; low levels stabilize, but excess may decrease viscosity and impair proppant carrying capacity.
Persistent out-of-spec fluid properties necessitate real-time feedback from in-line sensors and data-driven process control. Calibration and cleaning routines, coupled with predictive maintenance, resolve ongoing discrepancies and maximize the reliability of viscosity measurements, directly optimizing mixing tank design, fracturing fluid rheology, and long-term proppant suspension in hydraulic fracturing applications.

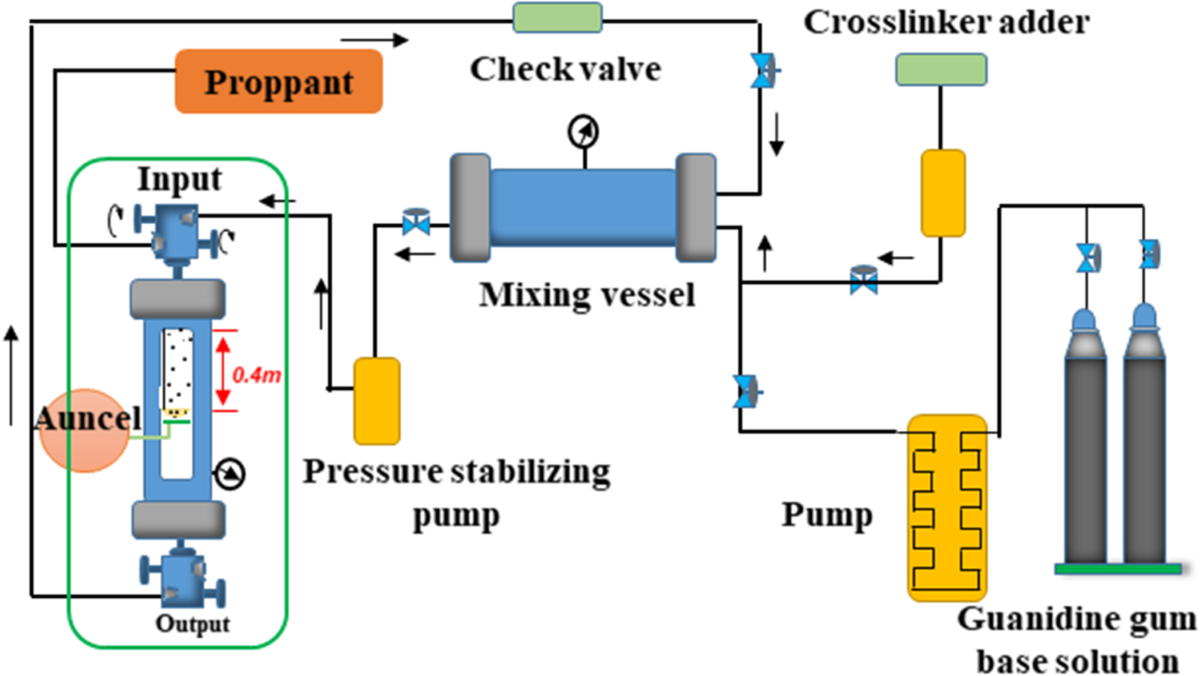

high-pressure sand suspension and adsorption capacity of guar gum
*
In-line Automated Viscometers
In hydraulic fracturing applications, in-line viscometers installed directly within mixing tank pipelines provide continuous viscosity data. Cutting-edge approaches—including machine learning-based and computer vision viscometers—estimate zero-shear viscosity from fluid imaging or dynamic response, covering ranges from dilute up to highly viscous slurries. These systems can be integrated into automated process control, reducing manual intervention.
Example:
- Computer vision-based viscometers automate viscosity estimation by analyzing the behavior of fluid in an inverted vial or flow apparatus, supplying results rapidly for subsequent automation or feedback loops.
Real-time Guar Gum Concentration Monitoring
Maintaining consistent guar gum concentration during mixing minimizes batch variation and supports reliable fracturing fluid performance. Technologies for real-time concentration monitoring include:
SLIM Technology (Ross Solids/Liquid Injection Manifold): SLIM injects guar gum powder below the liquid surface, combining it instantly with liquid through high-shear mixing. This design minimizes agglomeration and viscosity loss due to over-mixing, enabling precise control over concentration at every stage.
Non-Nuclear Slurry Density Meter: Inline density meters installed in mixing tanks monitor electrical properties and density changes as guar gum is added and dispersed, allowing for continuous tracking of concentration and immediate corrective action.
Ultrasonic Imaging Coupled with Rheometry (“Rheo-ultrasound”): This advanced technique captures ultrafast ultrasonic images (up to 10,000 frames/sec) alongside rheometric viscosity data. It enables simultaneous monitoring of local concentrations, shear rates, and instabilities, crucial for identifying non-uniform mixing and rapid viscous changes in guar gum solutions.
Examples:
- Electrical resistivity sensors alert operators if powder addition results in concentration deviations, enabling immediate correction.
- Rheo-ultrasound systems visualize mixing phenomena, flagging local agglomeration or incomplete dispersion that could compromise fracturing fluid quality.
Practical and Routine Monitoring Tools
Methods such as the Lonnmeter inline industrial viscometers provide practical, reliable means of viscosity measurement in production environments. These tools are suitable for routine checks during mixing, provided the process remains within specified parameters.
Quality Assurance Protocols and Integration
Continuous viscosity and concentration measurement systems must be validated for reliability and accuracy:
- Calibration Procedures: Routine calibration against known standards ensures sensor accuracy and consistency.
- Machine Learning Validation: Computer vision-based viscometers undergo neural network training and benchmarking to validate performance across diverse guar gum concentrations and fluid viscosities.
- Real-time QA Integration: Integration with process control systems allows trending, error detection, and rapid response to deviations, supporting both product quality and regulatory compliance.
In summary, the ability to monitor guar gum viscosity and concentration continuously hinges on the selection and integration of appropriate technologies. Rotational viscometers, advanced in-line sensors, SLIM mixing technology, and rheo-ultrasound provide the sensory backbone, while practical tools and robust QA protocols ensure reliable operation throughout industrial mixing processes.
Measurement Technologies for Continuous Monitoring in Mixing Tanks
Principles of Viscosity Measurement
Continuous viscosity assessment in mixing tanks is vital for controlling the rheology of guar gum-based fracturing fluids. In-line viscometers are widely installed in industrial systems to deliver real-time data on guar gum viscosity. These sensors operate directly within the flow path, eliminating the need for manual sampling and thus reducing delays in feedback.
Vibrational viscometers dominate non-Newtonian fluid measurement due to their ability to capture dynamic fluid responses. Instruments like the inline process viscometer are tailored for in-line mounting and provide continuous readings suited for variable concentrations and viscosities, as encountered in hydraulic fracturing fluid preparation. This method excels with guar gum solutions due to their shear-thinning behavior and broad viscosity range, ensuring robust data acquisition and process reliability.
Continuous Concentration Assessment
Achieving optimal fracturing fluid performance requires precise control over guar gum concentration. This is achieved using continuous concentration measurement systems such as the ACOMP (Automatic Continuous Online Monitoring of Polymerization) technique. ACOMP uses a combination of upstream pumps, mixers, and downstream optical detectors to deliver real-time concentration profiles and intrinsic viscosity readings as polymer solutions are prepared in large mixing tanks.
Effective sampling in dynamic mixing environments involves third-order system modeling to interpret real-time concentration fluctuations. Frequency response analysis ensures accurate correlation between theoretical models and experimental data, providing actionable insights for consistent guar gum solution preparation. These technologies are especially suited for rapid concentration verification, adaptive dosing, and minimizing batch-to-batch variability.
Integration with automated dosing systems further refines concentration management. Lonnmeter ultrasonic density meter installed directly in the tank or pipeline, provide continuous feedback; automated pumps adjust dosing rates according to live sensor data, ensuring that guar gum viscosity vs concentration matches target fracturing fluid rheology. This synergy minimizes human intervention and allows immediate corrective action for off-spec batches.
Effects of Additives and Process Modifications on Guar Gum Viscosity
Sulfonation Modification
Sulfonation introduces sulfonate groups to guar gum, markedly improving the viscosity and solubility of guar gum solutions used in hydraulic fracturing. The optimal reaction conditions require precise control of temperature, time, and reagent concentrations. For example, using sodium 3-chloro-2-hydroxypropylsulfonate at 26°C, with 2 hours reaction time, 1.0% NaOH, and 0.5% sulfonate by guar gum mass, leads to a 33% increase in apparent viscosity and a reduction of water-insoluble content by 0.42%. These changes enhance proppant-carrying capacity in fracturing fluids and support greater thermal and filtration stability.
Alternative sulfonation methods—such as sulfation with sulfur trioxide–1,4-dioxane complex at 60°C for 2.9 hours, using 3.1 mL chlorosulfonic acid—also demonstrate enhanced viscosity and lower insoluble fractions. These improvements reduce residue in hydraulic fracturing fluid mixing tanks, lowering the risk of clogging and facilitating better flowback. FTIR, DSC, and elemental analyses confirm these structural modifications, with predominant substitution at the C-6 position. The degree of substitution and decreased molecular weight results in better solubility, antioxidant activity, and effective viscosity enhancement—critical parameters for efficient fracturing fluid rheology and viscosity control.
Cross-linking Agents and Formulation Effectiveness
Guar gum viscosity in fracturing fluids benefits significantly from the incorporation of cross-linking agents. Organozirconium and borate-based cross-linkers are the most prevalent:
Organozirconium Cross-linkers: Widely preferred for high-temperature reservoirs, organozirconium agents increase the thermal stability of guar gels. At 120°C and 170 s⁻¹ shear, hydroxypropyl guar gum crosslinked with organozirconium retains over 89.7% of its initial viscosity. SEM imaging shows dense three-dimensional network structures with pore sizes under 12 μm, supporting improved proppant suspension and reduced proppant settling velocity in hydraulic fracturing.
Borate Cross-linkers: Traditional boric acid and organoboron cross-linkers show efficacy at moderate temperatures. Performance can be enhanced using additives like polyethyleneimine (PEI) or nanocellulose. For example, nanocellulose-boron crosslinkers maintain residual viscosity above 50 mPa·s at 110°C for 60 minutes under high shear, demonstrating robust temperature and salt resistance. Hydrogen bonding from nanocellulose aids in sustaining viscoelastic properties needed for proppant carrying capacity in fracturing fluids.
Cross-linking in guar gum solutions leads to improvements in shear thinning and elasticity, both vital for pumping and proppant suspension. Chemically cross-linked hydrogels exhibit strong thixotropic recovery, meaning viscosity and structure are restored after high shear—essential during fluid placement and clean-up in hydraulic fracturing operations.
Comparative Impact of Non-Polymeric vs Polymeric Fluid Systems
Polymeric and non-polymeric fluid systems present distinct rheological profiles, significantly affecting proppant transport efficiency:
Polymeric Systems: These include natural (guar gum, hydroxypropyl guar) and synthetic polymers. Polymeric fluids are tunable for viscosity, yield point, and elasticity. Advanced amphoteric copolymers (e.g., ATP-I) achieve better viscosity retention and rheological stability in high-temperature and high-salinity environments compared to older polyanionic cellulose formulations. The increased viscosity and elasticity enhance proppant suspension, lowering settling velocity, and optimize mixing tank design for fracturing fluids. However, higher viscosity can impede proppant transport in low-permeability formations unless carefully balanced.
Non-Polymeric (Surfactant-Based) Systems: These rely on viscoelastic surfactants rather than polymer networks. Surfactant-based fluids deliver lower residue, rapid flowback, and effective proppant-carrying, especially in unconventional reservoirs where residue-free clean-up is prioritized. While these systems offer less tunable viscosity than polymers, they perform well regarding proppant suspension and minimize clogging risk in hydraulic fracturing fluid mixing tanks.
The selection between polymeric and non-polymeric fracturing fluids depends on the desired balance between viscosity, cleanup efficiency, environmental impact, and proppant-carrying requirements. Hybrid systems combining polymers and viscoelastic surfactants are emerging to leverage both high viscosity and rapid fluid recovery. Rheological testing—using linear oscillatory deformations and flow sweeps—provides insight into thixotropic and pseudoplastic behavior, aiding in the optimization of formulation for specific well conditions.
Optimization Strategies for Fracturing Fluid Viscosity and Proppant-Carrying Capacity
Rheological Behavior and Proppant Transport
Optimizing guar gum viscosity is crucial for controlling proppant settling velocity in hydraulic fracturing. Higher fluid viscosity reduces the rate at which proppant particles sink, increasing the likelihood of effective transport deep into the fracture network. Crosslinking enhances viscosity by creating robust gel structures; for instance, organozirconium-crosslinked hydroxypropyl guar fluids form dense networks with pore sizes under 12 μm, which significantly improve suspension and reduce settling velocity compared to organoboron systems.
Tuning guar gum concentration directly impacts viscosity of guar gum solutions. As polymer concentration rises, so does crosslinking density and gel strength, which minimizes proppant sedimentation and maximizes placement. Example: increasing crosslinker concentration in HPG fluids raises viscosity retention above 89% during high-temperature (120°C) shear, ensuring proppant-carrying capacity even in challenging reservoir conditions.
Formulation Adjustment Protocols
Data-driven strategies now enable real-time control of fracturing fluid viscosity and concentration. Machine learning models—random forest and decision tree—predict rheological parameters such as viscometer readings instantly, replacing slow, periodic lab tests. In practice, hydraulic fracturing fluid mixing tanks equipped with compliant mechanisms and piezoelectric sensors measure viscosity of guar gum solutions as fluid properties change, with error correction via empirical mode decomposition.
Operators monitor viscosity and concentration in-situ, then adjust dosing of guar gum, crosslinkers, or additional thickeners based on live sensor feedback. This on-the-fly adjustment ensures the fracturing fluid maintains the optimal fracturing fluid viscosity for proppant suspension without downtime. For example, direct pipe viscosity measurements fed into control systems allow dynamic fluid tuning, preserving ideal proppant suspension as reservoir or operation parameters shift.
Synergistic Effects with Clay and Temperature Stability Additives
Clay stabilizers and thermal stability additives are vital in preserving guar gum viscosity in hostile shale and high-temperature environments. Clay stabilizers—such as sulfonated guar derivatives—prevent clay swelling and migration; this protects the viscosity of guar gum solutions from sudden loss by limiting interactions with ionic species in the formation. A typical stabilizer, sodium 3-chloro-2-hydroxypropylsulfonate–modified guar gum, yields internal viscosities suitable for fracturing and resists water-insoluble content, maintaining gel structure and effective proppant suspension even in clay-rich formations.
Thermal stabilizers, including advanced supramolecular viscosifiers and thermodynamic hydrate inhibitors (e.g., methanol, PEG-200), safeguard against viscosity breakdown above 160°C. In brine-based and ultra-high temperature fluid systems, these additives enable viscosity retention above 200 mPa·s under 180°C shear, far exceeding traditional guar gum viscosifiers.
Examples include:
- Sulfonated guar gum for both clay and temperature resilience.
- Organozirconium crosslinkers for ultra-high thermal stability.
- PEG-200 as a THI to boost fluid performance and reduce residue.
Such protocols and additive packages allow operators to optimize mixing tank designs for fracturing fluids and tailor guar gum viscosity measurement techniques for continuous viscosity and concentration measurement. The result is superior proppant carrying capacity and consistent fracture propagation, even in extreme downhole environments.
Linking Guar Gum Viscosity to Proppant Settling Velocity and Fracturing Efficiency
Mechanistic Insights into Proppant Suspension
Guar gum viscosity plays a direct role in controlling proppant settling velocity during hydraulic fracturing. As the viscosity of guar gum solutions increases, the drag force acting on proppant particles rises, significantly reducing their downward settling rate. In practice, fluids with high guar gum concentration and enhanced viscous properties—including those modified with polymer additives and fibers—offer improved proppant-carrying capacity, allowing suspended particles to remain evenly distributed throughout the fracture network rather than aggregating at the bottom.
Laboratory studies show that, compared with Newtonian fluids, shear-thinning guar gel solutions demonstrate lower proppant settling velocities, resulting from both increased viscosity and elastic effects. For example, doubling the guar gum concentration can halve the settling velocity, ensuring proppant remains suspended longer. The addition of fibers further impedes sedimentation by creating a mesh-like network, promoting uniform proppant placement. Empirical models and coefficients have been developed to predict these effects under varying fracture and fluid conditions, confirming the synergy between fluid rheology and proppant suspension.
In fractures where the width closely matches the diameter of the proppant, confinement effects further retard settling, amplifying the benefits of high-viscosity guar solutions. However, excessive viscosity may restrict fluid mobility, potentially reducing effective proppant transport depth and increasing the risk of residue formation that jeopardizes fracture conductivity.
Maximizing Fracture Width and Length
Tailoring the viscosity of guar gum solutions exerts a substantial influence on fracture propagation during hydraulic fracturing. High-viscosity fluids tend to generate wider fractures due to their ability to resist closing pressures and propagate cracks through the rock. Computational fluid dynamics (CFD) simulations and acoustic emission monitoring validate that elevated viscosity leads to more complex fracture geometries and enhanced width.
However, the trade-off between viscosity and fracture length must be carefully managed. While wide fractures facilitate effective proppant placement and conductivity, excessively viscous fluids can dissipate pressure quickly, impeding the development of long fractures. Empirical comparisons show that lowering the viscosity within controlled limits enables deeper penetration, yielding extended fractures that enhance reservoir access. Thus, viscosity must be optimized—not maximized—based on rock type, proppant size, and operational strategy.
Fracturing fluid rheology, including shear-thinning and viscoelastic properties from guar gum modifications, shapes the initial crack formation and subsequent growth patterns. Field trials in carbonate reservoirs confirm that adjusting guar gum concentration, adding thermal stabilizers, or introducing surfactant-based alternatives can fine-tune fracture propagation, maximizing both width and length depending on the stimulation goal.
Integration with Downhole Operational Parameters
Guar gum viscosity must be managed in real time as downhole temperature and pressure fluctuate during hydraulic fracturing. Elevated temperatures at depth can diminish the viscosity of guar gum fluids, reducing their proppant suspension capacity. The use of crosslinkers, thermal stabilizers, and advanced additives—such as thermodynamic hydrate inhibitors—help maintain optimal viscosity, especially in high-temperature reservoirs.
Recent advances in viscosity measurement techniques, including pipe viscometry and regression modeling, allow operators to monitor and adjust fracturing fluid viscosity dynamically. For example, hydraulic fracturing fluid mixing tanks integrate real-time sensors to track viscosity changes and automatically dose additional guar gum or stabilizers as required, ensuring consistent proppant carrying capacity.
Some operators supplement or replace guar gum with high-viscosity friction reducers (HVFRs) or synthetic polymers for improved thermal stability and lower residue risks. These alternative fluid systems display exceptional thickening efficiency and resistance to shear degradation, maintaining high viscosity for proppant suspension even under extreme downhole conditions.
Operational parameters such as proppant size, concentration, fluid flow rate, and fracture geometry are integrated with viscosity control strategies. Optimizing these variables ensures that the fracturing fluid can sustain proppant transport over the desired fracture length and width, reducing the risk of clogging, channeling, or incomplete coverage. Viscosity adaptation not only sustains fracture conductivity but also improves hydrocarbon flow through the stimulated zone.
Frequently Asked Questions (FAQs)
Q1: How does the concentration of guar gum affect its viscosity in fracturing fluids?
Guar gum viscosity increases with higher concentration, directly enhancing the fluid’s proppant-carrying capacity. Laboratory data confirm that concentrations around 40 pptg provide a stable viscosity, better fracture opening index, and less residue than higher concentrations, balancing both operational performance and cost. Excess salt or multivalent ions in water can hinder guar gum swelling, decreasing viscosity and fracturing effectiveness.
Q2: What is the role of a mixing tank in maintaining guar gum solution quality?
A hydraulic fracturing fluid mixing tank enables uniform dispersion of guar gum, preventing lumps and inconsistencies. High shear mixers are preferred, as they shorten mixing time, break down polymer agglomerates, and ensure consistent viscosity throughout the solution. Real-time continuous measurement tools in mixing tanks help maintain the required guar gum concentration and overall fluid quality, permitting immediate correction if properties deviate from target values.
Q3: How does fracturing fluid viscosity influence proppant settling velocity?
Fracturing fluid viscosity is the key factor that determines how quickly proppant particles settle. Higher viscosity slows the settling velocity, keeping proppant suspended for longer and allowing deeper penetration into the fracture. Mathematical models confirm that fluids with increased viscosity optimize horizontal transport, improve bank geometry, and encourage more uniform proppant placement. However, there is a trade-off: very high viscosity can shorten fracture length, so optimal viscosity must be chosen for specific reservoir conditions.
Q4: What additives impact the viscosity of guar gum solutions?
Sulfonation modification of guar gum enhances viscosity and stability. Additives such as boric acid, organoboron, and organozirconium cross-linkers substantially increase viscosity retention and temperature stability, especially under harsh conditions common in oilfield operations. The effect depends on additive concentration: higher cross-linker levels yield greater viscosity but may impact operational flexibility and cost. Salt and ionic content in solution also play a role, as high salinity (especially multivalent cations) can reduce viscosity by limiting polymer swelling.
Q5: Can fluid viscosity be continuously measured and controlled during fracturing operations?
Yes, continuous viscosity measurement is achieved using in-line viscometers and automated concentration monitoring systems. Pipe viscometers and real-time sensors integrated with advanced algorithms allow operators to track, adjust, and optimize fracturing fluid viscosity on-the-fly. These systems can compensate for sensor noise and changing environmental conditions, resulting in better proppant-carrying performance and optimized hydraulic fracturing outcomes. Intelligent control systems also enable rapid adjustment to variations in water quality or discharge rates.
