Fuel Oil Viscosity Measurement

Fuel Oil Viscosity Measurement Techniques

In-process viscometers determine the fuel oil viscosity by measuring the vibrating frequency of a vibrating rod within the oil. They are well-suited for high-viscosity and non-Newtonian fluids. This makes them valuable for heavy fuel oil and bitumen applications, offering real-time, continuous viscosity readings in both the field settings.

Advantages of rotational viscometers:

• Suitable for a broad range of viscosities, especially very high or non-Newtonian oils.

• Capable of continuous and automated measurement.

• Real-time monitoring for process applications.

Limitations:

• Indirect measure of kinematic viscosity which requires conversion.

Modern Advances in Viscosity Testing

• Single measuring cell with broad range: One device covers a wide viscosity spectrum, minimizing instrument swaps.

• Continuous range and automation: No need to change viscometers for different ranges, ideal for high-throughput environments.

• Reduced sample and solvent requirements: Smaller sample sizes and automated cleaning cut costs and enhance laboratory safety.

• Minimized calibration/maintenance: Simple verification steps reduce downtime.

• Full process integration: Fast digital output and easy integration with automated process systems.

Best Practices in Viscosity Measurement

Accurate fuel oil viscosity measurement procedures begin with rigorous sample handling and preparation. Oils must be homogeneous and above their pour point; improper handling is a leading cause of poor reproducibility. Pre-warming samples and gentle mixing minimize stratification and phase separation. Proper sample bottles and avoidance of contamination are critical.

Calibration and maintenance of viscometers underpin measurement reliability:

• Use certified reference standards for regular calibration checks.

• Verify instrument accuracy with check fluids spanning expected viscosity ranges.

• Keep viscometers clean—residual oils can bias results.

• Log calibration and maintenance interventions for traceability.

Temperature control during testing is crucial. Standard practice is to test at 40°C and 100°C because fuel oil viscosity is highly temperature-dependent. These set-points correspond to common temperature conditions in storage and engine operations. Even a 0.5°C deviation can alter viscosity readings significantly.

Selecting the right viscometer depends on application and oil type:

• Glass capillary viscometers: Gold standard for reference and regulatory labs; best for clear, Newtonian fluids.

• Vibrational viscometers: Preferred for heavy, high-viscosity, or non-Newtonian oil; enable real-time process measurements.

Understanding why fuel oil viscosity is important—it directly affects atomization, combustion efficiency, and engine wear—should guide the choice of instrument, method, and protocols for each specific analysis. Properly conducted tests safeguard engine performance, regulatory compliance, and operational efficiency.

Standards and Compliance in Fuel Oil Viscosity

Overview of Major Standards

Fuel oil viscosity measurement depends on adherence to established standards that ensure consistency, safety, and efficiency across applications. The most widely recognized are ASTM D445 and ASTM D7042, along with ISO 3104 and associated specifications.

ASTM Standards

• ASTM D445: This is the classical method for measuring kinematic viscosity, primarily using glass capillary viscometers. It is robust, widely accepted, and forms the basis of many fuel specification limits.

• ASTM D7042: A modern alternative, D7042 employs Stabinger viscometers to measure dynamic viscosity and density concurrently. The method is faster, covers a broader range of viscosities and temperatures, requires less sample, and can often be automated for greater throughput. The petroleum industry increasingly favors this method for routine and advanced analysis due to cost efficiency and operational flexibility.

• Other ASTM protocols: In addition, methods such as ASTM D396 govern viscosity limits for various grades of fuel oil, specifying performance for power generation and industrial applications.

ISO and International Equivalents

• ISO 3104:2023: The latest ISO standard mirrors the procedural backbone of ASTM D445 but extends the range of fuels, including biofuel blends (up to 50% FAME) and new alternative fuels such as HVO and GTL. It describes two main procedures:

  • Procedure A: Manual glass capillary viscometers.

  • Procedure B: Automated capillary viscometers.
    Both are suitable for Newtonian fluids but have cautions for non-Newtonian fuels.

• ISO standards are enforced and referenced globally, integrating seamlessly with national regulatory regimes and harmonizing requirements for ship engines, power plants, and industrial burners.

Compliance Requirements

• Ship Engines (IMO MARPOL Annex VI): Maritime compliance focuses on fuel quality, which indirectly mandates control of viscosity to support combustion performance and emissions compliance. From August 2025, ship operators must adhere to stricter fuel quality documentation and sampling obligations. Use of compliant fuel oils—especially within Emission Control Areas (≤1,000 ppm sulfur)—necessitates accurate viscosity measurement and traceable records.

• Power Plants: ASTM D396 defines requirements for small, commercial, and industrial-grade burners. Viscosity must be measured and confirmed to remain within specified ranges, and preheating is typically required for higher-viscosity grades to facilitate pumping and atomization.

• Industrial Burners: Compliance with both ASTM and ISO viscosity standards is essential for operational safety, fuel handling, and combustion efficiency. Incorrect viscosity impairs fuel atomization and can increase emissions or damage equipment.

Advanced Modeling and Analysis of Fuel Oil Viscosity

Temperature Dependence and Scaling Models

Fuel oil viscosity is highly sensitive to temperature, directly influencing flow, atomization, and combustion efficiency. Classically, this relationship is modeled using the Andrade and Arrhenius equations, which express viscosity’s exponential decay as temperature rises. The Arrhenius-type equation is commonly written as:

η = A · exp(Eₐ/RT)

Where η is viscosity, A is a pre-exponential factor, Eₐ is activation energy, R is the universal gas constant, and T is temperature in Kelvin. This formula reflects the physical reality that fluidity increases as thermal energy overcomes intermolecular forces.

Recent research has identified the Vogel–Fulcher–Tammann (VFT) equation and universal scaling models as more effective for complex fluids like crude or heavy fuel oils. The VFT equation,

η(T) = η₀ · exp[B/(T–T₀)],

introduces parameters connected to the glass transition temperature (T₀), giving more accurate viscosity predictions across a broader temperature range and for varying oil types. Peer-reviewed studies confirm these models outperform empirical approaches, especially under harsh conditions or with compositional variability.

Determining Key Parameters:

• API Gravity: This indicates oil density and is pivotal for predicting flow properties. Higher API gravity generally yields lower viscosity—crucial for both processability and energy efficiency.

• Fragility Index: Characterizes how viscosity drops as temperature increases near the glass transition. Oils with higher fragility indices show more dramatic viscosity changes, impacting handling and combustion strategy.

• Activation Energy: Represents the energetic threshold for molecular movement in the liquid. Oils with higher activation energies retain higher viscosities at given temperatures.

Universal scaling models, validated by contemporary research, provide methods for quantitatively extracting these parameters from viscosity measurements. For instance, a 2025 study applied a global scaling model to crude oils, linking glass transition temperature and activation energy directly to API gravity and molecular makeup. This enables operators to predict viscosity changes due to blending, temperature shifts, and origin variability with much greater fidelity.

Benefits in Process Simulation and Optimization:

• Broad applicability for process simulation: No longer restricted by empirical formula limits—models handle a diverse range of crude oil samples.

• Enhanced process control: Operators can anticipate viscosity fluctuations and fine-tune heating, blending, or additive dosing to meet optimal flow and atomization requirements.

• Improved energy efficiency and emission reduction: More accurate viscosity data supports engine and burner designs to achieve complete combustion while minimizing unburned hydrocarbons and CO₂ emissions.

Implementing these advanced models streamlines both research-intensive and industrial workflows, enabling real-time viscosity management systems for heavy fuel oils, even under non-standard conditions.

Integrating Viscosity Data in Performance and Emissions Analysis

Proper integration of fuel oil viscosity data into performance and emissions analysis is essential for efficient and clean operations. Viscosity directly impacts the atomization quality within injectors and burners. High viscosity hampers fine droplet formation, resulting in poor combustion, increased fuel consumption, and elevated emissions (notably unburned hydrocarbons and particulate matter). Conversely, optimized viscosity supports finer atomization, leading to more complete combustion and lower pollutant output [Lonnmeter].

System Performance Implications:

• Power Output: A 2025 engine study found that reducing lubricant viscosity (e.g., from SAE 10W-40 to SAE 5W-30) increased engine power output by up to 6.25% due to improved combustion stability.

• Fuel Consumption: Multiple reports demonstrate that high-viscosity oils result in incomplete combustion, increasing both specific fuel consumption and engine wear. Controlled reduction—by heating or blending—consistently cuts fuel needs.

• Emissions Profile: Case data show substantial reductions in both CO₂ and total hydrocarbon emissions when viscosity is managed properly. For example, heating heavy fuel oil or blending with lighter cuts reduced hydrocarbon emissions at high altitude by 95% and improved fuel efficiency.

Efficiency and Environmental Gains:

• Direct correlation between viscosity reduction and emissions control: lower viscosity = better atomization = fewer unburned hydrocarbons and particulates.

• Specific fuel consumption drops as viscosity approaches optimal levels, yielding both economic and regulatory compliance benefits.

These findings underscore the importance of robust fuel oil viscosity measurement procedures, adherence to ASTM standards, and utilization of advanced analyzers for ongoing monitoring and optimization. Careful attention to viscosity ensures that fuel oil systems operate at peak efficiency with minimal environmental impact.

Practical Considerations for Process Automation

Real-Time Viscosity Monitoring and Control

Modern process automation relies on real-time, in-line viscosity measurement to ensure fuel oils maintain optimal flow and combustion properties. In-line viscometers, such as the inline viscometers, provide continuous, high-resolution viscosity readings directly from the process stream. These devices use technologies offering rapid installation and high repeatability without frequent recalibration.

Direct integration with process controllers, especially PID loops, allows automated fuel management systems to adjust preheating, thereby targeting specific viscosity setpoints at delivery to burners. This closed-loop architecture yields several benefits:

• Improved Burner Efficiency: Real-time feedback optimizes fuel atomization, raising combustion efficiency and reducing deposits.

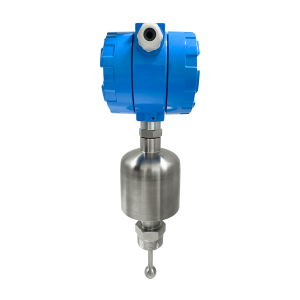

• Minimal Maintenance: Lonnmeter inline viscosity meter lack moving parts and can resist fouling from dirt or contaminants.

• Reliability: In-line sensing delivers accurate data unaffected by flow velocity or mechanical vibration, supporting consistent performance across diverse marine or industrial settings.

Automated kinematic capillary viscometer systems and Viscosity Flow Monitoring Units (VFMUs) further extend these capabilities. Advanced options apply computer vision for non-contact viscosity testing, minimizing contamination and providing digital data for plant management or traceability.

Troubleshooting and Common Issues

Effective viscosity measurement can face several challenges:

Identifying and Resolving Measurement Anomalies

Unexpected readings—such as abnormal spikes, drift, or dropouts—require systematic troubleshooting:

• Check Sensor Calibration: Confirm device calibration against recognized viscosity standards (such as ASTM protocols) to rule out procedural drift.

• Inspect Electrical Connections: Loose wiring or faulty signal paths are common causes for measurement faults.

• Review Device Settings: Programming errors or mismatched setpoints may trigger data anomalies. Reference the manufacturer’s technical manuals for validation steps.

Addressing Contamination, Temperature Drift, and Calibration Errors

• Contamination: Accumulation of dirt or sludge near the sensor tip can distort readings. Select sensors with smooth, non-stick surfaces and minimal crevices. For sensitive equipment, periodic inspection and cleaning are recommended.

• Temperature Drift: Viscosity is highly temperature-dependent. Confirm all readings are referenced and corrected to standard conditions (typically 40°C or 100°C) for repeatable assessment.

• Calibration Errors: Scheduled validation with standard reference fluids and adherence to manufacturers’ calibration routines prevent long-term drift and ensure measurement traceability.

If anomalies persist, consult manufacturer documentation for sensor diagnostics or replace suspect components to restore measurement fidelity.

Optimizing for Fuel Quality Variability

Viscosity control grows complex with the wide variability found in modern fuel oil grades and blends, including HFO-biofuel mixtures.

Strategies for Adaptive Measurement and Control

• Adaptive Control Algorithms: Implement model predictive control (MPC) or reinforcement learning approaches integrated with real-time viscometry for dynamic response to shifts in fuel composition.

• Temperature and Additive Adjustment: Automatically modulate preheater setpoints, or dosing of flow improvers, in response to measured viscosity variances.

• Predictive Modeling: Use machine learning models trained on historical blend and property data to forecast viscosity and preemptively adjust process parameters.

Impact of Fuel Quality on Viscosity and Operations

• Operational Constraints: High-variability fuels require flexible control, as distinct grades respond differently to temperature and shearing. Failure to adapt can lead to under- or over-atomization, with consequences for combustion efficiency and emissions.

• Instrumentation Requirements: Instruments must be robust against changes in fuel chemistry, fouling, and temperature extremes, ensuring stable, accurate measurement under fluctuating process conditions.

• Compliance and Standards: Maintaining in-spec viscosity is critical for regulatory compliance and to avoid engine wear or failure [Why is Viscosity Important in Fuel].

For example, switching from high-viscosity HFO to a lighter bio-blend can necessitate fast recalibration of heating rates and possibly sensor range adjustments to preserve optimal atomization and combustion quality. Advanced sensors and control strategies are essential for reliable, efficient fuel oil operation when faced with such variability.

Accurate fuel oil viscosity measurement remains critical for process optimization, regulatory compliance, and sustainability in energy and transportation sectors. Viscosity directly influences fuel atomization, combustion efficiency, and emission profiles. Suboptimal viscosity can cause poor fuel injection, reduced combustion efficiency, higher pollutant output, and potential engine wear—making precise measurement fundamental for operators and process engineers alike why-is-viscosity-important-in-fuel.
