Effective management of fracturing fluid is central to maximizing coalbed methane extraction. Real-time viscosity measurement addresses these challenges by providing immediate feedback on fracturing fluid rheology during operations. Coalbed methane (CBM) reservoirs, defined by low permeability and complex microstructures, demand precise control of fracturing fluid properties to achieve successful hydraulic fracturing and optimal methane recovery.
Operational challenges persist, notably incomplete gel breaking, inefficient fracturing fluid flowback, and suboptimal methane desorption. Incomplete gel breaking results in the retention of polymer residues in coal seams, severely impeding methane flow and diminishing recovery rates. Inefficient flowback of hydraulic fracturing fluids exacerbates permeability damage, further reducing extraction efficiency and prolonging well clean-up times. These bottlenecks collectively limit gas production and escalate operational costs.
Understanding Coalbed Methane Extraction
What is Coalbed Methane?
Coalbed methane (CBM) is a form of natural gas that exists mainly adsorbed onto the internal surfaces of coal with some present in the fracture network of the coal seam. Unlike conventional natural gas, which accumulates in porous rock formations, CBM is trapped within the coal matrix due to the coal’s unique micropore characteristics and its large internal surface area. Methane is held by adsorption forces, making its release dependent on pressure changes in the reservoir and on the desorption processes within coal seams.
CBM reservoirs present distinctive challenges compared to conventional gas extraction. The dual porous media structure of coal—natural fractures (cleats) alongside micropores—means that permeability is primarily dictated by fracture connectivity, while gas storage is governed by the surface area of the coal matrix. Extraction rates can fluctuate widely due to variable stress fields and geological heterogeneity. Swelling of the coal matrix, especially during CO₂ injection for enhanced recovery (CO₂-ECBM), can decrease fracture width and lower permeability, reducing gas flow but sometimes enhancing desorption via competitive adsorption mechanisms. Coal’s tendency for rapid deformation under stress and susceptibility to wellbore instability further complicates production operations and demands tailored approaches for reservoir stimulation and flow management.
Steam Injection in Heavy Oil Thermal Recovery
*

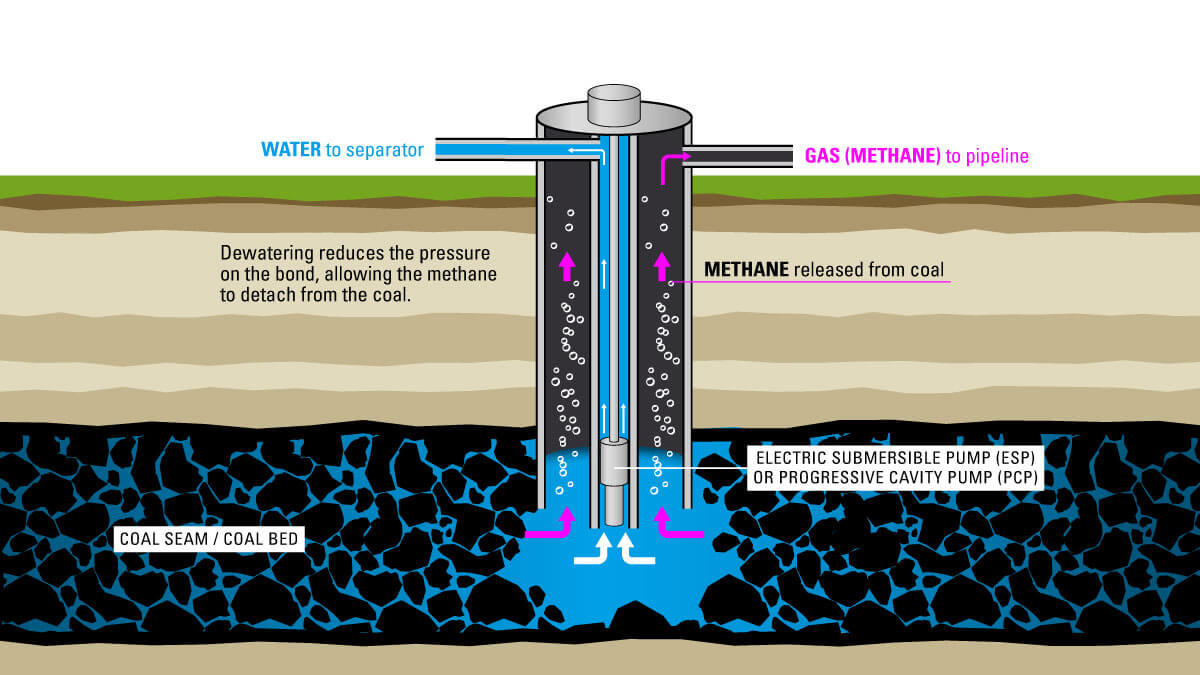

What is Coal Bed Methane?
Importance of Fracturing Fluids in CBM Operations
Fracturing fluids are critical in CBM extraction, especially given the need to open up low-permeability coal seams and facilitate the release and migration of adsorbed methane. The primary functions of these fluids include:
- Creating and extending fractures to improve connectivity between the coal matrix and production well.
- Transporting proppants (solid particles) deep into fractures to keep pathways open for gas flow once the pressure is released.
- Modifying local stress fields to optimize fracture geometry and maximize methane yield.
Key properties of fracturing fluids for effective CBM stimulation are:
- Viscosity: High enough to suspend and carry proppant, but must break down readily for efficient flowback and hydraulic fracturing fluid recovery. Viscosity governs how well proppants are delivered and affects flowback fluid viscosity, influencing gel breaking endpoint determination and overall recovery cycle time.
- Proppant Transport: The ability to keep proppants suspended and ensure uniform placement is essential, especially in coal seams prone to generating fines or irregular fracture patterns. New fluid technologies, such as high viscosity friction reducer fluids (HVFRs) and hydrophobic polymer/surfactant composites, are engineered to optimize proppant transport and improve methane output under varied reservoir conditions.
- Gel Stability: Gel-based fluids—including silica gel variants—must maintain stability under typical reservoir temperatures and salinity, resisting premature breakdown until stimulation is complete. The gel breaking process optimization and gel breaker effectiveness in fracturing fluids are crucial for managing flowback in coalbed methane extraction and avoiding incomplete gel breaking, which can impede fluid recovery and damage reservoir permeability.
Innovations are being made with gel breaking chemical additives to precisely control the timing and extent of gel break, enabling operators to optimize gel breaker dosage, improve hydraulic fracturing fluid recovery, and mitigate the risk of formation damage. Monitoring advances such as real-time viscosity assessment are becoming standard to adjust operational parameters on-the-fly, ensuring optimal fracturing fluid performance throughout the coalbed methane hydraulic fracturing process.
Hydraulic fracturing fluids continue to evolve for CBM operations, driven by the need for efficient proppant placement, reliable gel breaking, and maximized methane extraction from structurally complex coal seams.
Gel Breaking: Concepts and Critical Control Points
What is Gel Break and Gel Breaking Endpoint?
Gel break refers to the degradation of polymer gels used in fracturing fluids during coalbed methane extraction. These gels, essential for suspending proppants and controlling fluid viscosity, must transition from high-viscosity gel to a low-viscosity fluid for efficient flowback. The gel breaking endpoint is the moment when viscosity drops below a specified threshold, indicating the gel is no longer impeding the movement of fluids in the reservoir and can be easily produced from the formation.
Achieving the correct gel breaking endpoint in hydraulic fracturing flowback is critical. A properly timed endpoint ensures rapid and thorough fracturing fluid recovery, minimizes formation damage, and maximizes methane yield. For example, advanced sustained-release gel breaker systems—such as mesoporous SiO₂ nanoparticles or bio-enzyme breakers—allow operators to control the timing and completeness of the gel breaking process, tailoring the viscosity curve to match reservoir conditions and operational requirements. Field trials show that real-time viscosity monitoring and intelligent breaker release correlate with improved flowback performance and methane extraction rates.
Consequences of Incomplete Gel Breaking
Incomplete gel breaking leaves residual polymers or gel fragments within the coal reservoir and fracture network. These remnants can clog pore spaces, reduce reservoir permeability, and impair methane desorption. The resulting formation damage restricts gas movement, causing lower yields and hampering efficient hydraulic fracturing fluid recovery.
Further, incomplete breaking increases water retention in the coal seam. This excess water blocks gas flow channels and decreases the effectiveness of flowback hydraulic fracturing. For example, comparative studies reveal that novel hydrophobic polymer/surfactant-based fluids achieve more complete gel breaking and leave less residue than conventional systems, resulting in higher coalbed methane recovery. Interventions like acid treatment after fracturing have been shown to restore permeability, but prevention remains preferable through proper gel breaking process optimization.
Gel Breaker Dosage Optimization
Optimizing gel breaker concentration is vital for fracturing fluid gel breaking. The goal is to apply sufficient gel breaker chemical additives—such as bio-enzymes, traditional oxidants, or nanoparticle-encapsulated breakers—to degrade the gel without leaving excess chemicals in the reservoir. Overdosage can lead to premature viscosity loss during proppant placement, while underdosage causes incomplete gel breaking and residue accumulation.
Advanced dosage strategies use encapsulated breaker systems or temperature-triggered enzyme formulations to balance gel reduction timing. For instance, encapsulated sulfamic acid in urea-formaldehyde resin allows gradual breaker release suitable for high-temperature formations, ensuring viscosity drops only when flowback begins. Real-time viscosity monitoring instruments provide feedback that helps fine-tune gel breaker effectiveness in fracturing fluids, supporting immediate intervention if the viscosity profile deviates from the operational plan.
Examples from recent pilot studies highlight the benefits: When breaker dosage was matched to fracturing fluid viscosity and reservoir temperature, operators achieved faster fracturing fluid flowback, reduced residual chemicals, and improved methane yields. In contrast, generic dosage protocols often result in delays or incomplete flowback, underscoring the importance of real-time data and tailored breaker concentration for coalbed methane hydraulic fracturing techniques.
Fracturing Fluid Viscosity Monitoring: Approaches and Technologies
Methods for Measuring Fracturing Fluid Viscosity
Modern coalbed methane extraction relies on precise fracturing fluid viscosity control. Online viscometry and real-time sensor technologies allow field operators to track viscosity continuously during hydraulic fracturing flowback. Notable options include the Lonnmeter In-Line Viscometer, which is engineered for tough field conditions and meets API standards for viscosity testing. Its durability suits high-pressure, high-flow CBM operations and allows for continuous monitoring at mixing tanks or injection pumps.
Traditional laboratory methods, such as rotational viscometers, involve collecting samples and measuring viscosity by the torque required to turn a spindle at a constant speed. For non-Newtonian fluids common in CBM hydraulic fracturing techniques, lab rotational methods provide high accuracy but are slow, introduce sampling lag, and often fail to capture dynamic viscosity changes in real time. Ultraviolet and computer-vision-based methods for viscosity estimation have emerged for high-throughput analysis but are still largely laboratory-bound.
Vibrational viscometers, such as vibrating-rod types, directly measure viscosity in the field by detecting vibrational damping or resonance alteration. These methods enable rapid, continuous assessment during flowback hydraulic fracturing.
Real-Time Monitoring vs. Conventional Sampling
Real-time viscosity monitoring gives operators immediate feedback for critical process control decisions. Inline viscometers and sensor systems deliver automated, continuous readings without the delays associated with sample collection and laboratory analysis. This responsiveness is vital for managing flowback in coalbed methane extraction, as early detection of incomplete gel breaking enables timely adjustment of gel breaker dosage and process optimization. For example, sustained-release gel breaker additives, such as paraffin-coated silica nanoparticles, require timing their activation with actual viscosity drop, only possible with real-time data. In contrast, laboratory sampling cannot detect rapid changes, delaying corrective actions and risking inefficient hydraulic fracturing fluid recovery.
Moreover, enzyme-based and CO₂-responsive gel breaking chemical additives rely on immediate feedback about viscosity trends. Continuous viscosity measurement supports dynamic dosing and activation, improving gel breaker effectiveness in fracturing fluids and optimizing use during coalbed methane hydraulic fracturing techniques.
Key benefits of real-time monitoring include:
- Faster response to viscosity fluctuations during fracturing fluid flowback.
- Reduction in product waste and better batch consistency.
- Direct integration into process control and regulatory compliance systems.
Critical Parameters to Track

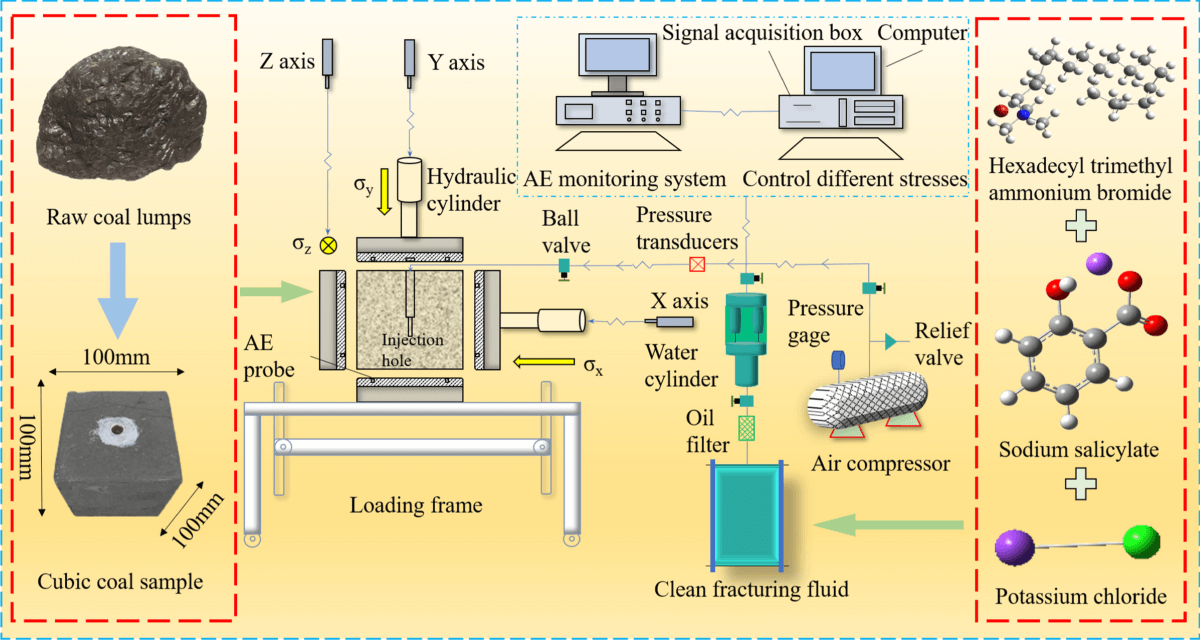

The most critical indicator in hydraulic fracturing fluid monitoring is flowback fluid viscosity. Tracking this parameter in real time reveals the practical status of gel breaking and breaker efficiency. Significant changes in flowback fluid viscosity signal whether gel breaking is complete, requiring end-point determination and further breaker application. Machine learning and advanced signal processing, such as empirical mode decomposition, refine data accuracy even in complex industrial conditions, ensuring actionable insights during fracturing operations.
Key real-time parameters include:
- Fluid temperature and pressure at measurement points.
- Shear rate within flow lines.
- Contaminant and particulate presence affecting viscosity readings.
- Rate and consistency of viscosity decline after breaker addition.
When viscosity decreases sharply, operators can confirm effective gel break and minimize unnecessary breaker dosing. Conversely, incomplete gel breaking results in persistent high viscosity, requiring immediate corrective action.
In summary, continuous monitoring of flowback fluid viscosity provides real-time feedback for gel breaking process optimization, supports empirical gel breaking endpoint determination, and underpins adaptive management for efficient hydraulic fracturing fluid recovery in coalbed methane extraction.
Application and Integration in Coalbed Methane Extraction
Real-Time Viscosity Data for Gel Breaking Endpoint Determination
Immediate viscosity feedback at the wellsite allows operators to pinpoint the exact endpoint of gel breaking in fracturing fluids. Inline viscometers capture continuous changes in fluid properties throughout the hydraulic fracturing process, ensuring that the transition from gelled to broken fluid is accurately tracked. This approach prevents risks associated with premature gel breaker injection, which can result in incomplete proppant transport and reduced fracture conductivity. Conversely, real-time monitoring also minimizes delays in gel breaking that can hinder flowback, cause formation damage, or increase chemical costs.
Advanced optical sensor-based bubble shape detectors have been validated for use in coalbed methane (CBM) wells, offering on-the-fly detection of gas-liquid flow regimes directly influenced by fracturing fluid viscosity. These tools integrate seamlessly with well infrastructure and provide operational insights crucial for managing gel breaking dynamics, especially in multi-phase flow conditions typical of CBM extraction. By using dynamic viscosity profiles instead of static cutoff values, operators achieve superior control over the gel breaking endpoint, reducing the risk of incomplete gel breaking and associated production inefficiencies.
Automated Adjustment of Gel Breaker Dosage
Viscosity feedback enables on-site, automated calibration of gel breaker dosage. Smart control systems, equipped with automated mud testers and sensor-integrated feedback loops, adjust the injection rate of breaker chemicals in direct response to live fluid property data. This data-driven approach is fundamental for optimizing the gel breaking process in coalbed methane hydraulic fracturing techniques.
Encapsulated gel breakers—including urea-formaldehyde resin and sulfamic acid variants—are engineered for controlled release, preventing premature viscosity reduction even under high-temperature reservoir conditions. Laboratory trials confirm their sustained activity and reliable performance, supporting automated adjustment strategies in the field. Bio-enzyme-enhanced breakers further improve the selectivity and effectiveness of dosage, especially when temperature and shear profiles fluctuate during fracturing fluid flowback. These smart breaker compositions reduce viscosity to below 10 cP at 100 s⁻¹ shear rate, directly aiding gel breaking endpoint determination and chemical additive optimization.
Benefits include enhanced liberation of methane from coal seams, more efficient fracturing fluid recovery, and decreased overall chemical usage. Automated breaker dosing systems mitigate the risk of both under- and over-treatment, facilitating comprehensive gel breaking chemical additive management with less waste.
Impact on Hydraulic Fracturing Flowback Efficiency
Viscosity profile monitoring during flowback hydraulic fracturing is integral for forecasting and shortening flowback durations in CBM extraction. Analytical models using real-time viscosity data and material balance equations have demonstrated improved recovery of fracturing fluid, resulting in a more rapid return to gas production. Operators use these data to dynamically target the precise endpoint of gel breaking and accelerate flowback, reducing the risk of long-term formation damage and maximizing reservoir productivity.
Fractal fracture network simulations and tracer studies indicate that viscosity-responsive management enhances fracture volume retention and prevents premature closure. Comparative analysis of initial and secondary flowback periods highlights the role of viscosity control in sustaining high production rates and mitigating fluid entrapment within the coal matrix. By integrating tracer feedback with real-time viscosity monitoring, operators gain actionable intelligence for continuous improvement of fracturing fluid flowback optimization in CBM wells.
Integration with CO₂ Fracturing for Coalbed Methane
CO₂ fracturing coalbed methane operations present unique challenges for managing flowback fluid viscosity. The introduction of CO₂-responsive surfactants enables rapid, real-time viscosity adjustment, accommodating changes in fluid composition and reservoir temperature during stimulation. Experimental studies show that higher surfactant concentrations and advanced CO₂ thickeners yield a faster equilibrium in viscosity, which supports more efficient fracture propagation and gas release.
Novel electronic wireline and telemetry systems provide immediate feedback on fracturing fluid components and their interaction with CO₂, allowing dynamic on-the-fly adjustments to fluid composition at the completion interval. This enhances control of gel breaking kinetics and mitigates incomplete gel breaking, ensuring that well stimulation achieves optimal results.
In CO₂ foam gel fracturing scenarios, formulations maintain viscosity above 50 mPa·s and reduce core damage below 19%. Fine-tuning the timing and dosage of gel breaking additives is critical, as increased CO₂ fractions, temperatures, and shear rates rapidly alter rheological behavior. Real-time data integration, combined with smart-responsive additives, supports both process control and environmental stewardship by optimizing hydraulic fracturing fluid recovery and minimizing formation damage.

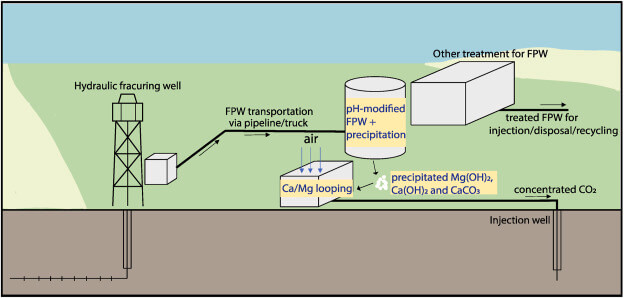

Hydraulic Fracturing Flowback and Produced Water for CO2 Removal
*
Enhancing Environmental and Economic Outcomes
Reduction of Flowback Water Treatment Loads
Optimized fracturing fluid gel breaking, enabled by real-time viscosity measurement and precise gel breaker dosage, significantly lowers residual polymer concentrations in flowback fluids. This simplifies downstream water treatment, as fewer gel residues translate to less clogging in filtration media and reduced demand for chemical treatment agents. For example, cavitation-based processes exploit microbubble collapse to efficiently disrupt contaminants and residual gels, allowing for greater throughput in treatment plants and minimizing membrane fouling seen in reverse osmosis and forward osmosis systems.
Cleaner flowback fluids also lower environmental risk, as reduced residual gels and chemicals mean less potential for soil and water contamination at disposal or reuse points. Studies confirm that complete gel breaking—particularly with bio-enzyme gel breakers—results in lower toxicity, minimal residue, and enhanced fracture conductivity, supporting successful methane recovery and simplified water recycling without significant cost increases. Field trials in the Ordos Basin demonstrate these environmental and operational benefits, linking thorough gel breaking directly to water quality improvements and reduced regulatory burden for operators.
Operational Cost Savings and Resource Optimization
Efficient fracturing fluid gel breaking shortens the duration required for hydraulic fracturing flowback in coalbed methane extraction. By accurately determining the gel breaking endpoint and optimizing gel breaker dosage, operators reduce both the volume of flowback fluid needing treatment and the total time the well must remain in post-fracturing flowback mode. This decrease in flowback period leads to substantial water savings and cuts chemical usage for treatment, lowering total operational expenses.
Advanced approaches—like sustained-release mesoporous SiO₂ nanoparticle gel breakers and bio-enzyme solutions—improve the effectiveness of gel breaking across various temperature profiles, ensuring rapid and thorough residue degradation. As a result, fluid recovery becomes both faster and cleaner, reducing downtime and enhancing resource deployment. Enhanced methane desorption from coal is observed due to minimal pore blockage, driving higher initial gas production rates. Illinois coal studies confirm that gel residue can impair methane and CO₂ sorption, underscoring the importance of complete gel breaking for optimized production.
Operators leveraging real-time viscosity monitoring have demonstrated improved fracture fluid management, translating directly into better resource optimization. Upfront investments in advanced gel breaker techniques and real-time monitoring technology deliver lifecycle economic savings through reduced cleanup costs, minimized formation damage, and stronger sustained gas yields. These innovations are now central for operators seeking to minimize environmental impacts and maximize economic returns in coalbed methane hydraulic fracturing operations.
Key Strategies for Implementing Real-Time Viscosity Monitoring
Instrument Selection and Placement
Selecting appropriate viscosity sensors for coalbed methane extraction requires careful consideration of several criteria:
- Measurement Range: Sensors must accommodate the full spectrum of fracturing fluid viscosities, including transitions during gel breaking and flowback.
- Response Time: Fast-responding sensors are necessary for tracking rapid changes in fracturing fluid rheology, especially during chemical additive injections and flowback events. Real-time feedback supports decisions on gel breaker dosage optimization and accurately determines gel breaking endpoints.
- Compatibility: Sensors should be resistant to chemical attack from gel breaking chemical additives, CO2-based fluids, and abrasive proppant mixtures. Materials must withstand the harsh, variable hydraulic conditions found in CBM fracturing circuits.
Optimal placement of viscosity sensors is essential for data accuracy and reliability:
- High Hydraulic Activity Zones: Sensors installed near or within fracturing fluid delivery lines—upstream and downstream of gel breaker injection points—capture directly relevant viscosity changes for operational control.
- Flowback Monitoring Stations: Placing sensors at primary flowback collection and discharge points enables real-time evaluation of gel breaking effectiveness, incomplete gel breaking issues, and flowback fluid viscosity for hydraulic fracturing fluid recovery.
- Data-Driven Location Selection: Bayesian experimental design and sensitivity analysis methods focus sensors on areas with highest expected information gain, reducing uncertainty and maximizing the representativeness of viscosity monitoring.
Examples: Inline viscometers directly integrated into key segments of the fracturing circuit allow continuous process oversight, while sparse sensor arrays designed using QR factorization maintain robustness with fewer devices.
Integrating with Existing CBM Infrastructure
Retrofitting real-time viscosity monitoring involves both technical upgrades and workflow adjustments:
- Retrofitting Approaches: Existing fracturing systems often accommodate inline sensors—such as pipe viscometers—via flanged or threaded connections. Selection of sensors with standard network communication protocols (Modbus, OPC) ensures seamless integration.
- SCADA Integration: Connecting viscosity sensors to site-wide Supervisory Control and Data Acquisition (SCADA) systems facilitates automated data collection, alarms for off-spec viscosity, and adaptive control of fracturing fluid rheology.
- Training for Field Technicians: Technicians should learn not only sensor operation but also data interpretation methods. Training programs include calibration routines, data validation, troubleshooting, and adaptive dosing of gel breaking chemical additives according to real-time viscosity results.
- Utilizing Viscosity Data: Real-time dashboards visualize trends in fracturing fluid viscosity, supporting immediate adjustments to gel breaker dosage and managing flowback in coalbed methane extraction. Example: Automated dosing systems leverage sensor feedback to optimize gel breaking process and prevent incomplete gel breaking.
Each strategy—spanning sensor selection, optimal placement, infrastructure integration, and ongoing operational support—ensures that real-time viscosity monitoring delivers actionable data to optimize coalbed methane hydraulic fracturing processes and maximize well performance.
FAQs
1. What is coalbed methane and how does it differ from conventional natural gas?
Coalbed methane (CBM) is natural gas stored in coal seams, mainly as adsorbed gas onto the coal surface. Unlike conventional natural gas, which is found as free gas in porous rock reservoirs such as sandstones and carbonates, CBM has low porosity and permeability. This means the gas is tightly bound, and extraction relies on dewatering and pressure reduction to release methane from the coal matrix. CBM reservoirs are also more heterogeneous, often containing biogenic or thermogenic methane. Hydraulic fracturing is essential for CBM production, requiring careful management of flowback and gel breaking to maximize gas recovery and minimize formation damage.
2. What is gel break in fracturing fluid processing?
Gel break refers to the chemical degradation process of high-viscosity fracturing fluids used during hydraulic fracturing. These fluids, typically thickened with polymers, are injected into the reservoir to create fractures and carry sand or proppant. After fracturing, gel breakers—mainly enzyme-based, nanoparticle, or chemical agents—are added to reduce viscosity by breaking down polymer chains. Once the gel breaks, the fluid transitions to low-viscosity, enabling efficient flowback, reduced residue, and improved methane production.
3. How does real-time viscosity monitoring help in fracturing fluid gel breaking?
Real-time viscosity monitoring provides immediate, continuous data on the viscosity of fracturing fluids as gel breaking occurs. This allows operators to:
- Precisely determine the gel breaking endpoint and prevent incomplete breakdown.
- Adjust gel breaker dosages dynamically, avoiding excessive breaker use or under-treatment.
- Detect adverse changes (high viscosity, contamination) and respond quickly.
- Optimize fracturing fluid flowback for faster, cleaner recovery and improved CBM extraction efficiency.
For example, in CBM wells, electronic telemetry and downhole sensors guide the timing and dosage of gel breaker injection, reducing operational risks and cycle times.
4. Why is optimizing gel breaker dosage important in coalbed methane extraction?
Proper gel breaker dosage is critical to ensure complete degradation of the gel polymers without harming the reservoir. If the dosage is too low, gel residue can block pore spaces, decreasing permeability and methane production. Excessive breaker use risks rapid viscosity drops or chemical damage. Optimized dosages—often achieved with sustained-release nanoparticles or bio-enzymes—result in:
- Minimal formation damage and residue retention
- Efficient fracturing fluid flowback
- Lower post-flowback water treatment costs
- Improved methane desorption and overall productivity.
5. What are the common causes and hazards of incomplete gel breaking in CBM extraction?
Incomplete gel breaking may result from:
- Inadequate gel breaker concentration or incorrect timing
- Poor fluid mixing and distribution in the wellbore
- Unfavorable reservoir conditions (temperature, pH, water chemistry)
Hazards include:
- High flowback fluid viscosity, impeding cleanup
- Residual polymers blocking pore channels, causing formation damage
- Lower methane recovery rates due to restricted desorption paths
- Increased costs for water treatment and well remediation
For instance, use of conventional chemical breakers without real-time monitoring may leave undigested polymer fragments, reducing CBM production and efficiency.
6. How does CO₂ fracturing impact fracturing fluid viscosity in coalbed methane operations?
CO₂ fracturing introduces CO₂ as a foam or supercritical fluid into the fracturing fluid mix. This alters the chemical interactions and rheological properties of the gel, causing:
- Viscosity to decrease rapidly with higher CO₂ volume fraction, shear rate, and temperature
- Potential for matrix damage if viscosity drops too quickly or residues persist
- The need for specialized CO₂ thickeners and surfactants to stabilize viscosity for effective proppant transport and efficient gel breaking
Operators must use real-time viscosity monitoring to adjust breaker dosage in response to these dynamics, ensuring complete gel breaking and protecting the coal seam.
