Precise alcohol concentration determination allows for exact definition and separation of distillation fractions, maintaining optimal separation of these fractions depends on continuously tracking ethanol concentrations as the distillation progresses. Distillers can execute precise cut-points for fraction transitions.
Understanding the Brandy Production Process
Fermentation and Its Influence on Initial Ethanol Content
The brandy production process begins with the fermentation of fruit, predominately grapes. Yeast converts sugars in the must to ethanol, alongside other metabolites such as acetaldehyde, esters, and higher alcohols. The initial sugar concentration—a typical benchmark is 30 °Brix—directly influences the ethanol content of the fermented wine and thus the efficiency and outcome of subsequent distillation stages. High-sugar fermentation can yield wine with ethanol concentrations upwards of 12–14% v/v, enabling distillation to reach up to 43% ethanol content in a single pass, which can streamline production and reduce costs. Yeast strain selection, temperature control, and nutrient management are crucial, as these factors determine not only the quantity but also the profile of aroma-active compounds that are essential for brandy quality.

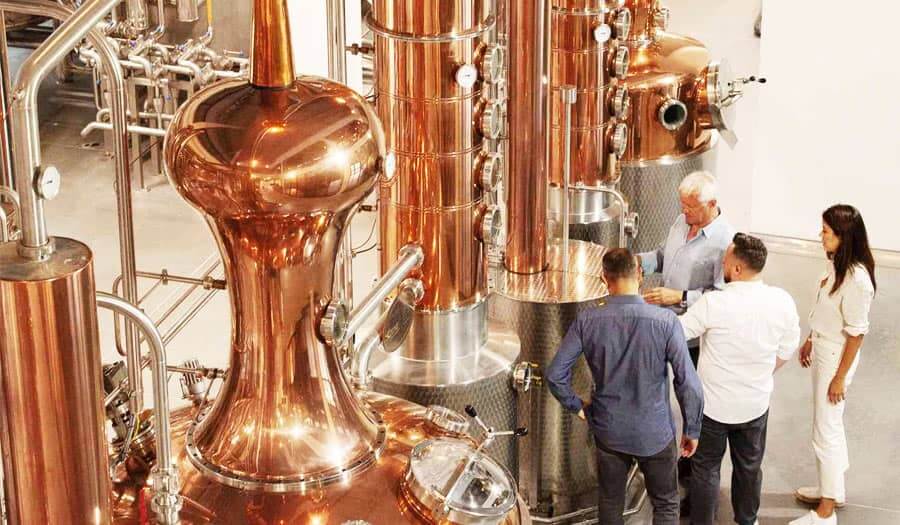

Brandy Distillation & Fermentation
*
First Distillation of Brandy: Separating Volatile Fractions and Pre-Concentrating Ethanol
The first distillation, typically conducted in copper pot stills or column stills, divides the fermented wine into distinct volatile fractions: the heads, which contain lighter alcohols and undesirable compounds; the heart, which carries the majority of ethanol and desirable aromas; and the tails, containing heavier alcohols and congeners. The intermediate distillate—known in Cognac production as brouillis—generally possesses moderate ethanol strength (28–32% ABV for Charentais distillation, around 20% for apple brandies), with the heart fraction carrying the essential aromatic and ethanol profile for further refinement. Fractionation is managed by controlling the heating rate, separating based on boiling points, and monitoring sensory cues alongside ethanol measurement using alcoholmeters. Modern distillation monitoring can also utilize GC-FID for real-time compound analysis. The goal is to maximize retention of desirable volatiles while removing unwanted impurities.
Second Brandy Distillation: Refining Ethanol Concentration and Defining Aromatic Profiles
The second distillation—fine distillation or rectification—increases the ethanol concentration in the heart fraction and brings the final product closer to regulatory specifications for aging and bottling (typically 70–72% ABV for Cognac, variable for other brandies). This stage is crucial for further separation of distillation fractions and refinement of the aromatic profile. Detailed control allows the distiller to select precise cut points between heads, heart, and tails, adjusting techniques such as cooling water flow, distillate takeoff rate, and temperature gradients. Ethanol concentration measurement at this stage is performed regularly using calibrated alcoholmeters and, in some advanced settings, by analytical techniques like GC-MS and DART-MS for both ethanol and aroma compound monitoring. The selection and blending of the tails fraction is particularly important for enhancing aroma complexity, as many odor-active compounds—such as norisoprenoids, pear esters, and higher alcohols—accumulate in these later distillation stages.
Structural and Operational Characteristics of the Charentais Pot Still
The Charentais pot still, the hallmark of Cognac and many high-quality brandy productions, is a copper apparatus comprising a broad onion-shaped boiler, a swan-necked head, a condenser coil, and a wine heater/preheater. Its double distillation method first produces brouillis (28–32% ABV), followed by a second distillation for the heart (70–72% ABV). The geometry of the still—including the swan neck and still cap—affects vapor flow, promoting selective condensation and separation of ethanol and volatile aroma compounds. Manual control is essential: operators judge fraction cut points through a combination of sensory evaluation and frequent ethanol concentration measurement with alcoholmeters. Pot still modifications, such as adjusting neck angles or heating rates, can significantly impact the distribution and concentration of both ethanol and flavor-rich congeners. The Charentais design is optimized for slow, gentle distillation that favors aromatic retention—a key differentiator from faster column systems. Modern process control may supplement sensory techniques with real-time ethanol monitoring using DART-MS or GC-based methods, supporting precision and regulatory compliance. Both traditional craftsmanship and scientific measurement play central roles in maintaining consistent quality and authentic brandy character.
Critical Challenges in Inline Ethanol Concentration Measurement
Environmental Interference in the Distillation Hall
Inline ethanol concentration measurement in the brandy production process faces substantial challenges due to the extreme environmental conditions present in distillation halls, especially those employing Charentais pot still distillation. Temperatures frequently range between 85–95°C, and the air becomes saturated with alcohol vapors. These conditions promote rapid fogging of sensor probes and cause scaling from condensed volatile substances. Fog and scale deposits can obscure sensor windows or cause surface contamination, leading to pseudo-density effects—false readings that undermine measurement reliability.
Another complication arises from local steam condensation. As hot vapor migrates and condenses on cooler surfaces or within sensor housings, localized liquid density fluctuates dramatically. This impacts inline density readings employed for alcohol concentration determination methods, introducing error particularly during real-time monitoring at crucial distillation fractions—heads, hearts, and tails. Any deviation here can increase the risk of cut-point errors, which affects identification and separation of distillation fractions. Dynamic vapor-liquid density changes, influenced by thermal stratification or mixing events within the still, further reduce the accuracy of ethanol concentration measurement techniques and complicate attempts at stable measurement calibration during the first or second distillation of brandy.
Dynamic Adaptation in Batch Distillation
During batch distillation, especially the heads-to-tails transition in brandy distillation stages, rapid swings in ethanol content occur. Ethanol densities may change by 0.05–0.1 g/cm³ in a matter of moments, particularly during the switch from heads to hearts, and later from hearts to tails. An inline density meter for food often struggle to respond in real time due to intrinsic lag—mechanical inertia, digital signal processing delays, and surface wetting. When sensors lag behind compositional changes, operators may delay or hasten the fraction cut, leading to cross-contamination between critical distillation fractions (e.g., tails with lowered aromas bleeding into hearts).
A further issue is that compositional shifts are not limited to ethanol concentration. Esters, aldehydes, fusel oils, and other congeners accumulate at varying rates, depending on the current distillation phase. Relying solely on single-parameter calibration (density or refractive index) can result in significant drift and increased error during monitoring of ethanol concentration in distillation, making it difficult to precisely determine transitions or apply optimal techniques for determining termination of tails in distillation. Multi-sensor or advanced model-based calibration is increasingly necessary to address this instability, but these solutions are challenging to deploy effectively in real-time production environments.
Data Reliability and Measurement Integrity
Fouling of sensor surfaces is aggravated by tannins, aromatics, and phenolic compounds endemic to base wines and distillates. These substances adhere to sensor surfaces, producing false density readings known as the pseudo-density effect, as non-volatile film can register as part of the liquid phase. This misleads operators during alcohol concentration measurement in brandy production, especially during extended runs or when aromatic loads fluctuate batch to batch.
Fluctuations in pressure, often tied to reflux adjustments or operational interventions in Charentais stills, further destabilize measurements. Local changes in vapor pressure momentarily alter fluid density and temperature profiles, hampering the compensation effectiveness built into most inline sensing algorithms. Resulting data can become erratic, with measurement spikes or drifts.
Base wine composition naturally varies by grape origin, harvest year, and fermentation management. This ongoing variability necessitates frequent recalibration of threshold values used for control decisions—a labor-intensive process that reduces operational efficiency and complicates the task for operators focused on how to measure ethanol concentration accurately in distillation. Without regular recalibration, both yield and quality may suffer, compromising measurement integrity and making consistent brandy quality control more difficult.
Installation Constraints and Maintenance Considerations
Fitting inline measurement devices into Charentais pot still distillation systems is inherently complex. These copper stills often have cramped, uniquely arranged piping prone to condensation and fouling. Achieving optimal installation placements for ethanol measurement devices, where flow rates stabilize and representative sampling is possible, often demands customized engineering and careful consideration of pipeline geometry.
The harsh coupling of elevated ethanol content with high operational temperatures also accelerates sensor degradation. Wetted sensor components—such as gaskets, optical lenses, and electrodes—experience repeated thermal expansion, chemical corrosion, and abrasion from fine suspended solids. Component lifespan drops sharply, necessitating more frequent maintenance and revalidation.
Calibration and maintenance procedures themselves contribute to bottlenecks. Many inline ethanol concentration monitoring devices require the distillation process to halt or slow for cleaning and calibration, leading to undesirable production stoppages. Specialized technical skills are often needed, particularly for calibration of advanced multi-parameter devices. Post-maintenance, additional offline ethanol measurement using traditional methods is often necessary to validate inline accuracy. These factors make seamless, reliable real-time monitoring of alcohol concentration—across the entire brandy production process—a significant operational challenge, impacting both efficiency and final product quality.
Leading Methods and Technologies for Ethanol Concentration Determination
Precision in alcohol concentration measurement is fundamental to the brandy production process, impacting quality control and the identification and separation of distillation fractions—head, heart, and tail. Accurate ethanol concentration monitoring is critical during both the first and second distillation of brandy in Charentais pot stills. Below are the leading technologies and strategies applied in modern brandy production to measure and control alcohol concentration.
Common Measurement Techniques
Inline Density Meters:
Inline density meters are widely adopted for real-time ethanol measurement in distillation streams. They operate by continuously analyzing the density of the liquid, which changes with ethanol content. The most common operational principle is the use of vibration-tube technology, particularly oscillating U-tube meters, where the vibration frequency shifts according to the mass and density of the fluid.
Vibration-Tube and Oscillating U-Tube Methods:
Vibration-tube and oscillating U-tube density meters provide higher precision relative to traditional float or spindle-based hydrometers. The oscillating U-tube, in particular, offers accuracy down to ±0.01% ABV, making it suitable for process-critical applications such as the cutoff between distillation fractions. These sensors enable operators to detect subtle shifts in ethanol levels during fractionation, supporting the clear identification of the head, heart, and tail cuts in brandy distillation.
Refractometry Approaches:
Refractometers, while common in laboratory analysis, are also used inline for some fermentation monitoring tasks. They measure the refractive index, which correlates with the ethanol and dissolved solids content. While useful, their precision can be affected by other substances present in the sample; therefore, in brandy distillation, density meters are preferred for higher selectivity to ethanol over other compounds.
Application-Specific Calibration Routines:
Regardless of measurement principle, routine calibration is necessary to maintain instrument accuracy. Calibration involves running standards with known ethanol concentrations to account for temperature effects, contaminants, and wear. In practice, distilleries establish calibration routines tailored for the specific ethanol range encountered during different brandy distillation stages, ensuring that ethanol concentration measurement aligns closely with process needs and regulatory standards.
Optimal Instrument Installation Placements
Strategic Points for Inline Instrument Integration:
Optimal installation of ethanol concentration measurement devices ensures actionable data at key decision points. In Charentais pot still distillation, placing inline density meters at the output of the pot still, directly after the condenser, allows for immediate monitoring of condensed distillate. Deployed between the condenser and collection tanks, these instruments deliver real-time feedback on the evolving alcohol profile, crucial for commanding the separation of distillation fractions and initiating cut-point actions.
Minimizing Flow Disturbance and Maximizing Critical Fraction Proximity:
Instrument placement should minimize hydrodynamic disturbances to the sample stream. Factors such as pipe bends, temperature differentials, and vibration sources can skew readings. Positioning sensors near the critical fractionation events—in the narrow window where the heart transitions to tail—maximizes the reliability of ethanol concentration data used for process control. For example, situating a vibration-tube density meter just before the product enters the collection vessel ensures measurement is synchronized with practical separation activity, supporting accurate tails termination and optimized quality control.
Data Integration and Automation
Linking Sensor Output to Process Control Systems:
Modern distilleries commonly tie sensor outputs—such as from inline density meters or metal oxide vapor sensors—to programmable logic controllers (PLCs) or Supervisory Control and Data Acquisition (SCADA) systems. This data integration enables automated cut-point actuation, precise control of the brandy distillation stages, and uninterrupted process documentation. With real-time sensor feedback, cutover between head, heart, and tail fractions can be triggered automatically based on pre-set ethanol concentration thresholds, enhancing both product consistency and operational efficiency.
Barriers to Seamless Data Integration:
Despite advances, some challenges persist in connecting ethanol measurement devices with plant-wide control systems. Compatibility issues between proprietary sensor communication protocols and existing PLC/SCADA networks must be resolved during system design. Signal lag, often resulting from sensor response time or network latency, can delay process adjustments in fast-changing scenarios. To mitigate production interruptions, best practices include redundant sensors at critical points, regular diagnostics, and the use of standardized industrial communication protocols such as Modbus or Ethernet/IP. These steps help maintain production continuity and data integrity when integrating cutting-edge ethanol concentration monitoring into the brandy production process.
By combining high-precision ethanol measurement approaches, strategically planned sensor placements, and robust automation, distilleries achieve superior control over the alcohol concentration, directly influencing the quality and consistency of the final brandy.
Maximizing Value: Best Practices and Solutions
Overcoming Environmental and Process-Specific Challenges
Maintaining sensor performance during brandy distillation demands targeted approaches to resist fouling, chemical, and thermal stress. For probe self-cleaning, Clean-In-Place (CIP) features allow ethanol measurement devices to be cleaned without removal. Industrial stainless steel casings ensure durability against residue and enable effective CIP routines. This keeps alcohol concentration measurement in brandy production reliable, minimizing downtime and manual intervention.
Anti-fouling coatings on sensor surfaces limit organic buildup from heavy brandy residues, extending time between maintenance cycles and improving data accuracy. In high-temperature distillation environments, advanced thermal management is critical. Sensors based on ZnO nanoparticles and β-SiC nanowires operate accurately at up to 465°C, even in aggressive chemical atmospheres found during first distillation and second distillation of brandy. Heterojunction and porous SnO2 nanofiber sensors further boost selectivity, stability, and response time, maintaining alcohol concentration determination accuracy throughout brandy distillation stages.
Case-aligned calibration routines—including multi-point validation—counteract rapid process transitions characteristic of brandy fractionation. For batch distillation, calibrating sensors across several reference ethanol concentrations (e.g., low, mid, and high proof standards) allows precise adjustment for the volatile separation moments (heads, hearts, tails). While standardized protocols are sparse, best practice involves running verification cycles prior to main production runs and following process shifts, ensuring methods to measure ethanol concentration remain robust in varying operating conditions.
Maintenance, Reliability, and Cost Optimization
Rotational calibration cycles—scheduled alignments for in-line ethanol concentration sensors—help sustain long-term accuracy and anticipate sensor drift. Predictive component replacement strategies incorporating AI or machine learning analyze sensor data and process history, pinpointing patterns indicating wear or imminent failure. This supports operator planning, reducing unscheduled downtime and costly interruptions.
In-situ verification minimizes process disruption. Automated diagnostics run while sensors are installed, enabling instant checks against reference standards, enhancing reliability without halting brandy production process. Procurement decisions should prioritize robust build materials (e.g., corrosion-resistant alloys), integrated self-cleaning mechanisms, and digital compatibility for remote monitoring. These features ensure maximum up-time, minimize labor dependency, and optimize total cost of ownership in high-throughput distillery environments.
Enhancing Production Efficiency via Accurate Cut-Point Management
Accurate cut-point management—identifying the precise moments to separate distillation fractions (head, heart, tail)—is key for optimizing brandy yield and quality. Leveraging real-time ethanol concentration monitoring during brandy production process allows operators to make data-driven decisions for termination of tails in distillation, reducing wastage of desirable compounds and enhancing purity.
Integration protocols for large-scale standardization across multiple stills and brands rely on networked sensor arrays and centralized data systems. Capacitance-based cell sensors and electronic noses, aligned with lab-grade instruments, monitor variables such as temperature, dissolved oxygen, and ethanol concentration. AI-driven platforms synthesize continuous process data, empowering optimal installation placements for ethanol measurement devices and enabling uniform identification and separation of distillation fractions across diverse equipment profiles.
Sites with multiple Charentais pot still distillation lines benefit from centralized cut-point control, reducing operator variability, enforcing regulatory compliance, and heightening brand consistency. These advancements in ethanol measurement in distillation support both artisanal craft batch runs and high-volume, industrial production, merging traditional quality with modern efficiency.
Process diagram elaborated for the production of Fruit Brandy.
*
Ethanol concentration measurement is pivotal across every stage of the brandy production process. Control of alcohol levels ensures both compliance and consistency, governing product classification, excise duties, and, crucially, the sensory profile that defines outstanding brandy quality. Accurate monitoring underpins the identification and separation of distillation fractions—head, heart, and tail—using robust methods such as densimetry, ebulliometry, infrared spectroscopy, and chromatography, in tandem with emerging inline sensing solutions. Precision in alcohol concentration measurement during the first distillation of brandy and the second distillation of brandy—especially in Charentais pot still distillation—directly impacts yield, aroma compound retention, and drinkability, supporting both tradition and innovation within the industry.
For large-scale brandy producers, the deployment of automated systems, including Coriolis mass flow meters, FT-IR analyzers, and cloud-integrated data dashboards, delivers continuous real-time ethanol measurement in distillation. These installations typically involve optimal placement in vapor lines, process tanks, or key transfer points, maximizing operational safety, efficiency, and regulatory reporting. Integration with PLCs and computerized maintenance systems supports scheduled calibration, routine bump testing, and alerting for deviations, driving reliability and minimizing manual intervention.
Boutique and artisanal distilleries, rooted in manual oversight and historical authenticity, lean towards densimetry, ebulliometry, and batch-based rectification methods. These techniques favor tangible validation of alcohol concentration, crucial for compliance with protected denomination requirements and the careful separation of fractions: head, heart, and tail. Portable and benchtop devices remain popular, giving direct control and preserving the nuanced sensory qualities sought after by connoisseurs, even as some adopt selective inline sensors for enhanced process feedback.
Across all scales, optimal practices emphasize:
- Matching measurement technique and device to production scale, spirit style, and regulatory environment.
- Strategic sensor installation at points that maximize process coverage and safety—such as vapor outlets, low-lying tanks, and enclosed spaces.
- Regular calibration, maintenance, and cross-validation, whether using chemical assays, physical measurements, or e-nose systems.
- Harnessing automation and AI-driven analytics for yield optimization and rapid response, especially in multi-still operations.
- Balancing fidelity and tradition to maintain both product integrity and operational efficiency.
Ethanol concentration measurement is not only a technical necessity for brandy production, but also a catalyst for sensory excellence and operational control throughout all distillation stages. The convergence of traditional and modern methods—dynamically adapted for both large-scale and boutique environments—remains fundamental for producing brandy of the highest quality while safeguarding efficiency and compliance.
Frequently Asked Questions (FAQs)
What makes ethanol concentration measurement indispensable throughout the brandy production process?
Accurate ethanol concentration measurement anchors quality control in the brandy production process. It ensures the identification and separation of distillation fractions—head, heart, tail—at both the first and second distillation of brandy. Reliable readings mark precise cut-points, preventing the inclusion of unwanted congeners and securing preferred aroma profiles.
Legislation requires brandies to meet specific alcohol ranges; compliance depends on validated ethanol measurement techniques, such as gas chromatography (GC), near-infrared spectroscopy (NIR), and solvent extraction followed by chemical oxidation, each tested for accuracy against accepted standards. Maintaining targeted ethanol levels across batches preserves classic flavor notes and minimizes undesirable compounds, upholding batch-to-batch consistency and legal certification requirements. Sensory studies also support that optimized ethanol profiles correlate with richer aroma complexity and consumer preference.
How does the choice of distillation equipment, such as the Charentais pot still, affect alcohol concentration determination?
Charentais pot still distillation is traditional in Cognac and high-end fruit brandy production. Its batch operation creates swift transitions in ethanol and aroma fractions. Because this technique retains more aroma compounds with a somewhat lower final ethanol concentration, precision alcohol concentration measurement in brandy production is essential to separate the head, heart, and tail fractions without sacrificing aromatic complexity.
The shifting internal matrix during Charentais distillation means inline ethanol sensors must account for volatile compound retention, rapid compound shifts, and differences between the first distillation of brandy and the second distillation. Analytical tools, notably high-sensitivity flowmeters and simulation models, help operators monitor real-time changes and react quickly to achieve desired spirit profiles
What factors influence the installation placements of inline measurement instruments in a brandy distillery?
Optimal installation placements for ethanol measurement devices require strategic positioning for accuracy and operational ease. Instruments are best placed just downstream of the condenser output—where distillation fractions are freshest—or immediately before collection points to avoid sampling errors and ensure rapid real-time feedback. Pipe geometry, temperature gradients, and accessibility influence effectiveness and maintenance needs.
Ultrasonic concentration meters, for example, can measure ethanol in mixed matrices without interference. Near-infrared sensors work directly in fermentation tanks to monitor sugar breakdown and ethanol formation. Safety sensors, designed for hazardous zones, should be mounted 15–20 cm above the floor to detect ethanol vapor and trigger responses if concentrations rise. Correct placement supports efficient cleaning, calibration, and reliable data for both production control and health/safety compliance.
Why is termination judgment of tails important in brandy distillation, and how is it aided by real-time ethanol measurement?
Termination at the tails phase is a critical quality control point. Tails contain low-boiling alcohols, fusel oils, and off-flavors undesirable in the final product. Real-time ethanol concentration monitoring allows operators to make immediate, objective decisions—precisely shifting from heart to tails—thus protecting spirit yield and sensory quality.
With ethanol concentration monitoring during the brandy production process, tail termination moves from subjective nose or taste-based calls to data-directed cut points. This enhances reproducibility and batch uniformity. Advanced inline sensors with rapid response times directly inform operators, elevating quality assurance and reducing losses.
What operational challenges commonly occur when measuring ethanol concentration in high-temperature, high-vapor environments of distillation?
High temperatures and vapor saturation in distillation stages present several technical hurdles for ethanol measurement. Probe scaling—mineral deposits forming on sensors—can obscure readings, while fogging and steam interfere with optical or NIR-based measurement. Rapid ethanol concentration shifts and distillation matrix complexities cause sensor drift, demanding frequent calibration and occasional probe replacement.
To overcome these challenges, robust sensor designs using corrosion-resistant materials, automatic cleaning functions, and temperature-compensated measuring cells are deployed. Operators use salting-out liquid–liquid extraction, advanced chromatographic purification, and non-thermal separation methods to curtail interference and bolster accuracy in both batch and continuous processes. Routine sensor maintenance schedules and backup measurement technologies are standard practice in modern distilleries.
How can large-scale brandy producers benefit from standardizing alcohol concentration measurement practices?
Standardization of alcohol concentration measurement techniques across production lines enhances brandy quality control and operational efficiency. Uniform procedures decrease product variability, empower centralized monitoring, and simplify staff training. Bulk procurement of standardized sensor and calibration supplies reduces costs.
With harmonized methods—GC calibration protocols, inline sensor data handling, and unified maintenance schedules—producers improve reproducibility and facilitate robust supply chain management. This approach supports larger batch processing, scaling up of quality control, and streamlined troubleshooting. Consistent measurement practices also ease compliance with international labeling and regulatory standards.
