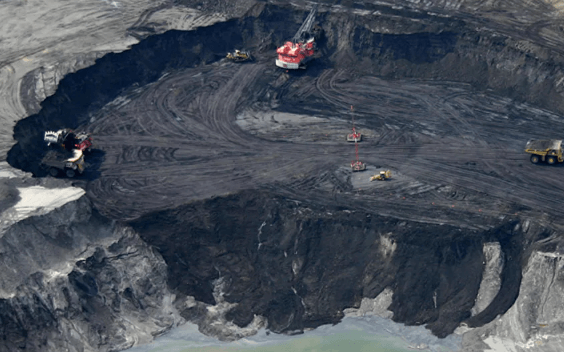

Enhanced Shale Oil and Oil Sands Extraction

III. Field Application, Installation, and Operational Longevity

Operational success for continuous viscosity measurement in unconventional resource recovery relies equally on superior sensor technology and expert application engineering. Proper deployment minimizes external flow effects and avoids areas prone to stagnation, while rigorous maintenance protocols manage the inevitable fouling and abrasion challenges.

3.1 Optimal Deployment Strategies

3.1.1 Sensor Placement and Stagnation Zone Mitigation

The measurement must always be taken in a flow regime where the fluid is moving continuously throughout the sensing area. This is an essential consideration for heavy oil and bitumen, which frequently exhibit yield stress behavior. If the fluid is allowed to stagnate, the reading will become highly variable, unrepresentative of the bulk stream, and potentially several hundred times higher than the actual viscosity of the moving fluid.

Engineers must actively eliminate all potential stagnation zones, even small ones, particularly near the base of the sensing element. For T-piece installations, which are common in pipelines, a short probe is often insufficient. To ensure the sensing element is exposed to a continuous, uniform flow, it is essential to utilize a long insertion sensor that extends far into the pipe bore, ideally beyond where the flow stream exits the T-piece. This strategy positions the sensitive element within the heart of the flow, maximizing exposure to the representative process fluid. In applications involving fluids with pronounced yield stress, the preferable installation orientation is parallel to the flow direction to minimize resistance and promote continuous fluid shearing at the sensor face.

3.1.2 Integration in Blending and Tank Operations

While flow assurance in pipelines is a primary driver, the application of inline viscosity measurement in stationary environments is also critical. Viscometers are used extensively in blending tanks where various crude oils, bitumen, and diluents are mixed to meet downstream specifications. In these applications, the sensor may be tank-mounted in any orientation, provided a suitable process fitting is used. Real-time readings provide immediate feedback on the consistency of the blend, ensuring the final product meets specified quality targets, such as the required viscosity index.

3.2 Calibration and Validation Protocols

Accuracy can only be sustained if calibration procedures are rigorous and fully traceable. This involves careful selection of calibration standards and meticulous control over environmental variables.

The viscosity of an industrial lubricating oil is measured in centipoise or millipascal-seconds (mPa⋅s) or kinematic viscosity in centistokes (cSt), and accuracy is maintained by comparing measured values against certified calibration standards. These standards must be traceable to national or international metrological standards (e.g., NIST, ISO 17025) to ensure reliability. Standards must be selected to comprehensively cover the entire operating range, from the lowest expected viscosity (diluted product) to the highest expected viscosity (raw feed).

Due to the extreme temperature sensitivity of heavy oil viscosity, achieving accurate calibration depends entirely on maintaining precise thermal conditions. If the temperature during the calibration procedure deviates even slightly, the reference viscosity value of the standard oil is compromised, which fundamentally invalidates the accuracy baseline established for the field sensor Therefore, strict temperature control during calibration is a co-dependent variable that determines the reliability of the continuous viscosity measurement system in service. Process refiners often use two sensors calibrated at specific temperatures, such as 40°C and 100°C, to accurately calculate the real-time Viscosity Index (VI) of lubricating oils.

3.3 Troubleshooting and Maintenance in High-Fouling Environments

Even the most mechanically robust resonant sensors will require routine maintenance in environments characterized by high fouling from bitumen, asphaltenes, and heavy crude residue. A dedicated, proactive cleaning protocol is essential to minimize downtime and prevent measurement drift.

3.3.1 Specialized Cleaning Solutions

Standard industrial solvents are frequently ineffective against the complex, highly adhesive deposits generated by heavy oil and bitumen. Effective cleaning requires specialized, engineered chemical solutions that utilize powerful dispersants and surfactants combined with an aromatic solvent system. These solutions, such as HYDROSOL, are specifically formulated for enhanced deposit penetration and surface wetting, quickly and effectively dissolving heavy oil, crude oil, bitumen, asphaltenes, and paraffin deposits, while also preventing the re-deposition of these materials elsewhere in the system during the cleaning cycle.

3.3.2 Cleaning Protocol

The cleaning process typically involves circulating the primary specialized solvent, often combined with a subsequent flush using a highly volatile secondary solvent, such as acetone. Acetone is favored for its ability to dissolve residual petroleum solvents and water traces. Following solvent flushes, the sensor and housing must be dried thoroughly. This is best accomplished using a low-velocity stream of clean, warmed air. Rapid evaporation of volatile solvents can cool the sensor surface below the dew point, causing humid air to condense water films, which would contaminate the process fluid upon restart. Heating the air or the instrument itself mitigates this risk. Cleaning protocols must be integrated into scheduled pipeline or vessel turnarounds to minimize operational disruption.

Table 3: Troubleshooting Guide for Continuous Viscosity Measurement Instability

Observed Anomaly	Likely Cause in Unconventional Service	Corrective Action/Field Guidance	Relevant Sensor Feature
Sudden, unexplained high viscosity reading	Sensor fouling (asphaltenes, heavy oil film) or particle buildup	Initiate chemical cleaning cycle using specialized aromatic solvents.	High-frequency vibration often reduces fouling propensity.
Viscosity varies drastically with flow rate	Sensor installed in stagnation zone or flow is laminar/non-uniform (non-Newtonian fluid)	Install long insertion sensor to reach core of flow; reposition parallel to flow.	Long Insertion Sensor (Design Feature).
Reading drift post-start-up	Trapped air/gas pockets (multiphase effects)	Ensure proper venting and pressure equalization; run a transient flow flush.	Simultaneous density reading (SRD) can detect gas/void fraction.
Viscosity consistently low vs. lab tests	High shear degradation/thinning of polymer/DRA additive	Verify low-shear operation in injection pumps; adjust DRA solution preparation procedures.	Measurement independence from flow rate (Sensor design).

IV. Real-time Data for Process Optimization and Predictive Maintenance

The real-time data streaming from a highly reliable continuous viscosity measurement system transforms operational control from reactive monitoring to proactive, optimized management across multiple facets of unconventional extraction and transport.

4.1 Precise Chemical Injection Control

4.1.1 Drag Reduction (DRA) Optimization

Drag Reducing Agents (DRAs) are used extensively in crude oil viscosity pipelines to reduce turbulent friction and minimize pumping power requirements. These agents, typically polymers or surfactants, function by inducing shear-thinning behavior in the fluid. Relying solely on pressure drop measurements to control DRA injection is inefficient because pressure drop can be affected by temperature, flow rate fluctuations, and generalized mechanical wear.

A superior control paradigm utilizes real-time apparent viscosity as the primary feedback variable for chemical dosage. By directly monitoring the resulting fluid rheology, the system can precisely adjust the DRA injection rate to maintain the fluid at the optimal rheological state (i.e., achieving a target decrease in apparent viscosity and maximizing the shear-thinning index, ). This approach ensures maximum drag reduction is achieved with minimal chemical consumption, leading to significant cost savings. Furthermore, continuous monitoring allows operators to detect and mitigate mechanical degradation of the DRA, which can occur due to high flow shear rates. Using low-shear injection pumps and monitoring viscosity immediately downstream of the injection point confirms proper dispersion without the damaging polymer chain scission that reduces drag reduction capability.

4.1.2 Diluent Injection Optimization for Heavy Oil Transport

Dilution is essential for transporting highly viscous crude oil and bitumen, requiring the blending of diluents (condensates or light crudes) to achieve a composite stream that meets pipeline specifications. The ability to conduct inline viscosity measurement provides immediate feedback on the resulting blend viscosity (μm​).

This real-time feedback allows for tight, continuous control over the diluent injection ratio (). Because diluents are often high-value products, minimizing their use while strictly adhering to pipeline fluidity and safety regulations is a paramount economic objective in oil sands extraction. Viscosity and density monitoring are also critical for detecting unforeseen crude incompatibilities during blending, which can accelerate fouling and increase energy costs in downstream processes.

4.2 Flow Assurance and Pipeline Transport Optimization

Maintaining stable and efficient flow of unconventional crudes is challenging due to their propensity for phase changes and high friction losses. Real-time viscosity data is foundational to modern flow assurance strategies.

4.2.1 Accurate Pressure Profile Calculation

Viscosity is a critical input for hydraulic models that calculate friction losses and pressure profiles. For crude oils, where properties can vary dramatically from one field to the next, continuous, accurate  data ensures that the pipeline's hydraulic models remain predictive and reliable.

4.2.2 Enhancing Leak Detection Systems

Modern leak detection systems rely heavily on Real Time Transient Model (RTTM) analysis, which uses pressure and flow data to identify anomalies indicative of a leak. Since viscosity directly influences pressure drop and flow dynamics, naturally occurring changes in the crude oil's properties can cause shifts in the pressure profile that mimic a leak, leading to high rates of false alarms. By integrating real-time continuous viscosity measurement data, the RTTM can dynamically adjust its model to account for these real property changes. This refinement significantly improves the sensitivity and reliability of the leak detection system, enabling more accurate calculations of leak rates and positions and reducing operational risk.

4.3 Pumping and Predictive Maintenance

The rheological state of the fluid profoundly affects the mechanical loading and efficiency of pumping equipment. Real-time viscosity data enables both optimization and condition-based monitoring.

4.3.1 Efficiency and Cavitation Control

As fluid viscosity increases, the energy losses within the pump rise, resulting in dramatically lower hydraulic efficiency and a corresponding increase in required power consumption to maintain flow. Continuous viscosity monitoring allows operators to track actual pump efficiency and adjust variable speed drives to ensure optimal performance and manage electricity consumption.

Furthermore, high viscosity exacerbates the risk of cavitation. Highly viscous fluids increase pressure drops at the pump suction, shifting the pump curve and increasing the Net Positive Suction Head Required (NPSHr). If the required NPSHr is underestimated—a common scenario when using static or delayed viscosity data—the pump operates dangerously close to the cavitation point, risking mechanical damage Real-time inline viscosity measurement provides the necessary data to dynamically calculate the appropriate NPSHr correction factor, ensuring the pump maintains a safe operational margin and preventing equipment wear and failure.

4.3.2 Anomaly Detection

Viscosity data provides a powerful contextual layer for predictive maintenance. Anomalous shifts in viscosity (e.g., a sudden increase due to particle ingestion, or a decrease due to unexpected diluent spike or gas breakout) can signal changes in pump loading or fluid compatibility issues. Integrating viscosity data with traditional monitoring parameters, such as pressure and vibration signals, allows for earlier and more accurate anomaly detection and fault diagnosis, preventing failures in critical equipment like injection pumps.

Table 4: Real-Time Viscosity Data Application Matrix in Unconventional Oil Operations

Operational Area	Viscosity Data Interpretation	Optimization Outcome	Key Performance Indicator (KPI)
Drag Reduction (Pipeline)	Viscosity decrease post-injection correlates with shear-thinning effectiveness.	Minimizing chemical over-dosing while maintaining optimal flow.	Reduced Pumping Power (kWh/bbl); Reduced Pressure Drop.
Diluent Blending (Oil Viscosity Measuring Instrument)	Rapid feedback loop ensures target blending viscosity is achieved.	Guaranteed pipeline specification adherence and reduced diluent costs.	Consistency of Output Product Viscosity Index (VI); Diluent/Oil Ratio.
Pump Health Monitoring	Unexplained viscosity deviation or oscillation.	Early warning of fluid incompatibility, ingress, or incipient cavitation; optimized NPSHr margin.	Reduced unplanned downtime; Optimized Power Consumption.
Flow Assurance (Continuous Viscosity Measurement)	Accurate  for friction loss calculation and transient model accuracy.	Minimized risk of pipeline blockage; enhanced leak detection sensitivity.	Flow Assurance Model Accuracy; Reduction in False Leak Alarms.

Conclusion and Recommendations

The reliable and accurate continuous viscosity measurement of unconventional hydrocarbons—specifically shale oil viscosity and fluids from oil sands extraction—is not merely an analytical requirement but a core necessity for operational and economic efficiency. The inherent challenges posed by extreme high viscosity, complex non-Newtonian behavior, yield stress characteristics, and the dual threat of fouling and abrasion render traditional inline measurement technologies obsolete.

Advanced resonant or vibrating viscometers represent the most suitable technology for this service due to their fundamental design advantages: no moving parts, contactless measurement, high resistance to abrasion (via hard coatings), and intrinsic immunity to bulk flow fluctuations. The ability of modern instruments to measure viscosity, temperature, and density simultaneously (SRD) is crucial for deriving accurate dynamic viscosity in multiphase streams and enabling comprehensive fluid property management.

Strategic deployment requires meticulous attention to installation geometry, favoring long insertion sensors in T-pieces and elbows to avoid stagnation zones inherent to yield-stress fluids. Operational longevity is secured through prescriptive maintenance utilizing specialized aromatic solvents designed to penetrate and disperse heavy hydrocarbon fouling.

The utilization of real-time viscosity data moves beyond simple monitoring, enabling sophisticated closed-loop control over critical processes. Key optimization outcomes include minimizing chemical usage in drag reduction by controlling to a target rheological state, precisely optimizing diluent consumption in blending operations, sharpening the fidelity of RTTM-based leak detection systems, and preventing mechanical failure by ensuring pumps operate within safe NPSHr margins adjusted dynamically for fluid viscosity. Investing in robust, continuous inline viscosity measurement is a critical strategy for maximizing throughput, reducing operational expenditure, and ensuring flow assurance integrity in unconventional oil production and transport.
