Drilling fluid rheology is fundamental to the performance and safety of oil-based drilling mud (OBM) systems. Rheology describes how the mud flows under varying conditions of pressure and temperature, affecting every stage of oil-based mud drilling. Maintaining optimal fluid rheology is crucial to ensure effective cuttings transport, downhole pressure management, and to ensure the safety of downhole operations.
Risks of Improper Rheological Control
Failure to monitor and adjust oil-based mud rheology significantly increases operational risks:
- Wellbore Instability: Inadequate viscosity and yield point may result in poor suspension of solids, causing sloughing, caving, or collapse of borehole walls.
- Stuck Pipe: If gel strength is too low, cuttings settle, increasing the possibility of differential sticking or pack-off events. Conversely, excessively high gel strengths or plastic viscosities raise pump pressures and may hinder pipe movement, also contributing to stuck pipe incidents.
- Lost Circulation: Poor rheological balance, especially at high ECD, can lead to mud loss into formation fractures. This is costly, disrupts drilling progress, and increases the risk of other complications such as well control incidents.
- Inaccurate Downhole Readings: Unaccounted changes in rheology—often from temperature fluctuations or unanticipated interaction with formations—yield incorrect ECD and mud weight calculations, potentially compounding operational hazards.
Proactive control over drilling fluid rheology using robust analytics and continual sensor feedback now represents best practice for OBM drilling, reducing non-productive time, lowering incident rates, and supporting oil based mud system optimization.
Oil-Based Drilling Mud
*
Advances in Real-Time Monitoring of Oil-Based Drilling Fluid Properties
Limitations of Traditional Mud Property Assessment
Traditional oil-based drilling mud assessment relies heavily on manual sampling and laboratory testing, often performed at discrete intervals. These episodic evaluations lag behind real-time changes in fluid conditions, failing to capture dynamic shifts caused by downhole temperature, pressure, and operational variables. For example, laboratory-based rheological measurements may not account for the elevated boundary friction observed in oil-based drilling fluids during diamond–rock contact, challenging common assumptions about universal lubricity.
High-pressure, high-temperature (HPHT) environments further expose these limitations. Conventional oil-based mud drilling systems risk fluid gelation and loss of rheological control under HPHT conditions—vulnerabilities that static sampling cannot readily predict or mitigate. Innovations such as nanoparticle-enhanced drilling fluids show promise for improved stability, but their benefits can only be fully realized through rapid or continuous property assessment.
Manual mud checks also introduce human error and delay, which can impede critical real-time decision-making, risking inefficiency and safety in complex operations.
Benefits of Real-Time Monitoring for Modern Drilling Needs
Real-time mud property analytics transform oil based mud processing by delivering continuous, automated measurements as fluids circulate. Automated monitoring platforms leverage networked sensors and data integration, enabling immediate feedback for process corrections—a clear advantage over the latency and uncertainty of manual sampling.
Key benefits include:
Incident Prevention and Downhole Safety: Continuous fluid dynamics monitoring detects early-warning signs of events like barite sag or fluid instability, crucial for downhole safety protocols in drilling operations .
Optimized Drilling Performance: Real-time feedback enhances mud rheology control techniques, supporting optimal tripping speeds and pressure management. This responsiveness enables operators to optimize drilling fluid performance, minimize flat time, and improve drilling operation efficiency.
Predictive Analytics: Advanced systems combine real-time measurement with machine learning to anticipate operational problems before they escalate, thereby reducing unplanned nonproductive time and environmental risk.
Environmental Protection: Continuous monitoring enables rapid intervention in case of potential fluid losses or releases, aligning with stricter environmental compliance requirements.
For example, deployment of inline viscometers and automated density sensors in deepwater wells has resulted in measurable improvements to rate of penetration and overall wellbore integrity. Predictive models, fed by this data, further enhance downhole pressure management and enable precise, dynamic adjustments.
Key Core Properties for Online Measurement: Viscosity, Density, Temperature
Viscosity
Real-time viscosity measurement is foundational for optimal drilling fluid rheology, wellbore stability, and drillstring lubrication. Inline vibrational viscometers, installed at strategic placements within the oil-based mud system, continuously track viscosity and allow on-the-fly adjustments to maintain target profiles. However, measurement can be challenged by pipe vibration and pump pulsations; advanced signal processing (e.g., empirical mode decomposition) is now used to separate noise from true fluid viscosity data. Applications in thermal recovery further underscore the value of tight viscosity control, directly impacting recovery efficiency.
Density
Continuous mud density monitoring is critical for downhole pressure management and well control. Instrument like the inline density meter provide non-stop density readings, supporting hydraulic optimization and early detection of fluid density anomalies. These automated tools reduce manual measurement errors, enhance safety, and contribute to oil based mud system optimization.
Temperature
Precise mud temperature readings, gathered by certified temperature transmitters, influence fluid dynamics, rheological behavior, and downhole chemical interactions. Real-time temperature monitoring is imperative for effective adaptation of oil drilling fluid additives and in managing wellbore stability, particularly in HPHT wells. Accurate temperature data also supports the deployment and performance assessment of enhanced drilling fluid additives for oil-based mud under variable thermal regimes.
These technologies collectively advance real-time mud monitoring from a reactive to a proactive discipline—one that directly supports operational safety, efficiency, and performance in modern oil based drilling.
Inline Vibrational Viscometers: The Technology at Work
Operating Principles of In-Line Vibrational Viscometers for Oil-Based Muds
Inline vibrational viscometers determine viscosity by detecting changes in a vibrating element—commonly a rod—immersed directly in the oil based drilling fluid. As the viscometer’s sensor vibrates at a set frequency, the viscous resistance of the fluid damps the vibration. This damping effect alters both the amplitude and frequency of vibration, with the magnitude of change directly proportional to the fluid’s viscosity. In oil-based mud drilling, these instruments are designed to withstand harsh, high-pressure, and high-temperature downhole conditions. Modern designs calibrate dynamically, compensating for the non-Newtonian rheology typical of oil based drilling mud systems, allowing accurate real-time mud monitoring of apparent, plastic, and dynamic viscosity across variable shear rates. This supports real-time monitoring of core fluid properties critical for downhole pressure management and helps ensure the safety of downhole operations by providing immediate analytics for mud rheology control techniques.
Comparison to Other Inline and Offline Viscosity Measurement Methods
Vibrational viscometers offer unique advantages over traditional offline and alternative inline approaches for monitoring drilling fluid rheology:
- Rotational Viscometers: Lab-based or portable rotational devices measure viscosity via the torque required to rotate a spindle in the fluid. While standard in oil based mud processing, these deliver delayed results, require manual sampling, and are subject to user error, impeding immediate process adjustment.
- Ultrasonic Viscometers: Rely on acoustic wave propagation changes to infer viscosity, but may lose sensitivity at the high pressures and particulate content typical of oil based mud systems.
- Pipe (Capillary) Viscometers: Flow-based inline systems can deliver real-time insights but are often less robust in the presence of solids, and may not respond rapidly to changing flow conditions.
In contrast, in-line vibrational viscometers provide continuous, automated measurement directly in the process stream. Their high sensitivity and reaction speed facilitate immediate detection of viscosity fluctuations, improving drilling operation efficiency and enabling oil based mud system optimization without disrupting operations. These characteristics make vibrational viscometers highly suitable for demanding drilling environments where maintaining proper fluid dynamics is mandatory for both operational efficiency and downhole safety protocols in drilling.
Critical Installation Placements in Oil-Based Mud Systems
Proper placement of in-line vibrational viscometers within the drilling fluid circulation system is crucial to optimize drilling fluid performance and enable accurate, real-time mud property analytics.
Key Placement Options:
- In Circulation System Lines: Installing the viscometer in the main recirculation loop or bypass lines allows monitoring of the mud as it is actively circulated. Placing sensors just downstream from mud tanks or after mixing points gives immediate feedback on the impact of drilling fluid additives, supporting prompt process adjustments.
- In Mud Storage or Conditioning Tanks: This placement offers a holistic view of overall mud properties pre- and post-reconditioning but may delay recognition of rapid process changes that occur once the fluid enters the active system.
- Near Injection Points: Positioning near pump inlets or immediately before mud enters the wellbore ensures data relevance for downhole conditions, essential for maintaining fluid dynamics monitoring in drilling operations and downhole safety protocols.
Protecting the Instrument from Solids and Contaminants:
Oil based drilling mud carries solids like weighting agents and drilled cuttings, which can impair sensor accuracy and longevity. Effective protection strategies include:
- Upstream Filtration: Installing screens or filter elements before the viscometer prevents larger solids from contacting the sensitive sensor.
- Bypass Loop Installation: Routing a side stream of mud through a filtered bypass ensures samples are representative but less abrasive, extending instrument life.
- Sensor Self-Cleaning Features: Some vibrational viscometers incorporate automated flushing or in situ cleaning to prevent buildup.
- Automated and Redundant Monitoring: Integration with particle counters or condition diagnostics enables early detection of contamination, protecting equipment and reducing non-productive time.
These adaptive measures, when combined with optimal sensor placement, help ensure the robust operation of inline viscometry within the dynamic environment of oil-based mud drilling, ultimately enhancing drilling fluid additives performance and supporting data-driven oil based mud system optimization.

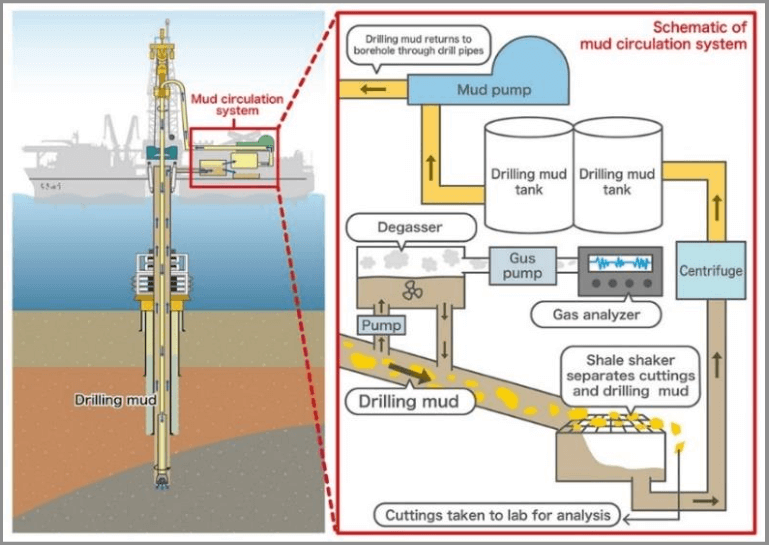

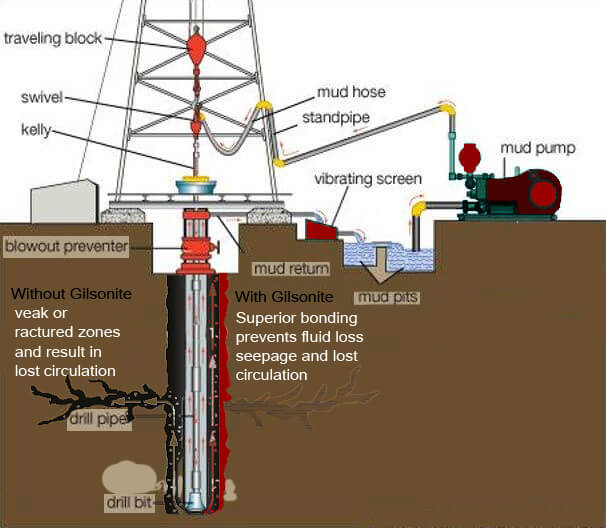

Overview of the circulation system of the drilling fluid in an oil well.
*
Integrating Inline Viscosity and Density Sensors in Mud Circulation Systems
Effective oil based drilling mud management depends on precise real-time monitoring of both viscosity and density. Integrating inline sensors for these properties within mud circulation loops transforms how operators control drilling fluid rheology and optimize drilling fluid performance.
System Architectures for Embedding Sensors
Typical oil based mud systems circulate fluid from surface tanks, through pumps, down the drill string, and back up the wellbore to surface separation equipment. Inline vibrational viscometers and density meters can be embedded at several critical points:
- Post-mixing tank installations ensure measurements reflect the freshly blended composition, capturing the impact of new oil drilling fluid additives or changes in solids content.
- Suction line placement (before mud pumps) is widely recommended, as this location samples fluid heading downhole, providing the most operationally relevant data. It also avoids the influence of degassing and solids separation equipment, which can distort measurements.
- Return flow lines can be instrumented for monitoring fluid returning from downhole, offering a feedback loop on downhole fluid interactions and cuttings transport.
Practical installation involves using high-pressure, chemically resistant housings for sensors, with robust wiring and data interfaces suitable for oilfield conditions. Modular sensor packages can facilitate quick removal and maintenance, which is important for continuous operation.
Synchronizing Data from Viscometers and Density Meters
Real-time mud monitoring depends not just on accurate measurement, but also on synchronizing streams of data from multiple sensors. Modern mud rheology control techniques leverage time-aligned datasets to generate comprehensive real-time mud property analytics.
- Sensor networks integrate viscometers and density meters with supervisory control systems, like SCADA, through unified data protocols (e.g., MODBUS, OPC-UA).
- Automated synchronization can use direct time-stamping at sensor level, aligning readings within milliseconds—a necessity when fluid properties can change rapidly as a result of new drilling fluid additives or sudden downhole events.
- Examples: Laboratory and field evaluations show that helical pipe viscometers and inline density meters, when synchronized, provide valid, actionable data for both surface and downhole pressure management. For instance, neural-network-based platforms like SENSE analyze time-synced sensor data to predict oil film thickness and ensure proper lubricity, boosting drilling operation efficiency.
Operators increasingly rely on data fusion algorithms or real-time dashboards to visualize and act on synchronized trends for optimizing oil based mud processing. This supports proactive adjustments to formulation, ensuring the safety of downhole operations.
Ensuring Reliability in Harsh Oilfield Environments
Maintaining high data integrity in the aggressive environment of oil based mud drilling requires sensors with robust mechanical, electrical, and chemical designs:
- Ruggedized housings: Sensor manufacturers use sealed, corrosion-resistant materials such as stainless steel or titanium, which withstand abrasive, high-temperature, and chemically aggressive mud formulations.
- Thermal management: Passive and active cooling methods, along with dielectric oil fills, help protect sensitive electronics from extreme mud temperatures. However, these come with potential trade-offs, such as risk of oil fill freezing or thermal degradation at the upper range of mud system operations.
- Encapsulation and mechanical isolation: Oilfield-deployed sensors like those in the eRTIS system use encapsulated electronics and isolation diaphragms to prevent mechanical shock, vibration, and ingress of drilling fluid components.
- Smart fault detection: Advanced units embed accelerometers and self-diagnosis routines; machine learning techniques can detect and pre-empt sensor failures in situ, even when mounted in challenging environments like mud tanks or directly in flowlines.
Field-proven systems report reliable long-term operation under conditions of high vibration, fluctuating pressure, and varying chemical exposure, as documented with tools like Rheonics inline viscometers and density meters. Correct system design—covering sensor placement, mounting, cable protection, and data acquisition—directly influences measurement reliability and, by extension, the ability to optimize drilling mud system performance.
Proper sensor integration forms the backbone of digital oil based mud system optimization, enabling operators to monitor core fluid properties in real time and respond rapidly for downhole safety and operational excellence.
Real-time Mud Monitoring: Impact on Downhole Pressure Management and Drilling Efficiency
Direct Link Between Fluid Rheology and Downhole Pressure Management
Oil based drilling mud rheology directly shapes downhole pressure management through its influence on parameters such as plastic viscosity and yield point. Plastic viscosity reflects the resistance due to suspended solids and fluid friction, determining how easily the mud moves through the wellbore under pressure. Yield point, the initial stress required to start fluid flow, governs how well the mud can carry cuttings.
Adjustments to oil drilling fluid additives, such as PAC_UL polymer or CMITS-modified starches, increase both yield point and plastic viscosity. These changes raise the equivalent circulating density (ECD), the effective density of the circulating mud, which in turn controls downhole hydraulic pressures. Proper ECD tuning is essential—higher values improve hole cleaning but, if excessive, can fracture the formation or lead to lost circulation. As such, strict control of drilling fluid rheology is vital to ensure the safety of downhole operations and wellbore integrity.
How Inline Measurement Improves Real-Time Monitoring of Core Fluid Properties
Traditional mud tests, limited in frequency and often delayed by lab wait times, can miss sudden shifts in oil based mud system behavior. Inline mud rheology control techniques, particularly the use of in-line vibrational viscometers, now enable real-time mud monitoring.
These sensors can be strategically installed at key placements in oil-based mud systems, such as return lines and mixing tanks. With rapid, high-frequency sampling, field operators instantly see trends in drilling fluid rheology, such as changes in viscosity linked to new oil drilling fluid additives or fluctuations in cuttings load.
By delivering immediate, actionable information, inline measurement supports oil based mud system optimization, maintains target fluid dynamics, and allows adjustments in real time as drilling conditions evolve. This not only enhances fluid performance but also aligns well with downhole safety protocols in drilling.
Rapid Detection and Adjustment: Reducing Risks and Non-Productive Time
Fast, accurate real-time mud property analytics enable operators to detect fluid property anomalies the moment they occur. Inline sensors pick up subtle increases in viscosity or ECD signaling cuttings accumulation, influxes, or shifting formation pressures. Field personnel can then rapidly modify mud formulation—whether through dilution, enhancing drilling fluid additives for oil-based mud, or adjusting pumping rates—to avoid hazardous conditions like wellbore instability, stuck pipe, or lost circulation.
Drilling efficiency also rises with data-driven decisions. Real-time feedback supports hydraulics calculations that factor in true downhole temperature and pressure, avoiding common errors in pump pressure prediction that API methods often miss. Integrated mud system monitoring—using Lonnmeter dilling fluid viscometer at return lines—identifies risks such as gas influx or fluid loss before serious problems develop, empowering crews to respond preemptively.
In summary, real time mud monitoring using inline viscometers and analyzers fundamentally transforms fluid dynamics monitoring in drilling operations. By ensuring proper mud rheology and rapid adjustment capability, operators achieve enhanced downhole pressure management, reduced risk, faster troubleshooting, and maximized drilling efficiency.
Optimizing Oil-Based Mud Processing and Additive Management
Real-Time Feedback in Oil-Based Mud Processing Workflows
Implementing real-time mud monitoring technologies enables continuous assessment of oil based drilling mud properties. In-line vibrational viscometers and automated pipe viscometer systems track drilling fluid rheology parameters—such as viscosity and yield point—directly within the oil based mud processing circulation, removing delays that plague manual methods. These sensors provide instant feedback and allow rapid detection of deviations in mud behavior, such as a sudden drop in viscosity or changes linked to dilution or contamination.
Machine learning models can be integrated into this workflow to predict standard viscometer readings and other rheological values from real-time sensor data. These models yield reliable analytics to support crucial decisions on mud property management, enhancing the ability to optimize drilling fluid performance and improve drilling operation efficiency. For example, an abrupt signal from the viscometer could trigger a recommendation to adjust additives or modify pump rates, ensuring downhole pressure management and reinforcing the safety of downhole operations.
Adjusting Oil Drilling Fluid Additives for Enhanced Mud Performance Regulation
Adaptive control of oil drilling fluid additives depends on real-time data. Automated dosing systems use sensor input to regulate the introduction of viscosifiers, fluid loss agents, emulsifiers, and shale inhibitors. When viscosity readings fall outside target ranges, the dosing unit may increase the delivery of organophilic clay or amphipathic polymers—adding them precisely to restore rheological stability.
Recent advances also include novel additive types—such as nanocomposite agents or β-cyclodextrin-based polymers—which display thermal stability and improved fluid loss control for HPHT environments. For example, when a drop in downhole temperature is detected, the system could automatically shift the proportion of encapsulating polymers for more robust wellbore stability.
Powdered emulsifiers, including those made from waste-derived feedstocks, offer better shelf stability and ease of integration than traditional liquid emulsifiers. Their deployment streamlines additive handling and supports sustainability initiatives. Example: a real-time property shift prompts the system to blend in a specific emulsifier powder to maintain the correct emulsion structure in the oil based mud system.
Streamlining Mud Formulation Adjustments On-The-Fly
Continuous data streams from digital mud logging, cuttings analysis, and surface sensors feed into automated control platforms. These systems analyze trends against historical baselines and predictive models to recommend—or directly execute—mud formulation changes. For example, as borehole conditions evolve, the system might reduce the amount of a fluid loss agent and increase viscosity modifier concentration, all without pausing operations.
This dynamic adaptability is critical in complex wells, including HPHT and ERD scenarios, where the window for downhole pressure management is narrow. Adjustments can be made instantly in response to cuttings load, gas influx, or changes in annular pressure, minimizing non-productive time and lowering risk. With the integration of machine learning for real-time mud property analytics, the feedback loop tightens, providing an effective means for oil based mud system optimization at the pace of drilling changes.
A practical field example: In a deepwater well, the in-line vibrational viscometer detects rising viscosity due to cooler formations. The automated control algorithm commands reduced viscosifier input and a slight increase in synthetic emulsifier dosage, optimizing the system for improved flow and reduced risk of stuck pipe. These rapid interventions, made possible through integrated analytics and automation, serve as a foundation for future autonomous drilling fluid systems.
Frequently Asked Questions
Q1. How does real-time monitoring of drilling fluid rheology improve oil-based mud drilling efficiency?
Real-time monitoring of oil based drilling fluid rheology enables immediate detection of viscosity shifts and anomalies. Automated sensors and predictive models continuously measure properties like viscosity, yield point, and density at the rig site. Operators can rapidly fine-tune drilling parameters—such as mud pump rates or additive dosages—minimizing non-productive time (NPT) and reducing the risk of wellbore instability. This proactive mud rheology control technique prevents issues such as barite sag and filtration control failures, optimizing drilling fluid performance, especially in high-pressure, high-temperature (HPHT) environments. Recent case studies in deepwater oil based mud drilling have shown substantial improvements in efficiency and safety, attributed directly to real-time mud monitoring systems.
Q2. What are the advantages of in-line vibrational viscometers over manual viscosity measurements in oil-based drilling fluid management?
In-line vibrational viscometers offer continuous, real-time analytics, unlike manual viscosity checks using Marsh funnels or capillary viscometers, which are intermittent and delayed. These sensors provide direct feedback without manual sampling, reducing the impact of human error and ensuring immediate adjustments to mud composition or oil drilling fluid additives. Vibrational viscometers are designed for the rigors of oil based mud processing, including HPHT conditions, and require minimal maintenance due to their lack of moving parts. Field deployments in ultra-deep wells confirm their superior durability and accuracy, making them key tools for deploying viscometers in drilling fluid systems and enhancing overall operational efficiency.
Q3. Where should inline sensors be installed in oil-based mud systems for optimal mud property measurement?
Optimal installation placements in oil-based mud systems include after mud pumps, at key returns (e.g., mud return line post-mud cleaning systems), and immediately downstream of shale shakers. This strategy captures representative mud samples, allowing comprehensive monitoring of mud rheology and density while shielding instruments from abrasive solids and excessive wear. Integration with acoustic and density sensors at these points strengthens fluid dynamics monitoring in drilling operations and supports effective downhole safety protocols in drilling. In the Permian Basin, intelligent sensor deployment reduced logging costs and enhanced drilling in key target zones.
Q4. What role do oil drilling fluid additives play in real-time mud monitoring and performance optimization?
Oil drilling fluid additives—such as emulsifiers, weighting agents, and rheology modifiers—are vital for tailoring the rheology, stability, and density of oil based drilling mud. Real-time mud property analytics guide operators in dynamically adjusting additives to respond to observed changes in viscosity, density, or temperature. Predictive modeling systems interpret sensor data, enabling rapid adaptation of additive dosing in oil based mud processing. This automated approach maintains wellbore stability, manages downhole pressure, and prevents events like lost circulation, barite sag, or kicks, ensuring optimal drilling performance and safety margins.
Q5. How does inline viscosity and density control help ensure the safety of downhole operations?
Continuous inline viscosity and density control maintains critical drilling fluid properties within safe limits at all times. Real-time feedback from sensors enables swift response to deviations caused by temperature shifts, fluid losses, or contamination.
