I. Strategic Application in Molten Paraffin Wax Processes
1.1 Real-Time Viscosity Monitoring: The Core of Process Control

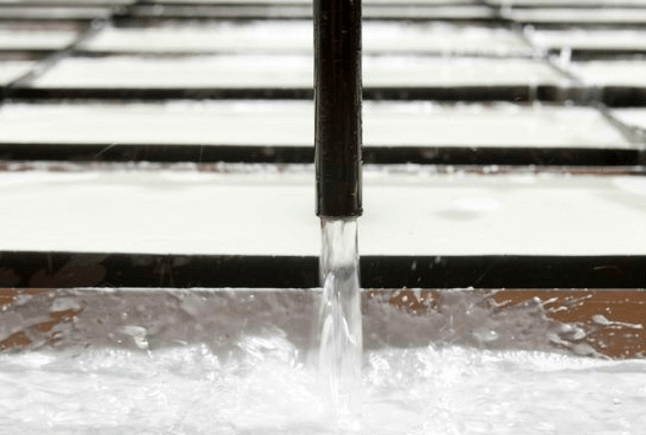

The production of paraffin wax involves managing the physical state of a complex mixture of saturated hydrocarbon fractions. A key challenge is controlling the transition from a molten state to a solid state, which is characterized by the onset of crystallization as the fluid temperature drops below its cloud point. Viscosity serves as a critical, real-time indicator of this transition and is the most direct measure of the fluid's state and consistency.
Real-time viscosity monitoring with the Lonnmeter viscometer offers significant advantages over traditional manual sampling methods. Manual sampling provides only a historical snapshot of the process and introduces significant time lag, human error, and safety risks when dealing with hot, pressurized fluids. In contrast, the Lonnmeter viscometer provides a continuous stream of data, enabling a proactive and precise control paradigm.
A primary application is reaction endpoint determination. In polymerization or blending processes, the viscosity of the mixture increases as the molecular chains grow in length and cross-link. By monitoring the viscosity profile in real-time, the Lonnmeter viscometer can detect the precise moment a target viscosity is reached, signaling the end of the reaction. This ensures consistent product quality from batch to batch and is crucial for preventing runaway exothermic reactions or unwanted solidification of the product within the reactor.
Furthermore, the Lonnmeter viscometer is instrumental in crystallization control. The rheological properties of molten paraffin are extremely sensitive to temperature. A temperature change of just 1°C can alter viscosity by as much as 10%. To address this, the Lonnmeter viscometer includes a built-in temperature sensor. This feature is critically important as it allows a control system to receive a temperature-compensated viscosity reading. The system can then differentiate between a change in viscosity caused by simple temperature fluctuation and a true change in the molecular state of the paraffin, such as the initial formation of wax crystals. This distinction is vital for a control system to make intelligent decisions, such as modulating the cooling rate to maintain the fluid just above its cloud point without causing solidification and deposition on pipe walls.
1.2 Density Monitoring for Auxiliary Streams: The "Binary Liquid" Justification
While the LONNMETER600-4 densimeter is technically capable of measuring the density of any fluid, its application in molten paraffin wax production is most valuable and justified in specific auxiliary processes. The key to this strategic deployment is its use in scenarios where density provides a direct and unambiguous measure of a single, critical process variable.
The densimeter’s low maximum viscosity of 2000 cP means it is not a suitable instrument for the high-viscosity main paraffin process line, but this limitation is precisely what makes it ideal for other, less viscous streams.
One such application is raw material purity checks. Before the paraffin feed enters the main reactor, the LONNMETER600-4 can be used to monitor its density. A deviation from the expected density of the raw material would indicate the presence of impurities or inconsistencies in the feed, enabling process engineers to take corrective action before a bad batch is processed.
A second, highly effective application is in additive blending. Paraffin processes frequently require the injection of chemical additives, such as pour point depressants (PPD) and viscosity reducers, to prevent crystallization and improve flow characteristics. These additives are typically supplied in a solvent, forming a simple, well-defined binary liquid system. In this specific case, the density of the mixture is directly proportional to the concentration of the additive. The LONNMETER inline density meter’s high accuracy of ±0.003 g/cm³ allows for precise, real-time monitoring of this concentration. This enables an automated control system to regulate the flow of the additive with high fidelity, ensuring that the final product has the exact required chemical properties without wasting expensive materials. This targeted application demonstrates a nuanced understanding of the technology's strengths and its role as a strategic tool for quality control in a complex production environment.

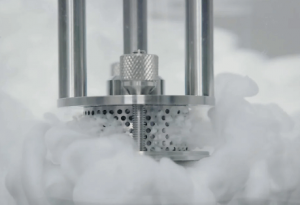

Preparation of Paraffin Wax Emulsions
II. Foundational Principles of Vibratory Fluid Measurement
2.1 The Physics of Lonnmeter Vibrating Viscometry
The Lonnmeter LONN-ND online viscometer operates on the principle of vibrating viscometry, a highly robust and reliable method for real-time fluid analysis. The core of this technology involves a solid, rod-shaped sensing element that is made to oscillate axially at a fixed frequency. When this element is submerged in a fluid, its motion generates a shear force on the surrounding medium. This shearing action creates a viscous drag, which dissipates energy from the vibrating element. The magnitude of this energy loss is directly proportional to the fluid's viscosity and density.
The Lonnmeter system is equipped with a sophisticated electronic circuit that continuously monitors the energy lost to the fluid. To maintain a constant vibration amplitude, the system must compensate for this energy dissipation by supplying an equivalent amount of power. The power required to sustain this constant amplitude is measured by a microprocessor, which then translates the raw signal into a viscosity reading. The relationship is simplified in the manual as μ=λδ, where μ is the fluid viscosity, λ is a dimensionless instrument coefficient derived from calibration, and δ represents the vibration decay coefficient. This formula, however, represents a simplified model. The instrument's true capability and accuracy, specified at ±2% to ±5%, arise from its internal signal processing algorithms and a complex, non-linear calibration curve. This advanced signal processing enables the device to provide accurate measurements even for non-Newtonian fluids, which exhibit viscosity changes based on shear rate. The design's inherent simplicity—lacking moving parts, seals, or bearings—makes it exceptionally well-suited for demanding industrial environments characterized by high temperatures, high pressure, and the potential for a fluid to solidify or contain impurities.
1.2 The Resonant Principle of Tuning Fork Densitometry: LONNMETER600-4

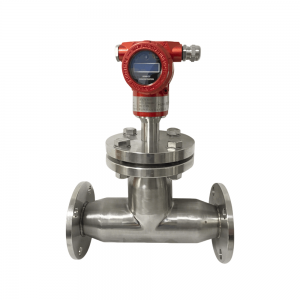

The LONNMETER densimeter utilizes the principle of a vibrating tuning fork to determine fluid density. This device consists of a two-pronged tuning fork element that is driven into resonance by a piezoelectric crystal. When the tuning fork vibrates in a vacuum or air, it does so at its natural resonant frequency. However, when it is immersed in a fluid, the surrounding medium introduces an additional mass to the system. This phenomenon, known as added mass, causes a reduction in the fork's resonant frequency. The change in frequency is a direct function of the density of the fluid surrounding the fork.
The Lonnmeter system precisely measures this frequency shift, which is then correlated with the fluid's density through a calibrated relationship. The sensor's ability to provide a high-accuracy measurement, with a precision of ±0.003 g/cm³, is a direct result of this resonant frequency detection. While the physical principle of tuning fork densimeters allows for a wide range of applications, including measuring the density of slurries and gases, the user query highlights a specific application for a "binary liquid only" system. This apparent contradiction between the technology's capability and its intended application is a key consideration. The tuning fork densimeter is not physically limited to binary liquids. Rather, its practical utility in a complex, multi-component process like molten paraffin wax production is optimized when a single density value can be reliably correlated with a single, critical process variable. This is often the case in a simple binary system where density serves as a proxy for concentration. For a complex hydrocarbon mixture like molten paraffin, a single density reading has limited utility, making the Lonnmeter LONN-ND viscometer a more suitable instrument for the main process stream. The densimeter, in contrast, finds its highest and most justified value in auxiliary, less complex streams.
1.3 Instrument Specifications and Operational Parameters: A Comparative Analysis
A comprehensive comparison of the Lonnmeter LONN-ND viscometer and the LONN600-4 densimeter reveals their distinct operational envelopes and underscores their complementary roles in a complex production environment. The following table synthesizes key technical specifications, drawing from the provided documentation.
|
Parameter |
Viscometer LONN-ND |
Densimeter LONN600-4 |
|
Measurement Principle |
Vibrating Rod (Shear-induced Damping) |
Tuning Fork Resonance |
|
Measurement Range |
1-1,000,000 cP |
0-2 g/cm³ |
|
Accuracy |
±2% to ±5% |
±0.003 g/cm³ |
|
Maximum Viscosity |
N/A (Handles high viscosity) |
<2000 cP |
|
Operational Temperature |
0-120°C (Standard) / 130-350°C (High-Temp) |
-10-120°C |
|
Operational Pressure |
<4.0 MPa |
<1.0 MPa |
|
Wetted Materials |
316, Teflon, Hastelloy |
316, Teflon, Hastelloy |
|
Output Signal |
4-20mADC, RS485 Modbus RTU |
4-20mADC |
|
Explosion-Proof Rating |
Ex dIIBT6 |
Ex dIIBT6 |
The data above highlights a crucial technical distinction that dictates the strategic application of each instrument. The LONN-ND viscometer's capability to operate at high temperatures and handle extremely high viscosities makes it the definitive choice for the main molten paraffin wax process line. This technical detail reinforces the strategic decision to deploy the densimeter only in auxiliary, lower-viscosity streams.
III. Seamless Integration with Industrial Control Systems
3.1 Lonnmeter Data Interfaces: 4-20mA and RS485 Modbus
The seamless integration of Lonnmeter instruments into modern industrial control systems is a critical step in a successful process automation strategy. Both the LONNMETER-ND viscometer and the LONNMETER600-4 densimeter provide two primary data communication interfaces: a traditional 4-20mADC analog output and a more advanced RS485 digital Modbus RTU protocol.
The 4-20mADC signal is a robust, well-understood industry standard. It is ideal for direct connection to a PID controller or a PLC's analog input module. Its primary limitation is that it can only transmit a single process value, such as viscosity or density, at a time. This simplicity is advantageous for straightforward control loops but limits the richness of the data stream.
The RS485 Modbus RTU interface offers a more comprehensive solution. The Lonnmeter manuals specify the Modbus protocol. This digital protocol allows a single instrument to provide multiple data points simultaneously, such as a temperature-compensated viscosity reading and the fluid temperature, from a single device.
3.2 Best Practices for DCS, SCADA, and MES Integration
Integrating the Lonnmeter instruments into a distributed control system (DCS), supervisory control and data acquisition (SCADA), or manufacturing execution system (MES) requires a structured, multi-layered approach.
Hardware Layer: The physical connection must be robust and secure. The Lonnmeter manuals recommend using shielded cables and ensuring proper grounding to minimize signal interference, particularly in areas near high-power motors or frequency converters.
Logic Layer: In the PLC or DCS, the raw sensor data must be mapped to process variables. For a 4-20mA signal, this involves scaling the analog input to the appropriate engineering units. For Modbus, it requires configuring the PLC's serial communication module to send the correct function codes to the specified register addresses, retrieving the raw data, and then converting it to the correct floating-point format. This layer is responsible for data validation, outlier detection, and basic control logic.
Visualization Layer: The SCADA or MES system serves as the human-machine interface (HMI), providing operators with actionable insights. This involves creating screens that display real-time sensor data, trending historical data, and configuring alarms for critical process parameters. The real-time data from the Lonnmeter instruments transforms the operator's view from a reactive, historical perspective to a proactive, real-time one, enabling them to make more informed decisions and respond to process disturbances with greater agility.
A key challenge in integration is electrical noise, which can affect signal integrity. The Lonnmeter's manual explicitly warns against this and suggests using shielded cables. Another challenge is
data latency in complex Modbus networks. While the Lonnmeter's response time is fast, network traffic can introduce delays. Prioritizing critical data packets on the network can mitigate this issue and ensure that time-sensitive control loops receive data promptly.
3.3 Data Integrity and Real-Time Availability
The value proposition of Lonnmeter's online monitoring technology is intrinsically linked to the integrity and availability of its data stream. Traditional manual sampling provides only a series of static, historical snapshots of the process state. This inherent time lag makes it nearly impossible to control a dynamic process with precision and often leads to inconsistent product quality, missed reaction endpoints, and operational inefficiencies.
In contrast, the Lonnmeter viscometer's ability to provide a continuous, real-time data stream transforms the control paradigm from reactive to proactive. The instrument's fast response time allows it to capture dynamic changes in fluid properties as they occur. This continuous "movie" of the process state, rather than a series of disjointed "photographs," is the foundational requirement for implementing advanced control strategies. Without this high-fidelity, low-latency data, concepts like predictive control or PID autotuning would be technically infeasible. Thus, the Lonnmeter system serves not merely as a measurement device but as a critical data-stream provider that elevates the entire production process to a new level of automation and control.
IV. Leveraging Real-Time Data for Advanced Process Control
4.1 PID Control Optimization with Real-Time Data
The implementation of Lonnmeter's real-time density and viscosity data can fundamentally optimize conventional proportional-integral-derivative (PID) control loops. PID controllers are a staple of industrial automation, working by continuously calculating an error value as the difference between a desired setpoint and a measured process variable. The controller then applies a correction based on proportional, integral, and derivative terms to minimize this error.
With real-time viscosity as the primary feedback variable, a PID loop can precisely regulate the cooling rate in a molten paraffin process. As the fluid begins to cool and its viscosity increases, the controller can modulate the flow of cooling water to maintain the viscosity at a predetermined setpoint, thereby preventing uncontrolled crystallization and solidification within the pipes.7 Similarly, in an auxiliary blending process, a PID loop can use real-time density data to regulate the flow rate of an additive, ensuring a precise and consistent concentration.
A more advanced application involves PID autotuning. The Lonnmeter's continuous data stream enables the controller to perform a self-calibration, or step test, on the process. By making a small, controlled change to the output (e.g., cooling water flow) and analyzing the process's response (e.g., the change in viscosity and the time delay), the PID autotuner can automatically calculate the optimal P, I, and D gains for that specific process state. This capability eliminates the need for manual, time-consuming "guess-and-check" tuning, making the control loop more robust and responsive to process disturbances.
4.2 Predictive and Adaptive Control for Process Stabilization
Beyond fixed-gain PID control, real-time density and viscosity data can be used to implement more sophisticated control strategies, such as adaptive and predictive control.
Adaptive control is a control method that dynamically adjusts the controller parameters (e.g., PID gains) in real time to compensate for changes in the process dynamics. In a molten paraffin process, the fluid's rheological properties change significantly with temperature, composition, and shear rate. An adaptive controller, fed by the Lonnmeter's continuous data, can recognize these changes and automatically adjust its gains to maintain stable control throughout the entire batch, from the initial hot, low-viscosity state to the final cooled, high-viscosity product.
Model Predictive Control (MPC) represents a shift from reactive to proactive control. An MPC system uses a mathematical model of the process to predict the future behavior of the system over a given "prediction horizon". Using real-time data from the Lonnmeter viscometer and densimeter (viscosity, temperature, and density), the MPC can forecast the effects of various control actions. For example, it could predict the onset of crystallization based on a cooling rate and a current viscosity trend. The controller can then optimize multiple variables, such as cooling water flow, jacket temperature, and agitator speed, to maintain a precise cooling curve, thereby preventing product solidification or ensuring a specific crystalline structure in the final product. This moves the control paradigm from reacting to disturbances to actively anticipating and managing them.
4.3 Data-Driven Optimization
The value of the Lonnmeter's real-time data stream extends far beyond its immediate use in control loops. This high-quality, continuous data can be collected and analyzed historically to develop a deeper understanding of the process dynamics and unlock opportunities for data-driven optimization.
The aggregated data can be used to train machine learning models for predictive purposes. A model can be trained on historical viscosity and temperature data to predict the final quality of a batch, reducing the reliance on costly and time-consuming post-production quality checks. Similarly, a predictive maintenance model can be built by correlating trends in sensor data with equipment performance. For example, a gradual but persistent increase in viscosity at a specific point in the process could be a leading indicator of a pump nearing failure, allowing for proactive maintenance before an expensive shutdown occurs.
Furthermore, data-driven analysis can lead to significant improvements in process efficiency and material usage. By analyzing the data from multiple batches, process engineers can identify subtle relationships between control parameters and final product properties. This allows them to fine-tune setpoints and optimize additive dosing, reducing waste and energy consumption while ensuring consistent product quality.
V. Best Practices for Installation, Calibration, and Long-Term Maintenance
5.1 Robust Installation Procedures in Challenging Environments
Proper installation of the Lonnmeter instruments is paramount to ensuring accurate and reliable measurements in the challenging molten paraffin wax environment. The fluid's tendency to solidify and adhere to surfaces at temperatures below its cloud point necessitates a careful approach.
A critical consideration for the LONN-ND viscometer is ensuring the active sensing element remains fully submerged in the molten fluid at all times. For reactors and large vessels, the Lonnmeter's extended probe options, ranging from 550mm to 2000mm, are specifically designed to meet this requirement, allowing the sensor tip to be positioned deep within the fluid, away from fluctuating liquid levels. The installation point should be a location with uniform fluid flow, avoiding stagnant zones or areas where air bubbles might become entrained, as these conditions can lead to inaccurate readings. For pipeline installations, a horizontal or vertical pipe configuration is recommended, with the sensor probe positioned to measure the core fluid flow rather than the slower-moving fluid at the pipe wall.
For both instruments, using the recommended flange mounting options (DN50 or DN80) ensures a secure, pressure-resistant connection to process vessels and pipelines.
5.2 Precision Calibration Techniques for Viscometers and Densitometers
Despite their robust design, the accuracy of both instruments is dependent on regular and precise calibration.
The viscometer calibration procedure, as specified in the manual, involves using standard silicone oil as a reference fluid. The process is as follows:
Preparation: Select a certified viscosity standard that is representative of the fluid's expected viscosity range.
Temperature Control: Ensure the standard fluid and the sensor are at a stable, precisely controlled temperature. Temperature is a major factor in viscosity, so thermal equilibrium is essential.
Stabilization: Allow the instrument's reading to stabilize over a period of time, ensuring it is not fluctuating more than a few tenths of a unit, before proceeding.
Verification: Compare the instrument's reading to the certified value of the standard fluid and adjust the calibration settings as needed.
For the densimeter, the manual provides for a simple zero-point calibration using pure water. While this is a convenient on-site check, for high-accuracy applications, a multi-point calibration using certified reference materials with densities spanning the expected operational range is a more robust technique.
In the molten paraffin wax environment, wax buildup on the sensor's surface can add mass and alter the vibration characteristics, causing a gradual drift in measurement accuracy. This necessitates a more frequent calibration check than in a non-fouling environment to ensure long-term data integrity.
5.3 Preventative Maintenance and Troubleshooting for Longevity
The Lonnmeter's design, with no moving parts, seals, or bearings, minimizes mechanical maintenance. However, the unique challenges posed by molten paraffin wax require a dedicated preventative maintenance strategy.
Routine Inspections and Cleaning: The most critical maintenance task is the regular inspection and cleaning of the sensor probe to remove any accumulated paraffin wax. Wax buildup can significantly interfere with the sensor's vibrations, leading to inaccurate readings or sensor failure. A formal cleaning protocol should be developed and followed to ensure the sensor surface is free of any residue.
Troubleshooting: The manuals provide guidance on common issues. If the instrument has no display or output, the primary troubleshooting steps are to check the power supply, wiring, and for any short circuits. If the output reading is unstable or deviates significantly, potential causes include wax buildup on the probe, the presence of large air bubbles in the fluid, or external vibrations affecting the sensor. A well-documented maintenance log, including all inspections, cleaning activities, and calibration records, is essential for tracking the instrument's performance and ensuring compliance with quality standards. By taking a proactive approach to maintenance and addressing the specific challenges of the molten paraffin wax environment, the Lonnmeter instruments can provide reliable and accurate data for years of operation.
