410 stainless steel contains 11.5–13.5% chromium and up to 0.15% carbon. Its higher carbon allows hardening through heat treatment, improving wear resistance and strength. 430 stainless steel features 16–18% chromium with a maximum 0.12% carbon. This increased chromium elevates corrosion resistance, while lower carbon prevents heat-treating for enhanced hardness. Both grades limit nickel, manganese, and silicon to 1% maximum, phosphorus to 0.04%, and sulfur to 0.03%.

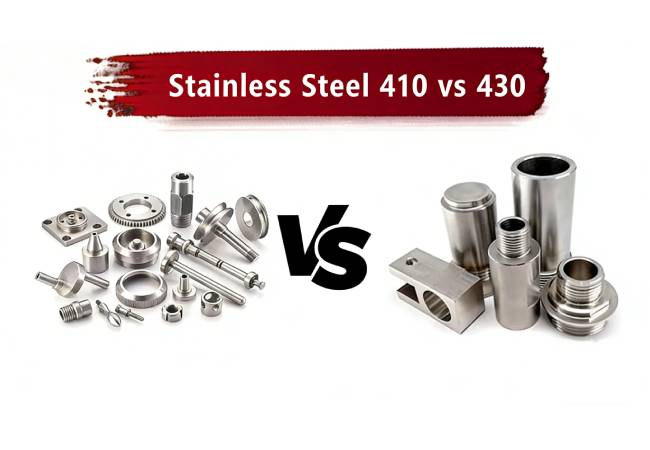

410 vs 430 stainless steel
*
Typical Applications and Performance Requirements
410 stainless steel is selected for cutlery, turbine blades, surgical instruments, and any application demanding wear resistance and possible heat treatment. 430 stainless steel is used in automotive trim, kitchen appliances, architectural panels, and components requiring increased corrosion resistance and formability, especially in less aggressive environments.
Challenges in Differentiating 410 vs 430 Stainless Steel On Site
Surface analysis cannot separate 430 stainless steel vs 410 stainless steel due to similar metallic luster and indistinguishable color. Both grades exhibit robust magnetism at room temperature, as 410 is martensitic and 430 is ferritic, eliminating magnetic properties as a differentiating tool. Density measurements show a negligible variance (410: ~7.75 g/cm³, 430: ~7.70 g/cm³), insufficient for field discrimination. Hardness assessments are unreliable since 410, when annealed or heat-treated, overlaps the typical hardness range of 430, which varies with processing. Spark tests deliver inconsistent results, and acid testing provides only marginal cues, easily obscured by surface contamination or finish.
How Spectro XRF Analyzers Work for Alloy Identification
Principles of XRF Technology
Spectro XRF analyzers quantify elemental content in solid stainless steel by measuring characteristic X-ray emissions when samples are bombarded with X-rays. Chromium, a key marker in differentiating 430 stainless steel vs 410 stainless steel, fluoresces intensely above 5 keV, enabling precise measurement of the chromium content in 410 stainless steel and chromium percentage in 430 stainless steel. Lonnmeter XRF analyzers deliver direct, non-destructive results within seconds, facilitating immediate grade confirmation in manufacturing, scrap sorting.
Accuracy of XRF in Quantifying Key Elements
Lonnmeter XRF analyzers distinguish differences between 410 and 430 stainless steel using spectral resolution for chromium, validated for stainless steel testing. In practical use, operators readily separate the moderate chromium content of 410 stainless steel (11.5–13.5%) from the higher range in 430 (16–18%), which correlates to 410 vs 430 stainless steel corrosion resistance. Minor elements—nickel, manganese, and molybdenum—are also measured simultaneously within detection limits (generally ≥0.05 wt%). For industrial tasks, the benefits of spectro XRF analyzers in stainless steel testing include rapid grade verification, traceable results, and elimination of operator subjectivity in alloy sorting.
Lonnmeter XRF Analyzer: Optimized for Stainless Steel Differentiation
Instrument Parameters for Stainless Steel Analysis
Lonnmeter XRF Alloy Analyzer covers a spectral range effective from atomic number 12 (Magnesium) to 92 (Uranium) and delivers detection limits down to 0.01% for key elements. Measurement cycles typically complete within 30 seconds, providing rapid verification of chromium content in 410 stainless steel (11.5-13.5%) versus the higher chromium percentage in 430 (16-18%). The touchscreen user interface enables operators to view results clearly and manage workflows on-site. Embedded calibration libraries instantly match 410, 430, and over 30 stainless steel grades, supporting highest confidence in grade calls.
Operational Ease and Quality Assurance Features
Lonnmeter offers both handheld and benchtop configurations, each engineered for extended field use—battery life spans 8 hours per charge. The interface is intuitive: operators select grade libraries, run fast tests, and record or export results via USB, Wi-Fi, or Bluetooth. Internal storage and automated data sorting meet traceability and reporting needs, enabling seamless compliance in both manufacturing and recycling. The analyzer’s rugged design withstands harsh plant floors and scrap yards.
Key Benefits of Differentiating 410 vs 430 Stainless Steel
Precise grading of 410 versus 430 stainless steel prevents performance failures and regulatory issues in manufacturing, fabrication, and recycling. Distinct chromium ranges—11.5–13.5% in 410 and 16–18% in 430—drive differences in corrosion resistance, heat-treat response, and applications. Correct identification avoids improper use of 410 in environments requiring superior corrosion resistance or mishandling of 430 in load-bearing roles.
Automated recording and export functions simplify integration into quality control and logistics networks. Lonnmeter’s robust reporting mitigates costly errors, speeding alloy sorting and supporting process integrity for operators handling mixed stainless grades. Contact sales engineer right now.
FAQs
What is the chromium content of 410 stainless steel?
410 stainless steel contains 11.5–13.5% chromium by weight, with low nickel and moderate carbon (~0.08–0.15%). Chromium is central to its corrosion resistance and martensitic properties.
What other advantages does handheld XRF offer for stainless steel testing?
Handheld XRF analyzers provide portability, rapid analysis, and minimal sample preparation. They improve throughput in manufacturing and recycling, reduce error associated with visual or magnetic methods, and deliver on-demand reporting for critical alloys.
