Automated in-line viscosity measurement and control is crucial to control the coating formulation and application viscosity in wire coating process. To ensure consistent high-quality, uniform coating, the change in viscosity through-out the process stream is monitored in real time, making measurements from a baseline rather than simply measuring absolute values.
What is Cable Coating?
Cable coating is the process of applying a protective or insulating layer to wires and cables to enhance their durability, electrical performance, and resistance to environmental factors. This involves enamel wire coating, where a thin layer of insulating material, such as polymer-based enamel, is applied to conductive wires like copper or aluminum to prevent short circuits and protect against moisture, abrasion, and chemicals. The quality of the coating viscosity is crucial for achieving uniform thickness coating, ensuring consistent insulation and overall product reliability in applications ranging from electrical motors to telecommunications.
Purpose of the Coating Process
The cable coating process serves multiple essential functions, primarily providing electrical insulation and mechanical protection to wires and cables. It safeguards optimal properties of generated wire against environmental hazards like moisture, heat, chemicals and abrasion while improving longevity, and ensuring safe operation in various industries.
This includes protecting windings from moisture absorption and destructive effects like oil, acids, chemicals, heat, and mold growth, while also bonding wires and insulation into a solid, cohesive mass to resist shock, vibration, and mechanical stress. Furthermore, it enhances the electrical properties of insulators, maintaining performance through cycles of heat and cold. The process prevents short circuits, mechanical damage, and environmental deterioration while facilitating identification through colors or markings. Overall, it improves durability, flexibility, and resistance to abrasion, temperature extremes, and chemicals for applications in motors, transformers, and high-voltage cables.
How Does the Cable Coating Process Work?
The cable coating process involves several stages to apply an even insulating layer, with coating viscosity playing a pivotal role in controlling flow and adhesion. Typically, bare wire is cleaned, coated with enamel or polymer, cured, and tested. The process begins with preparation and cleaning, where wires are cleaned to remove contaminants, ensuring optimal adhesion.
Next comes material application, in which the wire passes through an enamel bath or extrusion die where molten material adheres, with inline viscosity measurement monitoring flow for uniform thickness coating. This is followed by curing, where the coated wire is heated in an oven to evaporate solvents and solidify the layer, often repeated in multiple passes for thicker insulation. After that, cooling and winding occur, allowing the wire to cool to stabilize the coating before being wound onto reels. Finally, quality control is conducted, with inline viscometers adjusting parameters in real-time to maintain consistent enamel wire coating.
What Materials are Used in Cable Coating?
A variety of materials are selected for cable coating based on application requirements, such as electrical insulation, flexibility, and environmental resistance. Common materials include polymers and enamels, with solids content ranging from 8% to 60% and viscosity between 30 and 60,000 mPas.
Key options encompass polyethylene (PE), which offers high dielectric strength along with moisture and chemical resistance, including variants like LDPE for flexibility and HDPE for durability.
Polyvinyl chloride (PVC) is cost-effective, flame-retardant, and flexible, making it ideal for general-purpose cables. Cross-linked polyethylene (XLPE) is thermosetting with superior heat, abrasion, and chemical resistance for high-voltage applications.
Polyurethane (PUR) provides abrasion resistance for harsh environments and good solderability. Polyesterimide (PEI) and THEIC-modified polyester (TPE) are heat-resistant enamels often used in basecoats for magnet wires.
Polyamide-imide (PAI) offers high thermal stability and is used as topcoats for mechanical and chemical enhancement. Silicone rubber is heat-tolerant and stable for high-temperature cables. Other enamels like polyvinylformal (PVF) and self-bonding types, such as epoxy-based, cater to specific bonding needs.
Measuring Points in Wire Coating Process

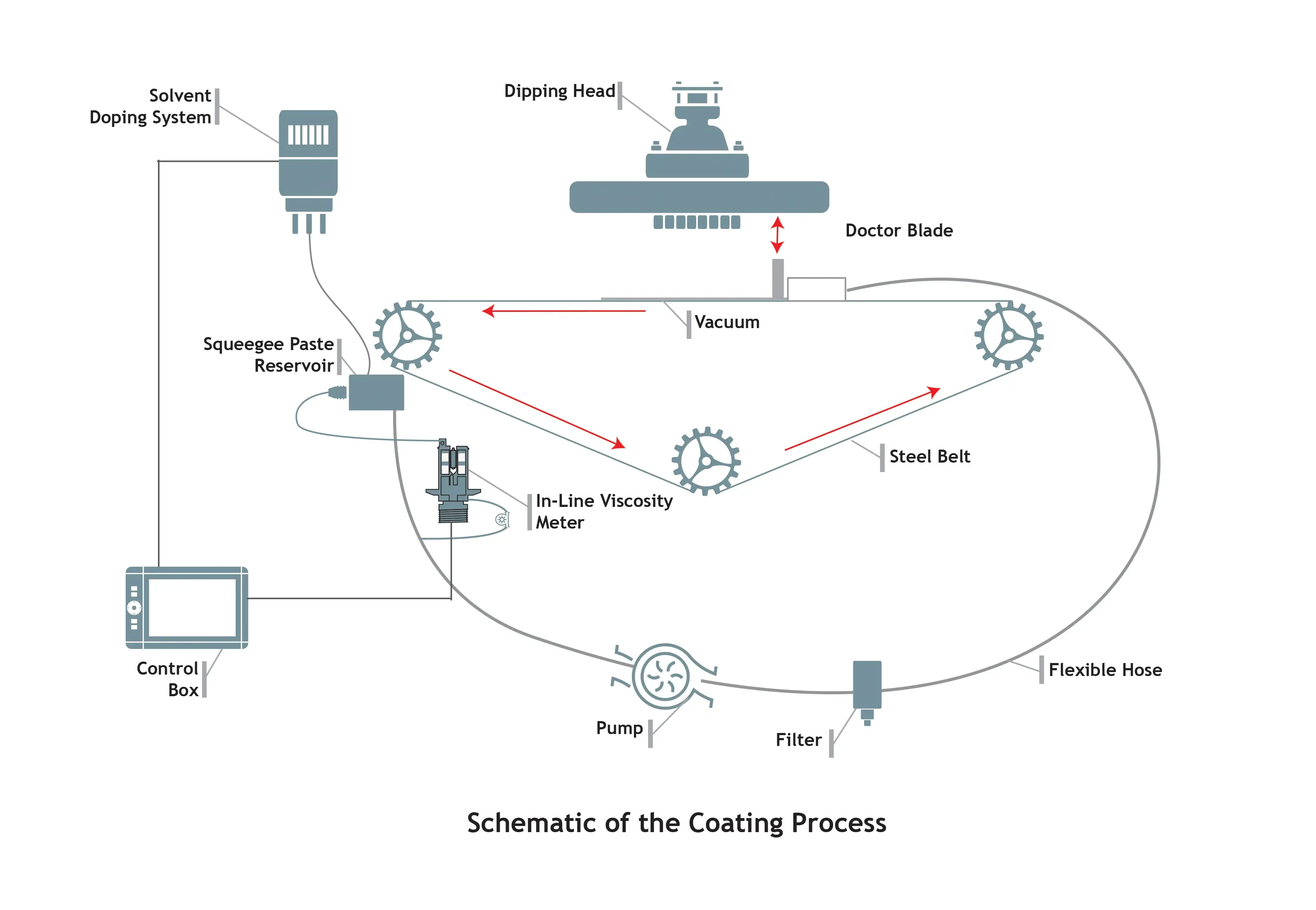

Measuring points are critical for monitoring coating viscosity to ensure uniform thickness coating. These include the enamel mixing tank or bath, where raw materials are blended and inline viscometers detect initial viscosity. The supply line to the applicator comes next, allowing adjustments to feed consistency before the die or bath. Post-application stages follow, providing quality verification of thickness and adhesion after curing. Throughout the process stream, continuous inline viscosity measurement captures real-time changes due to temperature or shear.
Current Problems in Viscosity Control
Viscosity control in cable coating faces several challenges, often leading to inconsistent enamel wire coating. Reliance on offline testing is a major issue, as lab samples cause delays and inaccuracies since viscosity varies with temperature and shear off-line.
Environmental factors, such as solvent evaporation, humidity, and temperature fluctuations, alter coating viscosity unpredictably. The non-Newtonian behavior of enamels further complicates matters, as they change viscosity under shear, making measurements with traditional tools like efflux cups messy and non-repeatable.
Equipment limitations also play a role, with paddle viscometers suffering from evaporation errors and manual methods failing to capture dynamic changes, which increases downtime and maintenance needs.
Negative Effects Brought by Inconsistent Viscosity
Inconsistent coating viscosity results in defects that compromise cable performance and increase costs. This leads to uneven insulation, causing pinholes, blisters, or excessive thickness that result in electrical shorts and failures.
Quality degradation occurs as well, with tacky or sagging coatings from high or low viscosity reducing hermetic resistance, flexibility, and mechanical properties.
Increased waste is another consequence, including higher scrap rates, solvent usage, and rework that impact profit margins and environmental compliance.
Operational risks escalate too, potentially leading to product recalls, regulatory violations, and loss of market acceptance due to poor fade resistance and drying.
Necessities of Real-Time Viscosity Monitoring
Real-time monitoring via inline viscometers is vital to address these issues by providing continuous data, enabling immediate adjustments to solvents and temperature for stable coating viscosity. It reduces variations by eliminating sampling errors and ensuring uniform thickness coating from baseline measurements. Additionally, it improves efficiency through automated controls that minimize rejects, downtime, and compliance risks in fast-paced production.
Benefits of Lonnmeter Coating Viscometer Inline
The Lonnmeter Coating Viscometer Inline offers advanced inline viscosity measurement for precise control in cable coating. It ensures superior product quality by maintaining consistent coating viscosity for uniform thickness coating and defect-free enamel wire coating.
Operational efficiency is enhanced with real-time data that reduces downtime, supported by easy installation, operation, and maintenance via a user-friendly interface.
Cost savings are achieved by minimizing waste, solvent use, and rejects through automated adjustments and monitoring of non-Newtonian fluids.
Enhanced reliability comes from advanced sensors that handle high temperatures and corrosives, delivering accurate readings around the clock. Finally, it provides environmental and regulatory advantages by supporting greener processes and compliance through reduced variability and resource optimization.
