Overview of the Bayer Process in Alumina Production

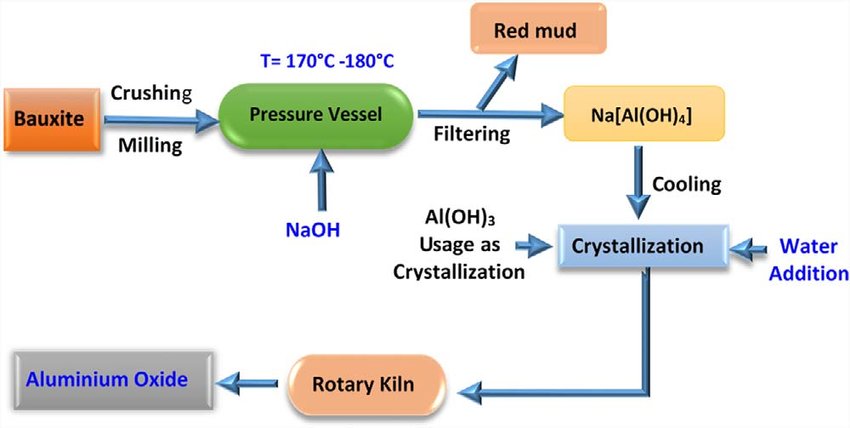

The Bayer process for alumina production transforms bauxite ore into pure alumina through a sequence of key engineering steps. Each stage utilizes precise materials and operating controls to maximize yield and purity.
Bauxite is first crushed and ground to increase its surface area for chemical reaction. Finer particle size achieved by mineral crushers is essential for effective sodium hydroxide penetration during digestion. The ground material is then fed to the digester system.
During the bauxite digestion process, crushed bauxite is mixed with hot, concentrated sodium hydroxide solution under high pressure and temperatures ranging between 140°C and 280°C. In this environment, sodium hydroxide selectively dissolves aluminum-containing minerals (gibbsite, boehmite, diaspore) due to their amphoteric properties, transforming alumina into sodium aluminate solution. Typical reactions include:
- Al(OH)₃(s) + NaOH(aq) → NaAlO₂(aq) + 2H₂O(l)
Impurities such as iron oxides, silica, and titanium dioxide remain largely undissolved and constitute the red mud. Optimized sodium hydroxide concentration for bauxite digestion is vital—too low limits alumina extraction, while excess increases costs and downstream caustic cycling requirements.

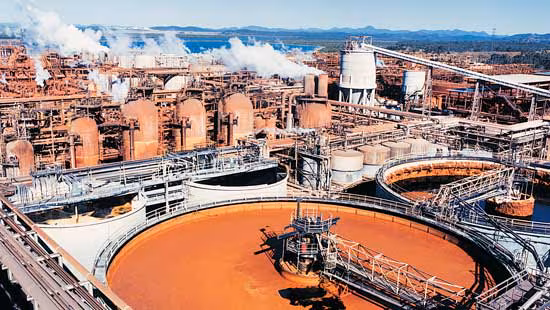

Alumina Refining Solutions
*
Solid-liquid separation in the Bayer process immediately follows digestion. Clarification units—using settling tanks or filtration systems—enable rapid separation of red mud (insoluble residue) from sodium aluminate liquor. Effective slurry density measurement for the Bayer process using instruments like Lonnmeter density meters ensures that equipment is fed with consistent pulp density, which is crucial for separation efficiency and throughput.
Red mud generation is an unavoidable by-product at this stage. It consists mainly of iron oxides, silica, trace alumina, and sodium compounds. Red mud management focuses on safe storage, neutralization, and increasingly, on waste valorization through metal recovery, construction material synthesis, and advanced filtration using steel slag and cement aids to reduce moisture and volume.
After clarification, the sodium aluminate liquor enters the precipitation step. Aluminum hydroxide is crystallized out of solution—often induced by seeding with previously formed crystals, cooling, and dilution. This step yields Al(OH)₃ precipitate while regenerating sodium hydroxide for recycling in the process via:
- NaAlO₂(aq) + 2H₂O(l) → Al(OH)₃(s) + NaOH(aq)
The collected Al(OH)₃ then undergoes washing and calcination. Kilns operating above 1000°C decompose the hydroxide, producing dry, anhydrous alumina (Al₂O₃) suitable for refining to metallic aluminum.
Each stage—crushing, digestion, clarification, precipitation, and calcination—demands careful optimization. For instance, controlling slurry density in the bauxite digester feed system directly influences alumina yield and separation performance. Proper sodium hydroxide solution management reduces caustic loss and improves recycling. Advanced alumina refining process equipment is now complemented by innovations in electroreductive and oxidative digestion, which enable higher alumina recovery, especially from low-grade or chlorite-rich bauxites.
Efficient red mud disposal methods and utilization technologies not only mitigate environmental risk but also enhance the sustainability of the bauxite Bayer process. Industrial units now integrate slurry density control in mineral processing and deploy instruments for real-time measurement, with the Lonnmeter density meter often referenced for robust accuracy in Bayer alumina process streams. Achieving high-purity alumina and minimizing environmental footprint hinge on refined stepwise control, strategic chemical dosing, and smart by-product management throughout the alumina extraction process steps.
Bauxite Digestion: Fundamental Concepts and Process Dynamics
Bauxite digestion is the first critical step in the Bayer process for alumina production, designed to selectively extract alumina from bauxite ores using a caustic sodium hydroxide solution. The main objective is to convert aluminum-bearing minerals—primarily gibbsite, boehmite, or diaspore—into soluble sodium aluminate, leaving impurities for subsequent removal.
Core Chemical Reactions in the Bayer Digestion Stage
During the bauxite digestion process, sodium hydroxide solution serves as both reactant and solvent. In the case of gibbsite-rich bauxites, the reaction proceeds efficiently at medium temperatures (140–150°C):
- Gibbsite digestion:
Al(OH)₃ (s) + NaOH (aq) → NaAlO₂ (aq) + 2H₂O
For boehmite and diaspore minerals, higher temperatures (220–280°C) are required due to slower dissolution kinetics:
- Boehmite digestion:
AlO(OH) (s) + NaOH (aq) → NaAlO₂ (aq) + H₂O
Silica minerals such as quartz and kaolinite also interact with caustic, sometimes leading to unwanted sodium-silicate formation, which requires mitigation through process control and possible lime addition. Managing sodium hydroxide concentration is essential for optimizing alumina yield and minimizing caustic loss to red mud.
Digester Feed System: Composition and Homogenization
Bauxite digestion in the alumina Bayer process begins with the preparation of a homogeneous slurry—an optimized blend of finely ground bauxite and caustic liquor. The critical steps in digester feed system preparation are:
- Bauxite grinding to increase surface area and promote rapid reaction.
- Mixing with recycled sodium hydroxide liquor at controlled ratios for optimal reactant concentration.
- Addition of make-up water or lime as necessary to adjust slurry density and caustic concentration.
Modern alumina refining process equipment utilizes advanced mixing systems. Computational fluid dynamics and residence time analysis have highlighted the importance of feed uniformity: impeller design, baffle placement, and inlet/outlet configuration play key roles in digestion kinetics and extraction efficiency. Homogeneous slurry formation supports consistent alumina extraction, streamlines solid-liquid separation in Bayer process, and simplifies downstream red mud management.
Impact of Feed Variability, Slurry Composition, and Temperature on Digestion Performance
Feed mineralogy and slurry composition are decisive for digestion efficiency in the bauxite Bayer process. Variability in bauxite—whether from mining, stockpile blending, or geological differences—directly impacts the proportion of gibbsite, boehmite, silica phases, and iron oxides. These differences influence the required digestion temperature, residence time, and sodium hydroxide consumption.
Higher silica or iron content can reduce alumina yield and increase caustic losses to red mud. Real-time slurry density measurement for Bayer process using instruments like Lonnmeter density meter is essential, allowing for immediate adjustments in feed rates and reactant dosages.
Temperature management is another critical factor—gibbsite digesters operate efficiently at medium temperatures, whereas boehmitic and diasporic bauxites may need high-temperatures and longer residence time. CFD modeling and multi-objective optimization in feed preparation help reveal how changes in slurry composition, agitation, or temperature impact alumina recovery and energy usage in industrial settings.
Adapting the Bauxite Digestion Process for Diverse Ores
Handling ore diversity is a persistent challenge in the Bayer alumina process. Gibbsite-rich bauxites are favorable, requiring less energy and milder conditions, while boehmitic and diasporic bauxites necessitate robust adaptation:
- Fine milling is often employed for harder ores, increasing their reactivity and improving alumina recovery rates.
- Ore blending and “sweetening”—adding easily digested fractions—adjust the bauxite charge and support efficient sodium hydroxide solution utilization.
- Strict control of slurry density and sodium hydroxide concentration mitigates complications stemming from mineralogical variability, such as filter blockages and unwanted precipitation.
Process modeling helps refine operational parameters for specific ore types, while ongoing slurry density control in mineral processing ensures that digester feed remains within optimal ranges for extraction and downstream separation.
Case studies show that industrial plants employing adaptive feed management—such as blending strategies and selective ore sourcing—achieve better performance, even with challenging bauxite inputs. These adaptations are integral to sustainable, high-yield alumina extraction and support efficient red mud disposal methods.
Handling diverse bauxite ores in the digestion stage thus demands a coordinated approach: mineralogical characterization, real-time slurry density measurement, equipment optimization, and ongoing process control to maximize digestion efficiency and alumina yield while minimizing caustic loss, energy demand, and environmental impact.
The Critical Role of Slurry and Pulp Density Measurement
Real-time bauxite pulp density measurement is central to process control in the Bayer process for alumina production. Precise control over slurry density at the digester feed system maintains the right balance between solids and sodium hydroxide solution for Bayer process, optimizing dissolution kinetics and yield during bauxite digestion. Immediate feedback from density meters like Lonnmeter ensures rapid corrective actions, reducing deviation and maintaining target set-points for digestion efficiency.
Slurry density directly affects the rate and completeness of the alumina extraction process steps. High-density slurries may hinder mixing and heat transfer, lowering the reactivity of bauxite with caustic soda and decreasing overall alumina recovery. Low-density slurries, conversely, can dilute caustic concentration and slow the reaction, leading to suboptimal utilization of chemicals and increased red mud generation. Studies show that controlling density within optimal ranges leads to steady caustic ratios, effective solid-liquid separation in Bayer process, and higher alumina yields—including improved impurity management and minimized reagent consumption.
Density measurement and control also impact equipment performance. For instance, over-thickened slurry burdens pumps, agitators, and piping infrastructure, amplifying wear, elevating maintenance frequency, and increasing energy consumption during mixing, heating, crystallization, and calcination in alumina production. Consistently managed density achieves lower mechanical stress and more predictable energy loads. Consistency in product quality, such as particle size distribution and moisture content, directly depends on stable density control across all sections of the alumina refining process equipment.
Pulp density monitoring is integrated across the broader alumina Bayer process, not just at digestion. Key interface points include milling, digester feed, washer circuits, and final residue handling for red mud management and disposal. Integration with SCADA systems enables centralized data visualization and real-time control over critical flow rates and solid concentrations. By feeding density data from instrumentation such as the Lonnmeter density meter into automated process loops, refineries maintain product specifications, optimize chemical inventories, and reduce waste discharge.
Ultimately, slurry density control is not isolated—it shapes the operational, economic, and environmental outcomes of the entire bauxite Bayer process. Accurate measurement, rapid feedback, and continuous integration with control infrastructure sustain process optimization from raw ore handling through alumina product finishing.
Techniques for Slurry and Bauxite Pulp Density Measurement
Controlling slurry and bauxite pulp density is central to the Bayer process for alumina production. Several measurement techniques are used, each with strengths and limitations.
Conventional Density Measurement Techniques
Traditional methods rely on manual sampling and laboratory analysis. Plant operators draw timed samples of slurry from process streams—often at digester feed points or the digestion outlet. Density is determined using gravimetric balances, pycnometers, or hydrometer readings.
These approaches face several challenges:
- Lag in Feedback: The time between sample collection and lab results can cause process delays and reduce responsiveness.
- Operator Dependence: Human error in sampling or measurement can introduce inconsistency.
- Limited Coverage: Only discrete points along the bauxite Bayer process are measured, missing process fluctuations.
Advanced Inline and Online Density Measurement Approaches
To overcome these hurdles, plants deploy inline and online density measurement systems for bauxite digestion and solid-liquid separation in Bayer process.
These systems offer:
- Continuous Monitoring: Density readings are updated in real time, giving operators live insights for digester feed system and clarification circuit control.
- Process Feedback: Enables rapid, automated adjustment of sodium hydroxide concentration for bauxite digestion and stream flow rates.
Examples include loop-powered sensors, coriolis flow meters, and nuclear density meters. Most require integration with control panels and regular calibration.
Lonnmeter Density Meter: Principle and Advantages
The Lonnmeter density meter is specifically engineered for robust, plug-and-play use in alumina refining process equipment.
Working Principle:
- The meter uses high-frequency vibration or transmission principles to sense changes in slurry mass per unit volume.
- Real-time signals, such as 4–20 mA or RS485, are sent to control systems, providing continuous data for process automation.
Advantages over Conventional Methods:
- Immediate, Real-Time Data: No waiting for lab results. Operators receive process feedback instantly, critical for dynamic process stages such as digestion and crystallization in alumina production.
- Enhanced Accuracy and Consistency: Automation excludes human variability, maintaining reliable density control in bauxite digestion and slurry density control in mineral processing.
- Maintenance-Free Operation: Lonnmeter requires minimal calibration and withstands the harsh Bayer alumina process environment—frequent sampling and cleaning are unnecessary.
- Seamless Integration: Easily connects to plant DCS/SCADA systems for automated process adjustments, aligning with increasingly sophisticated control strategies.
Application Points in the Bayer Process:
- Digester Feed System: Inline Lonnmeter meters verify density of bauxite pulp entering digesters. Ensures correct solids loading and sodium hydroxide dosing for efficient alumina extraction process steps.
- Digestion Outlet: Monitoring density facilitates control of reaction conversions, optimizing alumina yield and minimizing formation of red mud.
- Clarification Circuits: Lonnmeter meters help maintain target density for effective solid-liquid separation in Bayer process, enhancing throughput and reducing red mud disposal costs.
Integration with Plant Control Systems and Impact on Automation
Lonnmeter density meters integrate directly with plant-wide automation networks.
Key integration concepts:
- Signal Output: Standardized analog (4–20 mA) or digital (RS485) output supports real-time data exchange.
- Process Control Loops: Density readings automatically adjust reagent dosing, pump speeds, and solid separation equipment via Distributed Control Systems (DCS).
- Reduced Variability: Automated feedback reduces manual intervention, stabilizing digester operation and downstream separation processes.
- Operational Benefits: Resulting process stability minimizes operational costs, improves final alumina quality, and ensures optimal performance through crystallization and calcination in alumina production.
Proper slurry density measurement using modern tools like Lonnmeter supports reliable, automated control through each key phase of the bauxite Bayer process, from digestion to clarification and beyond.

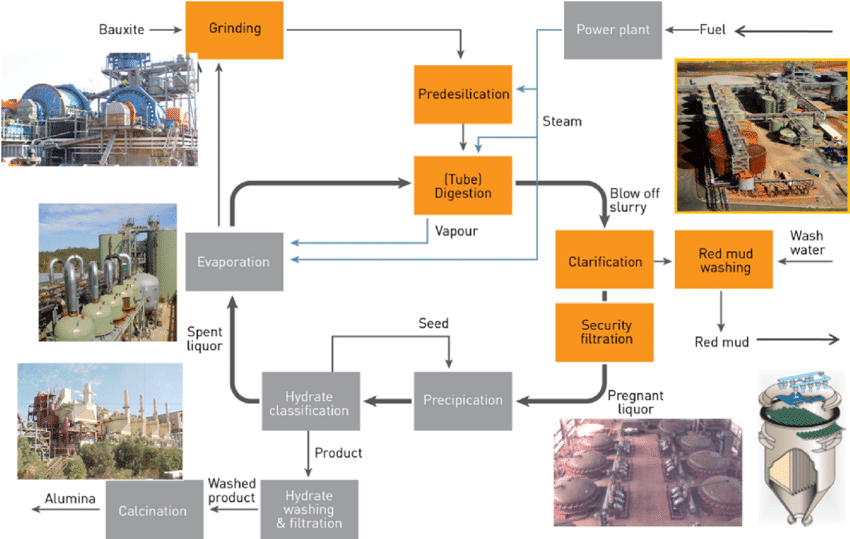

Bayer Process Producing Alumina from Bauxite
*
Process Optimization Strategies Enabled by Accurate Density Measurement
Accurate bauxite pulp density measurement underpins multiple process optimization strategies in the Bayer process for alumina production. Real-time monitoring, particularly with instruments like the Lonnmeter density meter, provides immediate feedback that enables precise control throughout each process stage.
Adjustments in Digestion Parameters Based on Real-Time Slurry Density Values
In the bauxite digestion process, the efficiency and selectivity of sodium hydroxide solution for Bayer process depend heavily on slurry density. By continuously measuring feed density, operators can adjust sodium hydroxide concentration, temperature, and residence time within digester vessels. For example, a sudden increase in pulp density may indicate overdosing of bauxite, necessitating changes in caustic concentration or dilution rate to maintain desired alumina extraction efficiency and prevent scaling in the digester feed system.
Real-time slurry density measurement in the digester feed system stabilizes the ratio of liquid to solids and supports consistent dissolution of alumina minerals, reducing potential for unreacted material and downstream process deviations.
Improvement of Solid-Liquid Separation Efficiency and Minimization of Red Mud Carryover
Solids separation is a core challenge in the alumina Bayer process, particularly in the stages following digestion. Precise control of slurry density directly impacts sedimentation and filtration efficiency. By monitoring and adjusting density, operators can minimize the carryover of fine red mud particles, reducing loss of valuable sodium hydroxide and ensuring more effective clarified liquor recovery.
During thickening and washing, bauxite pulp density measurement enables optimal settling conditions, helping to control the underflow mud density, prevent excessive dilution, and manage red mud disposal methods. A balanced density promotes larger aggregate formation, accelerating settling rates and reducing the load on downstream filtration equipment, strengthening overall red mud management and solid-liquid separation in Bayer process.
Impact on Crystallization Stage—Control of Supersaturation and Seed Precipitation
Slurry density measurement for Bayer process becomes especially vital in alumina refining process equipment during crystallization. Supersaturation control dictates the nucleation and growth dynamics of alumina hydrate crystals. Instruments such as Lonnmeter, or quartz crystal sensors, detect shifts in pulp density that signal the onset of precipitation. This real-time feedback enables immediate adjustments to temperature profiles, seed addition rates, and flow rates, curbing unwanted spontaneous nucleation or excessive crystal aggregation.
In practice, digital control platforms utilize real-time density input to manage the delicate balance of seed precipitation. For instance, if in situ measurements indicate rising density beyond optimal bounds, seed dosage can be increased or evaporation rates reduced to stabilize the supersaturation and crystallization in alumina production process.
Contribution to Consistent Calcination and Optimal Final Alumina Quality
Uniform feed density entering calcination equipment is essential for consistent product quality in the alumina extraction process steps. Excessively dense slurry may yield uneven heating, incomplete dehydration, or residual impurities in the calcined alumina. Conversely, under-dense feed risks energy wastage and suboptimal conversion rates.
By incorporating accurate slurry density control in mineral processing up to the calcination in alumina production phase, operators achieve uniform particle distribution and moisture content, producing alumina of predictable phase composition and physical properties. This process reliability translates to fewer off-spec batches and smoother equipment operation.
Waste Reduction and Sodium Hydroxide Solution Recovery via Informed Density Management
Effective bauxite pulp density measurement directly contributes to waste reduction and sodium hydroxide solution recovery. Real-time monitoring enables prompt adjustment of washing and filtration parameters, enhancing separation of valuable caustic liquor from red mud and reducing caustic loss. This decreases raw material consumption and minimizes the volume of red mud for disposal.
For example, continuously tracking density variance in wash stages helps operators maintain optimal dilution cycles, thus maximizing sodium hydroxide recovery and improving red mud disposal efficiency. The practice also supports energy management by reducing unnecessary dilution and pumping, lowering the overall environmental impact of the bauxite Bayer process.
In summary, integrating Lonnmeter density meter use in slurry measurement reveals actionable data for every step—from digestion and separation to crystallization and calcination—driving consistent, efficient, and sustainable operations across the Bayer alumina process.
Practical Challenges and Solutions in Density Measurement Implementation
Accurate bauxite pulp density measurement within the Bayer process for alumina production faces several practical challenges. Ensuring reliable readings is critical not just for process control, but also for mass balancing, digester feed optimization, and downstream solid-liquid separation.
Typical Sources of Measurement Error
Entrained Air Effects:
Entrained air bubbles within bauxite slurry streams can distort both density and volumetric flow readings. This results in underestimated slurry densities and inflated flow rates, directly impacting material balance and process yield calculations. Entrained air disturbances have been documented to originate from pump cavitation, turbulent flow transitions, and leakages, leading to measurement error in conventional sensors. Advanced sonar sensors, capable of differentiating liquid and gas phases, correct for these inaccuracies and can detect entrained air down to ±0.1% by volume.
Particle Size Variability:
The range and distribution of particle sizes in bauxite slurries alter slurry rheology and impact density meter calibration curves. Larger bauxite particles may settle, promoting stratification and partial sensor coverage, whereas fine particles remain more uniformly suspended. This variability can introduce bias in inline density measurements and affect Lonnmeter readings, requiring careful calibration and sensor placement.
Equipment Fouling:
The Bayer alumina process exposes sensors to highly caustic, abrasive, and scaling environments due to sodium hydroxide solution and suspended solids. Fouling forms on sensor surfaces—especially at digester outlet and mud settling streams—degrades sensor response and accuracy. Protective coatings, regular cleaning schedules, and self-diagnostic features in meters like the Lonnmeter are essential for mitigating fouling-induced drift.
Comparative Overview of Installation Points
Digester Feed:
Installing Lonnmeter units at the digester feed ensures optimal control of sodium hydroxide concentration and bauxite pulp density, affecting bauxite digestion efficiency. Sensors here are exposed to minimal fouling, but entrained air from upstream mix tanks can compromise readings.
Post-Digestion:
Measurement at post-digestion offers data on actual slurry density delivered to settling and solid-liquid separation units. Challenges here include exposure to higher temperatures, caustic concentrations, and heavier particulate load, increasing fouling risk and calibration drift.
Mud Separation Streams:
In these lines, precise bauxite pulp density readings support red mud management and separation efficiency. Fouling and rapid density changes due to precipitation demand robust sensor self-cleaning features and frequent data validation. The sensor installation must account for chamber turbulence and variable flow characteristics.
Key Considerations for Density Meter Selection
When choosing a density meter for bauxite Bayer process environments, consider:
- Chemical Resistance: Must withstand continuous contact with sodium hydroxide solution for Bayer process and abrasive solids.
- Fouling Mitigation: Select sensors with anti-scaling coatings or automated cleaning capabilities (e.g., ultrasonic cleaning for the Lonnmeter).
- Air Correction Capability: Instruments capable of compensating for entrained air, such as advanced sonar or array-based sensors, offer distinct measurement stability advantages.
- Particle Size Robustness: Devices should accommodate a wide range of bauxite slurry particle sizes, maintaining accuracy even in stratified flows.
- Installation Flexibility: Meter must function reliably across different alumina extraction process steps—from digester feed to mud dewatering and calcination outputs.
- Serviceability and Calibration Support: Accessible design and documented calibration procedures facilitate long-term operation and integration within existing alumina refining process equipment.
Comprehensive instrument selection and ongoing validation are prerequisites for reliable bauxite pulp density measurement. Deploying advanced meters like the Lonnmeter, with diligent calibration and robust maintenance, optimizes process control, material accounting, and product yield across all major alumina Bayer process streams.
The Link Between Density Control and Environmental Performance
Precise bauxite pulp density measurement is foundational for environmental performance in the Bayer process for alumina production. When plant operators use inline density meters such as Lonnmeter, they achieve stable and accurate slurry density within the digester feed system. This tight control directly impacts how solids and liquids separate in the alumina refining process, fundamentally shaping waste production and resource recovery.
Red mud is the primary solid waste from bauxite digestion. Improper density management can cause incomplete solid-liquid separation, increasing the red mud volume that must be stored or disposed of. By using continuous slurry density measurement for the Bayer process, operators maintain optimal conditions for settling and filtration. This ensures more alumina is recovered in the liquid phase and less is lost with suspended solids, reducing red mud waste output and lowering the burden on disposal systems. For example, stabilizing pulp density within ±0.001 g/cm³ minimizes carryover of valuable material, improving red mud management at every step of clarification and thickening.
The sodium hydroxide solution for the Bayer process is critical for dissolving alumina from bauxite. With improved slurry density control, less sodium hydroxide remains trapped in the solid red mud and more is efficiently recycled within the circuit. This raises sodium hydroxide recovery rates, lowers chemical consumption, and cuts environmental discharge. As clarifiers and filters operate at optimal density setpoints, solution separation becomes cleaner—this maximizes sodium hydroxide recovery without excess dilution or contamination, supporting cost-effective operation and stringent effluent quality standards.
Pulp density control also reinforces circular economy principles throughout alumina extraction process steps. By enhancing material separation, reducing process losses, and boosting sodium hydroxide recycling, the Bayer alumina process moves closer to zero waste goals. Minimizing red mud volumes and maximizing recovery through precise density regulation means more feedstock is converted to valuable alumina, and less reagent is consumed per ton of output. Real-time density monitoring, exemplified by Lonnmeter density meter use in slurry measurement, supports these outcomes, enabling the bauxite Bayer process to optimize material efficiency and sustainability.
These advances in slurry density control work in concert with other process optimizations—such as improved crystallization and calcination in alumina production—to create a more resourceful, environmentally responsible operation. Ultimately, continuous density measurement and process automation make the Bayer process for alumina production cleaner, safer, and more efficient while supporting industry-wide goals for environmental stewardship and circular resource use.
Frequently Asked Questions (FAQs)
What is the main purpose of bauxite digestion in the Bayer process?
Bauxite digestion is the foundational step in the Bayer process for alumina production. Its main purpose is to dissolve alumina from bauxite ore using a hot sodium hydroxide solution. During digestion, alumina minerals react with sodium hydroxide, forming soluble sodium aluminate. This enables the separation of alumina from impurities, such as silica, iron oxides, and titanium minerals, which remain undissolved as red mud. The effective dissolution of alumina sets the stage for its recovery as alumina hydrate in subsequent process steps.
How does accurate bauxite pulp density measurement benefit the Bayer alumina process?
Maintaining precise bauxite pulp density in the Bayer alumina process ensures that digestion conditions remain optimal. When pulp density is accurately controlled:
- Alumina dissolution efficiency is maximized, improving extraction rates.
- Solid-liquid separation yields are higher, with reduced carryover of red mud.
- Process losses are minimized, as reagent consumption is better managed.
- Final product quality remains consistent, supporting efficient crystallization and calcination.
Changes or deviations in pulp density can lead to incomplete digestion, increased red mud generation, and downstream process inefficiencies. Tight density control supports stable operations and reliable alumina output.
What are the common methods for slurry density measurement in the alumina Bayer process?
Slurry density measurement is vital for process control and equipment protection. Common methods include:
- Gravimetric analysis: Physical sampling and weighing of slurry, followed by calculation of density, suitable for periodic or spot checks.
- Gamma-ray or nuclear density gauges: Use radiometric technology to measure slurry density in real time, offering robust non-contact measurement in harsh environments. Modern systems using low-radioactivity sources (e.g., Na-22) enhance safety and regulatory compliance.
- Inline meters such as the Lonnmeter density meter: These deliver continuous, real-time density readings directly to operators and control systems, offering immediate feedback for process adjustments and improved automation.
Why is sodium hydroxide solution critical in bauxite digestion?
Sodium hydroxide solution is essential for the bauxite digestion process because it selectively reacts with alumina-bearing minerals, converting them to soluble sodium aluminate. This reaction is fundamental for liberating alumina from the ore so it can be separated from insoluble impurities. The concentration of sodium hydroxide also governs reaction speed, efficiency, and reagent consumption, and needs to be carefully balanced to optimize yield without generating excess unwanted compounds, such as desilication products.
What process stages directly benefit from bauxite pulp density measurement?
Several key Bayer process stages rely on tight bauxite pulp density control:
- Bauxite digestion: Precise density ensures complete alumina dissolution and controls reaction kinetics.
- Solid-liquid separation (clarification): Optimal density supports effective settling, filtration, and minimizes red mud carryover.
- Crystallization in alumina production: Stable feed conditions help regulate supersaturation and crystal formation rates.
- Calcination in alumina production: Consistent pulp density allows for predictable hydration and calcination, ensuring product purity and yield.
Across these stages, poor density control can hamper process efficiency, reduce output quality, and complicate red mud management and disposal.
