Sodium hydroxide (NaOH) plays a central role in the flue gas scrubbing process used in basic oxygen furnace steel making. In these systems, NaOH acts as an absorbent, efficiently neutralizing acid gases such as sulfur dioxide (SO₂), nitrogen oxides (NOx), and carbon dioxide (CO₂). Maintaining optimal NaOH concentration in the scrubbing liquid is essential for effective flue gas treatment methods and is a cornerstone of flue gas cleaning technologies deployed within steel plants.
Precise measurement and control of NaOH concentration directly impact both process efficiency and emission control. When the caustic dosage is too low, acid gas removal rates decline, risking regulatory compliance and increasing emission concentrations. Excess NaOH not only wastes chemicals but generates unnecessary byproducts, raising both cost and environmental management responsibility. Performance studies have shown that, for instance, a 5% NaOH solution in two-stage spray towers achieves up to 92% SO₂ removal, while process enhancements such as sodium hypochlorite addition further improve pollutant capture rates.
Basic Oxygen Furnace Steel Making Process: Steps and Context
Overview of Basic Oxygen Furnace (BOF) Process
The basic oxygen furnace steel making process involves the rapid conversion of molten pig iron and scrap steel into high-quality steel. The process begins by charging the BOF vessel with molten pig iron—produced in a blast furnace by smelting iron ore using coke and limestone—and up to 30% scrap steel by weight. Scrap assists in temperature control and recycling within the system.

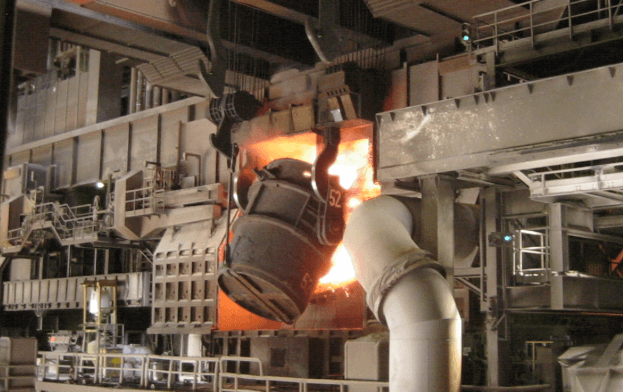

Basic Oxygen Steelmaking
*

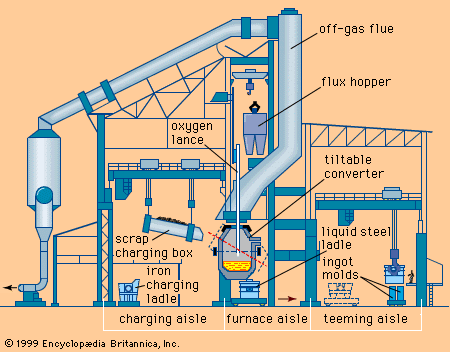

A water-cooled lance injects high-purity oxygen into the hot metal. This oxygen reacts directly with carbon and other impurities, oxidizing them. The major reactions include C + O₂ forming CO and CO₂, Si + O₂ forming SiO₂, Mn + O₂ yielding MnO, and P + O₂ producing P₂O₅. Lime or dolomite fluxes are added to capture these oxides, creating basic slag. The slag floats above the molten steel, facilitating separation and removal of contaminants.
The blowing phase heats the charge rapidly; scrap melts and mixes thoroughly, ensuring uniform composition. Typically, this process lasts 30–45 minutes, producing up to 350 tonnes of steel per batch in modern facilities.
After blowing, adjustments to steel chemistry often occur in secondary refining units to meet precise specifications. The steel is then poured into continuous casting machines to produce slabs, billets, or blooms. Subsequent hot and cold rolling shapes these products for applications in sectors like automotive and construction. A notable co-product is slag, used in cement and infrastructure.
Environmental Implications and Emissions
BOF steelmaking is energy-intensive and generates significant amounts of flue gases and particulates. Main emissions arise from the oxidation of carbon (CO₂), mechanical agitation, and material evaporation during oxygen blowing.
CO₂ is the primary greenhouse gas produced, driven by the decarburization reactions. The quantity of CO₂ emitted depends on the hot metal’s carbon content, the proportion of scrap added, and operational temperature. Using more recycled scrap can curtail CO₂ output but may require adjustments to maintain steel quality and process heat balance.
Particulate emissions include fine metal oxides, flux residues, and dust from charging or tapping operations. These particulates are subject to strict regulatory controls requiring continuous monitoring and abatement technologies.
Sulfur dioxide (SO₂) originates chiefly from sulfur in the molten pig iron. Control solutions must address limited removal efficiency in primary process stages and the potential formation of acid rain if released untreated.
Modern BOF operations adopt integrated emission control solutions:
- Flue gas scrubbing systems (e.g., wet limestone oxidation, semi-dry lime spray drying) target SO₂ removal and enable conversion to useful by-products like gypsum.
- Advanced flue gas cleaning technologies, fabric filters, and dry sorbent injection mitigate particulate emissions.
- CO₂ capture and sequestration options are increasingly considered, with technologies—such as amine scrubbing and membrane separation—being evaluated for cost-effectiveness.
Effective flue gas treatment methods rely on real-time monitoring and process adjustments. Deployment of online alkali concentration monitoring tools, including caustic soda concentration meters and online concentration meters like Lonnmeter, ensures efficient flue gas scrubbing and compliance with emission standards. By leveraging these technologies, BOF plants can achieve more than 69% reduction in SO₂ and particulate emissions, supporting regulatory compliance and environmental stewardship.
Flue Gas Scrubbing in the Basic Oxygen Furnace Process
Purpose and Fundamentals of Flue Gas Scrubbing
Flue gas scrubbing refers to systems and techniques designed to remove sulfur dioxide (SO₂) and other acidic components from the exhaust gases produced during basic oxygen furnace (BOF) steel making process steps. The main objective is to reduce atmospheric pollution and meet regulatory limits for sulfur and other emissions. In steel production, these scrubbing processes help minimize the environmental impact of airborne contaminants released during the oxidation of molten iron and various fluxes.
The chemical principle behind flue gas scrubbing is the conversion of gaseous SO₂ into benign or manageable compounds by reacting the gas with alkaline sorbents in aqueous or solid phases. The primary reaction in NaOH-based wet scrubbing is:
- SO₂ (gas) dissolves in water to form sulfurous acid (H₂SO₃).
- Sulfurous acid then reacts with sodium hydroxide (NaOH), yielding sodium sulfite (Na₂SO₃) and water.
- SO₂ (g) + H₂O → H₂SO₃ (aq)
- H₂SO₃ (aq) + 2 NaOH (aq) → Na₂SO₃ (aq) + 2 H₂O
This rapid, highly exothermic neutralization gives NaOH systems their high removal efficiency. In limestone or lime-based scrubbing, the following reactions predominate:
- CaCO₃ or Ca(OH)₂ reacts with SO₂, forming calcium sulfite and, upon forced oxidation, calcium sulfate (gypsum).
- CaCO₃ + SO₂ → CaSO₃
- CaSO₃ + ½O₂ + 2H₂O → CaSO₄·2H₂O
The effectiveness of these scrubbing reactions relies on sorbent concentration, gas-liquid contact, temperature, and the specific characteristics of the BOF flue gas stream.
Types of Flue Gas Scrubbing Strategies in Steel Making
Wet scrubbing systems using caustic soda (NaOH) and limestone/lime slurry are the benchmarks for BOF flue gas treatment methods. NaOH is favored for its strong alkalinity and rapid reaction kinetics, achieving near-total SO₂ removal under controlled conditions. However, it is expensive relative to lime or limestone. These traditional calcium-based systems remain standard, typically reaching efficiencies of 90–98% when process parameters are optimized.
In wet scrubbing with limestone or lime, the system typically involves gas flowing upward through packed or spray towers while a slurry is circulated to ensure adequate gas-liquid contact. The resulting sulfite or sulfate is removed from the process, with gypsum as the primary byproduct in lime/limestone systems.
Spray-dry scrubbing uses atomized droplets of slurry or dry sorbent injection (DSI) to treat gases directly in semi-dry conditions. Trona, hydrated lime, and limestone are commonly used sorbents. Trona achieves the highest SO₂ removal rate among these (up to 94%), but lime and limestone provide reliable, economical alternatives for most steel plants. Spray-dry systems are noted for lower water usage, easier retrofitting, and flexibility for multi-pollutant removal including particulates and mercury.
Mechanistically, NaOH-based scrubbing operates via liquid-phase chemistry, avoiding solid byproduct generation and facilitating more straightforward effluent treatment. In contrast, lime/limestone systems rely on slurry absorption, yielding gypsum that needs further handling or disposal. Spray-dry scrubbing merges gas-phase and liquid-phase absorption, with dried reaction products collected as fine solids.
Comparatively, NaOH offers:
- Superior reactivity and process control.
- No solid waste, simplifying environmental management.
- Higher reagent costs, making it less attractive for large-scale applications, but ideal where maximum SO₂ removal is needed or solid byproduct disposal is problematic.
Limestone/lime methods:
- Lower reagent costs.
- Well-established operation, easy integration with gypsum valorization.
- Require robust slurry and byproduct handling systems.
Spray-dry and dry sorbent systems:
- Operational flexibility.
- Potentially higher efficiency with trona, though cost and supply can limit practical adoption.
Integration of NaOH Scrubbing into BOF Operations
NaOH scrubbing units are integrated downstream of the primary BOF off-gas collection points, often following preliminary dust-removal stages such as electrostatic precipitators or baghouses. The flue gas is cooled before entering the scrubbing tower, where it contacts the circulating NaOH solution. Effluent is continuously monitored for alkali concentration, utilizing tools such as the online concentration meter, caustic soda concentration meter, and systems designed for online alkali concentration monitoring—for instance, Lonnmeter—ensuring optimal reagent usage and SO₂ capture efficiency.
The placement of NaOH scrubbing is critical; the scrubbing tower must be positioned to handle maximum gas flow and maintain sufficient contact time. The effluent from the scrubber is typically sent to a neutralization or recovery system, minimizing environmental liabilities and facilitating potential water reuse.
Integrating NaOH scrubbing into basic oxygen furnace process improves overall process efficiency by:
- Significantly reducing SO₂ emissions.
- Eliminating solid waste from flue gas cleaning, streamlining compliance with flue gas cleaning technologies and new regulations.
- Allowing real-time process adjustments via online NaOH concentration measurement, ensuring the process maintains setpoints for SO₂ removal.
This integration supports a comprehensive flue gas desulfurization process. It resolves emission challenges inherent in basic oxygen furnace steel making by providing reliable, adaptable flue gas treatment methods well-suited to modern regulatory and operational requirements. The adoption of advanced online alkali concentration monitoring further optimizes NaOH usage, prevents excess chemical dosing, and assures the emission control system operates within stringent set limits.
NaOH Concentration Measurement: Importance and Methods
Critical Role of NaOH Concentration Monitoring
Accurate NaOH concentration measurement is vital in the basic oxygen furnace (BOF) process, particularly for the flue gas scrubbing process. Effective control of NaOH dosing directly affects SO₂ removal efficiency. If the caustic soda solution is too weak, SO₂ capture declines, leading to higher stack emissions and risking non-compliance with environmental regulations. On the other hand, excessive NaOH dosing increases reagent costs and creates operational waste, adding to the burden of effluent treatment and material handling.
Incorrect NaOH concentration undermines the entire flue gas cleaning process. Insufficient concentration causes breakthrough events, where SO₂ passes through the scrubber untreated. Over-concentration wastes resources and generates avoidable sodium sulfate and carbonate by-products, complicating downstream waste treatment. Both scenarios can compromise compliance with air quality limits and increase operational costs for the steel plant.
Online Concentration Meter Technology
Online concentration meters, including the Lonnmeter caustic soda concentration meter, transform flue gas treatment methods by delivering continuous, real-time monitoring. These instruments function by measuring either pH, conductivity, or both; each method offers distinct advantages.
Online sensors are installed directly in the recirculating liquor lines or tanks. Key integration points include:
- pH electrodes (glass or solid-state) for direct alkalinity tracking.
- Conductivity probes (stainless steel or corrosion-resistant alloy electrodes) for broader ionic content measurement.
- Signal output wiring or network connections for integration into the plant’s distributed control system, enabling automated dosing.
Advantages of online NaOH concentration measurement include:
- Continuous, non-stop data acquisition.
- Immediate detection of NaOH depletion or overdosing.
- Reduced manual sampling frequency and labor.
- Enhanced process control, as real-time data allow for dynamic adjustment in the dosing of caustic based on actual needs.
Industrial practice shows that combining both sensor types within a Lonnmeter or similar multi-sensor platforms increases the robustness of online alkali concentration monitoring. This integrated approach is now central to modern flue gas cleaning technologies, especially in large-scale and high-variability operations like the basic oxygen furnace steel making process.
Best Practices for Monitoring and Maintaining NaOH Concentration
Proper calibration and maintenance are essential for accurate online measurement. Sensors require regular calibration—pH meters should be calibrated at two or more reference points using certified buffer solutions that bracket the expected pH range. Conductivity meters must be calibrated against standard solutions with known ionic strengths.
A practical maintenance schedule includes:
- Routine visual checks and cleaning to prevent fouling or precipitation from sodium carbonate or sulfate.
- Verification of electronic response and recalibration after any chemical or physical disturbance.
- Scheduled replacement of sensor elements at manufacturer-recommended intervals, noting typical wear from the highly caustic environment.
Troubleshooting common issues:
- Sensor drift often results from cumulative contamination or age-related degradation; recalibration can usually restore accuracy.
- Fouling from process by-products like sodium sulfate requires chemical cleaning or mechanical removal.
- Interference from other dissolved salts, which can falsely elevate conductivity, is controlled by periodic lab cross-checks and selecting appropriate compensation algorithms within the meter.
Ensuring consistent reagent quality means monitoring incoming NaOH for purity and storage conditions to prevent CO₂ absorption (which forms sodium carbonate and lowers effective caustic strength). Regular supply checks and documentation ensure that the process always uses reagents within specification, supporting both process performance and regulatory compliance.
These approaches underpin reliable NaOH concentration measurement and sustained operation in demanding flue gas desulfurization processes central to the basic oxygen furnace steel making process steps.

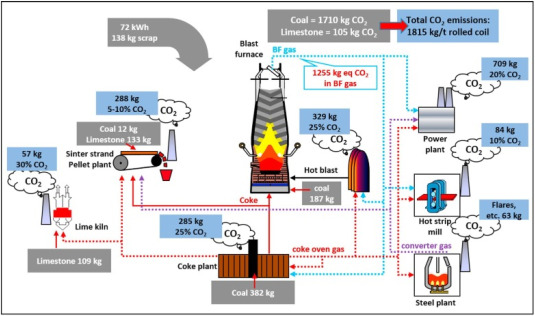

Basic Oxygen Furnace
*
Optimization of Flue Gas Scrubbing with NaOH in Steel Making
Process Control Strategies
Industrial flue gas scrubbing processes in basic oxygen furnace steel making depend on precise NaOH dosing for efficient removal of sulfur dioxide (SO₂) and nitrogen oxides (NOₓ). Automated dosing systems integrate real-time data from online concentration meters such as the Lonnmeter, allowing continuous alkali concentration monitoring. These systems adjust NaOH injection rates instantly, maintaining target concentrations to optimize gas neutralization and minimize chemical wastage.
Environmental Benefits
Wet scrubbing with NaOH, when tightly controlled, achieves up to 92% SOx removal with 5% NaOH solution, as proven in comparative plant-scale studies. This technology is frequently combined with NaOCl, raising removal rates for multiple pollutants, with some systems reaching 99.6% efficiency for SOx and significant NOx abatement. Such performance aligns with steel sector’s climate commitments under Paris Agreement targets, facilitating third-party verification and compliance certification for steel producers. Real-time monitoring and automated dosing also support rapid detection and correction of off-spec gas treatment, preventing regulatory breaches and costly fines.
Cost and Operational Efficiencies
Accurate NaOH concentration measurement using online alkali concentration monitoring devices, such as Lonnmeter caustic soda concentration meters, drives substantial cost and operational efficiencies in the basic oxygen furnace process. Automated dosing systems fine-tune reagent usage, directly cutting chemical costs by avoiding over- or under-dosing. Industry case studies consistently show chemical savings upwards of 45% when dosing is adjusted via real-time measurements.
These operational strategies also minimize equipment wear and reduce downtime. Predictive maintenance enabled by continuous monitoring provides early warning of deviations and process anomalies, allowing maintenance activities to be scheduled before equipment failure occurs. Techniques like thermographic testing and vibration analysis extend equipment lifetimes. Plants report 8–12% maintenance cost savings over preventive approaches, and up to 40% over reactive fixes. As a result, basic oxygen furnace steel making process steps become more sustainable, with reduced risk of unplanned shutdowns, improved safety, and reliable regulatory compliance. Employing these process control and flue gas treatment methods enables steelmakers to balance environmental and economic objectives effectively.
Common Challenges and Solutions in NaOH Concentration Measurement
Accurate NaOH concentration measurement in the basic oxygen furnace process is crucial for effective flue gas scrubbing, process control, and adherence to steel quality standards. Three persistent challenges are interference from other chemicals, sensor fouling, and the need to lessen manual sampling tasks.
Managing Interference from Other Chemicals in Flue Gas
The flue gas scrubbing process commonly uses NaOH for neutralizing acidic pollutants. However, the presence of other ions—such as sulfates, chlorides, and carbonates—can alter the physical properties of the scrubbing liquor and complicate concentration determination.
- Physical interference: These ionic contaminants can change the solution’s density or viscosity, which directly affects measurements from density-based online concentration meters like Lonnmeter. For example, elevated levels of dissolved SO₂ may react to produce sodium sulfite, distorting the NaOH concentration reading unless meters are calibrated or compensated for multi-component solutions.
- Solution: Modern Lonnmeter devices include advanced density discrimination algorithms and temperature compensation, which minimize error due to the coexistence of interfering substances. Regular calibration against known standards with similar impurity profiles further improves measurement accuracy for BOF process steps involving chemically complex flue gas streams. Integration of multiple chemical sensors also helps isolate NaOH readings for precise reagent control.
Addressing Sensor Fouling and Maintaining Measurement Accuracy
Fouling occurs when particulates, precipitates, or reaction byproducts accumulate on sensor surfaces. In the harsh conditions of BOF flue gas cleaning, sensors are exposed to particulate matter, scaling from salts, and viscous residues—each contributing to erroneous readings and maintenance issues.
- Typical fouling sources: Precipitates like calcium carbonate and iron oxides can coat the sensor’s vibrating element, dampening its resonance response and leading to low or drifting readings. Build-up of sticky caustic sludge further hampers signal stability.
- Solution: Lonnmeter concentration meters are designed with smooth, corrosion-resistant surfaces and deployable cleaning protocols such as in-situ rinsing and ultrasonic agitation to deter build-up. Scheduled automated cleaning cycles can be programmed using control system logic, drastically improving sensor life and ensuring sustained accuracy. Built-in diagnostics alert operators to calibration drift or fouling, triggering proactive maintenance without requiring frequent manual checks.
Reducing Manual Sampling and Analysis Labor
Traditional NaOH concentration measurement often relies on manual sampling and laboratory titration. This approach is time-consuming, susceptible to error, and introduces reporting delays that impede real-time process adjustments required during critical steel making process steps.
- Drawbacks of manual sampling: Sampling campaigns disrupt workflow, risk exposure to hazardous chemicals, and provide data with significant time lag, undermining tight control of flue gas treatment methods.
- Solution: Integration of Lonnmeter online alkali concentration monitoring directly into PLCs or distributed control systems (DCS) enables real-time feedback for automatic reagent dosing and endpoint detection. These caustic soda concentration meters continuously transmit data logs to the control room, eliminating routine labor and enabling operators to focus on strategic oversight. Process documentation confirms that such online concentration meter systems cut sampling labor by upwards of 80%, while supporting flue gas cleaning technologies to maintain compliance and product uniformity.
Real-world steel mills running modern BOF operations now depend on advanced measurement solutions including Lonnmeter devices to address these challenges, supporting robust flue gas desulfurization and optimizing alkali usage.
Integration Tips for Seamless Process Control and Data Management
Successful online NaOH concentration measurement depends on robust integration with process controls. Connect concentration meters to DCS, PLC, or SCADA systems for centralized monitoring and control. Ensure sensor signals are correctly scaled and validated before use in process automation or alarm management. Configure high/low concentration alarms to prompt operator action during deviations in caustic soda dosing for flue gas cleaning technologies.
To ensure data reliability:
- Apply periodic calibration routines using certified reference solutions.
- Implement automated data logging for trend analysis and regulatory review.
- Use redundancy where process-critical; deploy backup sensors or dual signal channels.
- Network data from the online concentration meter directly into process historian systems to enable in-depth review during troubleshooting or process audits.
For maximum efficiency, match integration approaches to plant scale—relying on DCS for high-volume, continuous BOF operations; or PLC/SCADA for modular or pilot systems requiring rapid reconfiguration. During integration planning, involve engineering teams in interface testing and validation to avoid communication errors and data loss.
Conclusion
Effective NaOH concentration measurement is vital for the performance and reliability of the flue gas scrubbing process in basic oxygen furnace steel making. Accurate, real-time monitoring of NaOH ensures that SO₂ and NOx are efficiently removed, which directly supports both operational efficiency and rigorous regulatory compliance requirements. Maintaining the correct NaOH concentration allows for optimal scrubbing efficiency, minimizing by-product formation and unnecessary reagent consumption, while also avoiding operational issues such as scaling and corrosion in the system.
The deployment of advanced online alkali concentration monitoring systems—such as those using multi-parameter conductivity, salinity, and alkali detection—has become the industry benchmark. By adopting robust technologies like online concentration meters and dedicated caustic soda concentration meters, operators gain continuous insight into process conditions. These systems facilitate dynamic process control and enable corrective adjustments in response to changing load or gas composition, allowing facilities to adapt their basic oxygen furnace steel making process steps with precision.
Process optimization is reinforced by integrating accurate measurement tools with feedback control strategies, allowing for proactive NaOH dosing adjustments. This not only maintains peak removal efficiencies in the flue gas scrubbing process but also reduces the environmental and financial costs associated with over- or under-dosing. Reliable NaOH monitoring ensures the basic oxygen furnace process consistently meets the ultra-low emission targets now prevalent in industry regulations and aligns with the best available flue gas treatment methods and cleaning technologies.
In a regulatory landscape that demands tight control of emissions, robust measurement infrastructure is not just a technical requirement but a business imperative. The adoption of concentration meters—such as those provided by Lonnmeter—empowers steel plants to achieve regulator-mandated pollutant targets with confidence, underpinning both continuous process improvement initiatives and compliance documentation requirements. This positions accurate NaOH concentration measurement at the heart of effective process engineering and sustainable operations in steel manufacturing.
Frequently Asked Questions
What is flue gas scrubbing and why is it necessary in the basic oxygen furnace process?
Flue gas scrubbing is an emissions control technique used to remove hazardous gases such as sulfur dioxide (SO₂) from the exhaust produced during the basic oxygen furnace (BOF) steel making process. This treatment protects the environment by reducing acid gas emissions and particulate release, making it possible for steel plants to comply with air quality and emissions standards. The BOF process emits significant quantities of carbon dioxide, carbon monoxide, and sulfur-containing gases, requiring robust gas treatment to minimize environmental and regulatory impacts.
How does the flue gas scrubbing process work in steel making?
In BOF steel plants, flue gas scrubbing relies on chemical absorption to remove acid gases from process emissions. Commonly, this involves passing the flue gases through a contactor where an absorbent—often sodium hydroxide (NaOH, also known as caustic soda) or a limestone slurry—reacts with sulfur dioxide and other acidic species. For example, when NaOH is applied, SO₂ reacts to form soluble sodium sulfite or sulfate, neutralizing the gas. The scrubbing solution absorbs pollutants, and cleaned gas is vented. Efficient scrubbing depends on accurate control and monitoring of scrubbing chemicals throughout this process.
What are the steps of the basic oxygen furnace steel making process?
The BOF steel making process consists of distinct, closely monitored steps:
- Charging the basic oxygen furnace with hot, molten iron (usually sourced from blast furnaces), scrap metal, and fluxes like limestone.
- Blowing high-purity oxygen through the molten metal, rapidly oxidizing impurities (notably carbon, silicon, and phosphorus) which evolve as gases like CO₂ and CO.
- Separation of slag (containing oxidized impurities) from the desired molten steel.
- Further refining by adjusting alloy content and casting the steel product.
During these steps, significant emissions requiring flue gas scrubbing are generated, especially during oxygen blowing and refining.
Why is online concentration meter crucial for NaOH concentration measurement?
Online concentration meters provide continuous, real-time measurement of NaOH concentration in scrubbing solutions. This is critical for effective sulfur dioxide removal, minimizing chemical waste, and maintaining process stability—without the inefficiencies of manual sampling or laboratory testing. Automated monitoring enables rapid response to process fluctuations, prevents overspending on chemicals, and reduces environmental risks linked to under- or overdosing of NaOH. Tools such as the Lonnmeter deliver constant feedback, allowing operators to optimize performance and ensure emission targets are met, with direct impact on costs and compliance.
What methods are used for NaOH concentration measurement in flue gas scrubbing systems?
NaOH concentration can be measured by:
- Titration: Manual sampling and laboratory titration with hydrochloric acid. While precise, this method is labor-intensive, slow, and prone to delays in process adjustment.
- Online concentration meters: Instruments such as the Lonnmeter use physical properties (e.g., conductivity, sonic velocity), or advanced optical techniques (such as near-infrared photometry), for instant, in-line measurement.
Conductivity sensors are widely used but can be affected by interfering salts. NIR multiwave photometry can target caustic specifically, even where other reaction by-products are present. Newer tools combine various measurement principles for robust, real-time alkali monitoring under harsh conditions found in steel plant scrubbing systems.
These methods ensure the caustic soda concentration is kept within optimal limits, supporting effective and efficient flue gas cleaning technologies.
