Precise control of feed concentration in ball mill circuits is central to optimizing copper mine processing techniques and other mineral processing methods. Several modern tools and approaches have emerged to advance ball mill operation and ball milling process optimization. Continuous monitoring of slurry density is vital in mineral processing equipment for stable grinding. Inline density measurement in mining uses advanced sensor technologies such as high-frequency vibration sensors, ultrasonic ceramic sensors, etc.
Understanding Ball Milling in Mineral Processing
Ball mills are cornerstone equipment in mineral processing plants, specifically designed to achieve size reduction of ore particles for efficient extraction and recovery. At their core, ball mills are rotating cylindrical vessels, partially filled with grinding media such as steel balls or ceramic pellets, which grind ore via a mix of impact and attrition forces. This grinding process is critical for mineral liberation, a prerequisite for all subsequent beneficiation methods—whether flotation, leaching, or gravity separation.
Defining the Role of Ball Mills in Mineral Processing Plants
Ball mills operate by harnessing mechanical energy to break down the ore. The selection of grinding media type and size directly influences the breakage mechanism, throughput, and particle size distribution. The interplay between ore type, grinding media, and mill speed sets the stage for effective comminution.
Key operational parameters such as charge volume, liner design, and media loading are carefully configured for optimal grinding efficiency and reduced wear rates. For example, using the correct combination of ball size and media density improves both throughput and mineral liberation rates, essential for processing difficult, low-grade ores often encountered in copper mining.

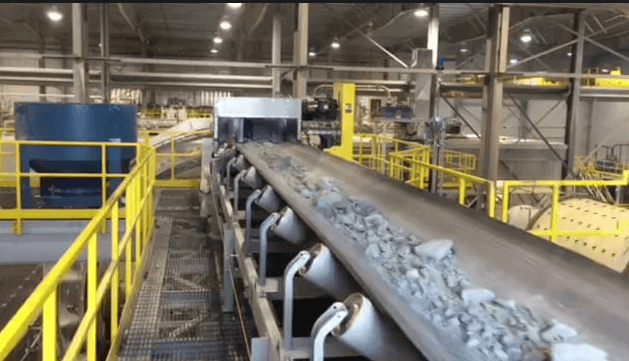

Feeder Control -Ore Feed Size and Mill Tonnage
*
Ball mill liners also play a vital role in protecting the mill shell, facilitating efficient movement of the media, and supporting desired particle flow patterns. Regular liner and media maintenance, informed by monitoring grinding media wear rates and mill throughput, is fundamental for sustained performance and cost containment.
Critical Importance of Ball Milling in Copper Mine Operations
In copper mining, ball milling is indispensable. The process ensures that ore is broken down finely enough for copper minerals to be separated from the surrounding gangue. As ore bodies trend toward lower grades and increased complexity, ball milling strategies must adapt to changing mineralogy, ore hardness, and operational variability.
Patients with bornite-rich ore, for instance, typically see easier grinding and higher liberation rates, while chalcopyrite-rich ore, with greater hardness, poses throughput challenges and increases energy demand. Advanced copper mine processing techniques now emphasize specialized ball mill designs and tailored media selection to maximize recovery and minimize over-grinding, reducing both energy costs and mineral losses. Regular maintenance—especially around mill liners and grinding media management—further supports operational reliability and economic sustainability.
Overview of Feed Concentration Control and Milling Efficiency
Feed concentration—the proportion of solids in the slurry delivered to the ball mill—is a pivotal variable in determining grinding efficiency and energy consumption. Too high a solid content increases slurry viscosity, causing poor mixing and excessive power draw, while too low restricts throughput and reduces breakage rates. Precise control over feed rate and concentration enables operators to maintain optimum particle breakage, minimize torque loss, and conserve energy.
Real-time inline density measurement technologies, including non-nuclear ultrasonic devices such as Lonnmeter, are increasingly used to monitor slurry properties and provide immediate feedback for process adjustment. This technology supports dynamic control, reliably stabilizing mill operation and improving overall grinding efficiency. By integrating feed control systems with advanced inline density measurement, mineral processing plants realize both higher product quality and lower operational costs across copper mining extraction and other mineral liberation tasks.
In short, ball mill operation, the choice and wear of grinding media, liner maintenance, and feed concentration control collectively determine the efficiency of mineral processing methods. These strategies underpin the effectiveness of ball milling for mineral liberation, especially in demanding environments like modern copper mines, where equipment and process optimization are critical to sustainable, cost-effective mineral recovery.
Grinding Media: Selection, Performance, and Wear
Ball mill operation in mineral processing, especially for copper mining extraction, relies heavily on the selection and optimization of grinding media. Choosing the right media affects not only grinding efficiency and mineral liberation but also the operational economy and equipment longevity.
Types of Grinding Media Used in Ball Mills for Mineral Ores
Ball mills utilize various grinding media, with the specific type chosen based on ore properties, required grind size, and circuit design. Predominant categories include:
Forged Steel Balls: Praised for high mechanical strength and superior resistance to breakage, forged steel balls are commonly used in copper mine processing techniques. They exhibit desirable properties in both wet and dry milling, providing consistent particle breakage and lower media wear rates.
Cast Steel Balls (High-Chrome and Standard Iron): Cast balls, particularly high-chrome variants, offer increased abrasion resistance, making them well-suited for abrasive mineral processing methods. However, their higher production cost and possible chemical reactivity in certain copper circuits can impact media economics and flotation outcomes.
Ceramic Media (Alumina and Zirconia): Used in regrind or specialty applications needing very fine grinding and low contamination. Their benefits include excellent wear resistance and minimal process contamination, but higher costs and lower fracture toughness restrict their use in large-scale copper milling.
Cylpebs and Rods: These alternatives are occasionally selected for particular grind sizes or for hybrid circuits. Their unique shape influences contact dynamics and breakage patterns, beneficial in some mineral liberation configurations.
Impact of Media Size, Geometry, and Density on Grinding Performance and Mineral Liberation
Media characteristics significantly influence the ball milling process optimization and the liberation efficiency of valuable minerals:
Size Gradation: Employing a mixture of large and small balls ensures both efficient coarse particle breakage and fine grinding. Larger balls impart higher impact forces, essential for breaking bigger ore fragments, while smaller balls improve fine mineral liberation.
Geometry and Shape: Spherical media provide uniform load distribution, leading to higher grinding efficiency and generation of targeted fine fractions. In contrast, alternative shapes (e.g., cylpebs) adjust the contact profile, sometimes aiding in specific ore types or desired product sizes.
Density: Media density determines energy transfer during collisions. Lower-density media have shown superior liberation and energy efficiency in fine regrind applications, while higher-density options are preferable for high-throughput coarse grinding circuits.
Example: In an IsaMill regrind circuit, using lower-density ceramic balls combined with variable media size enabled reduction in specific energy consumption and enhanced liberation for subsequent flotation.
Economic and Operational Implications of Optimal Grinding Media Selection
The economic consequences of grinding media choice are far-reaching in copper mine processing techniques:
Cost of Media Consumption: Media wear rate directly dictates replacement frequency and purchasing overhead. Optimizing material type, size, and gradation can reduce annual consumption by 10–15%.
Grinding Efficiency and Energy Use: Proper selection enhances throughput and lowers specific energy consumption, translating into smaller environmental footprints and improved bottom-line performance.
Downstream Processing Effects: Media composition can affect mineral surface chemistry and, consequently, the effectiveness of subsequent flotation or leaching. Improper selection may require increased reagent dosing or lead to undesirable product contamination.
Mill Equipment Longevity: The interaction between grinding media and ball mill liners influences maintenance cycles. Media with lower wear and breakage rates protect liner life, minimizing unplanned downtime and associated production losses.
Example: Operations employing the Lonnmeter system and real-time monitoring have demonstrated improved optimization in media selection, delivering higher ball mill grinding efficiency and more predictable media-replacement schedules.
Strategic selection and management of grinding media in ball milling for mineral liberation is integral to maximizing recoveries, sustaining throughput, and controlling costs throughout the industrial mineral processing value chain.
Copper Mine Ball Milling: Ore Characteristics and Feed Control
Copper ore for ball mill circuits is categorized into two main types: oxide and sulfide. Each calls for distinct mineral processing methods and ball mill feed strategies due to fundamental mineralogical and physical differences.
Oxide ores, such as malachite and azurite, are primarily composed of copper combined with oxygen. These ores are softer, making them easier to crush and grind. In copper mine processing techniques, oxide ores typically require less fine grinding before leaching—acid leaching is the standard mineral processing method, capitalizing on their inherent solubility. Therefore, ball mill operation for oxide ore often aims for coarser grind sizes, reducing overall energy input and wear on grinding media. The ball milling process optimization here prioritizes throughput while aiming for particle sizes that balance liberation with downstream leach efficiency.
Sulfide ores, such as chalcopyrite and bornite, form copper minerals bound with sulfur. These ores tend to be harder and less reactive to direct acid leaching, necessitating fine grinding in ball mills to achieve sufficient liberation for flotation-based copper extraction. Milling sulfide ore demands a finer feed size, which means more energy consumed and increased attention to choosing the optimal grinding media types and uses. Forged steel balls are usually favored for sulfide ore due to their resilience under high-wear, corrosive conditions, while high-chromium cast balls may be used for specific performance goals despite higher costs. The need for effective ball mill liners and regular maintenance also increases with the abrasive nature of sulfide feeds.
Ore mineralogy in large open-pit copper mines is rarely static. Many deposits display mixed oxide-sulfide zones, especially at the transition between weathered and primary ore. Managing this variability is key for consistent ball mill feed and stable plant operation. Continuous mineralogical variation can shift the optimal grinding media wear rate, affect the efficiency of mineral processing equipment, and alter the requirements for ball milling for mineral liberation. For example, blending streams from different benches or ore zones buffers feed variability, while thermodynamic models (Eh–pH diagrams) support adaptive strategy selection for improved copper recovery in mixed-mineral feeds. In some cases, processing mixed streams rather than segregating them enhances galvanic interactions, boosting overall metal dissolution rates during leaching or flotation.
Microwave pretreatment of sulfide ores has recently been shown to modify ore breakage characteristics, resulting in coarser product distributions and elongated particle shapes. This impacts ball mill grinding efficiency and may support downstream process optimization—such as improved flotation—signifying that ore preconditioning is increasingly integral to advanced feed control strategies.
Logistics for maintaining consistent mill feed begins at the mine face. Stockpile management is critical, acting as a buffer between variable mine output and the steady feed required by ball mills. Pre-crusher and primary stockpiles are designed not only to store ore but also to facilitate blending from multiple sources, reducing daily and shift-to-shift variability. Careful stockpile build and reclaim procedures ensure homogeneous blending, mitigating grade swings and providing consistent mineralogical composition to the milling circuit.
Feeder design further affects feed consistency and ball mill operation. For large open-pit projects, feeders must accommodate a wide range of ore fragment sizes and bulk densities. Integrating precise inline density measurement—using systems such as Lonnmeter—at the feeder head enables real-time monitoring and control of ore feed density, supporting optimal grinding conditions and throughput. Reliable feeder systems counteract surges or blockages, stabilizing the delivery of ore to the ball milling circuit.
Overall, successful copper mine ball milling depends on tailoring feed control to ore mineralogy, actively blending and buffering variable sources, and using robust logistics—from stockpiles to feeders—to minimize fluctuations. This yields efficient mineral liberation, maximized copper recovery, and sustainable operation in increasingly complex mining environments.
Feed Concentration Control Techniques and Tools
Direct Measurement: Sensors and Particle Size Analysis
Operators rely on sensors for real-time assessment of slurry and feed properties. Throughput sensors monitor mass flow, while feed particle size analysis systems—often installed at belt conveyors or feed hoppers—deliver immediate granularity data for grinding media types and uses decisions. Inline sampling mechanisms, coupled with particle size analyzers, enable continuous determination of mill feed fineness, a key variable in ball milling for mineral liberation and ball mill grinding efficiency.
Inline Density Measurement: Technologies and Benefits
Continuous monitoring of slurry density is vital in mineral processing equipment for stable grinding. Inline density measurement in mining uses advanced sensor technologies such as high-frequency vibration sensors, ultrasonic spectroscopy-based ceramic sensors, and applied current magnetic induction tomography (AC-MIT).
- High-frequency vibration sensors detect in-line changes in slurry density and viscosity, with self-cleaning features that reduce fouling and maintenance.
- Ceramic ultrasonic sensors offer abrasion resistance and drift-free measurement, suitable for harsh ball mill environments. They deliver maintenance-free operation and high throughput, supporting ball mill liners and maintenance routines.
- AC-MIT sensors enable non-contact measurement, minimizing downtime and wear in continuous circulation systems.
The main benefits of inline density measurement include:
- Accurate real-time management of pulp density, crucial for copper mining extraction and grinding optimization.
- Improved operational efficiency through real-time feedback, reducing human error and dependence on lab sampling.
- Enhanced product quality with direct control over solids content, slurry density, and grinding media wear rate.
Integration of inline density monitoring systems, such as those described in the Inline Density Monitoring for Ball Mills, allows for precise, automated pulp density control, advancing mineral processing methods and process stability.
Balancing Water Addition, Slurry Density, and Solids Content
Optimal water addition in ball milling establishes the best slurry density for grinding efficiency. Industrial studies show that controlling water ratios, feed solids, and grinding media type not only improves throughput but also reduces specific energy consumption. Response surface methodology (RSM) models validate the strong effects of water addition and media filling rates on energy use and process performance.
Dynamic measurement tools, such as inline density probes and particle size sensors, ensure pulp density remains within optimal ranges for copper mine processing techniques. Adjustments to water addition directly influence slurry viscosity, grinding media interaction, and ore liberation rates.
Automated Control Systems and Feedback Loops
Modern ball mills use automated control systems to regulate feed concentration. These systems utilize sensor-based feedback loops to manage feed rates, slurry density, and temperature in real time. For example, temperature sensors at mill inlets guide feed rate adjustments, maintaining raw mix moisture below critical thresholds.
Industrial computers and cameras may supplement sensor inputs for comprehensive monitoring, enabling autonomous adjustment in response to variations in feed characteristics or mill load. This adaptive feedback approach minimizes operator dependence, reduces variability, and increases copper processing throughput. Academic studies validate that such systems enhance process stability and milling efficiency.
Impact of Advanced Process Control on Efficiency and Energy Consumption
Advanced process control (APC) systems use integrated, automated methods to maximize grinding efficiency and lower energy use in ball milling. Field studies on copper mine processing techniques document improvements in throughput—such as increases from 541 to 571 tph—when APC is engaged. Variability in pulp density drops, and specific energy consumption decreases by more than 5%.
APC optimizes grinding parameters like solid concentration, mill load, grinding time, and stirrer speed. This control enhances ball milling for mineral liberation, reduces wear rates, and aids in predictive ball mill liners and maintenance scheduling. Process stability strengthens, aligning with industry goals of reduced operational costs and improved environmental metrics.
In summary, the combination of direct measurements, inline density monitoring, dynamic slurry control, automated feedback, and advanced process control tools together establish the foundation for efficient, predictable, and sustainable ball mill feed regulation in modern mineral processing plants.
Innovations in Ball Mill Design and Energy Optimization
Structural Advancements for Reduced Energy Consumption in Copper Ore Grinding
Significant improvements in ball mill operation for copper mine processing techniques focus on structural features that lower energy requirements. Notable advancements include the integration of efficient drive systems, improved liners, and optimized shell designs.
Efficient drive systems, such as Permanent Magnet Synchronous Motors (PMSMs), are increasingly adopted for their high energy efficiency and soft start capability. PMSMs contribute to smoother mill startups, reduced peak power demand, and longer motor life, which translates to lower operational expenditures and more consistent ore throughput. Enhanced shell designs, incorporating advanced materials and geometries, reduce internal resistance to motion and enable effective ore mixing and grinding.
Liner technology also plays a pivotal role. Developments in liner materials—like wear-resistant rubber and composite designs—decrease grinding media wear rate, minimizing downtime for ball mill liners and maintenance. Optimized lifter face angles, verified by discrete element method (DEM) simulations and real-world trials, balance ore lift and trajectory length to improve comminution efficiency while reducing liner wear. Adjusting lifter geometry alone can result in energy reductions of up to 6%, complementing broader energy savings.
Overall, the deployment of energy-saving ball mill technologies achieves up to 15–30% reduction in energy consumption. This is realized through a combination of improved mill internals and more effective transfer of energy to copper ore during the grinding process

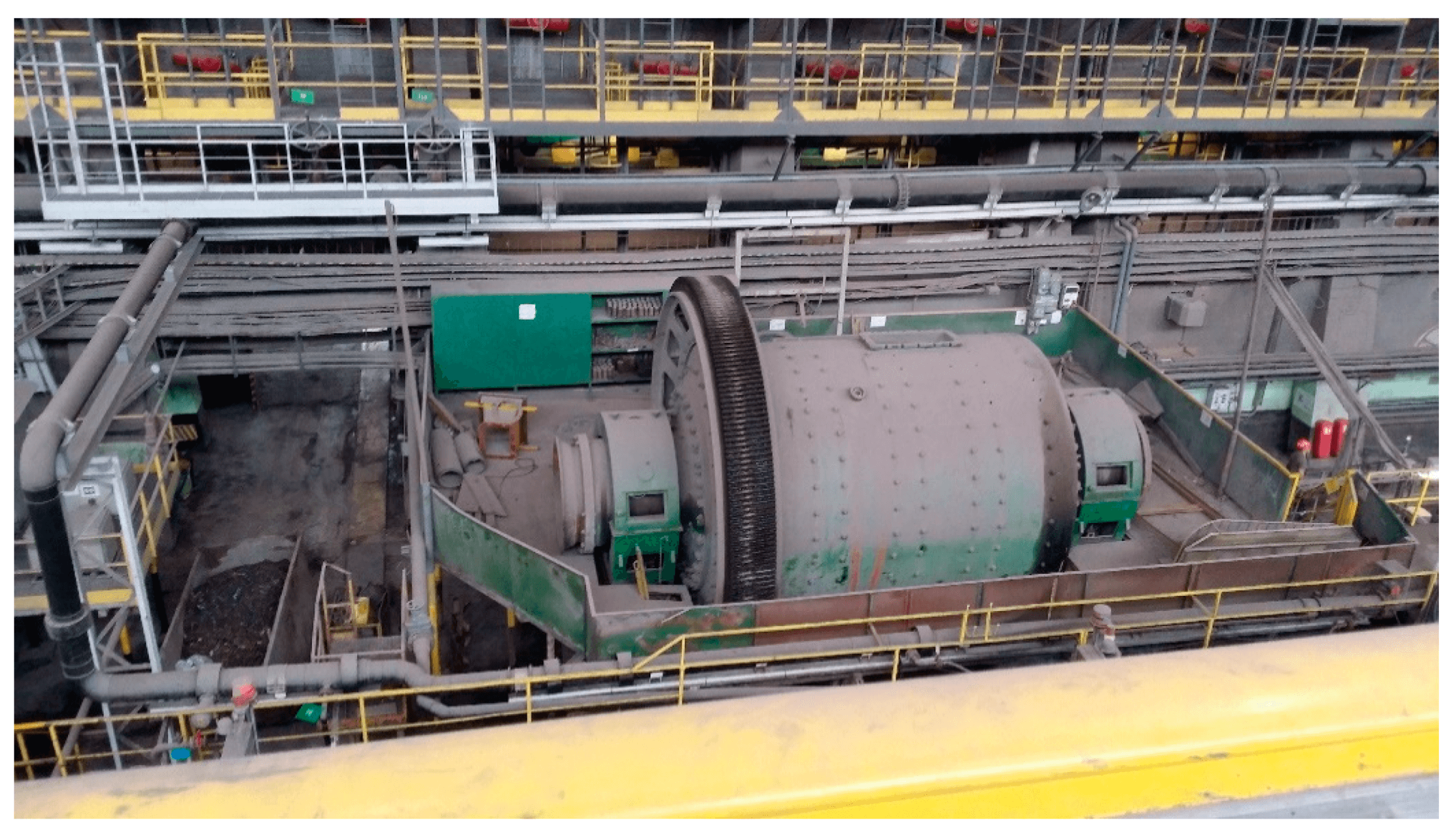

Ball Mill
*
Control Systems for Mill Speed, Load, and Grinding Circuit Integration
Advanced control systems enable real-time optimization of critical operational parameters in ball milling, including mill speed, ball load, and the integration of grinding circuits. These systems leverage platforms like Programmable Logic Controllers (PLC) and Supervisory Control and Data Acquisition (SCADA), giving operators dynamic oversight and automated intervention.
For example, advanced process control (APC) solutions maintain optimal mill speeds and precise grind size targets, using real-time feedback from inline density measurements and circuit status indicators. Automated media charging adjusts the volume and type of grinding media, preventing under- or over-charging events that can negatively impact grinding efficiency and increase energy use.
Integration of these systems links the ball mill to upstream and downstream mineral processing equipment, enabling holistic process optimization. Changes in copper ore feed or circuit performance prompt immediate control responses that maintain efficient operation, stabilize product size, and minimize energy consumption.
Environmental and Economic Gains from Energy-Optimized Ball Milling
The adoption of energy-optimized ball milling in mineral processing methods delivers substantial environmental and financial benefits. Reduced electrical consumption cuts operational costs, which can represent a major fraction of a copper mine’s total expenditure. For plants running multiple mills, aggregate savings from energy-efficient designs and control systems are significant.
Environmentally, lower energy demand directly decreases carbon emissions, aligning with regulatory and voluntary sustainability targets. For instance, improved grinding circuit efficiency reduces the need for energy-intensive processes further downstream in copper mining extraction. Noise levels and lubrication contamination, persistent issues in traditional mills, also diminish with the use of advanced drives and optimized liners.
Process innovations like grate discharge systems increase ore throughput and enhance ball milling for mineral liberation while minimizing over-grinding—a key factor in maximizing recovery and resource efficiency. Inline density measurement in mining ensures process consistency, supporting further energy savings and resource optimization.
The combined outcome is a marked improvement in both the economic viability and sustainability profile of copper ore milling operations.
Balancing Mineral Liberation and Over-Grinding Risk
Feed concentration is directly tied to mineral liberation efficiency in copper mine processing techniques. In ball mill operation, a well-chosen solid concentration in the mill feed can accelerate breakage rates and enhance liberation while minimizing unnecessary energy consumption. Research shows that, for ball milling process optimization, too high a feed concentration leads to particle agglomeration, hindering liberation and grinding efficiency. At lower concentrations, breakage is less efficient, and under-liberation can occur, illustrating that a balance is needed for optimal results.
Relationship Between Feed Concentration, Grinding Media, and Liberation Efficiency
The type and size of grinding media crucially affect liberation in mineral processing methods. Steel balls are common but can promote surface oxidation, aiding the flotation of minerals like pyrite and potentially lowering the floatability of copper minerals such as chalcopyrite. Nano-ceramic media, by contrast, tend to foster selective adsorption of xanthate collectors, enhancing chalcopyrite liberation and subsequent recovery. Experimental evidence using scanning electron microscopy and flotation tests substantiates these media-dependent surface chemistry effects.
Furthermore, media composition and mill fill levels impact grinding kinetics and energy transfer. Finer media size distributions generally yield higher liberation rates but can also increase over-grinding risk if not carefully managed. Media wear rate, ball mill liners and maintenance, and media loading must be assessed holistically to develop an optimal grinding environment for copper mining extraction.
Strategies to Minimize Over-Grinding: Optimizing Residence Time and Media Combination
Over-grinding—a reduction of valuable minerals to excessively fine particles—undermines downstream flotation efficiency and concentrate quality. To prevent this, residence time distribution (RTD) within the ball mill must be optimized. In practice, tracer methods and RTD models (N-series reactors) enable precise monitoring of mean residence times. Data shows that residence times in the range of 1.7 to 8.3 minutes in industrial ball mills allow for optimal liberation without excessive fining.
A tailored media blend addresses both liberation and over-grinding risk. Employing a mix of media types and sizes, informed by the ore’s mineralogy and targeted grind size, yields an optimal product fineness and enhances mineral liberation. For instance, blending steel and ceramic media, or varying ball size distributions based on kinetic modeling, tunes the breakage profile, reducing the emergence of fines that can cause slime coating and poor flotation selectivity.
Inline density measurement in mining, using tools such as Lonnmeter, provides real-time feedback on mill feed concentration. This facilitates rapid operational adjustments, maintaining a consistent grinding environment suited for mineral liberation and minimizing periods of high over-grinding risk. The inline density measurement benefits extend to more stable ball mill grinding efficiency and reproducible concentrate quality.
Effects on Downstream Copper Recovery and Concentrate Quality
Optimal liberation is a linchpin for high copper recovery and concentrate grade. When ball milling for mineral liberation is properly balanced, liberated copper minerals are more amenable to separation by flotation, improving recovery rates. Studies confirm that short residence regrinding and selective media choices enhance the freedom of copper minerals from gangue, directly benefiting flotation selectivity and concentrate purity.
However, excessive size reduction from over-grinding creates ultrafine fractions prone to agglomeration and slime coating. These fines are more difficult to recover efficiently in flotation, may depress copper concentrate grades, and can elevate undesirable gangue minerals due to poor selectivity. Additionally, increased grinding media wear rates in overfilled mills worsen operational costs and maintenance.
By integrating controlled feed concentration, optimized residence time, and strategic grinding media combinations, ball mill grinding efficiency is maximized. This approach delivers reliably liberated copper minerals, higher extraction rates, and consistent concentrate quality, aligning with best practices in mineral processing equipment utilization and copper mine processing techniques.
Process Optimization for Copper Mines: Economic and Performance Drivers
Operational costs in copper mine processing are dictated by several interrelated factors. The most significant drivers include grinding media selection and wear, mill liner performance, energy consumption, and variability in ore feed. Effective process optimization hinges on understanding and managing these dynamics to enhance both economic efficiency and metallurgical performance.
Grinding media account for a major portion of ball mill operation costs. The type, diameter, and material of grinding media directly affect energy consumption, grinding kinetics, and the efficiency of mineral liberation in copper ore processing. Studies show that larger-diameter grinding media, such as 15 mm balls, can reduce grinding time and energy usage by up to 22.5% compared to smaller sizes, translating to marked operational savings and higher throughput. Surface area per unit energy input is a more precise metric for evaluating grinding media effectiveness than total mass or count. Selection of media material, such as steel or ceramics, also impacts the overall wear rate and the breakage pattern of minerals, further influencing operational longevity and copper recovery. In copper ore grinding environments, corrosion of steel media can be exacerbated by sulfides, necessitating careful consideration when selecting media types to balance cost and long-term performance.
Ball mill liners are another critical cost and performance consideration. The liner geometry and composition protect the mill shell, influence the trajectory of grinding media, and play a central role in determining grinding efficiency. Recent advances include computational modeling and liner geometry optimization, which have successfully reduced liner wear, improved particle breakage, and minimized mill downtime. The adoption of machine learning for liner wear prediction, combined with advances in liner relining automation, further reduces maintenance costs and operational interruptions. For example, machine learning error rates as low as 5-6% have been reported in predicting liner wear, supporting proactive liner management and optimizing mill availability.
Energy use remains a principal economic concern in ball milling for mineral liberation. Grinding accounts for a substantial portion of a copper mine’s total energy consumption. Innovations such as variable frequency drives and high-efficiency, gearbox-less motors have produced energy savings of 15–30%, stabilizing grinding circuits while reducing emissions and costs. These structural and technological upgrades also minimize over-grinding, supporting both copper recovery and equipment longevity in mineral processing methods.
Feed variability introduces operational complexity and cost volatility to the milling and mineral processing equipment chain. Variations in ore composition, moisture content, and particle size can sharply impact ball mill grinding efficiency, throughput, and copper recovery rates. To counteract these effects, advanced feed monitoring systems—including real-time composition analyzers and moisture sensors—enable precise blending and more stable control of the milling process. This feedforward control improves planning, reduces waste, and optimizes reagent usage, all of which lower cost and environmental footprint.
Dynamic process adjustments, tailored to ore type and real-time ball mill performance data, are essential for maintaining throughput and optimizing both recovery and operating expense. Inline density measurement, realized through Lonnmeter’s robust real-time sensors, is now central to effective control strategies. Input from inline density measurement devices stabilizes grinding circuits, mitigates overloads, and ensures optimal solid-liquid ratios for each ore blend and mill condition. Data from these instruments support immediate adjustments to grinding parameters and reagent dosing, leading to higher grinding efficiency and sustained metallurgical recovery.
Ultimately, the integration of mineral processing objectives—throughput maximization, recovery optimization, and rigorous cost containment—depends on a holistic approach to ball milling process optimization. Harmonizing grinding media choices, liner management, energy reduction strategies, proactive feed variability control, and real-time density measurement is critical for sustained economic and operational success in copper mining extraction.
Research Gaps and Opportunities in Ball Mill Feed Control
Ball mill operation in copper mine processing relies heavily on effective mineral processing methods and feed control strategies. Current literature highlights pronounced research gaps and technological opportunities for optimizing mineral liberation and grinding efficiency.
Impact of Mixed Grinding Media Combinations on Mineral Liberation
Combining grinding media types—such as spherical balls with cylindrical or irregular shapes—can manipulate grinding kinetics and mineral exposure. The interaction of multiple materials (e.g., mild steel, stainless steel) and geometries changes wear mechanisms, energy transfer, and liberation, but the effects on copper sulphide separation remain underexplored. Comparative studies indicate that wet milling with mild steel balls enhances flotation recovery by influencing mineral surface chemistry and pulp selectivity in copper milling. Conversely, stainless steel media have boosted flotation rates through altered galvanic interactions and pulp potentials, particularly in sites like Northparkes copper mine. Despite these advances, the synergies of mixed media shapes and materials on combined liberation and energy usage are not well-defined. Key questions persist regarding the optimal mix for specific ore types, the influence on downstream flotation, and best-practices for arranging mixed media for cost-effective mineral liberation. Modeling and experimental data for tailoring media arrangements that maximize liberation efficiency are urgently needed to refine ball milling for mineral liberation and copper mining extraction.
Influence of Media Shape and Density on Overall Mill Performance
Grinding media shape significantly shapes mill load behavior, breakage rates, and power draw. Spherical ball media generally generate higher breakage rates, especially for coarse feed, whereas cylindrical (cylpebs) media require more power input at lower speeds. Media density determines kinetic energy transfer and affects throughput rates. Experimental studies reveal that variable media diameters cut grinding time and reduce energy use for fine product sizes, emphasizing the importance of process variable selection in ball milling process optimization and copper mine processing techniques. However, integrating media shape and density into predictive models of breakage and energy consumption is incomplete. Real-world validation and computational modeling remain insufficient, complicating decision-making for copper mine operators seeking to balance efficiency, ball mill liners and maintenance, and grinding media wear rate. Studies consistently call for deeper investigation into how shape, density, and distribution combine to influence ball mill grinding efficiency and product size distribution.
Future Potential for Expanded Use of Real-Time Density and Particle Sizing Instrumentation
Automated inline density measurement in mining offers actionable insights for ball milling process control. Real-time systems—including acoustic signal analysis, spatial filter laser probes, and machine vision—allow continuous tracking of feed density and particle size distribution. Instruments such as Lonnmeter utilize patented inline measurement techniques, analyzing thousands of particles per second for precise sizing and flow characterization. Acoustic and machine vision technologies have been reliably validated against traditional sampling in mineral processing equipment, supporting real-time feed control and reducing over-grinding. Inline density measurement benefits include minimized sampling delays, faster process adjustments, improved product consistency, and resource savings. These systems represent crucial opportunities for ball mill operation by enabling direct monitoring of feed conditions and automatic adjustments for ball mill grinding efficiency. Their deployment could advance copper mining extraction, reducing reliance on manual sampling and feedback while supporting more robust and responsive control of ore comminution.
The continuing evolution of mineral processing methods demands that these research gaps—particularly in mixed media behavior, media modeling, and real-time measurement—be bridged to deliver optimized, sustainable ball mill performance across the mining sector.
Frequently Asked Questions (FAQs)
What is the purpose of grinding media in a ball mill for mineral processing?
Grinding media are essential for breaking down copper ore particles within ball mills, allowing for efficient mineral liberation. Media such as forged steel balls, high-chromium alloy balls, ceramic balls, and cylpebs enhance ore comminution through impact and attrition. The type, size, and density of grinding media directly affect milling effectiveness, energy consumption, and operational costs. For example, high-chromium alloy media reduce galvanic interactions with sulfide minerals, which stabilizes pulp chemistry and improves selectivity in downstream flotation stages compared to forged steel alternatives. Media with high wear resistance and optimal density minimize contamination and reduce the grinding media wear rate, directly impacting overall ball milling process optimization and copper recovery rates.
How does feed concentration affect ball mill efficiency in copper mines?
Feed concentration refers to the proportion of solids—copper ore—in the slurry entering the ball mill. This parameter is central to ball mill grinding efficiency and mineral liberation. Operating with optimal slurry density and solids content avoids both under- and over-grinding, protecting energy efficiency and maximizing copper recovery. Studies have shown that too high solid concentration leads to particle agglomeration and elevated energy consumption, while too low concentration reduces the effectiveness of mineral processing methods. The ideal feed concentration and filling rates (typically around 56% for balls and 0.70 for powder) achieve the best particle size reduction and lowest operational cost.
What is Inline Density Measurement and why is it important in ball milling?
Inline Density Measurement is a process control technique that tracks the real-time density of slurry as it enters the ball mill circuit. Technologies such as ultrasonic, ceramic-based sensors provide non-nuclear, fast, and accurate readings, offering superior abrasion resistance and minimal maintenance. This immediate feedback on feed consistency allows operators to quickly adjust the ball mill operation for optimal grinding efficiency. As a result, copper mine processing techniques benefit from improved throughput, reduced energy costs, higher mineral recovery, and better product quality. Inline density measurement benefits process optimization and safety by replacing older, radiation-based methods.
Why are specific grinding media chosen for copper ore ball milling?
Selecting grinding media for copper ore ball milling is based on ore hardness, chemical reactivity, and processing plant requirements. Durable media like high-chromium alloy balls are suited to abrasive, sulfide-rich ores for their wear resistance and reduced chemical contamination. Forged steel is preferred for high-impact comminution, while ceramic media offer precise control for ultra-fine mineral processing methods. Shape—such as balls versus cylpebs—also affects breakage rates and energy use. A balanced approach in choosing media type, density, and size optimizes ball milling for mineral liberation, enhances product quality, and controls costs.
How do energy-saving ball mill designs benefit mineral processing?
Energy-saving ball mill designs feature advanced liners, innovative mechanical structures, and high-efficiency motors. These elements combine to reduce energy consumption by up to 30% in copper mining operations. For example, using permanent magnet synchronous motors without gearboxes and composite liners decreases power losses, boosts startup efficiency, and increases throughput. Retrofitting copper mine ball mills with modern transmission systems and intelligent controllers has demonstrated annual energy savings and improved metal recovery rates. Such upgrades not only reduce operational expenses but also lower maintenance requirements and environmental impact, enhancing both mineral processing equipment effectiveness and overall copper mining extraction outcomes.
